AS036/KH0047 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

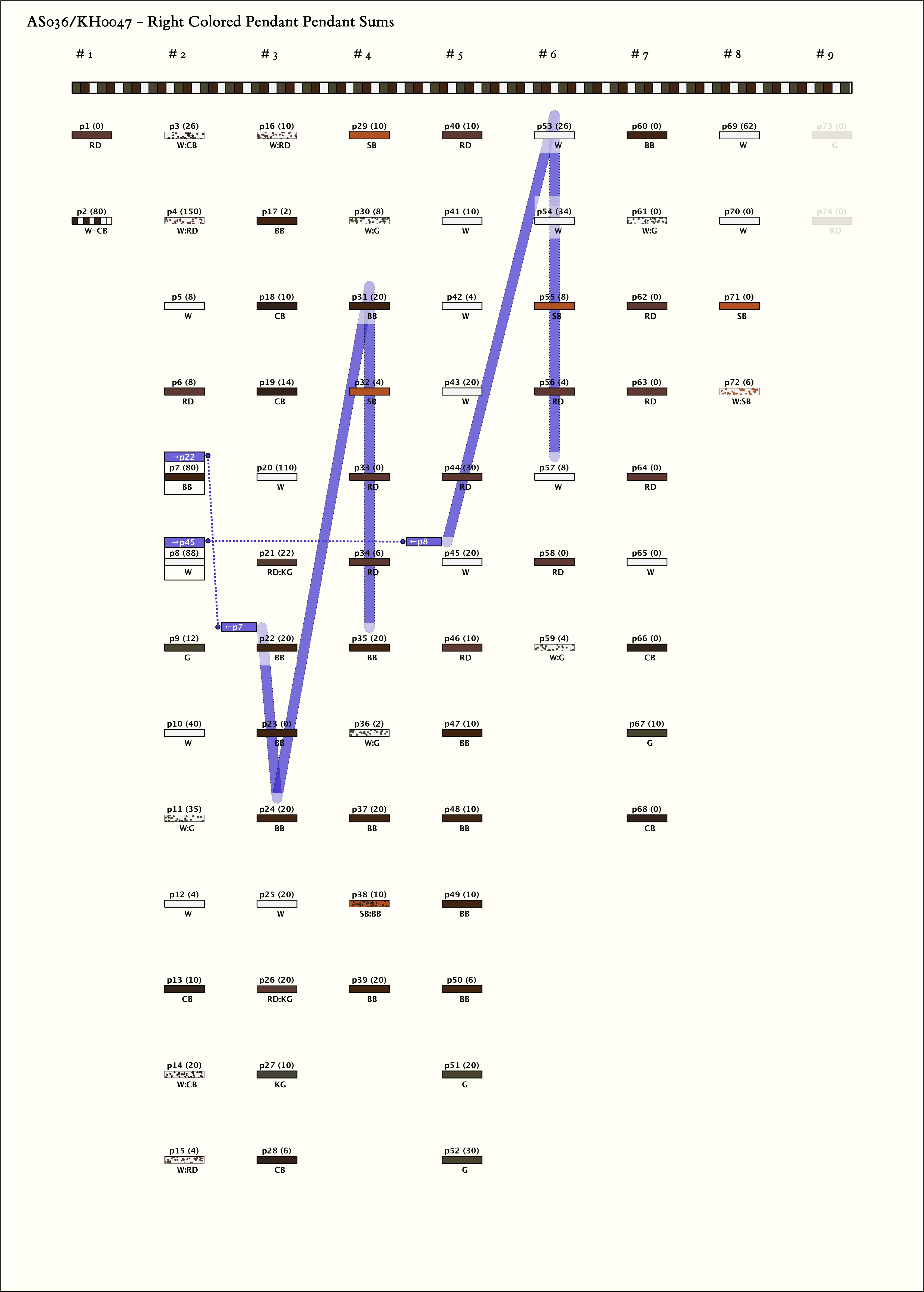

Right Handed Sums:     # Sums = 2,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (80, 84, 88)
Click on Image to View Larger

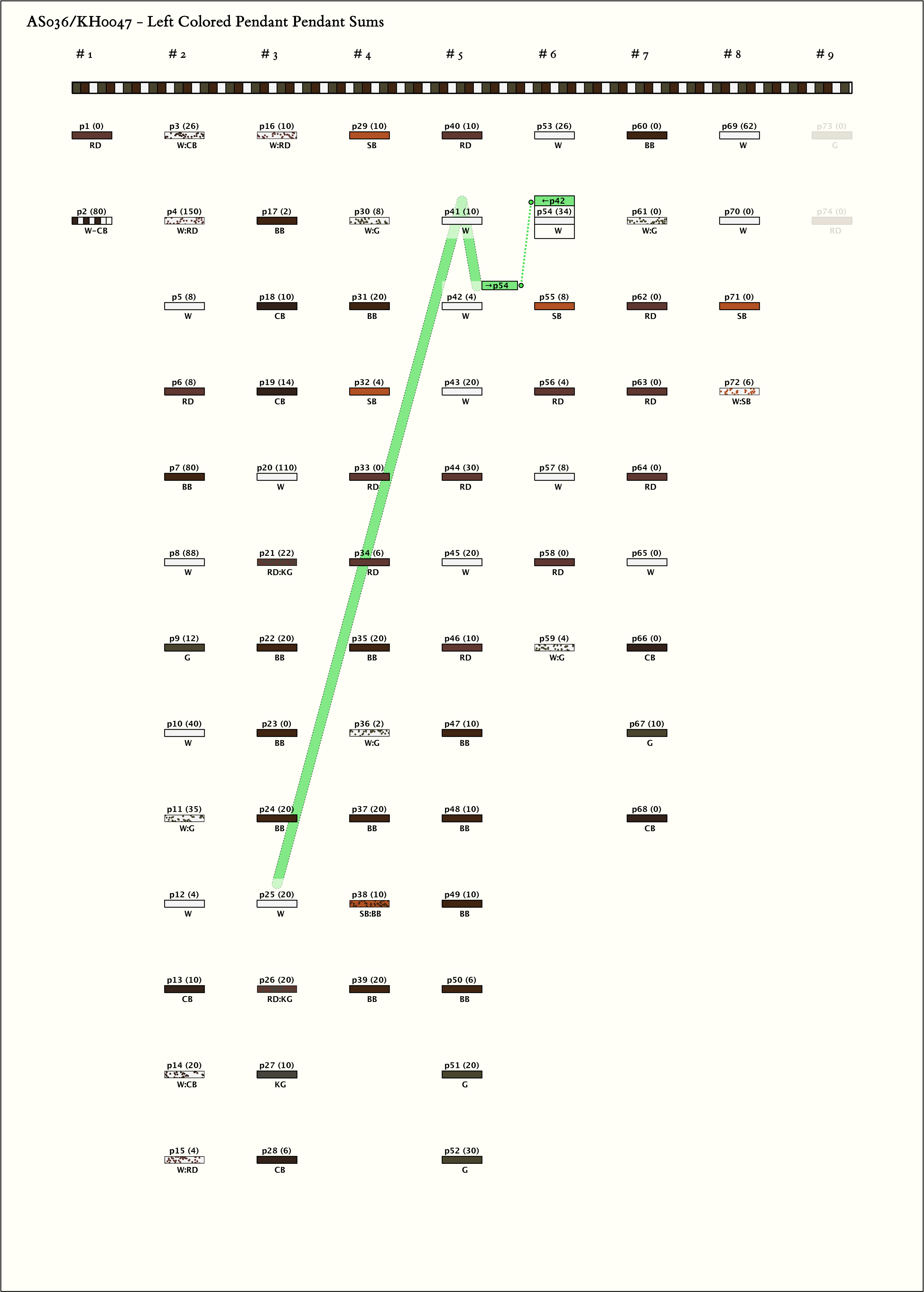

Left Handed Sums:     # Sums = 1,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (34, 34, 34)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p72, 5 : 80BB	80	4	p22: 20BB + p24: 20BB + p31: 20BB + p35: 20BB
2			p82, 6 : 88W	88	4	p45: 20W + p53: 26W + p54: 34W + p57: 8W

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p546, 2 : 34W	34	3	p25: 20W + p41: 10W + p42: 4W

Khipu Notes:

Ascher Databook Notes:

1. Since the positions of the s and L knots are inconsistent, no numerical interpretation is given.
2. AS036 and AS037 are associated and have the same Museum number. They are mentioned in Maranga : Contribución ai Conocimiento de ios Aborigenes del Valle del Rimac, Peru, J . Jij on Y Caamaño, La Prensa Católica, Quito-Equador, 1949. Their provenance is Maranga, Huaca 1. They were excavated in 1925 and were found in association with 4 burials. A purse (Museum number P688) was recovered in the same context, as were pottery vessels, gourds, and shells.
3. The colors W, G, RD, SB, BB, CB, and KG appear alone or in combination on both AS036 and AS037 . AS037 uses the 2 additional colors B and LG . Neither of the khipus have been given numerical interpretation.
