JC009/KH0616 - Colored Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

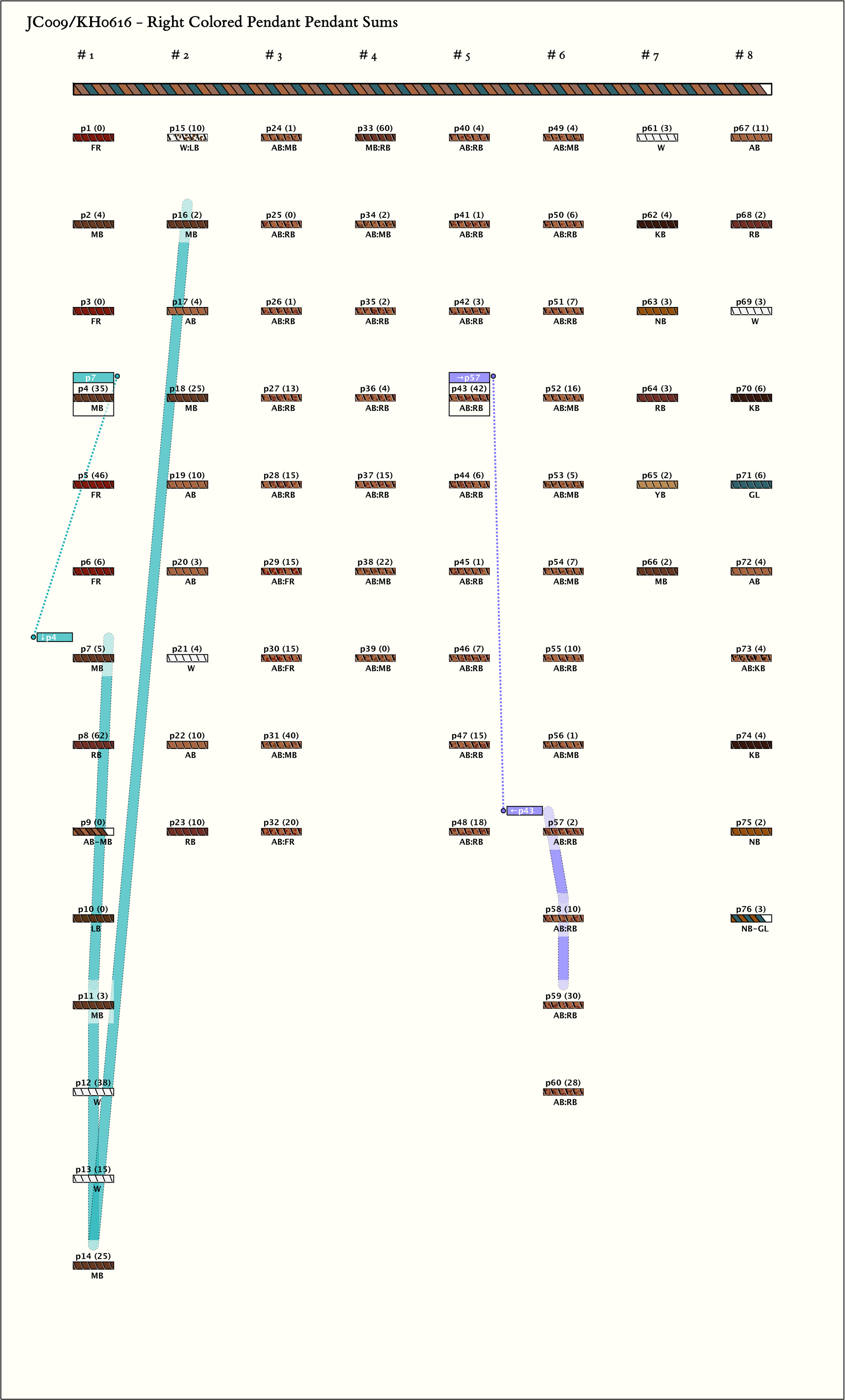

Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (35, 38, 42)
Click on Image to View Larger

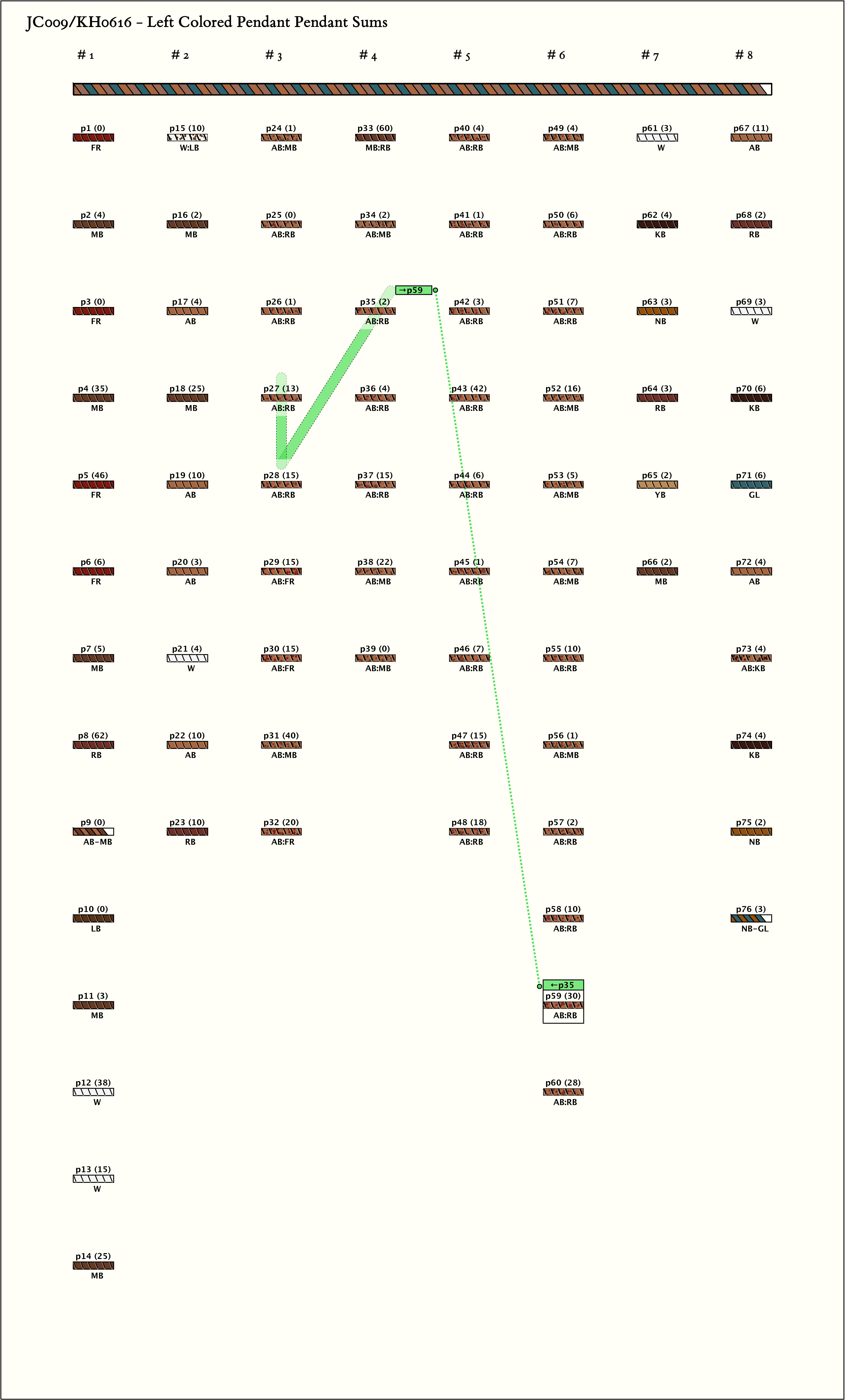

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 3, (Min, Mean, Max) Sum Values = (30, 30, 30)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | p41, 4 : 35MB | 35 | 4 | ∞p7: 5MB∞ + p11: 3MB + p14: 25MB + p16: 2MB | |
| 2 |  | p435, 4 : 42AB:RB | 42 | 3 | ∞p57: 2AB:RB∞ + p58: 10AB:RB + ∞p59: 30AB:RB∞ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | p596, 11 : 30AB:RB | 30 | 3 | ∞p27: 13AB:RB∞ + p28: 15AB:RB + p35: 2AB:RB |
