KH0061/AS050 - Colored Pendant Sums
Drawings:

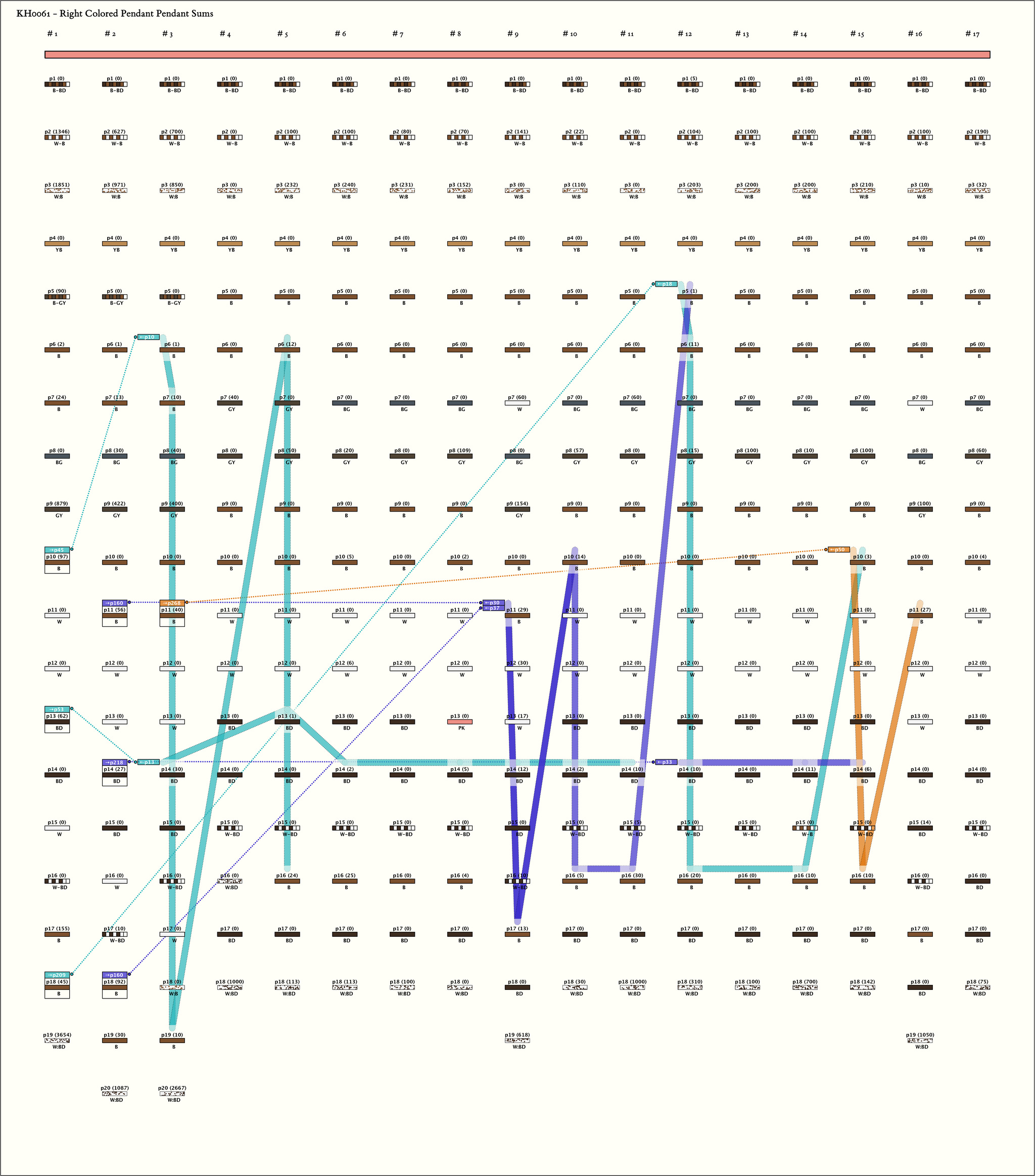

Right Handed Sums: # Sums = 7, Max # Summands = 7, (Min, Mean, Max) Sum Values = (27, 60, 97)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

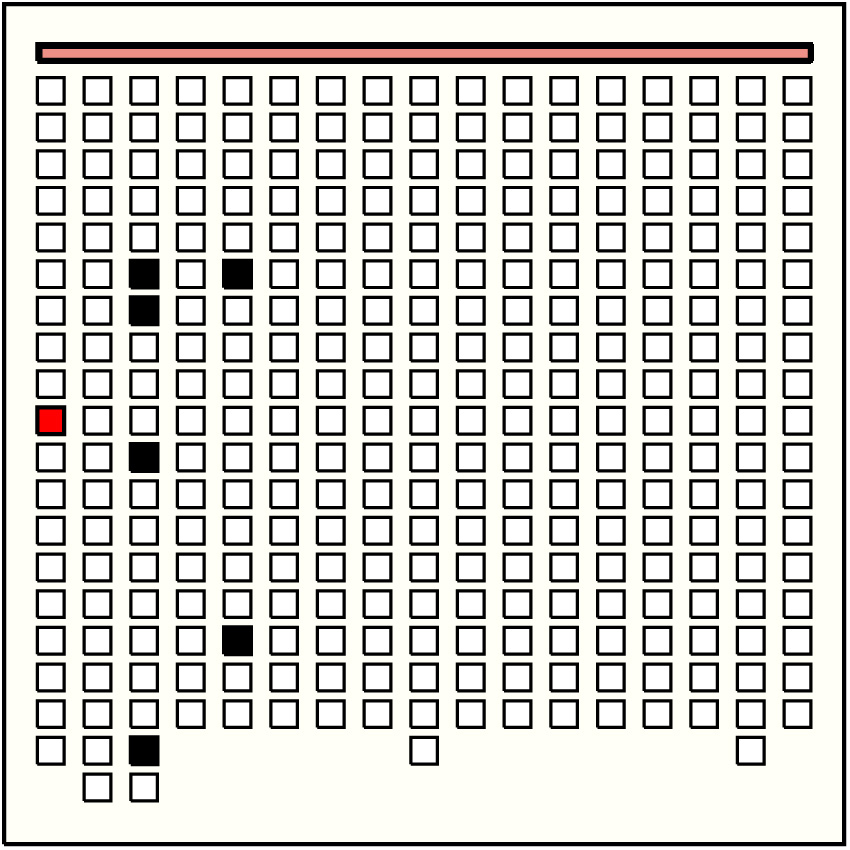

| 1 |  | g1p10 : 97B | 97 | 6 | g3p6: 1B + g3p7: 10B + g3p11: 40B + g3p19: 10B + g5p6: 12B + g5p16: 24B | |

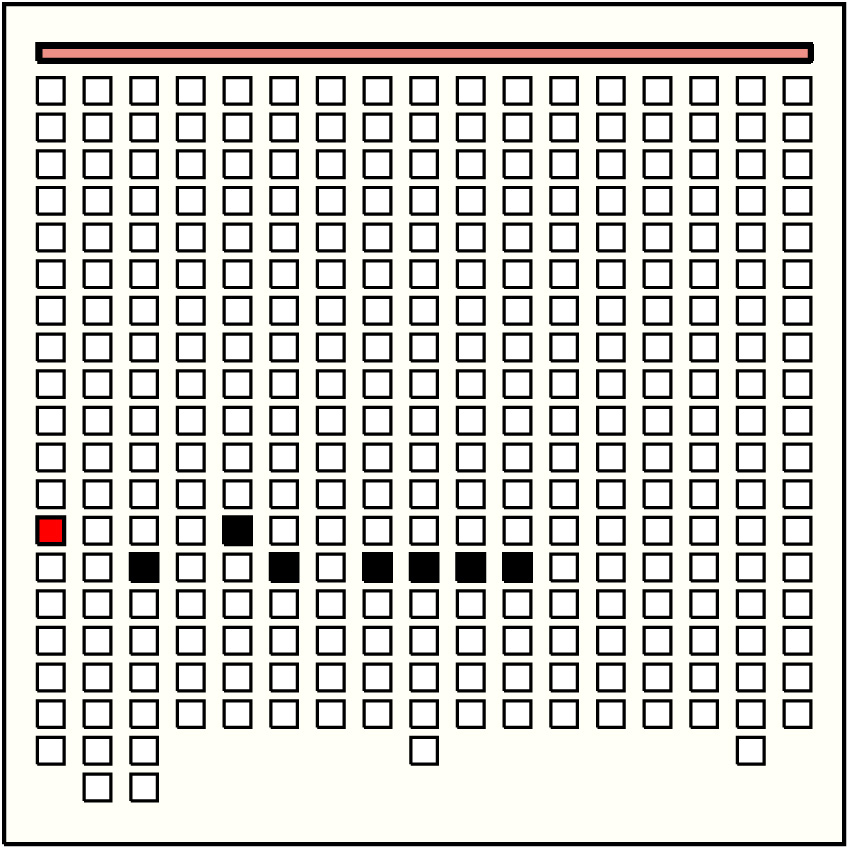

| 2 |  | g1p13 : 62BD | 62 | 7 | g3p14: 30BD + g5p13: 1BD + g6p14: 2BD + g8p14: 5BD + g9p14: 12BD + g10p14: 2BD + g11p14: 10BD | |

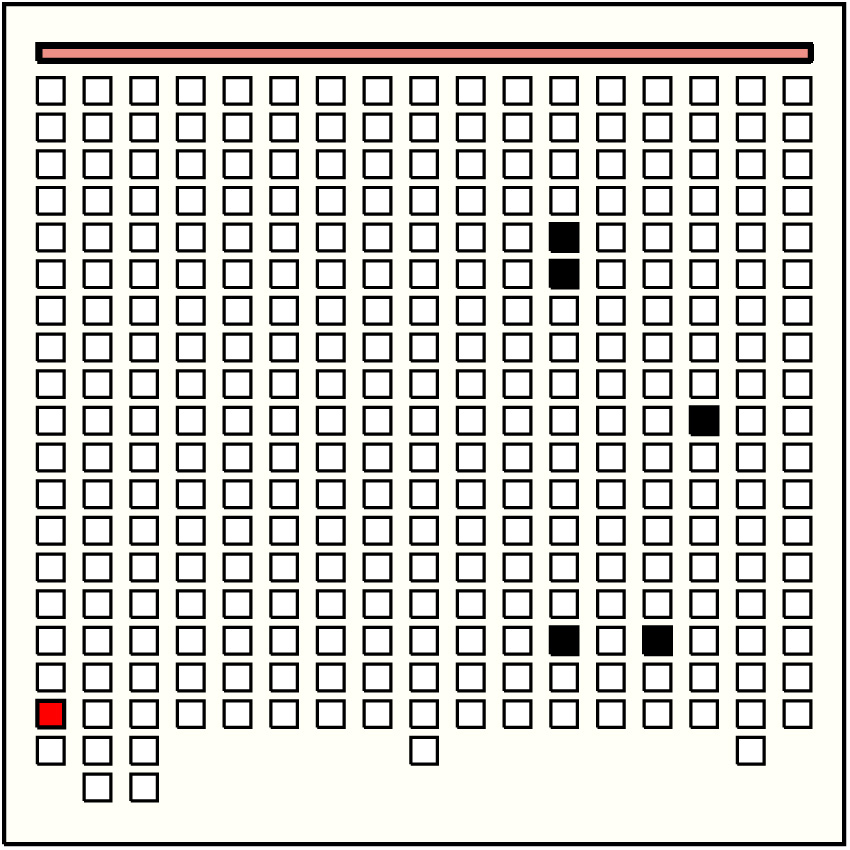

| 3 |  | g1p18 : 45B | 45 | 5 | g12p5: 1B + g12p6: 11B + g12p16: 20B + g14p16: 10B + g15p10: 3B | |
| 4 |  | g2p11 : 56B | 56 | 3 | g9p11: 29B + g9p17: 13B + g10p10: 14B | |
| 5 |  | g2p14 : 27BD | 27 | 3 | g12p14: 10BD + g14p14: 11BD + g15p14: 6BD | |
| 6 |  | g2p18 : 92B | 92 | 6 | g9p11: 29B + g9p17: 13B + g10p10: 14B + g10p16: 5B + g11p16: 30B + g12p5: 1B | |
| 7 |  | g3p11 : 40B | 40 | 3 | g15p10: 3B + g15p16: 10B + g16p11: 27B |
Khipu Notes:
Ascher Databook Notes:
- By spacing and color patterning, the khipu is separated into 3 parts : part 1 is 3 groups, and parts 2 and 3 are 7 groups each.
- Part 1: Assuming that position 10 in group 1 is non-existent, this part consists of 3 groups of 20 pendants each. The color pattern is the same for all 3 groups (with the exception of position 17 in group 3). In all 3 groups, subsidiaries appear only in positions 3, 8,9, 11, 14, 15, 16, 18, 19, 20.
- Parts 2 and 3:
- Each part is basically 7 groups of 18 pendants. The exceptions of 2 groups with 19 pendants are systematic. The 6th group in each part has an additional W pendant between positions 7 and 8.
- Each group in parts 2 and 3 has the same color pattern (with the exception of position 8 in groups 4 and 5 and position 18 in group 4). The color pattern is the same as in part 1 with the systematic difference that positions 5 and 8 of the part 1 pattern do not exist. Thus, there are 18 pendants in each group in parts 2 and 3 as compared to 20 pendants in each group in part 1. Also, while the color in position 19 of the groups in part 1 are B, in parts 2 and 3, the comparable position is BD.
- Subsidiaries on pendants in parts 2 and 3 are on a subset of the positions they are on in part 1. Namely, subsidiaries are only on positions comparable to positions 9,15,16,18,20 of part 1.
- Many values are uncertain due to breakage. However, we hypothesize that, position by position, values in group 1 of part 1 are related to the sums of values in groups 2 and 3 while values in groups 2 and 3 are related to sums of values in parts 2 and 3 respectively.
