UR037/KH0269 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Colored Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

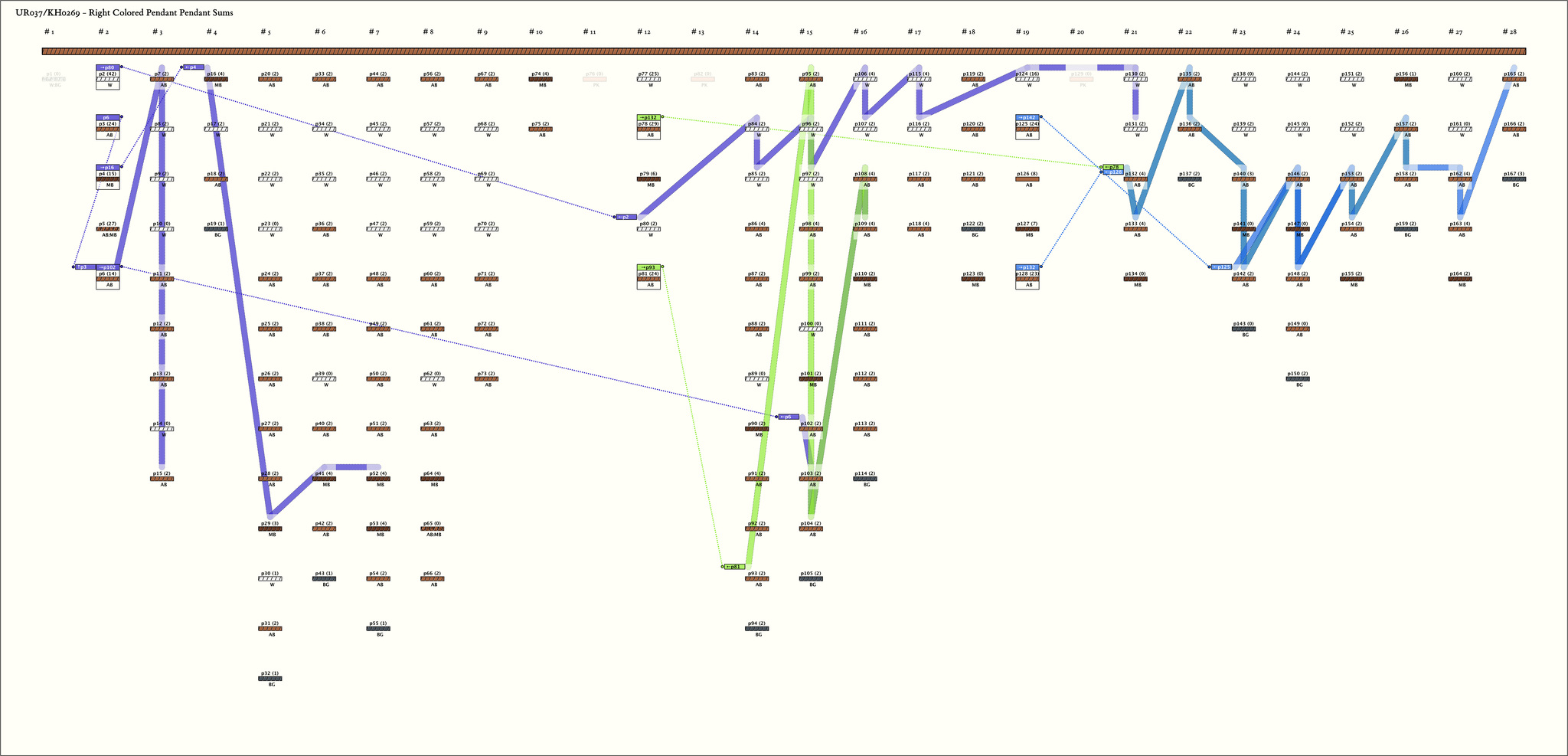

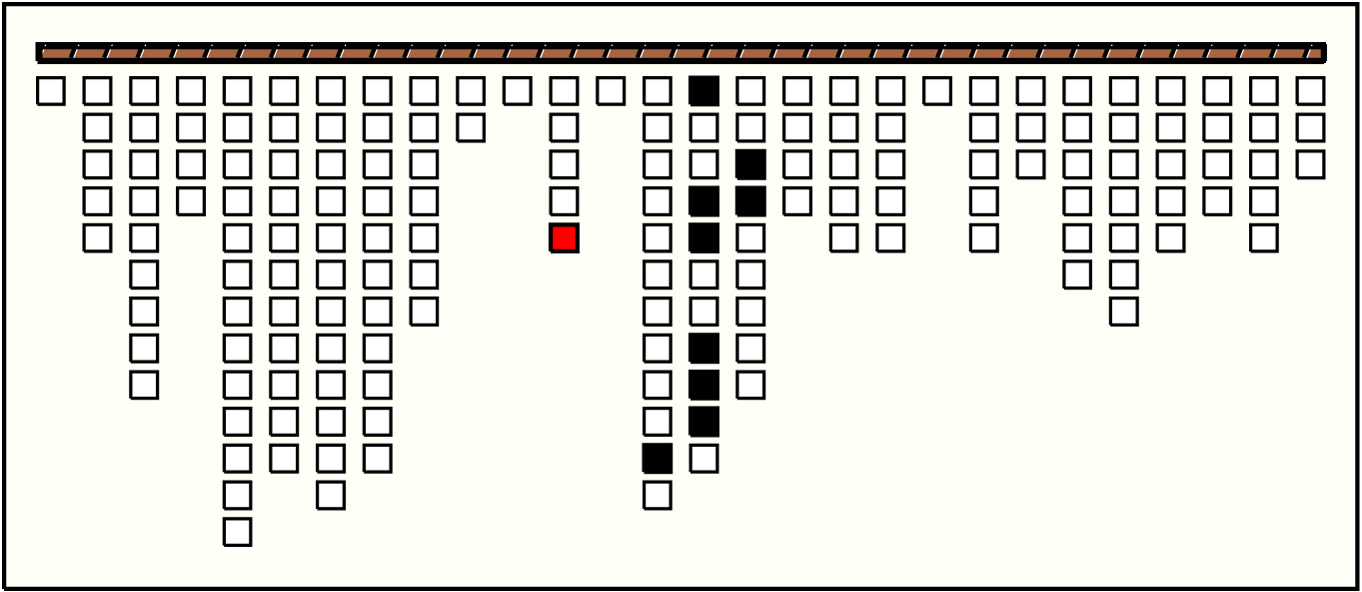

Right Handed Sums with Figure-8-Knots: # Sums = 8, Max # Summands = 12, (Min, Mean, Max) Sum Values = (14, 24, 42)
Click on Image to View Larger

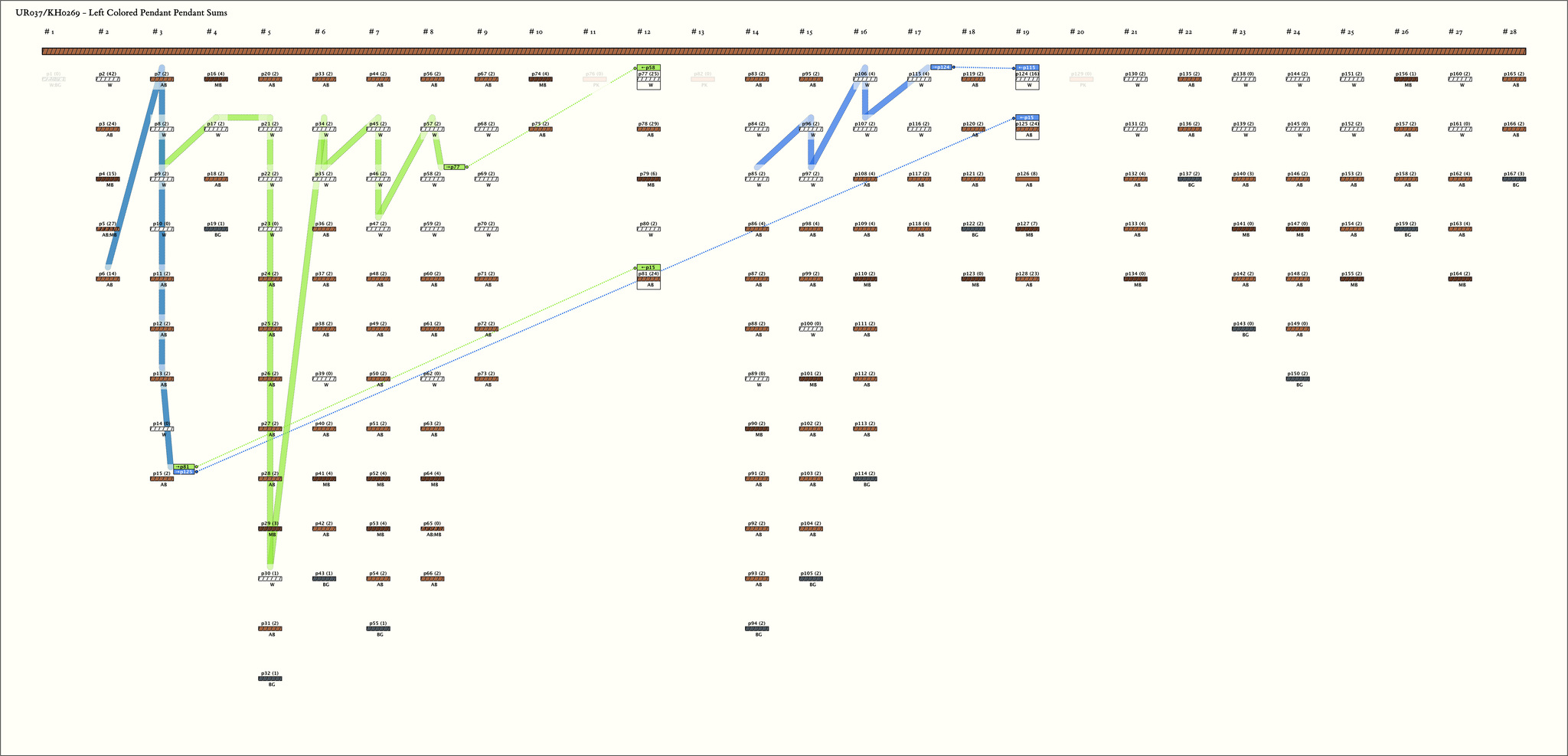

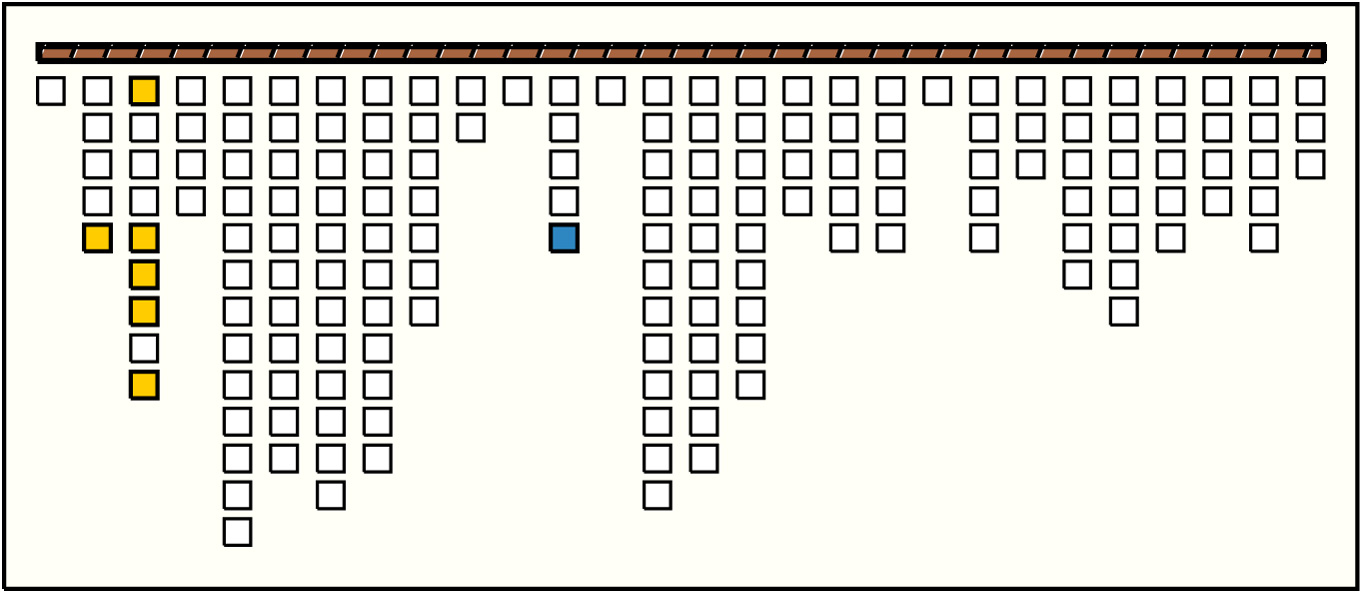

Left Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 13, (Min, Mean, Max) Sum Values = (16, 22, 25)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p2_{2, 1} : 42_W	42	12	p80: 2_W + p84: 2_W + p85: 2_W + p96: 2_W + p97: 2_W + p106: 4_W + p107: 2_W + p115: 4_W + p116: 2_W + p124: 16_W + p130: 2_W + p131: 2_W

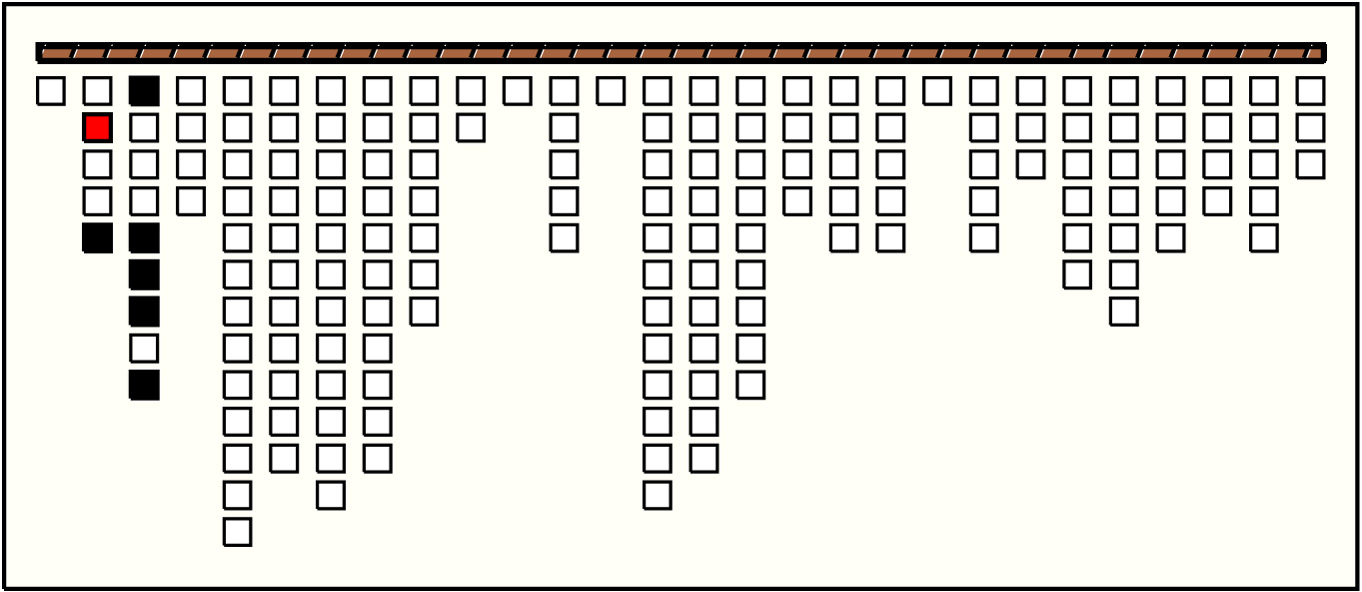

2	p3_{2, 2} : 24_AB	24	6	p6: 14_AB + p7: 2_AB + p11: 2_AB + p12: 2_AB + p13: 2_AB + p15: 2_AB

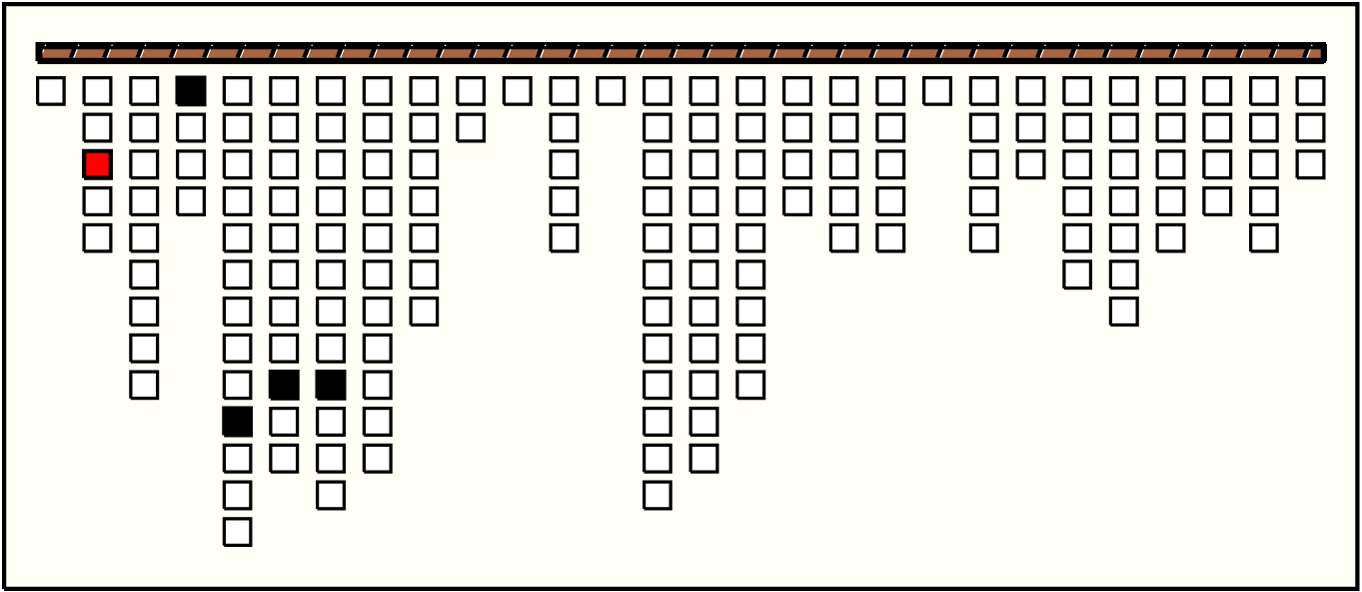

3	p4_{2, 3} : 15_MB	15	4	p16: 4_MB + p29: 3_MB + p41: 4_MB + p52: 4_MB
4	p6_{2, 5} : 14_AB	14	5	p102: 2_AB + p103: 2_AB + p104: 2_AB + p108: 4_AB + p109: 4_AB

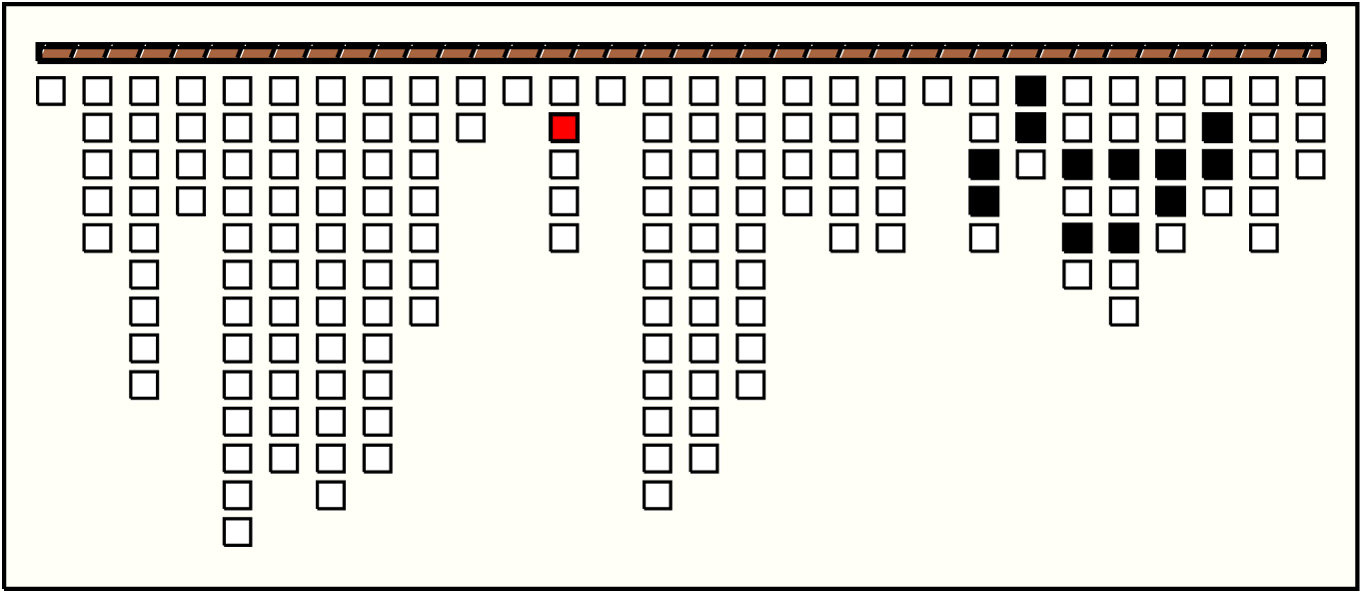

5	p78_{12, 2} : 29_AB	29	12	p132: 4_AB + p133: 4_AB + p135: 2_AB + p136: 2_AB + p140: 3_AB + p142: 2_AB + p146: 2_AB + p148: 2_AB + p153: 2_AB + p154: 2_AB + p157: 2_AB + p158: 2_AB
6	p81_{12, 5} : 24_AB	24	9	p93: 2_AB + p95: 2_AB + p98: 4_AB + p99: 2_AB + p102: 2_AB + p103: 2_AB + p104: 2_AB + p108: 4_AB + p109: 4_AB
7	p125_{19, 2} : 24_AB	24	10	p142: 2_AB + p146: 2_AB + p148: 2_AB + p153: 2_AB + p154: 2_AB + p157: 2_AB + p158: 2_AB + p162: 4_AB + p163: 4_AB + p165: 2_AB

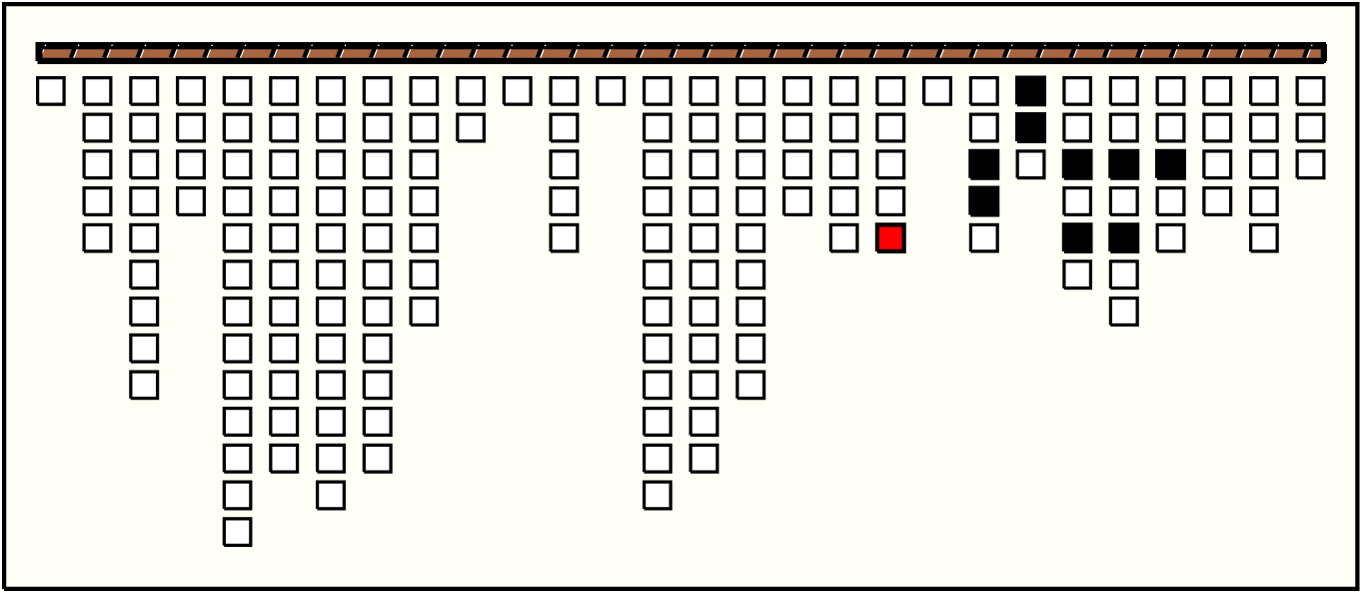

8	p128_{19, 5} : 23_AB	23	9	p132: 4_AB + p133: 4_AB + p135: 2_AB + p136: 2_AB + p140: 3_AB + p142: 2_AB + p146: 2_AB + p148: 2_AB + p153: 2_AB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

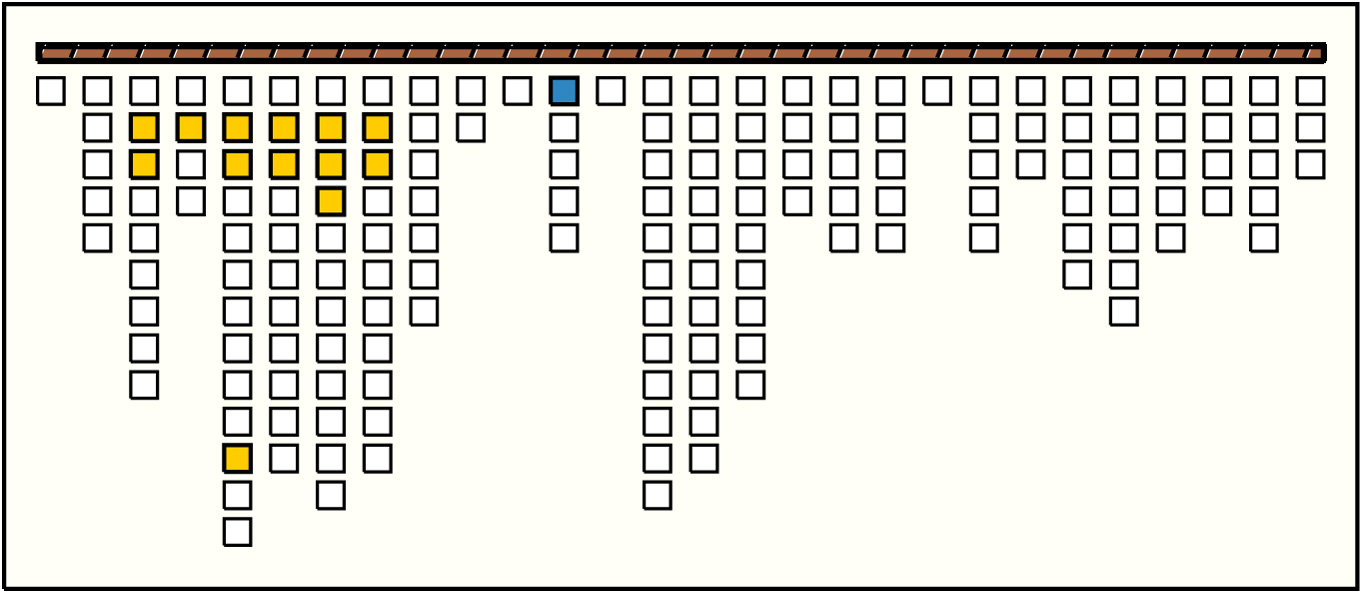

1	p77_{12, 1} : 25_W	25	13	p8: 2_W + p9: 2_W + p17: 2_W + p21: 2_W + p22: 2_W + p30: 1_W + p34: 2_W + p35: 2_W + p45: 2_W + p46: 2_W + p47: 2_W + p57: 2_W + p58: 2_W
2	p81_{12, 5} : 24_AB	24	6	p6: 14_AB + p7: 2_AB + p11: 2_AB + p12: 2_AB + p13: 2_AB + p15: 2_AB
3	p124_{19, 1} : 16_W	16	6	p85: 2_W + p96: 2_W + p97: 2_W + p106: 4_W + p107: 2_W + p115: 4_W

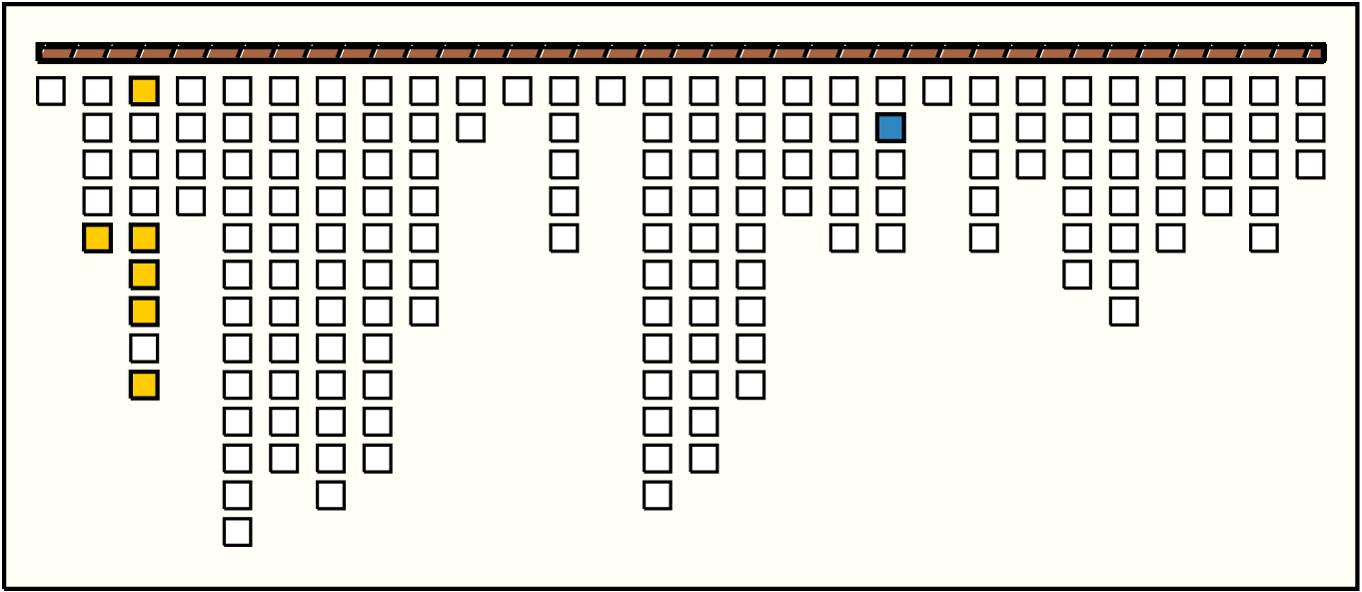

4	p125_{19, 2} : 24_AB	24	6	p6: 14_AB + p7: 2_AB + p11: 2_AB + p12: 2_AB + p13: 2_AB + p15: 2_AB

Khipu Notes:

1. Beginning knot has addition threads woven through it. Threads are light brown, light blue, red.
1. Beginning knot has addition threads woven through it. Threads are light brown, light blue, red.
2. Markers are approximately 1 cm long thread wrapped sections. Colors of wrapping threads match colors of threads in beginning knot of primary cord (light brown, light blue, red).
3. First pendant is attached to primary cord by a single granny knot around primary cord. The end of the pendant cord is doubled. Khipu is stitched down so cannot see the actual knot. End of the pendant protrudes 2 cm from top of primary cord. Total length including knotted part is approximately 26.5 cm. Subsidiary position read from main cord.
