UR087/KH0323 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Colored Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

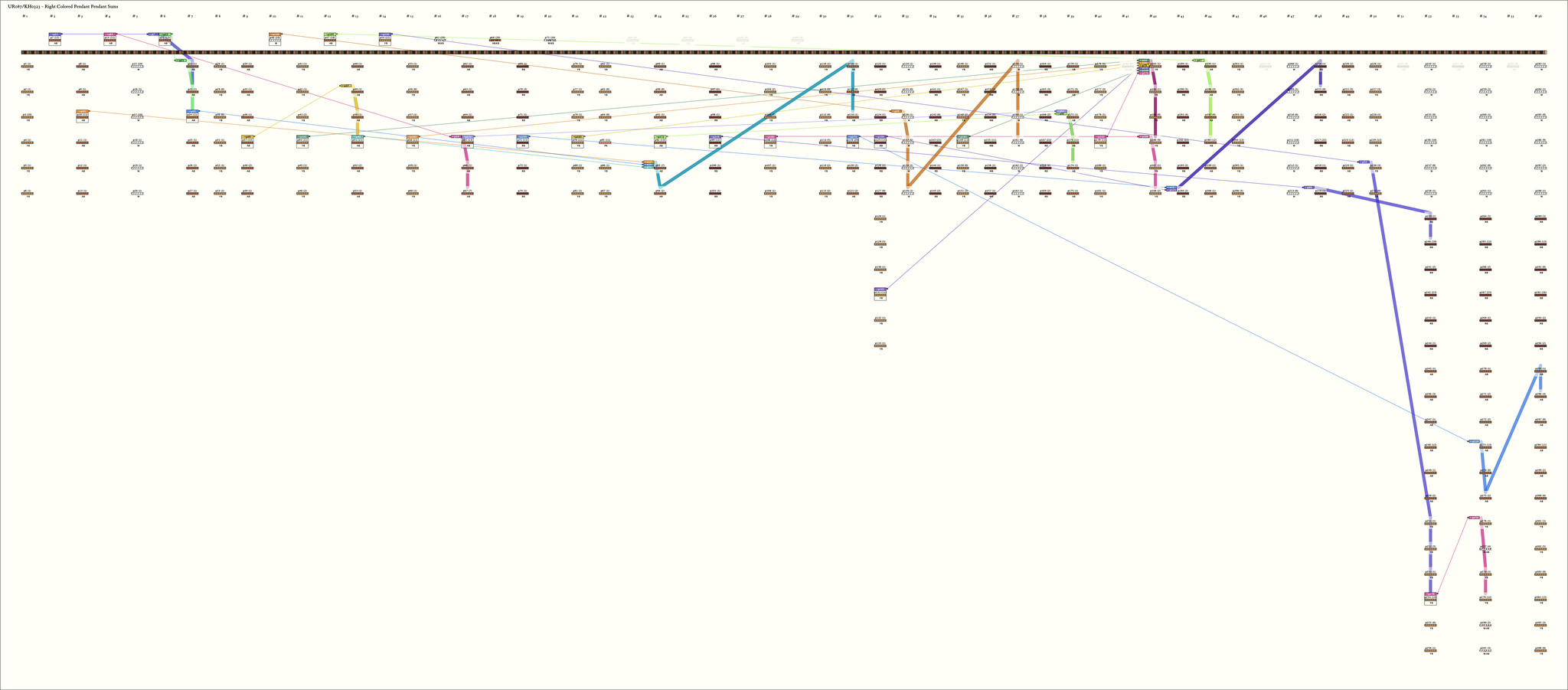

Right Handed Sums with Figure-8-Knots: # Sums = 24, Max # Summands = 7, (Min, Mean, Max) Sum Values = (11, 14, 22)
Click on Image to View Larger

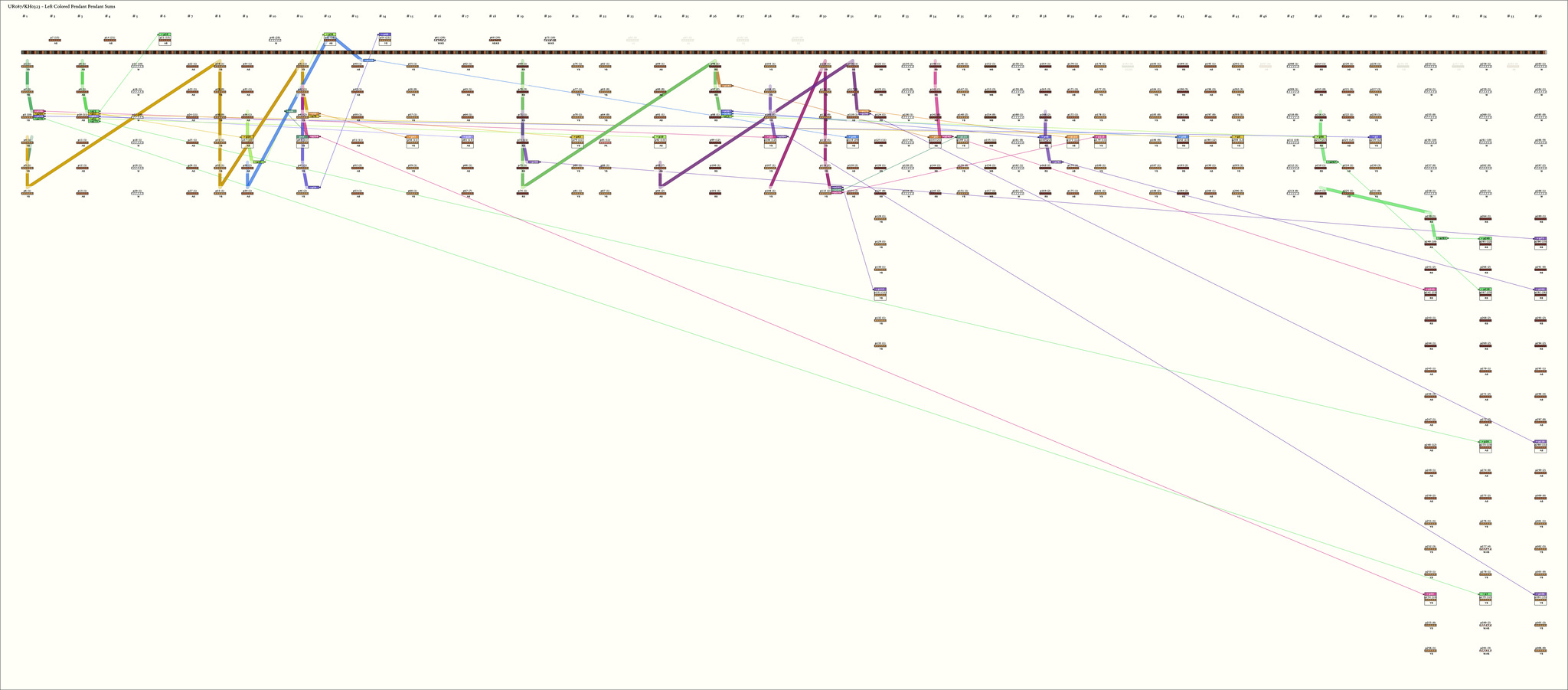

Left Handed Sums with Figure-8-Knots: # Sums = 31, Max # Summands = 10, (Min, Mean, Max) Sum Values = (11, 15, 26)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p7_{2, 1} : 15_AB	15	3	∞p21: 13_AB∞ + p22: 1_AB + p23: 1_AB❽
2	p10_{3, 3} : 11_AB	11	4	∞p93: 7_AB + p94: 2_AB + p116: 1_AB + p118: 1_AB❽

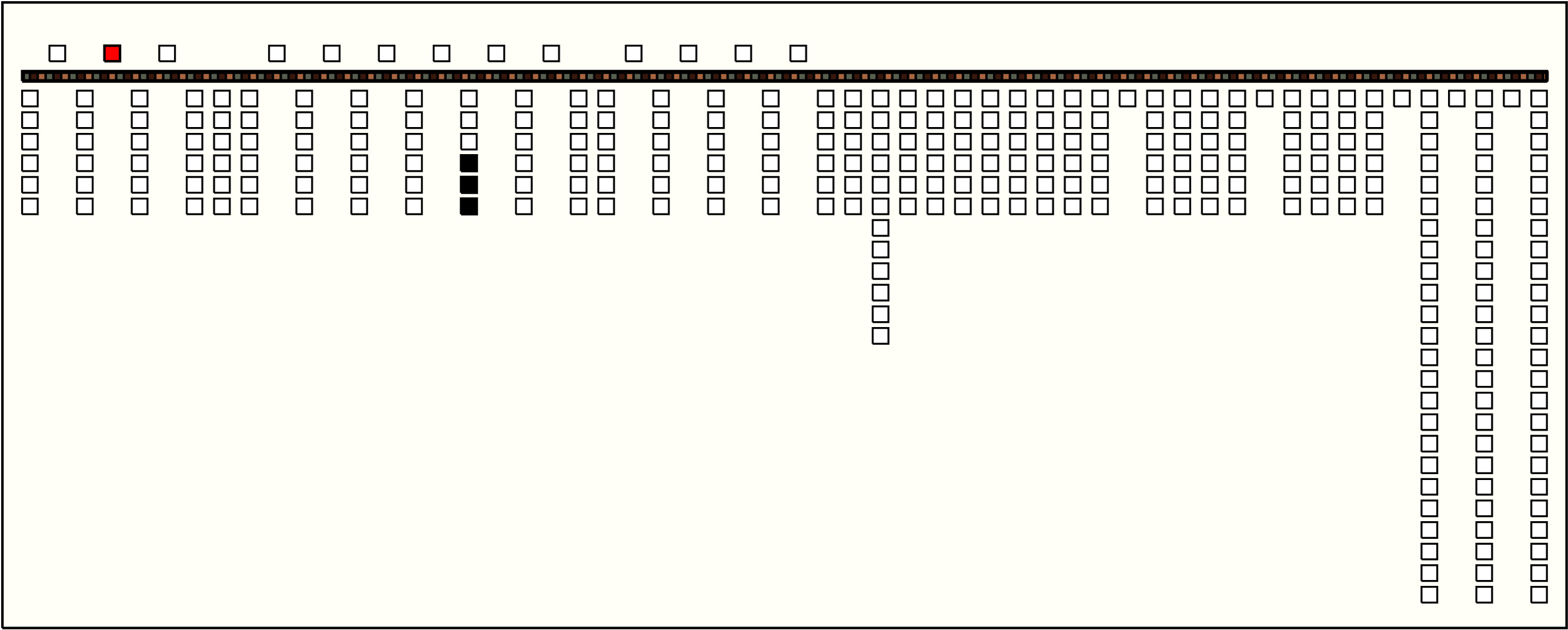

3	p14_{4, 1} : 21_AB	21	3	∞p65: 13_AB∞ + p66: 1_AB + ∞p67: 7_AB
4	p21_{6, 1} : 13_AB	13	3	❽p22: 1_AB + p23: 1_AB + p24: 11_AB❽

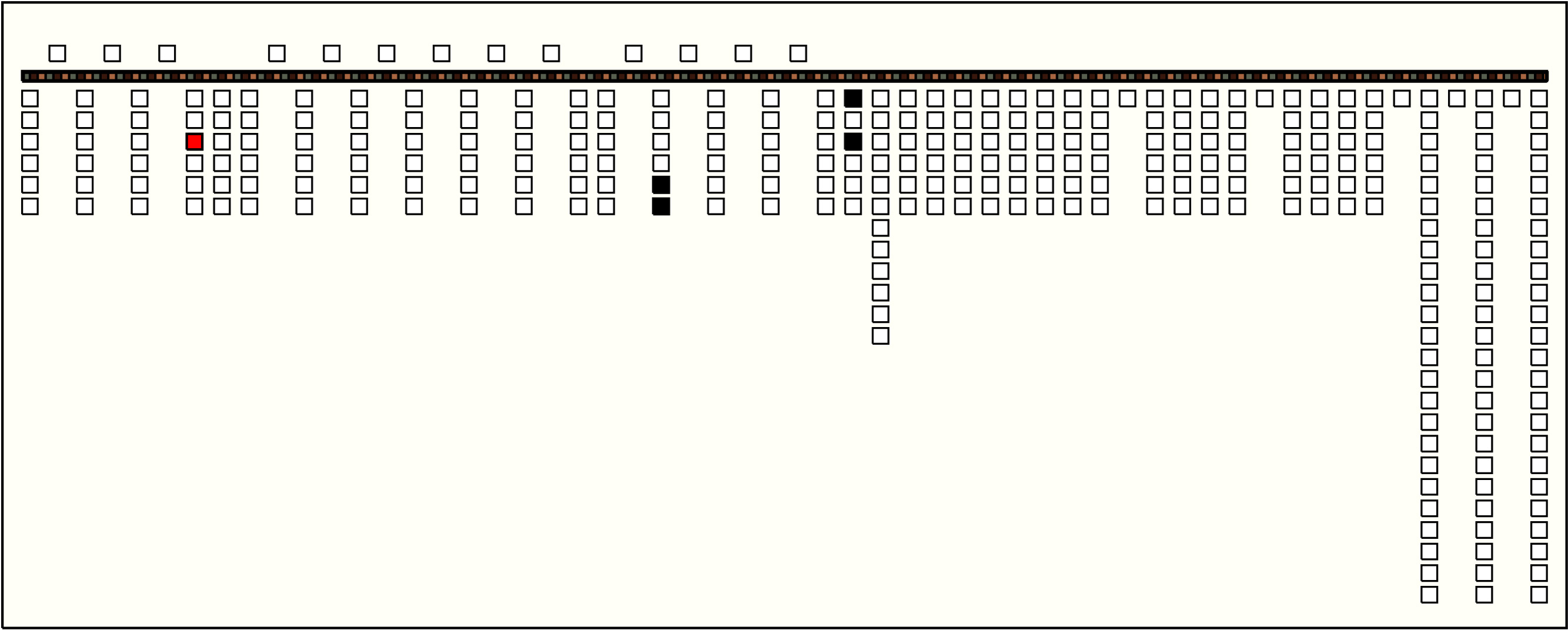

5	p24_{7, 3} : 11_AB	11	4	∞p93: 7_AB + p94: 2_AB + p116: 1_AB + p118: 1_AB❽
6	p37_{9, 4} : 13_AB	13	3	❽p49: 1_AB + p50: 1_AB + p51: 11_AB❽

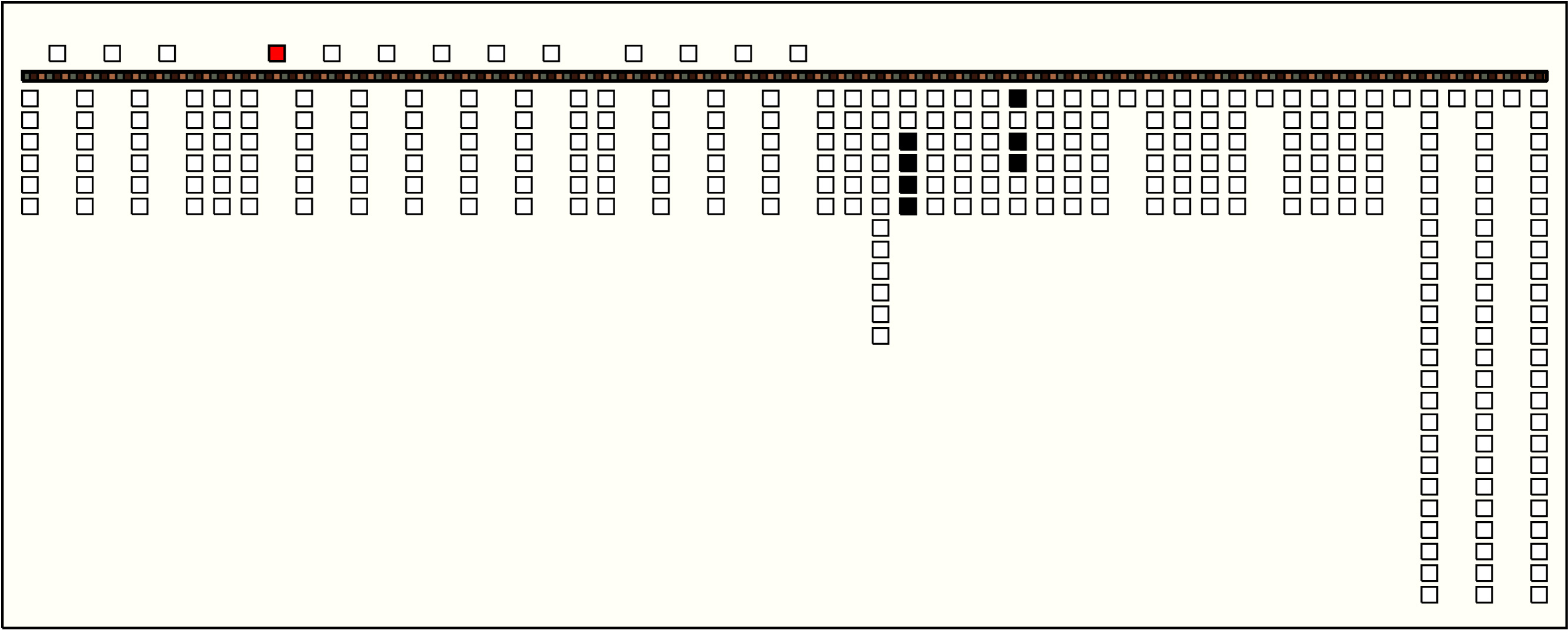

7	p40_{10, 1} : 20_W	20	7	❽p136: 1_W + p137: 6_W + p138: 2_W + p139: 1_W + p158: 1_W + p160: 1_W + ∞p161: 8_W∞
8	p44_{11, 4} : 11_YB	11	3	❽p183: 1_YB + p184: 1_YB + p186: 9_YB∞

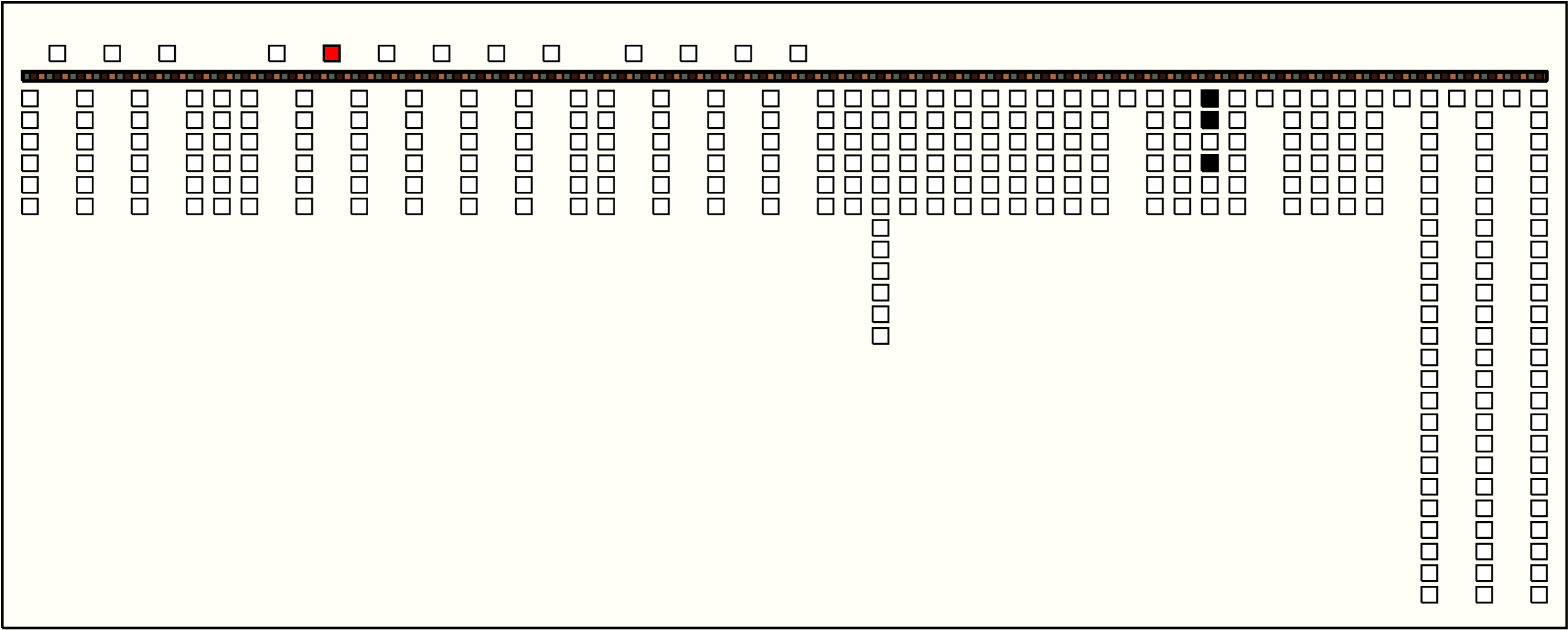

9	p47_{12, 1} : 16_AB	16	3	❽p195: 1_AB + p196: 3_AB + p198: 12_AB∞

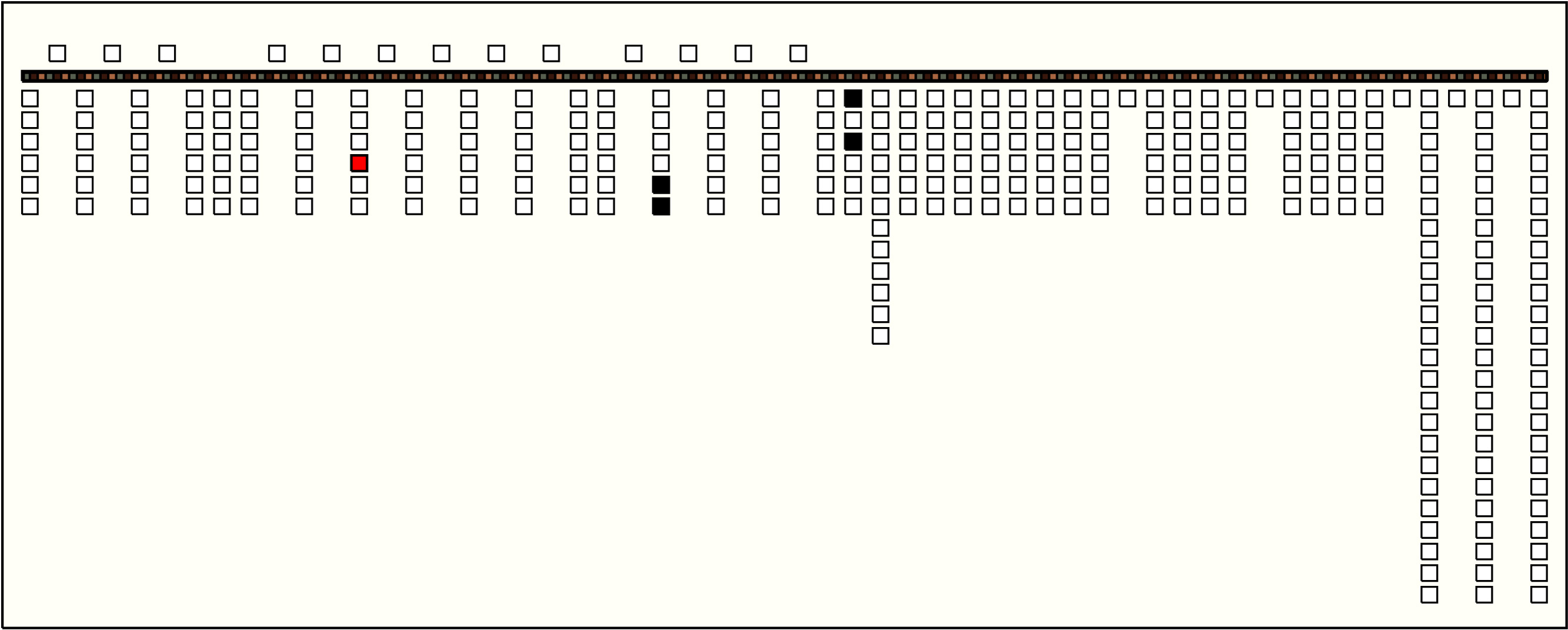

10	p51_{13, 4} : 11_AB	11	4	∞p93: 7_AB + p94: 2_AB + p116: 1_AB + p118: 1_AB❽
11	p54_{14, 1} : 22_YB	22	5	∞p230: 3_YB + p251: 1_YB + p252: 3_YB + p253: 1_YB + ∞p254: 14_YB

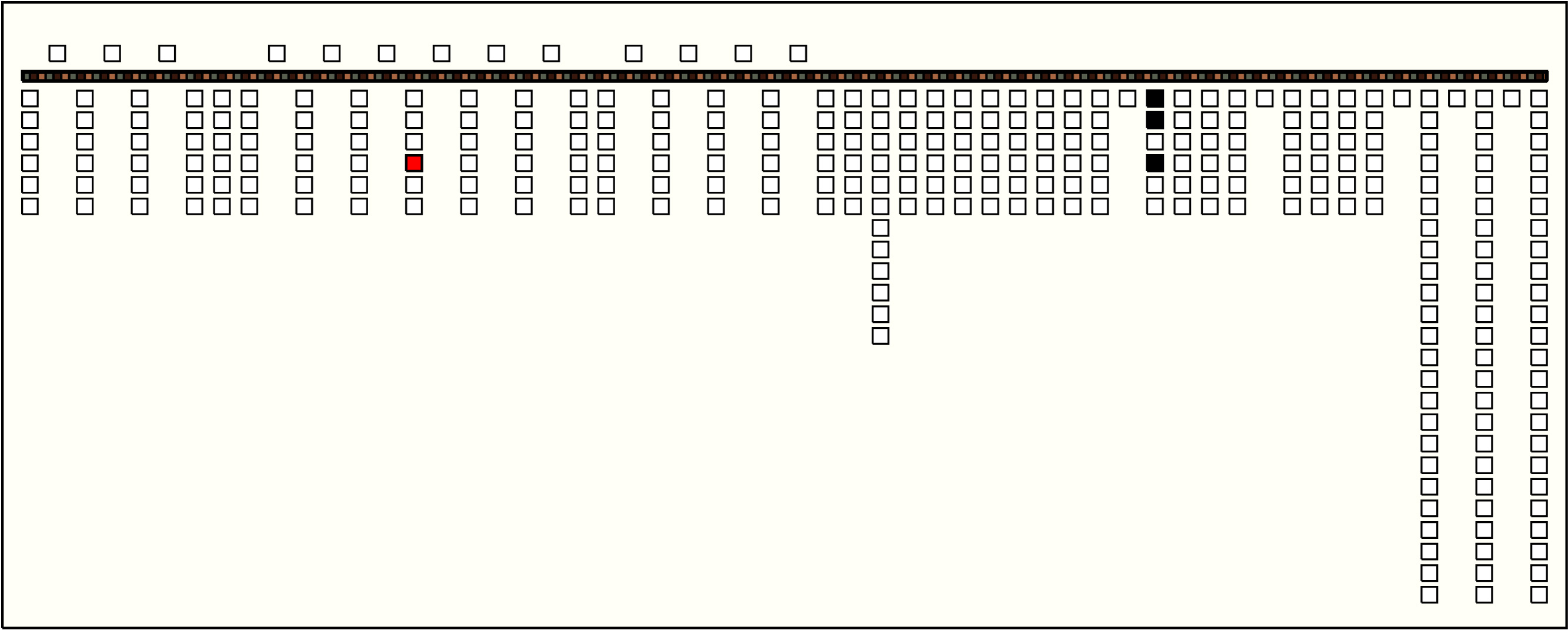

12	p58_{15, 4} : 11_YB	11	3	❽p183: 1_YB + p184: 1_YB + p186: 9_YB∞
13	p65_{17, 4} : 13_AB	13	3	❽p172: 1_AB + p173: 11_AB + p174: 1_AB❽
14	p72_{19, 4} : 11_RB	11	3	p194: 2_RB∞ + p214: 1_RB + p215: 8_RB❽
15	p79_{21, 4} : 11_YB	11	3	❽p183: 1_YB + p184: 1_YB + p186: 9_YB∞
16	p92_{24, 4} : 13_AB	13	3	❽p172: 1_AB + p173: 11_AB + p174: 1_AB❽

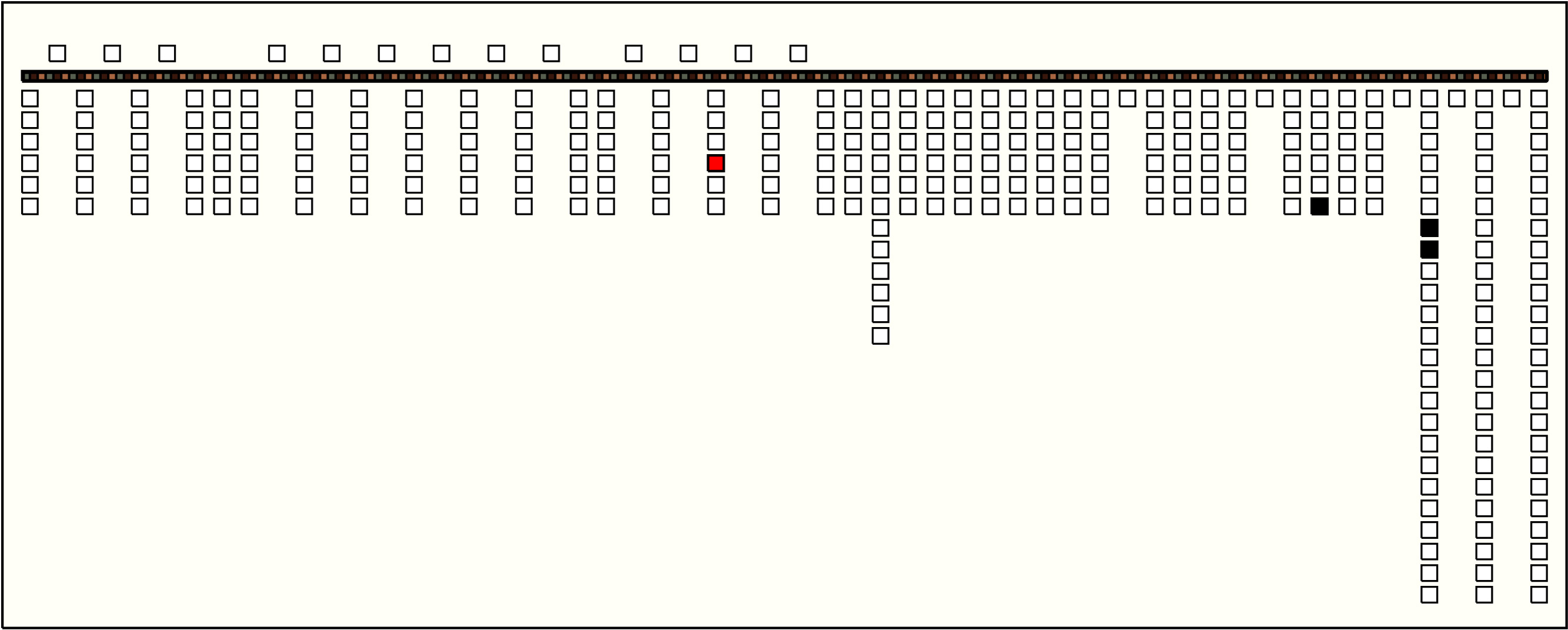

17	p99_{26, 4} : 12_RB	12	3	❽p219: 1_RB + p239: 1_RB + ∞p240: 10_RB

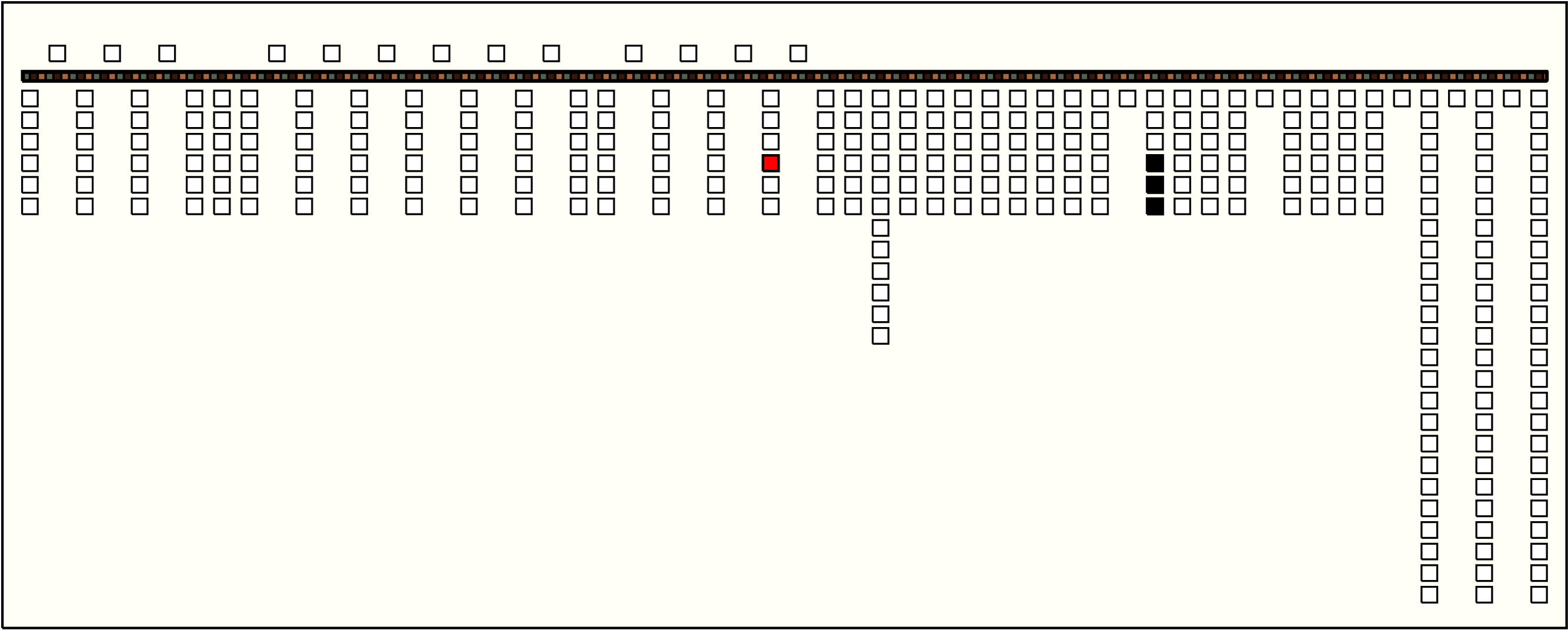

18	p106_{28, 4} : 12_YB	12	3	p186: 9_YB∞ + p187: 1_YB + ∞p188: 2_YB∞
19	p119_{31, 4} : 20_AB	20	4	❽p273: 13_AB + p275: 2_AB + p295: 1_AB + ∞p296: 4_AB
20	p125_{32, 4} : 11_RB	11	3	p194: 2_RB∞ + p214: 1_RB + p215: 8_RB❽
21	p131_{32, 10} : 11_YB	11	3	❽p183: 1_YB + p184: 1_YB + p186: 9_YB∞
22	p149_{35, 4} : 11_YB	11	3	❽p183: 1_YB + p184: 1_YB + p186: 9_YB∞
23	p179_{40, 4} : 11_YB	11	3	❽p183: 1_YB + p184: 1_YB + p186: 9_YB∞
24	p254_{52, 22} : 14_YB	14	3	❽p276: 1_YB + p278: 1_YB + ∞p279: 12_YB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p21_{6, 1} : 13_AB	13	3	❽p8: 1_AB + p9: 1_AB + p10: 11_AB❽

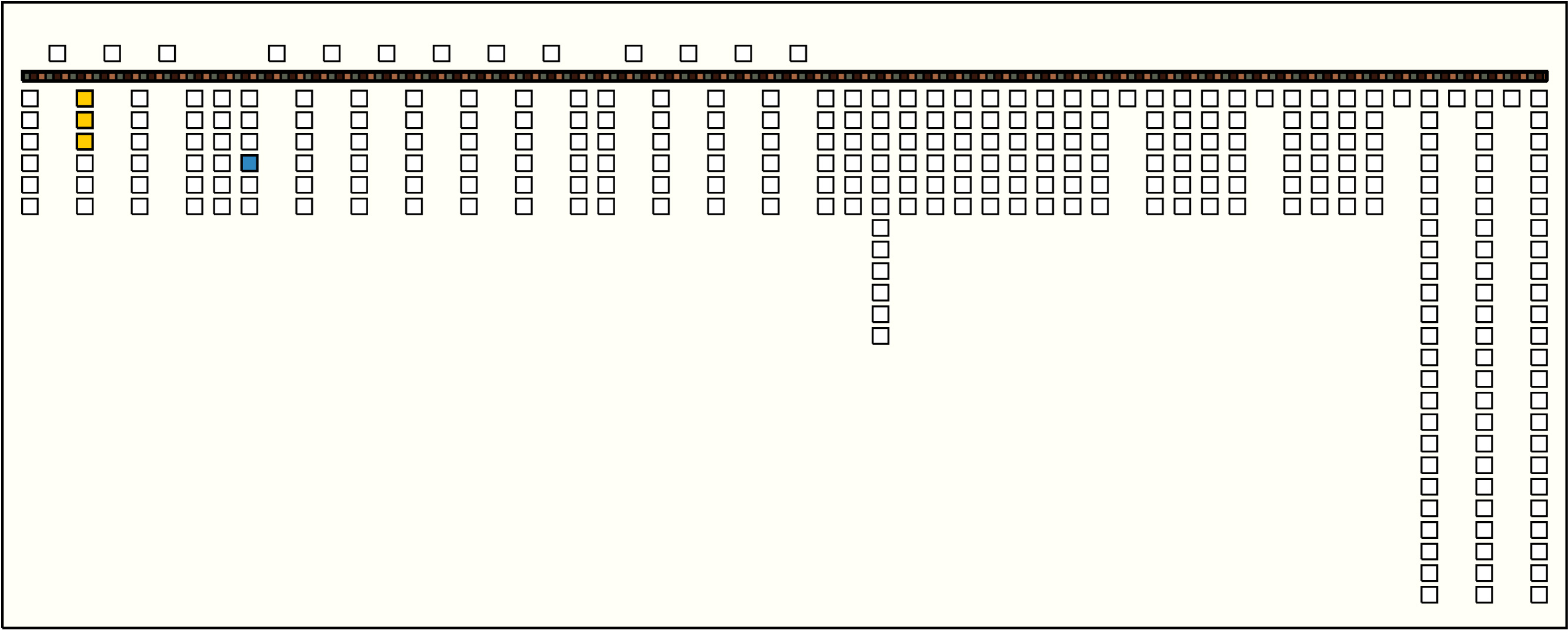

2	p37_{9, 4} : 13_AB	13	3	❽p8: 1_AB + p9: 1_AB + p10: 11_AB❽

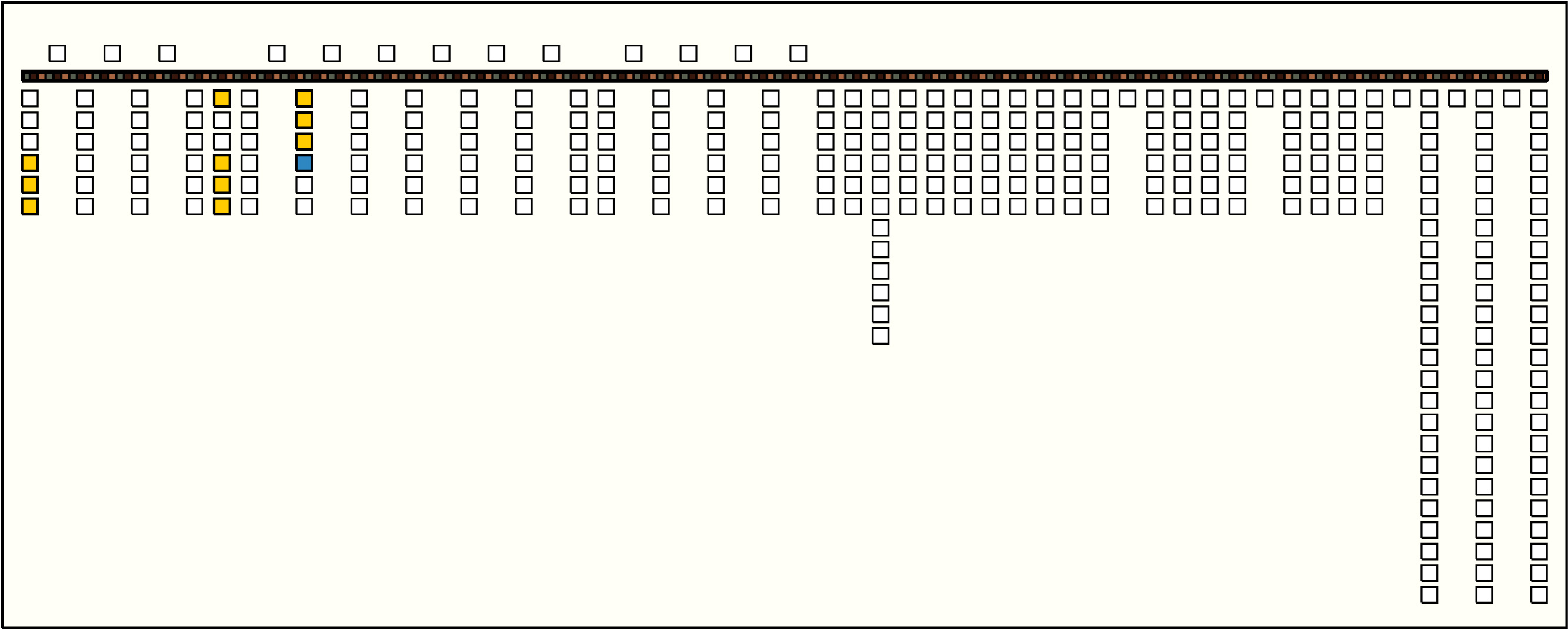

3	p44_{11, 4} : 11_YB	11	10	❽p4: 1_YB + p5: 1_YB + p6: 1_YB + p28: 1_YB + p31: 1_YB + p32: 1_YB + p33: 1_YB + p41: 1_YB + p42: 1_YB + p43: 2_YB❽
4	p47_{12, 1} : 16_AB	16	3	❽p36: 1_AB + p37: 13_AB + p38: 2_AB∞
5	p54_{14, 1} : 22_YB	22	10	❽p28: 1_YB + p31: 1_YB + p32: 1_YB + p33: 1_YB + p41: 1_YB + p42: 1_YB + p43: 2_YB + p44: 11_YB + p45: 1_YB + ∞p46: 2_YB
6	p58_{15, 4} : 11_YB	11	10	❽p4: 1_YB + p5: 1_YB + p6: 1_YB + p28: 1_YB + p31: 1_YB + p32: 1_YB + p33: 1_YB + p41: 1_YB + p42: 1_YB + p43: 2_YB❽

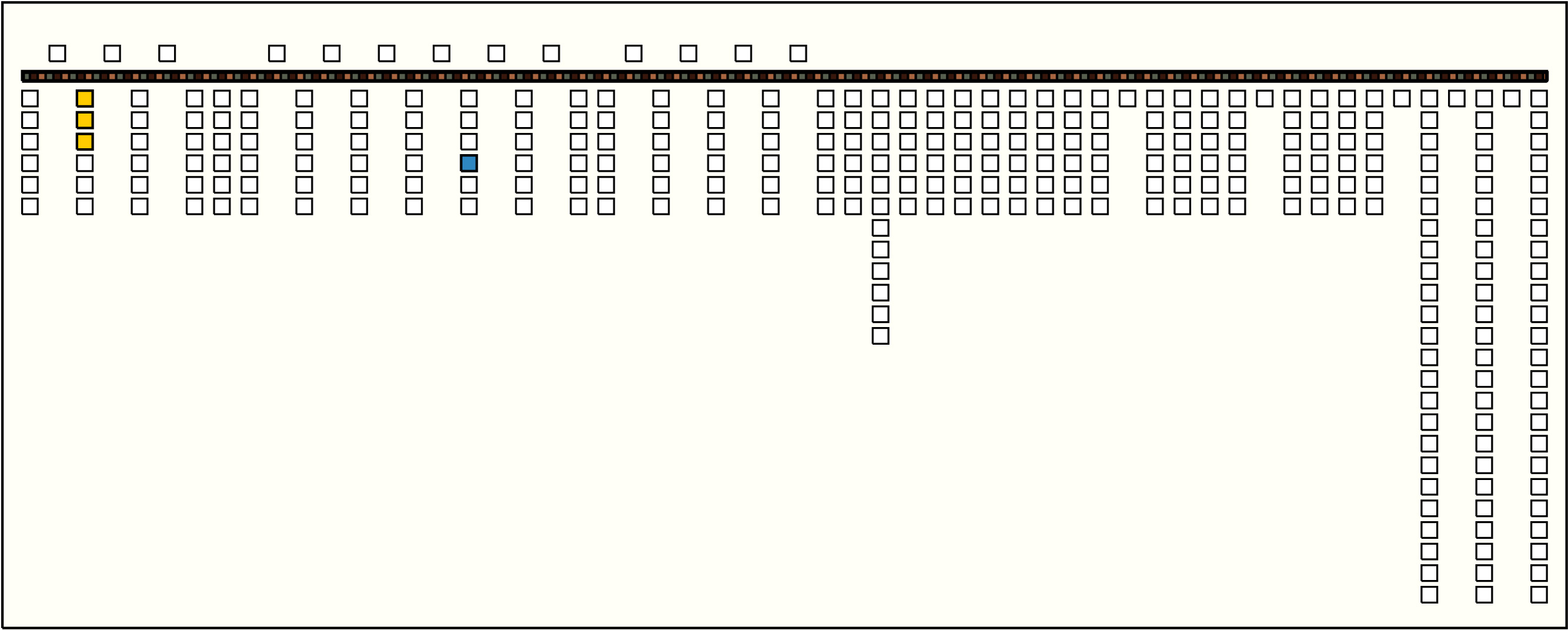

7	p65_{17, 4} : 13_AB	13	3	❽p8: 1_AB + p9: 1_AB + p10: 11_AB❽
8	p79_{21, 4} : 11_YB	11	10	❽p4: 1_YB + p5: 1_YB + p6: 1_YB + p28: 1_YB + p31: 1_YB + p32: 1_YB + p33: 1_YB + p41: 1_YB + p42: 1_YB + p43: 2_YB❽

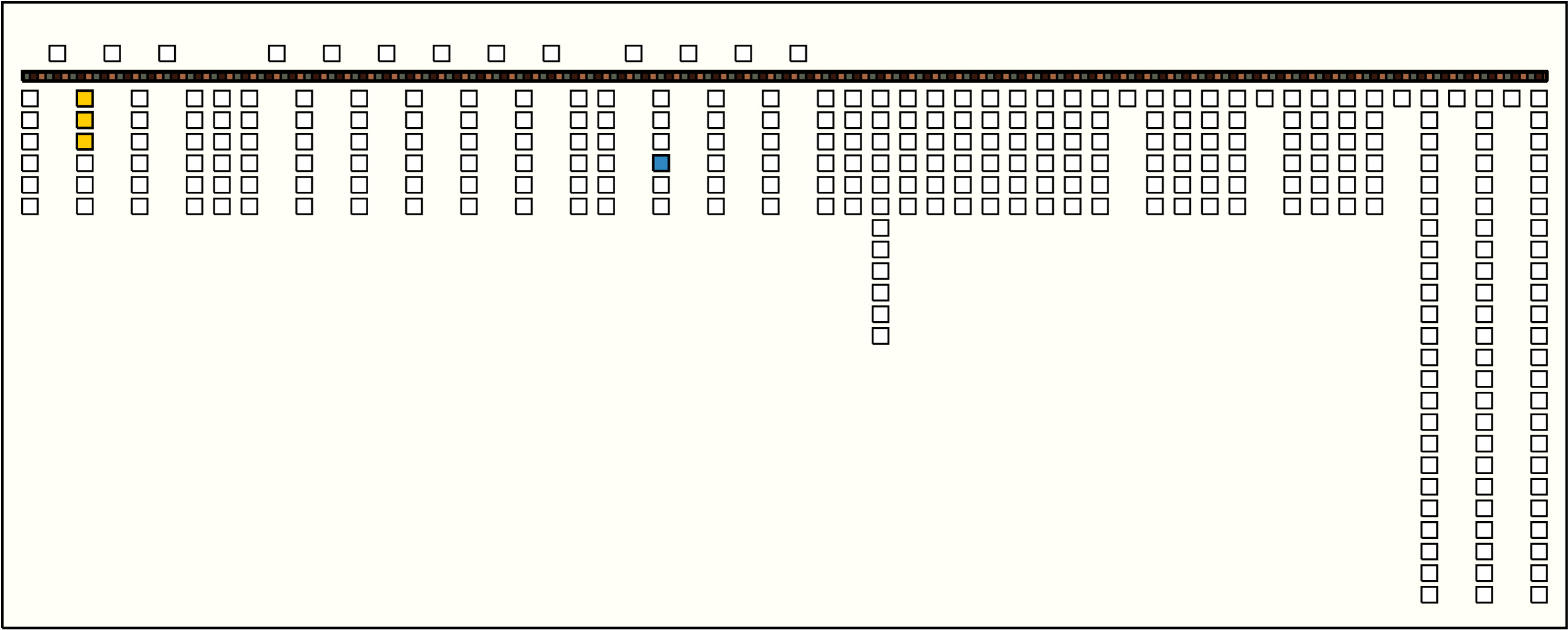

9	p92_{24, 4} : 13_AB	13	3	❽p8: 1_AB + p9: 1_AB + p10: 11_AB❽

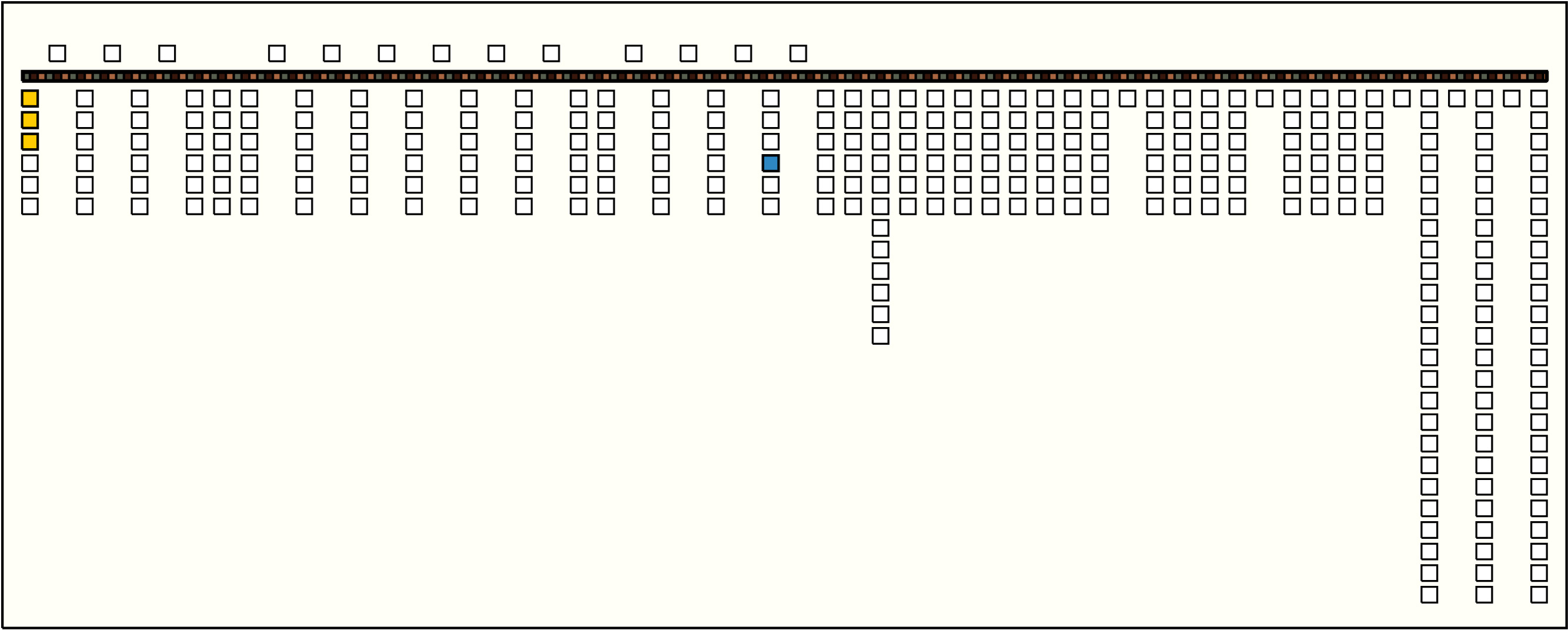

10	p106_{28, 4} : 12_YB	12	3	❽p1: 1_YB + p2: 1_YB + ∞p3: 10_YB∞
11	p119_{31, 4} : 20_AB	20	4	p38: 2_AB∞ + p39: 1_AB + p47: 16_AB + p48: 1_AB❽
12	p131_{32, 10} : 11_YB	11	5	❽p108: 1_YB + p110: 1_YB + p113: 5_YB + p114: 2_YB + p115: 2_YB∞

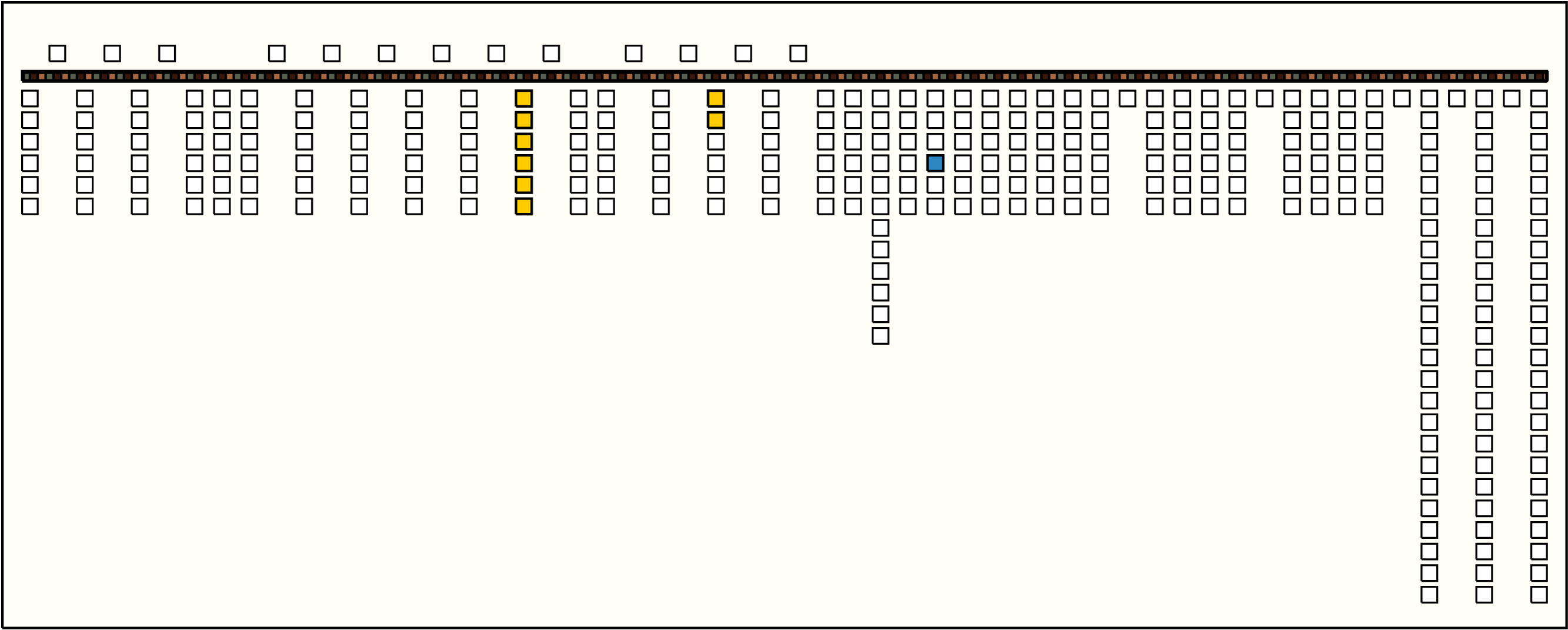

13	p143_{34, 4} : 21_RB	21	8	❽p69: 1_RB + p70: 3_RB + p71: 1_RB + p72: 11_RB + p73: 1_RB + p74: 1_RB + p96: 1_RB + ∞p97: 2_RB∞

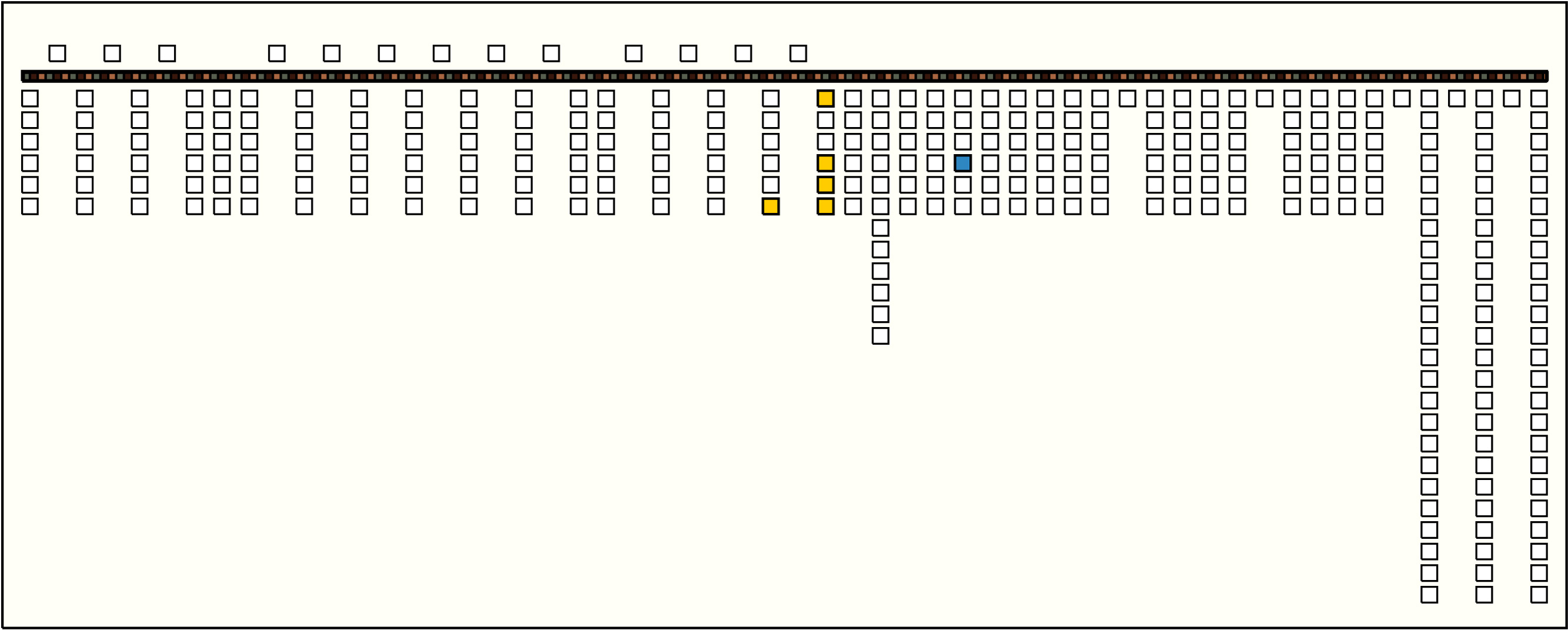

14	p149_{35, 4} : 11_YB	11	5	❽p108: 1_YB + p110: 1_YB + p113: 5_YB + p114: 2_YB + p115: 2_YB∞
15	p167_{38, 4} : 22_RB	22	9	❽p69: 1_RB + p70: 3_RB + p71: 1_RB + p72: 11_RB + p73: 1_RB + p74: 1_RB + p96: 1_RB + p97: 2_RB + p98: 1_RB❽

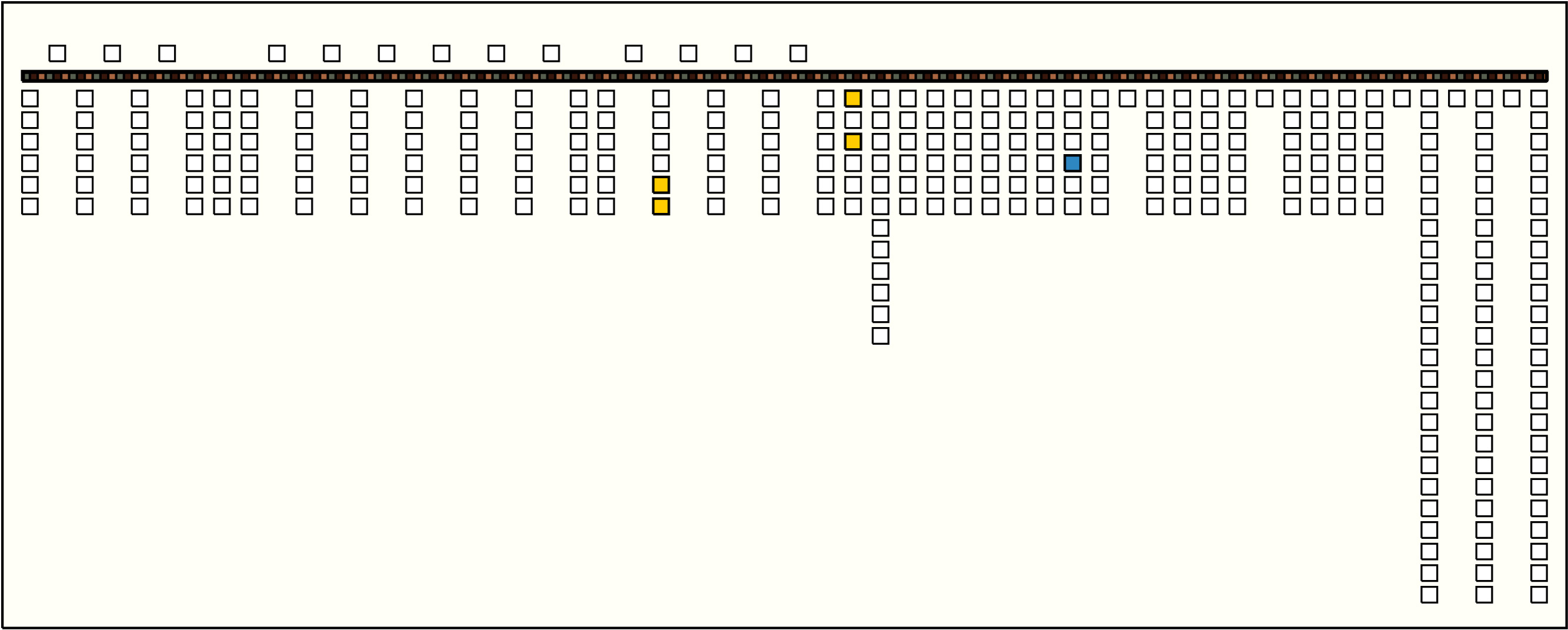

16	p173_{39, 4} : 11_AB	11	4	∞p93: 7_AB + p94: 2_AB + p116: 1_AB + p118: 1_AB❽
17	p179_{40, 4} : 11_YB	11	5	❽p108: 1_YB + p110: 1_YB + p113: 5_YB + p114: 2_YB + p115: 2_YB∞

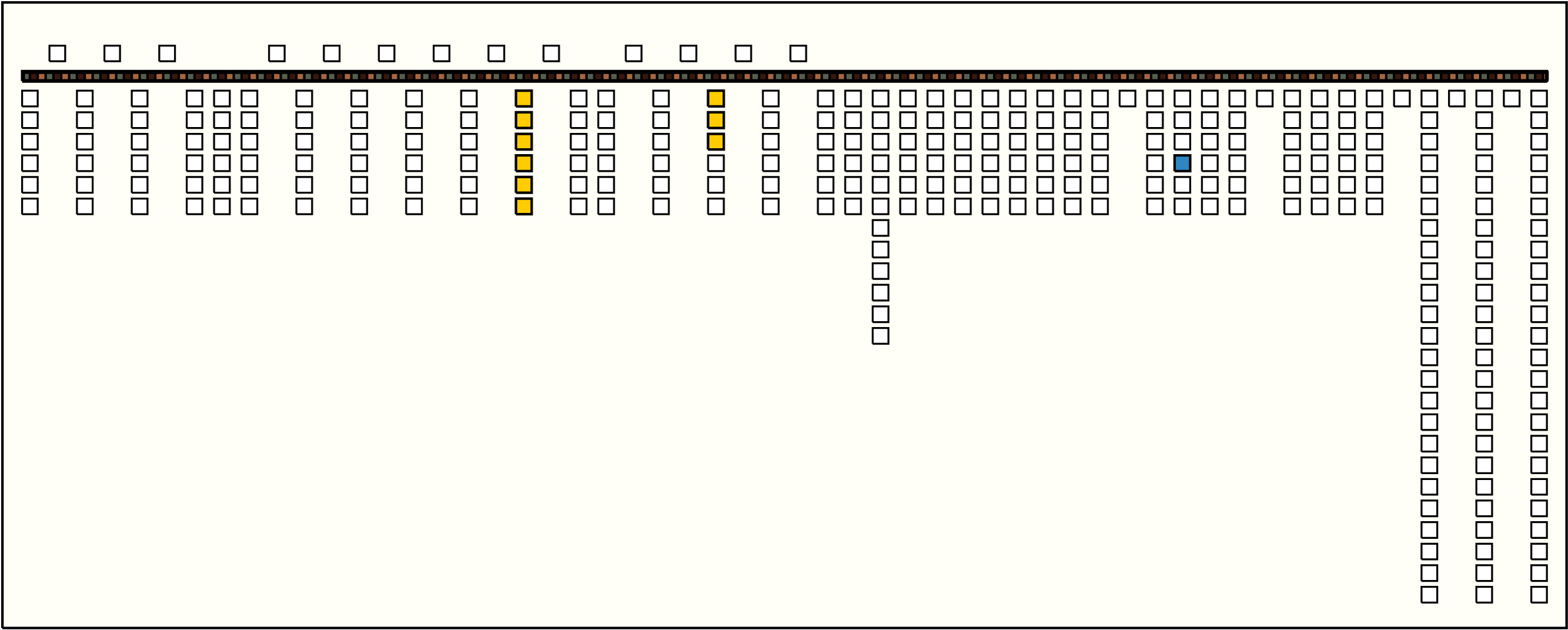

18	p192_{43, 4} : 22_RB	22	9	❽p69: 1_RB + p70: 3_RB + p71: 1_RB + p72: 11_RB + p73: 1_RB + p74: 1_RB + p96: 1_RB + p97: 2_RB + p98: 1_RB❽
19	p204_{45, 4} : 12_YB	12	3	❽p1: 1_YB + p2: 1_YB + ∞p3: 10_YB∞

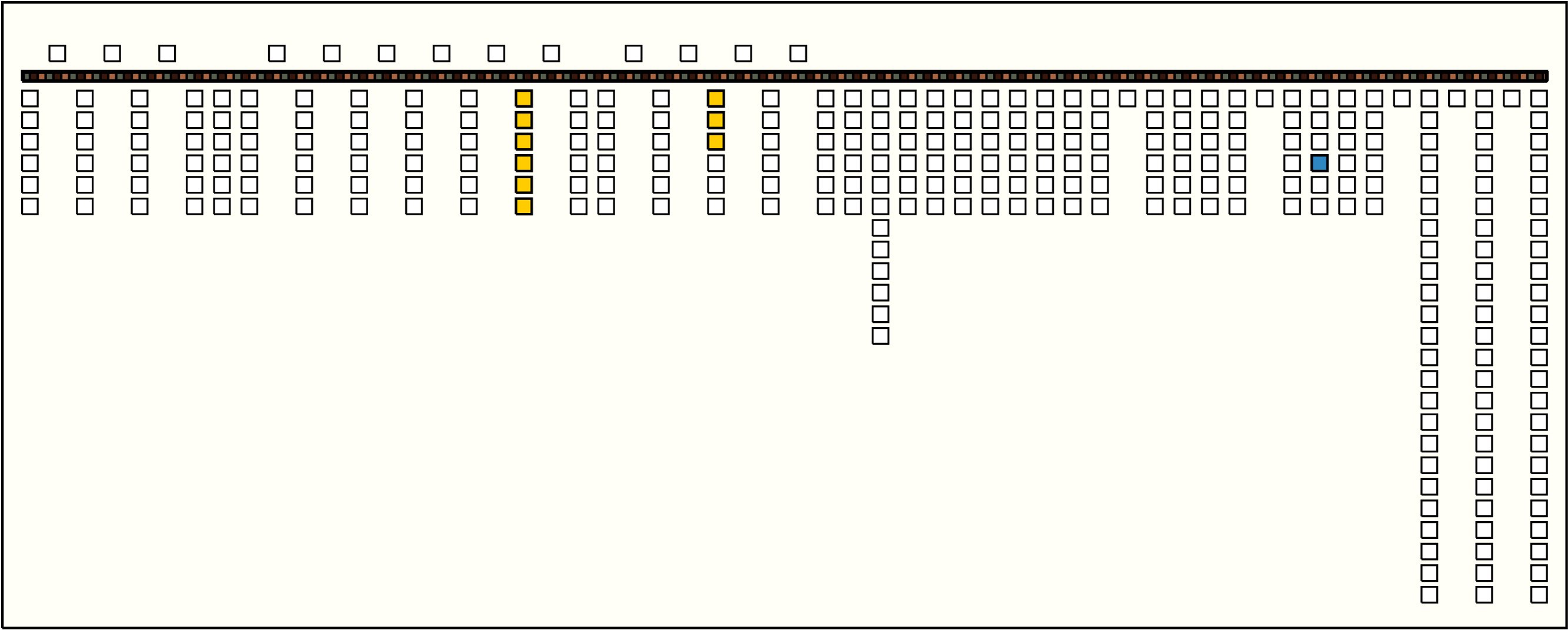

20	p217_{48, 4} : 22_RB	22	9	❽p69: 1_RB + p70: 3_RB + p71: 1_RB + p72: 11_RB + p73: 1_RB + p74: 1_RB + p96: 1_RB + p97: 2_RB + p98: 1_RB❽
21	p229_{50, 4} : 12_YB	12	3	❽p1: 1_YB + p2: 1_YB + ∞p3: 10_YB∞

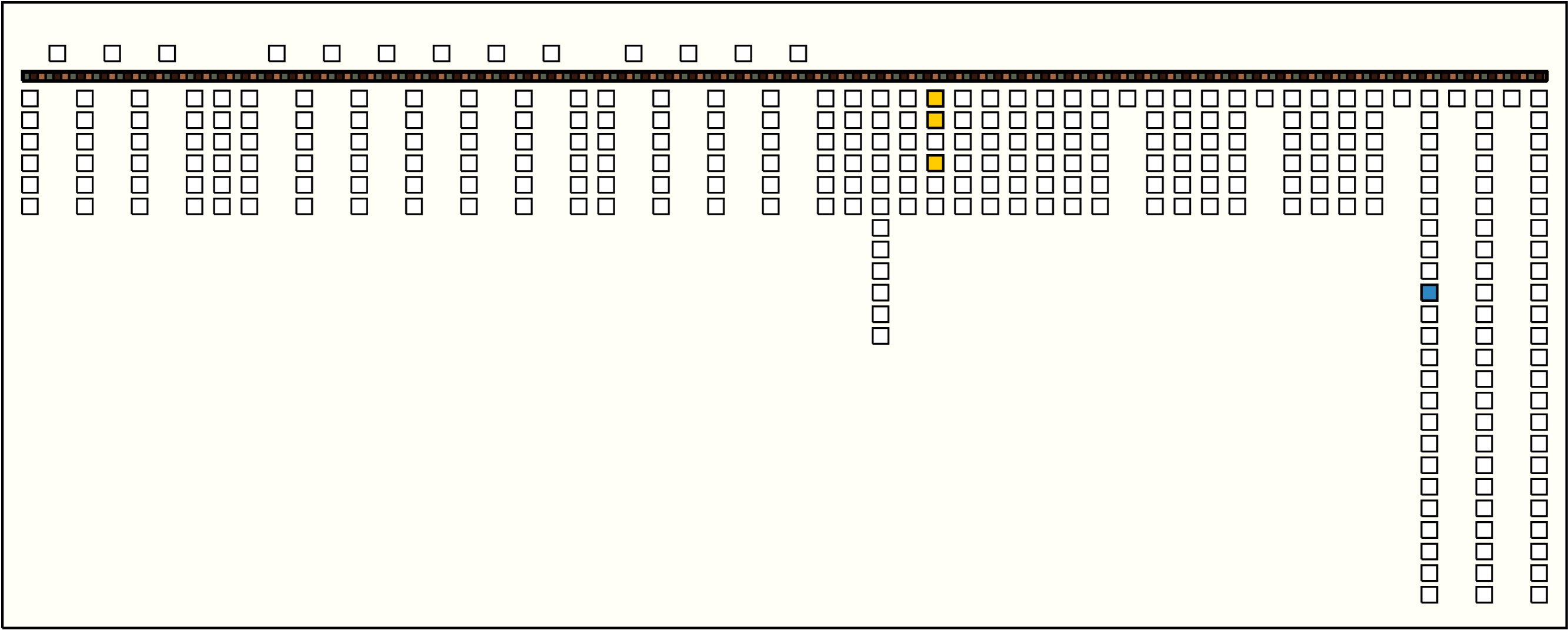

22	p242_{52, 10} : 23_RB	23	3	❽p140: 1_RB + p141: 1_RB + p143: 21_RB❽

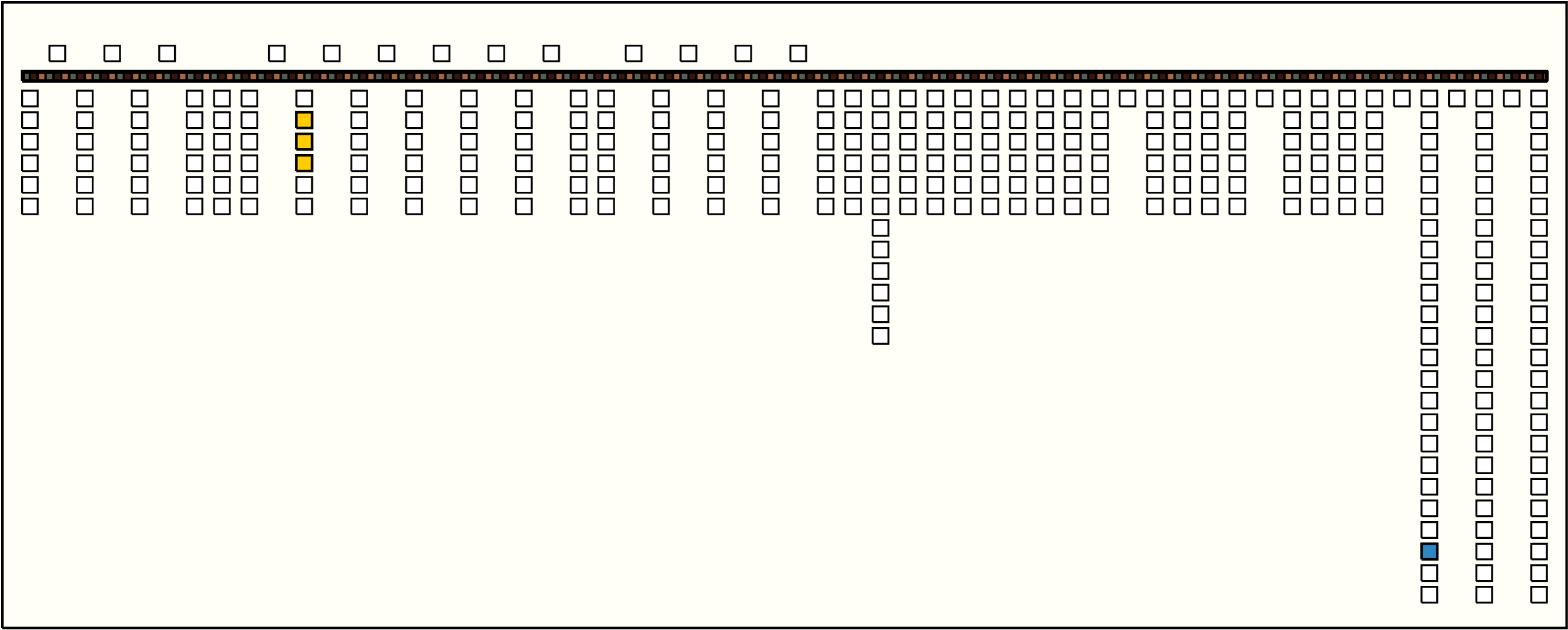

23	p254_{52, 22} : 14_YB	14	3	❽p42: 1_YB + p43: 2_YB + p44: 11_YB❽
24	p265_{54, 8} : 12_RB	12	3	❽p219: 1_RB + p239: 1_RB + ∞p240: 10_RB
25	p267_{54, 10} : 25_RB	25	3	∞p216: 2_RB + p217: 22_RB + p218: 1_RB❽
26	p273_{54, 16} : 13_AB	13	3	❽p8: 1_AB + p9: 1_AB + p10: 11_AB❽
27	p279_{54, 22} : 12_YB	12	3	❽p1: 1_YB + p2: 1_YB + ∞p3: 10_YB∞
28	p290_{56, 8} : 13_RB	13	3	❽p71: 1_RB + p72: 11_RB + p73: 1_RB❽
29	p292_{56, 10} : 26_RB	26	3	p166: 2_RB + p167: 22_RB + p168: 2_RB
30	p298_{56, 16} : 11_AB	11	4	∞p93: 7_AB + p94: 2_AB + p116: 1_AB + p118: 1_AB❽
31	p304_{56, 22} : 15_YB	15	3	∞p104: 2_YB∞ + p105: 1_YB + ∞p106: 12_YB∞

Khipu Notes:

This khipu is part of a set (UR087, UR088, UR089, UR090, UR091, UR092) that were analyzed by Manual Medrano in his article Toward the Decipherment of a Set of Mid-Colonial Khipus from the Santa Valley, Coastal Peru.

1. Top cords. Top cords are fastened through the pendant attachments (diagram on field notes). The doubled end of the top cord is passed through the half-hitches of the pendants; the free end of the top cord is then passed through its doubled end. In the final configuration, the doubled end of the top cord may be pointing towards the left (dbld end went through from L to R) or right (dbld end went through from R to L). These are designated, respectively, R and L, the R to be distinguished from the R meaning recto.
2. Markers. Markers on this khipu are short lengths of cotton cord, same construction as pendants, attached the same way as pendants, but pointing upwards in the same direction as the top cords.
