UR1102/KH0116 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Colored Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Left-Handed Sums with Figure-8-Knots
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

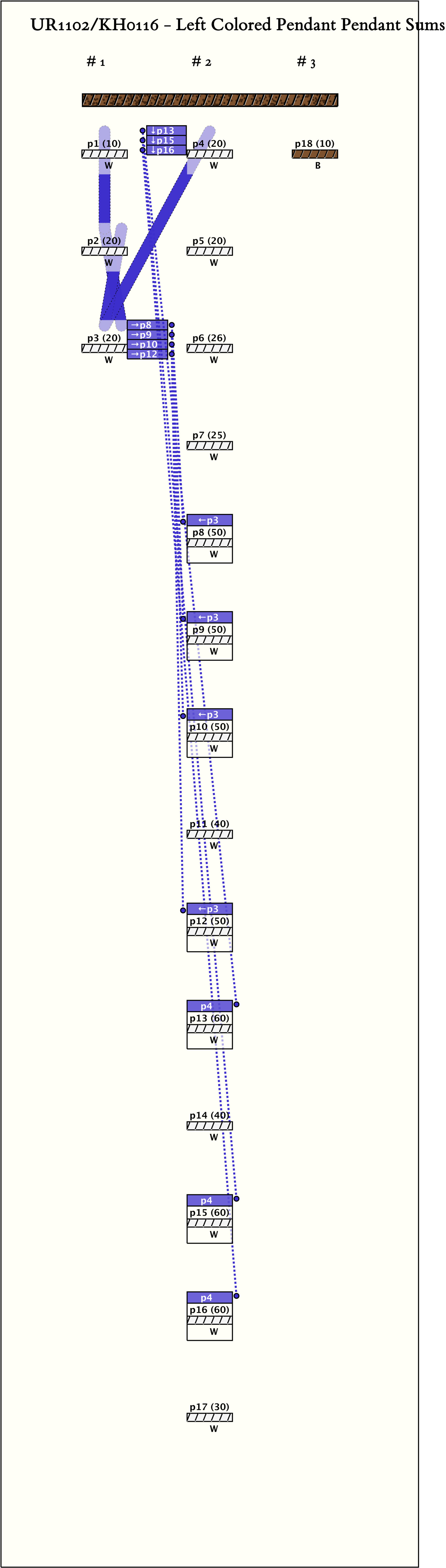

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

Left Handed Sums with Figure-8-Knots: # Sums = 7, Max # Summands = 3, (Min, Mean, Max) Sum Values = (50, 54, 60)
Click on Image to View Larger

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

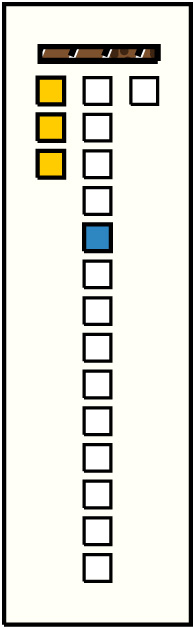

1	p8_{2, 5} : 50_W	50	3	p1: 10_W + p2: 20_W + p3: 20_W

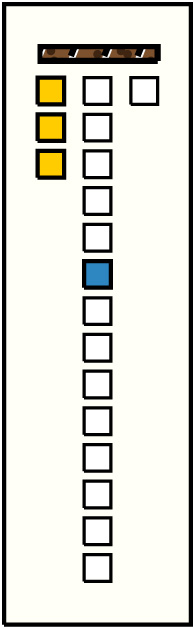

2	p9_{2, 6} : 50_W	50	3	p1: 10_W + p2: 20_W + p3: 20_W

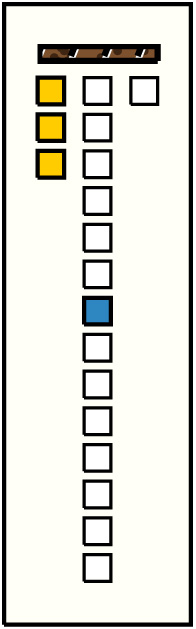

3	p10_{2, 7} : 50_W	50	3	p1: 10_W + p2: 20_W + p3: 20_W

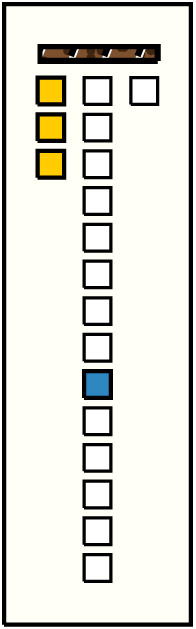

4	p12_{2, 9} : 50_W	50	3	p1: 10_W + p2: 20_W + p3: 20_W

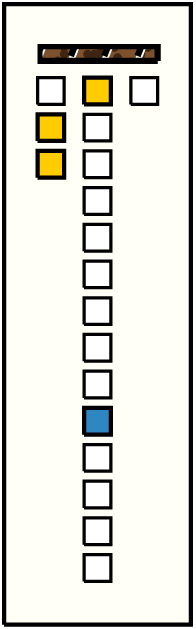

5	p13_{2, 10} : 60_W	60	3	p2: 20_W + p3: 20_W + p4: 20_W

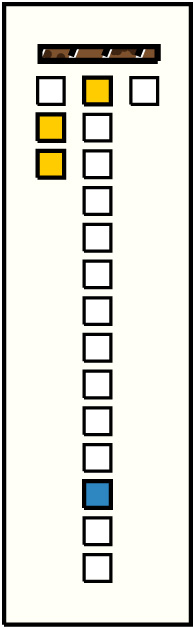

6	p15_{2, 12} : 60_W	60	3	p2: 20_W + p3: 20_W + p4: 20_W

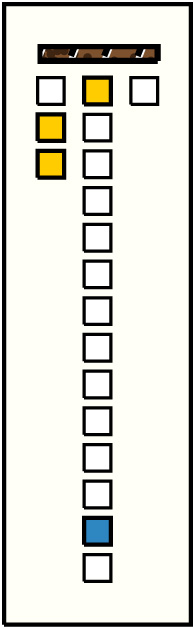

7	p16_{2, 13} : 60_W	60	3	p2: 20_W + p3: 20_W + p4: 20_W

Khipu Notes:

Ascher Databook Notes:

This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of these khipus, see UR1097.
Most of the pendants contain only one cluster of single knots. Because they cannot be viewed in relation to other knot clusters on the same pendant, although they are differently placed, all have been interpreted as in the 10's position.
