Drawings:

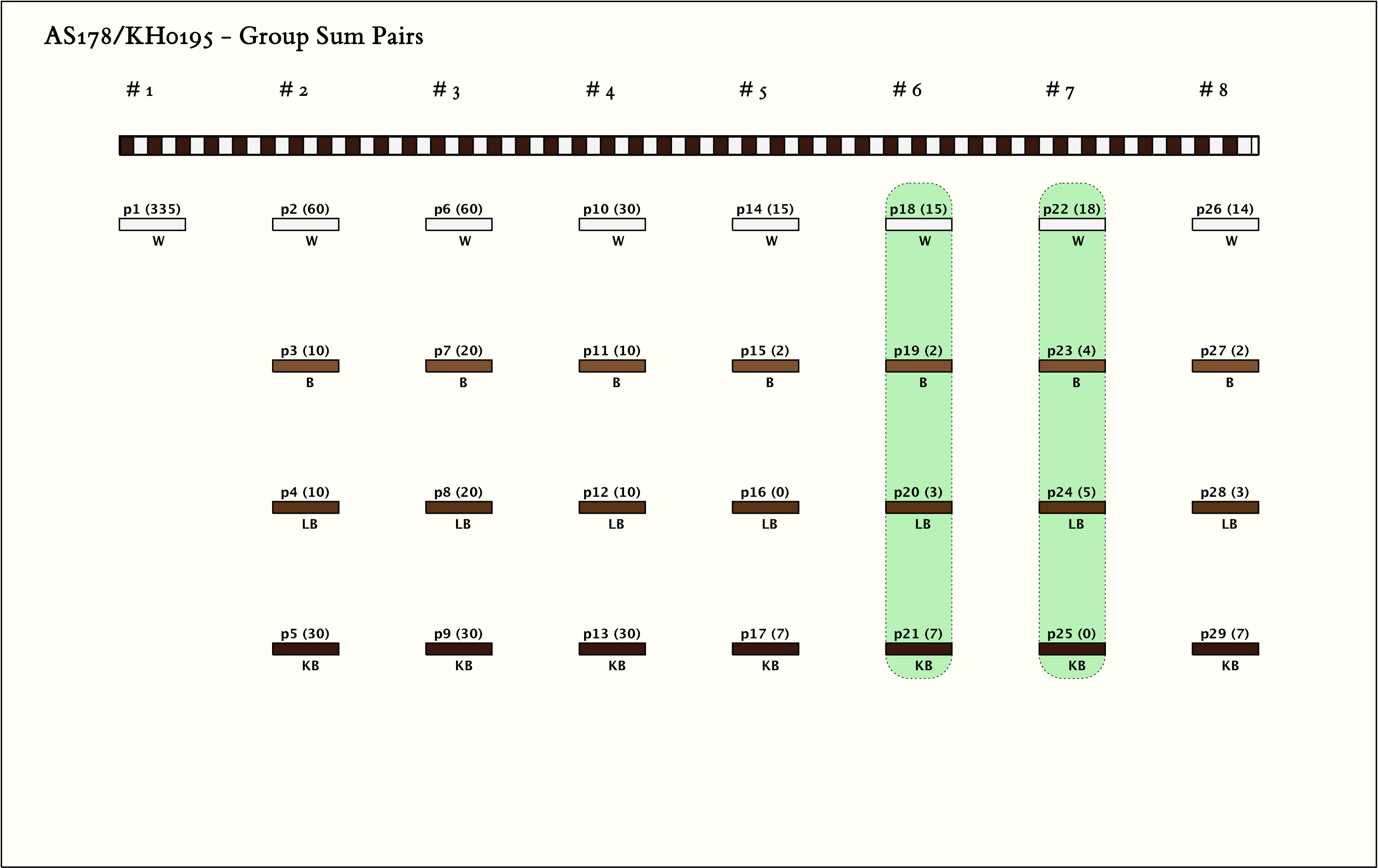

Group-Group Sum:
Click on Image to View Larger

Individual Group Group Sums: - Click on column name to sort
# Group Group Sum Schema Group Sum Value Is Top Group Is Duplicate Group Group Position Difference Left Group Position
(1_based index)
Right Group Position
(1_based index)
Left Sum
(1_based index)
Right Sum
(1_based index)
1
27FalseFalse167W@[5, 0]:15 + B@[5, 1]:2 + LB@[5, 2]:3 + KB@[5, 3]:7W@[6, 0]:18 + B@[6, 1]:4 + LB@[6, 2]:5 + KB@[6, 3]:0 + W@[6, 3, 0]:9

Khipu Notes:
Ascher Databook Notes:
1. Construction note: The khipu is made of animal hair.
2. This is one of several khipu acquired by the Museum in 1907 with provenance near Lima. For a discussion of them, see UR1130.
3. By spacing, there is 1 pendant cord and 7 groups of 4 pendants each. The first 3 groups are separated f rom the last 4 groups.
4. Each group has the same color pattern: W, B, LB, KB.
5. The values in the last 4 groups are all 0-18, while the values in the first 3 groups are 10-70.
6. The value on pendant 1 is the order of magnitude of the sum of the values in group 1. The values in group 1 are the order of magnitude of the sums of values in the corresponding positions in the last 4 groups. Too many cords are brokento know the relationship of the values with certainty.
