KH0156/UR1140, AS140/N9 - Indexed Pendant Sums


Drawings:

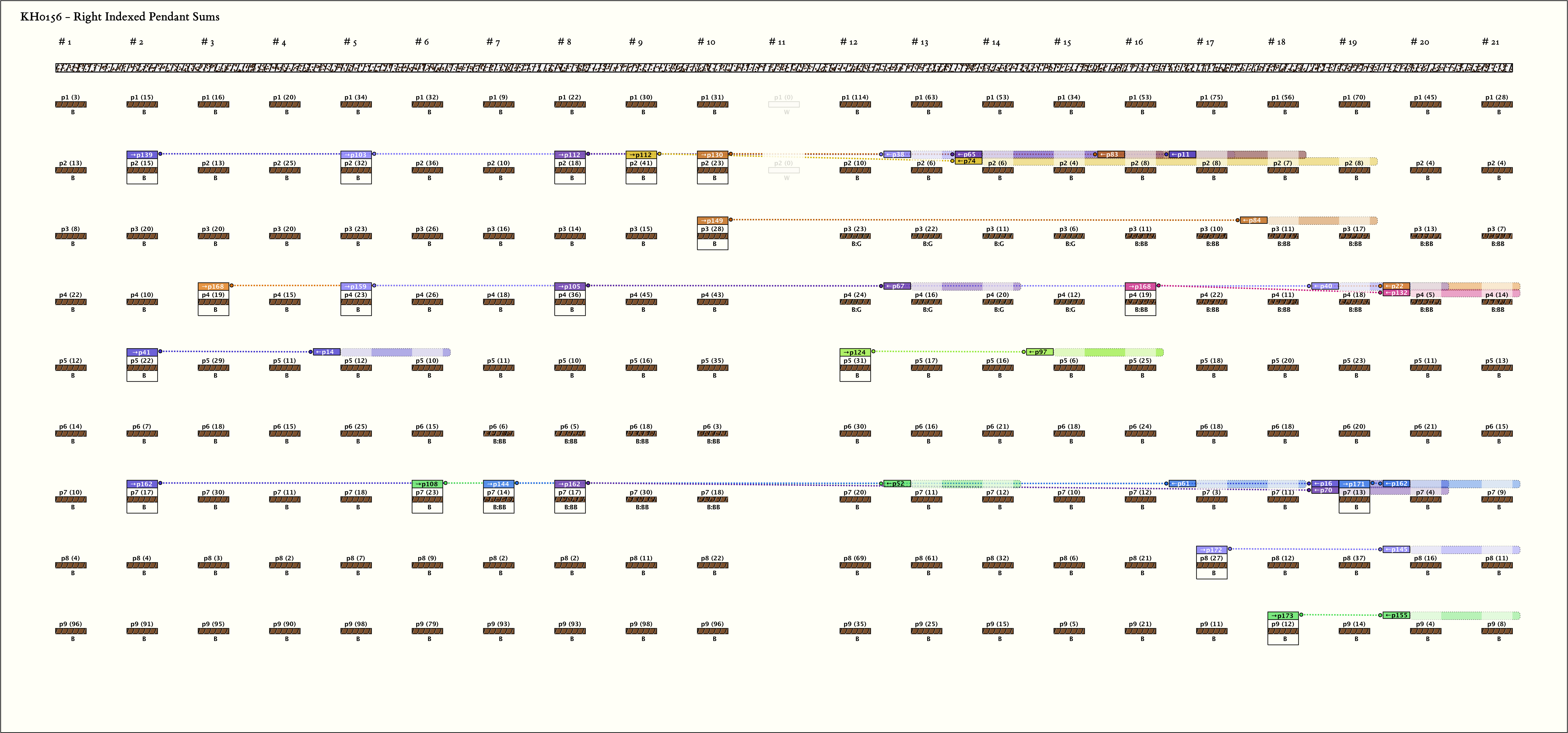

Right Handed Sums:     # Sums = 19,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (12, 23, 41)
Click on Image to View Larger

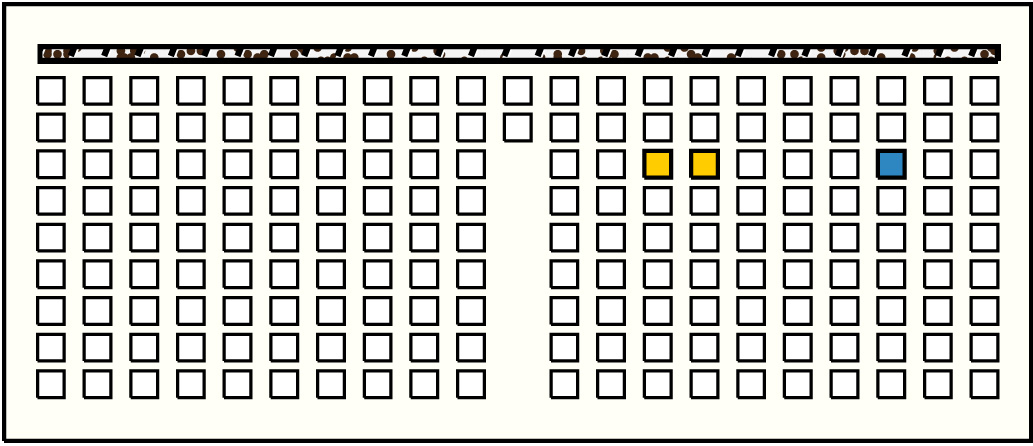

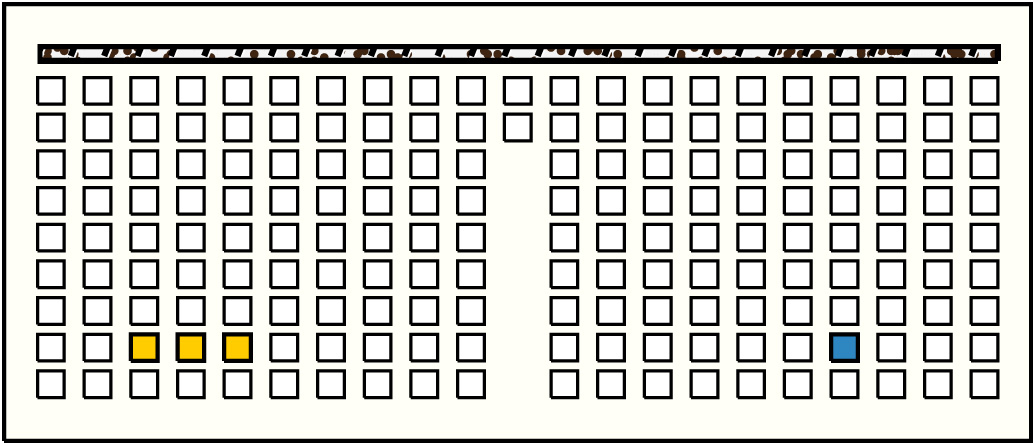

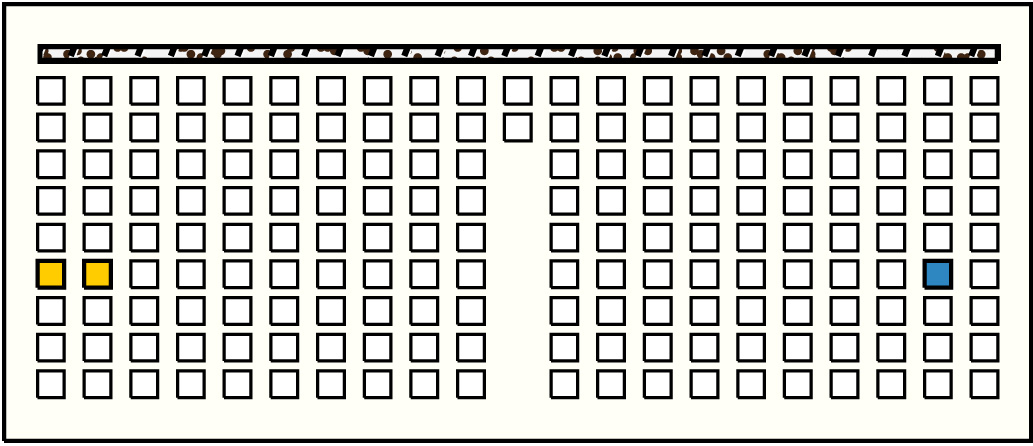

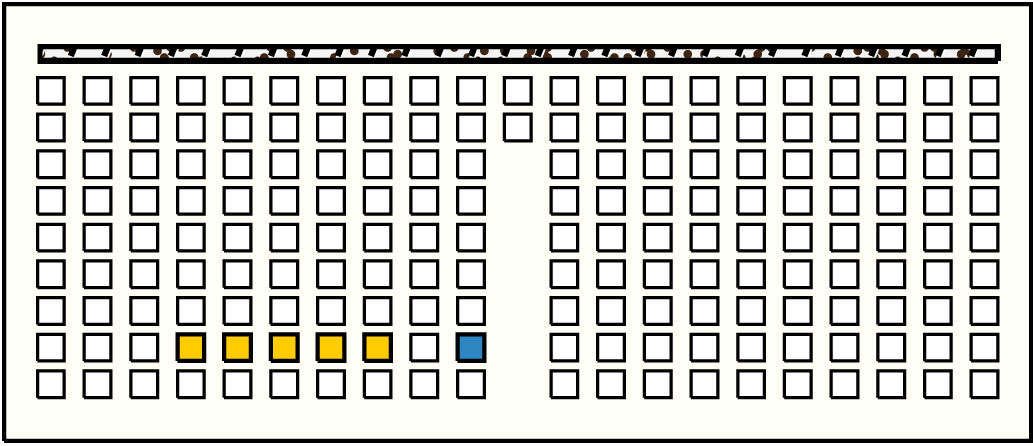

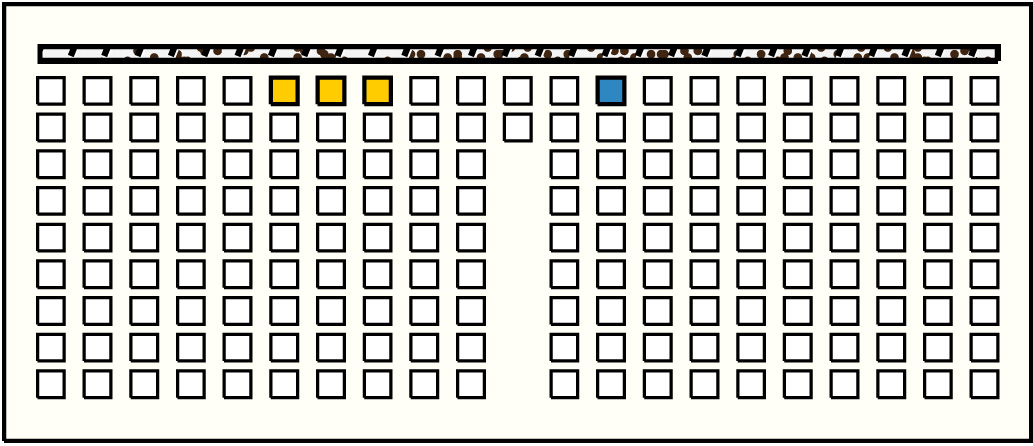

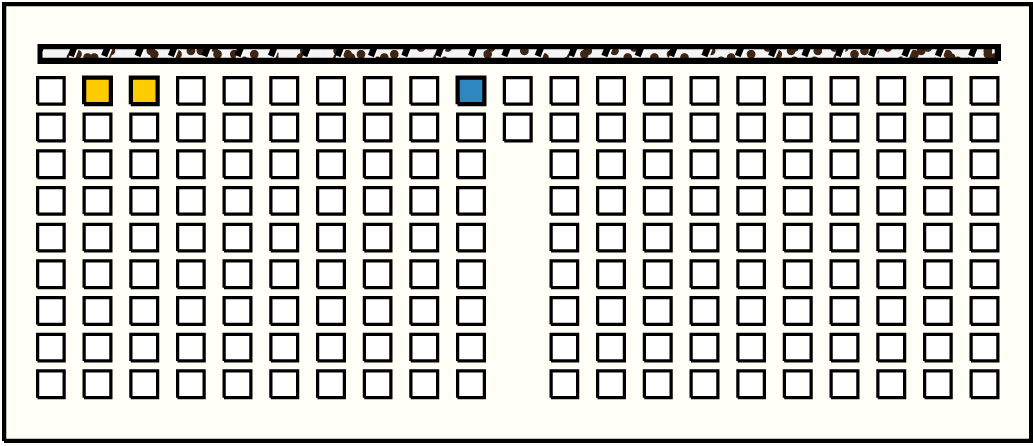

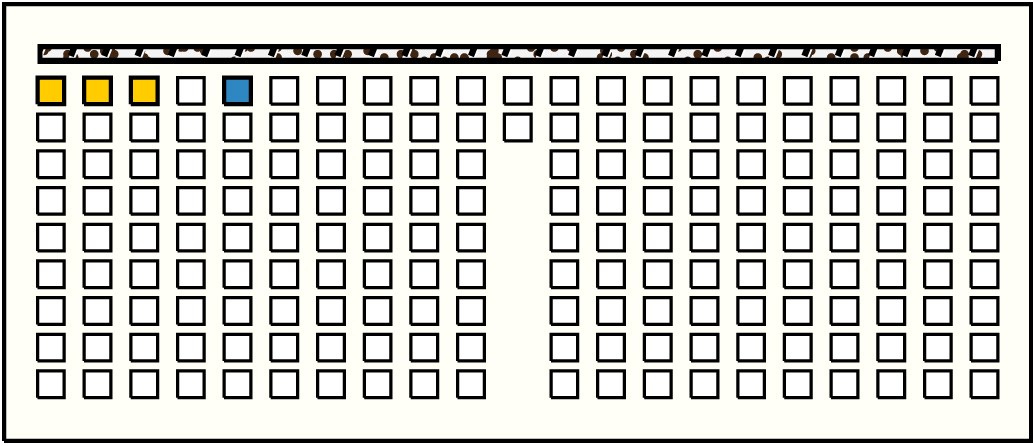

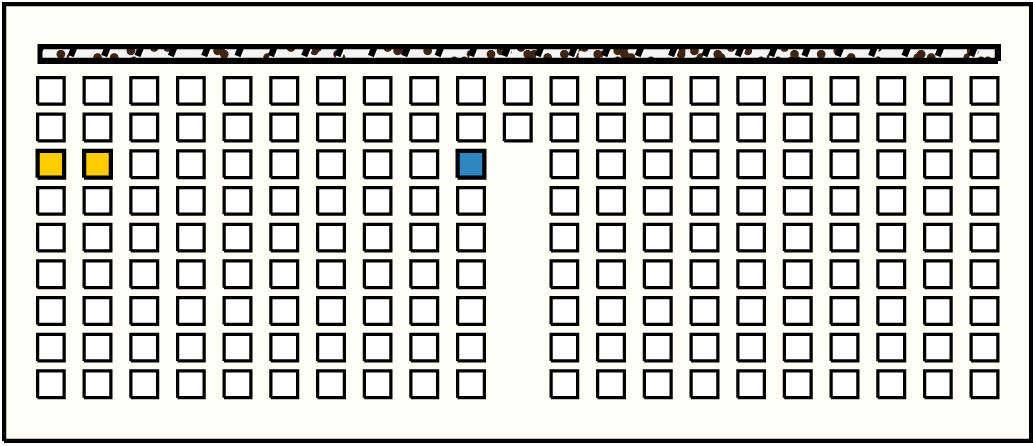

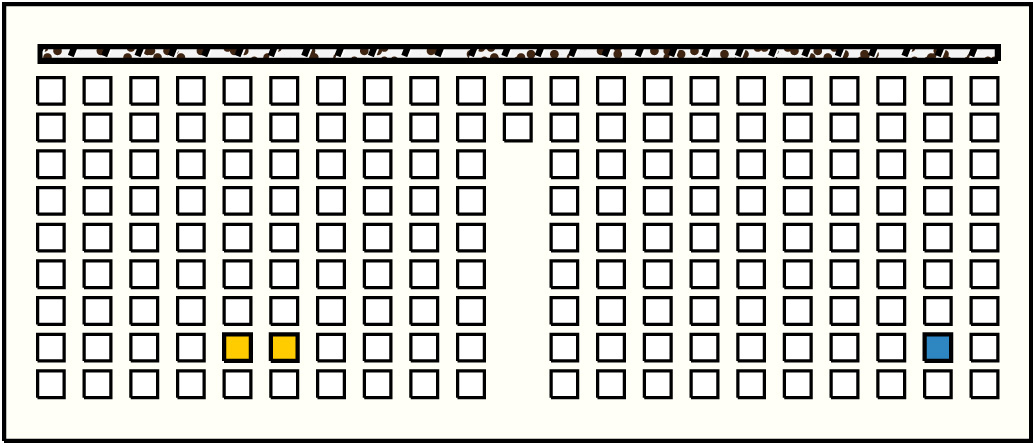

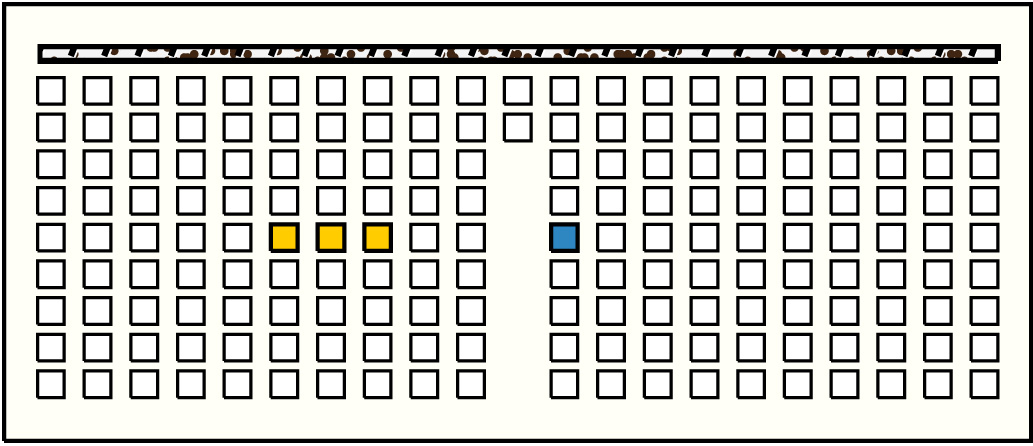

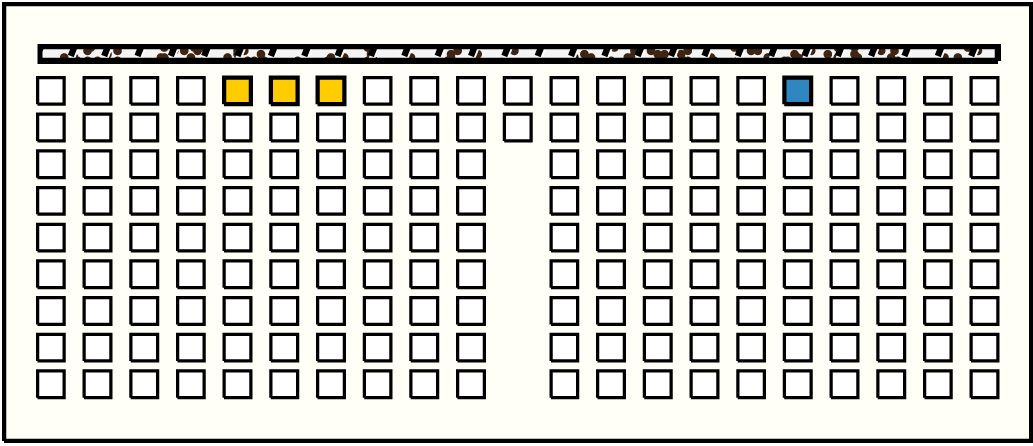

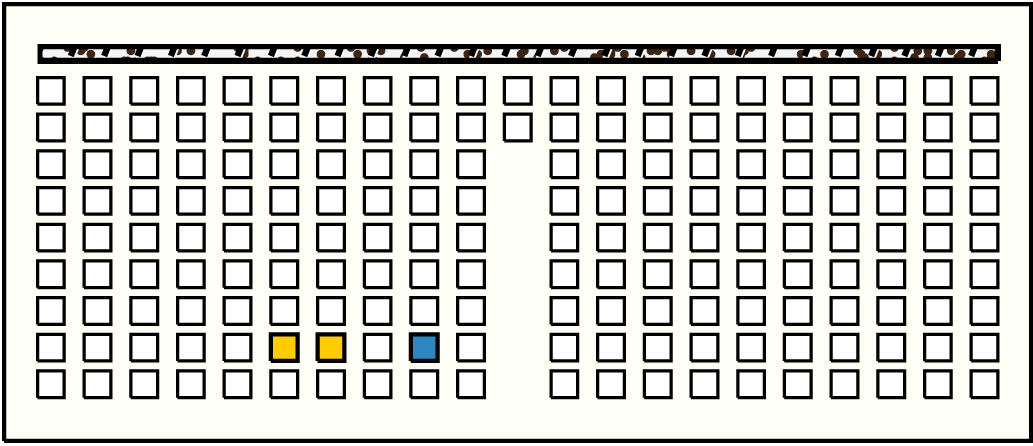

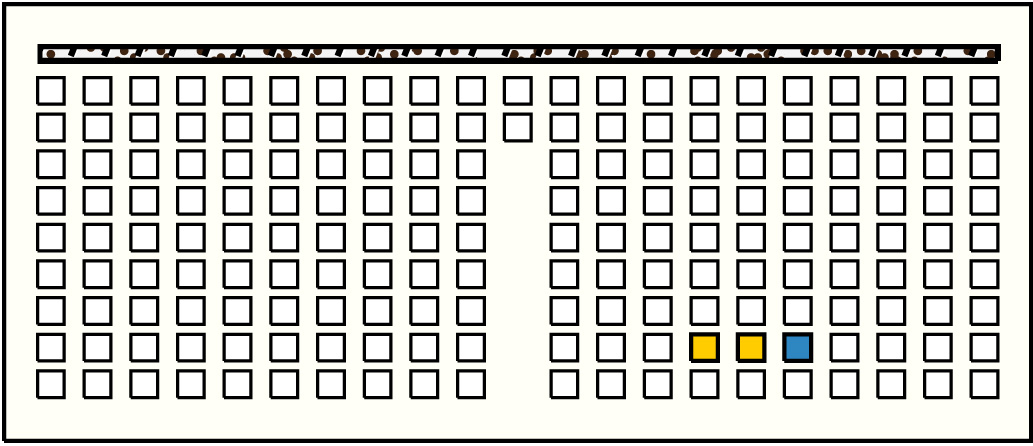

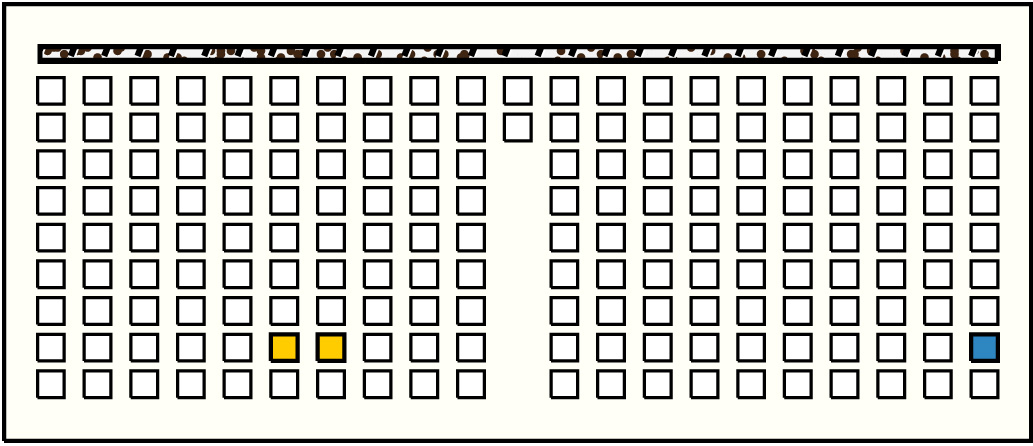

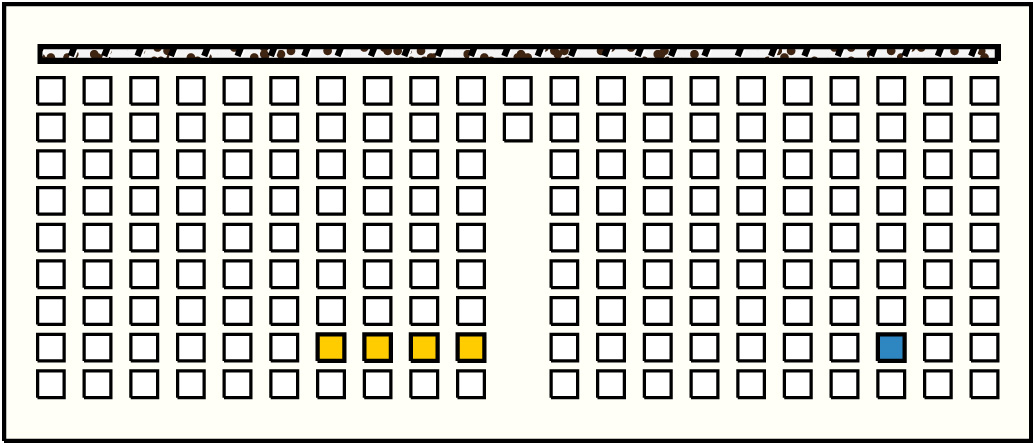

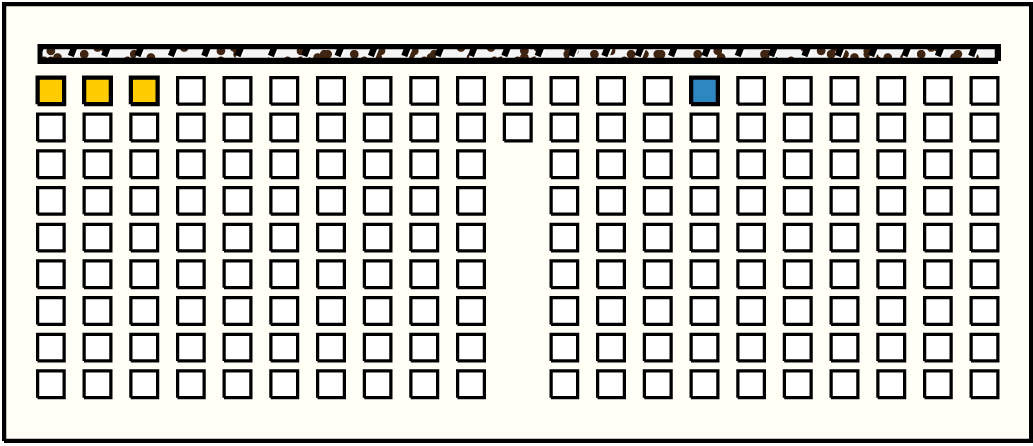

Left Handed Sums:     # Sums = 21,  Max # Summands = 5,   (Min, Mean, Max) Sum Values = (11, 29, 75)
Click on Image to View Larger

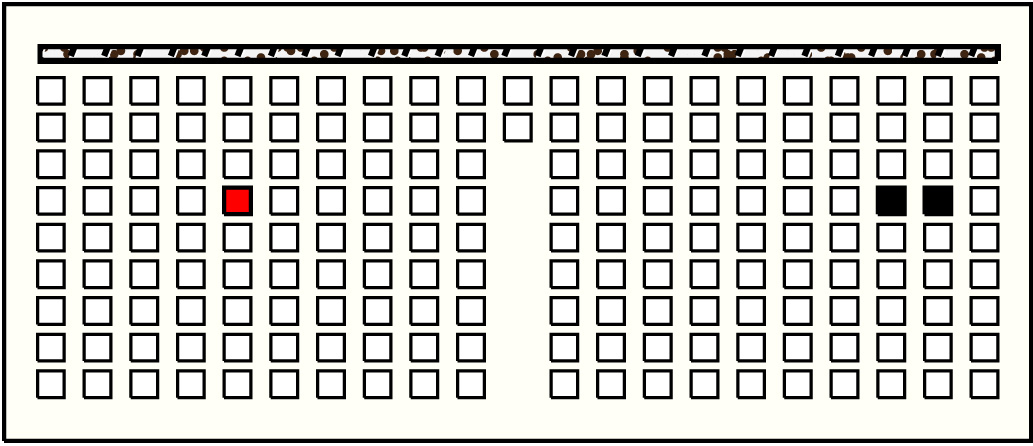

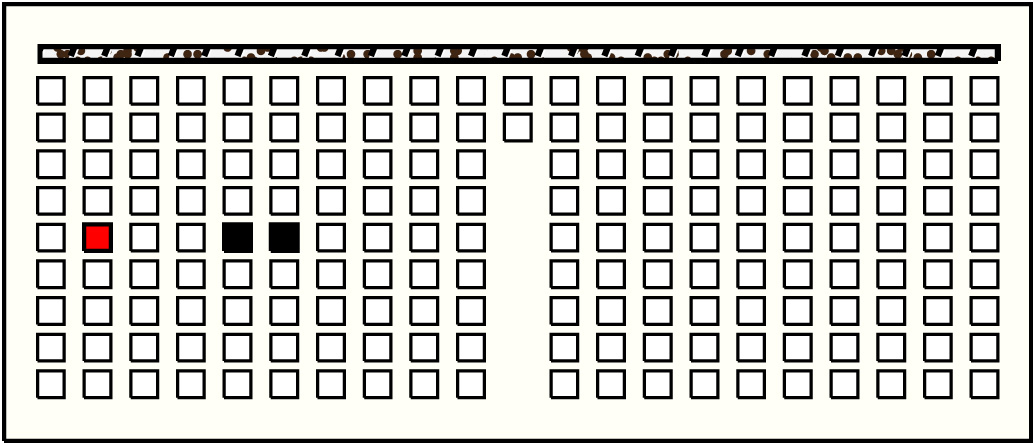

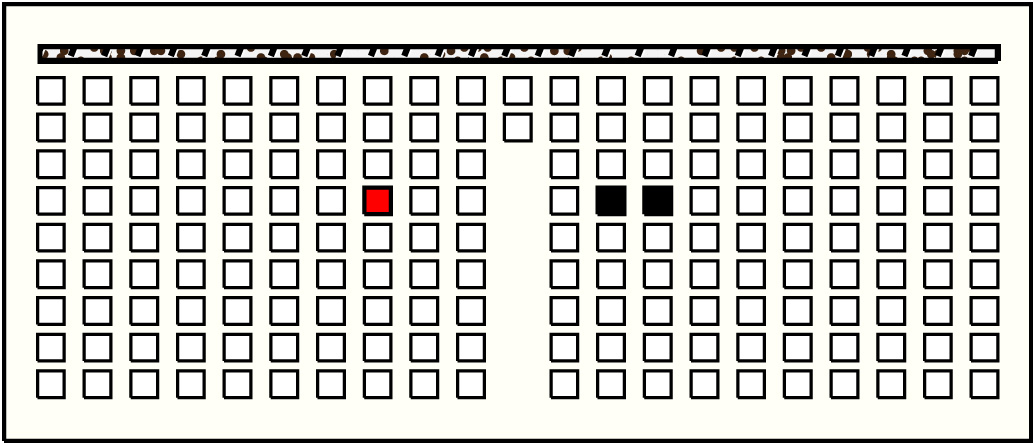

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g2p2 : 15B152g17p2: 8B + g18p2: 7B
2
g2p5 : 22B222g5p5: 12B + g6p5: 10B
3
g2p7 : 17B172g19p7: 13B + g20p7: 4B
4
g3p4 : 19B192g20p4: 5B:BB + g21p4: 14B:BB
5
g5p2 : 32B325g13p2: 6B + g14p2: 6B + g15p2: 4B + g16p2: 8B + g17p2: 8B
6
g5p4 : 23B232g19p4: 18B:BB + g20p4: 5B:BB
7
g6p7 : 23B232g13p7: 11B + g14p7: 12B
8
g7p7 : 14B:BB142g17p7: 3B + g18p7: 11B
9
g8p2 : 18B183g14p2: 6B + g15p2: 4B + g16p2: 8B
10
g8p4 : 36B362g13p4: 16B:G + g14p4: 20B:G
11
g8p7 : 17B:BB172g19p7: 13B + g20p7: 4B
12
g9p2 : 41B416g14p2: 6B + g15p2: 4B + g16p2: 8B + g17p2: 8B + g18p2: 7B + g19p2: 8B
13
g10p2 : 23B233g16p2: 8B + g17p2: 8B + g18p2: 7B
14
g10p3 : 28B282g18p3: 11B:BB + g19p3: 17B:BB
15
g12p5 : 31B312g15p5: 6B + g16p5: 25B
16
g16p4 : 19B:BB192g20p4: 5B:BB + g21p4: 14B:BB
17
g17p8 : 27B272g20p8: 16B + g21p8: 11B
18
g18p9 : 12B122g20p9: 4B + g21p9: 8B
19
g19p7 : 13B132g20p7: 4B + g21p7: 9B

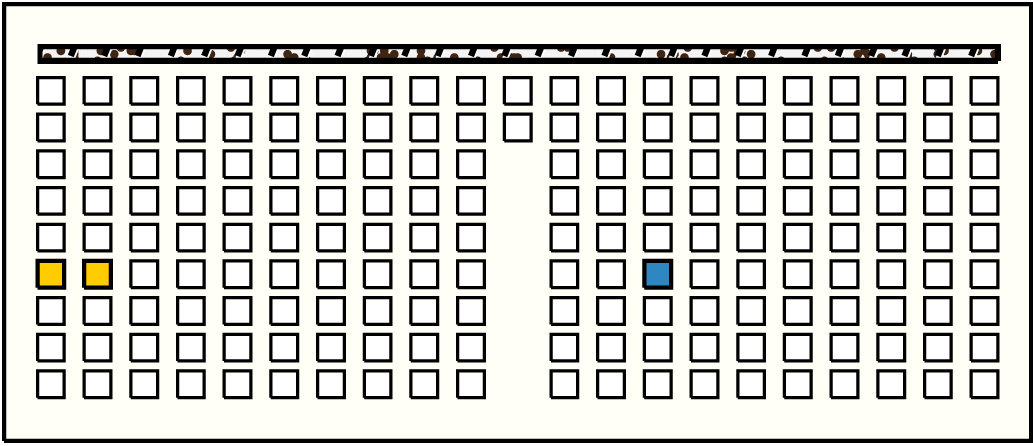

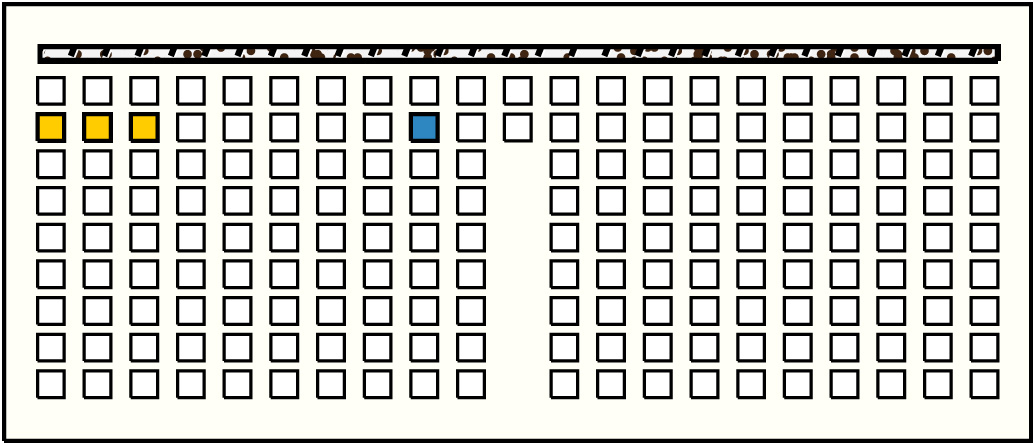

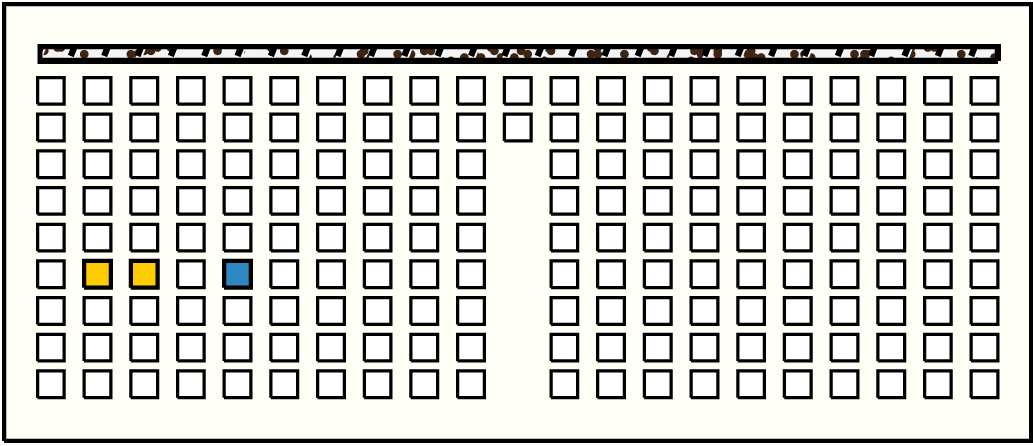

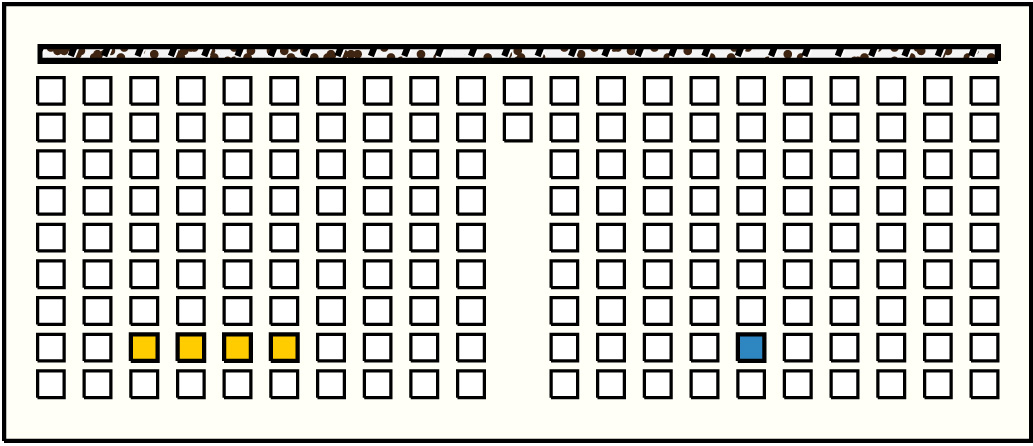

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g5p1 : 34B343g1p1: 3B + g2p1: 15B + g3p1: 16B
2
g5p6 : 25B252g2p6: 7B + g3p6: 18B
3
g9p2 : 41B413g1p2: 13B + g2p2: 15B + g3p2: 13B
4
g9p8 : 11B112g6p8: 9B + g7p8: 2B
5
g10p1 : 31B312g2p1: 15B + g3p1: 16B
6
g10p3 : 28B282g1p3: 8B + g2p3: 20B
7
g10p8 : 22B225g4p8: 2B + g5p8: 7B + g6p8: 9B + g7p8: 2B + g8p8: 2B
8
g12p5 : 31B313g6p5: 10B + g7p5: 11B + g8p5: 10B
9
g13p1 : 63B633g6p1: 32B + g7p1: 9B + g8p1: 22B
10
g14p6 : 21B212g1p6: 14B + g2p6: 7B
11
g15p1 : 34B343g1p1: 3B + g2p1: 15B + g3p1: 16B
12
g16p8 : 21B214g3p8: 3B + g4p8: 2B + g5p8: 7B + g6p8: 9B
13
g17p1 : 75B753g5p1: 34B + g6p1: 32B + g7p1: 9B
14
g17p8 : 27B272g15p8: 6B + g16p8: 21B
15
g18p8 : 12B123g3p8: 3B + g4p8: 2B + g5p8: 7B
16
g19p3 : 17B:BB172g14p3: 11B:G + g15p3: 6B:G
17
g19p5 : 23B232g4p5: 11B + g5p5: 12B
18
g19p8 : 37B374g7p8: 2B + g8p8: 2B + g9p8: 11B + g10p8: 22B
19
g20p6 : 21B212g1p6: 14B + g2p6: 7B
20
g20p8 : 16B162g5p8: 7B + g6p8: 9B
21
g21p8 : 11B112g6p8: 9B + g7p8: 2B

Khipu Notes:
Ashok Khosla Notes:
This khipu has been entered with a strange nonconsecutive numbering scheme, indicating either the clusters are off, or the pendants are misnumbered. Investigation into the databook is warranted.



Ascher Databook Notes:
  1. The khipu is attached to a carved wooden bar.
  2. KH00146 and AS140 were acquired by the Museum in 1904. The provenance is given as Nasca. For a comparison of them, see KH00146.
  3. AS140 is discussed by Nordenskiold (see Introduction) .A photograph of it appears in Schmidt, Max, 1929, Kunst und Kultur von Peru, Impropyläen-Verlagzu, Berlin.
  4. The way in which the bar is threaded separates the khipu into 2 parts each containing 10 groups of 9 pendants each

    Note: The pendant order on the listing proceeds from one end of the bar to the other, goes around the end, and continues on the other side. However, similar color and number patterns are found in both parts if the pendants are read instead from one end of the bar to the other, and then beginning at the original end on the other side of the bar. We will, therefore, refer to the pendants and groups on side 2 as if following the second scenario. Part 1 is pendants 1--->90 and references to the jth pendant in the ith group correspond to pendant 9 (i-1) +j. Part 2 is pendants 180--->91 and references to the jth pendant in the ith group correspond to pendant 190-9i-j.

    By color, each part is separated into 2 subparts of 6 groups and 4 groups respectively. Each group has the same color pattern: 5 B, 2 mixed, 2 B. In the first 6 groups in part 1, the 2 mixed cords are B:BB/B, and in the last 4 groups they are B:BB. In the first 6 groups in part 2, the 2 mixed cords are B:BB, and in the last 4 groups they are B:G.

  5. Subsidiaries are only on the last pendant in each group in part 1. All are BB.
  6. In all groups in both parts:
    1. The last pendant in each group has the maximum value.
    2. With the exception of group 10 in part 1, the value on pendant 7 is always great than the value on pendant 8.
  7. Within part 1:
    1. For the 6 groups of the first subpart, the sum of the values in the 5th position equals the sum of the values in the 4th position. That is:
      \[ \sum\limits_{i=1}^{6} P_{i5} = \sum\limits_{i=1}^{6} P_{i6} \]
    2. For the 4 groups of the second subpart, the sum of the values in the first position equals the sum of the values in the second position.
      \[ \sum\limits_{i=7}^{10} P_{i1} = \sum\limits_{i=7}^{10} P_{i2} \]
    3. Excluding the last pendant in each group, the sum of the values in the first group equals the sum of the values in the corresponding group in the second subpart (group 7).
      \[ \sum\limits_{j=1}^{8} P_{1j} = \sum\limits_{j=1}^{8} P_{7j} \]
