MM019 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

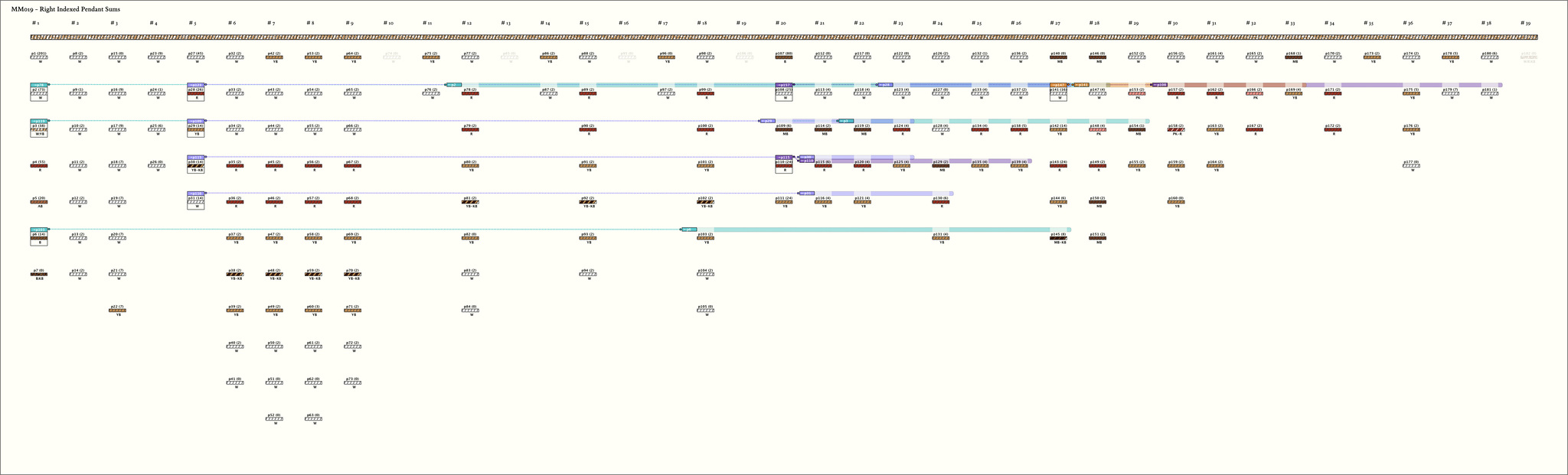

Right Handed Sums: # Sums = 10, Max # Summands = 13, (Min, Mean, Max) Sum Values = (14, 26, 73)
Click on Image to View Larger

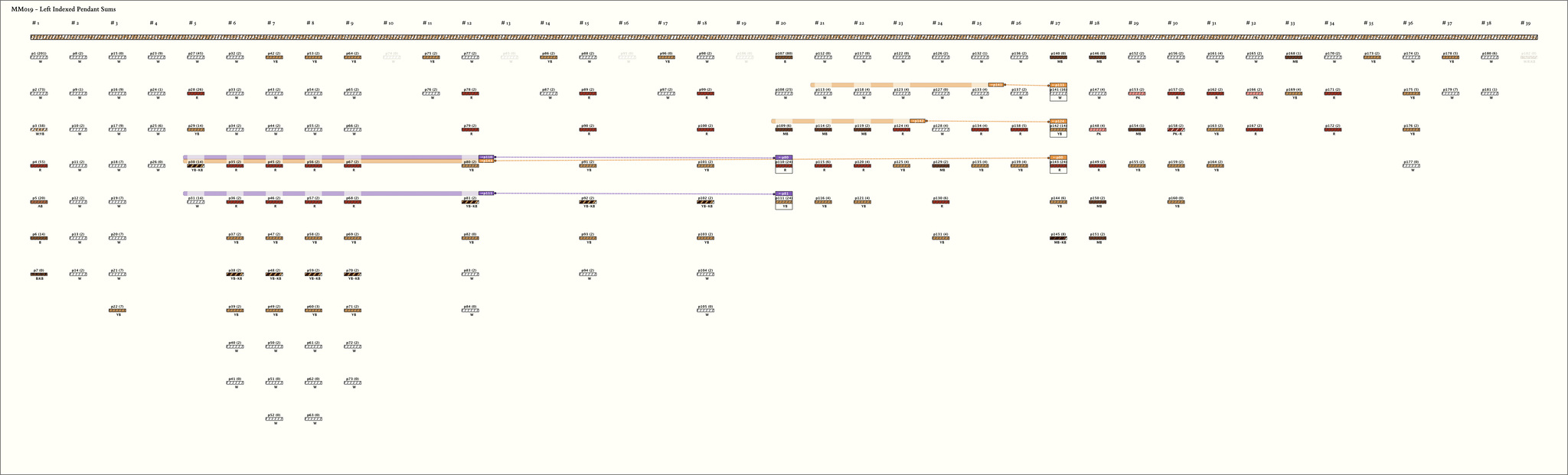

Left Handed Sums: # Sums = 5, Max # Summands = 6, (Min, Mean, Max) Sum Values = (14, 20, 24)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

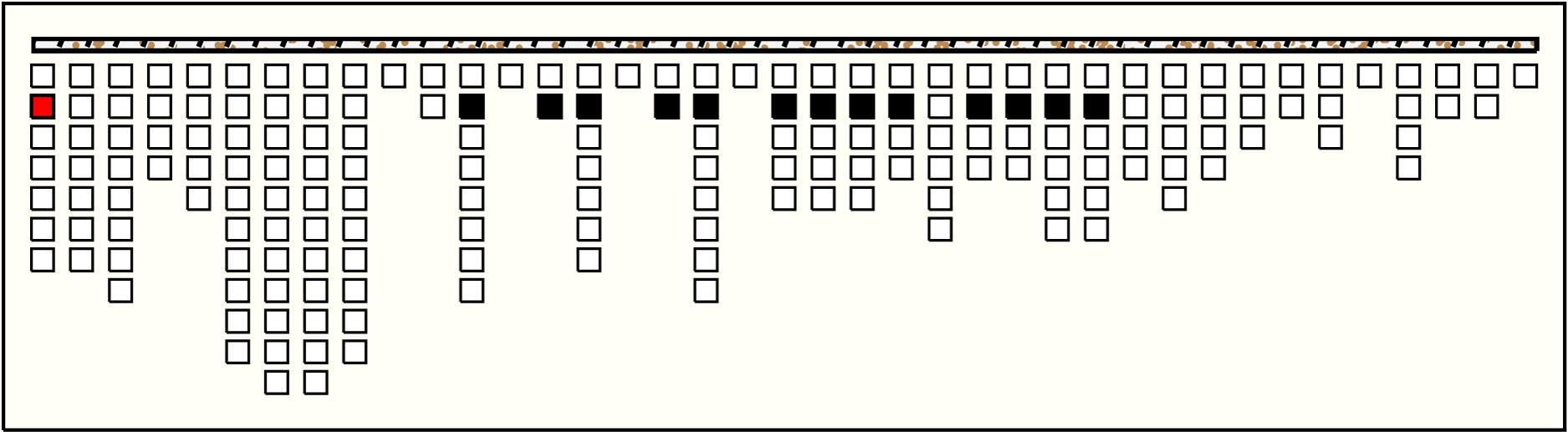

1	p2_{1, 2} : 73_W	73	13	p78: 2_RL + p87: 2_W + p89: 2_RL + p97: 2_W + p99: 2_RL + p108: 25_W + p113: 4_W + p118: 4_W + p123: 4_W + p133: 4_W + p137: 2_W + p141: 16_W + p147: 4_W
2	p3_{1, 3} : 38_W:BY	38	8	p119: 2_RL + p124: 4_RL + p128: 4_W + p134: 4_RL + p138: 5_RL + p142: 14_BY + p148: 4_PK + p154: 1_RL

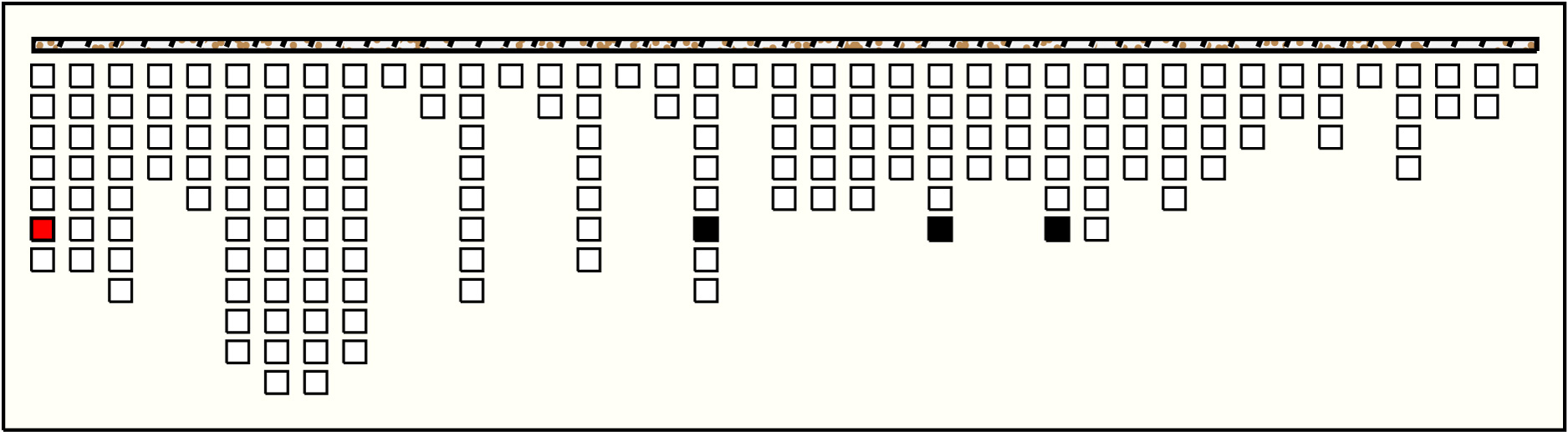

3	p6_{1, 6} : 14_B	14	3	p103: 2_BY + p131: 4_BY + p145: 8_RL-KB

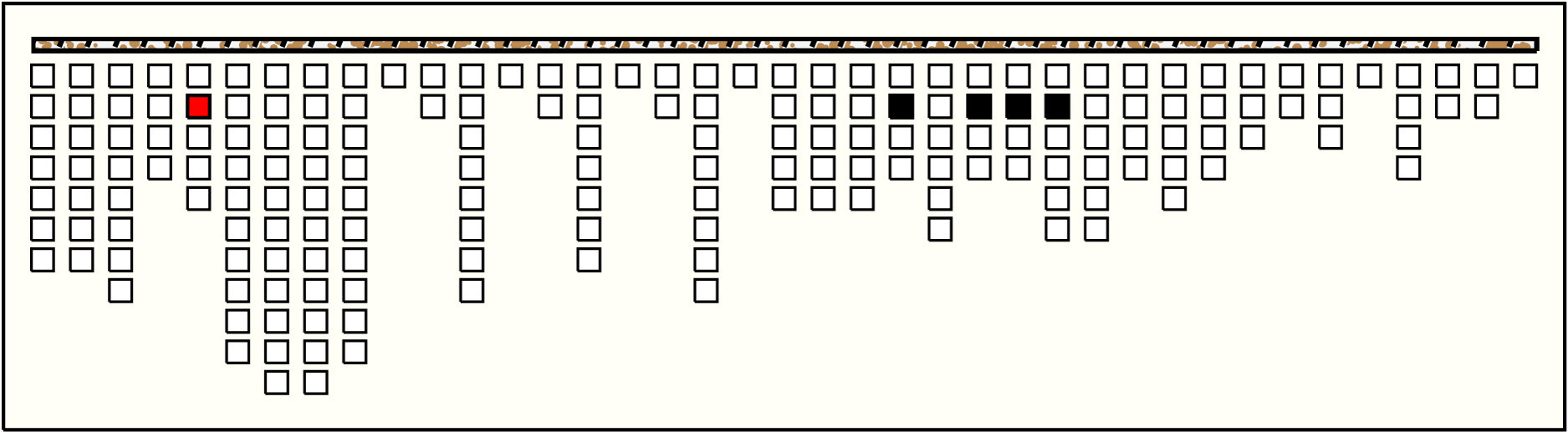

4	p28_{5, 2} : 26_RL	26	4	p123: 4_W + p133: 4_W + p137: 2_W + p141: 16_W

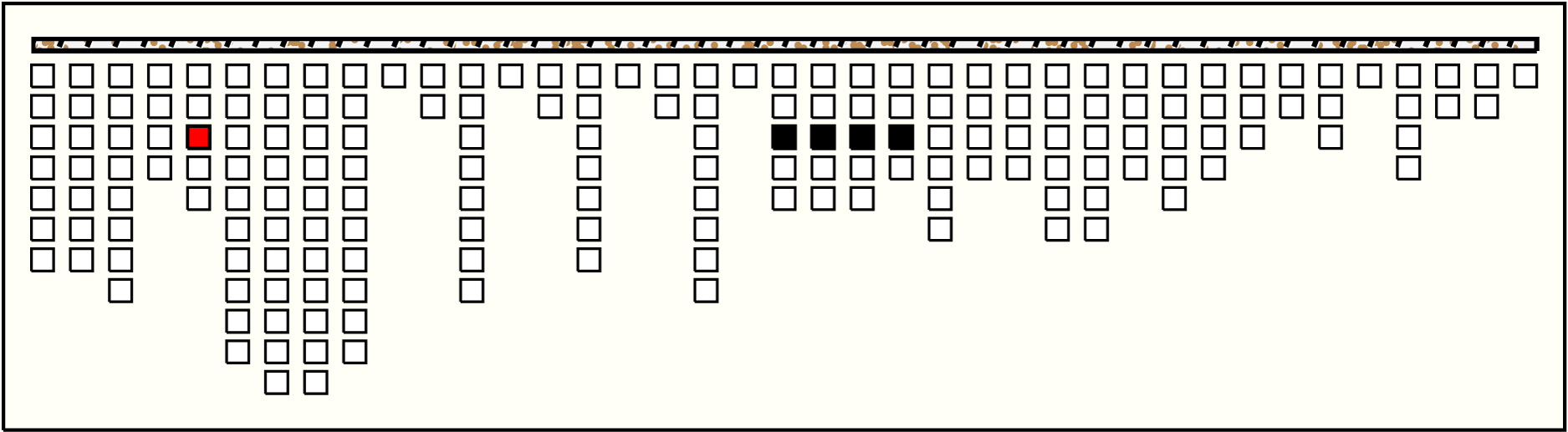

5	p29_{5, 3} : 14_BY	14	4	p109: 6_RL + p114: 2_RL + p119: 2_RL + p124: 4_RL

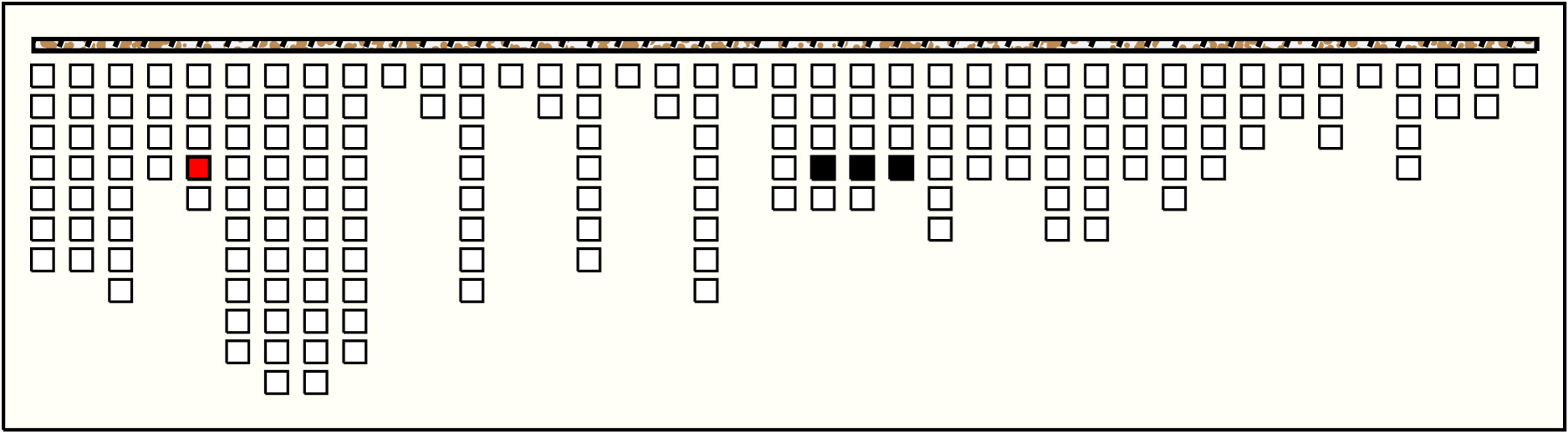

6	p30_{5, 4} : 14_BY-KB	14	3	p115: 6_RL + p120: 4_RL + p125: 4_BY
7	p31_{5, 5} : 14_W	14	3	p116: 4_BY + p121: 4_BY + p130: 6_RL

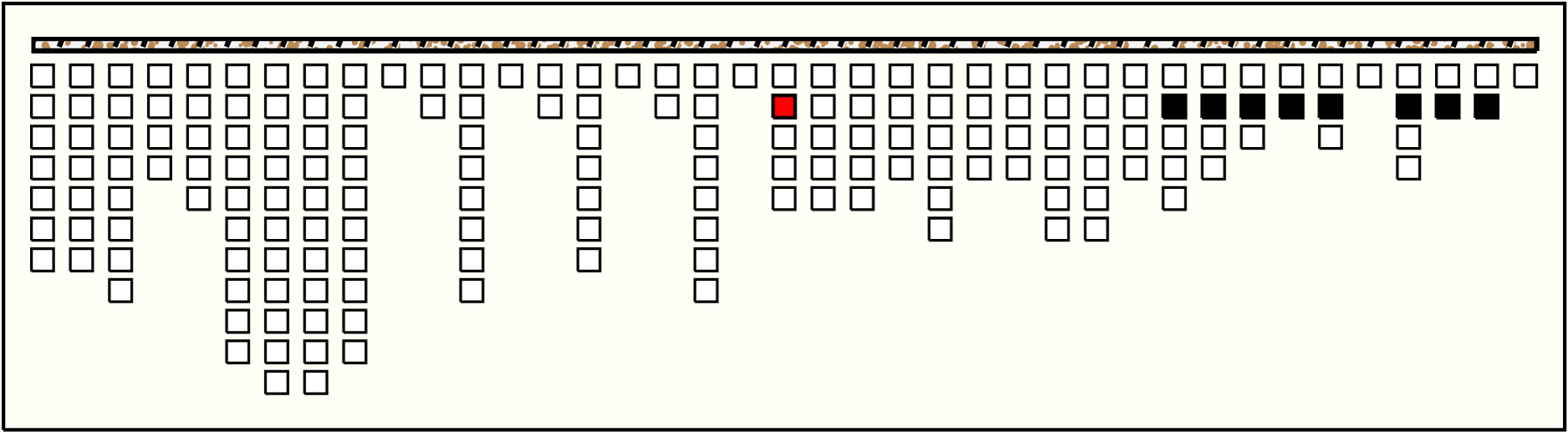

8	p108_{20, 2} : 25_W	25	8	p157: 2_RL + p162: 2_RL + p166: 2_PK + p169: 4_BY + p171: 2_RL + p175: 5_BY + p179: 7_W + p181: 1_W

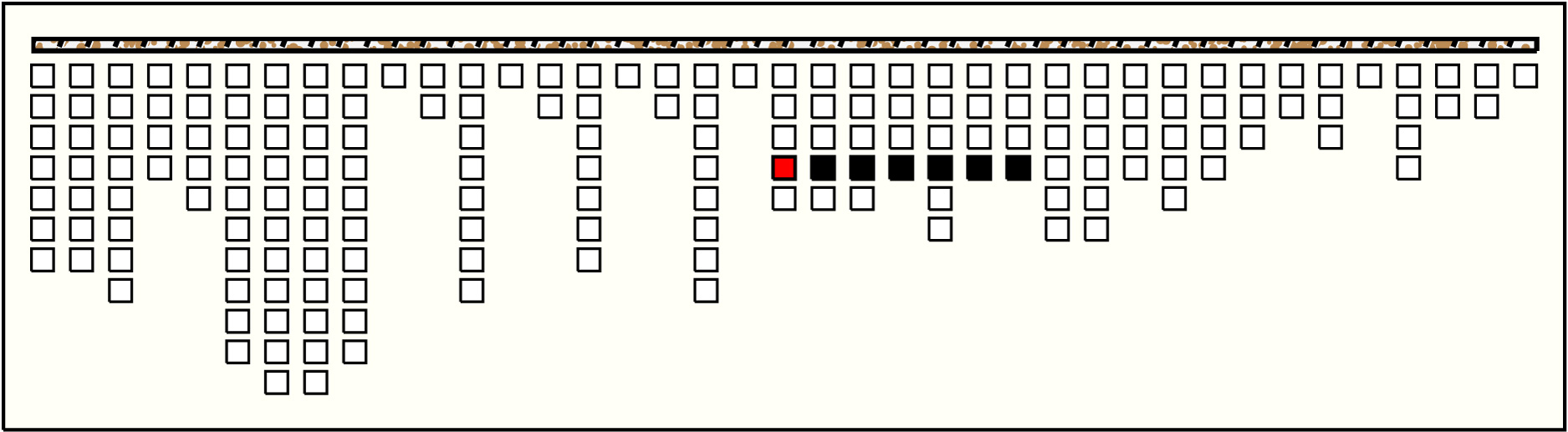

9	p110_{20, 4} : 24_RL	24	6	p115: 6_RL + p120: 4_RL + p125: 4_BY + p129: 2_RL + p135: 4_BY + p139: 4_BY

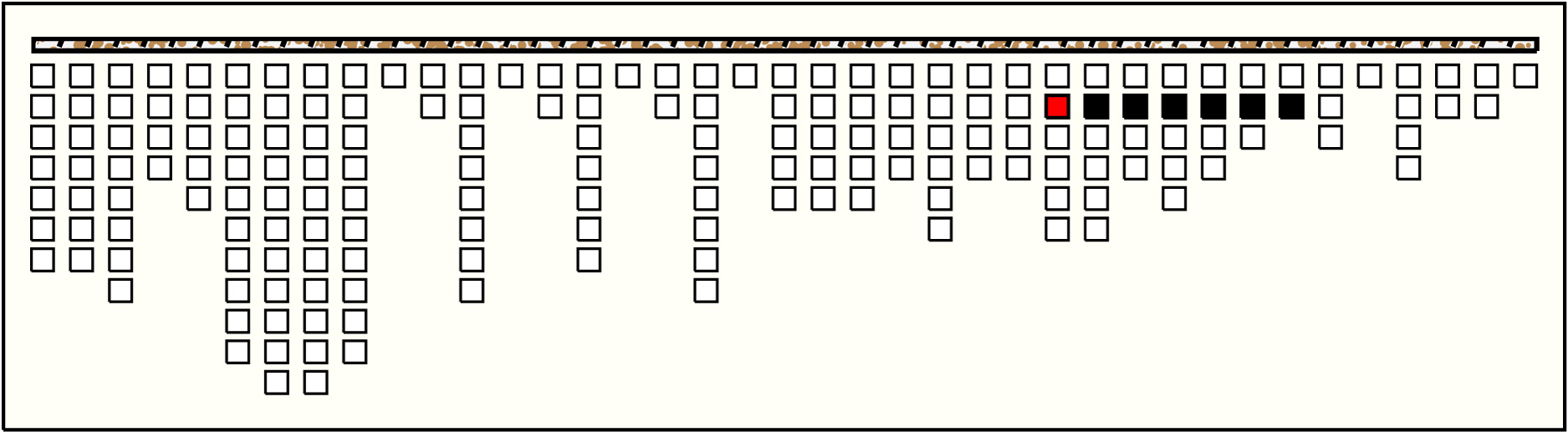

10	p141_{27, 2} : 16_W	16	6	p147: 4_W + p153: 2_PK + p157: 2_RL + p162: 2_RL + p166: 2_PK + p169: 4_BY

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

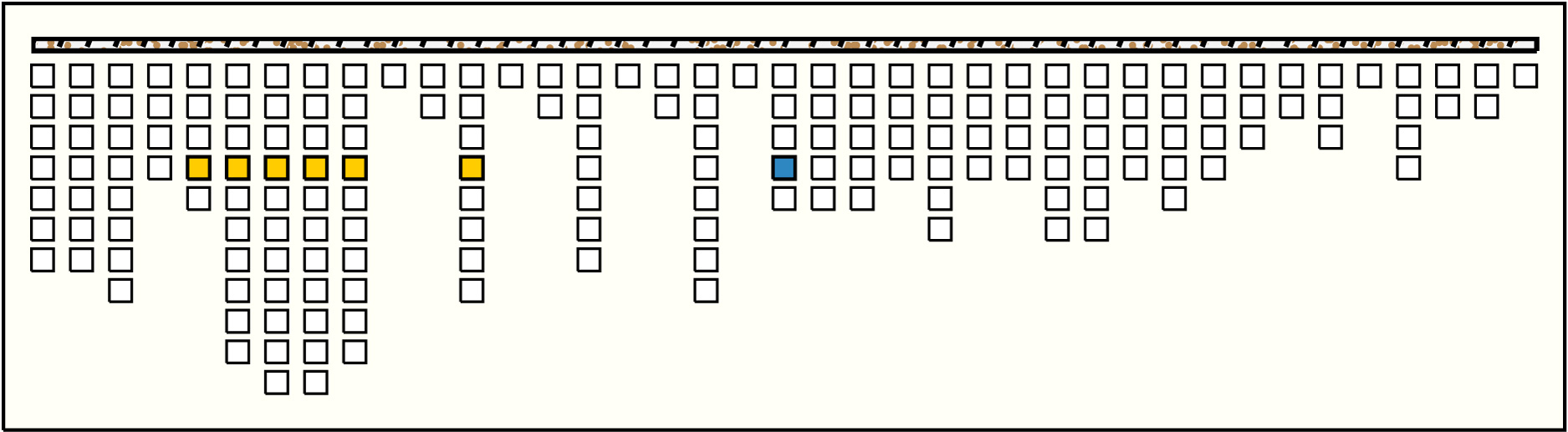

1	p110_{20, 4} : 24_RL	24	6	p30: 14_BY-KB + p35: 2_RL + p45: 2_RL + p56: 2_RL + p67: 2_RL + p80: 2_BY
2	p111_{20, 5} : 24_BY	24	6	p31: 14_W + p36: 2_RL + p46: 2_RL + p57: 2_RL + p68: 2_RL + p81: 2_BY-KB
3	p141_{27, 2} : 16_W	16	4	p113: 4_W + p118: 4_W + p123: 4_W + p133: 4_W

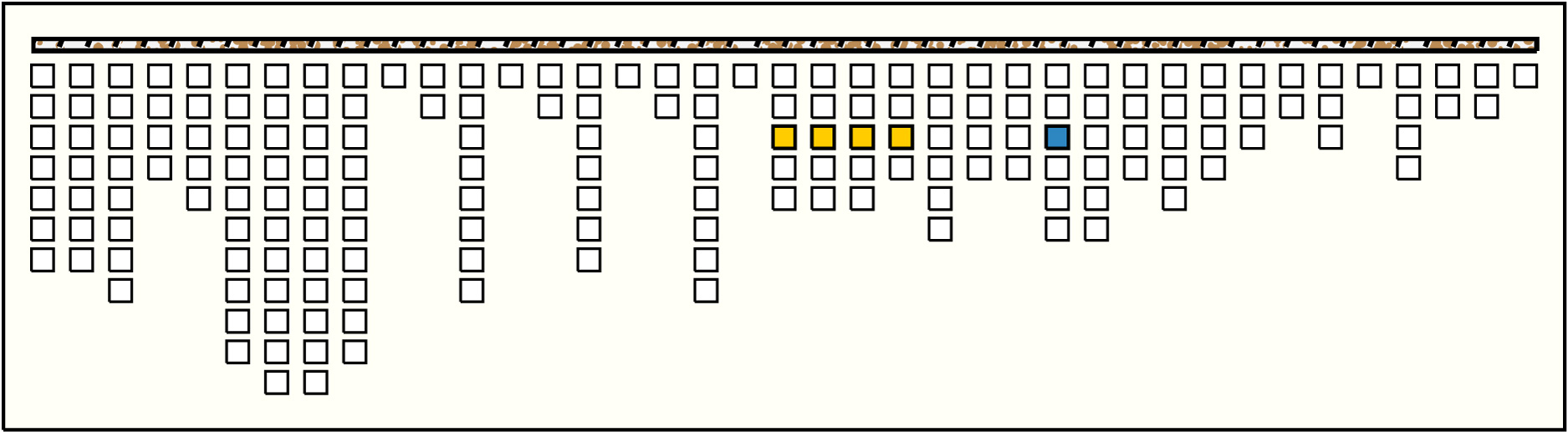

4	p142_{27, 3} : 14_BY	14	4	p109: 6_RL + p114: 2_RL + p119: 2_RL + p124: 4_RL

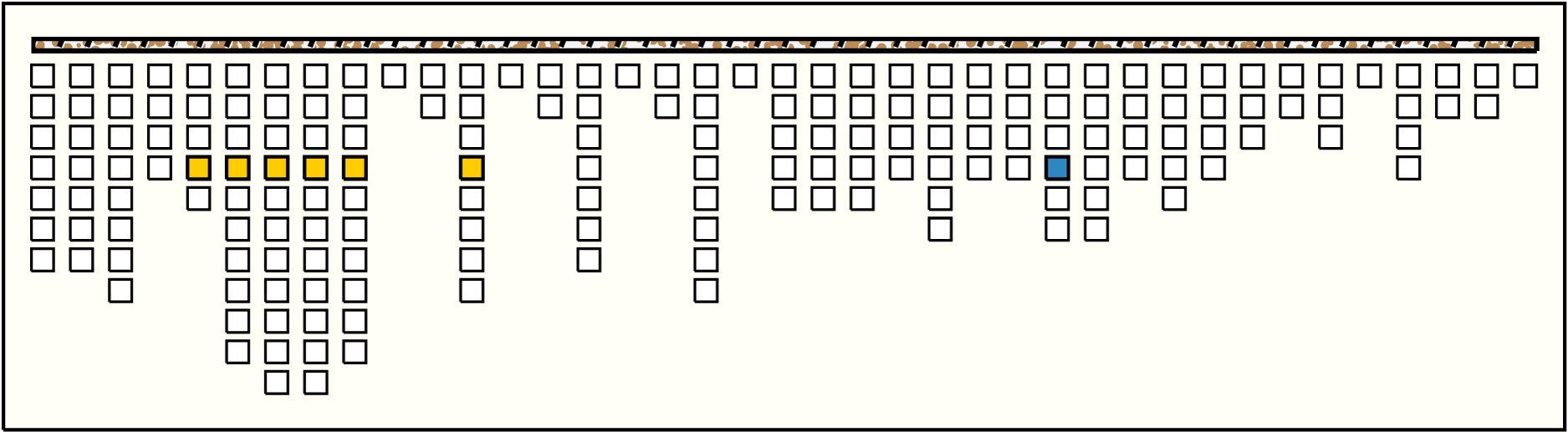

5	p143_{27, 4} : 24_RL	24	6	p30: 14_BY-KB + p35: 2_RL + p45: 2_RL + p56: 2_RL + p67: 2_RL + p80: 2_BY

Khipu Notes:

Primary Cord Thread Wrappings

SR wrapping 7.25-7.5cm and 8.0-8.75cm
LG wrapping 18.25-19.0cm
R wrapping 19.0-19.75cm
BL wrapping 128.5-130.5cm

Cord Notes and Obeservations for Khipu MM019

6: KB mottled thread introduced in long knot
13s2: MB wrapping around pendant from 43.0-44.0cm
31: color changes in 1S knot
69: barber pole portion of cord is quite deteriorated and fragile
109: GG thread tied around pendant at 34.0cm
114: PG thread tied around pendant at 36.0cm
119: YB thread tied around pendant at 34.5cm
129: PG thread tied around pendant at 34.5cm
140: cord broken in first turn of unidentifiable knot
141: color changes in single knot
151: YB thread tied around pendant at 38.5cm
159: traces of YB-KB in attachment knot
175: R thread tied around pendant at 0.5cm
176: cord raveled 33.0-45.0cm
178: R thread tied around pendant between 0.5-2.0cm
181: SR thread inserted following p181 attachment knot; p181 also has an anomalous figure eight knot
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon). Manuel Medrano.
