MM1086 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

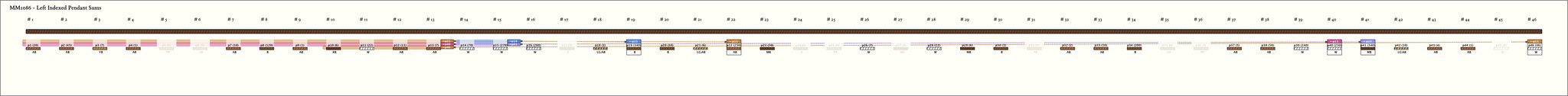

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Left Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 11, (Min, Mean, Max) Sum Values = (46, 245, 340)
Click on Image to View Larger
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

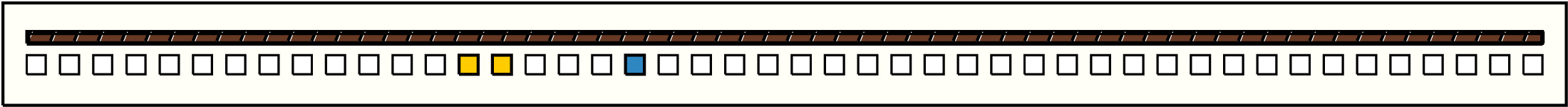

| 1 |  | p1919, 1 : 340B | 340 | 2 | p14: 70W + p15: 270W | |

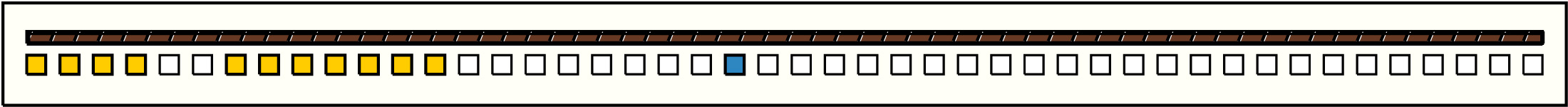

| 2 |  | p2222, 1 : 250AB | 250 | 11 | p1: 20AB + p2: 45AB + p3: 7YB + p4: 1AB + p7: 10AB + p8: 120B + p9: 1AB + p10: 6RB + p11: 22W + p12: 11AB + ∞p13: 7AB | |

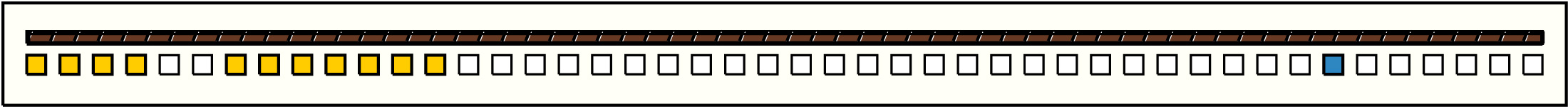

| 3 |  | p4040, 1 : 250W | 250 | 11 | p1: 20AB + p2: 45AB + p3: 7YB + p4: 1AB + p7: 10AB + p8: 120B + p9: 1AB + p10: 6RB + p11: 22W + p12: 11AB + ∞p13: 7AB | |

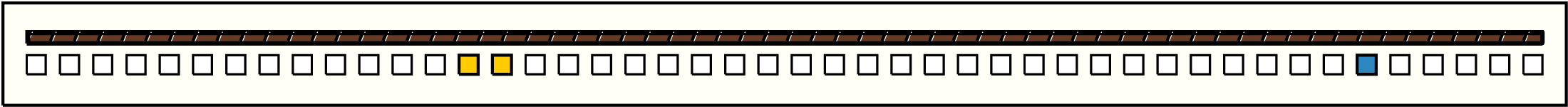

| 4 |  | p4141, 1 : 340MB | 340 | 2 | p14: 70W + p15: 270W | |

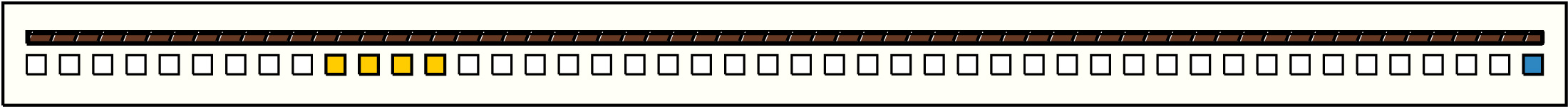

| 5 |  | p4646, 1 : 46W | 46 | 4 | ∞p10: 6RB + p11: 22W + p12: 11AB + ∞p13: 7AB |
Khipu Notes:
Moderate size khipu fragment with tightly-spaced pendant cords. Relatively muted in terms of color diversity, although there is very little pendant breakage across the primary cord. The primary cord is extremely difficult to see.
The khipu is affixed to a light brown (YB or YY) cloth backing.
Additional Notes: This khipu was studied by the Aschers, who assigned the label AS086 to their recording. Following convention, I label this recount of the khipu MM1086. Of the khipus in the museum's collections, this is the only one previously catalogued by a modern khipu researcher.
Cord Notes
9-46: Appears as if these cords are not attached to a primary cord at all, since there is only a thread passing through the attachment knots of these cords which affixes them to the same fabric backing as the rest of the khipu. However, the knotting pattern of high value cords and their preservation are similar enough that it is plausible that the cords are correctly ordered and comprised the same original khipu.
The khipu is affixed to a light brown (YB or YY) cloth backing.
Additional Notes: This khipu was studied by the Aschers, who assigned the label AS086 to their recording. Following convention, I label this recount of the khipu MM1086. Of the khipus in the museum's collections, this is the only one previously catalogued by a modern khipu researcher.
Cord Notes
9-46: Appears as if these cords are not attached to a primary cord at all, since there is only a thread passing through the attachment knots of these cords which affixes them to the same fabric backing as the rest of the khipu. However, the knotting pattern of high value cords and their preservation are similar enough that it is plausible that the cords are correctly ordered and comprised the same original khipu.
