UR203/KH0441 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Indexed Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 2, (Min, Mean, Max) Sum Values = (16, 21, 26)
Click on Image to View Larger

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 2, (Min, Mean, Max) Sum Values = (16, 22, 28)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p28_{5, 5} : 24_MB	24	2	p51: 16_W + p65: 8_W❽

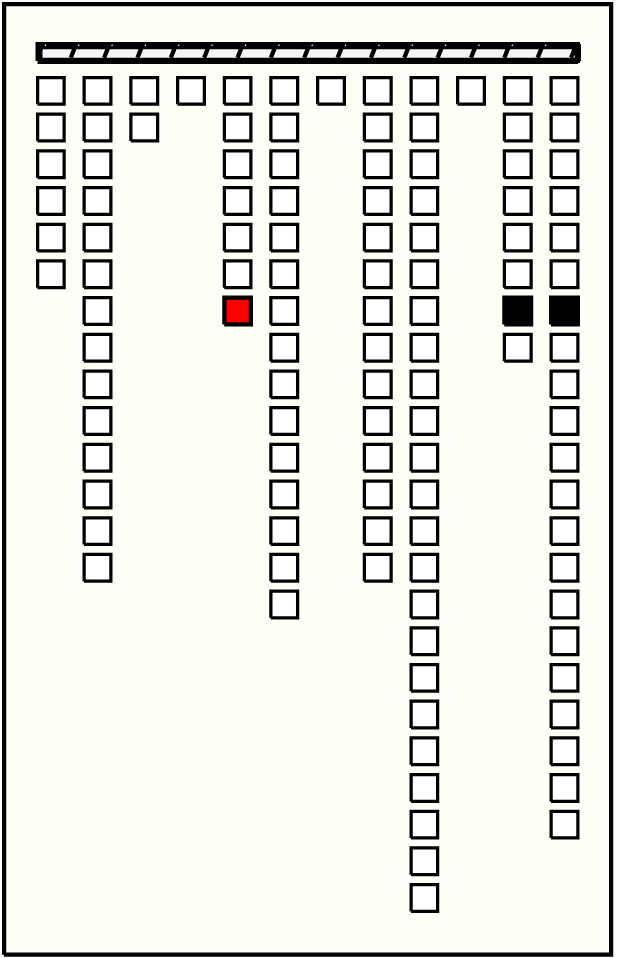

2	p30_{5, 7} : 18_MB	18	2	❽p91: 11_LK + p99: 7_W❽

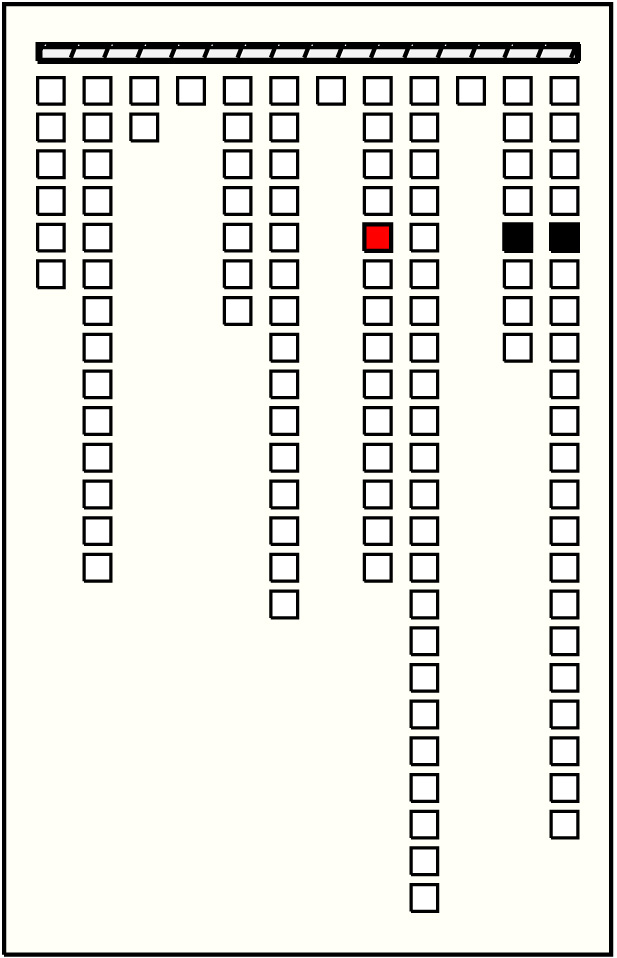

3	p51_{8, 5} : 16_W	16	2	∞p89: 2_LK∞ + p97: 14_W:BG❽

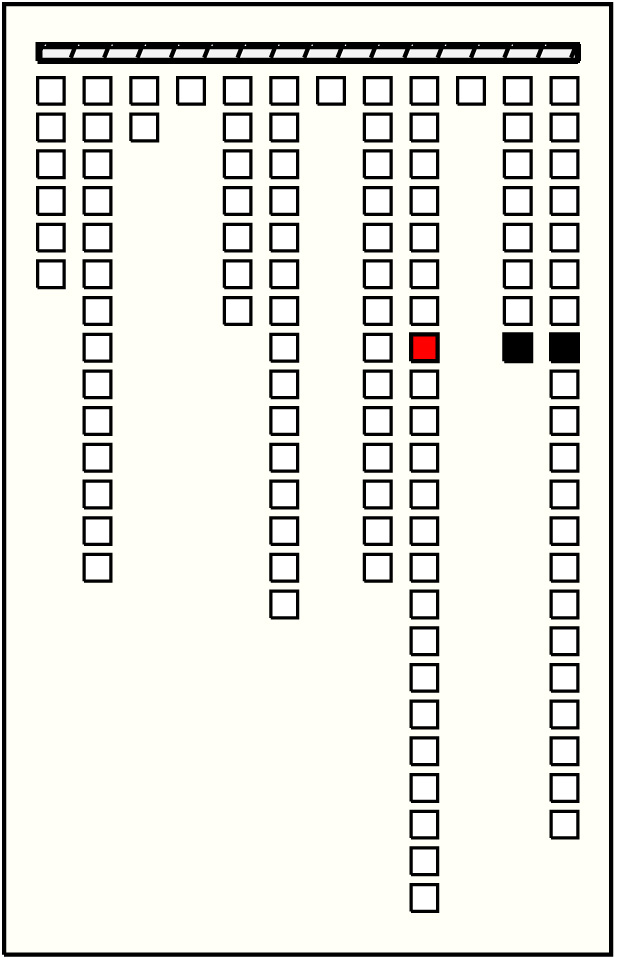

4	p68_{9, 8} : 26_W	26	2	❽p92: 8_W:MB + p100: 18_W:BG❽

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

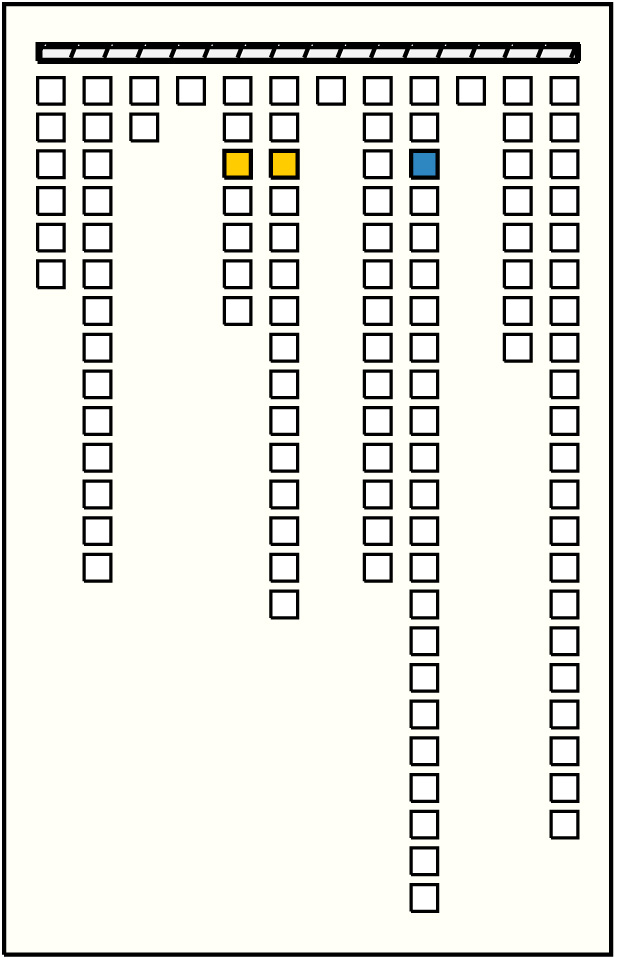

1			p63_{9, 3} : 16_AB	16	2	❽p26: 8_MB + p33: 8_MB❽

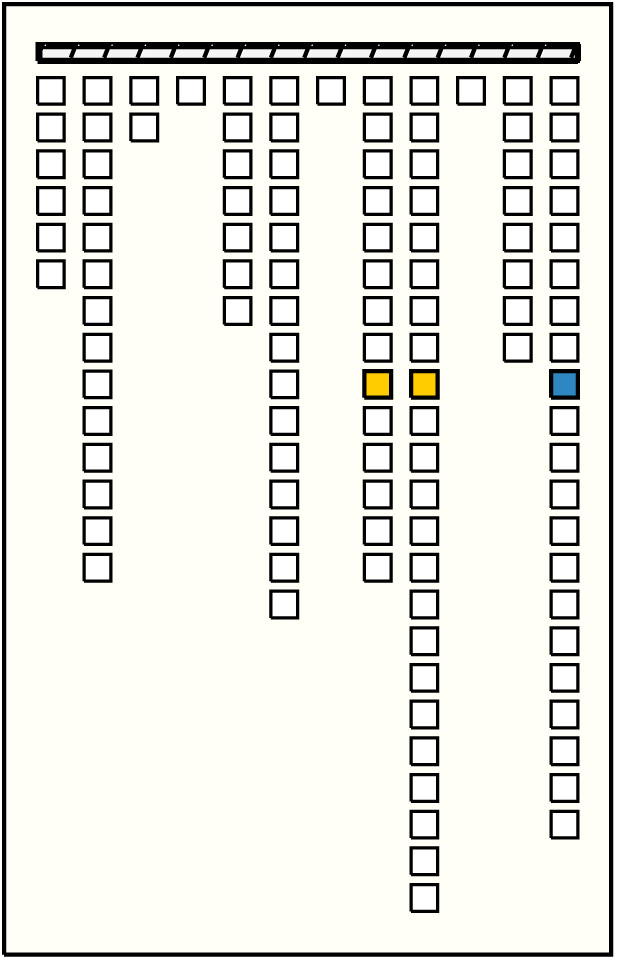

2			p101_{12, 9} : 28_B:BG	28	2	p55: 8_W∞ + p69: 20_W❽

Khipu Notes:

1) "spiral knots" are knots like those descripted for UR193. There are two types:
