AS036/KH0047 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

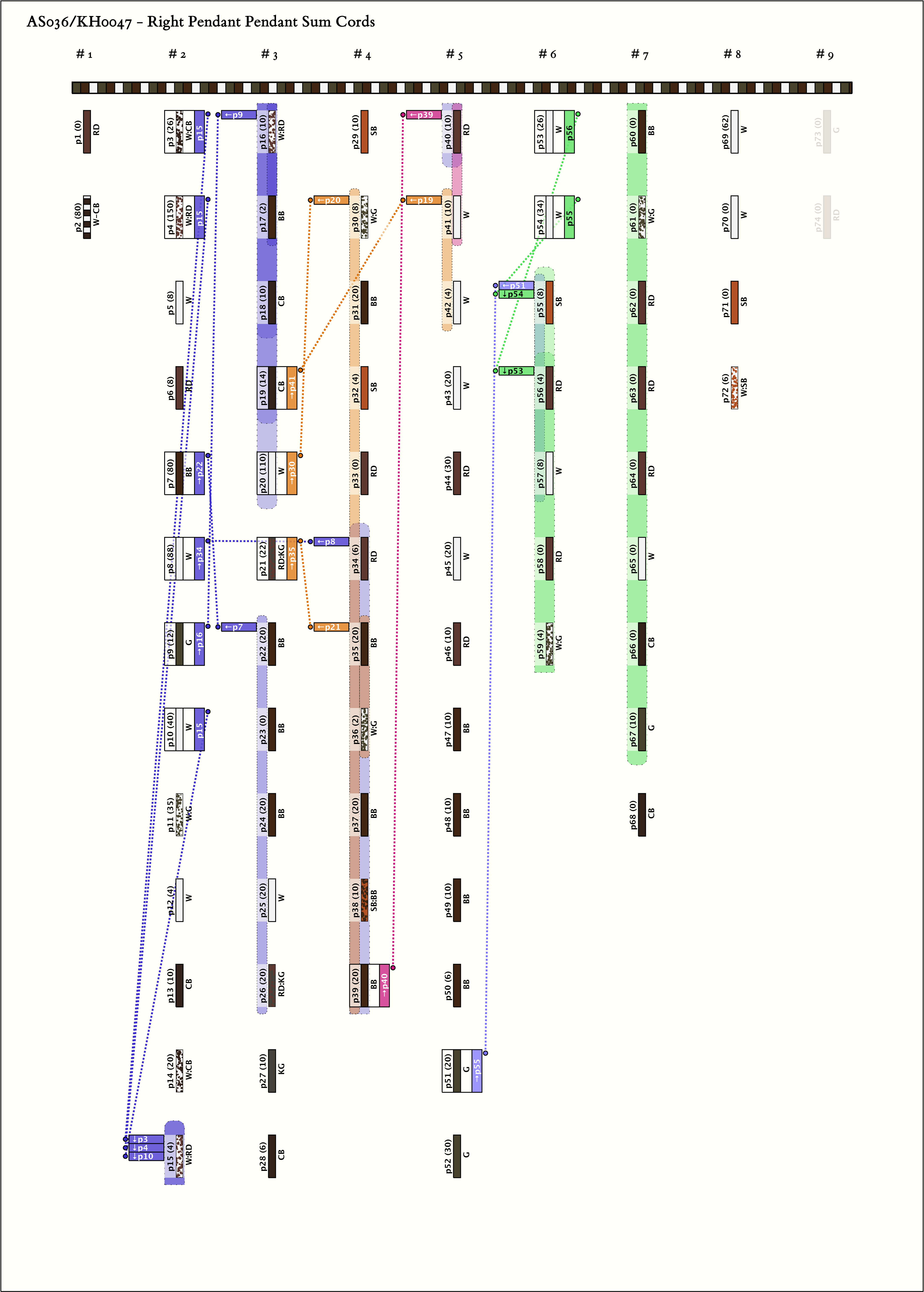

Right Handed Sums: # Sums = 13, Max # Summands = 13, (Min, Mean, Max) Sum Values = (12, 49, 150)
Click on Image to View Larger

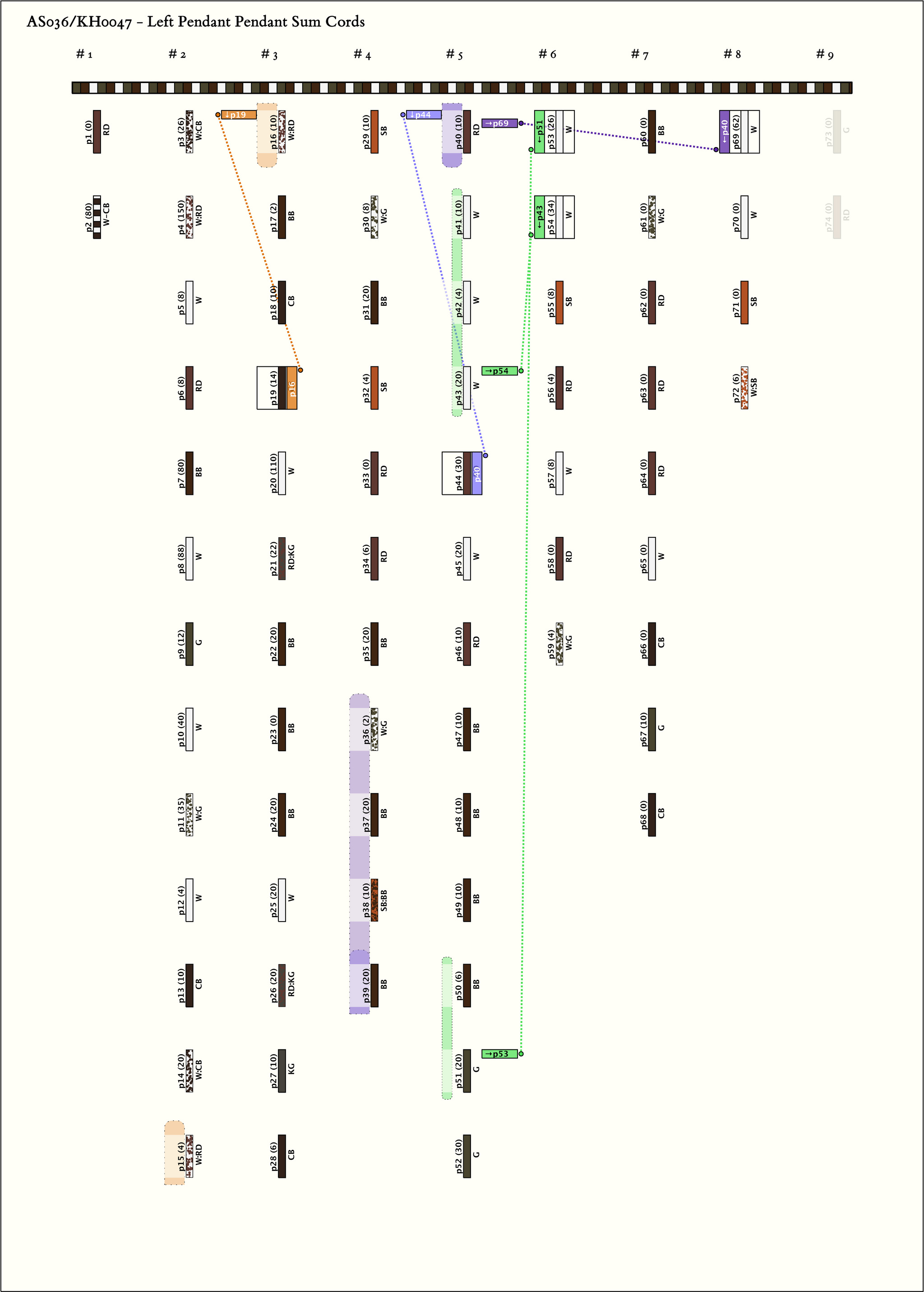

Left Handed Sums: # Sums = 5, Max # Summands = 5, (Min, Mean, Max) Sum Values = (14, 33, 62)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p3_{2, 1} : 26_W:CB	26	4	p15: 4_W:RD + p16: 10_W:RD + p17: 2_BB + p18: 10_CB
2	p4_{2, 2} : 150_W:RD	150	6	p15: 4_W:RD + p16: 10_W:RD + p17: 2_BB + p18: 10_CB + p19: 14_CB + p20: 110_W

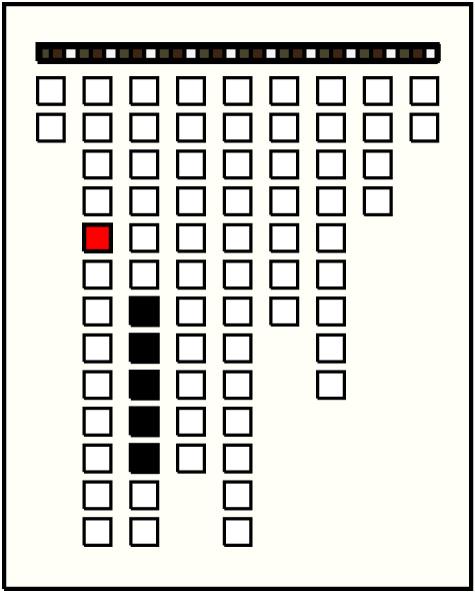

3	p7_{2, 5} : 80_BB	80	5	p22: 20_BB + p23: 0_BB + p24: 20_BB + p25: 20_W + p26: 20_RD:KG

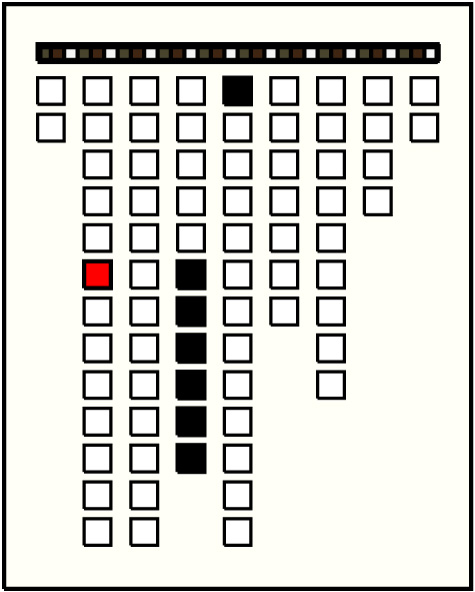

4	p8_{2, 6} : 88_W	88	7	p34: 6_RD + p35: 20_BB + p36: 2_W:G + p37: 20_BB + p38: 10_SB:BB + p39: 20_BB + p40: 10_RD

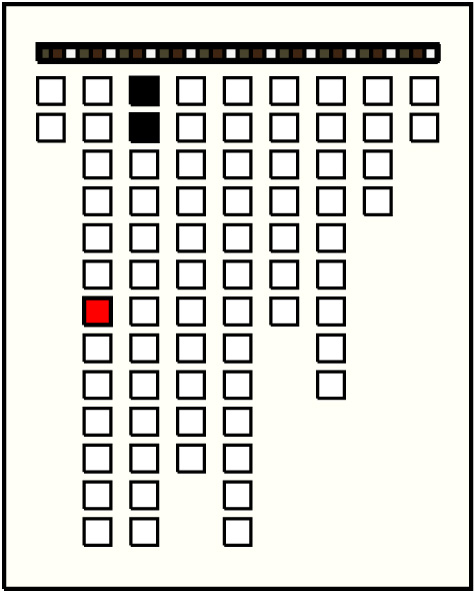

5	p9_{2, 7} : 12_G	12	2	p16: 10_W:RD + p17: 2_BB

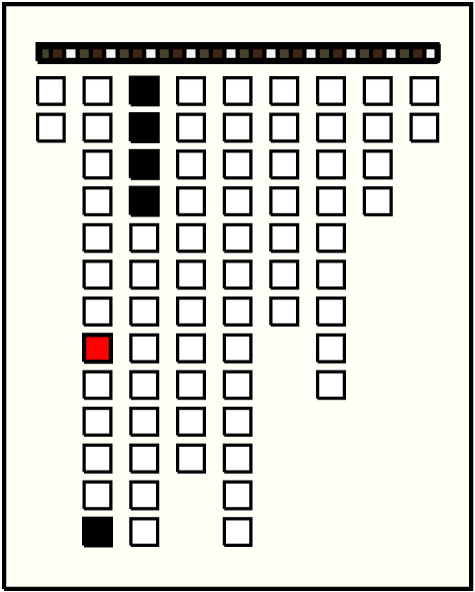

6	p10_{2, 8} : 40_W	40	5	p15: 4_W:RD + p16: 10_W:RD + p17: 2_BB + p18: 10_CB + p19: 14_CB

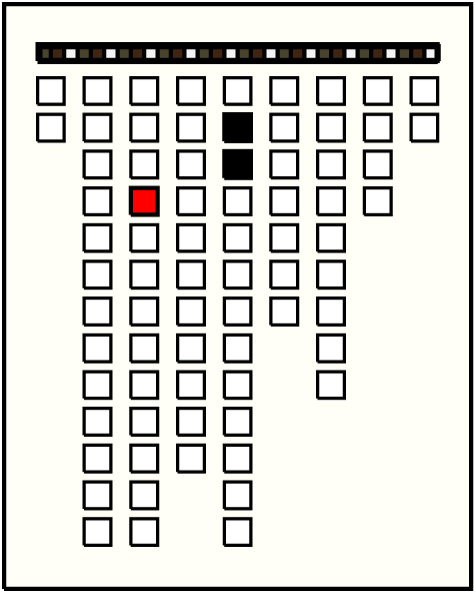

7	p19_{3, 4} : 14_CB	14	2	p41: 10_W + p42: 4_W
8	p20_{3, 5} : 110_W	110	10	p30: 8_W:G + p31: 20_BB + p32: 4_SB + p33: 0_RD + p34: 6_RD + p35: 20_BB + p36: 2_W:G + p37: 20_BB + p38: 10_SB:BB + p39: 20_BB

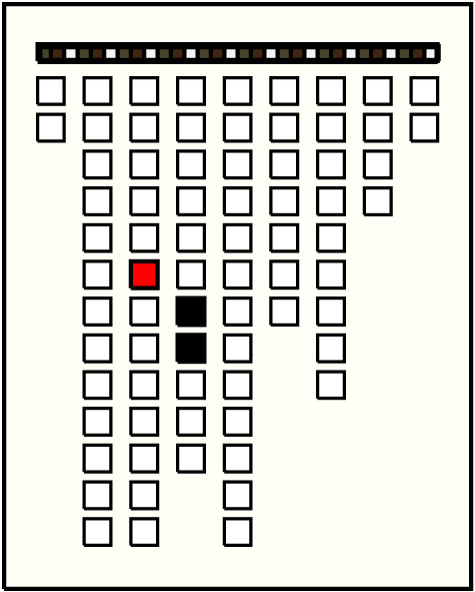

9	p21_{3, 6} : 22_RD:KG	22	2	p35: 20_BB + p36: 2_W:G

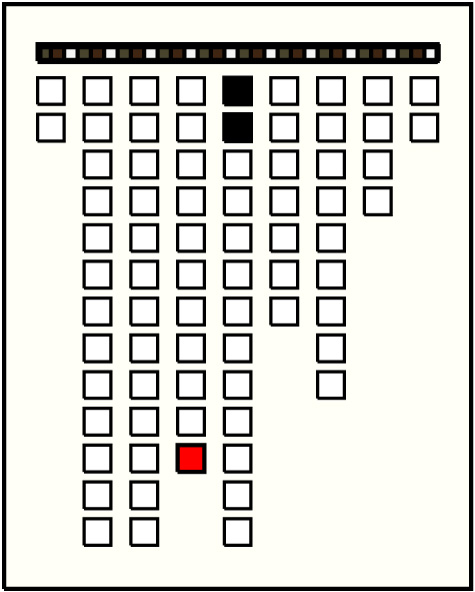

10	p39_{4, 11} : 20_BB	20	2	p40: 10_RD + p41: 10_W
11	p51_{5, 12} : 20_G	20	3	p55: 8_SB + p56: 4_RD + p57: 8_W

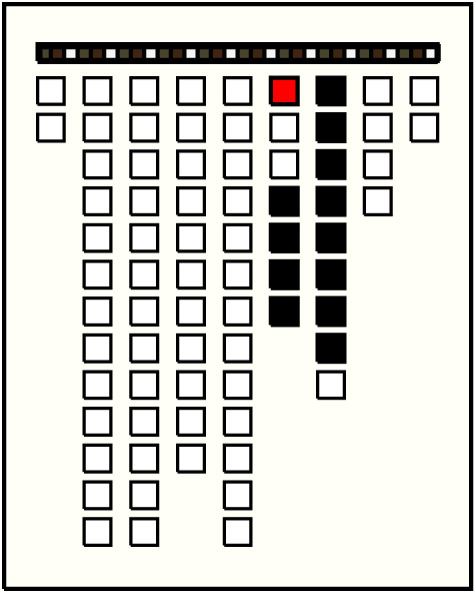

12	p53_{6, 1} : 26_W	26	12	p56: 4_RD + p57: 8_W + p58: 0_RD + p59: 4_W:G + p60: 0_BB + p61: 0_W:G + p62: 0_RD + p63: 0_RD + p64: 0_RD + p65: 0_W + p66: 0_CB + p67: 10_G

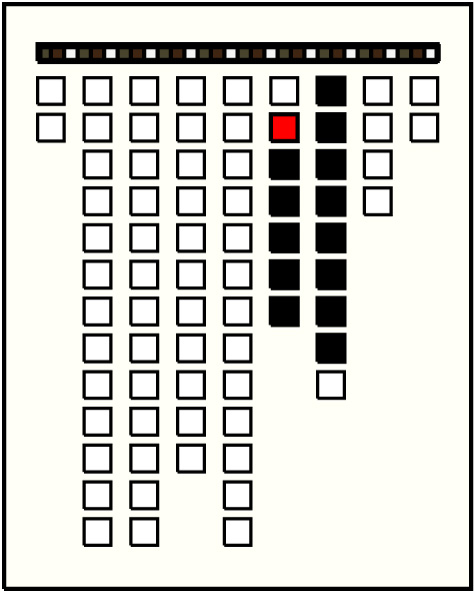

13	p54_{6, 2} : 34_W	34	13	p55: 8_SB + p56: 4_RD + p57: 8_W + p58: 0_RD + p59: 4_W:G + p60: 0_BB + p61: 0_W:G + p62: 0_RD + p63: 0_RD + p64: 0_RD + p65: 0_W + p66: 0_CB + p67: 10_G

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p19_{3, 4} : 14_CB	14	2	p15: 4_W:RD + p16: 10_W:RD
2	p44_{5, 5} : 30_RD	30	2	p39: 20_BB + p40: 10_RD

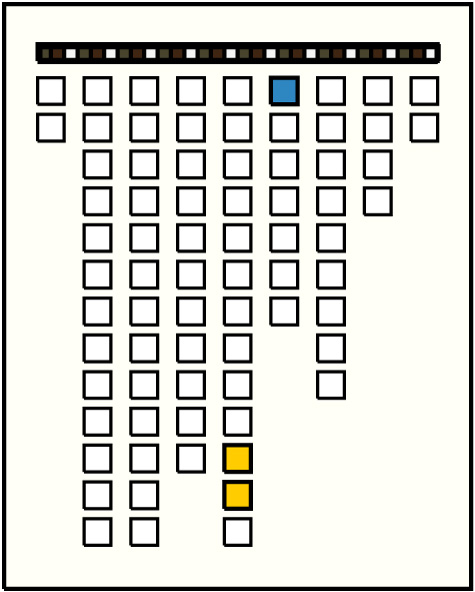

3	p53_{6, 1} : 26_W	26	2	p50: 6_BB + p51: 20_G
4	p54_{6, 2} : 34_W	34	3	p41: 10_W + p42: 4_W + p43: 20_W
5	p69_{8, 1} : 62_W	62	5	p36: 2_W:G + p37: 20_BB + p38: 10_SB:BB + p39: 20_BB + p40: 10_RD

Khipu Notes:

Ascher Databook Notes:

Since the positions of the s and L knots are inconsistent, no numerical interpretation is given.
AS036 and AS037 are associated and have the same Museum number. They are mentioned in Maranga : Contribución ai Conocimiento de ios Aborigenes del Valle del Rimac, Peru, J . Jij on Y Caamaño, La Prensa Católica, Quito-Equador, 1949. Their provenance is Maranga, Huaca 1. They were excavated in 1925 and were found in association with 4 burials. A purse (Museum number P688) was recovered in the same context, as were pottery vessels, gourds, and shells.
The colors W, G, RD, SB, BB, CB, and KG appear alone or in combination on both AS036 and AS037 . AS037 uses the 2 additional colors B and LG . Neither of the khipus have been given numerical interpretation.
