KH0027/AS026A - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

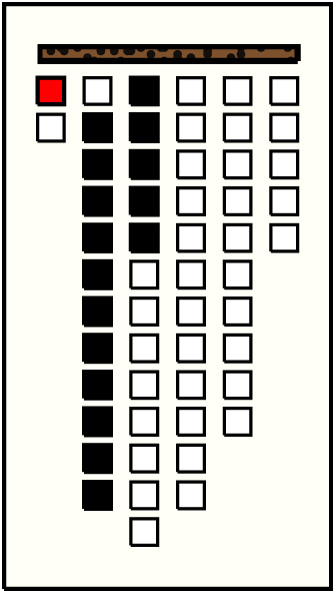

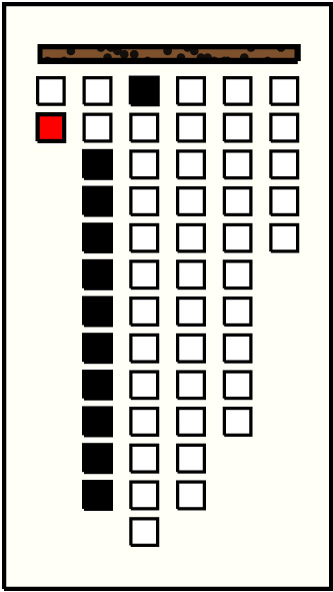

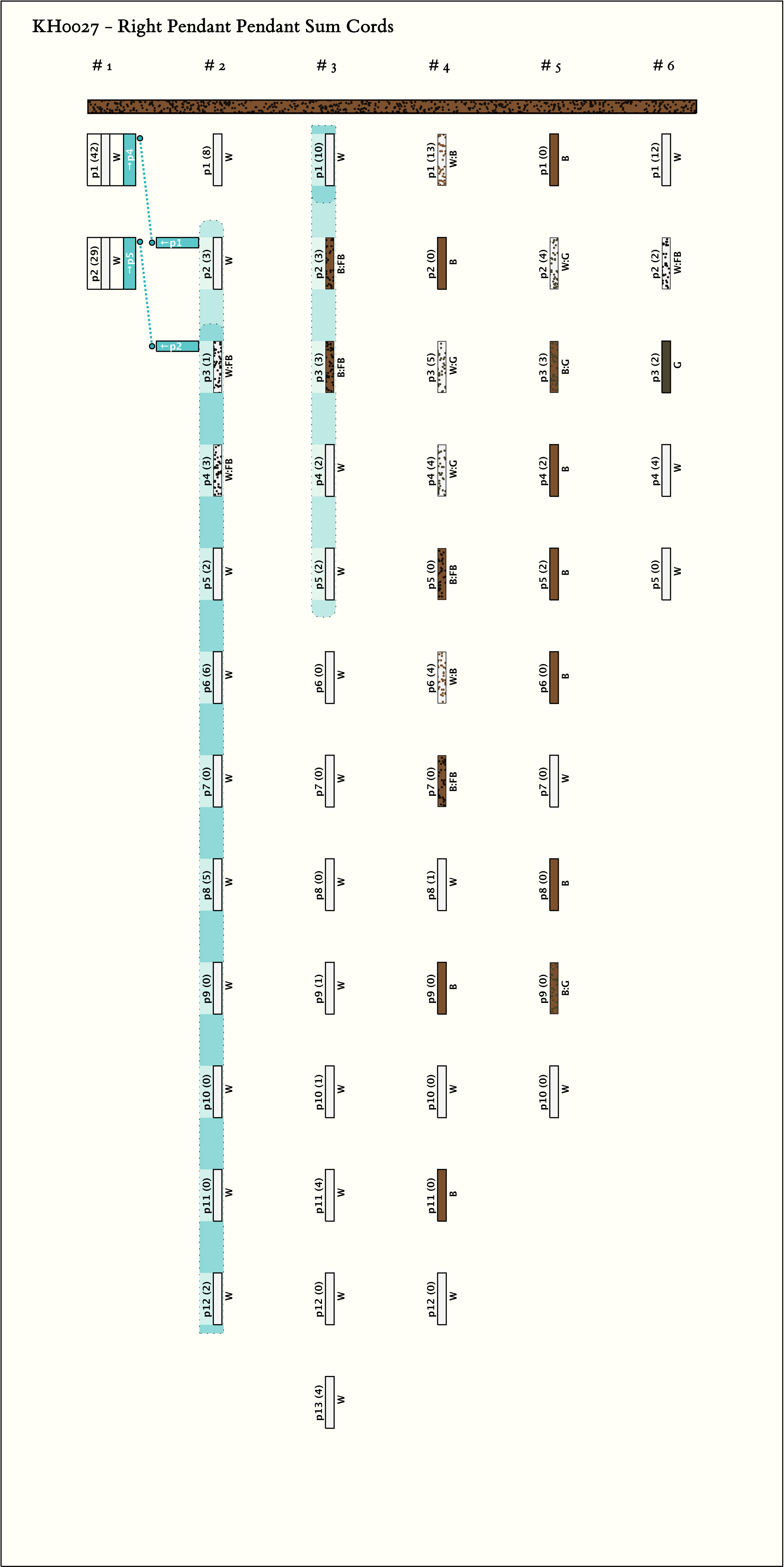

Right Handed Sums: # Sums = 2, Max # Summands = 16, (Min, Mean, Max) Sum Values = (29, 36, 42)
Click on Image to View Larger

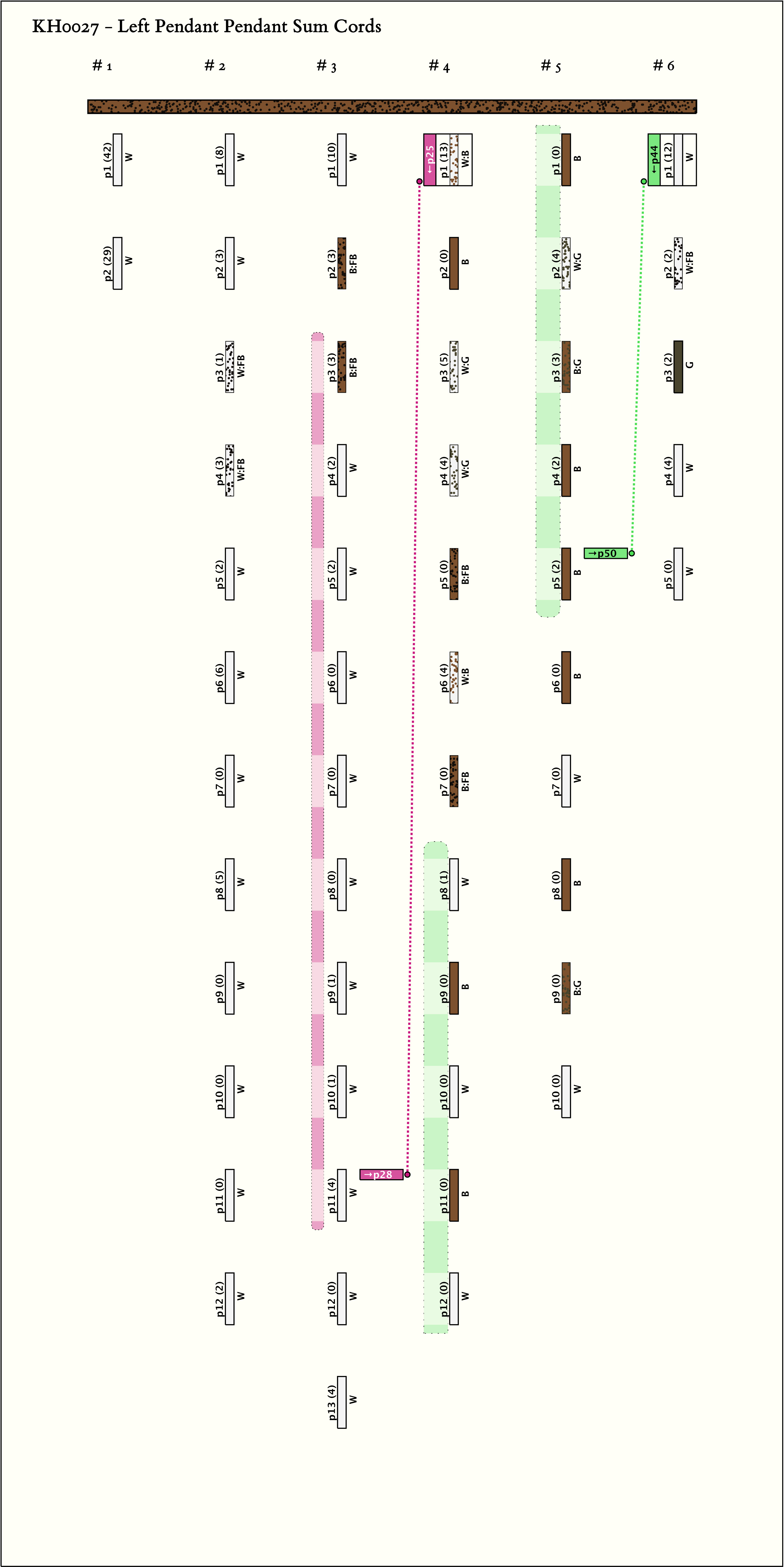

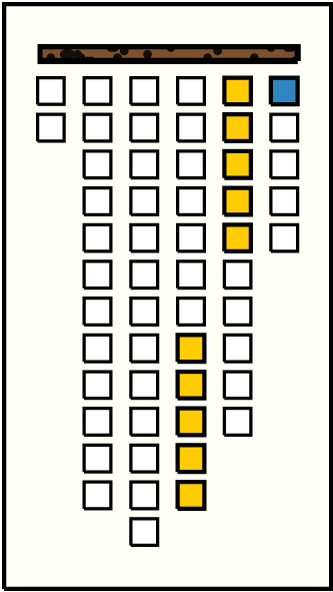

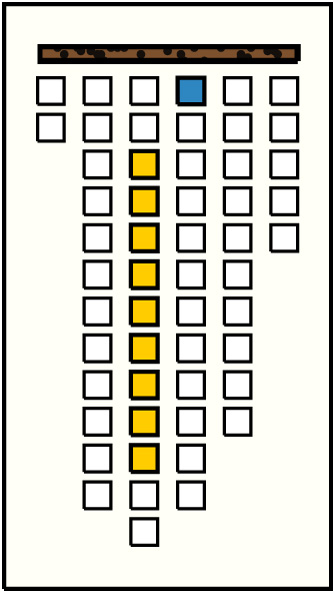

Left Handed Sums: # Sums = 2, Max # Summands = 10, (Min, Mean, Max) Sum Values = (12, 12, 13)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			g1p1 : 42_W	42	16	g2p2: 3_W + g2p3: 1_W:FB + g2p4: 3_W:FB + g2p5: 2_W + g2p6: 6_W + g2p7: 0_W + g2p8: 5_W + g2p9: 0_W + g2p10: 0_W + g2p11: 0_W + g2p12: 2_W + g3p1: 10_W + g3p2: 3_B:FB + g3p3: 3_B:FB + g3p4: 2_W + g3p5: 2_W
2			g1p2 : 29_W	29	11	g2p3: 1_W:FB + g2p4: 3_W:FB + g2p5: 2_W + g2p6: 6_W + g2p7: 0_W + g2p8: 5_W + g2p9: 0_W + g2p10: 0_W + g2p11: 0_W + g2p12: 2_W + g3p1: 10_W

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			g4p1 : 13_W:B	13	9	g3p3: 3_B:FB + g3p4: 2_W + g3p5: 2_W + g3p6: 0_W + g3p7: 0_W + g3p8: 0_W + g3p9: 1_W + g3p10: 1_W + g3p11: 4_W
2			g6p1 : 12_W	12	10	g4p8: 1_W + g4p9: 0_B + g4p10: 0_W + g4p11: 0_B + g4p12: 0_W + g5p1: 0_B + g5p2: 4_W:G + g5p3: 3_B:G + g5p4: 2_B + g5p5: 2_B

Khipu Notes:

Ascher Databook Notes:

Khipus KH0027 and KH0028 are joined. Their main cords are knotted together at 1.0 cm. from the twisted end of KH0027 (between pendant cords 2 and 3), and at 15.0 cm. from the twisted end of KH0028 (just before its first pendant cord).
By spacing, KH0027 has 6 groups of 2, 12, 13, 12, 10, 5 pendants respectively. The order of magnitude of the values in the first group (29-49) is greater than the values in the other groups ( 0-13). Within the other groups, values in position 1 are 8-13 while values in all the other positions are restricted to 0-6.
Both KH0027 and KH0028 contain the colors W, B, FB and their combinations FB:W and B:W. There are colors that occur in KH0027 and not in KH0028, as follows: DB, G, and the combinations G:W, B:G, and FB:B. Similarly, there are colors that occur in KH0028 and not in KH0027. They are: KB, GG, GG:W, B:GG, and KB:B. These differences may be due to differential changes from the same original colors.
