KH0042/UR1034, AS034 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

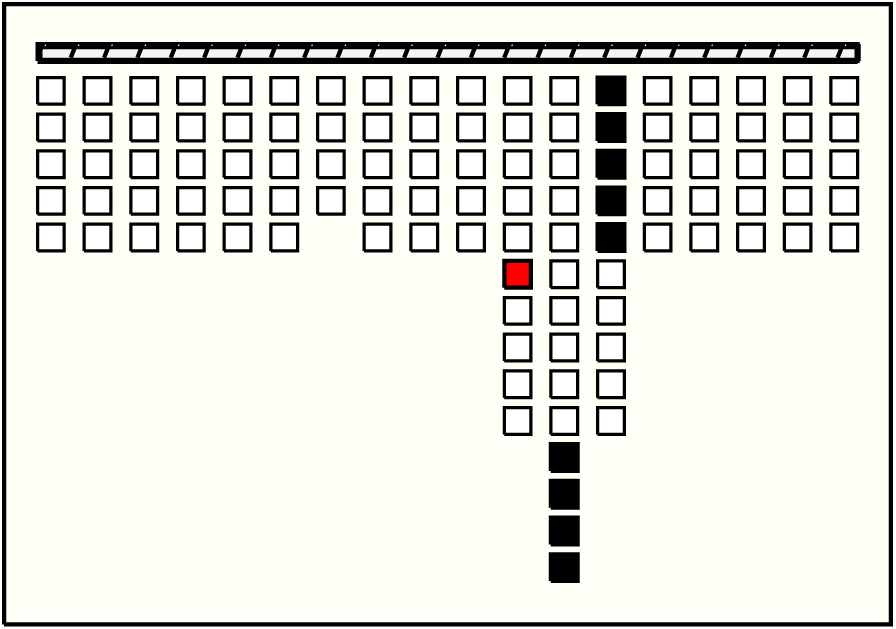

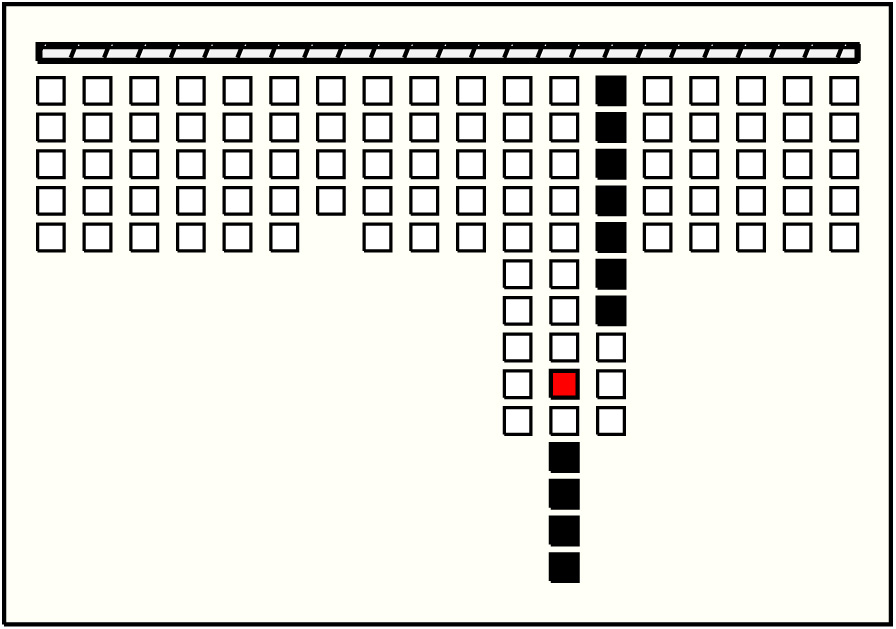

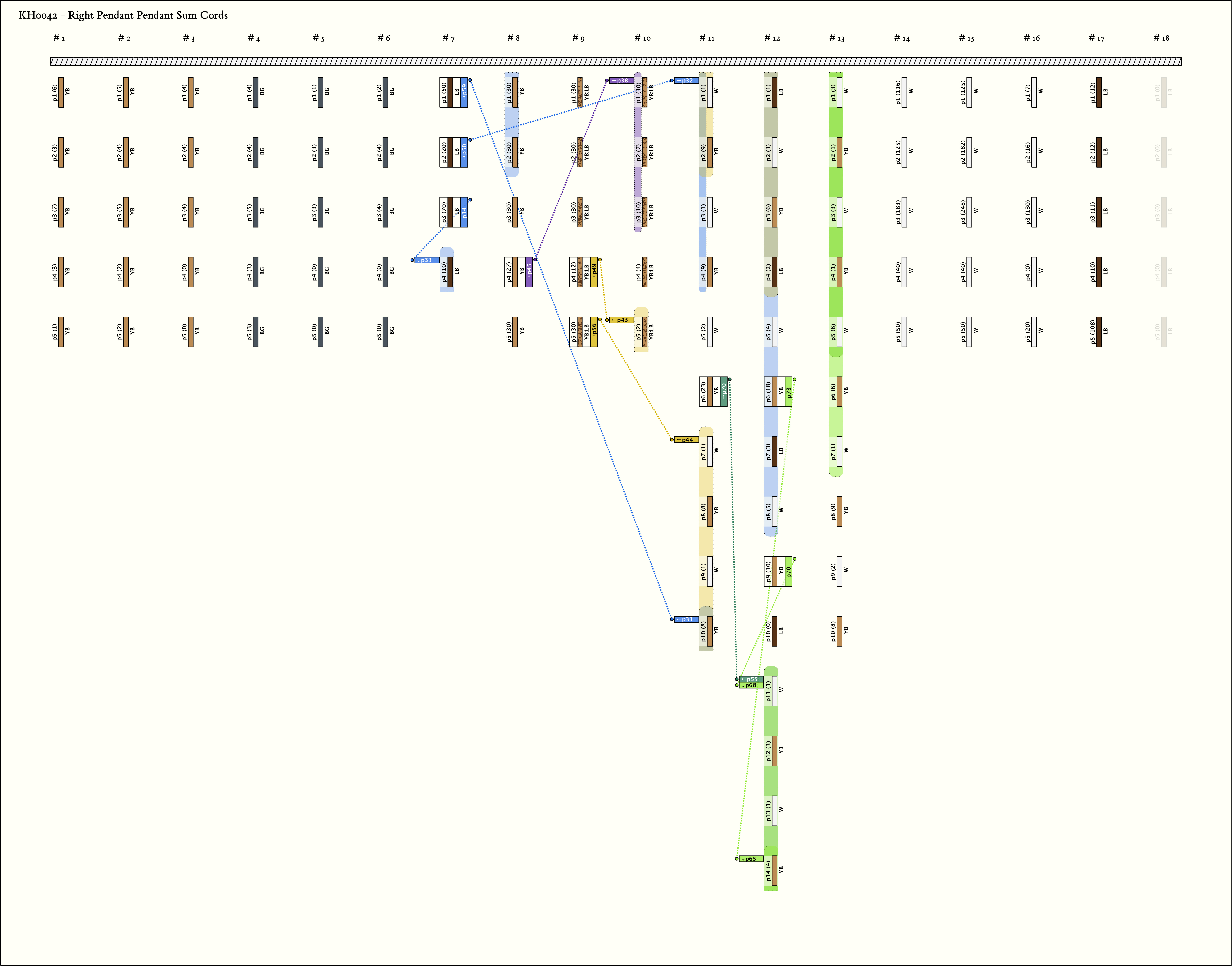

Right Handed Sums: # Sums = 9, Max # Summands = 11, (Min, Mean, Max) Sum Values = (12, 31, 70)
Click on Image to View Larger

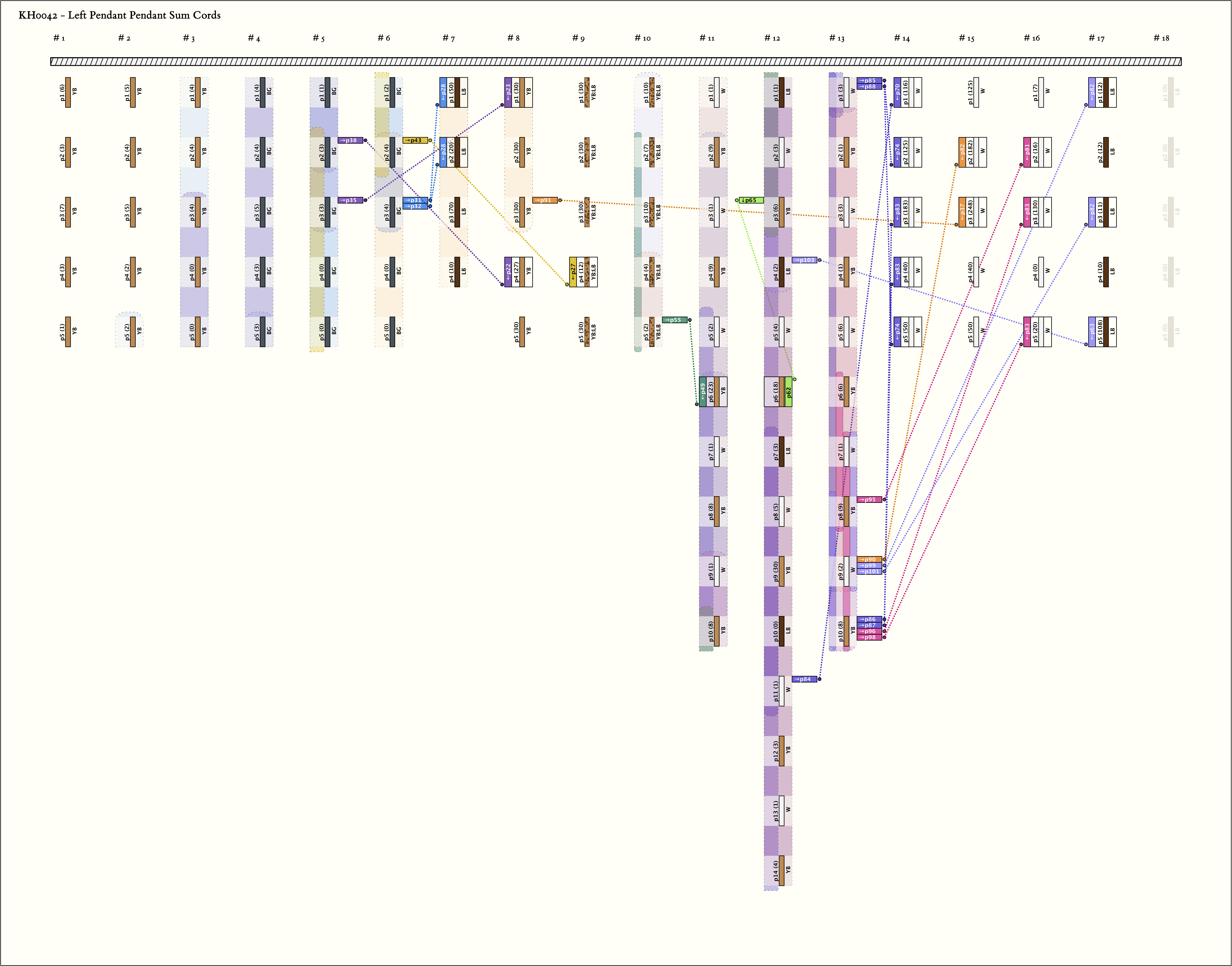

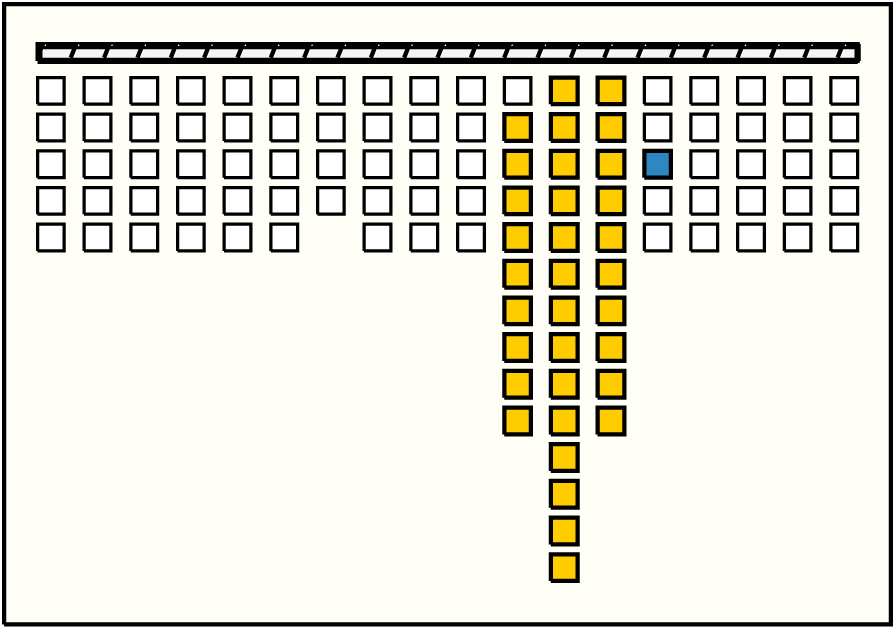

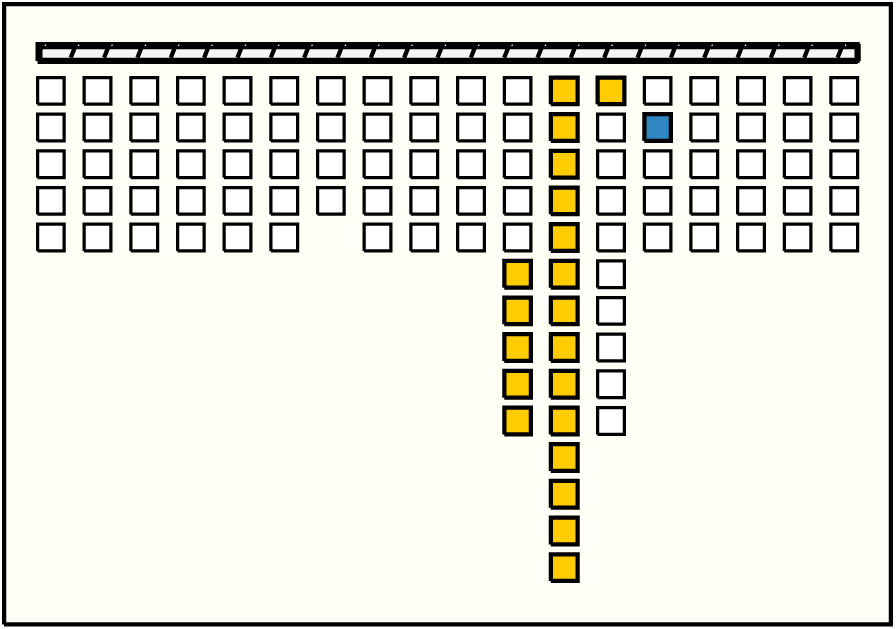

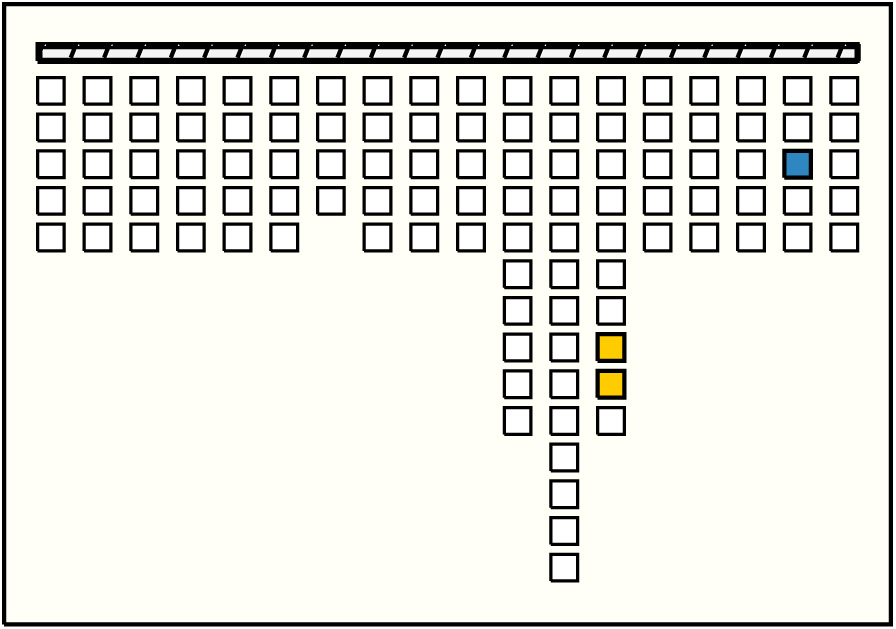

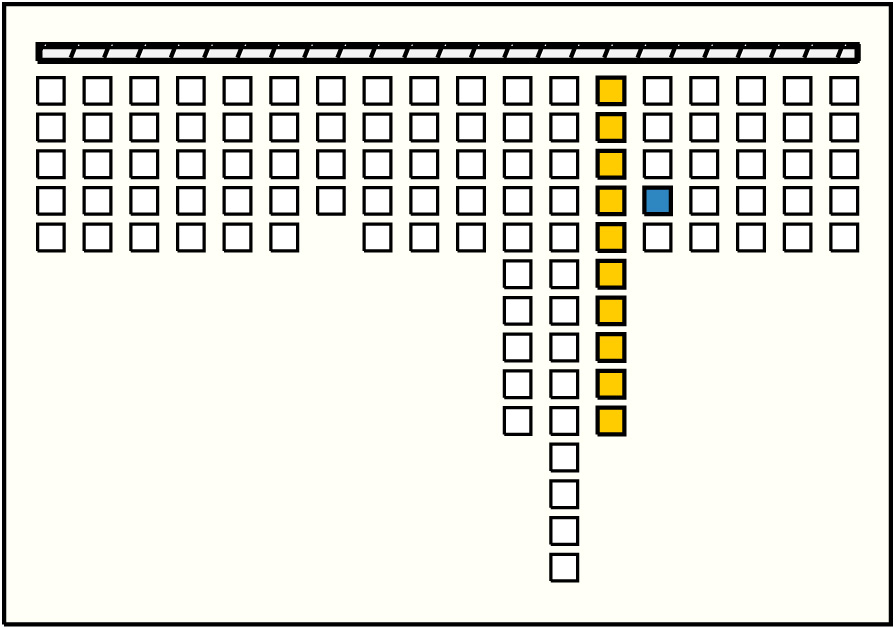

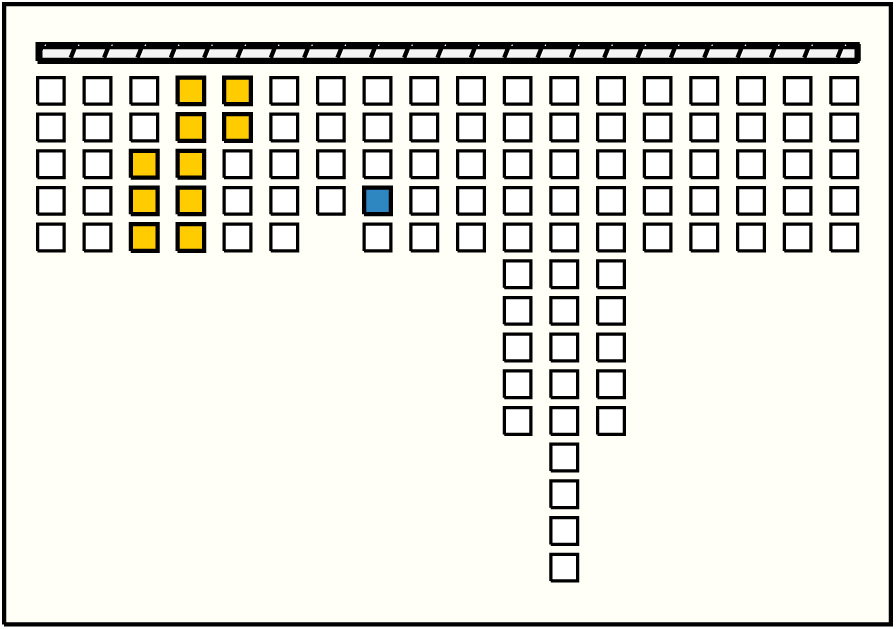

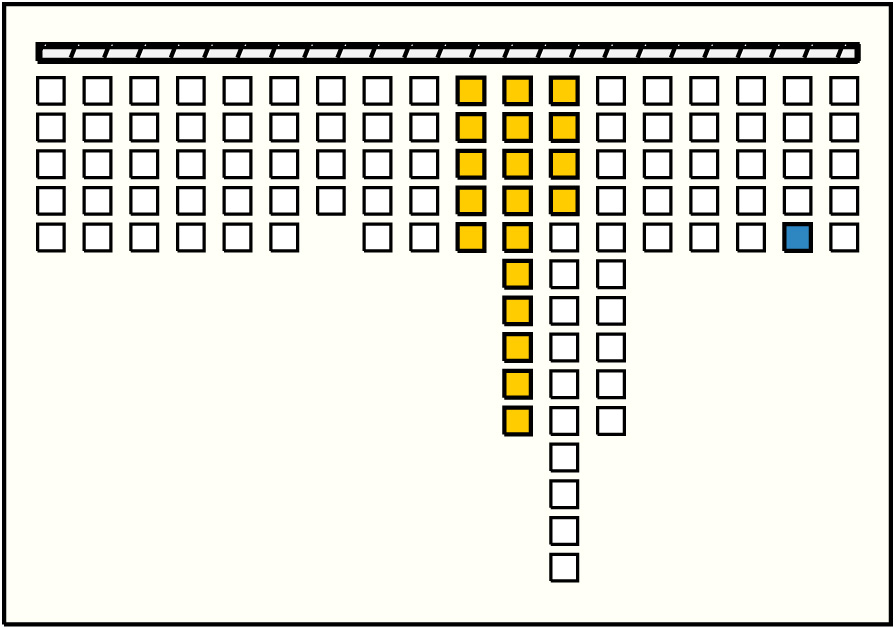

Left Handed Sums: # Sums = 20, Max # Summands = 35, (Min, Mean, Max) Sum Values = (11, 71, 248)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

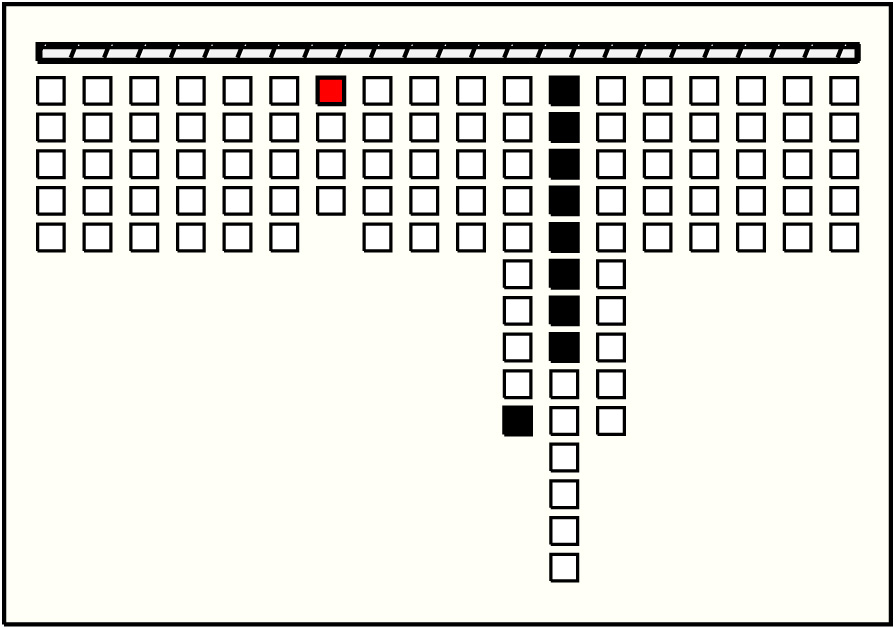

1	g7p1 : 50_LB	50	9	g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB + g12p5: 4_W + g12p6: 18_YB + g12p7: 3_LB + g12p8: 5_W

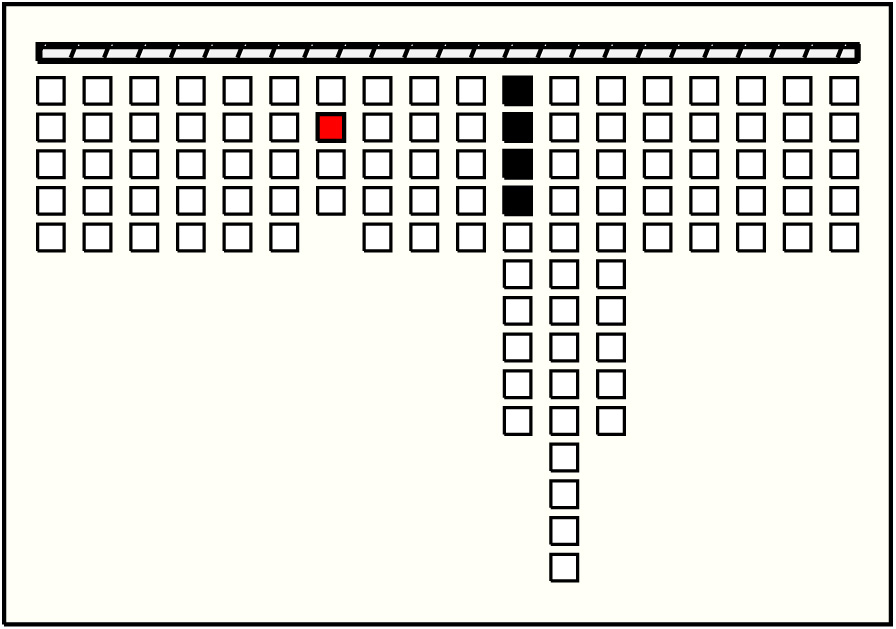

2	g7p2 : 20_LB	20	4	g11p1: 1_W + g11p2: 9_YB + g11p3: 1_W + g11p4: 9_YB
3	g7p3 : 70_LB	70	3	g7p4: 10_LB + g8p1: 30_YB + g8p2: 30_YB

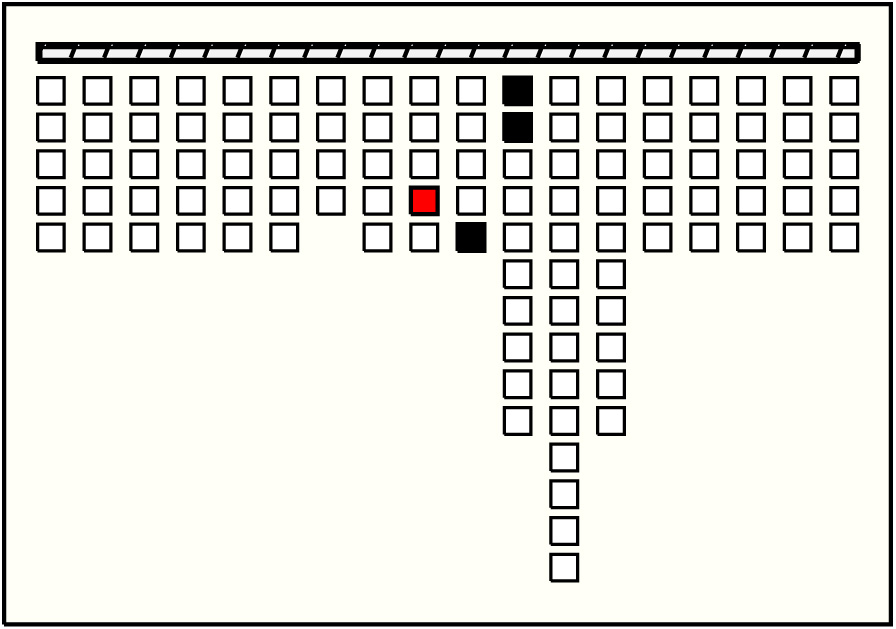

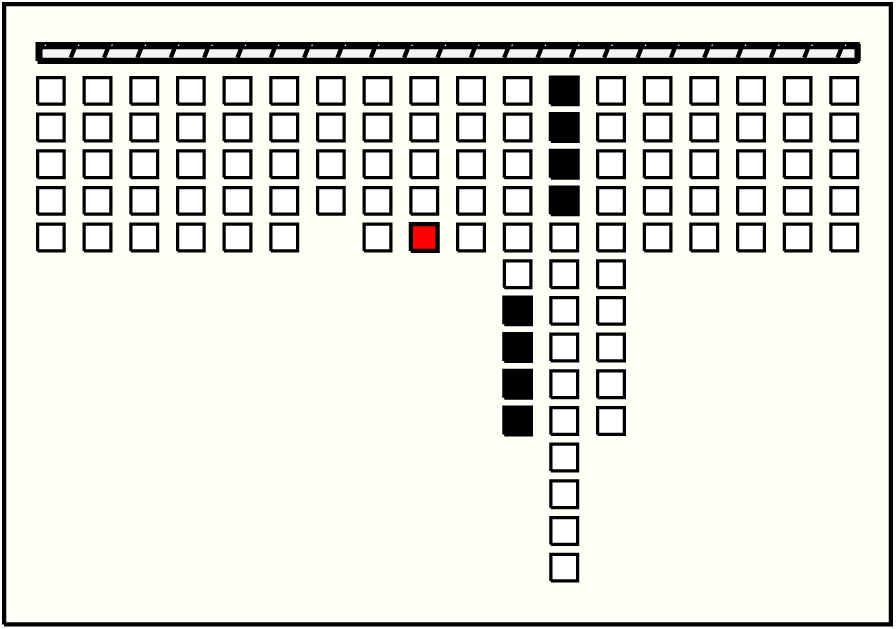

4	g8p4 : 27_YB	27	3	g10p1: 10_YB:LB + g10p2: 7_YB:LB + g10p3: 10_YB:LB

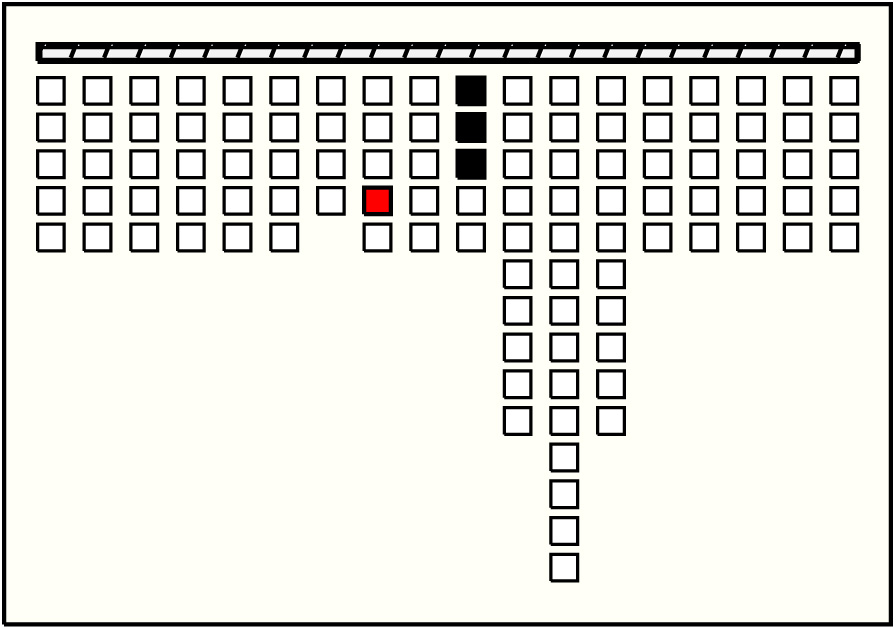

5	g9p4 : 12_YB:LB	12	3	g10p5: 2_YB:LB + g11p1: 1_W + g11p2: 9_YB
6	g9p5 : 30_YB:LB	30	8	g11p7: 1_W + g11p8: 8_YB + g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB
7	g11p6 : 23_YB	23	9	g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W

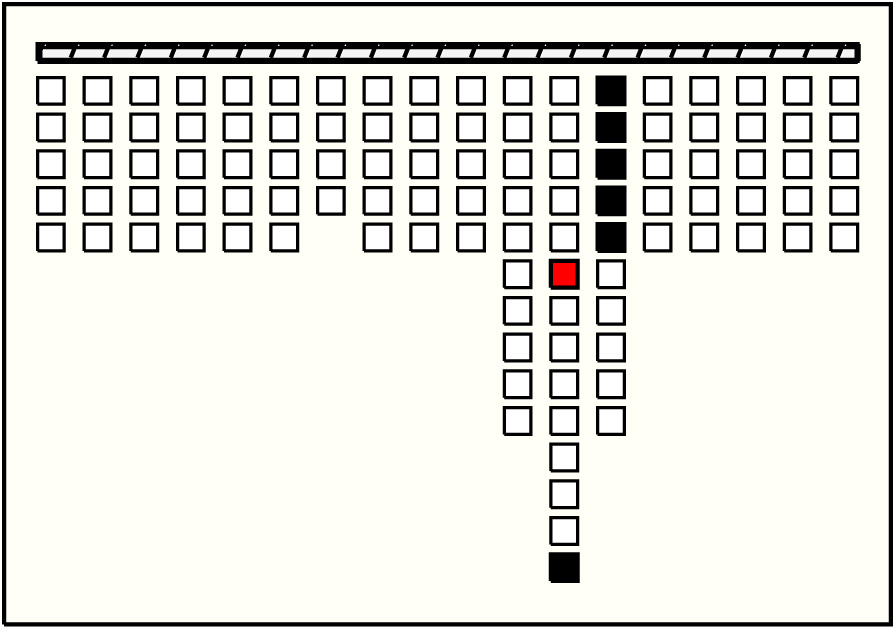

8	g12p6 : 18_YB	18	6	g12p14: 4_YB + g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W
9	g12p9 : 30_YB	30	11	g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W + g13p6: 6_YB + g13p7: 1_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

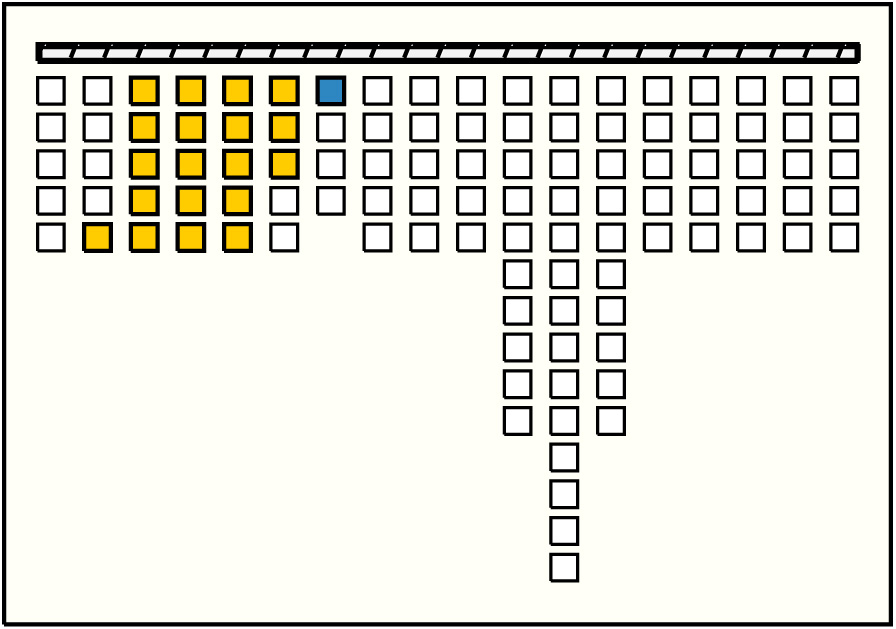

1	g7p1 : 50_LB	50	19	g2p5: 2_YB + g3p1: 4_YB + g3p2: 4_YB + g3p3: 4_YB + g3p4: 0_YB + g3p5: 0_YB + g4p1: 4_BG + g4p2: 4_BG + g4p3: 5_BG + g4p4: 3_BG + g4p5: 3_BG + g5p1: 1_BG + g5p2: 3_BG + g5p3: 3_BG + g5p4: 0_BG + g5p5: 0_BG + g6p1: 2_BG + g6p2: 4_BG + g6p3: 4_BG
2	g7p2 : 20_LB	20	9	g4p5: 3_BG + g5p1: 1_BG + g5p2: 3_BG + g5p3: 3_BG + g5p4: 0_BG + g5p5: 0_BG + g6p1: 2_BG + g6p2: 4_BG + g6p3: 4_BG

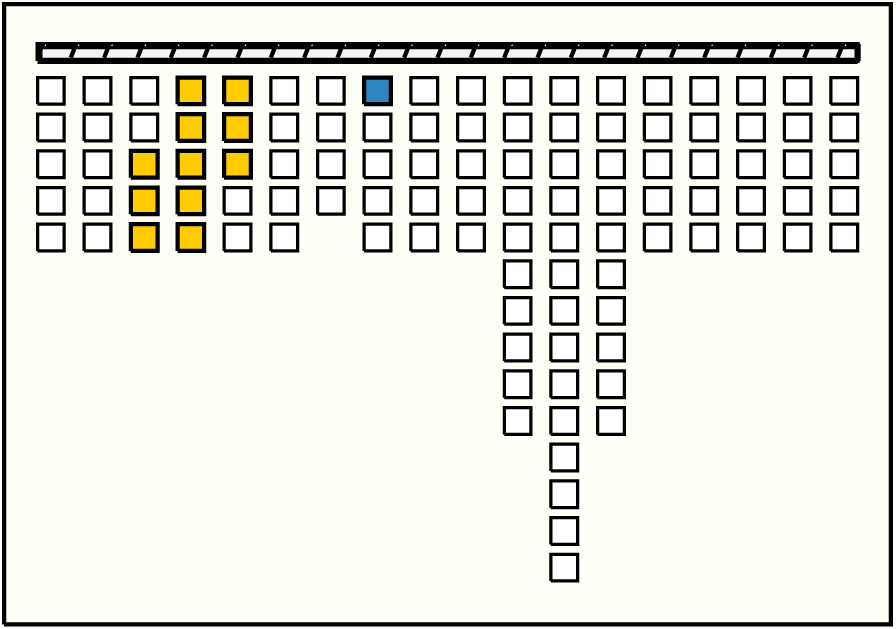

3	g8p1 : 30_YB	30	11	g3p3: 4_YB + g3p4: 0_YB + g3p5: 0_YB + g4p1: 4_BG + g4p2: 4_BG + g4p3: 5_BG + g4p4: 3_BG + g4p5: 3_BG + g5p1: 1_BG + g5p2: 3_BG + g5p3: 3_BG
4	g8p4 : 27_YB	27	10	g3p3: 4_YB + g3p4: 0_YB + g3p5: 0_YB + g4p1: 4_BG + g4p2: 4_BG + g4p3: 5_BG + g4p4: 3_BG + g4p5: 3_BG + g5p1: 1_BG + g5p2: 3_BG

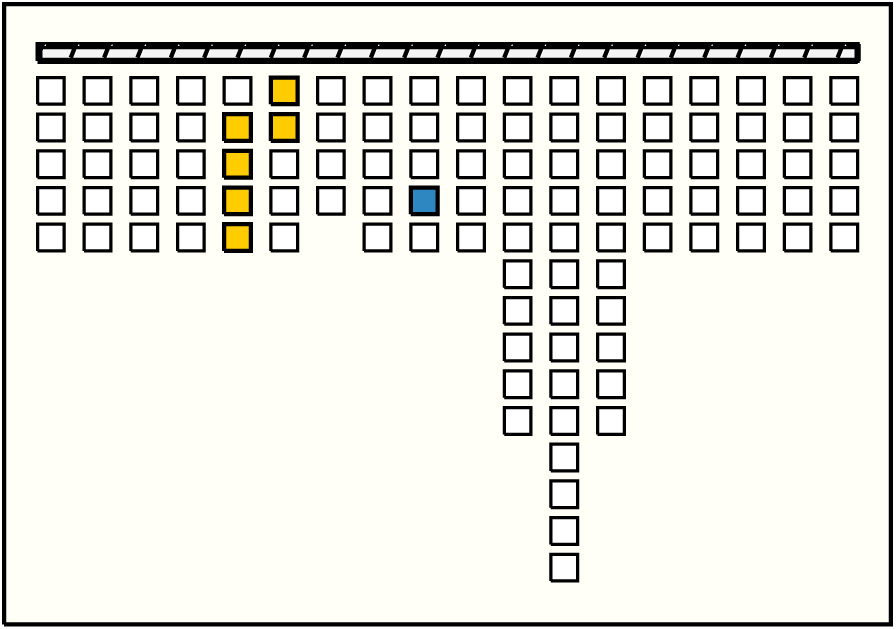

5	g9p4 : 12_YB:LB	12	6	g5p2: 3_BG + g5p3: 3_BG + g5p4: 0_BG + g5p5: 0_BG + g6p1: 2_BG + g6p2: 4_BG
6	g11p6 : 23_YB	23	4	g10p2: 7_YB:LB + g10p3: 10_YB:LB + g10p4: 4_YB:LB + g10p5: 2_YB:LB
7	g12p6 : 18_YB	18	4	g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB
8	g14p1 : 116_W	116	17	g11p5: 2_W + g11p6: 23_YB + g11p7: 1_W + g11p8: 8_YB + g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB + g12p5: 4_W + g12p6: 18_YB + g12p7: 3_LB + g12p8: 5_W + g12p9: 30_YB + g12p10: 0_LB + g12p11: 1_W
9	g14p2 : 125_W	125	20	g11p6: 23_YB + g11p7: 1_W + g11p8: 8_YB + g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB + g12p5: 4_W + g12p6: 18_YB + g12p7: 3_LB + g12p8: 5_W + g12p9: 30_YB + g12p10: 0_LB + g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W
10	g14p3 : 183_W	183	33	g11p2: 9_YB + g11p3: 1_W + g11p4: 9_YB + g11p5: 2_W + g11p6: 23_YB + g11p7: 1_W + g11p8: 8_YB + g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB + g12p5: 4_W + g12p6: 18_YB + g12p7: 3_LB + g12p8: 5_W + g12p9: 30_YB + g12p10: 0_LB + g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W + g13p6: 6_YB + g13p7: 1_W + g13p8: 9_YB + g13p9: 2_W + g13p10: 8_YB
11	g14p4 : 40_W	40	10	g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W + g13p6: 6_YB + g13p7: 1_W + g13p8: 9_YB + g13p9: 2_W + g13p10: 8_YB
12	g14p5 : 50_W	50	9	g12p7: 3_LB + g12p8: 5_W + g12p9: 30_YB + g12p10: 0_LB + g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W
13	g15p2 : 182_W	182	35	g10p4: 4_YB:LB + g10p5: 2_YB:LB + g11p1: 1_W + g11p2: 9_YB + g11p3: 1_W + g11p4: 9_YB + g11p5: 2_W + g11p6: 23_YB + g11p7: 1_W + g11p8: 8_YB + g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB + g12p5: 4_W + g12p6: 18_YB + g12p7: 3_LB + g12p8: 5_W + g12p9: 30_YB + g12p10: 0_LB + g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W + g13p6: 6_YB + g13p7: 1_W + g13p8: 9_YB + g13p9: 2_W

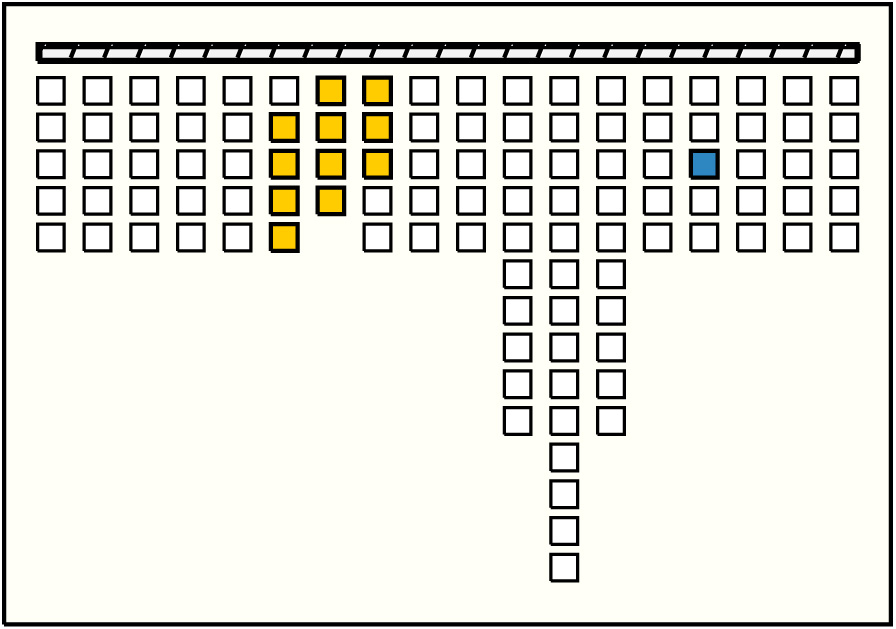

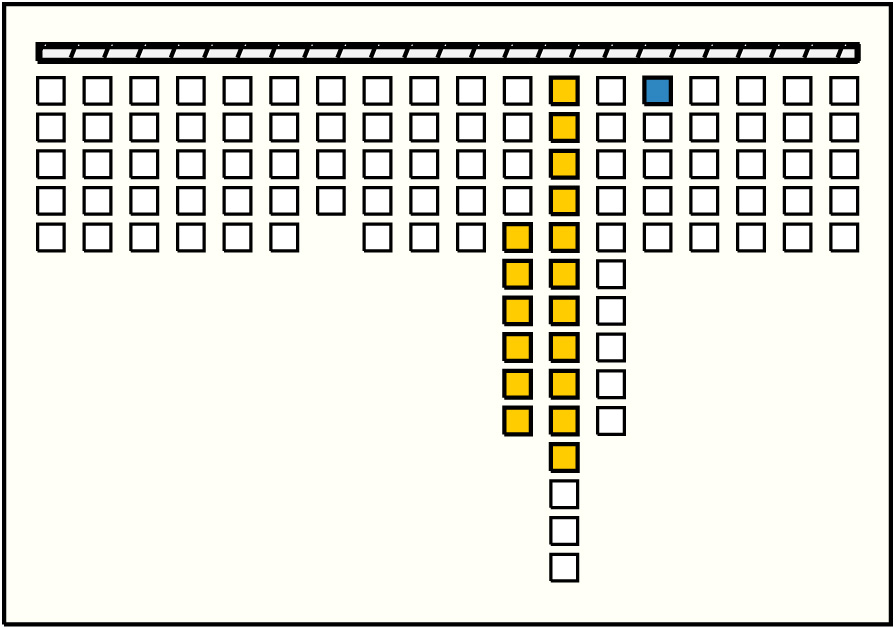

14	g15p3 : 248_W	248	11	g6p2: 4_BG + g6p3: 4_BG + g6p4: 0_BG + g6p5: 0_BG + g7p1: 50_LB + g7p2: 20_LB + g7p3: 70_LB + g7p4: 10_LB + g8p1: 30_YB + g8p2: 30_YB + g8p3: 30_YB

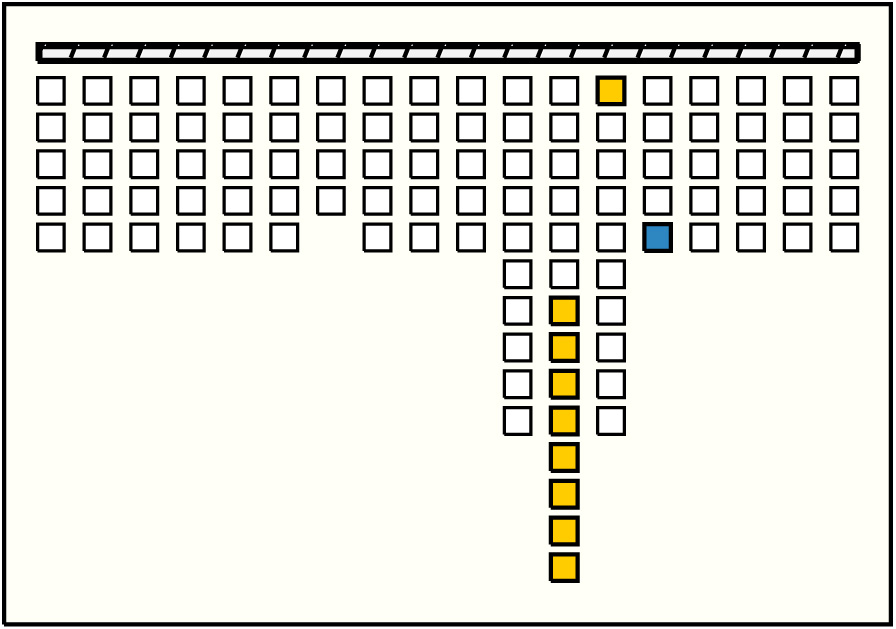

15	g16p2 : 16_W	16	3	g13p6: 6_YB + g13p7: 1_W + g13p8: 9_YB
16	g16p3 : 130_W	130	26	g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB + g12p5: 4_W + g12p6: 18_YB + g12p7: 3_LB + g12p8: 5_W + g12p9: 30_YB + g12p10: 0_LB + g12p11: 1_W + g12p12: 3_YB + g12p13: 1_W + g12p14: 4_YB + g13p1: 3_W + g13p2: 1_YB + g13p3: 3_W + g13p4: 1_YB + g13p5: 6_W + g13p6: 6_YB + g13p7: 1_W + g13p8: 9_YB + g13p9: 2_W + g13p10: 8_YB
17	g16p5 : 20_W	20	4	g13p7: 1_W + g13p8: 9_YB + g13p9: 2_W + g13p10: 8_YB
18	g17p1 : 12_LB	12	3	g13p7: 1_W + g13p8: 9_YB + g13p9: 2_W

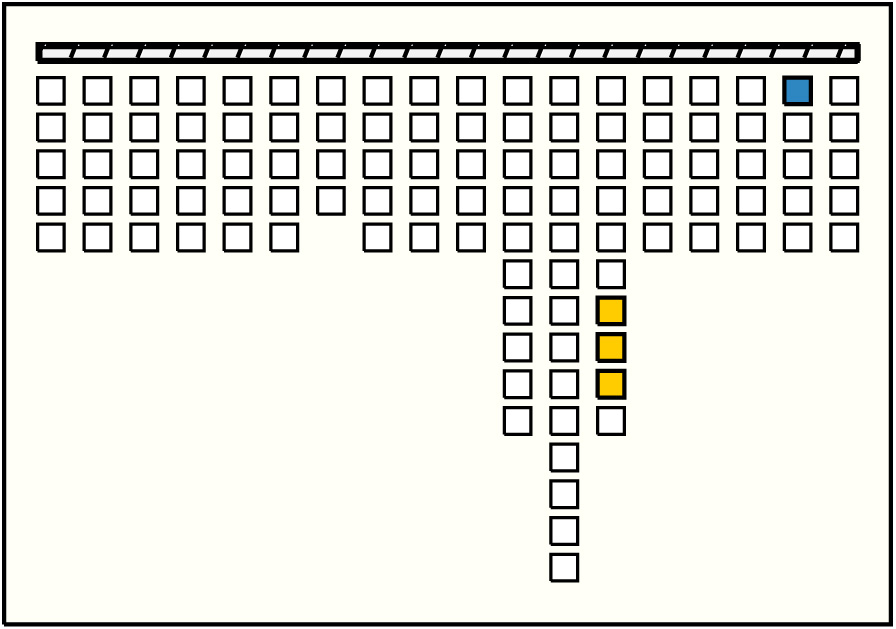

19	g17p3 : 11_LB	11	2	g13p8: 9_YB + g13p9: 2_W
20	g17p5 : 108_LB	108	19	g10p1: 10_YB:LB + g10p2: 7_YB:LB + g10p3: 10_YB:LB + g10p4: 4_YB:LB + g10p5: 2_YB:LB + g11p1: 1_W + g11p2: 9_YB + g11p3: 1_W + g11p4: 9_YB + g11p5: 2_W + g11p6: 23_YB + g11p7: 1_W + g11p8: 8_YB + g11p9: 1_W + g11p10: 8_YB + g12p1: 1_LB + g12p2: 3_W + g12p3: 6_YB + g12p4: 2_LB
