KH0432/UR194 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 2, (Min, Mean, Max) Sum Values = (19, 26, 36)
Click on Image to View Larger

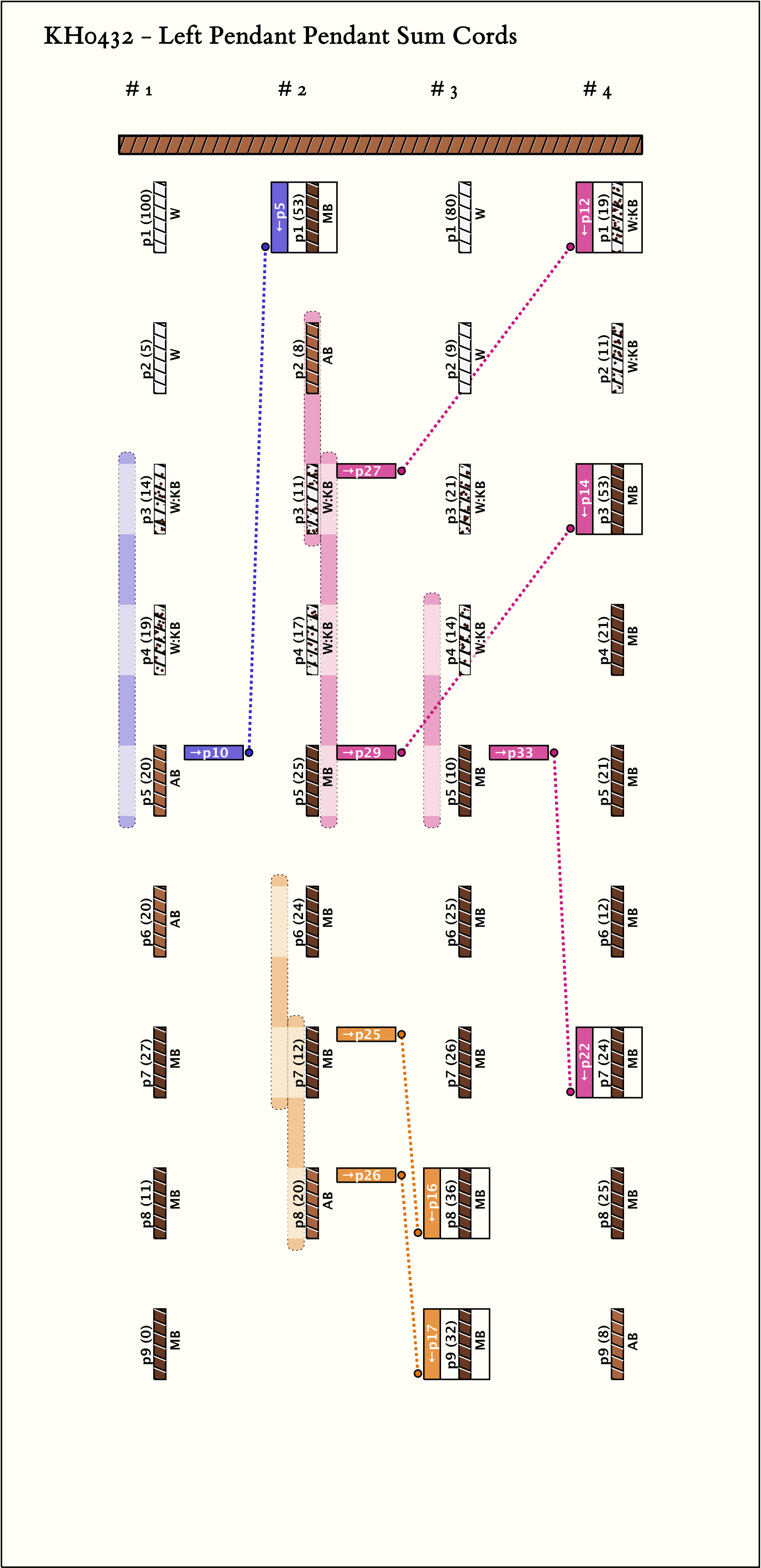

Left Handed Sums with Figure-8-Knots: # Sums = 6, Max # Summands = 3, (Min, Mean, Max) Sum Values = (19, 36, 53)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

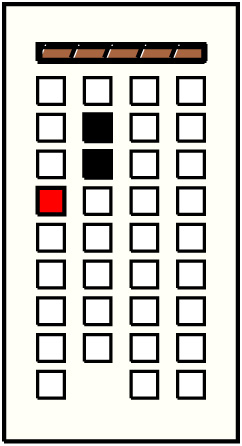

| 1 |  | g1p4 : 19W:KB | 19 | 2 | g2p2: 8AB∞ + g2p3: 11W:KB❽ | |

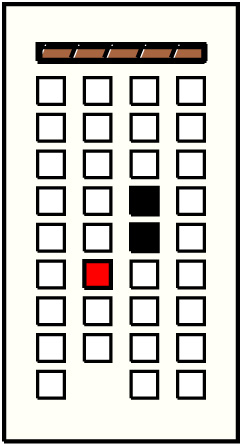

| 2 |  | g2p6 : 24MB | 24 | 2 | ❽g3p4: 14W:KB + ∞g3p5: 10MB | |

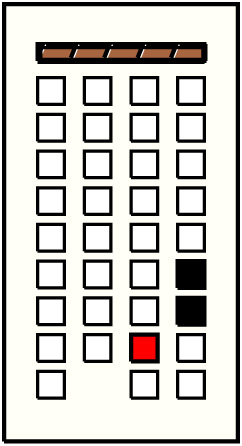

| 3 |  | g3p8 : 36MB | 36 | 2 | ❽g4p6: 12MB + g4p7: 24MB❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

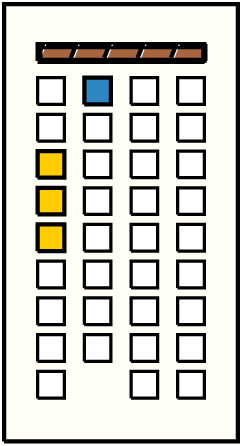

| 1 |  | g2p1 : 53MB | 53 | 3 | g1p3: 14W:KB + g1p4: 19W:KB + g1p5: 20AB❽ | |
| 2 |  | g3p8 : 36MB | 36 | 2 | ❽g2p6: 24MB + ∞g2p7: 12MB | |
| 3 |  | g3p9 : 32MB | 32 | 2 | ∞g2p7: 12MB + g2p8: 20AB∞ | |

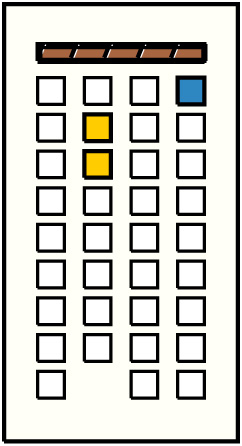

| 4 |  | g4p1 : 19W:KB | 19 | 2 | g2p2: 8AB∞ + g2p3: 11W:KB❽ | |

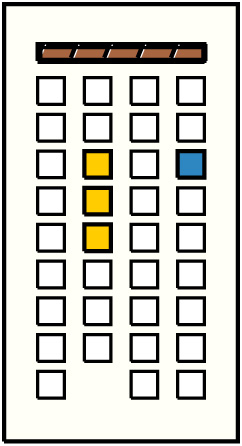

| 5 |  | g4p3 : 53MB | 53 | 3 | ❽g2p3: 11W:KB + g2p4: 17W:KB + g2p5: 25MB∞ | |

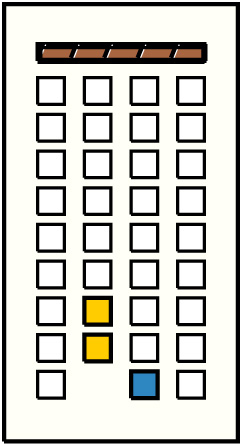

| 6 |  | g4p7 : 24MB | 24 | 2 | ❽g3p4: 14W:KB + ∞g3p5: 10MB |
