KH0693/MM020 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksRight-Handed XRay
All Pendant Pendant Sum RelationshipsLeft-Handed XRay
This Khipu's Fieldmark CatalogRight-Handed Sum Detail
This Khipu's DrawingLeft-Handed Sum Detail

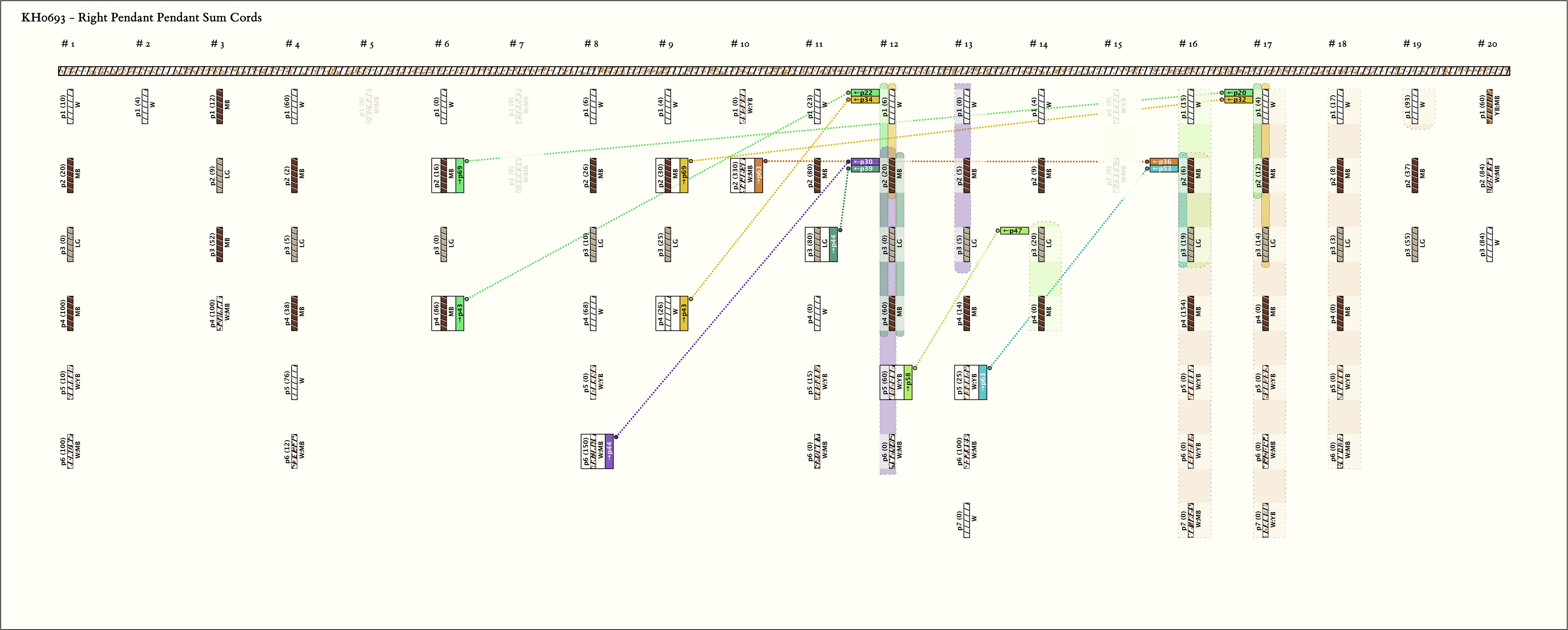

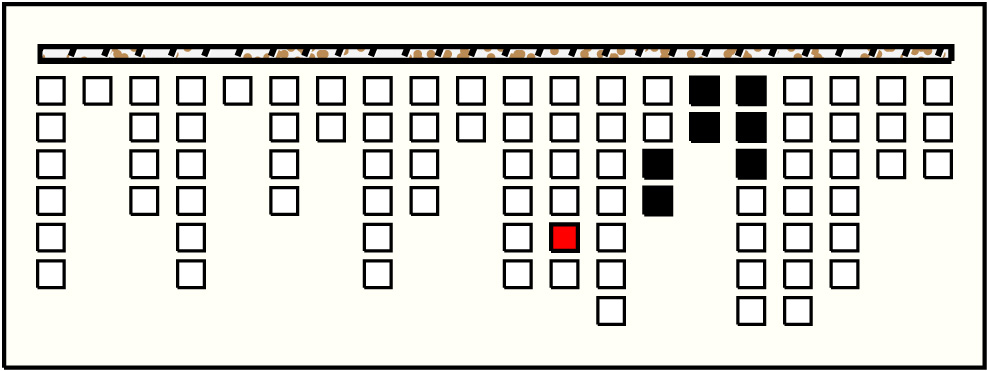

Right Handed Sums:     # Sums = 9,  Max # Summands = 20,   (Min, Mean, Max) Sum Values = (16, 89, 330)
Click on Image to View Larger

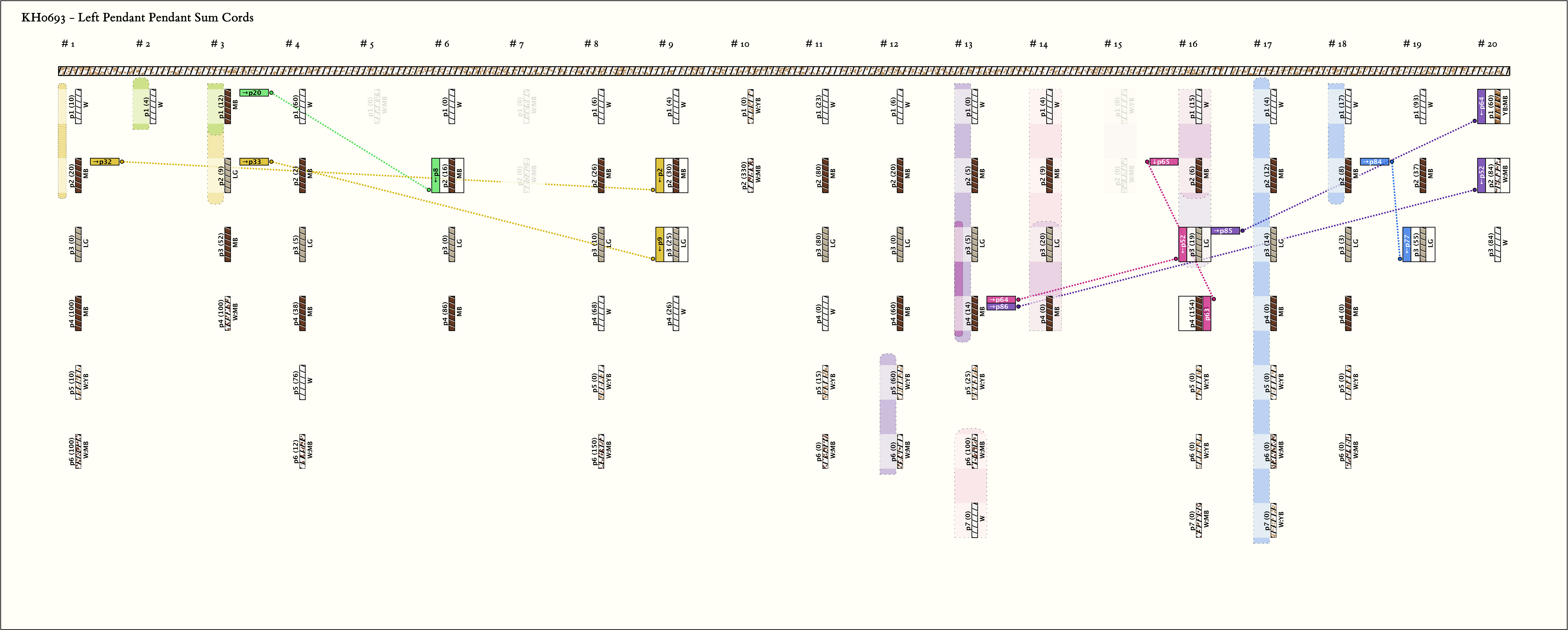

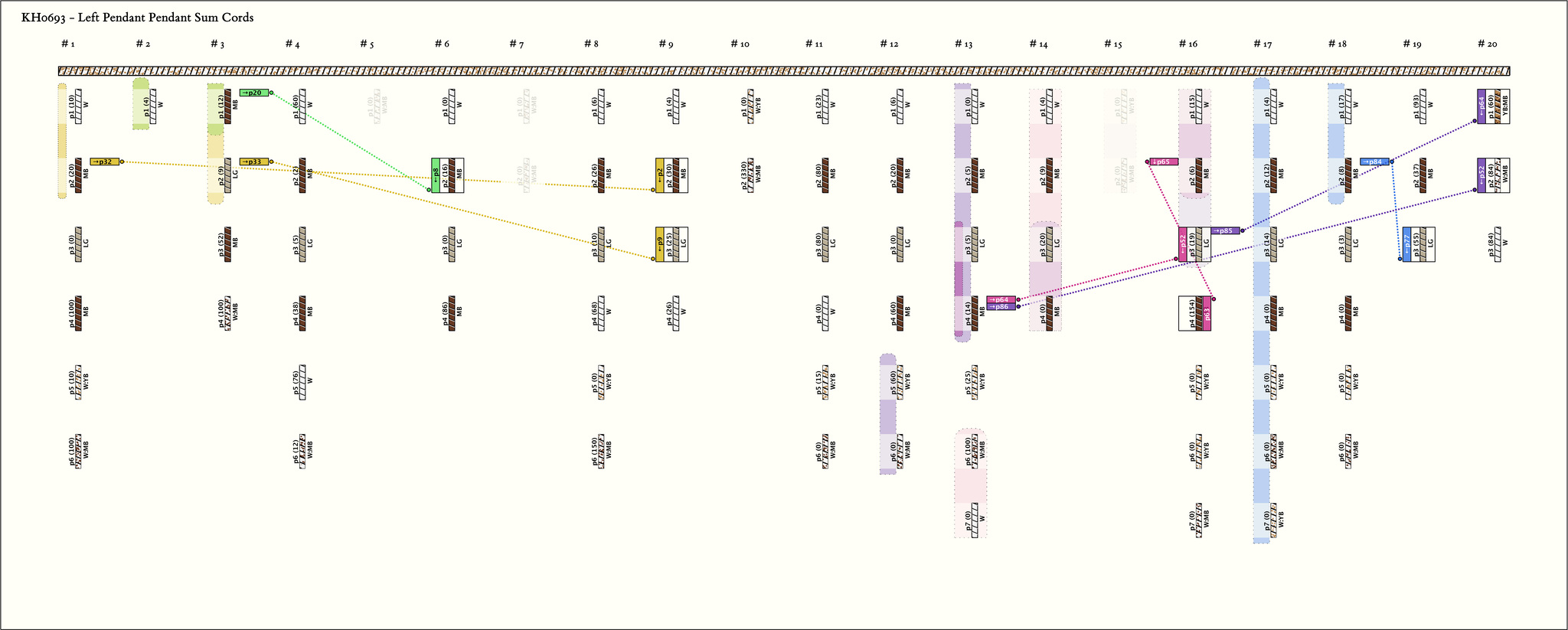

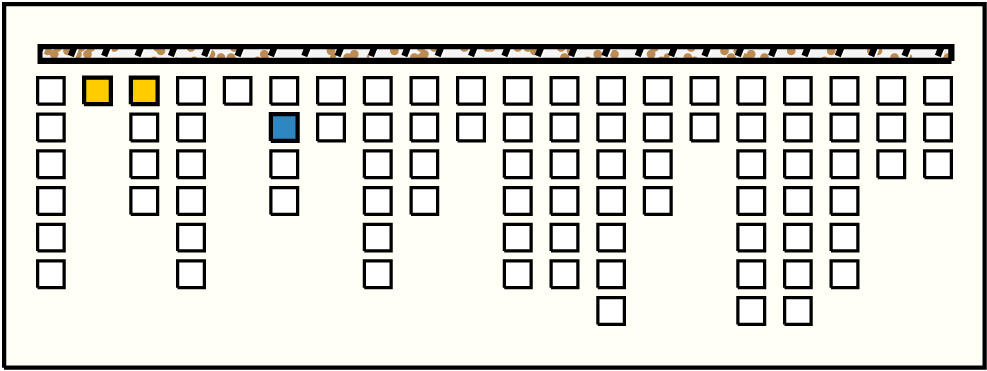

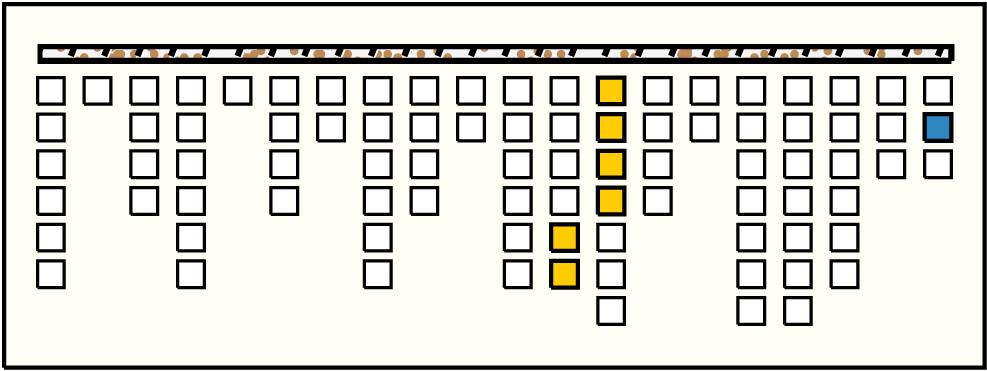

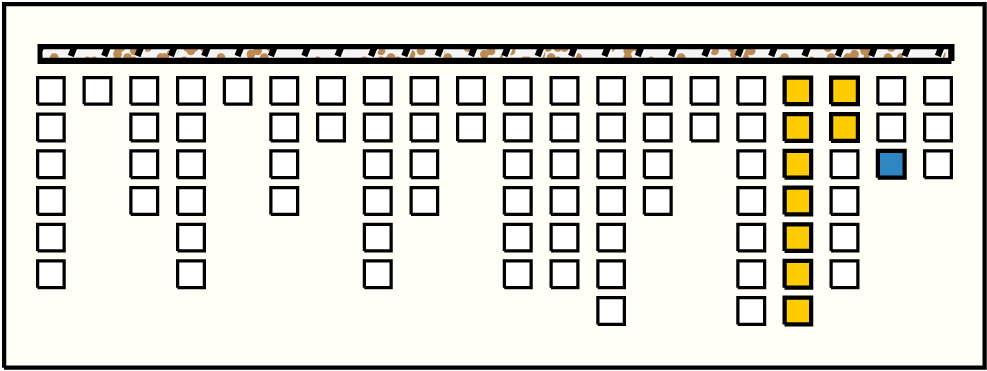

Left Handed Sums:     # Sums = 8,  Max # Summands = 10,   (Min, Mean, Max) Sum Values = (16, 55, 154)
Click on Image to View Larger

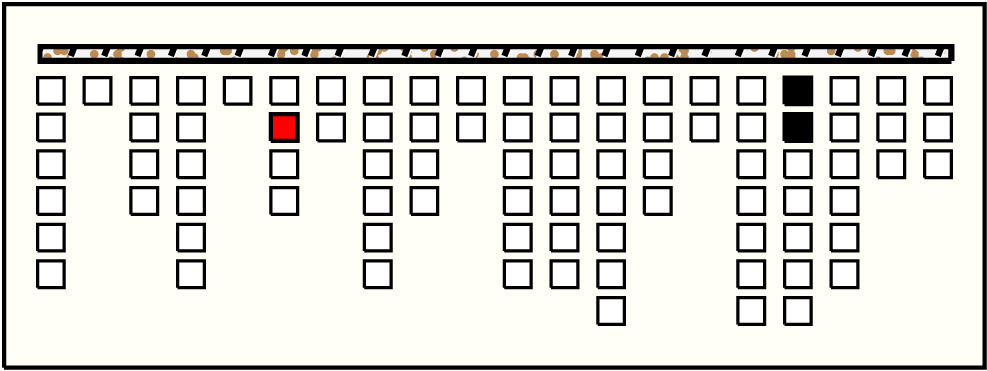

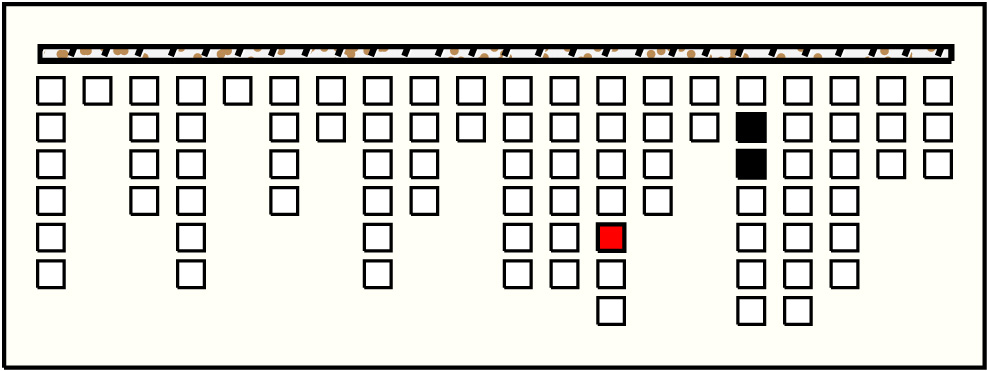

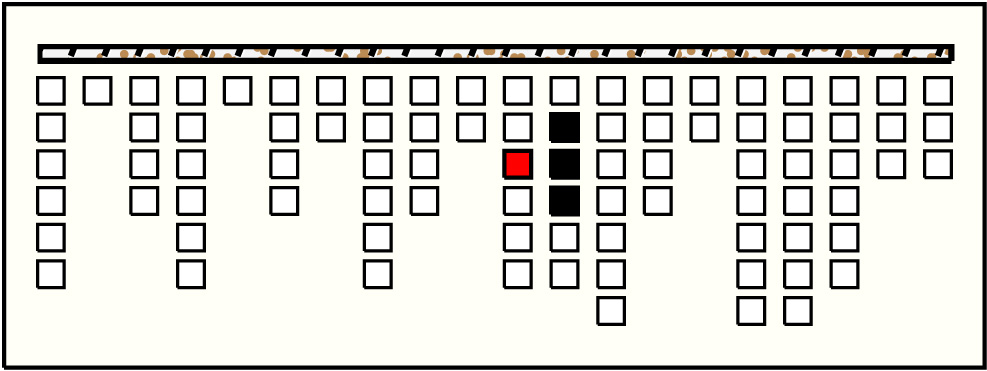

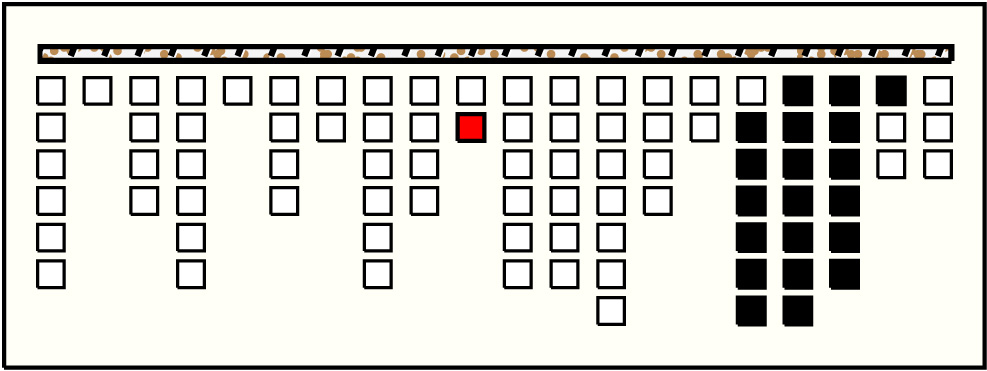

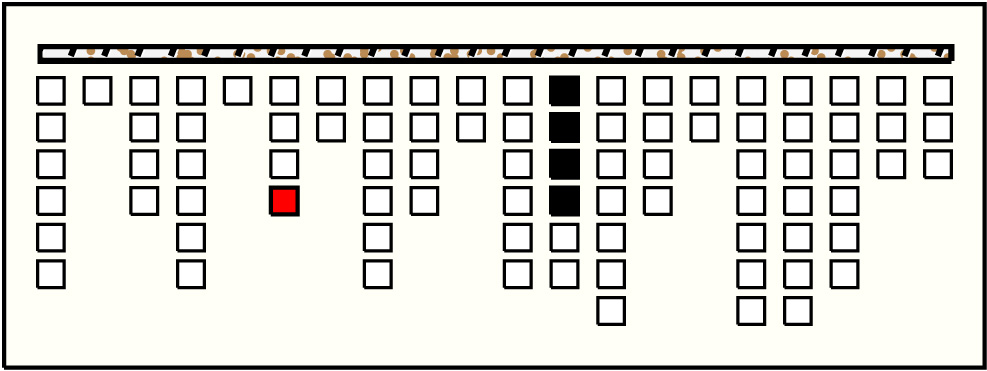

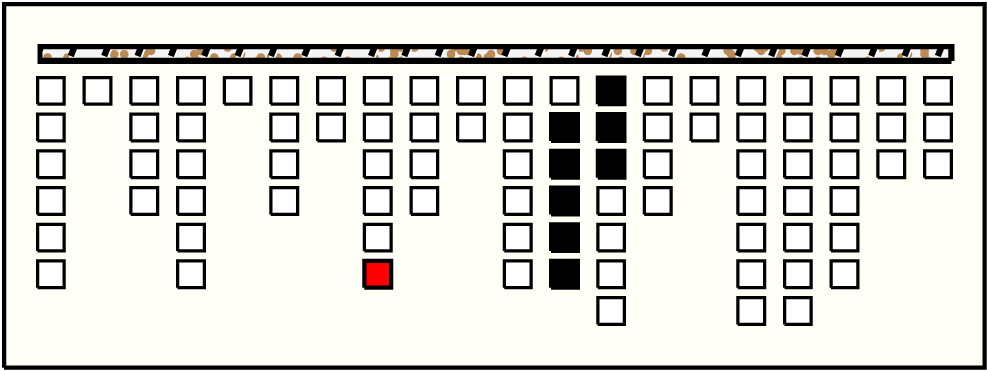

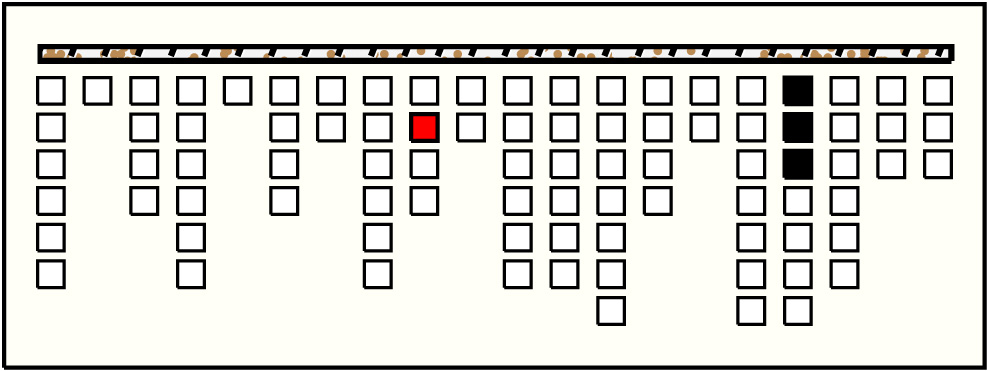

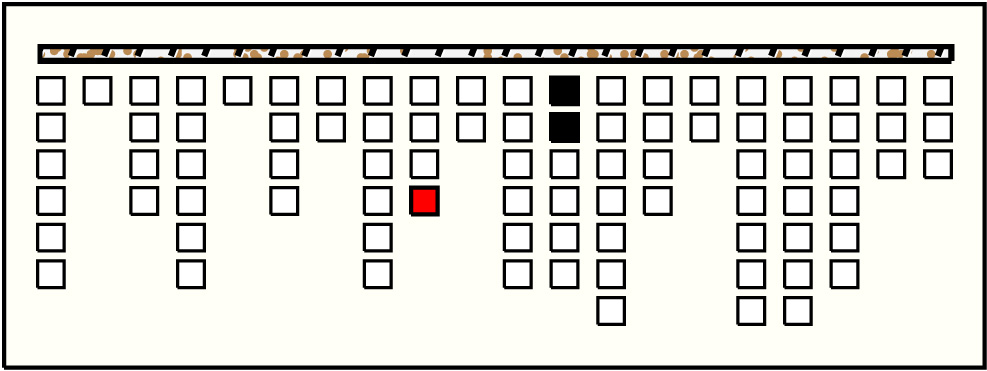

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g6p2 : 16MB162g17p1: 4W + g17p2: 12MB
2
g6p4 : 86MB864g12p1: 6W + g12p2: 20MB + g12p3: 0LG + g12p4: 60MB
3
g8p6 : 150W:MB1508g12p2: 20MB + g12p3: 0LG + g12p4: 60MB + g12p5: 60W:YB + g12p6: 0W:MB + g13p1: 0W + g13p2: 5MB + g13p3: 5LG
4
g9p2 : 30MB303g17p1: 4W + g17p2: 12MB + g17p3: 14LG
5
g9p4 : 26W262g12p1: 6W + g12p2: 20MB
6
g10p2 : 330W:MB33020g16p2: 6MB + g16p3: 19LG + g16p4: 154MB + g16p5: 0W:YB + g16p6: 0W:YB + g16p7: 0W:MB + g17p1: 4W + g17p2: 12MB + g17p3: 14LG + g17p4: 0MB + g17p5: 0W:YB + g17p6: 0W:MB + g17p7: 0W:YB + g18p1: 17W + g18p2: 8MB + g18p3: 3LG + g18p4: 0MB + g18p5: 0W:YB + g18p6: 0W:MB + g19p1: 93W
7
g11p3 : 80LG803g12p2: 20MB + g12p3: 0LG + g12p4: 60MB
8
g12p5 : 60W:YB607g14p3: 20LG + g14p4: 0MB + g15p1: 0W:YB + g15p2: 0W:MB + g16p1: 15W + g16p2: 6MB + g16p3: 19LG
9
g13p5 : 25W:YB252g16p2: 6MB + g16p3: 19LG

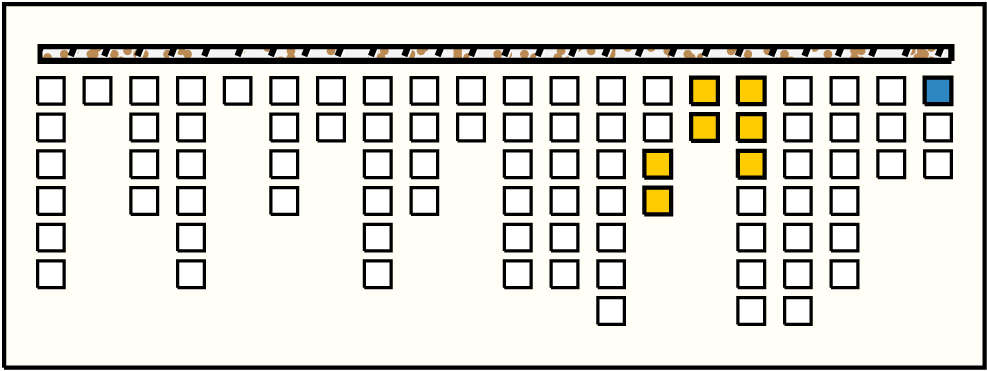

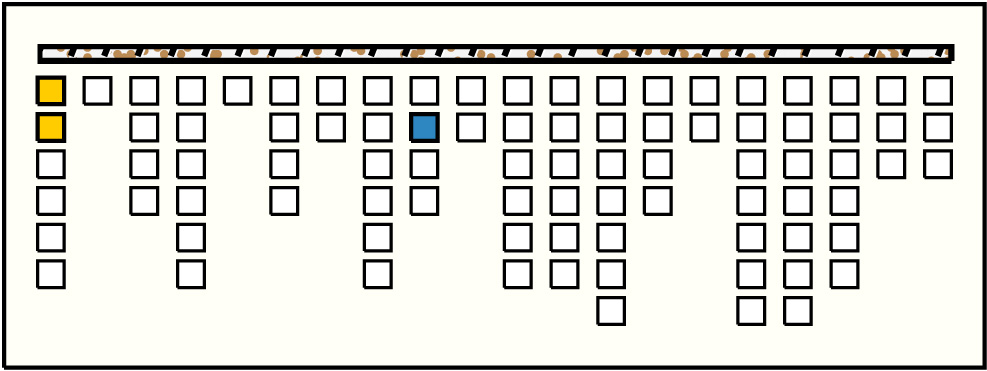

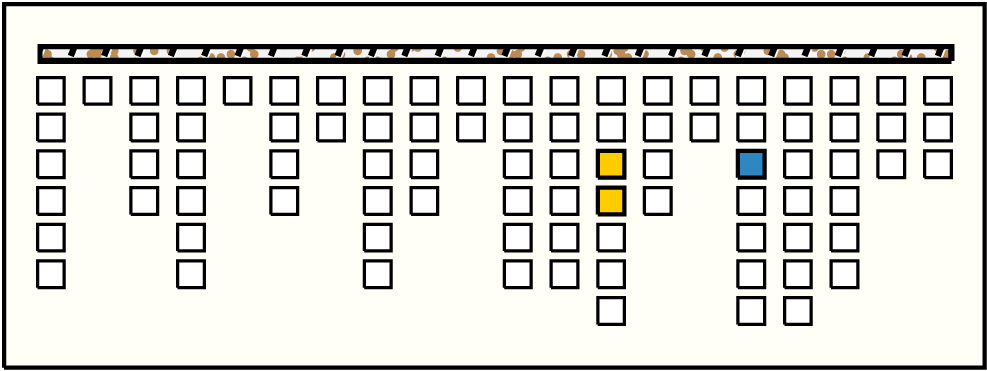

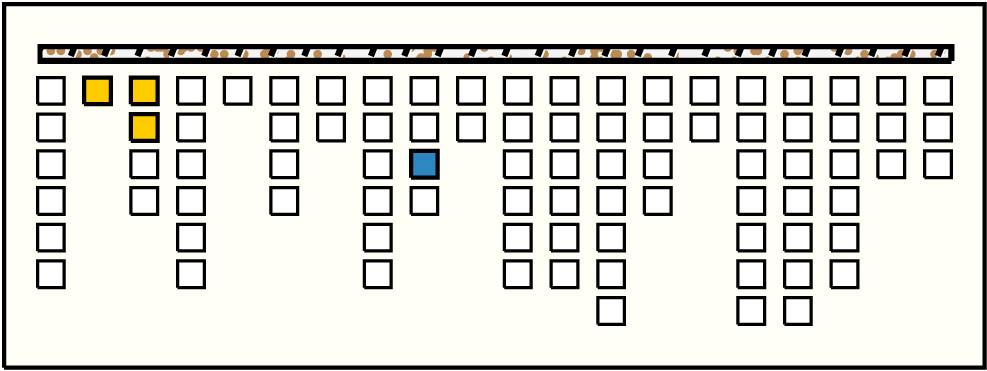

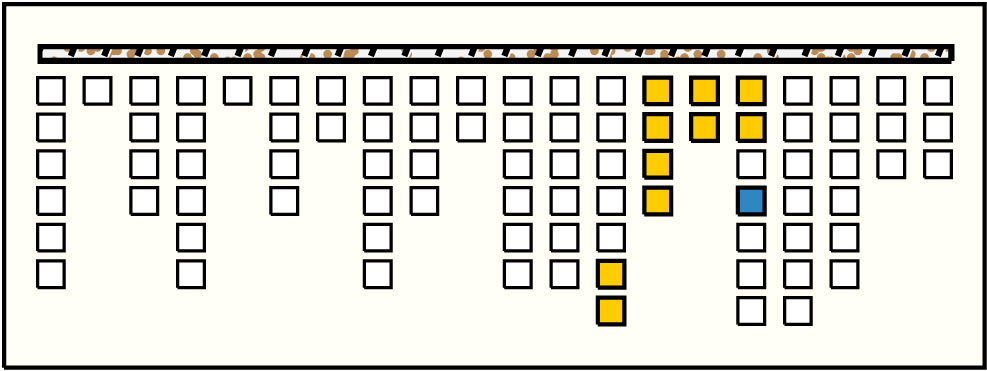

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g6p2 : 16MB162g2p1: 4W + g3p1: 12MB
2
g9p2 : 30MB302g1p1: 10W + g1p2: 20MB
3
g9p3 : 25LG253g2p1: 4W + g3p1: 12MB + g3p2: 9LG
4
g16p3 : 19LG192g13p3: 5LG + g13p4: 14MB
5
g16p4 : 154MB15410g13p6: 100W:MB + g13p7: 0W + g14p1: 4W + g14p2: 9MB + g14p3: 20LG + g14p4: 0MB + g15p1: 0W:YB + g15p2: 0W:MB + g16p1: 15W + g16p2: 6MB
6
g19p3 : 55LG559g17p1: 4W + g17p2: 12MB + g17p3: 14LG + g17p4: 0MB + g17p5: 0W:YB + g17p6: 0W:MB + g17p7: 0W:YB + g18p1: 17W + g18p2: 8MB
7
g20p1 : 60YB:MB607g14p3: 20LG + g14p4: 0MB + g15p1: 0W:YB + g15p2: 0W:MB + g16p1: 15W + g16p2: 6MB + g16p3: 19LG
8
g20p2 : 84W:MB846g12p5: 60W:YB + g12p6: 0W:MB + g13p1: 0W + g13p2: 5MB + g13p3: 5LG + g13p4: 14MB

Khipu Notes:

Notes and Observations for Khipu KH0693


36: second set of 3S knots aligns with ones' place of other pendants on the khipu; counted as tens
40: repair knot aligned with tens' place
69: strand of animal hair of some sort interlaced at top of pendant
85: pendant broken immediately after 6th S knot

Primary Cord Notes


Primary Cord Thread Wrappings
W wrapping 15.0-16.0cm and 26.5-28.5cm
