UR045/KH0275 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

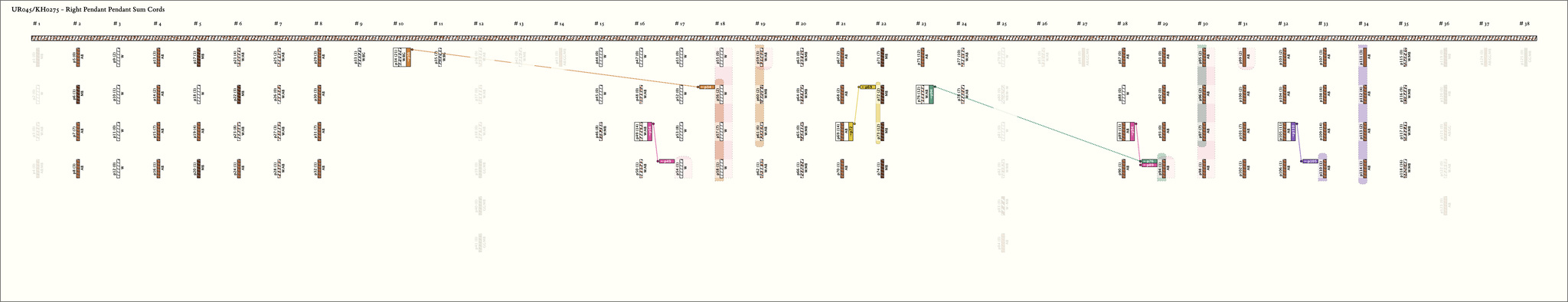

Right Handed Sums with Figure-8-Knots:     # Sums = 6,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (11, 14, 21)
Click on Image to View Larger

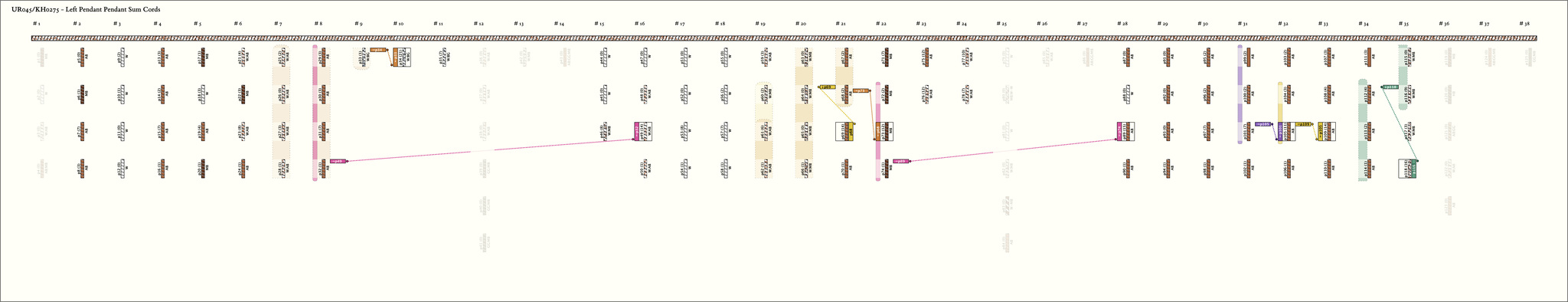

Left Handed Sums with Figure-8-Knots:     # Sums = 8,  Max # Summands = 9,   (Min, Mean, Max) Sum Values = (11, 15, 21)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
p3410, 1 : 21W:BG216p56: 2W + p57: 7W + p58: 1W + p59: 3W:AB + p60: 2W:MB + p61: 6W:AB∞
2
p4916, 3 : 14W:AB146❽p54: 1W + p55: 0W + p56: 2W + p57: 7W + p58: 1W + ∞p59: 3W:AB
3

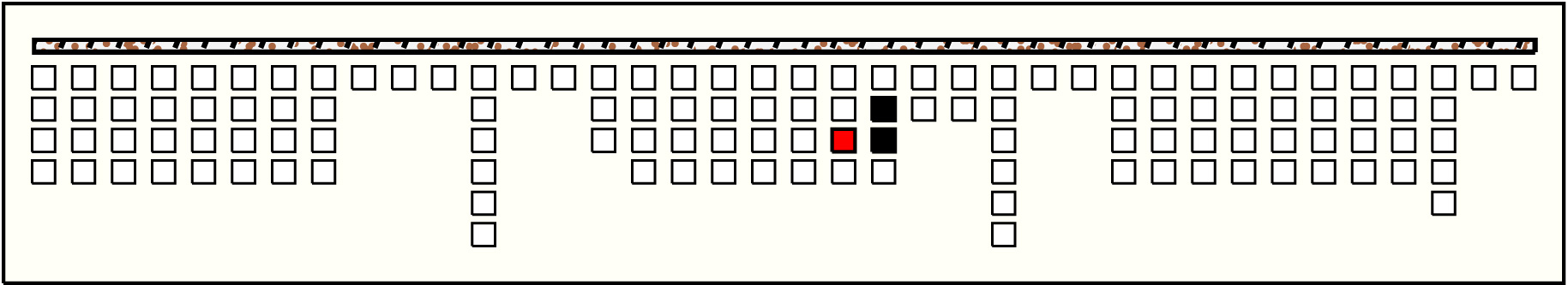

p6921, 3 : 14AB142∞p72: 2MB + p73: 12MB∞
4

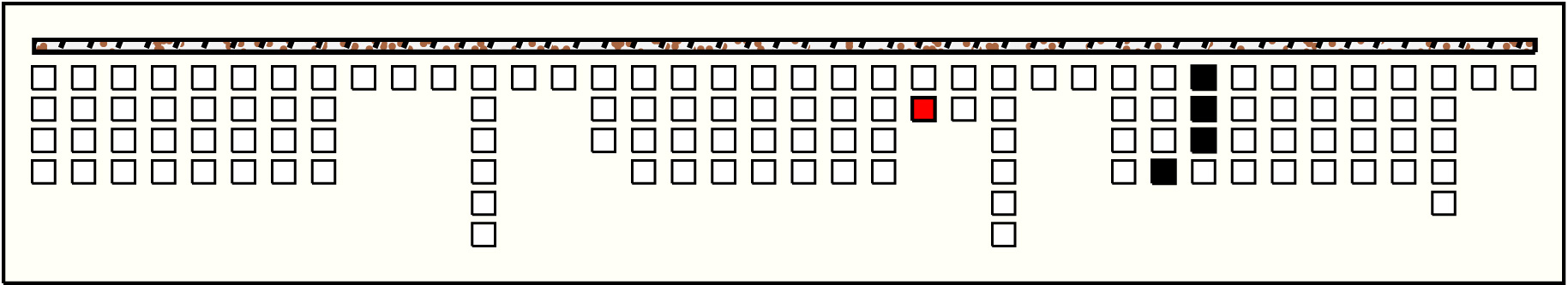

p7623, 2 : 12W:AB124❽p94: 1AB + p95: 2AB + p96: 2AB + p97: 7AB∞
5

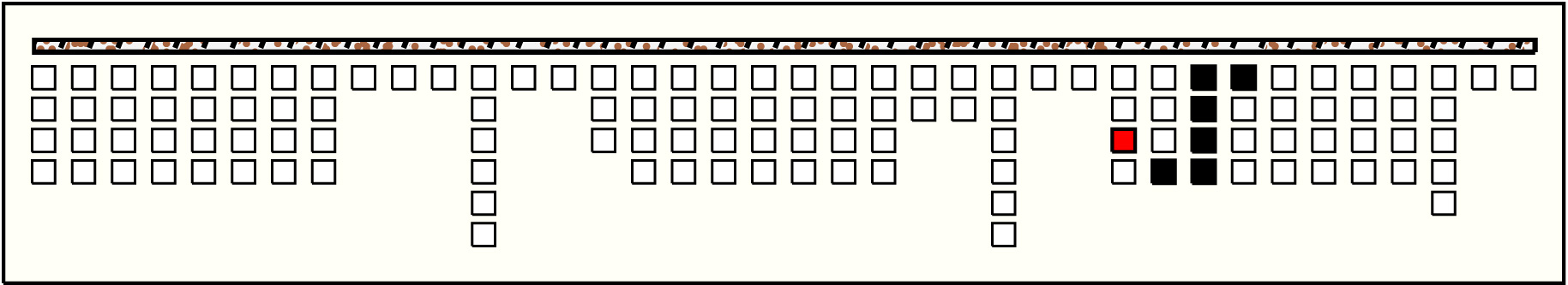

p8928, 3 : 15AB156❽p94: 1AB + p95: 2AB + p96: 2AB + p97: 7AB + p98: 1AB + ∞p99: 2AB
6
p10532, 3 : 11AB115❽p110: 1AB + p111: 3AB + p112: 4AB + p113: 2AB + p114: 1AB❽

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

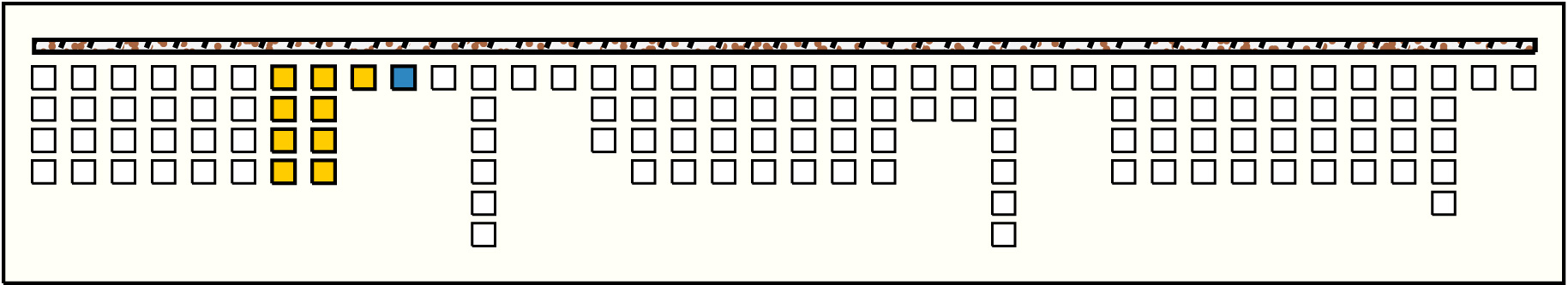

p3410, 1 : 21W:BG219❽p25: 2W:AB + p26: 0W:AB + p27: 3W:AB + p28: 1W:AB + p29: 3AB + p30: 3AB + p31: 7AB + p32: 1AB + p33: 1W:BG❽
2
p4916, 3 : 14W:AB144❽p29: 3AB + p30: 3AB + p31: 7AB + p32: 1AB❽
3
p6921, 3 : 14AB149p60: 2W:MB + p61: 6W:AB + p62: 1W:AB + p63: 0W:MB + p64: 0W:MB + p65: 0W:MB + p66: 1W:MB + p67: 2AB + ∞p68: 2AB
4
p7322, 3 : 12MB128p61: 6W:AB∞ + p62: 1W:AB + p63: 0W:MB + p64: 0W:MB + p65: 0W:MB + p66: 1W:MB + p67: 2AB + ∞p68: 2AB
5
p8928, 3 : 15AB153∞p72: 2MB + p73: 12MB + p74: 1MB❽
6
p10532, 3 : 11AB113∞p99: 2AB + p100: 2AB + p101: 7AB∞
7
p10933, 3 : 14AB142p104: 3AB∞ + p105: 11AB❽
8
p11835, 4 : 16W:MB165p112: 4AB + p113: 2AB + p114: 1AB + p115: 0W:MB + p116: 9W:MB
