UR053E/KH0287 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Pendant Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

Right Handed Sums with Figure-8-Knots: # Sums = 8, Max # Summands = 6, (Min, Mean, Max) Sum Values = (15, 32, 64)
Click on Image to View Larger

Left Handed Sums with Figure-8-Knots: # Sums = 11, Max # Summands = 6, (Min, Mean, Max) Sum Values = (12, 33, 81)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p8_{1, 8} : 17_RL	17	3	p19: 4_W∞ + p20: 1_RL + ∞p21: 12_W

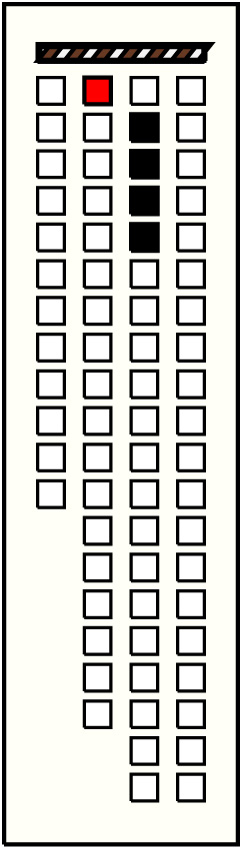

2	p13_{2, 1} : 64_W	64	4	∞p32: 15_RB + p33: 24_W + p34: 6_RB + p35: 19_W
3	p25_{2, 13} : 61_W	61	6	p52: 13_RL + p53: 14_W + p54: 7_RL + p55: 12_W + p56: 6_RB + p57: 9_W
4	p26_{2, 14} : 20_RB	20	2	p36: 7_RL + p37: 13_W
5	p39_{3, 9} : 41_W	41	3	p57: 9_W + p58: 3_RL + p59: 29_W∞
6	p40_{3, 10} : 15_RL	15	2	p56: 6_RB + p57: 9_W
7	p45_{3, 15} : 24_W	24	3	p63: 7_W + p64: 3_RL + p65: 14_W

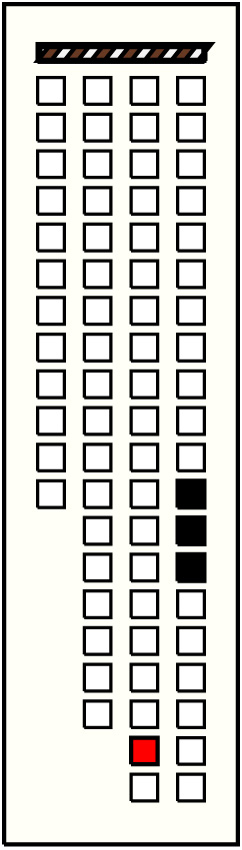

8	p49_{3, 19} : 17_W	17	3	p62: 7_RB + p63: 7_W + p64: 3_RL

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

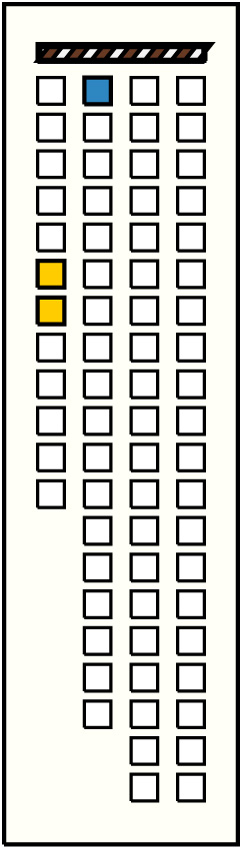

1	p13_{2, 1} : 64_W	64	2	p6: 3_RB∞ + p7: 61_W❽
2	p14_{2, 2} : 16_RL	16	4	p1: 4_W∞ + p2: 1_RL + p3: 10_W + p4: 1_RB❽
3	p17_{2, 5} : 32_W	32	5	∞p8: 17_RL∞ + p9: 11_W + p10: 1_RB + p11: 2_W + p12: 1_RB❽
4	p21_{2, 9} : 12_W	12	2	❽p9: 11_W + p10: 1_RB❽

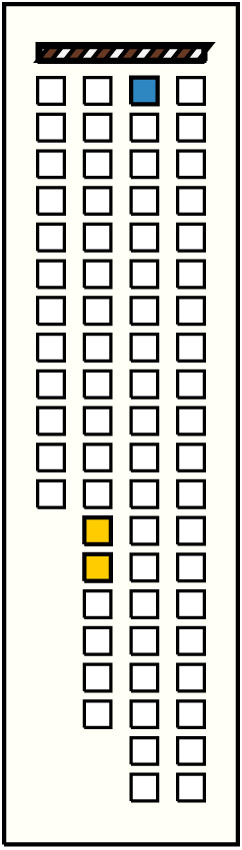

5	p31_{3, 1} : 81_W	81	2	❽p25: 61_W + ∞p26: 20_RB
6	p32_{3, 2} : 15_RB	15	3	p18: 10_RL + p19: 4_W + p20: 1_RL❽

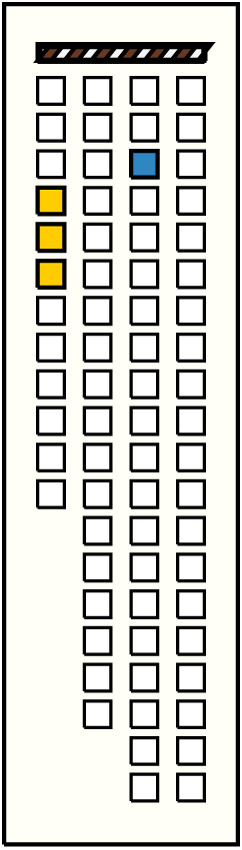

7	p33_{3, 3} : 24_W	24	3	❽p4: 1_RB + p5: 20_W + p6: 3_RB∞
8	p51_{4, 1} : 60_W	60	6	❽p43: 11_W + p44: 3_RB + p45: 24_W + p46: 5_RB + p47: 14_W + p48: 3_RL

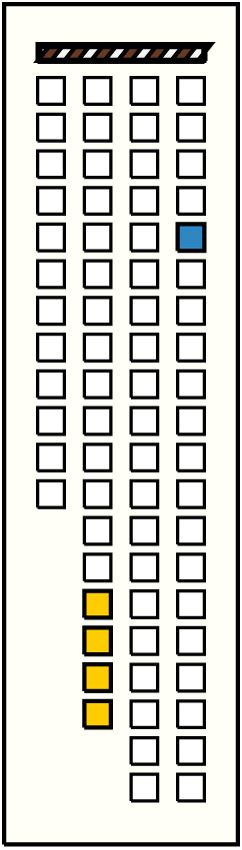

9	p55_{4, 5} : 12_W	12	4	p27: 5_W + p28: 2_RL + p29: 3_W + p30: 2_RL❽

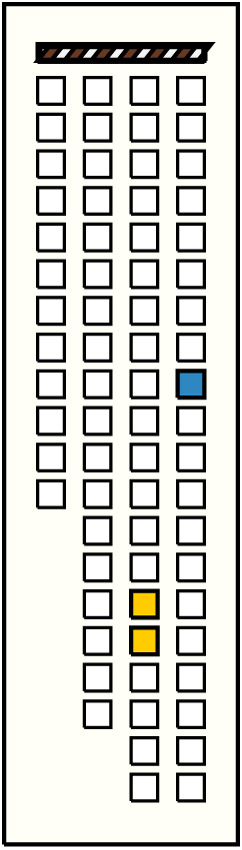

10	p59_{4, 9} : 29_W	29	2	p45: 24_W + p46: 5_RB

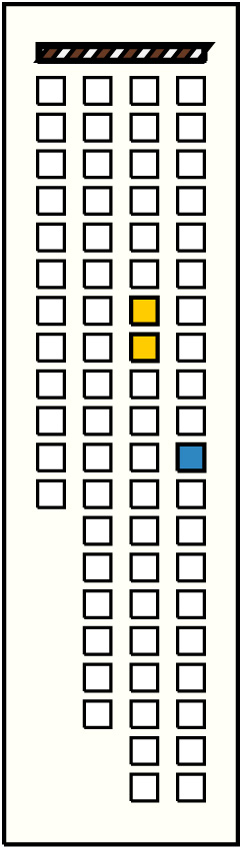

11	p61_{4, 11} : 16_W	16	2	p37: 13_W + p38: 3_RB∞

Khipu Notes:

Part of a set of 5. See UR053 A, B, C, D. Examined by Urton and Brezine 7/17/04
