UR073/KH0310 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Pendant Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

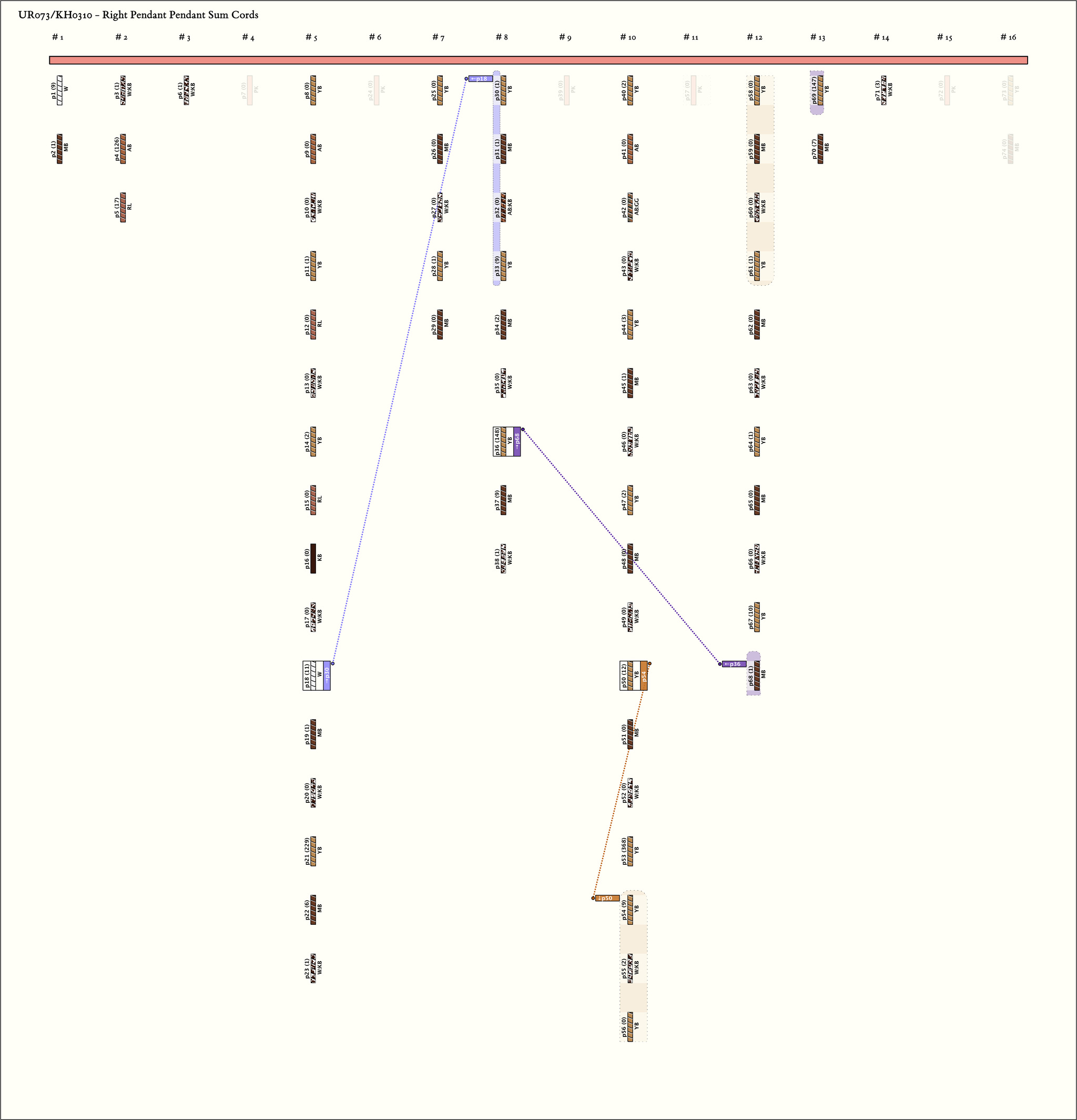

Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 8, (Min, Mean, Max) Sum Values = (11, 57, 148)
Click on Image to View Larger

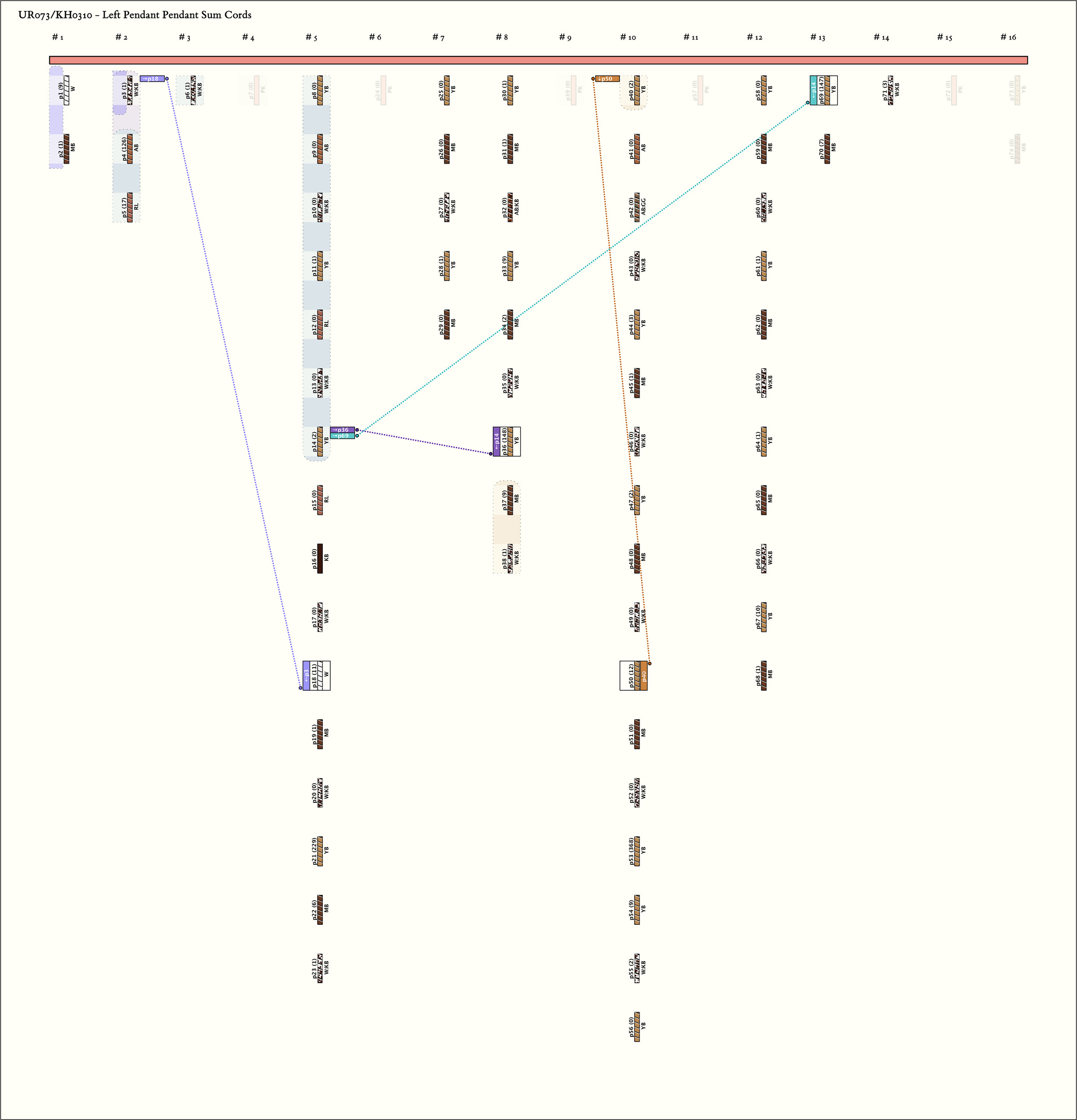

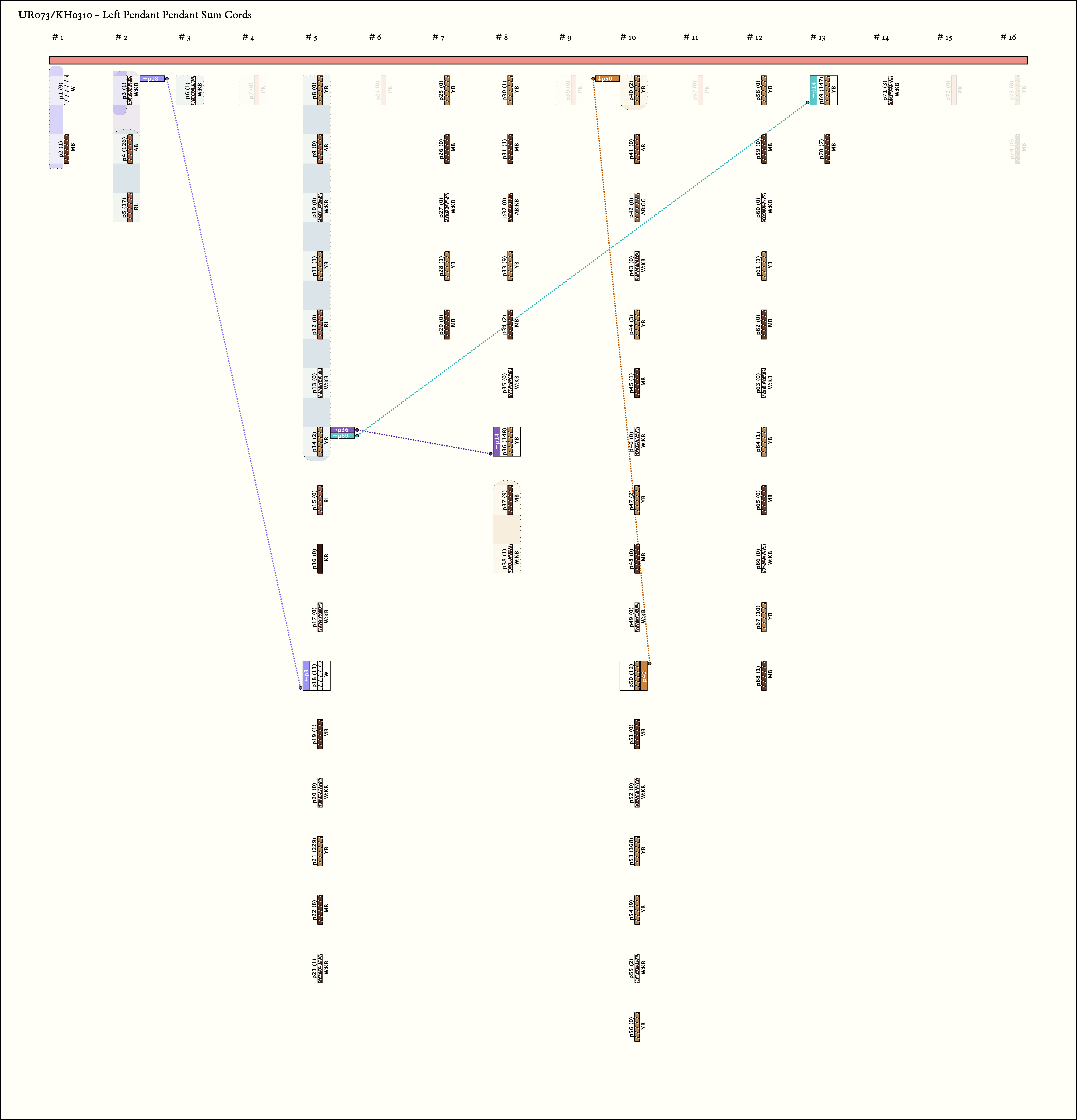

Left Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 12, (Min, Mean, Max) Sum Values = (11, 80, 148)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

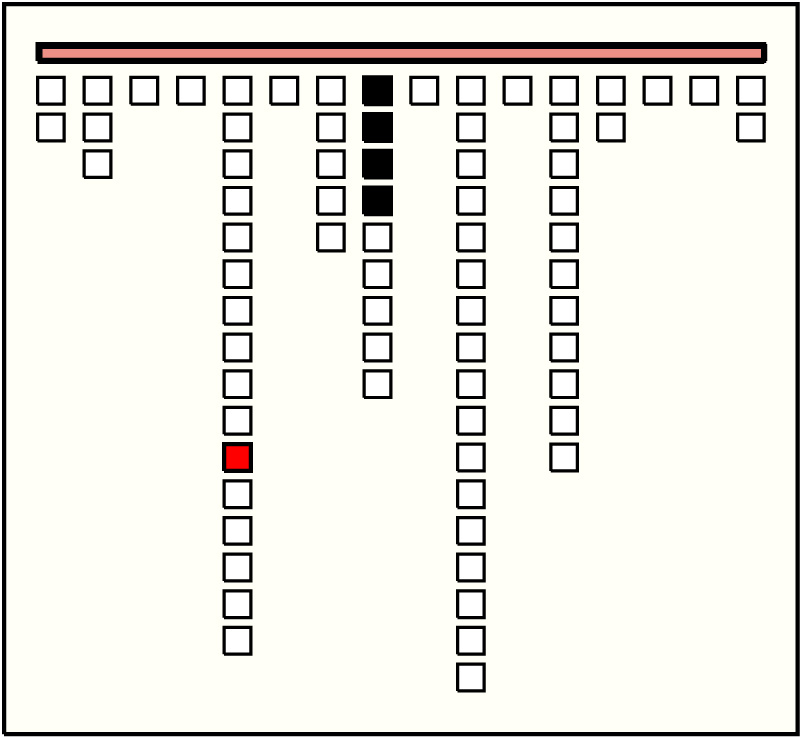

1	p18_{5, 11} : 11_W	11	4	❽p30: 1_YB + p31: 1_MB + p32: 0_AB:KB + p33: 9_YB

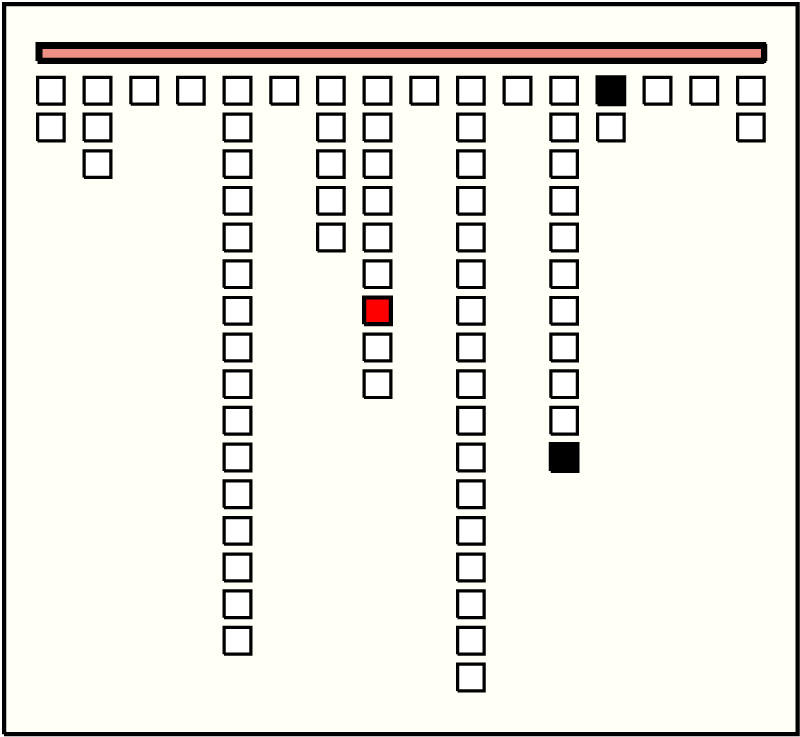

2	p36_{8, 7} : 148_YB	148	2	❽p68: 1_MB + ∞p69: 147_YB

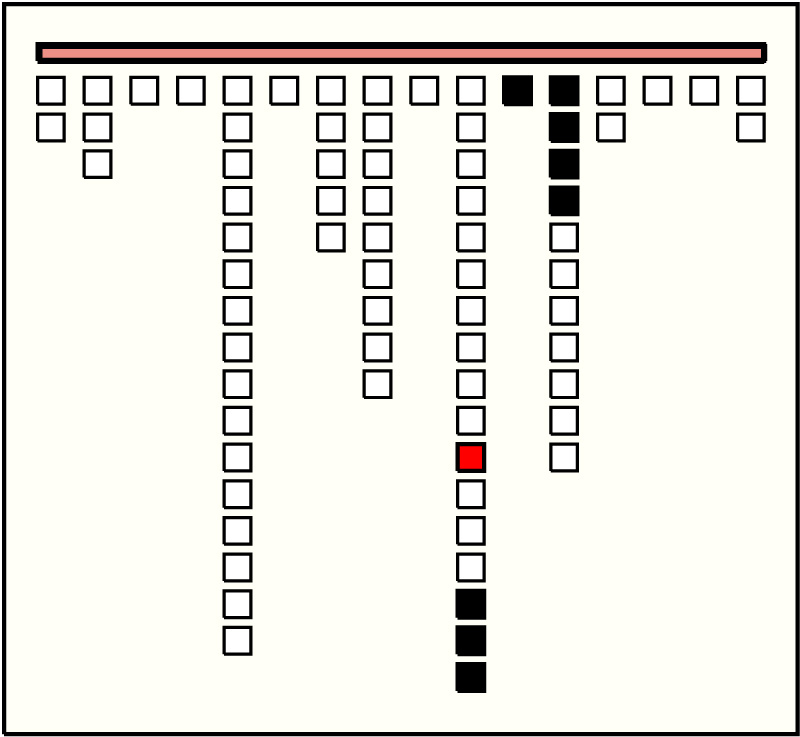

3	p50_{10, 11} : 12_YB	12	8	∞p54: 9_YB + p55: 2_W:KB + p56: 0_YB + p57: 0_PK + p58: 0_YB + p59: 0_MB + p60: 0_W:KB + p61: 1_YB❽

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

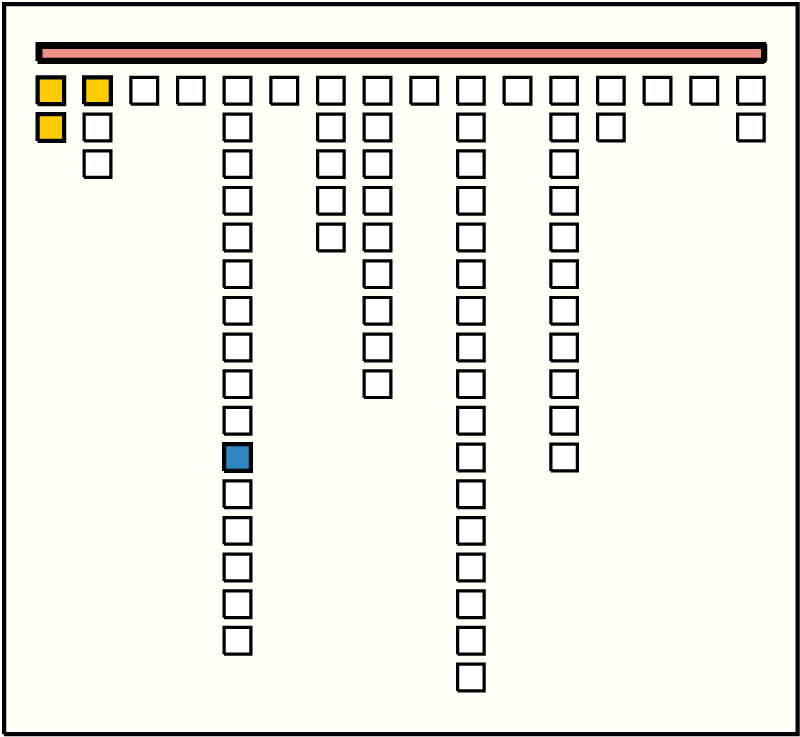

1	p18_{5, 11} : 11_W	11	3	p1: 9_W∞ + p2: 1_MB + p3: 1_W:KB❽
2	p36_{8, 7} : 148_YB	148	12	❽p3: 1_W:KB + p4: 126_AB + p5: 17_RL + p6: 1_W:KB + p7: 0_PK + p8: 0_YB + p9: 0_AB + p10: 0_W:KB + p11: 1_YB + p12: 0_RL + p13: 0_W:KB + p14: 2_YB

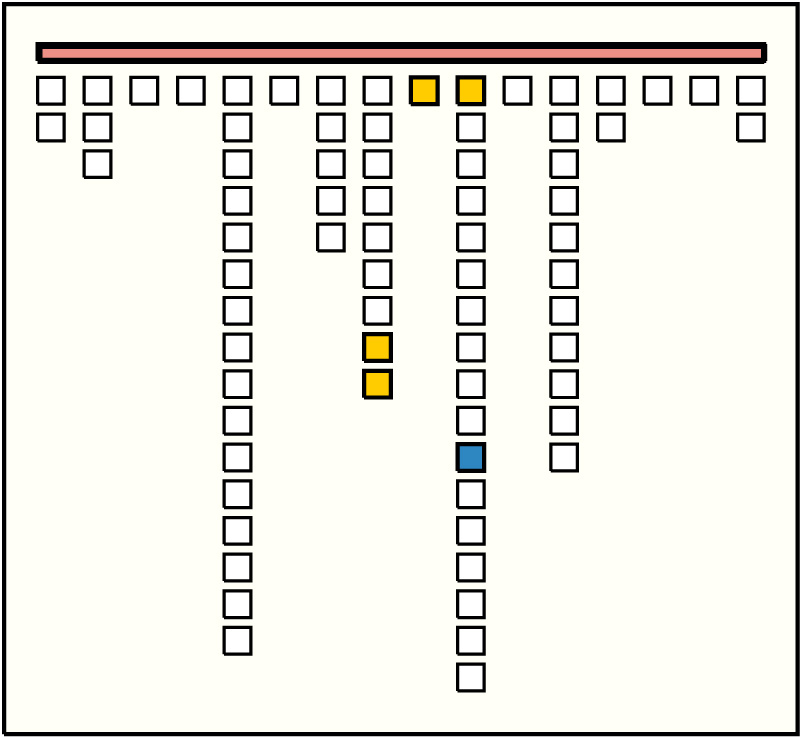

3	p50_{10, 11} : 12_YB	12	4	p37: 9_MB∞ + p38: 1_W:KB + p39: 0_PK + p40: 2_YB
4	p69_{13, 1} : 147_YB	147	11	∞p4: 126_AB + p5: 17_RL + p6: 1_W:KB + p7: 0_PK + p8: 0_YB + p9: 0_AB + p10: 0_W:KB + p11: 1_YB + p12: 0_RL + p13: 0_W:KB + p14: 2_YB

Khipu Notes:

The primary cord is broken at both ends; khipu is probably incomplete. There are markers of thread wrapping around primary cord.
