UR087/KH0323 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Pendant Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

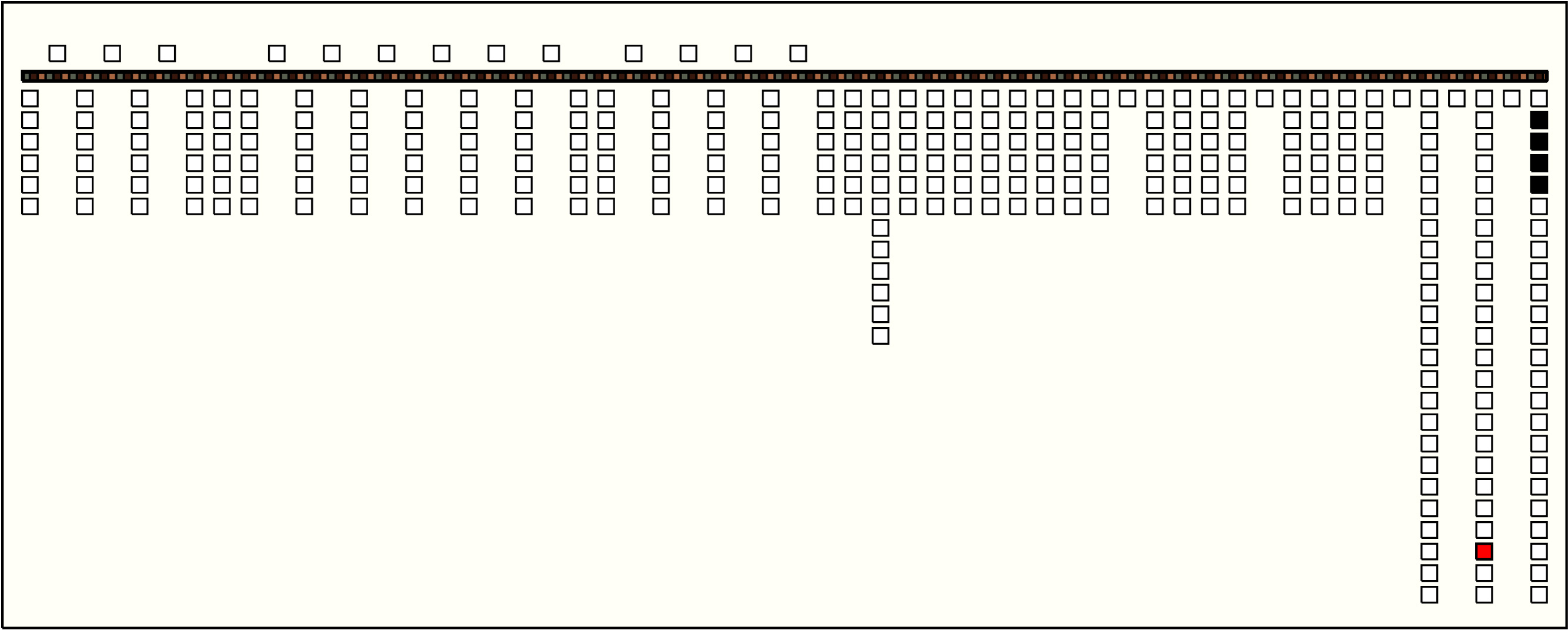

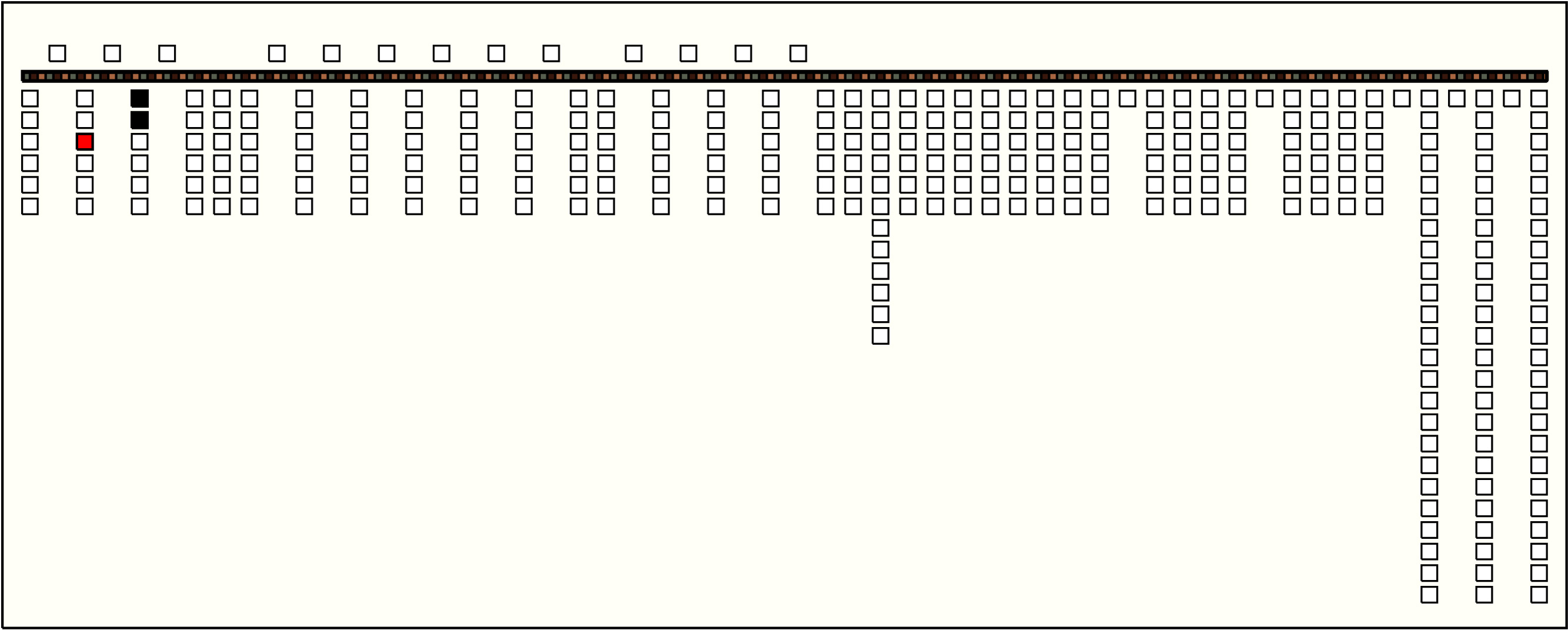

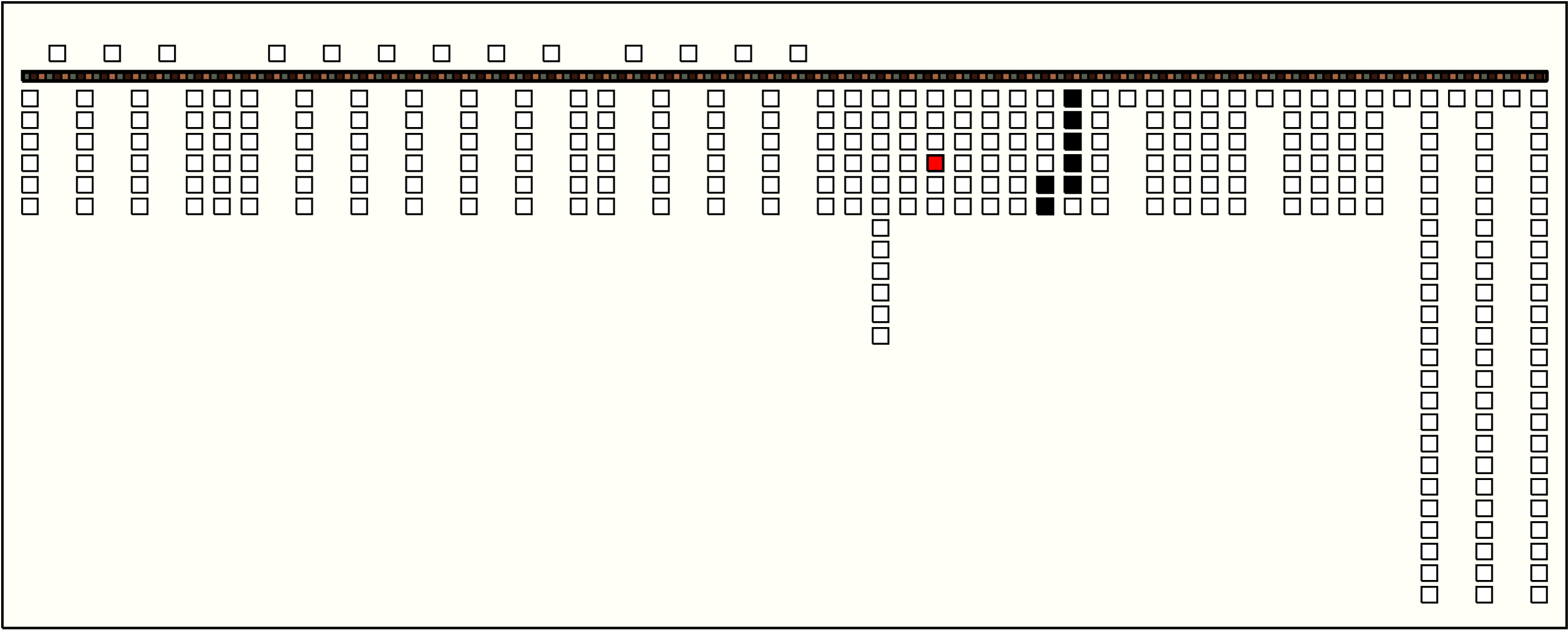

Right Handed Sums with Figure-8-Knots: # Sums = 20, Max # Summands = 9, (Min, Mean, Max) Sum Values = (11, 14, 22)
Click on Image to View Larger

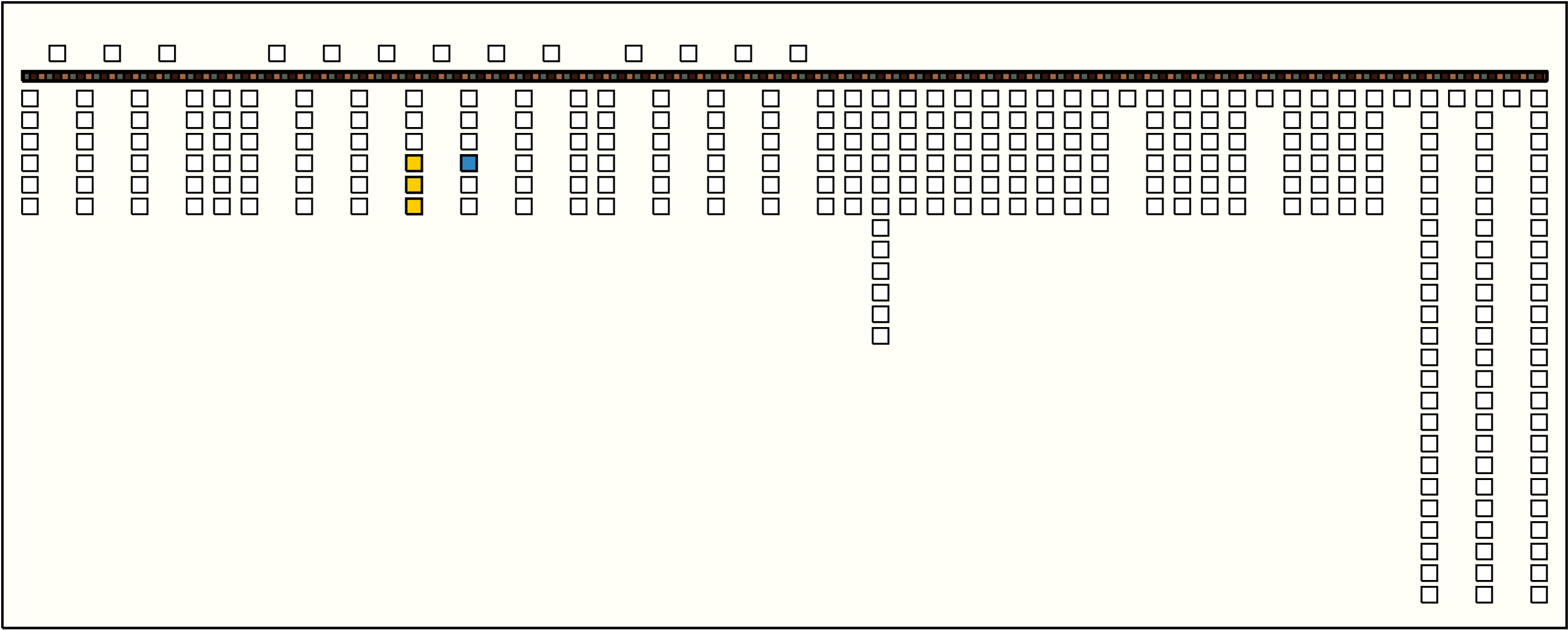

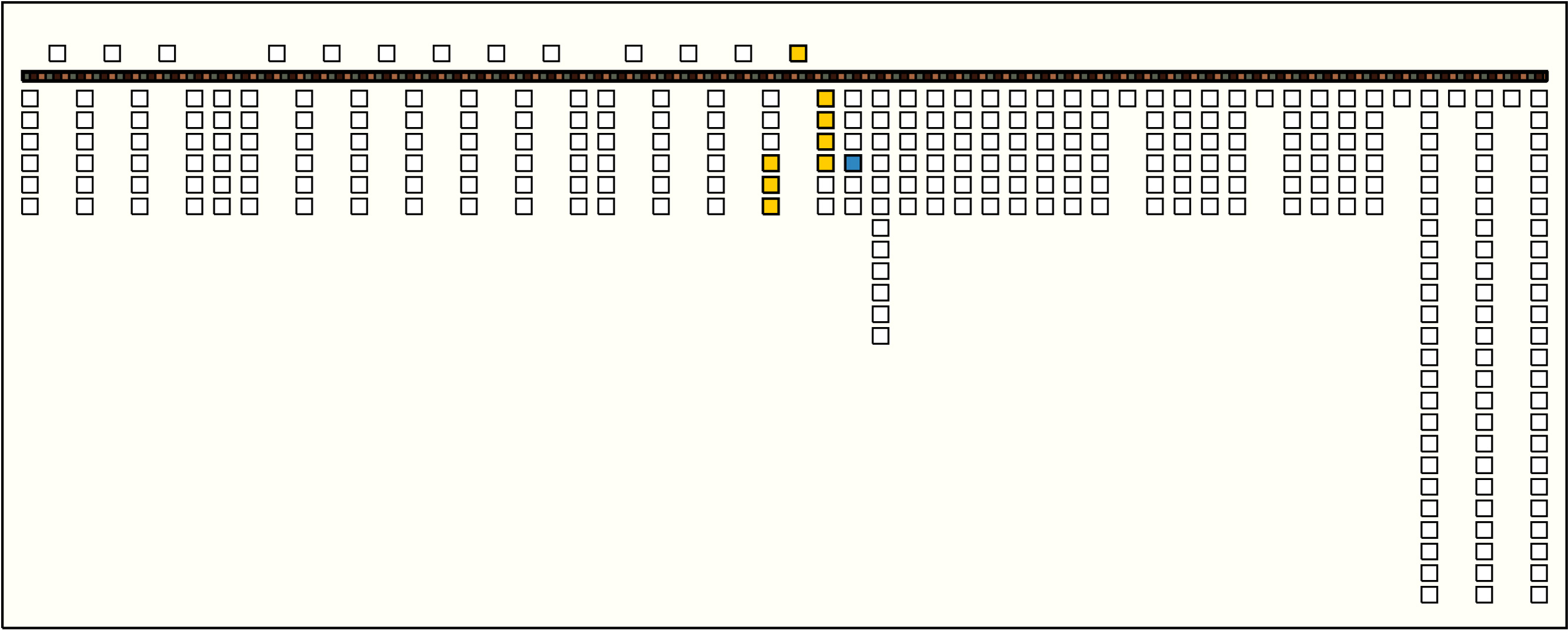

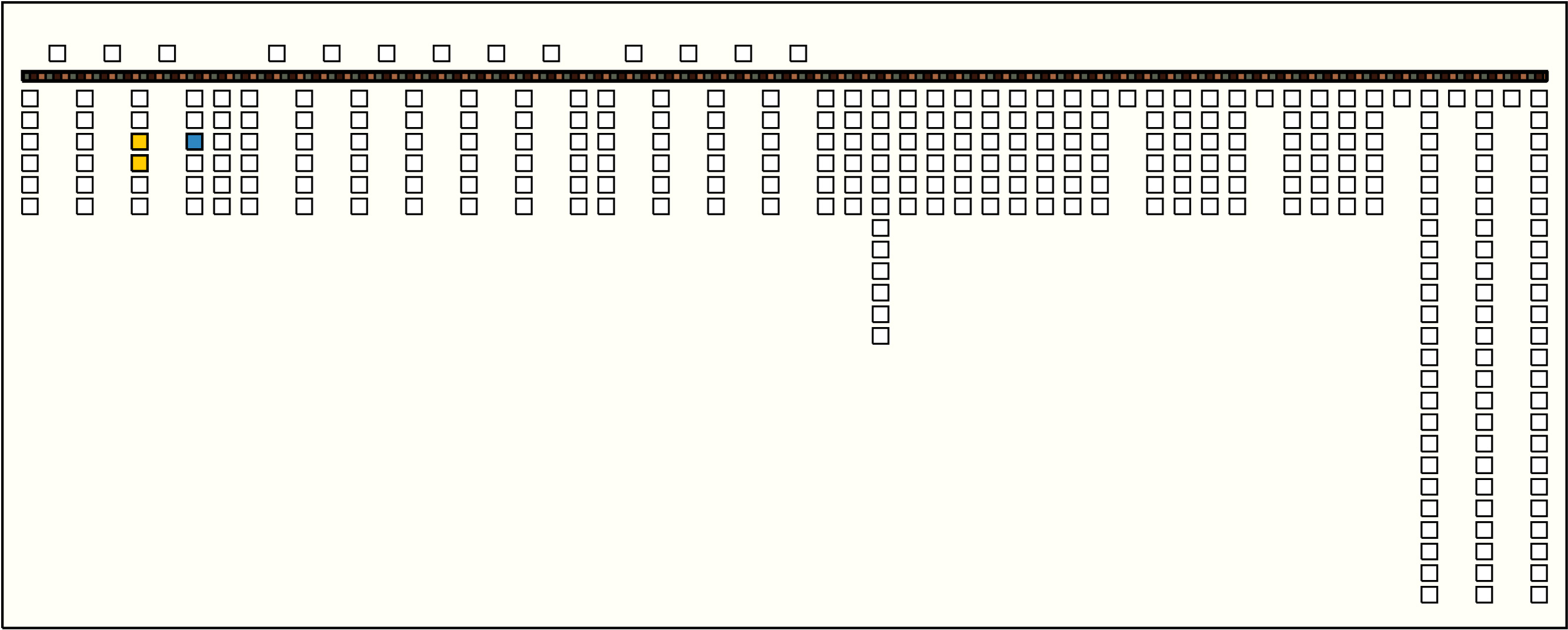

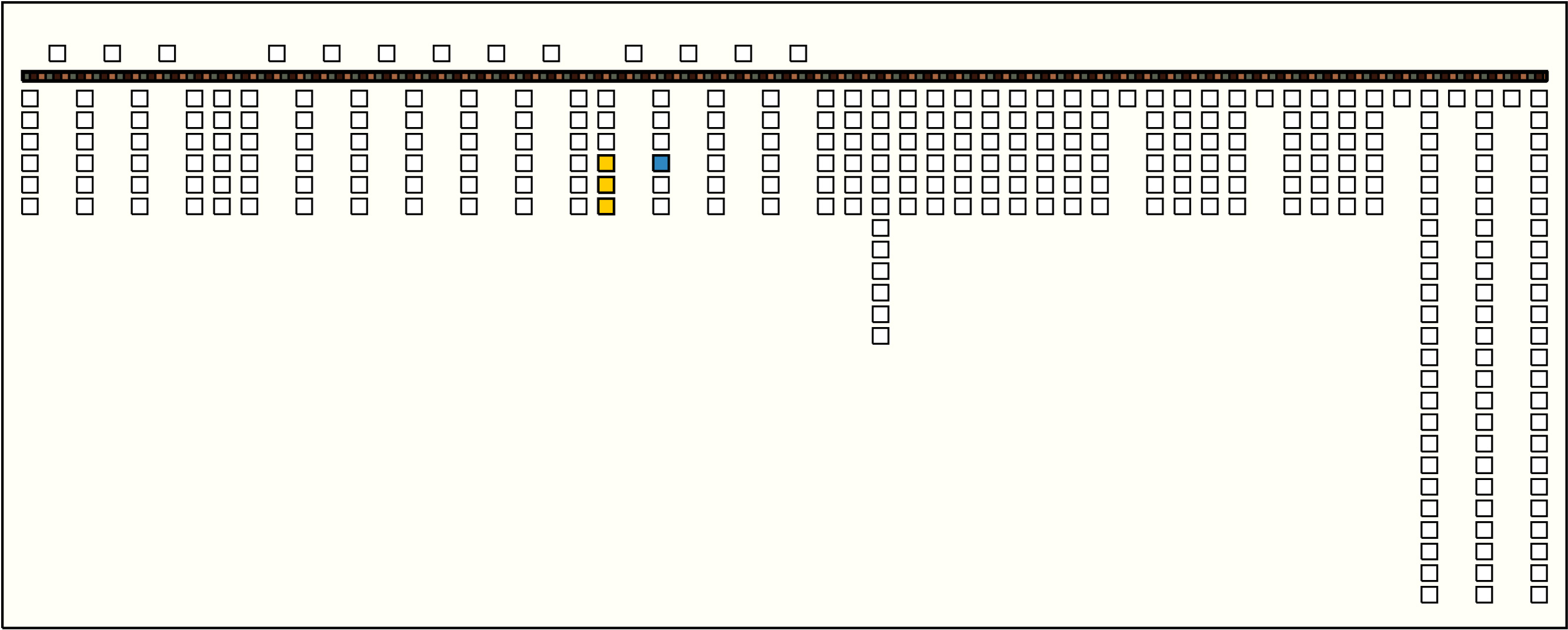

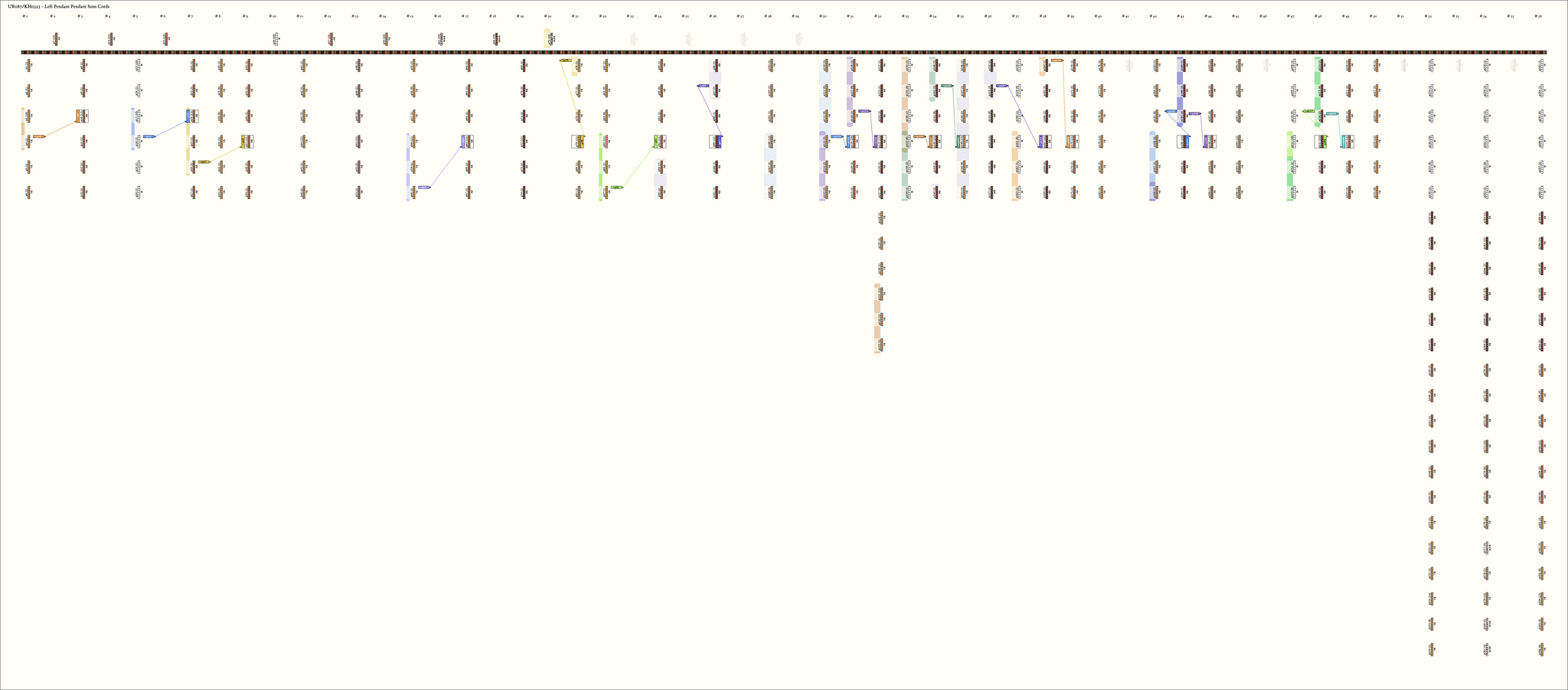

Left Handed Sums with Figure-8-Knots: # Sums = 17, Max # Summands = 9, (Min, Mean, Max) Sum Values = (11, 15, 22)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p10_{3, 3} : 11_AB	11	2	∞p15: 10_W∞ + p16: 1_W❽
2	p37_{9, 4} : 13_AB	13	2	❽p43: 2_YB + p44: 11_YB❽
3	p65_{17, 4} : 13_AB	13	3	❽p71: 1_RB + p72: 11_RB + p73: 1_RB❽
4	p72_{19, 4} : 11_RB	11	2	❽p74: 1_RB + ∞p75: 10_W:KB∞
5	p85_{22, 4} : 11_PK	11	8	❽p108: 1_YB + p109: 0_LG + p110: 1_YB + p111: 0_YB + p112: 0_YB + p113: 5_YB + p114: 2_YB + p115: 2_YB∞
6	p92_{24, 4} : 13_AB	13	6	∞p93: 7_AB + p94: 2_AB + p95: 0_LG + p96: 1_RB + p97: 2_RB + p98: 1_RB❽

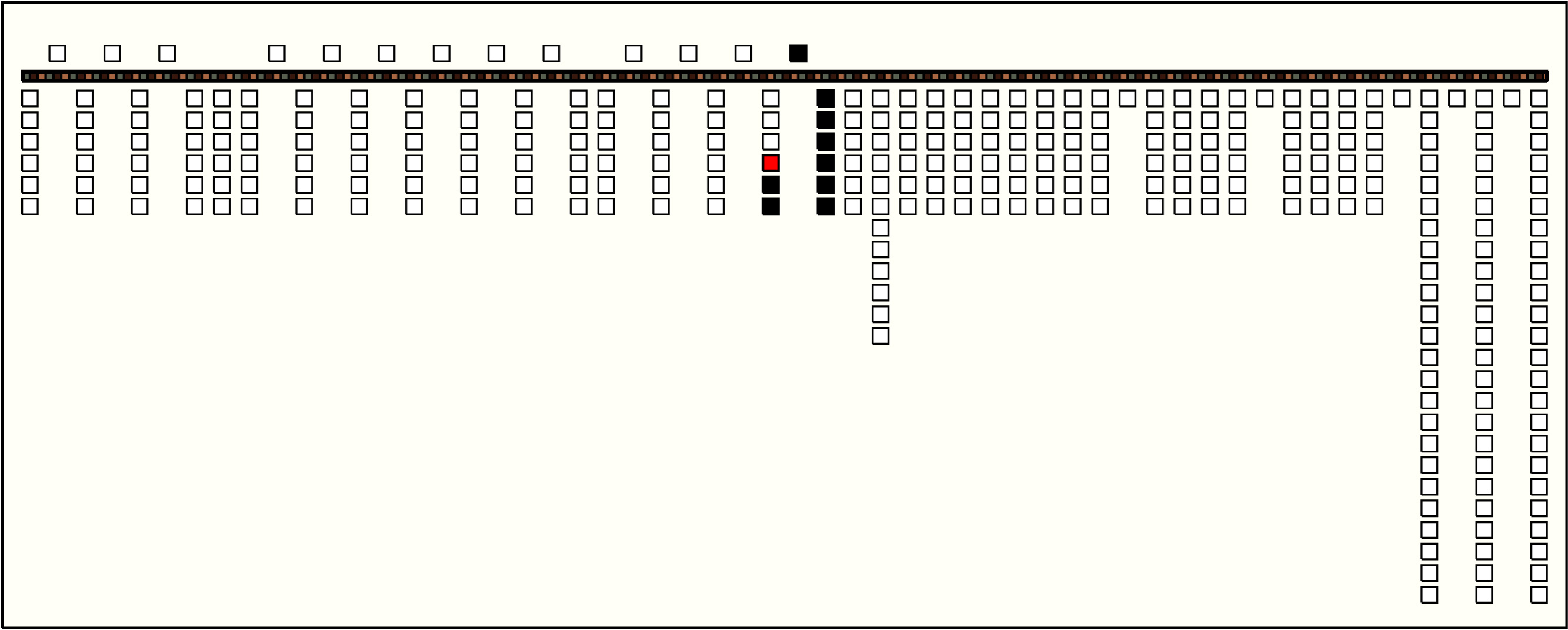

7	p106_{28, 4} : 12_YB	12	9	❽p107: 1_YB + p108: 1_YB + p109: 0_LG + p110: 1_YB + p111: 0_YB + p112: 0_YB + p113: 5_YB + p114: 2_YB + p115: 2_YB∞
8	p119_{31, 4} : 20_AB	20	9	p120: 2_AB + p121: 2_AB + p122: 1_RB + p123: 1_RB + p124: 1_RB + p125: 11_RB + p126: 1_RB + p127: 0_RB + p128: 1_YB❽
9	p131_{32, 10} : 11_YB	11	6	❽p133: 1_YB + p134: 1_W + p135: 0_W + p136: 1_W + p137: 6_W + p138: 2_W∞
10	p143_{34, 4} : 21_RB	21	7	p168: 2_RB + p169: 2_RB + p170: 1_AB + p171: 3_AB + p172: 1_AB + p173: 11_AB + p174: 1_AB❽
11	p155_{36, 4} : 11_MB	11	5	❽p157: 1_MB + p158: 1_W + p159: 0_W + p160: 1_W + ∞p161: 8_W∞
12	p167_{38, 4} : 22_RB	22	8	p168: 2_RB + p169: 2_RB + p170: 1_AB + p171: 3_AB + p172: 1_AB + p173: 11_AB + p174: 1_AB + p175: 1_AB❽
13	p179_{40, 4} : 11_YB	11	4	❽p183: 1_YB + p184: 1_YB + p185: 0_YB + p186: 9_YB∞
14	p192_{43, 4} : 22_RB	22	8	p193: 2_RB + p194: 2_RB + p195: 1_AB + p196: 3_AB + p197: 0_AB + p198: 12_AB + p199: 1_AB + p200: 1_AB❽
15	p204_{45, 4} : 12_YB	12	4	❽p208: 1_W + p209: 1_W + p210: 0_W + p211: 10_W∞
16	p217_{48, 4} : 22_RB	22	9	❽p218: 1_RB + p219: 1_RB + p220: 1_AB + p221: 3_AB + p222: 1_AB + p223: 12_AB + p224: 1_AB + p225: 1_AB + p226: 1_YB❽

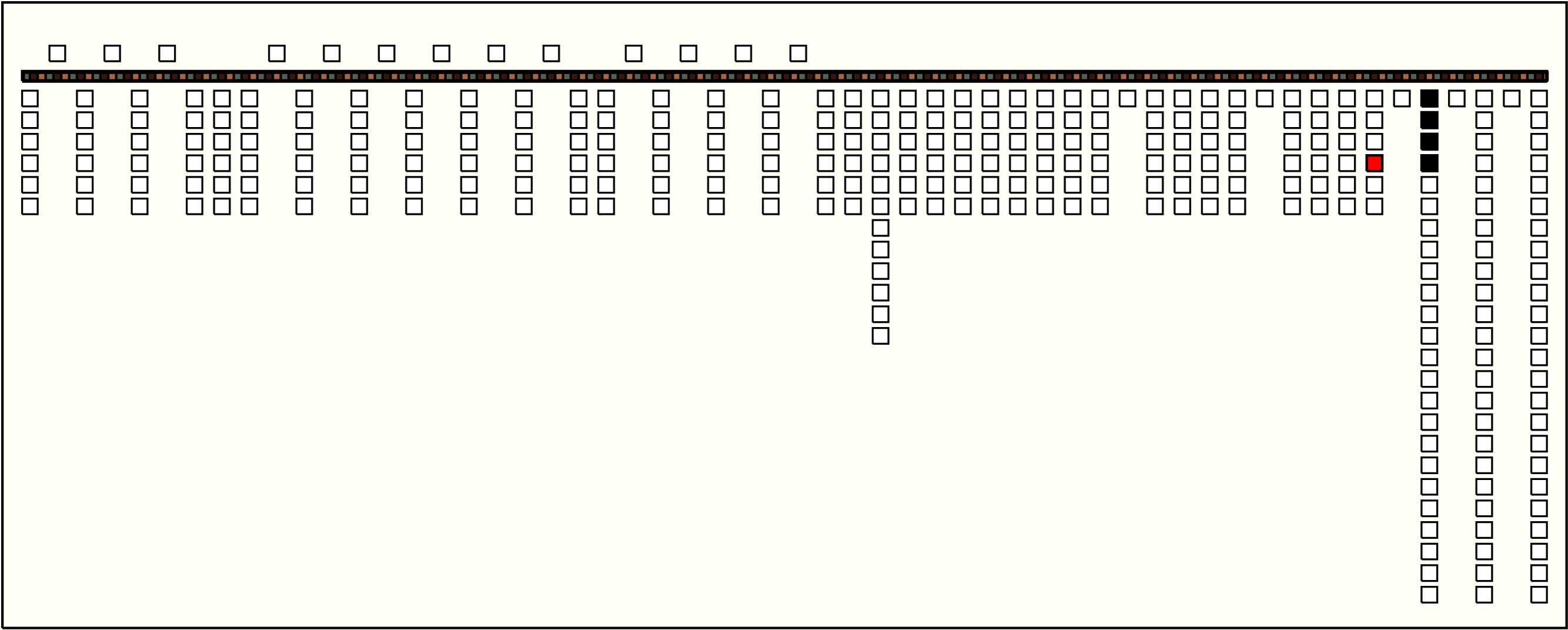

17	p229_{50, 4} : 12_YB	12	4	❽p233: 1_W + p234: 1_W + p235: 0_W + p236: 10_W❽

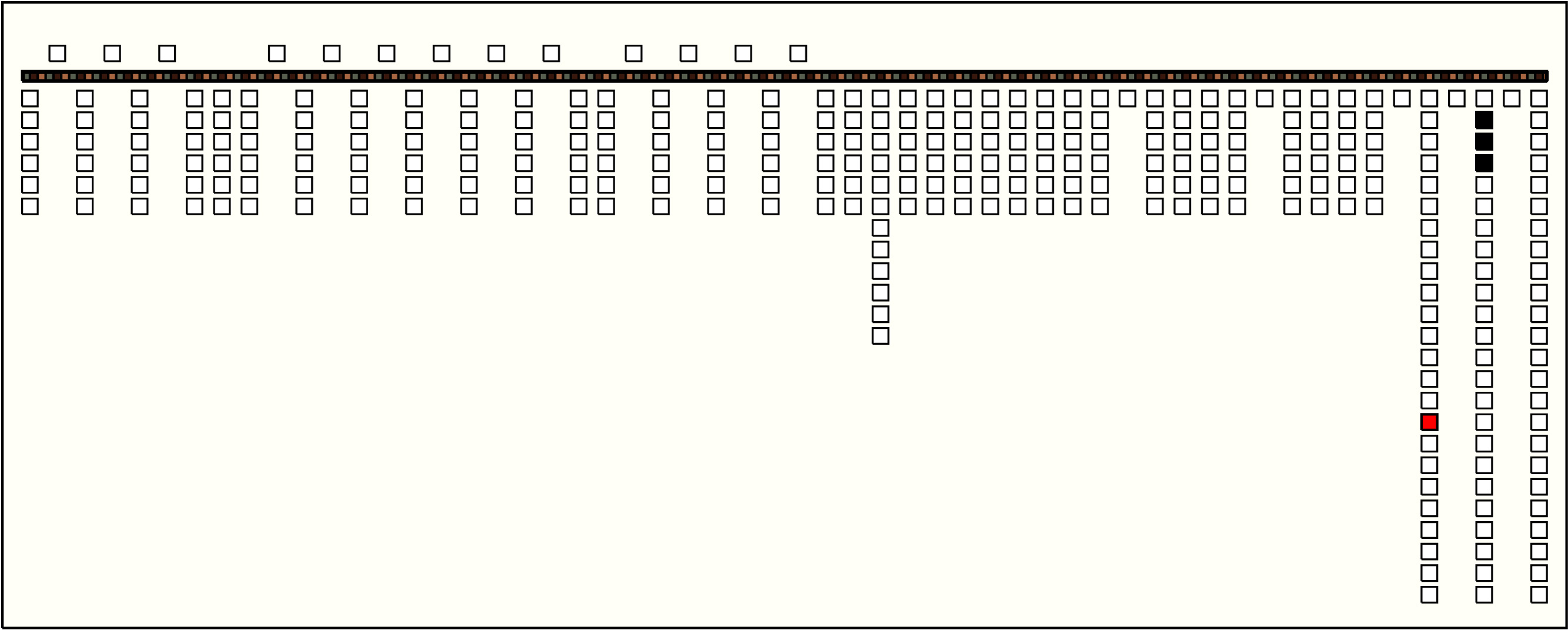

18	p248_{52, 16} : 12_AB	12	3	❽p259: 1_W + p260: 1_W + ∞p261: 10_W

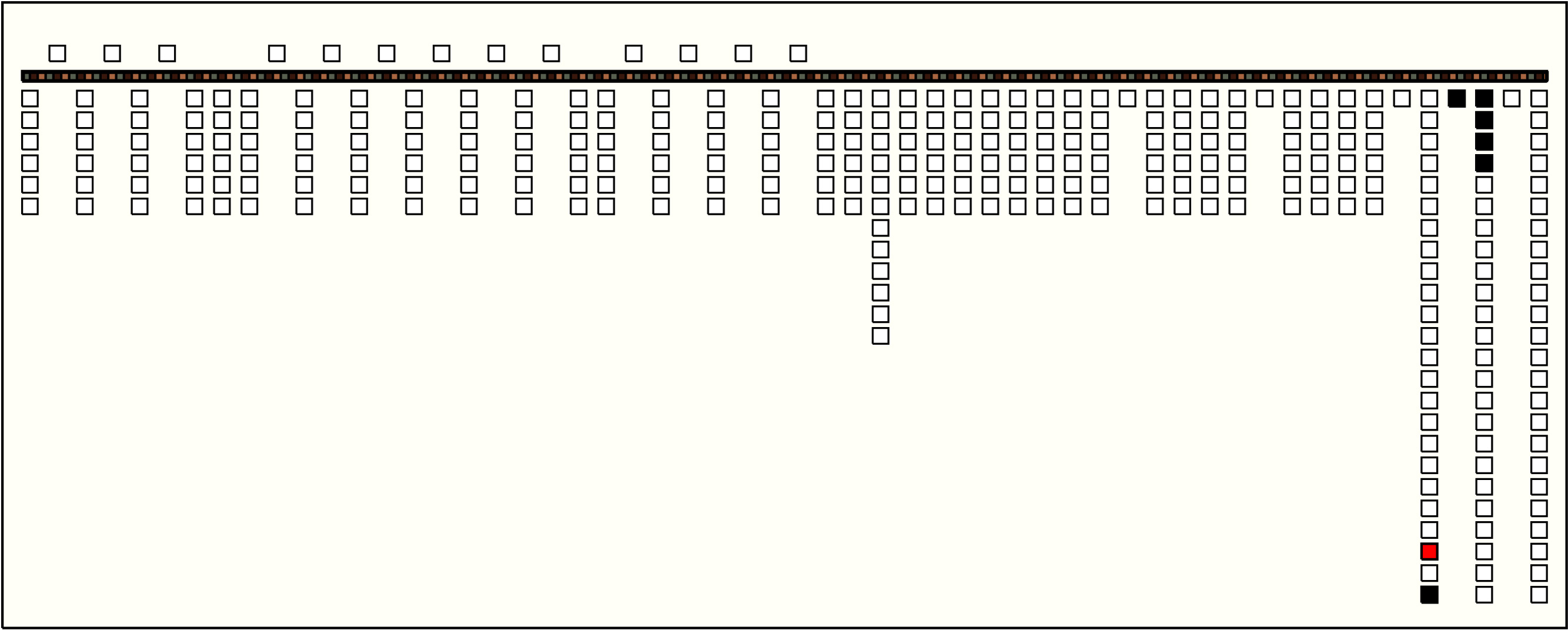

19	p254_{52, 22} : 14_YB	14	6	❽p256: 1_YB + p257: 0_G0 + p258: 1_W + p259: 1_W + p260: 1_W + ∞p261: 10_W
20	p279_{54, 22} : 12_YB	12	4	❽p284: 1_W + p285: 0_W + p286: 9_W + p287: 2_W∞

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p10_{3, 3} : 11_AB	11	2	∞p3: 10_YB∞ + p4: 1_YB❽
2	p24_{7, 3} : 11_AB	11	2	∞p17: 10_W∞ + p18: 1_W❽
3	p37_{9, 4} : 13_AB	13	3	❽p24: 11_AB + p25: 1_AB + p26: 1_AB❽
4	p65_{17, 4} : 13_AB	13	3	❽p58: 11_YB + p59: 1_YB + p60: 1_YB❽
5	p79_{21, 4} : 11_YB	11	2	∞p75: 10_W:KB∞ + p76: 1_YB❽
6	p92_{24, 4} : 13_AB	13	3	❽p85: 11_PK + p86: 1_YB + p87: 1_YB❽
7	p99_{26, 4} : 12_RB	12	5	∞p93: 7_AB + p94: 2_AB + p95: 0_LG + p96: 1_RB + ∞p97: 2_RB∞
8	p119_{31, 4} : 20_AB	20	8	∞p106: 12_YB∞ + p107: 1_YB + p108: 1_YB + p109: 0_LG + p110: 1_YB + p111: 0_YB + p112: 0_YB + p113: 5_YB
9	p125_{32, 4} : 11_RB	11	6	p113: 5_YB + p114: 2_YB + p115: 2_YB + p116: 1_AB + p117: 0_AB + p118: 1_AB❽

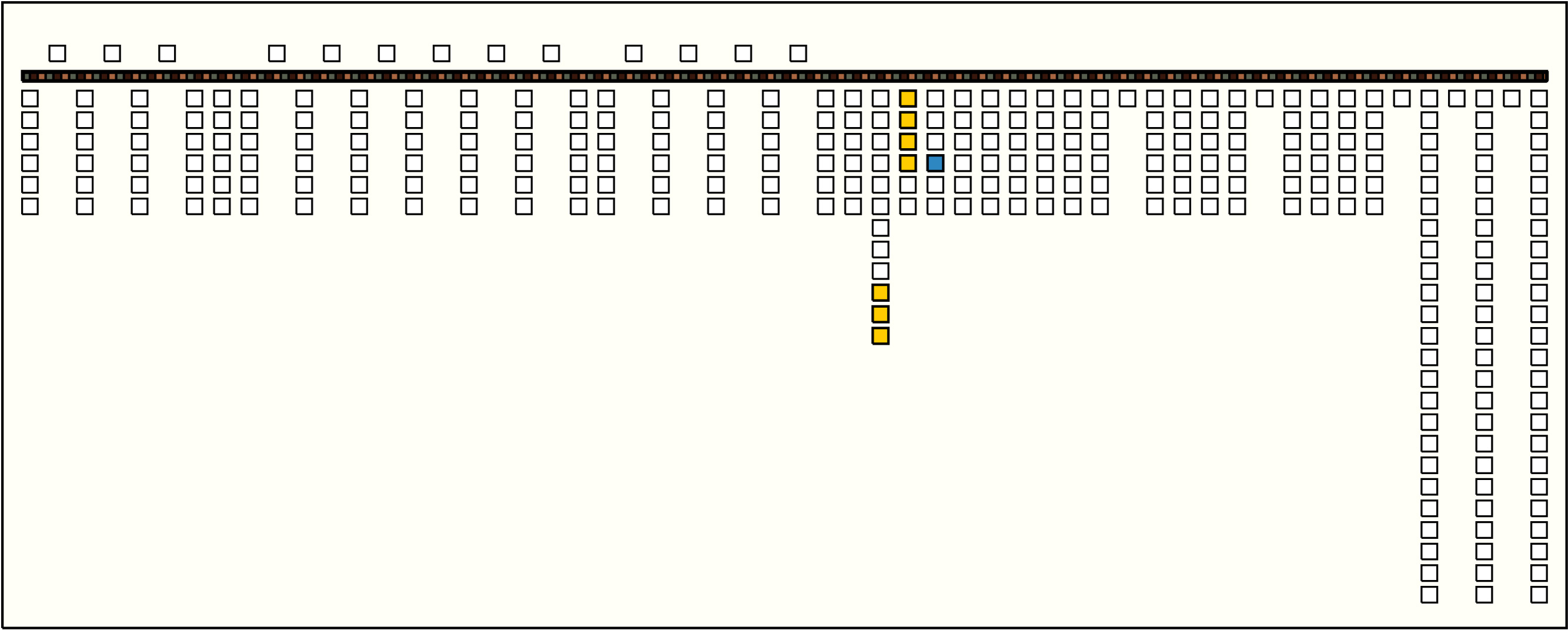

10	p143_{34, 4} : 21_RB	21	7	❽p131: 11_YB + p132: 1_YB + p133: 1_YB + p134: 1_W + p135: 0_W + p136: 1_W + ∞p137: 6_W
11	p149_{35, 4} : 11_YB	11	5	∞p137: 6_W + p138: 2_W + p139: 1_W + p140: 1_RB + p141: 1_RB❽
12	p167_{38, 4} : 22_RB	22	9	∞p145: 2_RB∞ + p146: 1_YB + p147: 1_YB + p148: 2_YB + p149: 11_YB + p150: 0_YB + p151: 1_YB + p152: 1_MB + ∞p153: 3_MB
13	p173_{39, 4} : 11_AB	11	4	∞p161: 8_W∞ + p162: 1_W + p163: 1_W + p164: 1_RB❽
14	p192_{43, 4} : 22_RB	22	6	p186: 9_YB∞ + p187: 1_YB + p188: 2_YB + p189: 1_RB + p190: 5_RB + p191: 4_RB
15	p198_{44, 4} : 12_AB	12	4	∞p188: 2_YB∞ + p189: 1_RB + p190: 5_RB + p191: 4_RB
16	p217_{48, 4} : 22_RB	22	6	p211: 10_W∞ + p212: 1_W + p213: 0_W + p214: 1_RB + p215: 8_RB + ∞p216: 2_RB
17	p223_{49, 4} : 12_AB	12	5	❽p212: 1_W + p213: 0_W + p214: 1_RB + p215: 8_RB + ∞p216: 2_RB

Khipu Notes:

This khipu is part of a set (UR087, UR088, UR089, UR090, UR091, UR092) that were analyzed by Manual Medrano in his article Toward the Decipherment of a Set of Mid-Colonial Khipus from the Santa Valley, Coastal Peru.

1. Top cords. Top cords are fastened through the pendant attachments (diagram on field notes). The doubled end of the top cord is passed through the half-hitches of the pendants; the free end of the top cord is then passed through its doubled end. In the final configuration, the doubled end of the top cord may be pointing towards the left (dbld end went through from L to R) or right (dbld end went through from R to L). These are designated, respectively, R and L, the R to be distinguished from the R meaning recto.
2. Markers. Markers on this khipu are short lengths of cotton cord, same construction as pendants, attached the same way as pendants, but pointing upwards in the same direction as the top cords.
