UR110/KH0346 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Sum NetGraph
All Pendant Pendant Sum Relationships	Sum Map
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sums with Figure-8-Knots
	Left-Handed Sums with Figure-8-Knots
	Right-Handed Sum Detail
	Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger

Sum Map - Click on image to view larger

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

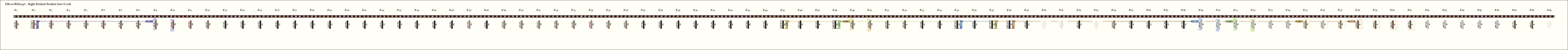

Right Handed Sums with Figure-8-Knots: # Sums = 6, Max # Summands = 6, (Min, Mean, Max) Sum Values = (11, 15, 25)
Click on Image to View Larger

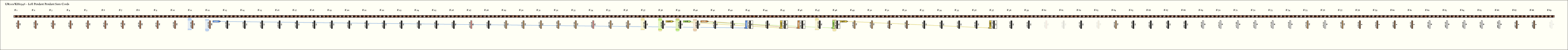

Left Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 2, (Min, Mean, Max) Sum Values = (11, 16, 25)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

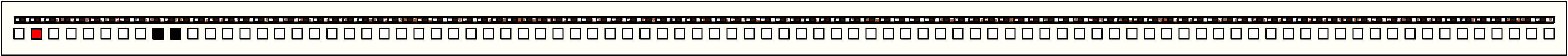

1	p2_{2, 1} : 14_AB	14	2	p9: 5_AB + p10: 9_AB

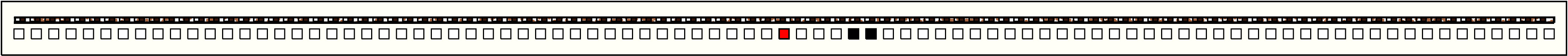

2	p45_{45, 1} : 17_FB	17	2	p49: 8_YB + p50: 9_YB

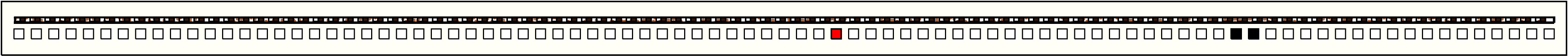

3	p48_{48, 1} : 12_FB	12	2	p71: 8_W + p72: 4_W

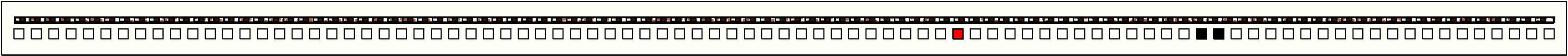

4	p55_{55, 1} : 11_LK	11	2	p69: 4_W + p70: 7_W

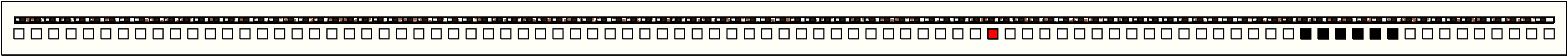

5	p57_{57, 1} : 25_LK	25	6	p75: 4_YB + p76: 3_W + p77: 8_YB + p78: 4_B + p79: 3_B + p80: 3_B

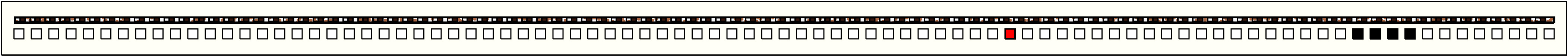

6	p58_{58, 1} : 13_LK	13	4	p78: 4_B + p79: 3_B + p80: 3_B + p81: 3_B

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

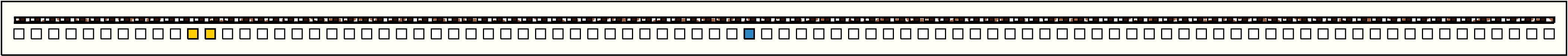

1	p43_{43, 1} : 11_FB	11	2	p11: 6_AB + p12: 5_AB

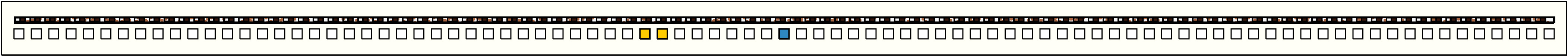

2	p45_{45, 1} : 17_FB	17	2	p37: 9_FB + p38: 8_FB

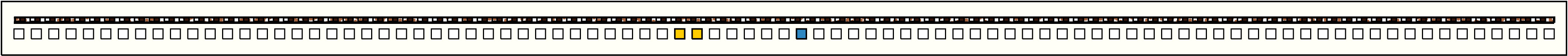

3	p46_{46, 1} : 13_FB	13	2	p39: 4_FB + p40: 9_FB

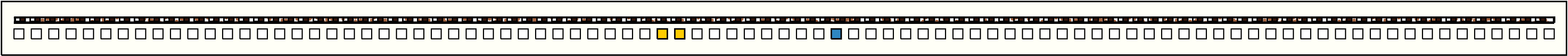

4	p48_{48, 1} : 12_FB	12	2	p38: 8_FB + p39: 4_FB

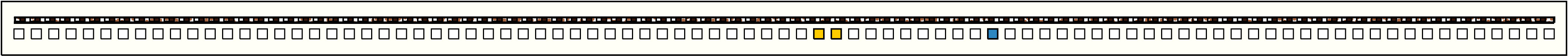

5	p57_{57, 1} : 25_LK	25	2	p47: 13_FB + p48: 12_FB

Khipu Notes:

Beginning: "needlework bundle": wrapping in brown and white stripes of ~.5cm ea. Wrapped over a core of cords.
This is a canuto khipu, with all of its cords tied in bundles to the primary cord.
This khipu has been reconstructed using information from Jon Clindaniel's DASH thesis notes at Harvard. Cord cluster information is missing and has been defaulted to one cord per cluster.
