KH0694/MM021 - Subsidiary Pendant Sums
Drawings:

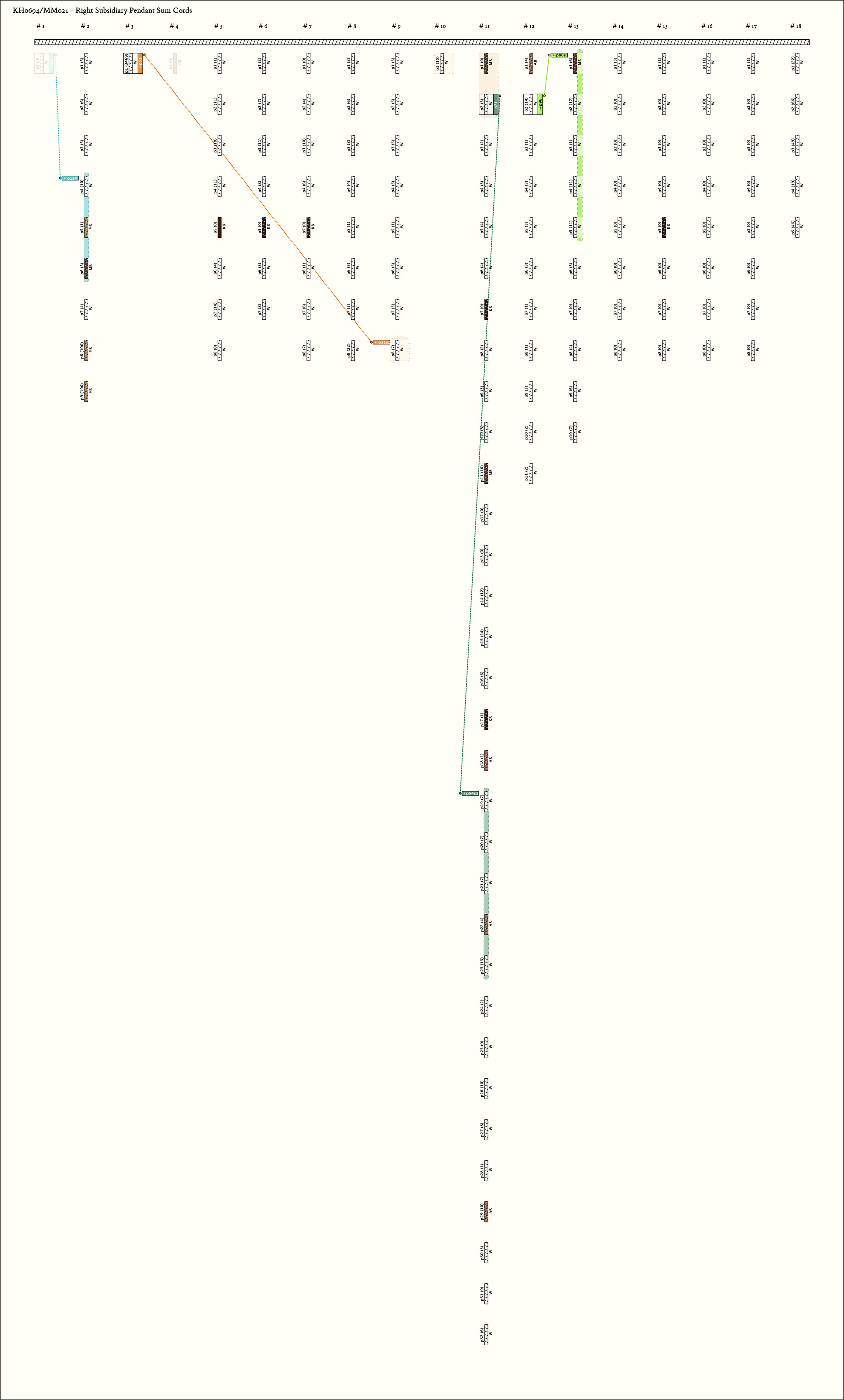

Right Handed Sums: # Sums = 4, Max # Summands = 5, (Min, Mean, Max) Sum Values = (14, 31, 46)
Click on Image to View Larger

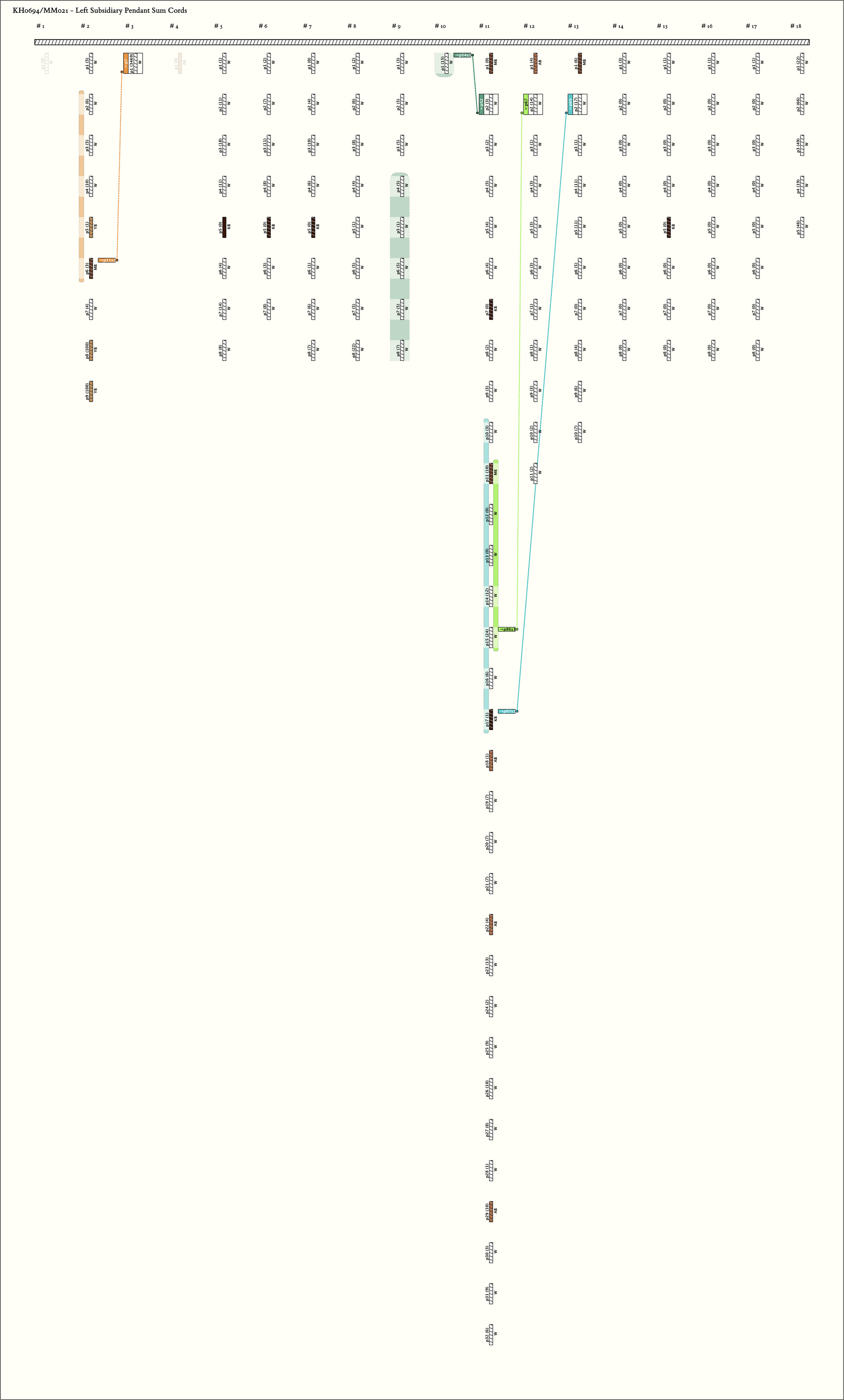

Left Handed Sums: # Sums = 4, Max # Summands = 6, (Min, Mean, Max) Sum Values = (25, 41, 56)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p1s4 : 14W | 14 | 3 | g2p4: 10W + g2p5: 1YB + g2p6: 3MB | |
| 2 |  | g3p1s2 : 25W:AB | 25 | 3 | g9p8: 7W + g10p1: 15W + g11p2: 3W | |
| 3 |  | g11p2s1 : 38BG | 38 | 5 | g11p19: 7W + g11p20: 7W + g11p21: 7W + g11p22: 4AB + g11p23: 13W | |
| 4 |  | g12p2s1 : 46BG | 46 | 5 | g13p1: 6MB + g13p2: 17W + g13p3: 1W + g13p4: 11W + g13p5: 11W |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p1s2 : 25W:AB | 25 | 5 | g2p2: 6W + g2p3: 5W + g2p4: 10W + g2p5: 1YB + g2p6: 3MB | |
| 2 |  | g11p2s1 : 38BG | 38 | 6 | g9p4: 5W + g9p5: 1W + g9p6: 5W + g9p7: 5W + g9p8: 7W + g10p1: 15W | |
| 3 |  | g12p2s1 : 46BG | 46 | 3 | g11p11: 10MB + g11p14: 12W + g11p15: 24W | |
| 4 |  | g13p2s1 : 56BG | 56 | 6 | g11p10: 3W + g11p11: 10MB + g11p14: 12W + g11p15: 24W + g11p16: 6W + g11p17: 1KB |
Khipu Notes:
1: p1 subsidiaries (p1s1-P1s6) attached with pendant-like attachment knots, though p1 is not significantly thicker than other pendant cords, suggesting this is not a subsidiary primary cord
6: string damaged between 8.0-18.0cm
11: repair knot at 14.0cm
13: untied 1S knot at 31.0cm
27: extra loop behind top of 8L knot
37: pendant loop at 27.0cm
58: color changes in turn of long knot
75: repair knot at 18.0cm
77: color changes in turn of long knot
87: pendant loop at 16.5cm
102: pendant damaged between 15.5-18.0cm
Primary Cord Notes
Primary Cord Thread Wrappings
YB wrapping at 47.5cm
