KH0104/UR1091, AS091 - Colored Pendant Sums
Drawings:

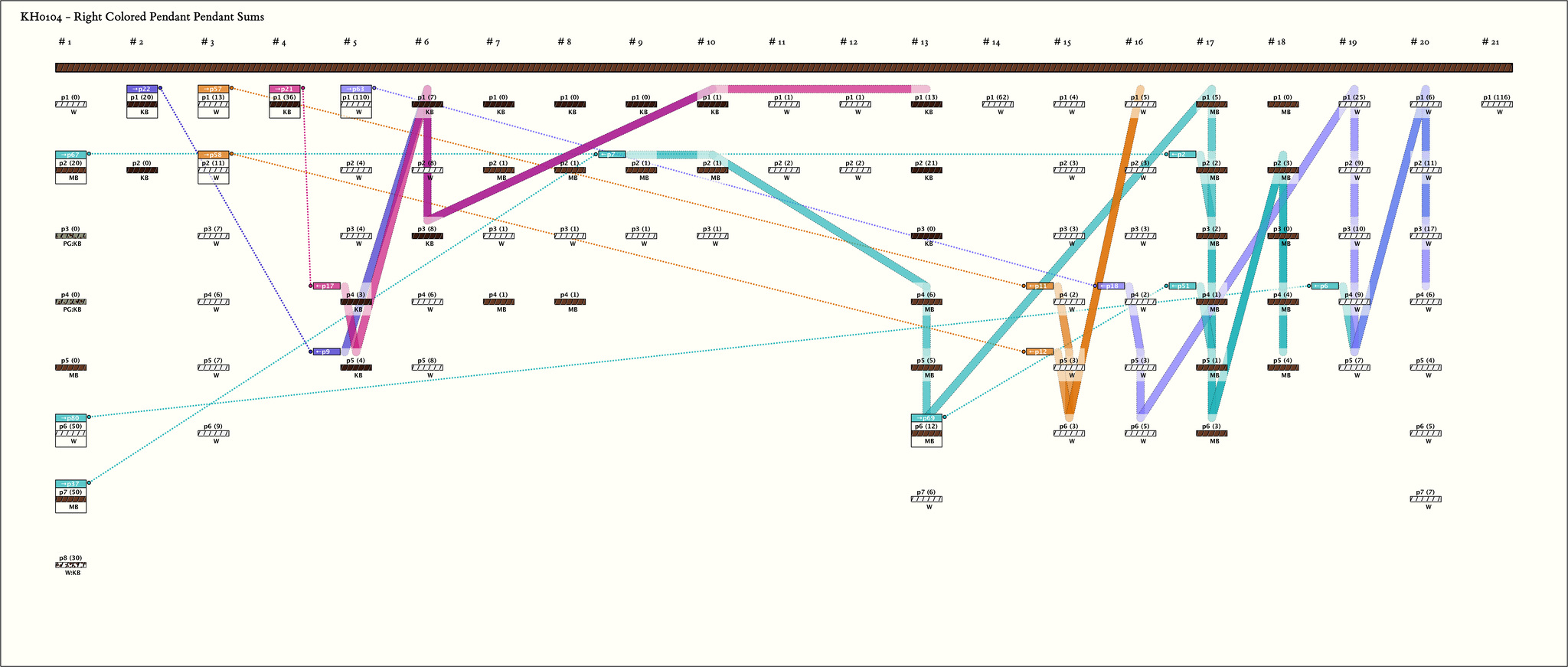

Right Handed Sums: # Sums = 9, Max # Summands = 14, (Min, Mean, Max) Sum Values = (11, 36, 110)
Click on Image to View Larger

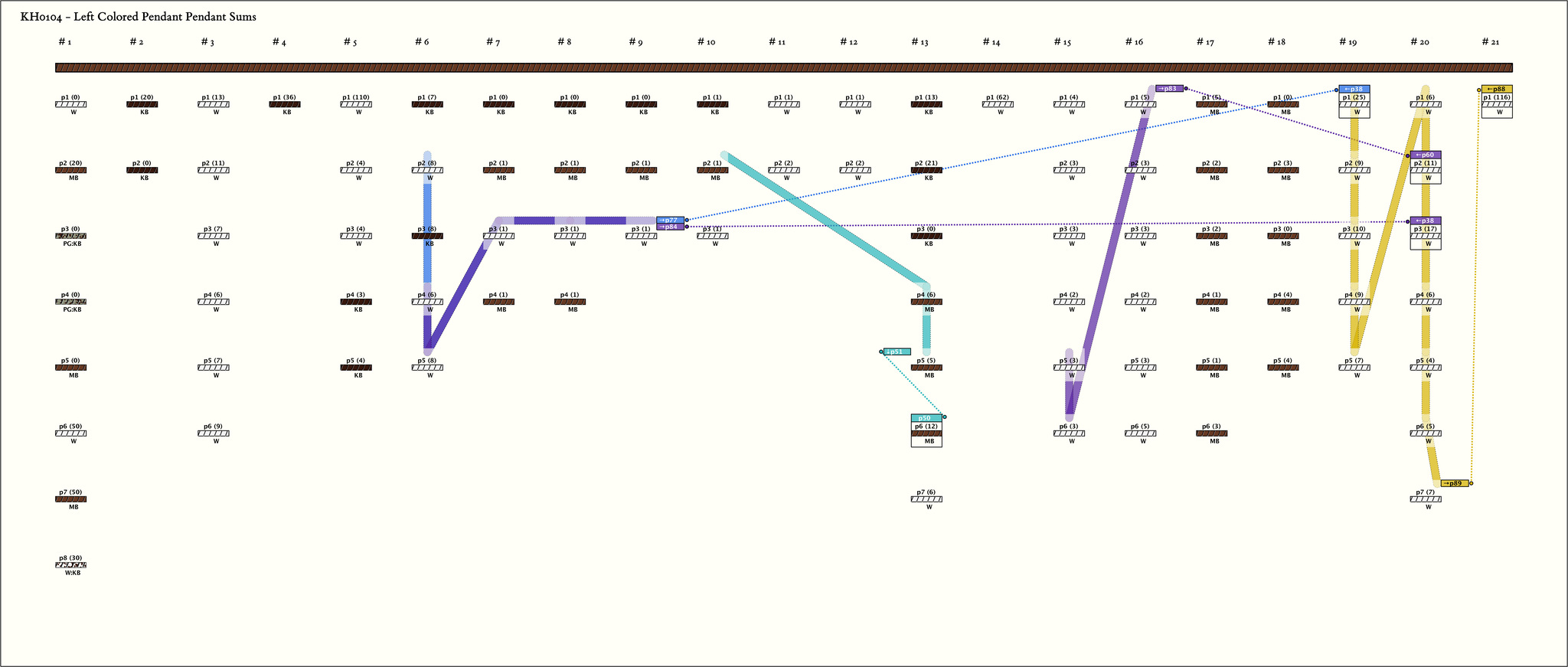

Left Handed Sums: # Sums = 5, Max # Summands = 12, (Min, Mean, Max) Sum Values = (11, 36, 116)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

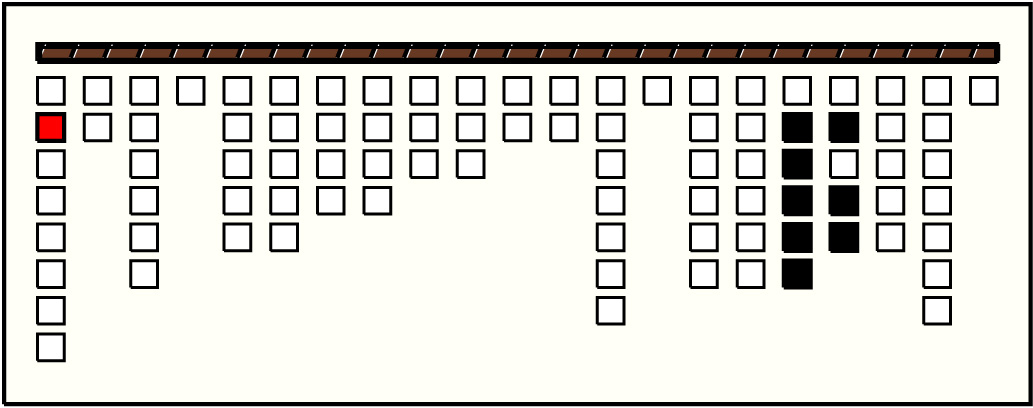

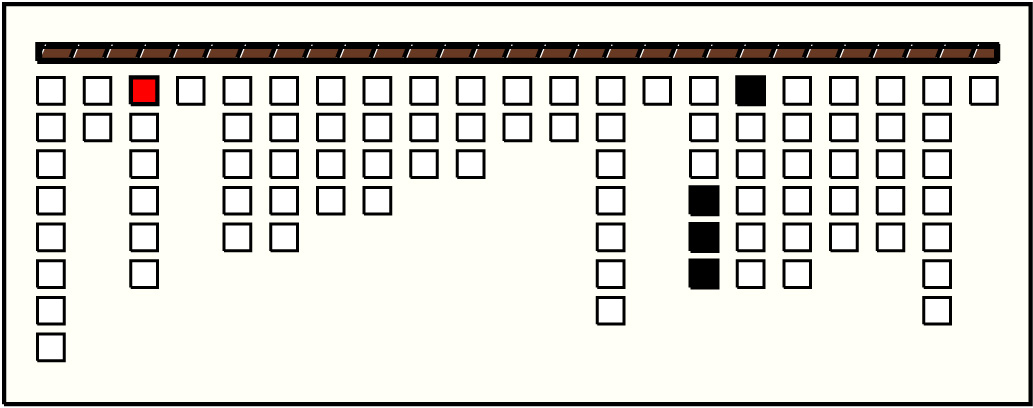

| 1 |  | g1p2 : 20MB | 20 | 8 | g17p2: 2MB + g17p3: 2MB + g17p4: 1MB + g17p5: 1MB + g17p6: 3MB + g18p2: 3MB + g18p4: 4MB + g18p5: 4MB | |

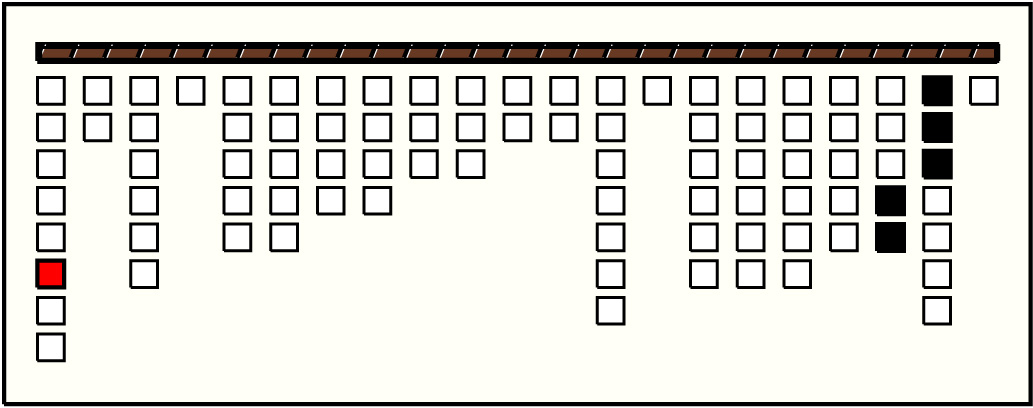

| 2 |  | g1p6 : 50W | 50 | 5 | g19p4: 9W + g19p5: 7W + g20p1: 6W + g20p2: 11W + g20p3: 17W | |

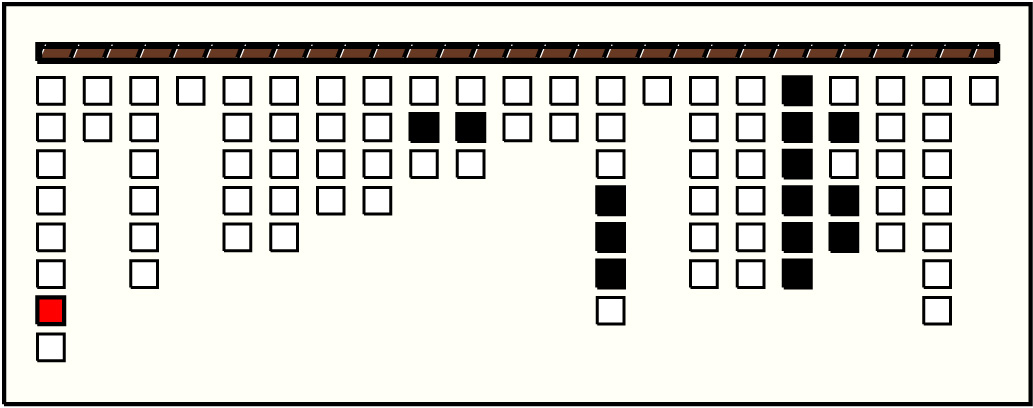

| 3 |  | g1p7 : 50MB | 50 | 14 | g9p2: 1MB + g10p2: 1MB + g13p4: 6MB + g13p5: 5MB + g13p6: 12MB + g17p1: 5MB + g17p2: 2MB + g17p3: 2MB + g17p4: 1MB + g17p5: 1MB + g17p6: 3MB + g18p2: 3MB + g18p4: 4MB + g18p5: 4MB | |

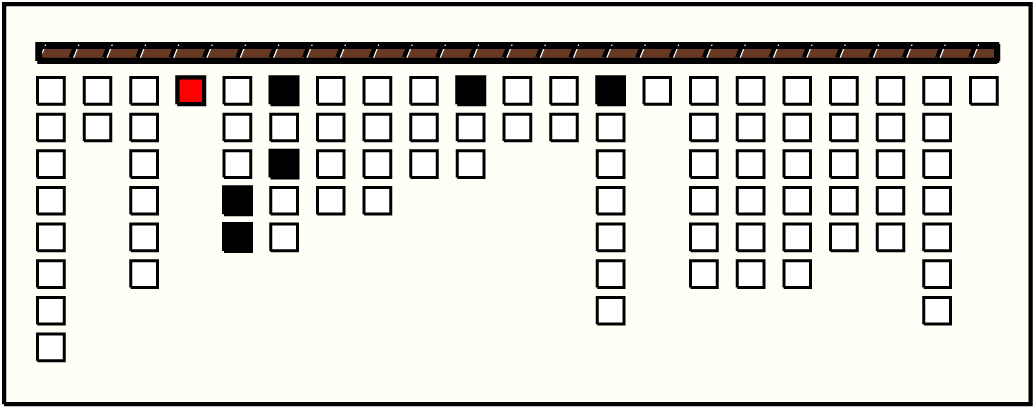

| 4 |  | g2p1 : 20KB | 20 | 4 | g5p5: 4KB + g6p1: 7KB + g6p3: 8KB + g10p1: 1KB | |

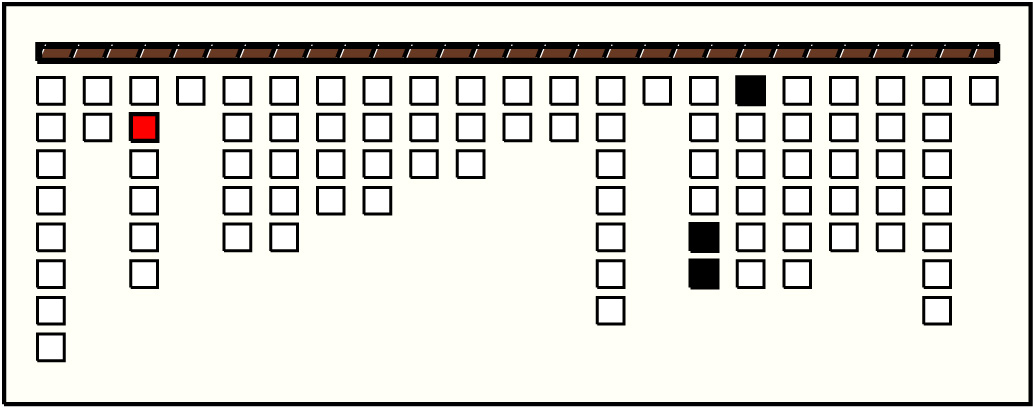

| 5 |  | g3p1 : 13W | 13 | 4 | g15p4: 2W + g15p5: 3W + g15p6: 3W + g16p1: 5W | |
| 6 |  | g3p2 : 11W | 11 | 3 | g15p5: 3W + g15p6: 3W + g16p1: 5W | |
| 7 |  | g4p1 : 36KB | 36 | 6 | g5p4: 3KB + g5p5: 4KB + g6p1: 7KB + g6p3: 8KB + g10p1: 1KB + g13p1: 13KB | |

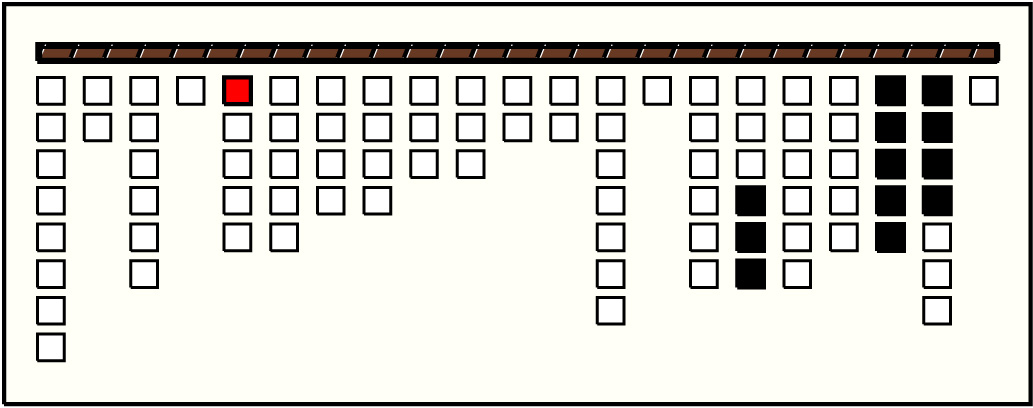

| 8 |  | g5p1 : 110W | 110 | 12 | g16p4: 2W + g16p5: 3W + g16p6: 5W + g19p1: 25W + g19p2: 9W + g19p3: 10W + g19p4: 9W + g19p5: 7W + g20p1: 6W + g20p2: 11W + g20p3: 17W + g20p4: 6W | |

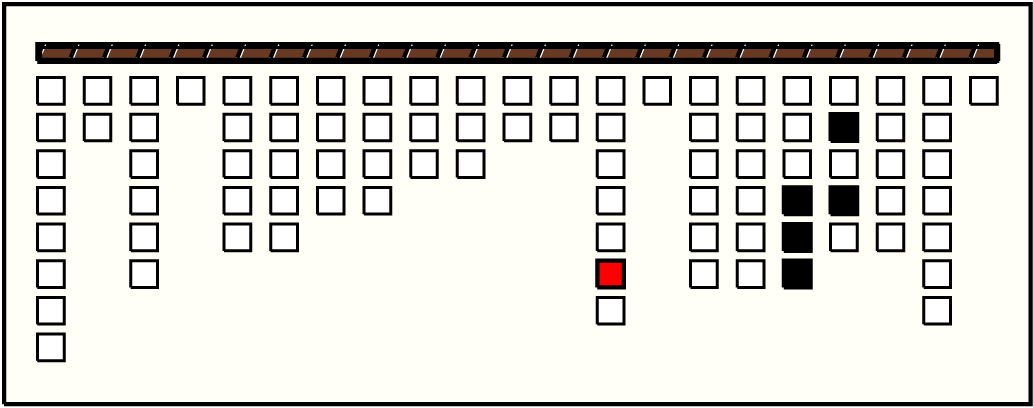

| 9 |  | g13p6 : 12MB | 12 | 5 | g17p4: 1MB + g17p5: 1MB + g17p6: 3MB + g18p2: 3MB + g18p4: 4MB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

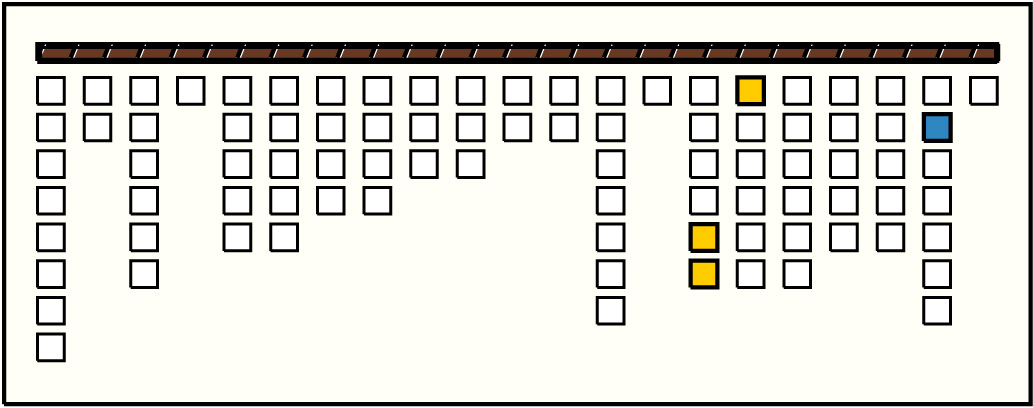

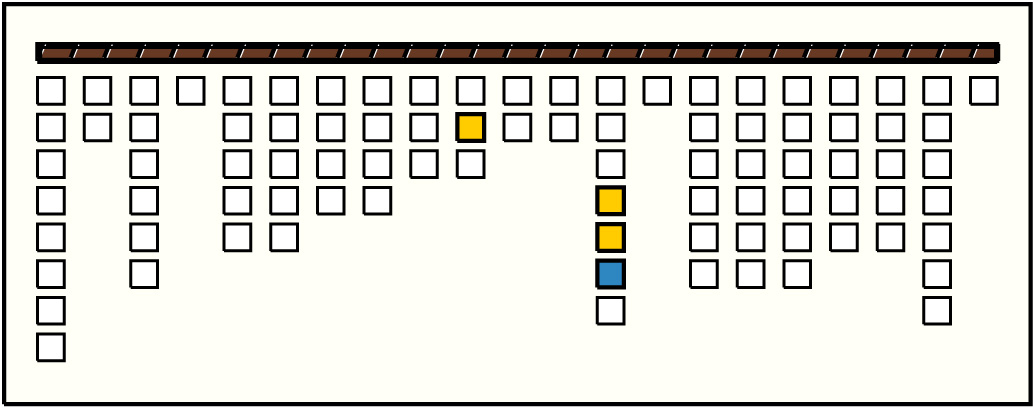

| 1 |  | g13p6 : 12MB | 12 | 3 | g10p2: 1MB + g13p4: 6MB + g13p5: 5MB | |

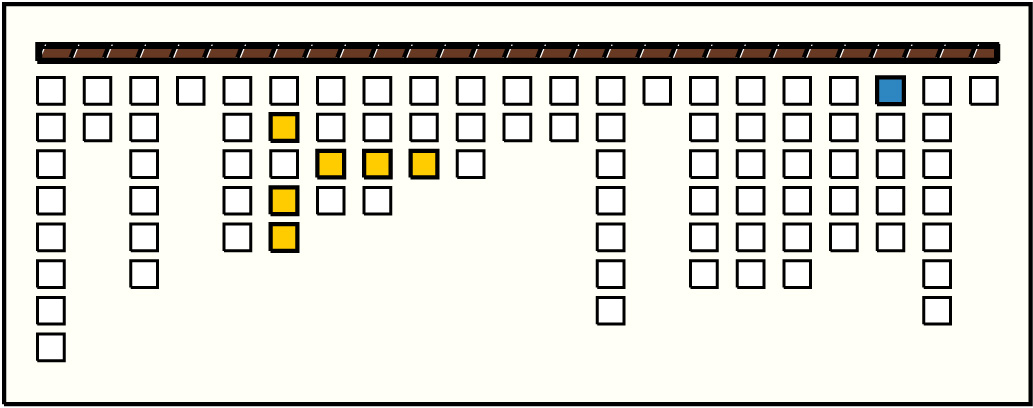

| 2 |  | g19p1 : 25W | 25 | 6 | g6p2: 8W + g6p4: 6W + g6p5: 8W + g7p3: 1W + g8p3: 1W + g9p3: 1W | |
| 3 |  | g20p2 : 11W | 11 | 3 | g15p5: 3W + g15p6: 3W + g16p1: 5W | |

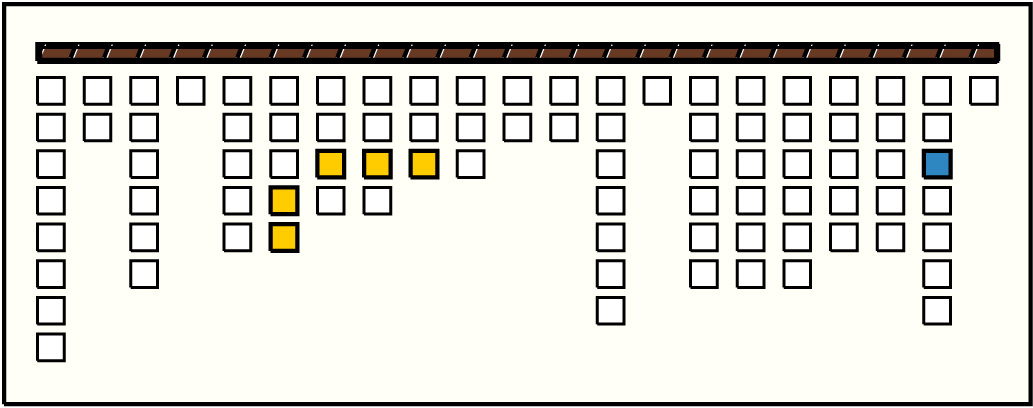

| 4 |  | g20p3 : 17W | 17 | 5 | g6p4: 6W + g6p5: 8W + g7p3: 1W + g8p3: 1W + g9p3: 1W | |

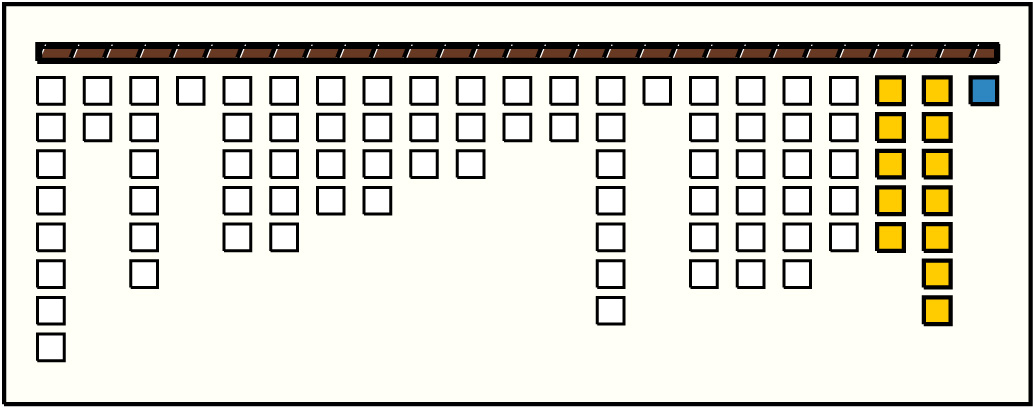

| 5 |  | g21p1 : 116W | 116 | 12 | g19p1: 25W + g19p2: 9W + g19p3: 10W + g19p4: 9W + g19p5: 7W + g20p1: 6W + g20p2: 11W + g20p3: 17W + g20p4: 6W + g20p5: 4W + g20p6: 5W + g20p7: 7W |
Khipu Notes:
Ascher Databook Notes:
- By spacing, there are 3 groups followed by a single pendant, then 9 groups followed by a single pendant, then 6 groups followed by a single pendant.
- Groups 4-11 are paired in size and color. The number of pendants per group are 5, 5, 4, 4, 3, 3, 2, 2 respectively. The first 2 of these groups each have 3W and 2KB cords but in different orders; then 2 groups have the color pattern KB, MB, W, MB; the next 2 groups continue this pattern but without the final color (KB, MB, W); and the last 2 groups are both all W. Groups 13-18 are also paired in color: 2 groups are W; then 2 are MB; and then 2 are W.
- Many of the pendants contain multiple values. For example, we interpret the value of pendant 11 as 5&8, and the value of pendant 7 7 as 16&9. With this interpretation, the values of the 12 pendants in groups 15 and 16 sum to the value of the single pendant that follows them.
