KH0228/AS208, UR083 - Colored Pendant Sums


Drawings:

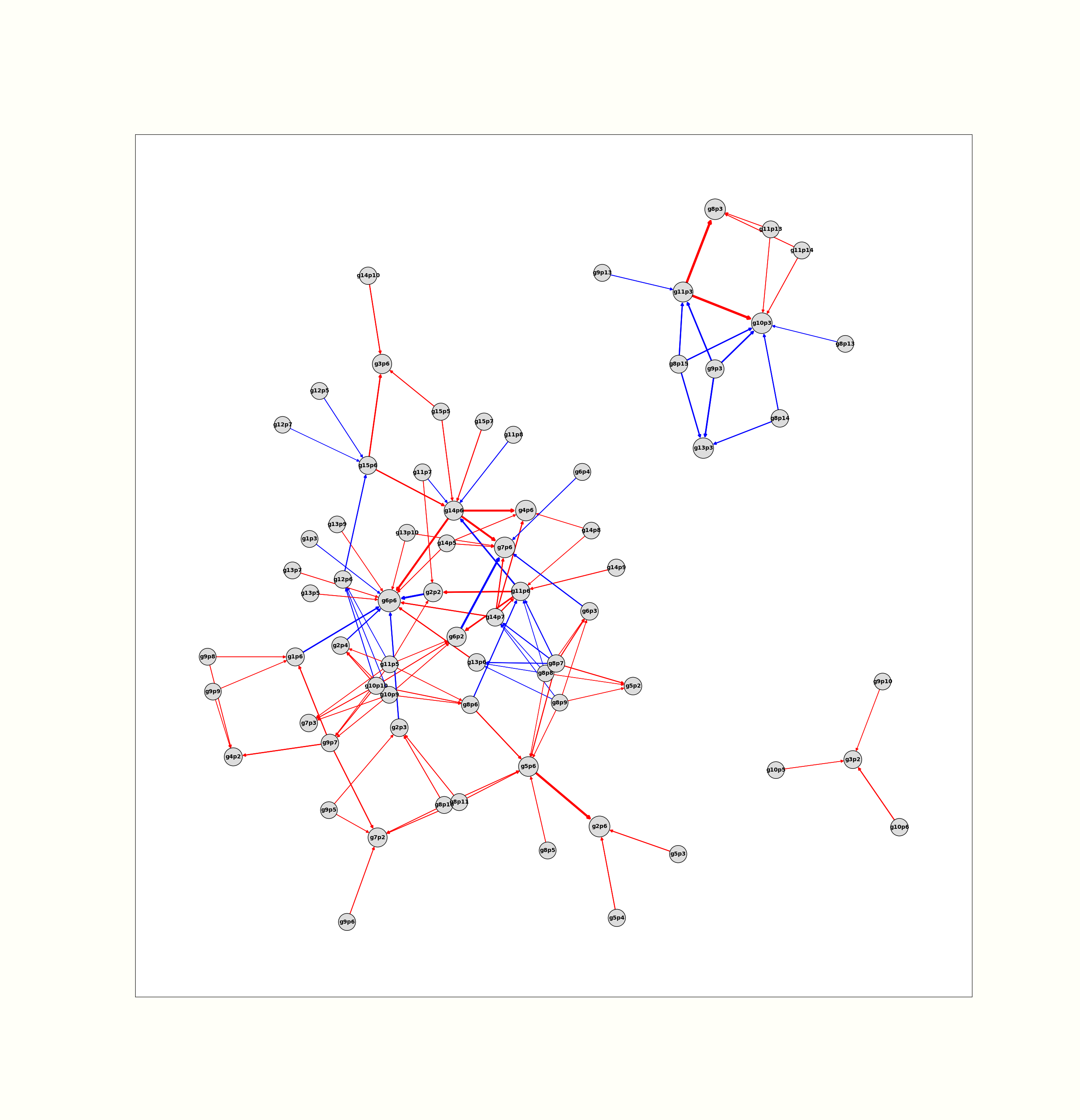

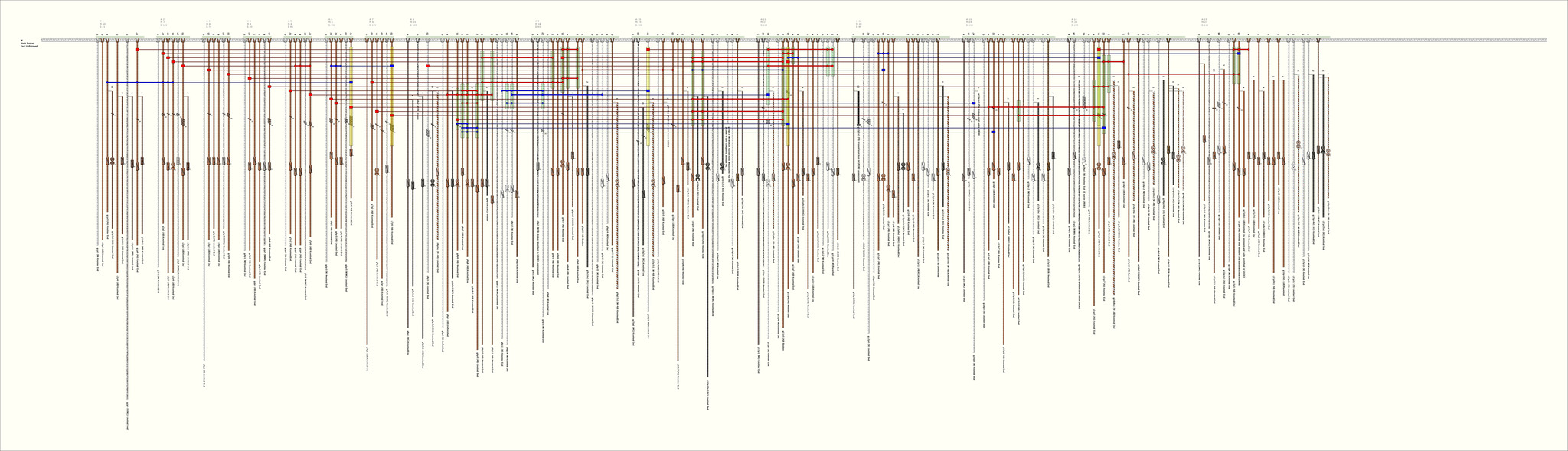

Sum NetGraph - Click on image to view larger
legend

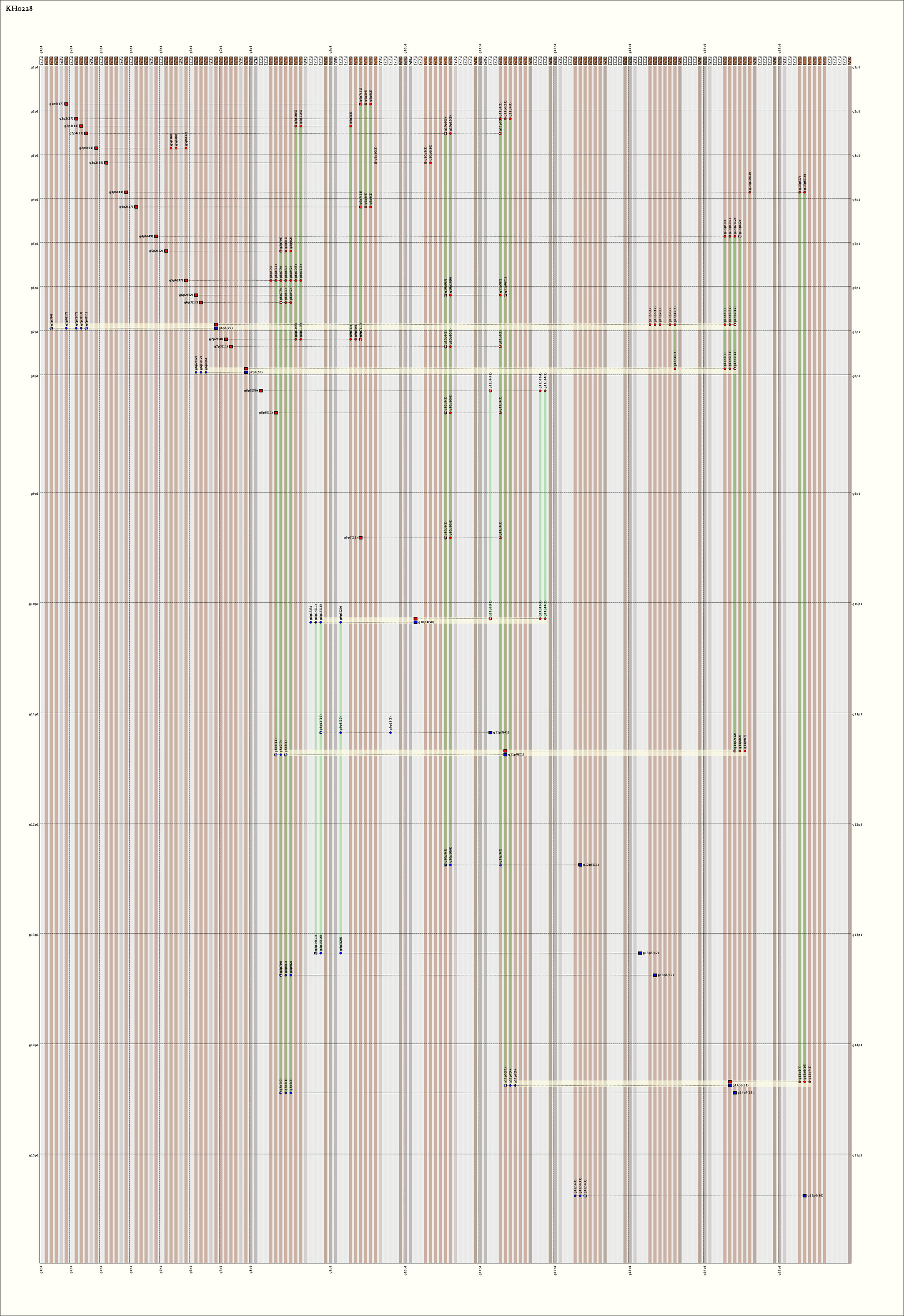

Sum Map - Click on image to view larger
legend

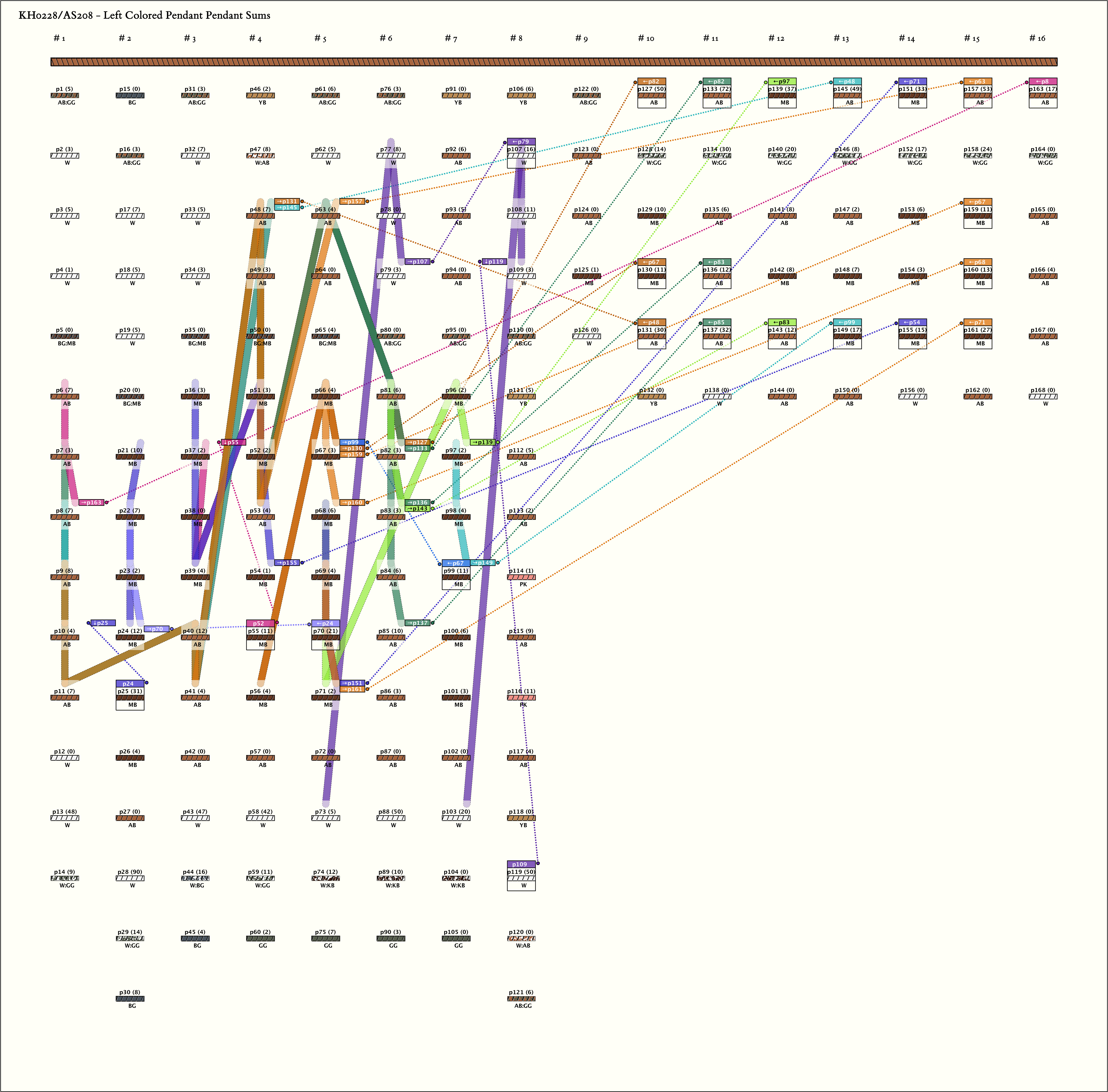

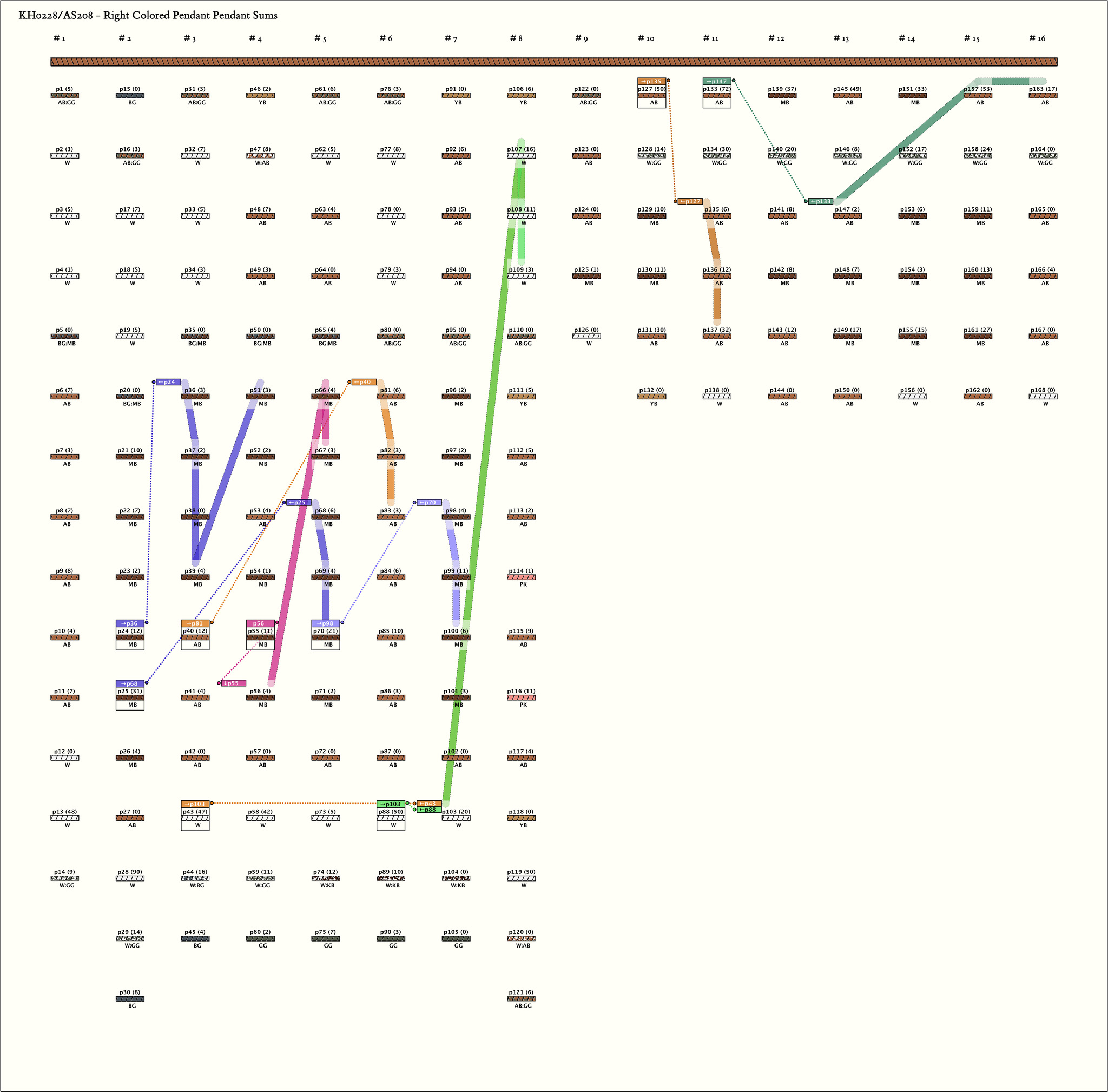

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

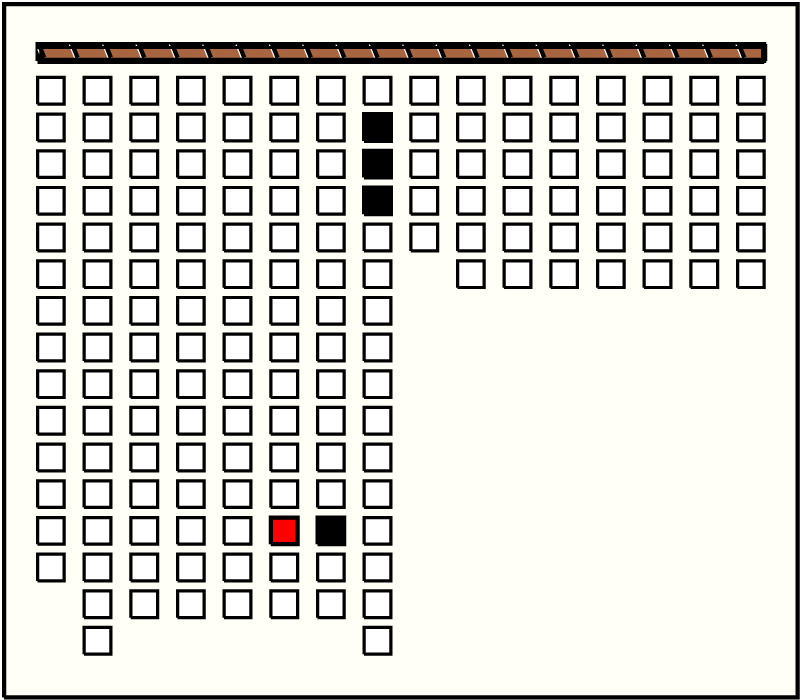

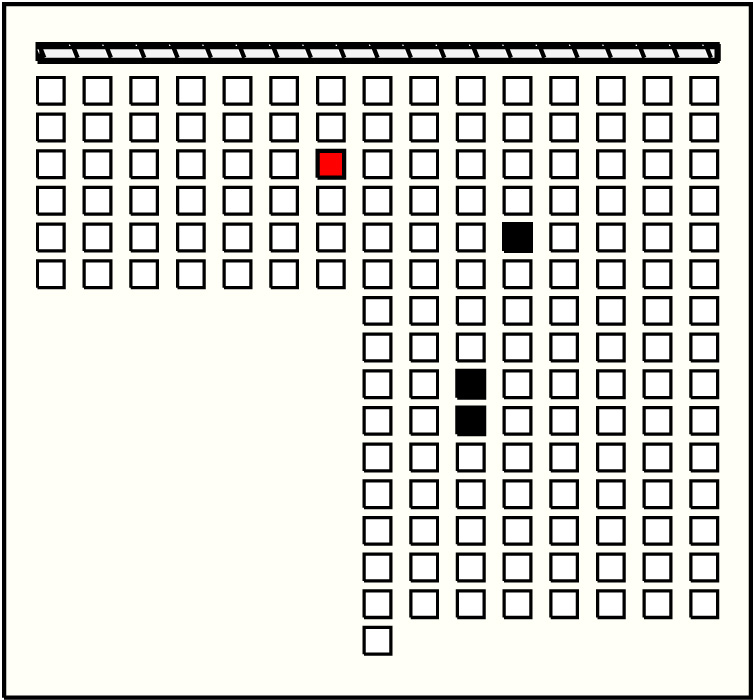

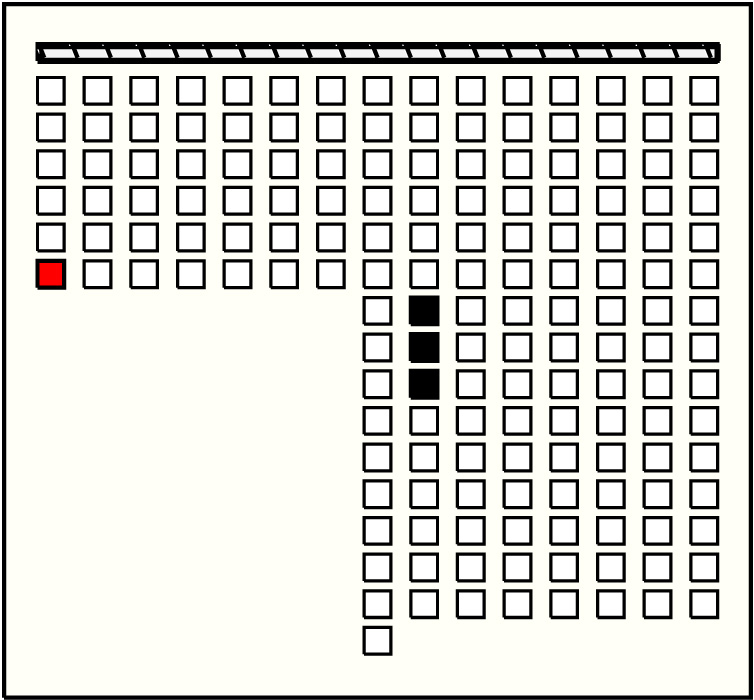

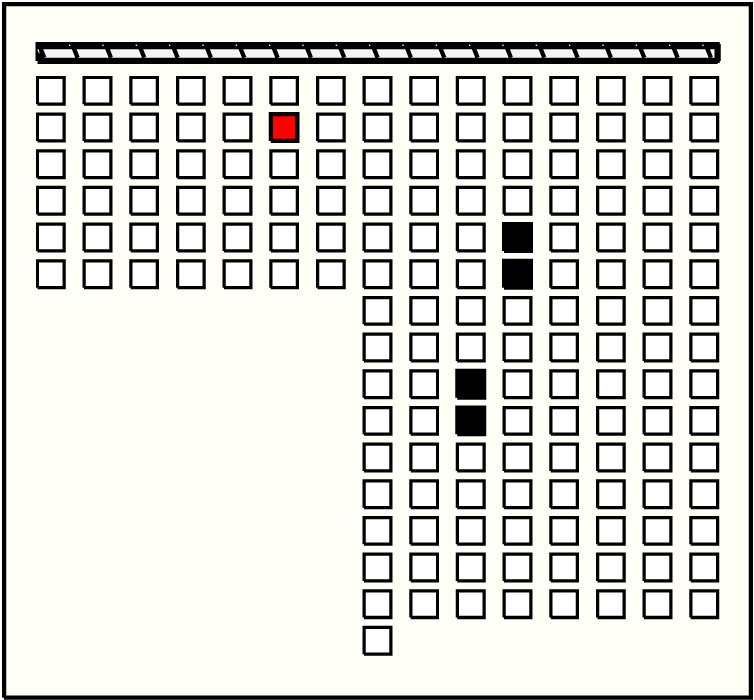

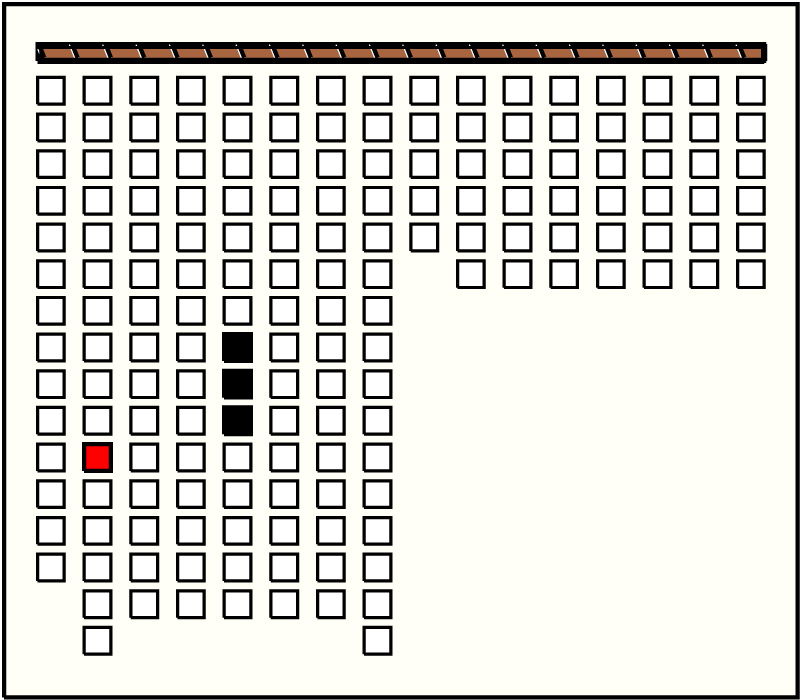

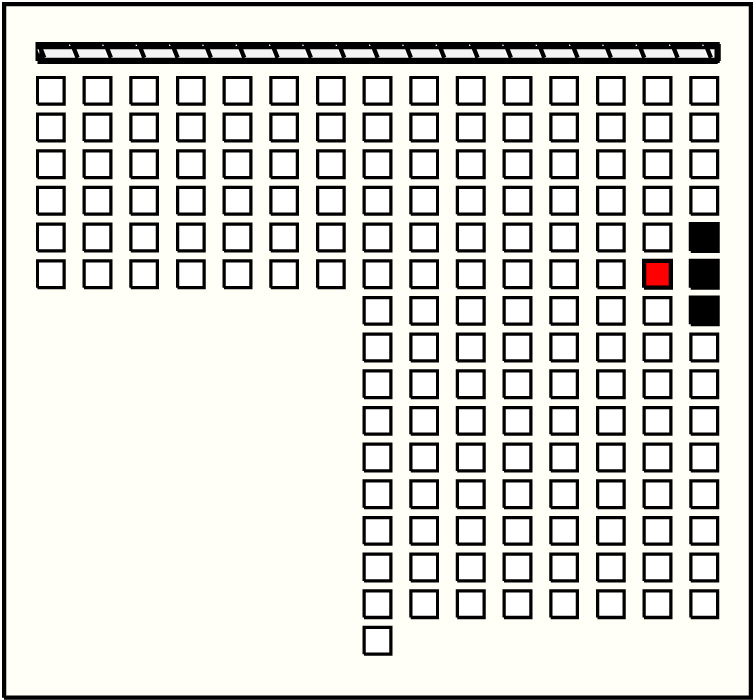

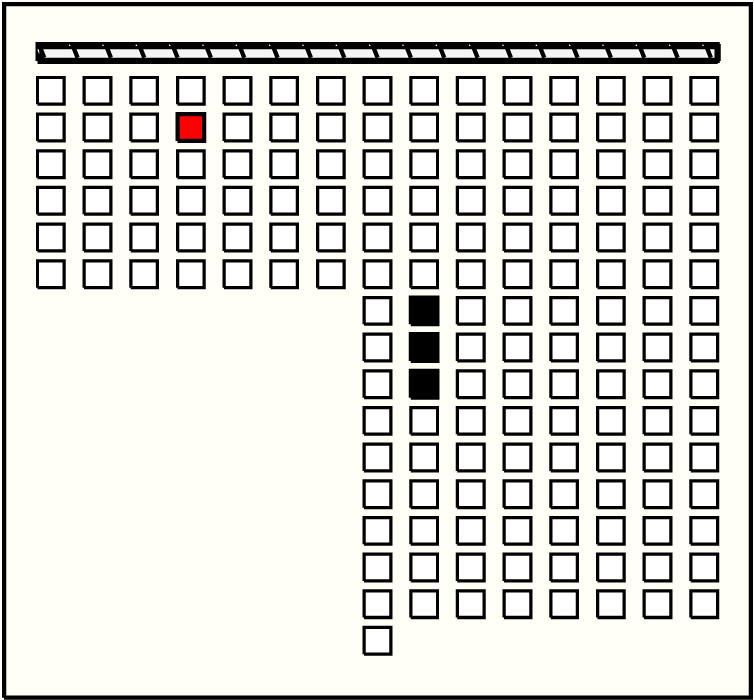

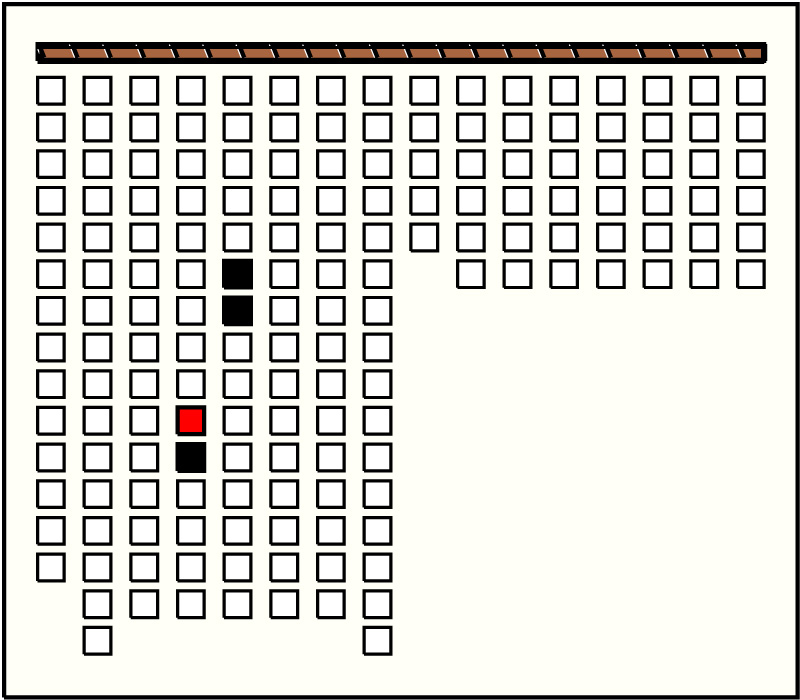

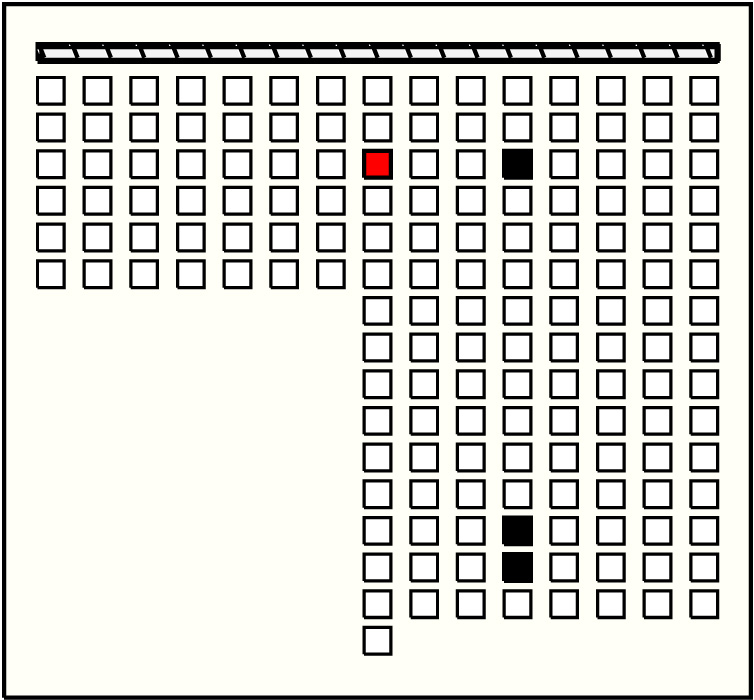

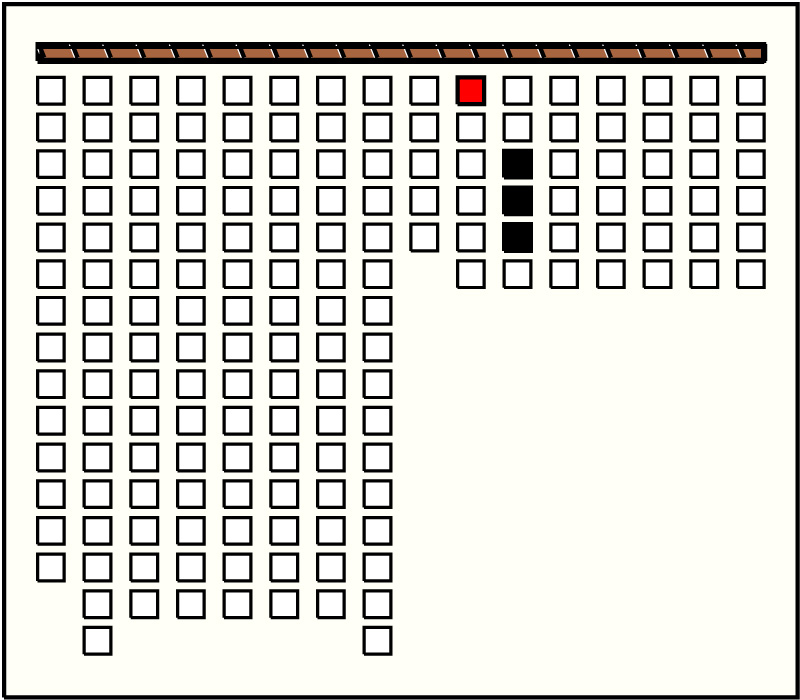

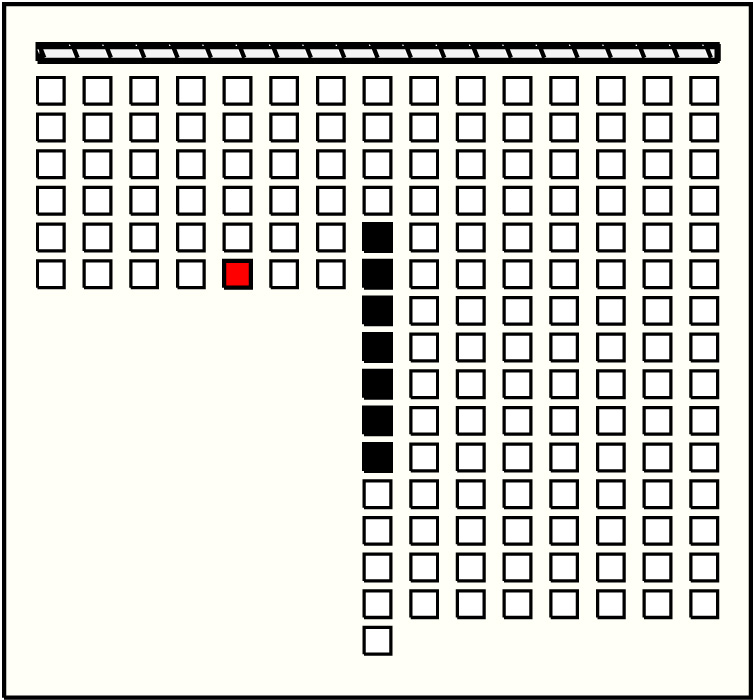

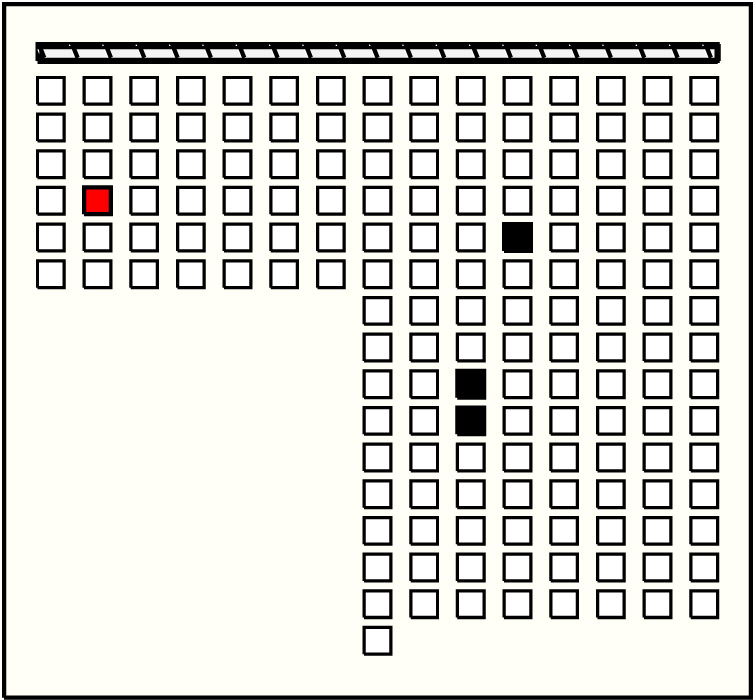

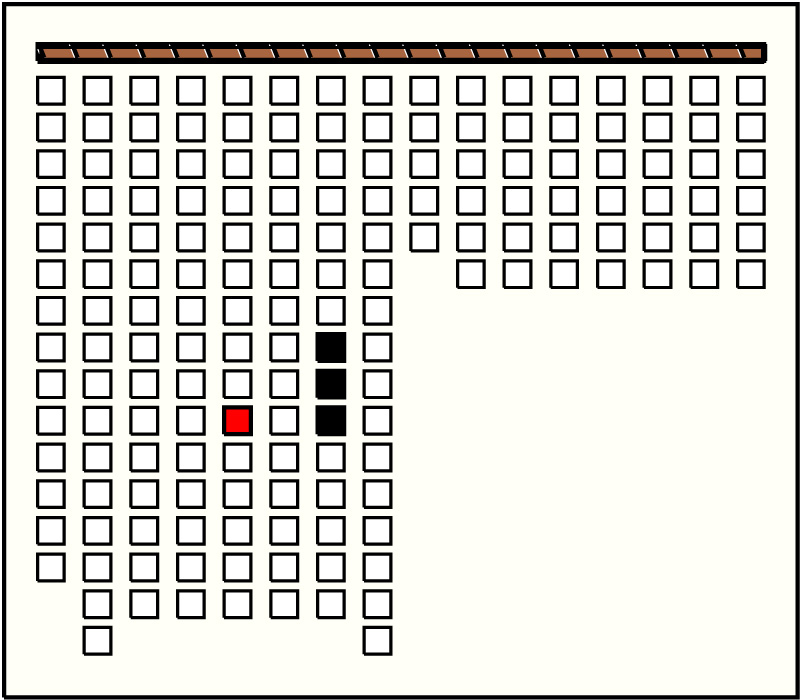

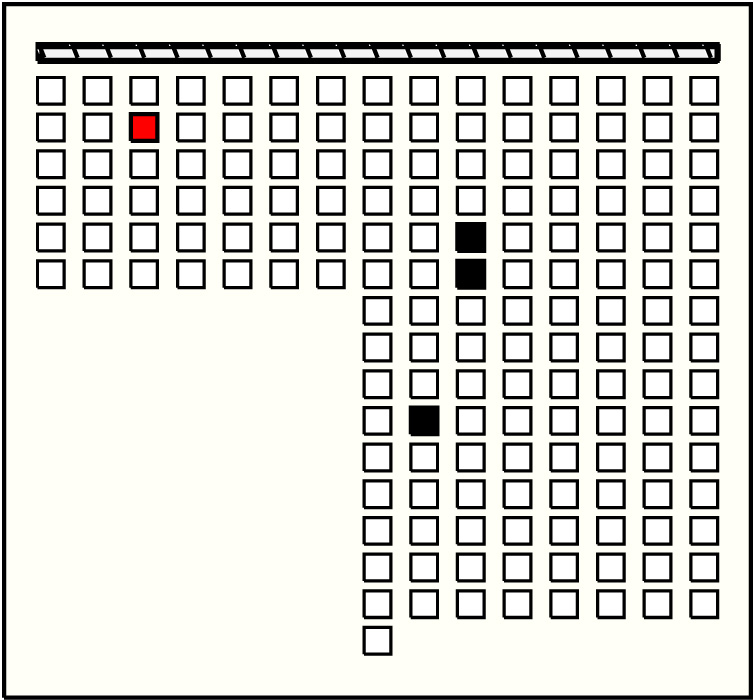

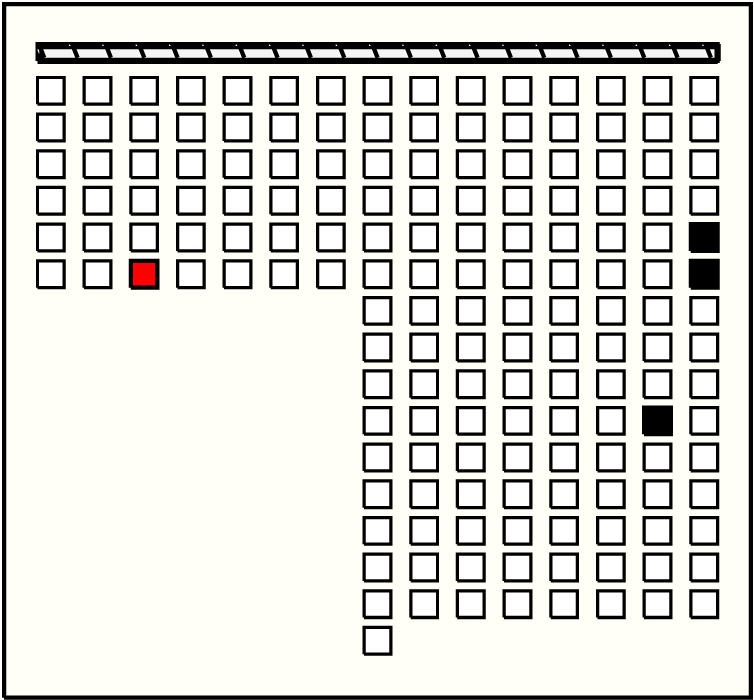

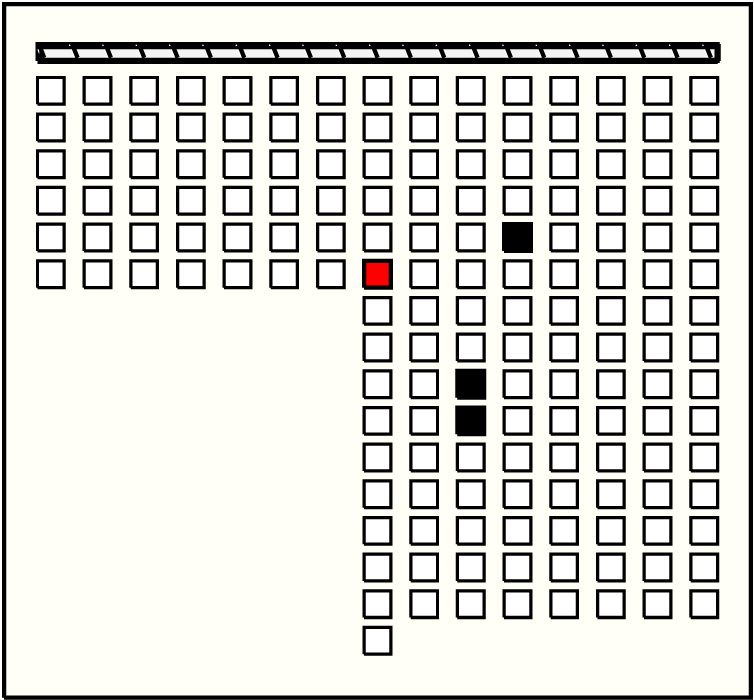

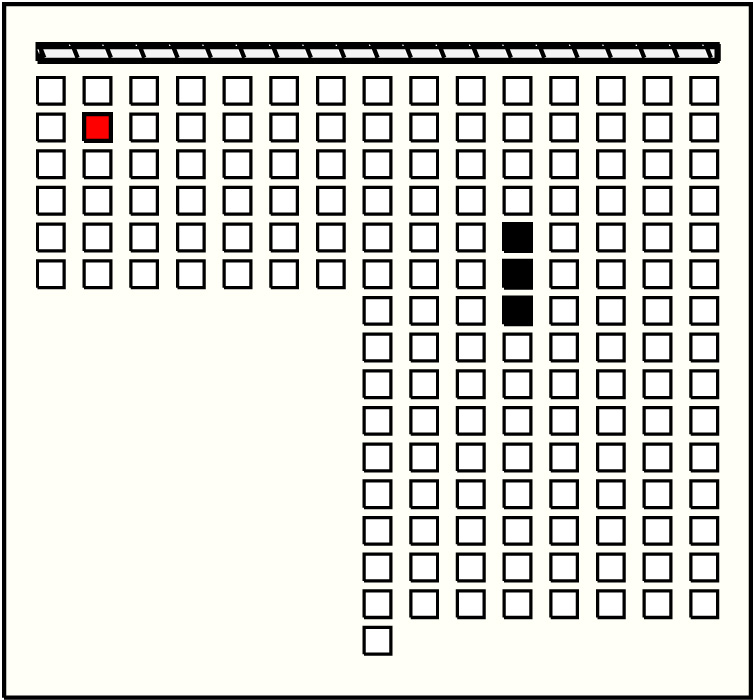

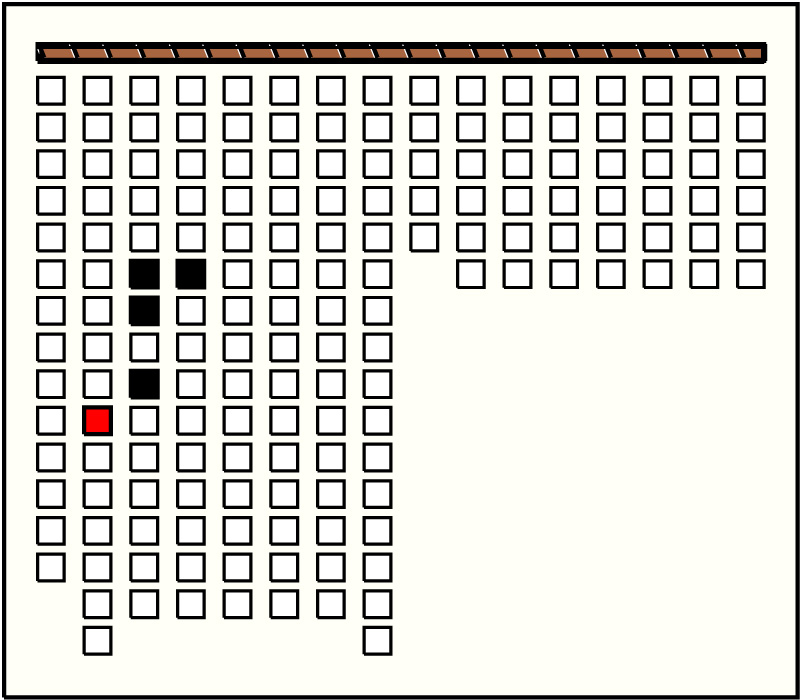

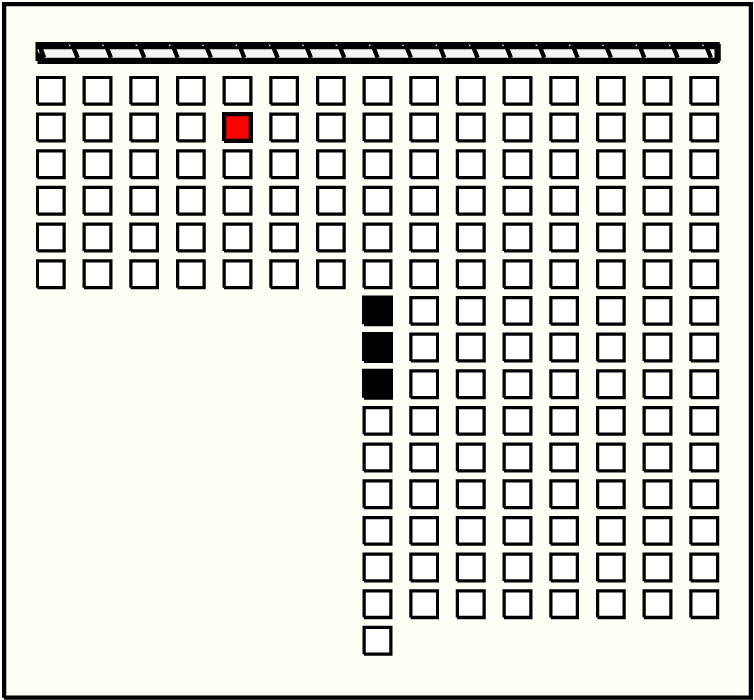

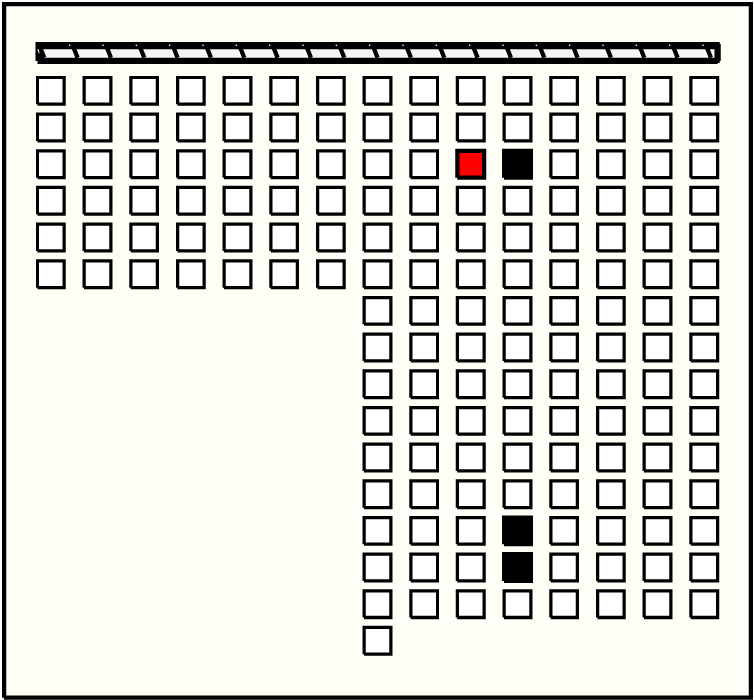

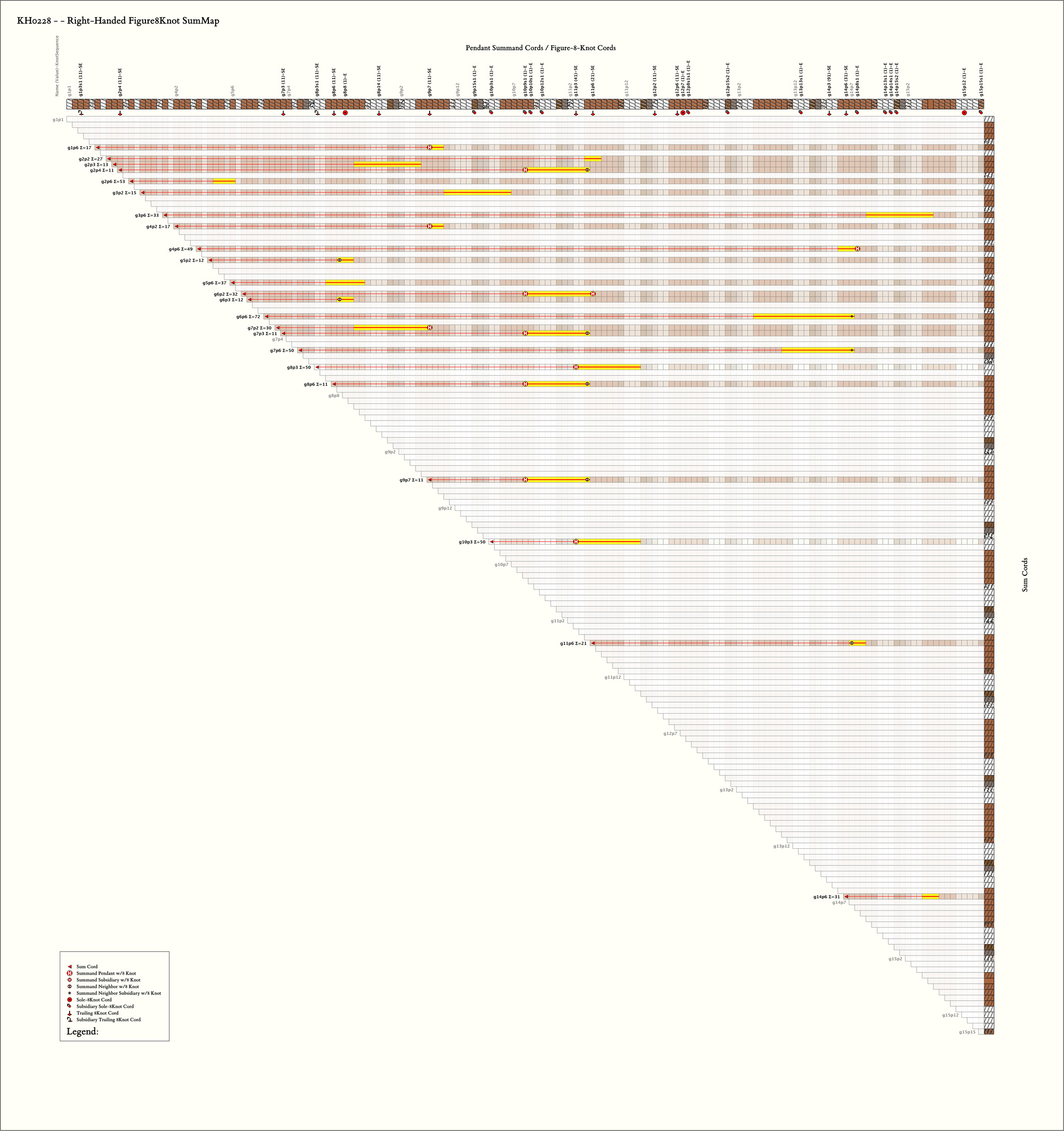

Right Handed Sums with Figure-8-Knots:     # Sums = 23,  Max # Summands = 8,   (Min, Mean, Max) Sum Values = (11, 29, 72)
Click on Image to View Larger

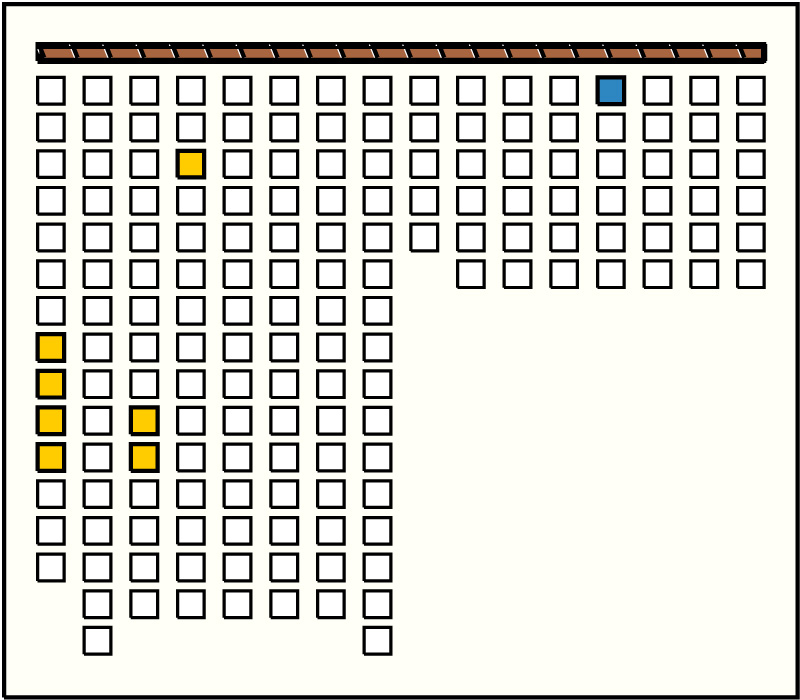

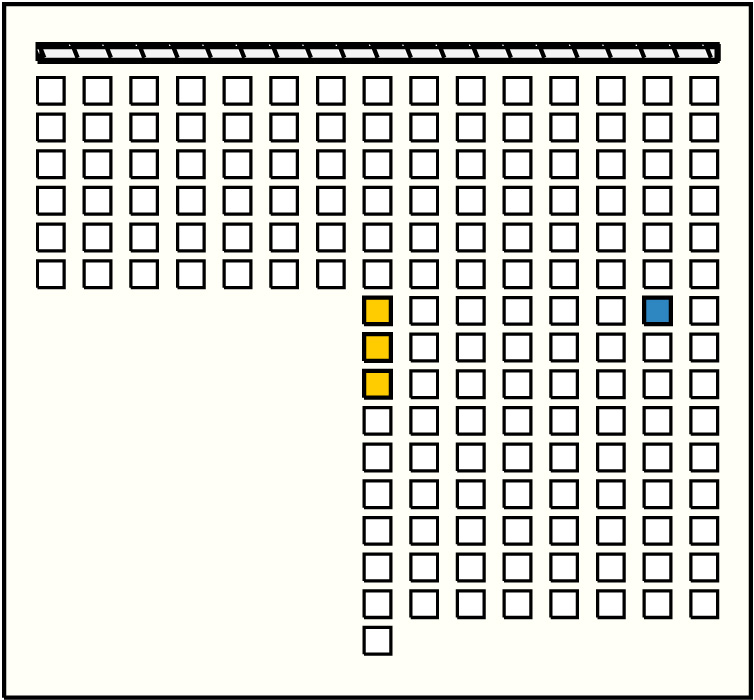

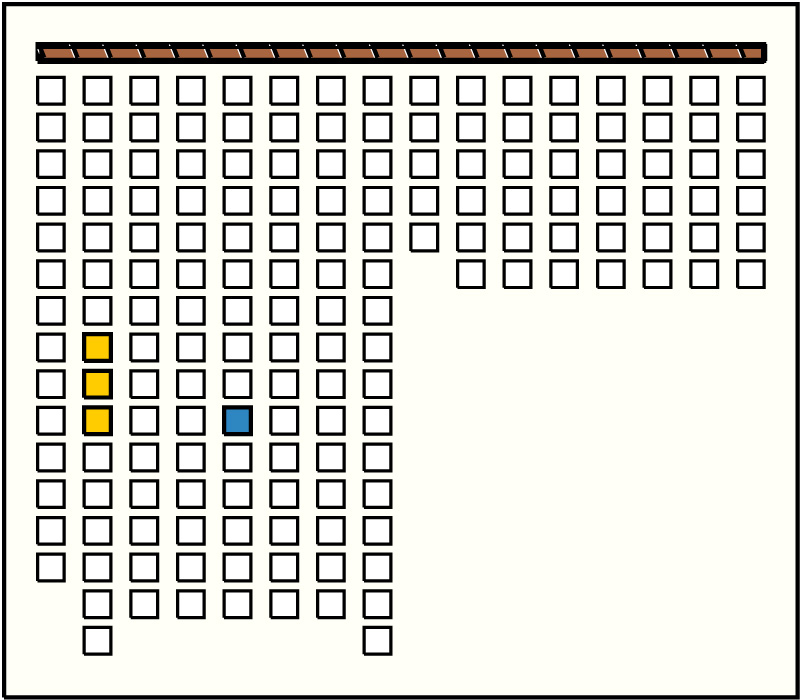

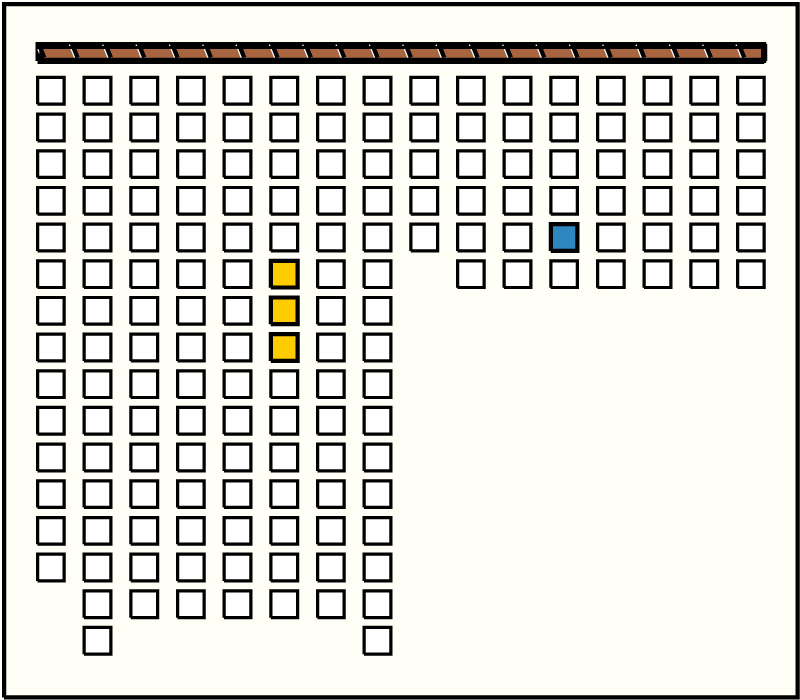

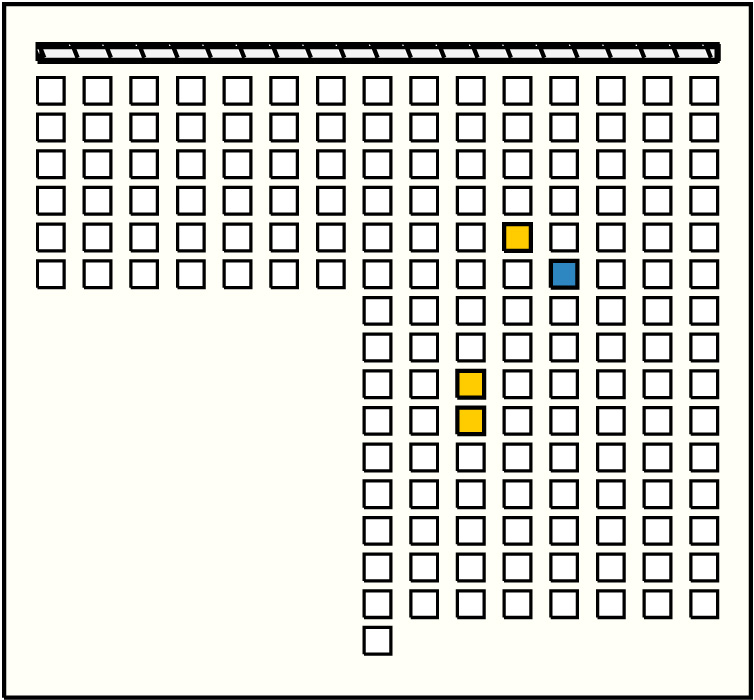

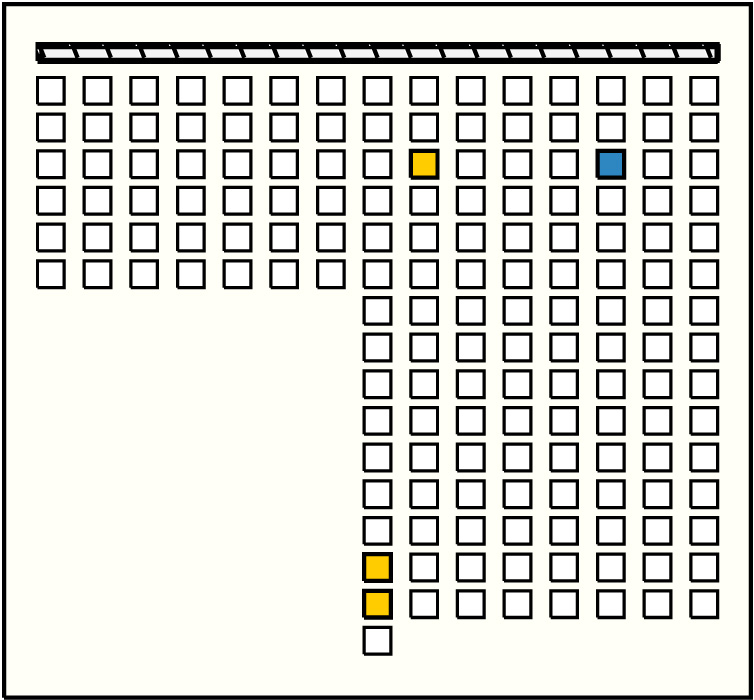

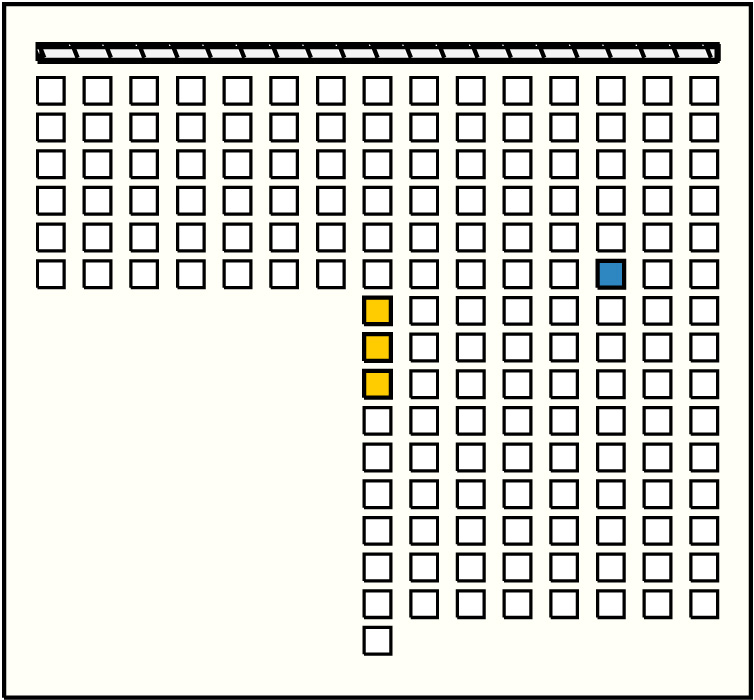

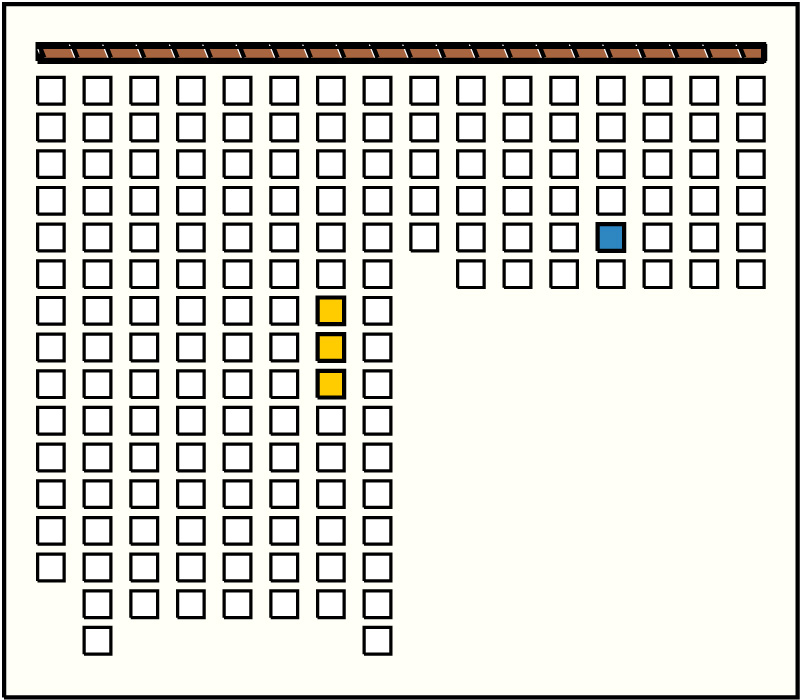

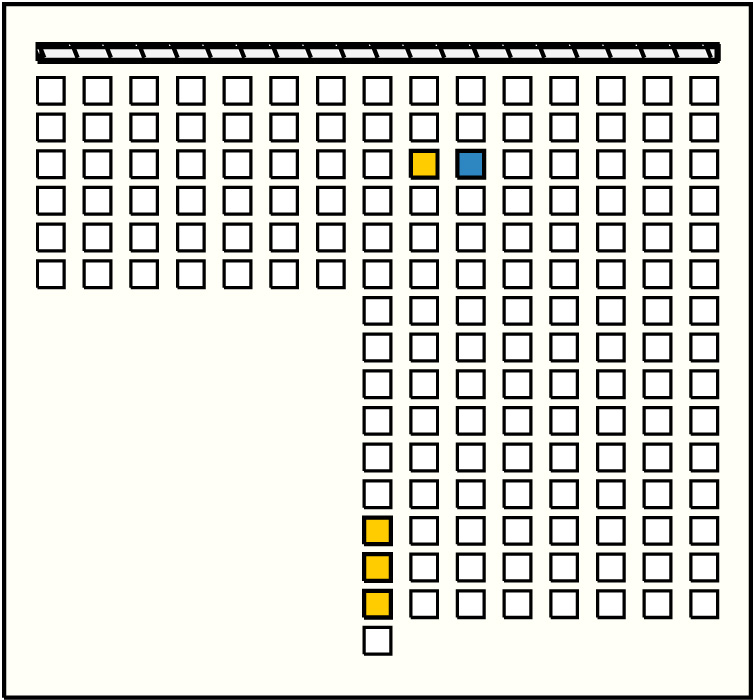

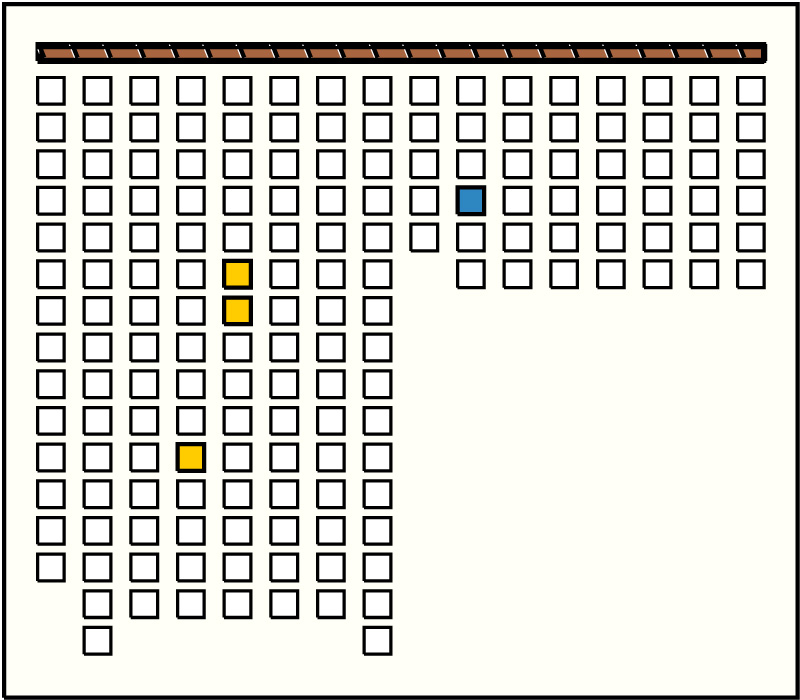

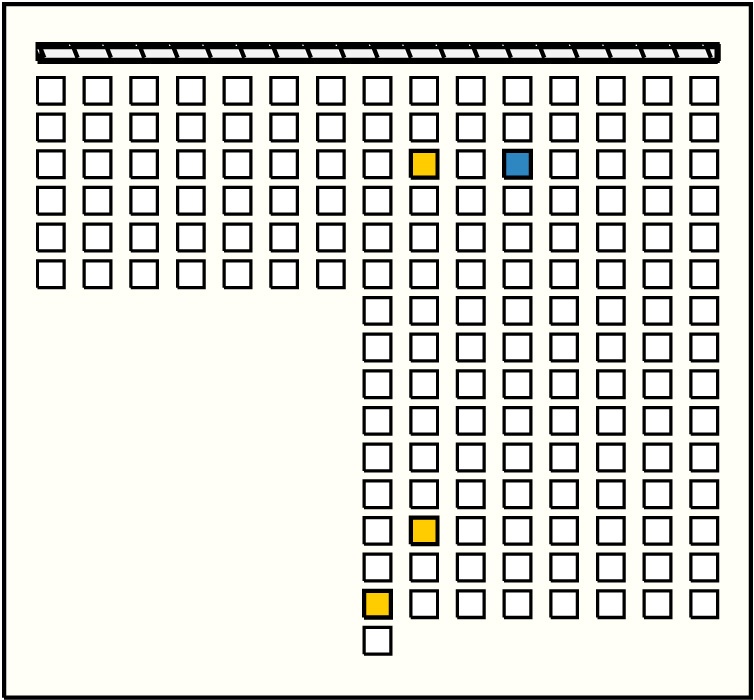

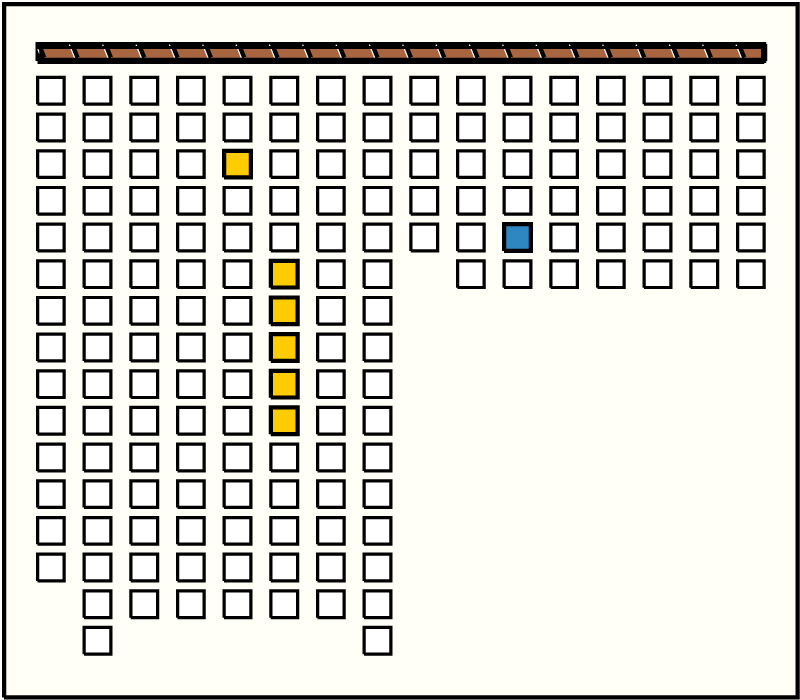

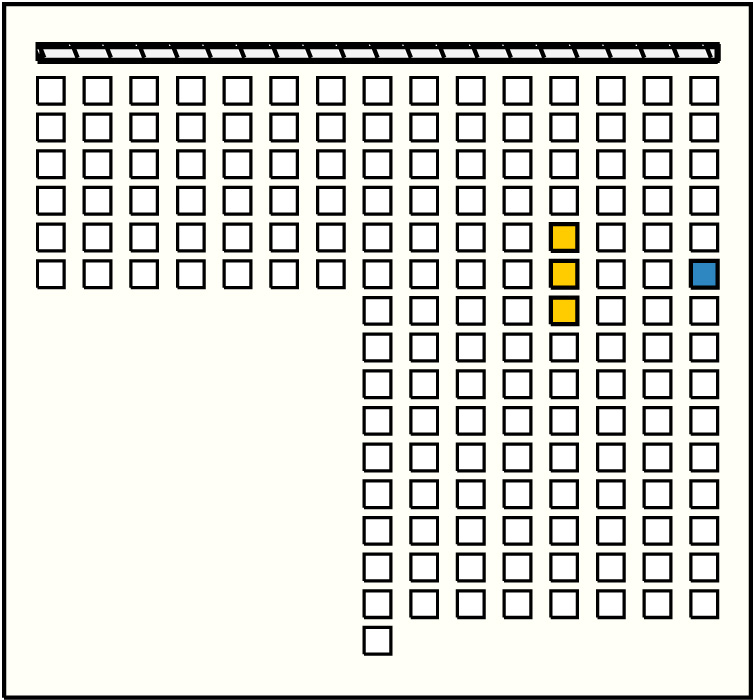

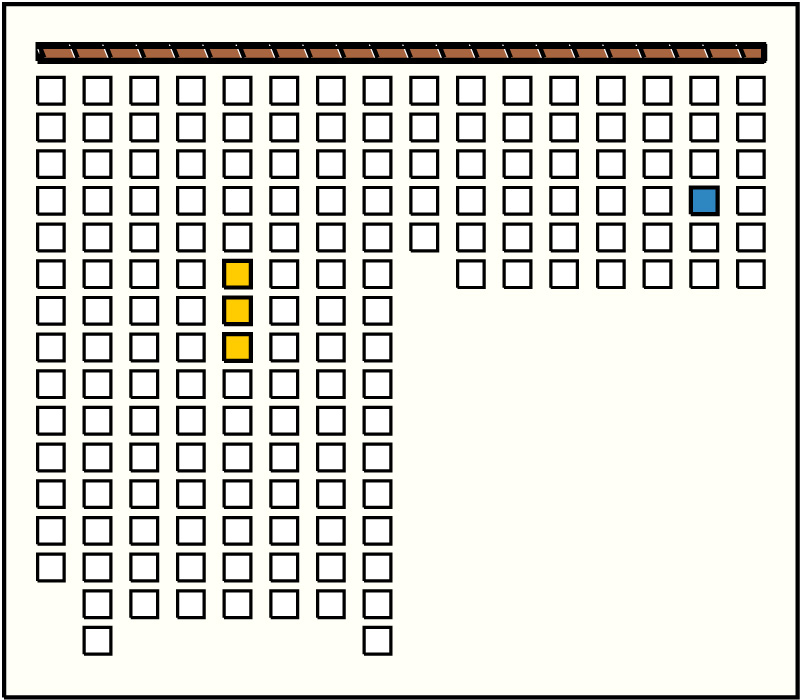

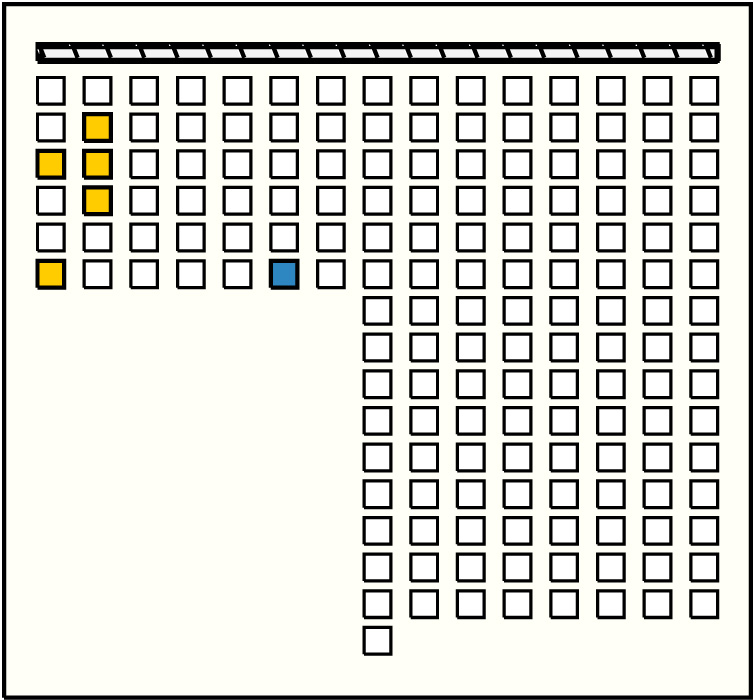

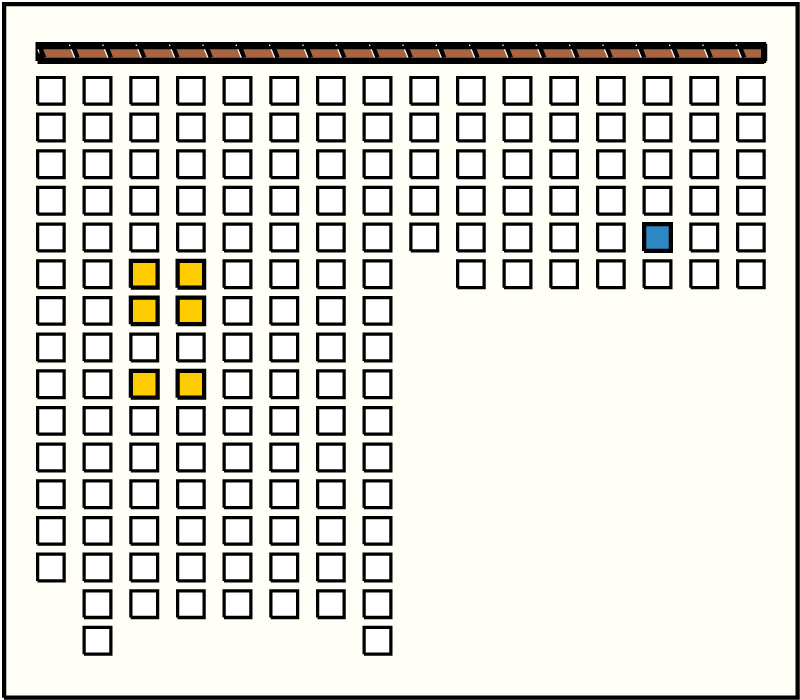

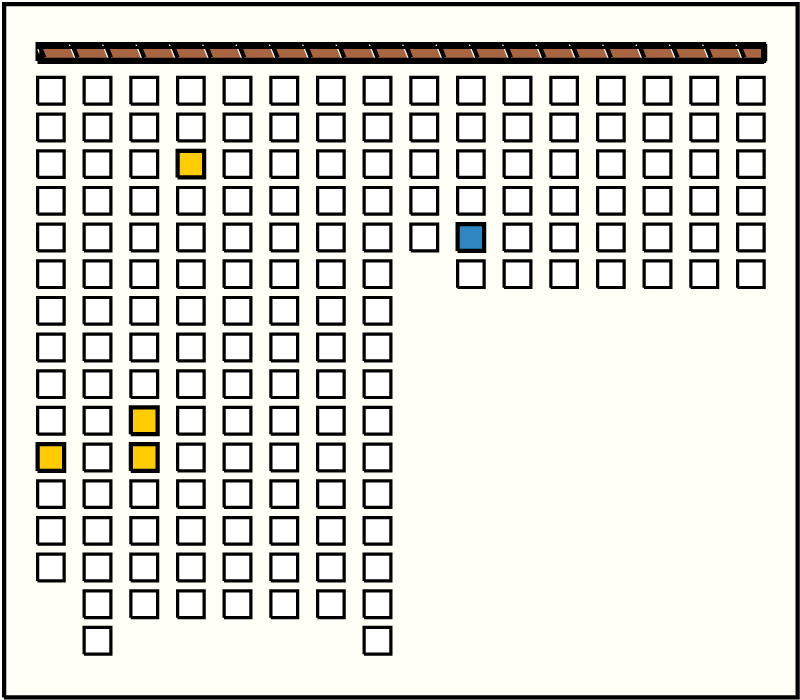

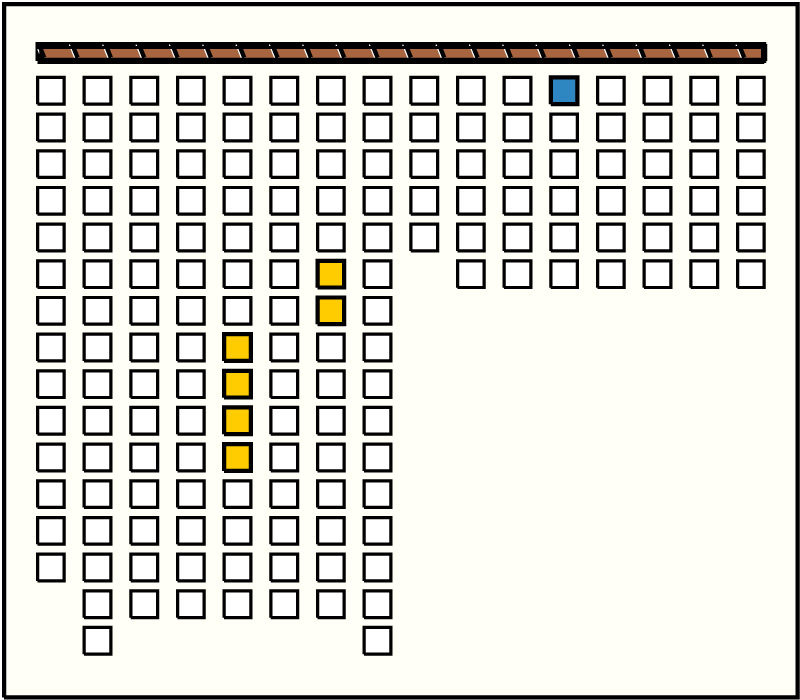

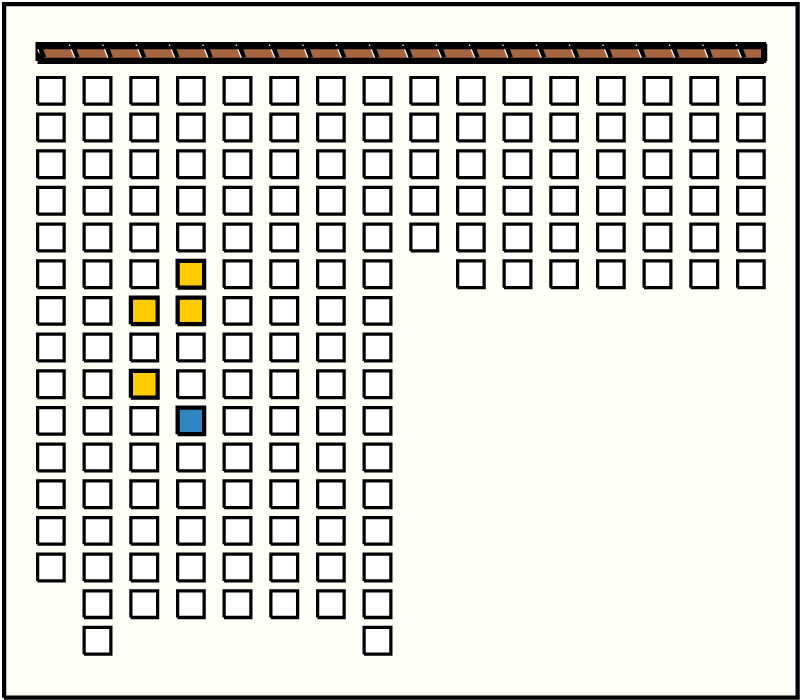

Left Handed Sums with Figure-8-Knots:     # Sums = 11,  Max # Summands = 5,   (Min, Mean, Max) Sum Values = (11, 33, 72)
Click on Image to View Larger

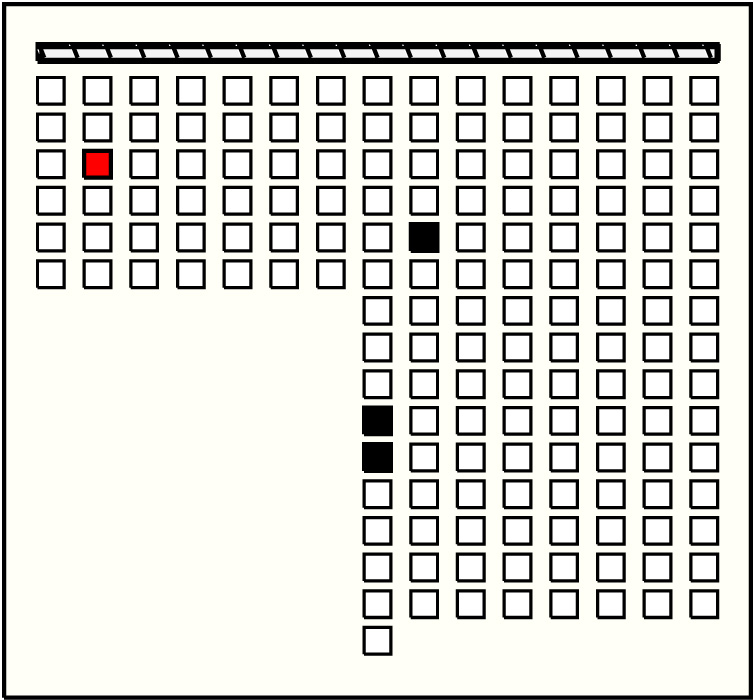

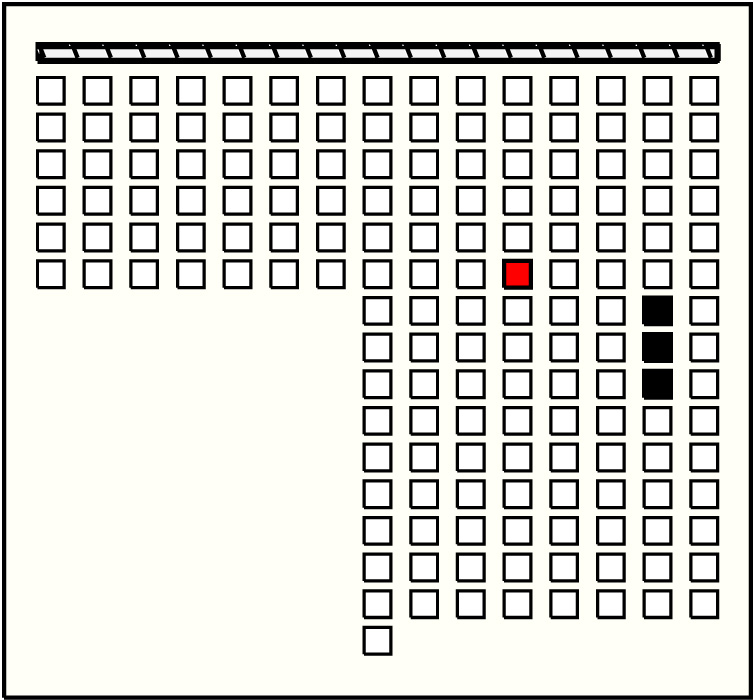

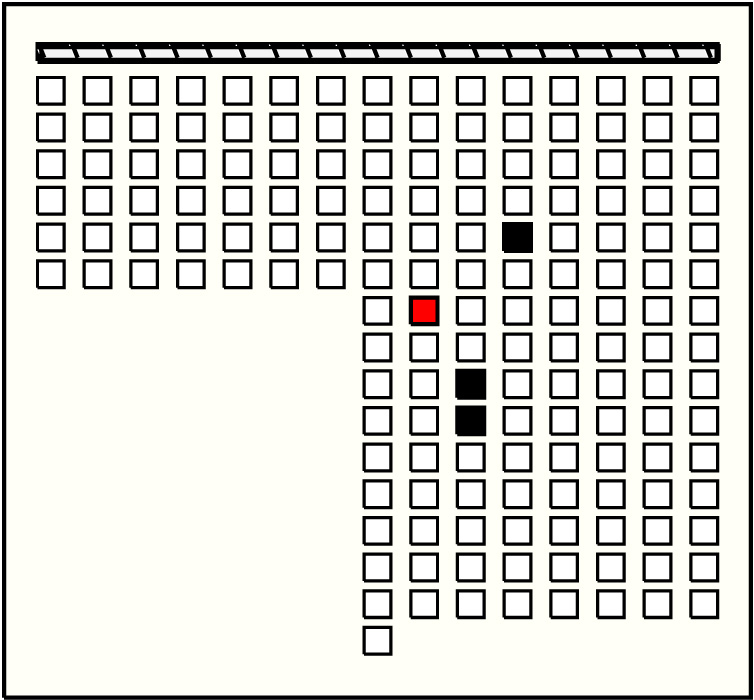

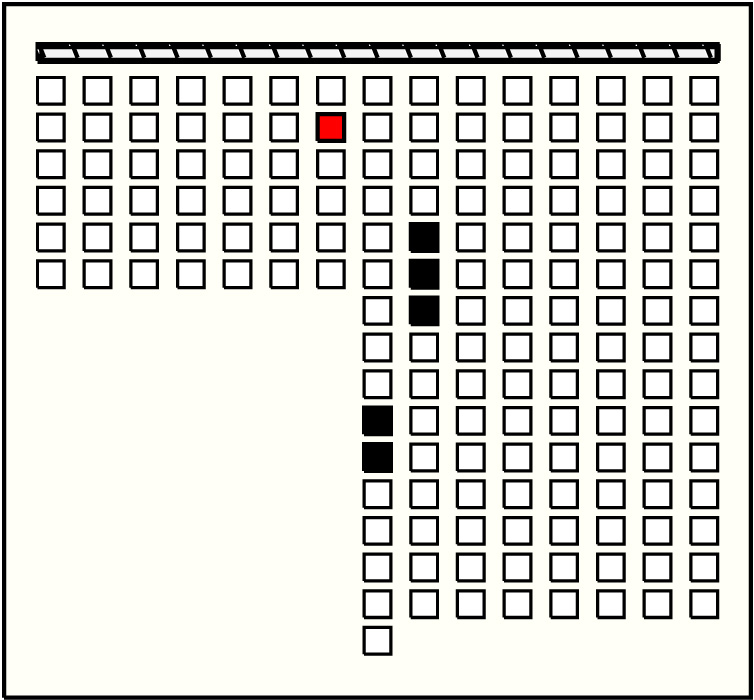

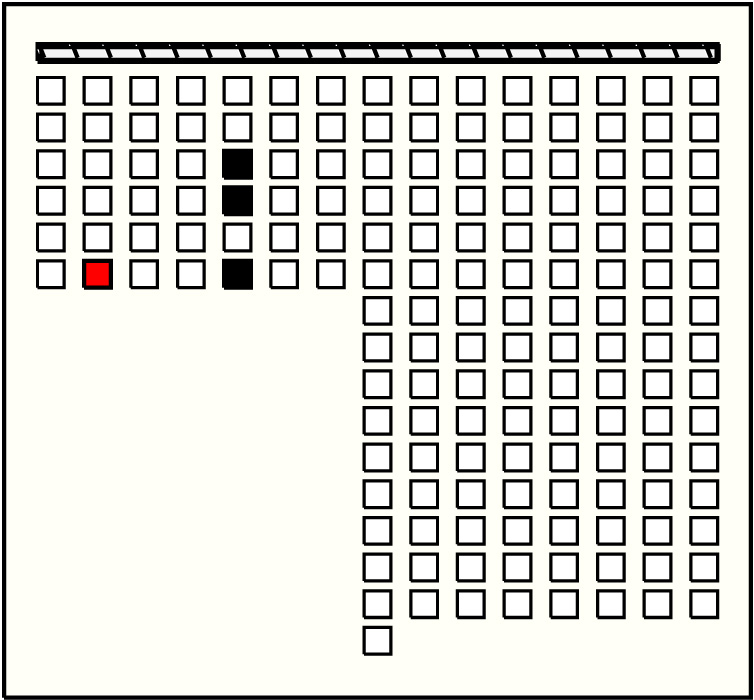

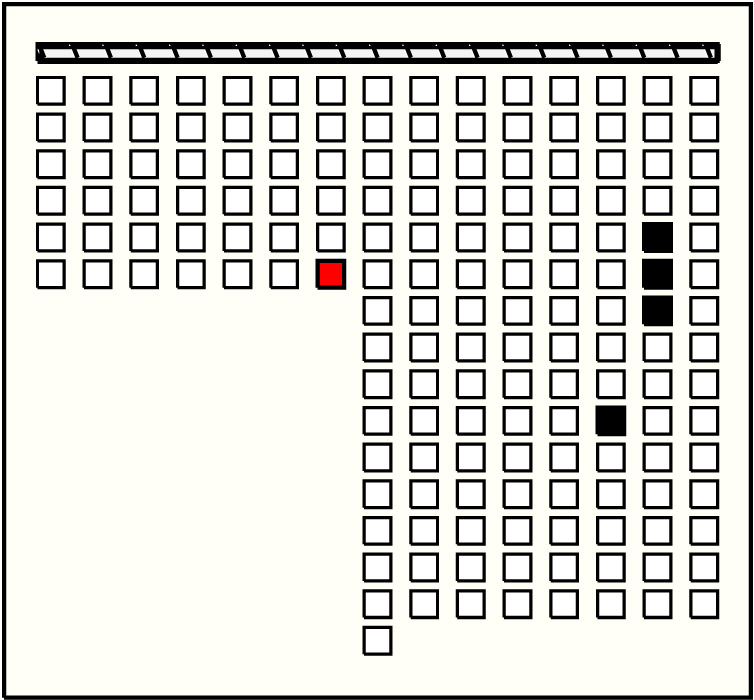

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p6 : 17AB173❽g9p7: 11AB + g9p8: 4AB + g9p9: 2AB
2
g2p2 : 27AB273g11p5: 2AB∞ + g11p6: 21AB + ∞g11p7: 4AB
3
g2p3 : 13AB133g8p10: 5AB + g8p11: 5AB + g9p5: 3AB
4
g2p4 : 11AB113❽g10p9: 3AB + g10p10: 6AB + g11p5: 2AB∞
5
g2p6 : 53AB533g5p3: 8AB + g5p4: 8AB + g5p6: 37AB
6
g3p2 : 15AB153g9p10: 2AB + g10p5: 3AB + g10p6: 10AB
7
g3p6 : 33AB333g14p10: 10AB + g15p5: 7AB + g15p6: 16AB
8
g4p2 : 17AB173❽g9p7: 11AB + g9p8: 4AB + g9p9: 2AB
9
g4p6 : 49AB494g14p5: 4AB∞ + g14p6: 31AB + g14p7: 12AB + g14p8: 2AB❽
10
g5p2 : 12AB123∞g8p7: 9AB∞ + g8p8: 1AB + ∞g8p9: 2AB
11
g5p6 : 37AB377g8p5: 4AB∞ + g8p6: 11AB + g8p7: 9AB + g8p8: 1AB + g8p9: 2AB + g8p10: 5AB + g8p11: 5AB
12
g6p2 : 32AB324❽g10p9: 3AB + g10p10: 6AB + g11p5: 2AB + g11p6: 21AB❽
13
g6p3 : 12AB123∞g8p7: 9AB∞ + g8p8: 1AB + ∞g8p9: 2AB
14
g6p6 : 72AB728g13p5: 4AB + g13p6: 12AB + g13p7: 4AB + g13p9: 2AB + g13p10: 3AB + g14p5: 4AB + g14p6: 31AB + ∞g14p7: 12AB∞
15
g7p2 : 30AB305g8p10: 5AB + g8p11: 5AB + g9p5: 3AB + g9p6: 6AB + g9p7: 11AB❽
16
g7p3 : 11AB113❽g10p9: 3AB + g10p10: 6AB + g11p5: 2AB∞
17
g7p6 : 50AB504g13p10: 3AB + g14p5: 4AB + g14p6: 31AB + ∞g14p7: 12AB∞
18
g8p3 : 50W503❽g11p3: 41W + g11p13: 4W + g11p14: 5W
19
g8p6 : 11AB113❽g10p9: 3AB + g10p10: 6AB + g11p5: 2AB∞
20
g9p7 : 11AB113❽g10p9: 3AB + g10p10: 6AB + g11p5: 2AB∞
21
g10p3 : 50W503❽g11p3: 41W + g11p13: 4W + g11p14: 5W
22
g11p6 : 21AB213∞g14p7: 12AB∞ + g14p8: 2AB + ∞g14p9: 7AB
23
g14p6 : 31AB313g15p5: 7AB + g15p6: 16AB + g15p7: 8AB

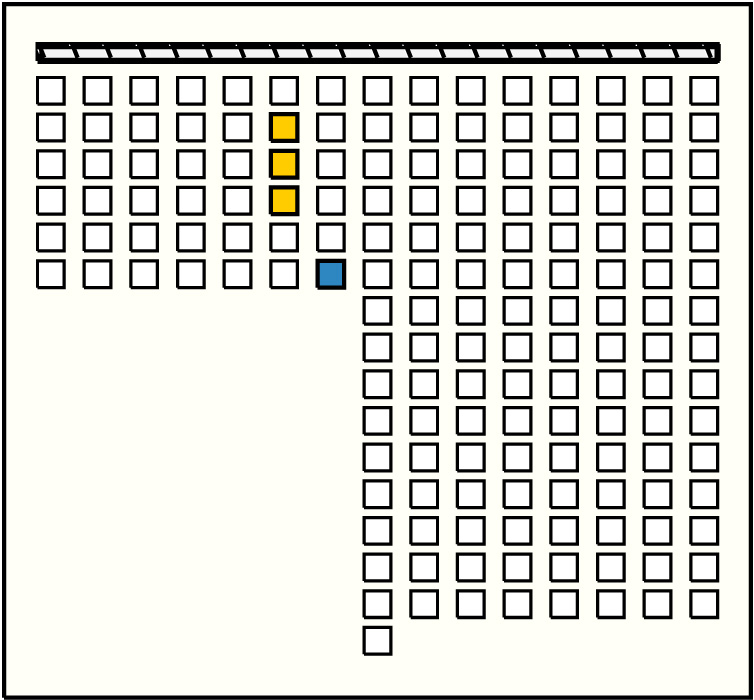

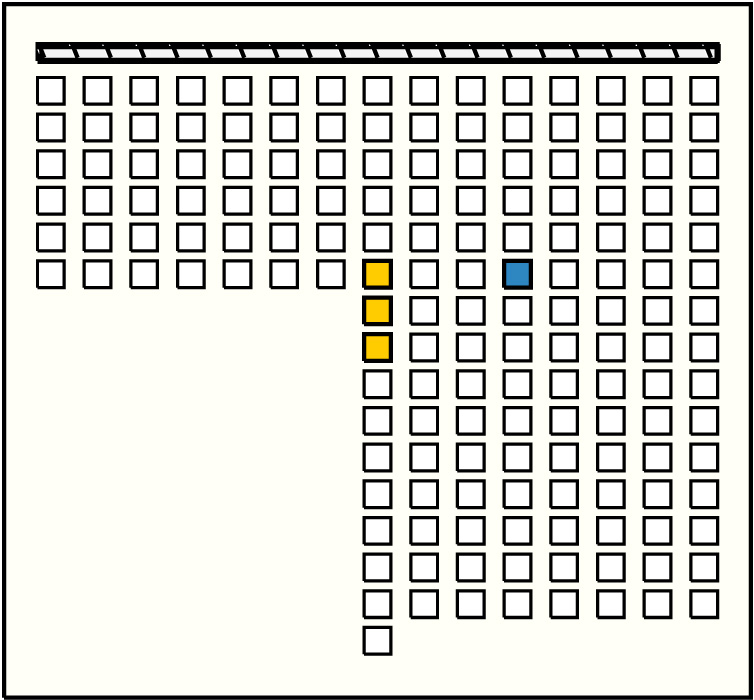

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g6p6 : 72AB725❽g1p3: 4AB + g1p6: 17AB + g2p2: 27AB + g2p3: 13AB + g2p4: 11AB❽
2
g7p6 : 50AB503g6p2: 32AB + g6p3: 12AB + g6p4: 6AB
3
g10p3 : 50W504g8p13: 3W∞ + g8p14: 11W + g8p15: 16W + g9p3: 20W
4
g11p3 : 41W413∞g8p15: 16W + g9p3: 20W + g9p13: 5W
5
g11p6 : 21AB213❽g8p6: 11AB + g8p7: 9AB + g8p8: 1AB❽
6
g12p6 : 11AB113❽g10p9: 3AB + g10p10: 6AB + g11p5: 2AB∞
7
g13p3 : 47W473❽g8p14: 11W + g8p15: 16W + g9p3: 20W
8
g13p6 : 12AB123∞g8p7: 9AB∞ + g8p8: 1AB + ∞g8p9: 2AB
9
g14p6 : 31AB313❽g11p6: 21AB + g11p7: 4AB + g11p8: 6AB
10
g14p7 : 12AB123∞g8p7: 9AB∞ + g8p8: 1AB + ∞g8p9: 2AB
11
g15p6 : 16AB163g12p5: 4AB∞ + g12p6: 11AB + g12p7: 1AB❽

Khipu Notes:
(Notes translated from German by Eric Phelan): Khipu bundle - ancient Peruvian knot-writing, found in Huaura Valley ( at Lima) at the Hacienda Santa Rosalia in the remains of a building (einem Gebauderest), probably an Inkan Tambo at the entrance/start of an old Inkan road in the cultivated valley. Nearby lie the remains of a small settlement and a graveyard. This piece is made of 163 cords, which are arranged in groups of 15 cords and lined up on a 116cm long cord. The cord lengths are on average between 35 and 56 cm. Different/various knots designate tens and ones,and different/various colors, beige, brown, bark blue, light blue, and a beige-blue mixture, probably the types of goods, or the type of person that these recordings have to do with (refer to).
