KH0329/UR093 - Colored Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

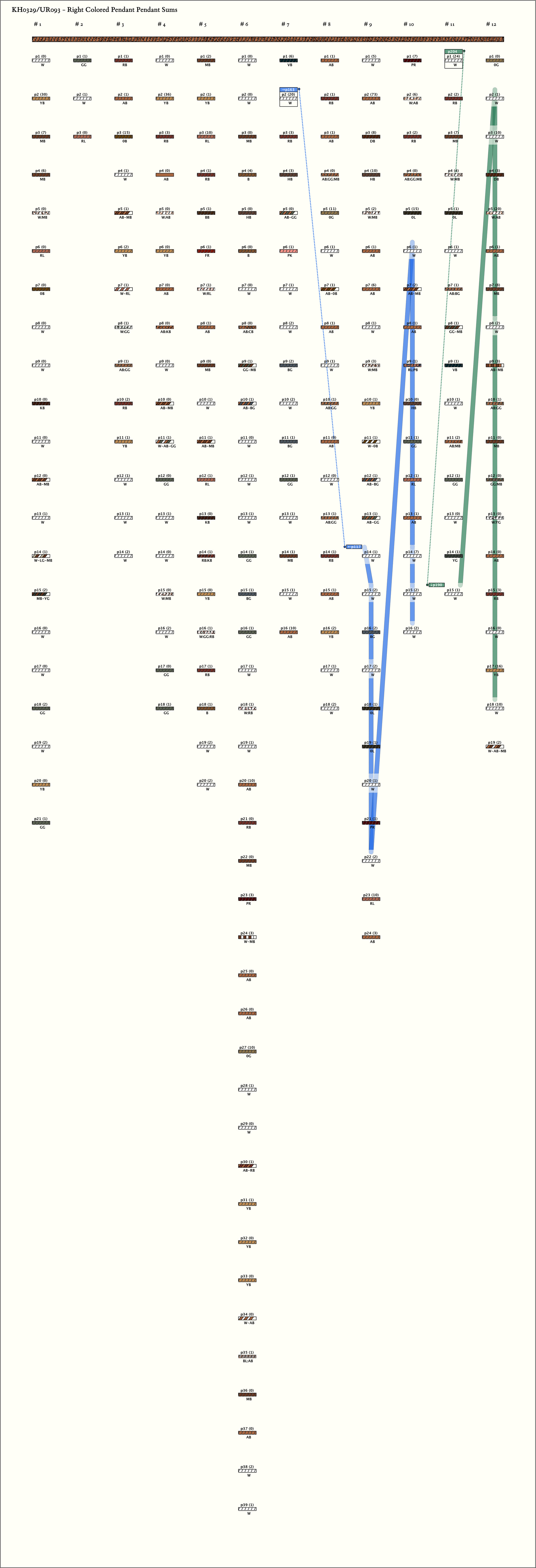

Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 9, (Min, Mean, Max) Sum Values = (20, 25, 30)
Click on Image to View Larger

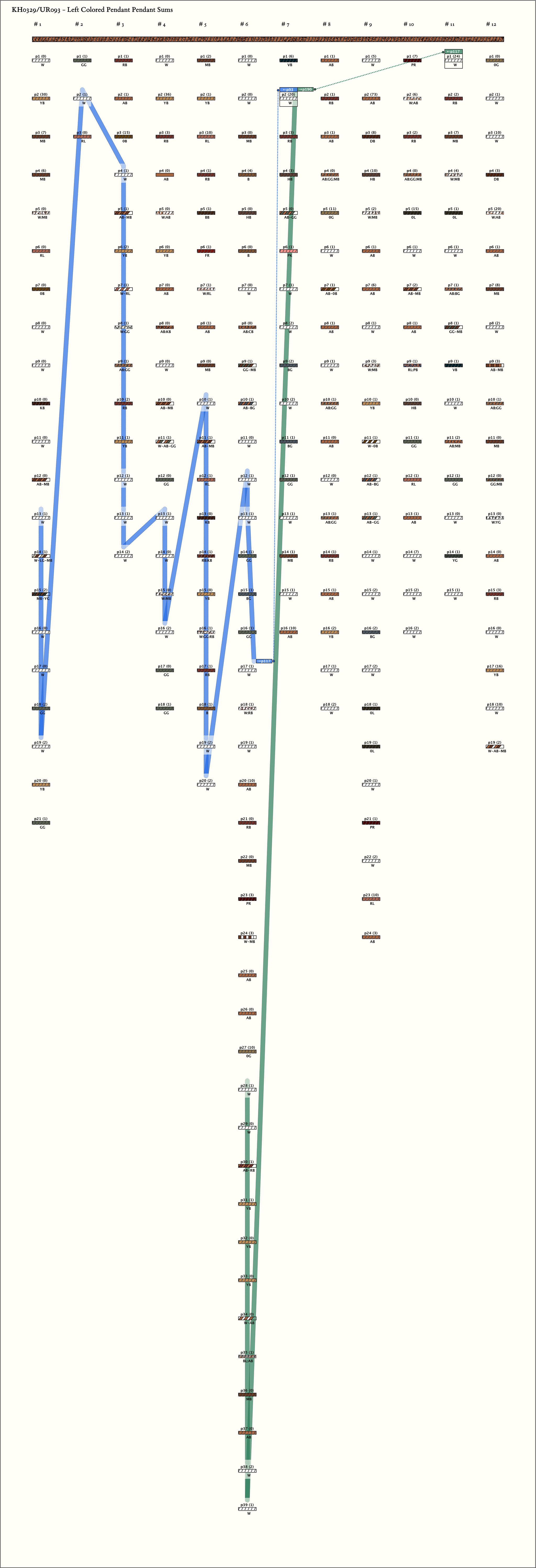

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 9, (Min, Mean, Max) Sum Values = (20, 22, 24)
Click on Image to View Larger

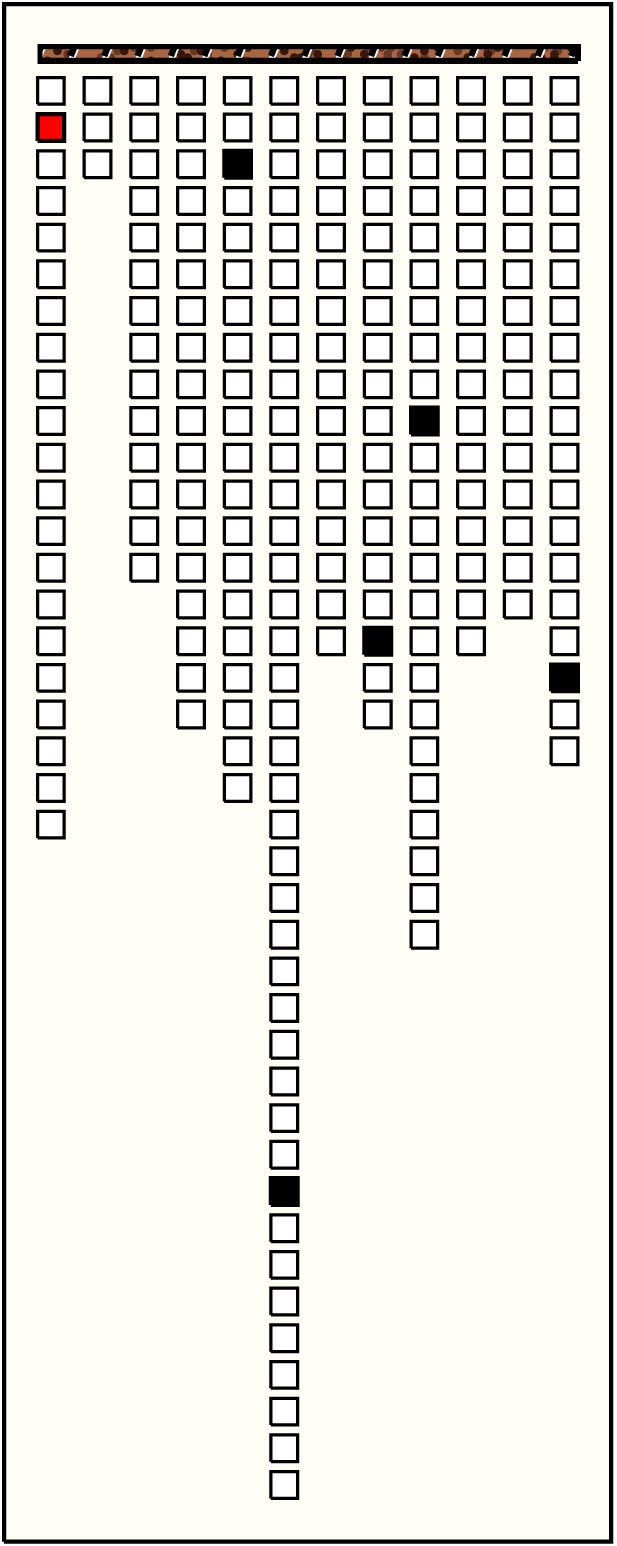

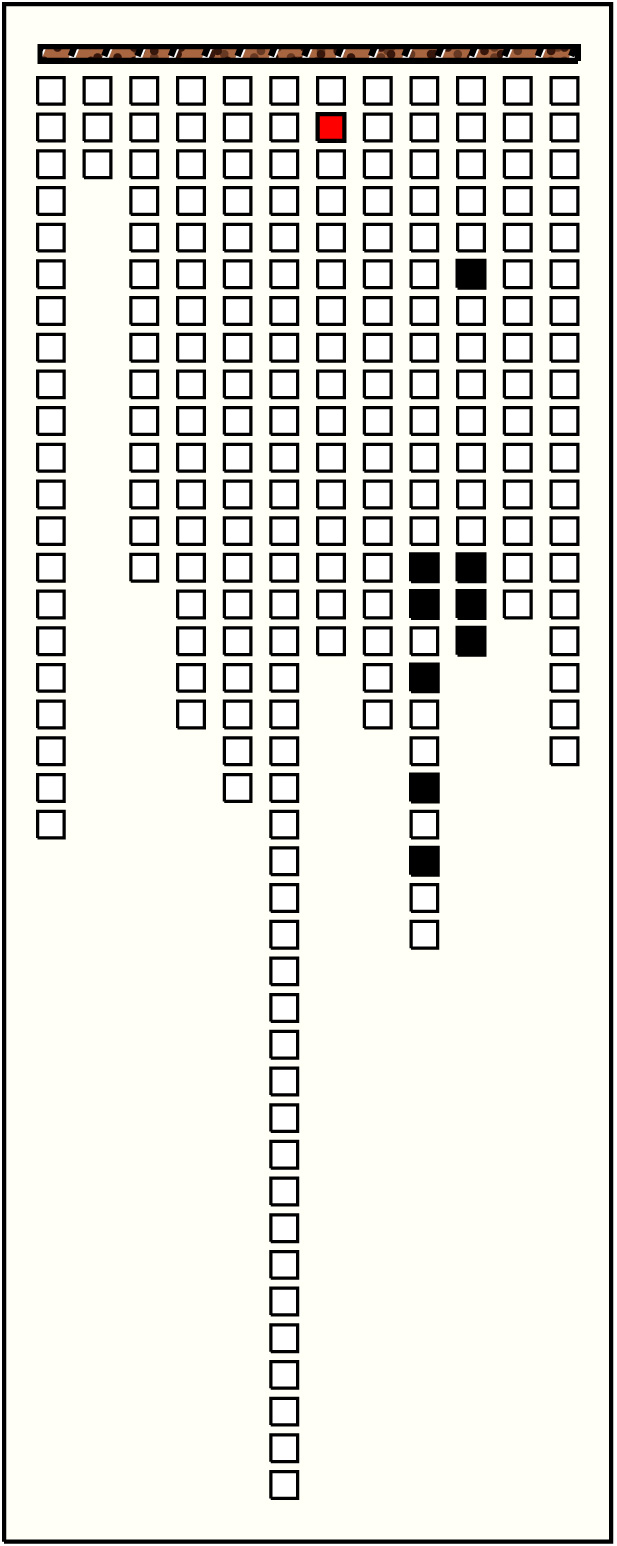

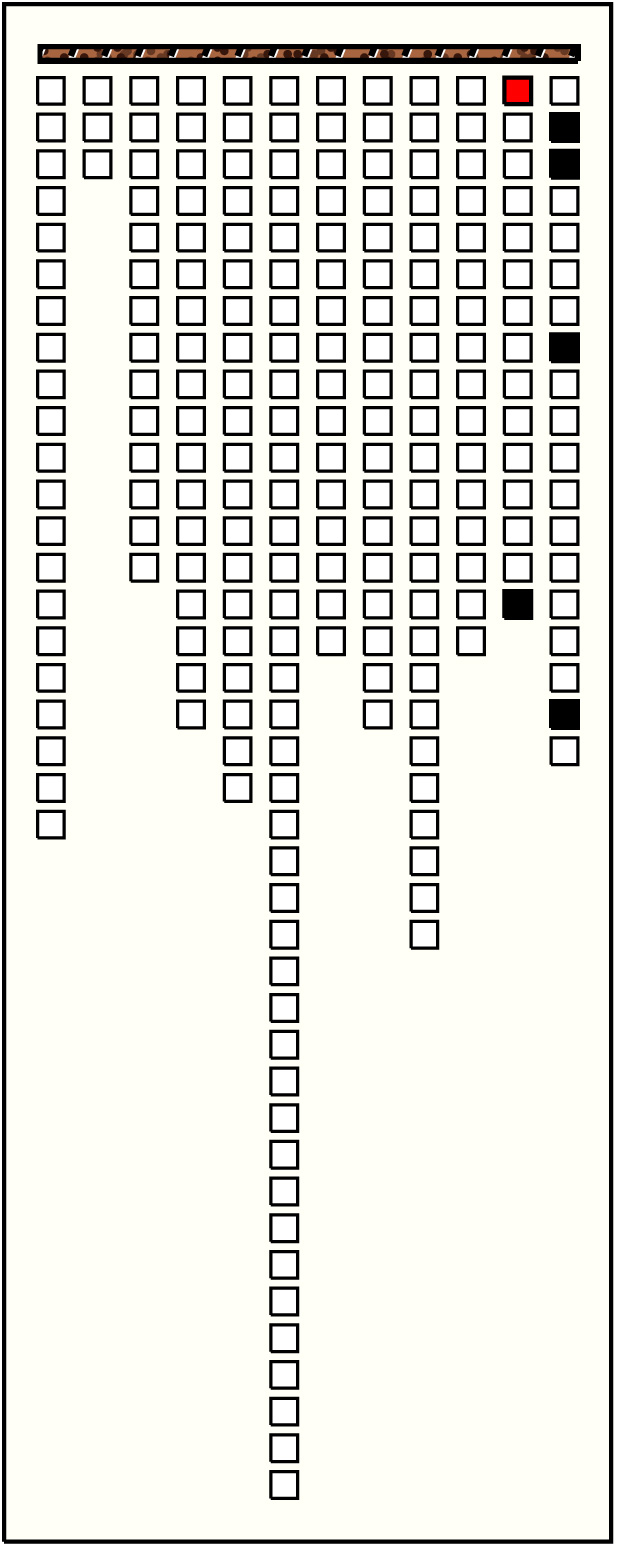

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2 : 30YB | 30 | 5 | ∞g5p3: 10YB∞ + g6p31: 1YB + g8p16: 2YB + g9p10: 1YB + g12p17: 16YB❽ | |
| 2 |  | g7p2 : 20W | 20 | 9 | ❽g9p14: 1W + g9p15: 2W + g9p17: 2W + g9p20: 1W + g9p22: 2W + g10p6: 1W + g10p14: 7W + g10p15: 2W + g10p16: 2W | |
| 3 |  | g11p1 : 24W | 24 | 5 | ❽g11p15: 1W + g12p2: 1W + g12p3: 10W + g12p8: 2W + ∞g12p18: 10W∞ |

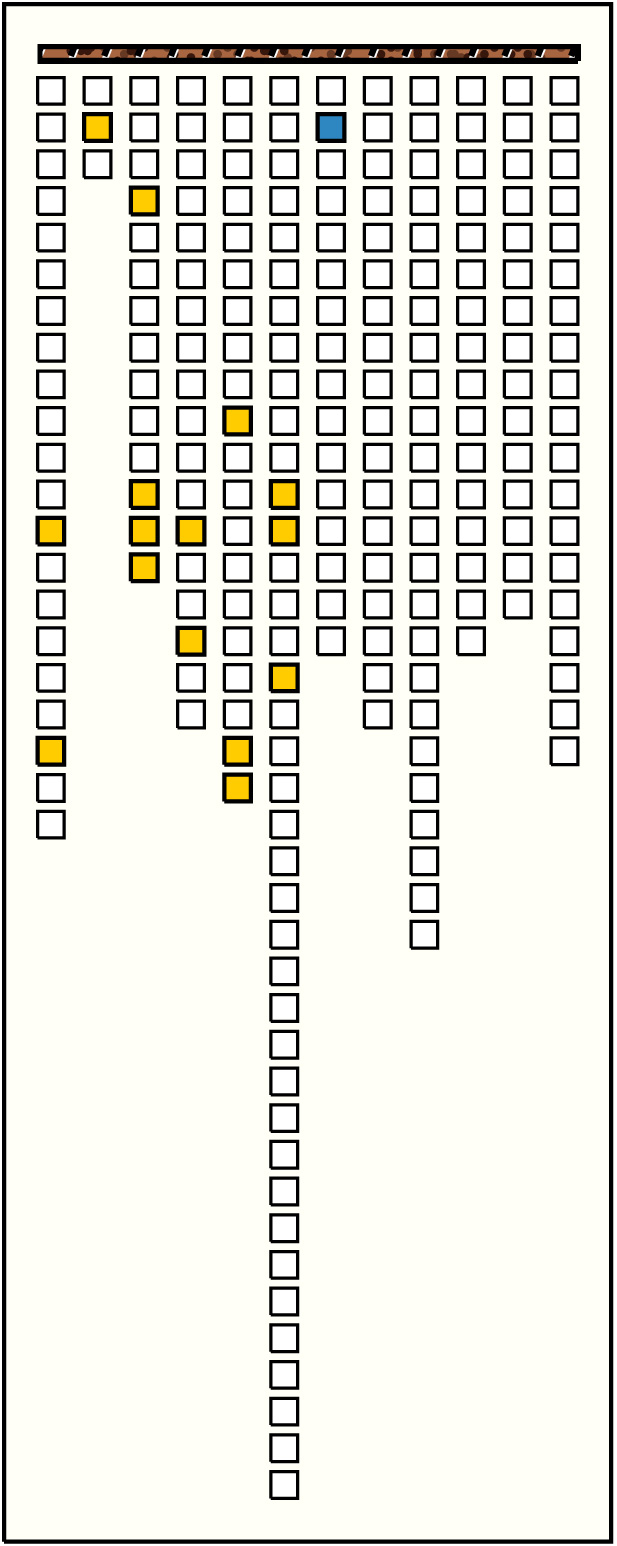

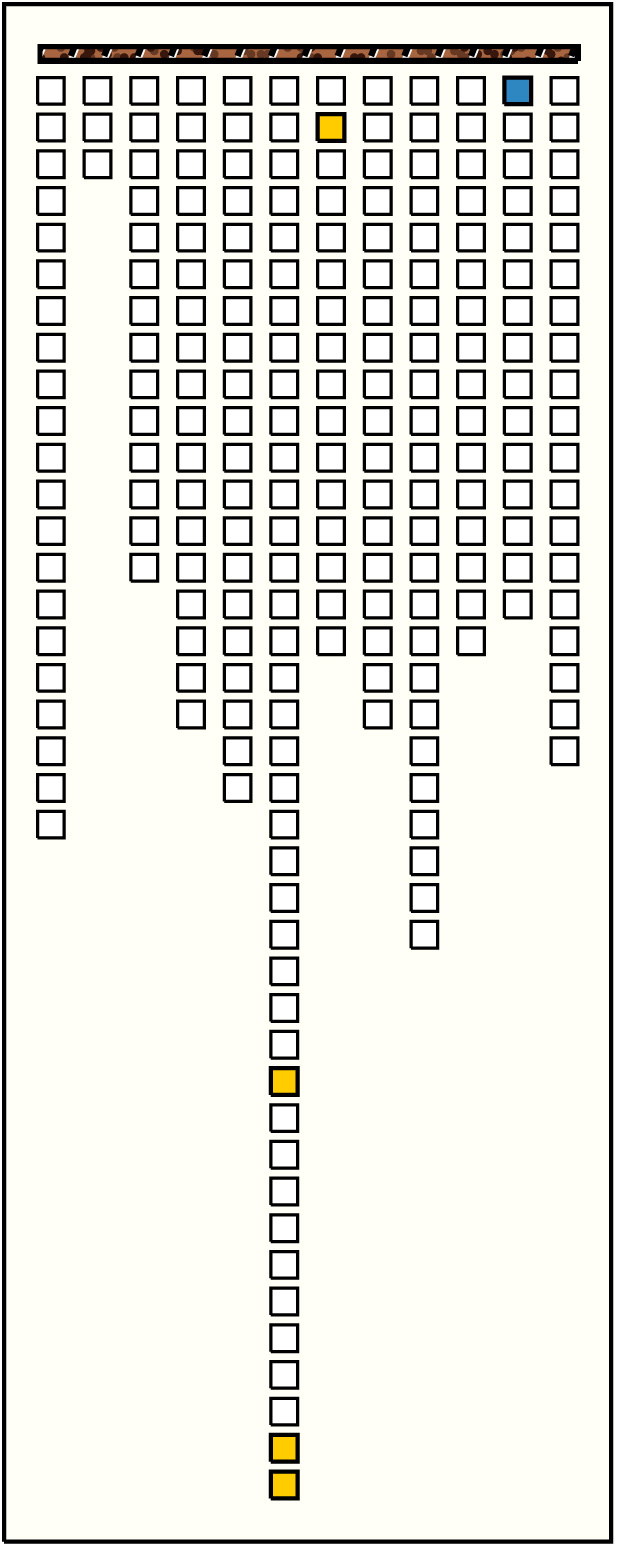

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g7p2 : 20W | 20 | 9 | ❽g5p10: 1W + g5p19: 2W + g5p20: 2W + g6p12: 1W + g6p13: 1W + g6p15: 1W + g6p17: 1W + g6p19: 1W + ∞g6p20: 10W | |
| 2 |  | g11p1 : 24W | 24 | 4 | ❽g6p28: 1W + g6p38: 2W + g7p2: 20W + g7p7: 1W❽ |
