KH0343/UR107 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingLeft-Handed Sums with Figure-8-Knots
Left-Handed Sum Detail

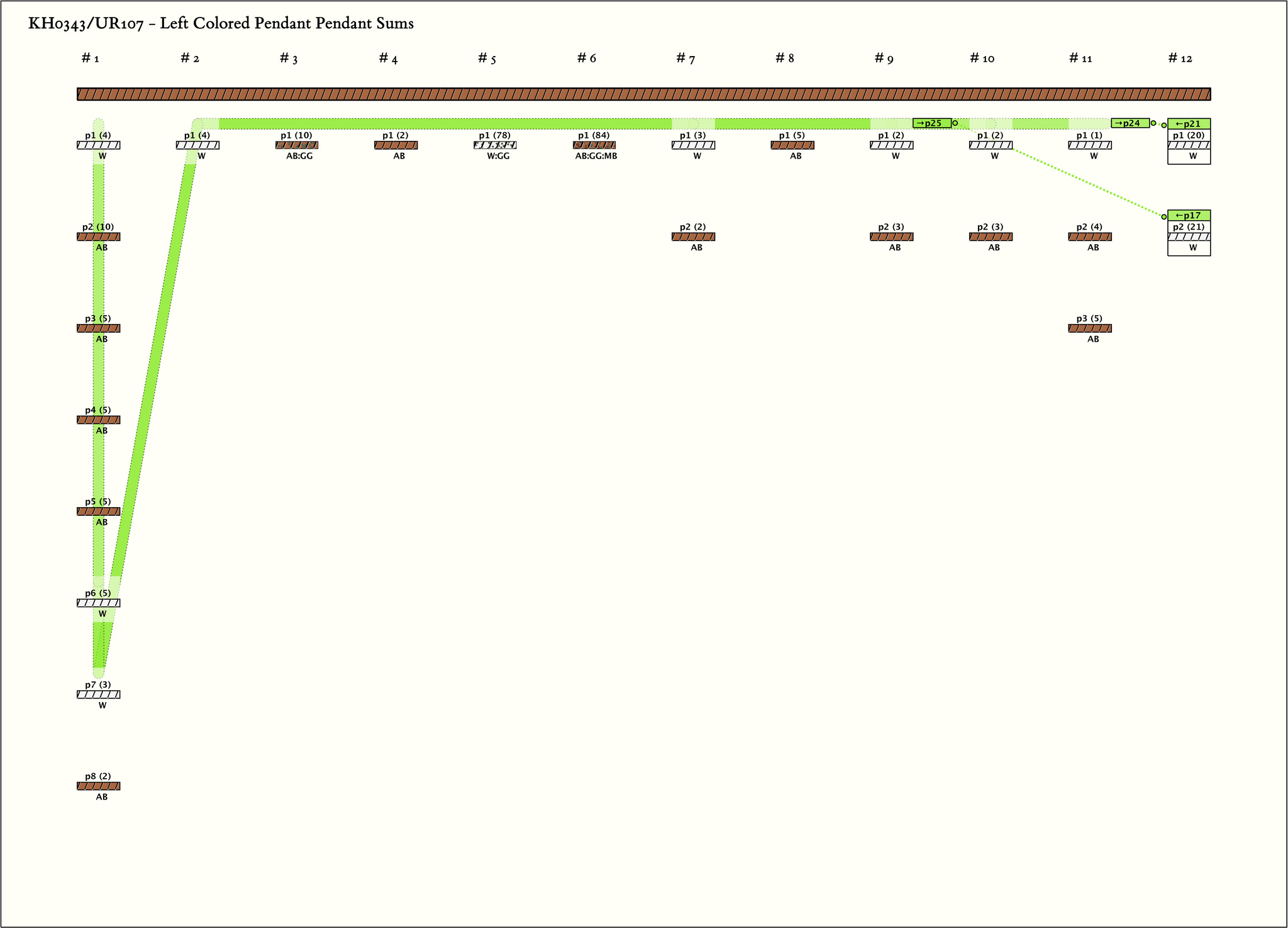

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

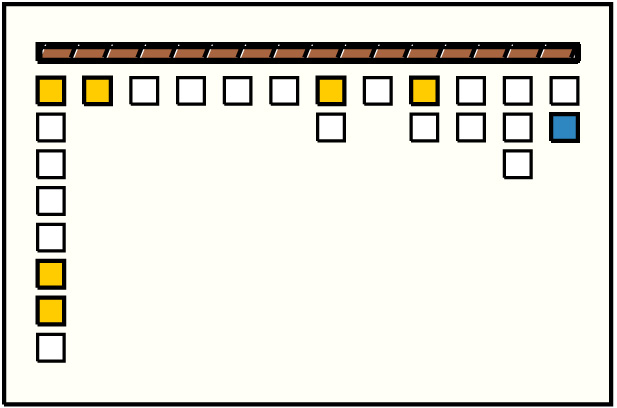

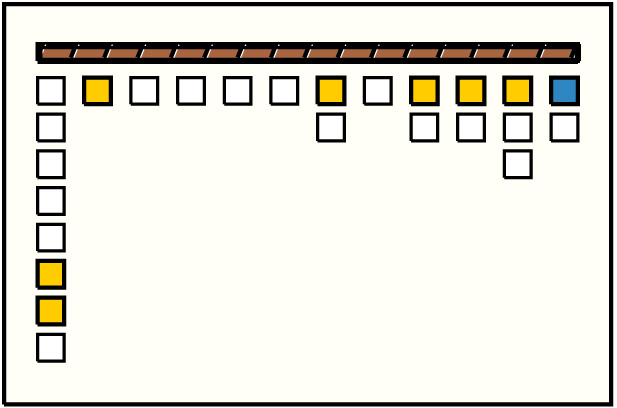

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

Left Handed Sums with Figure-8-Knots:     # Sums = 2,  Max # Summands = 7,   (Min, Mean, Max) Sum Values = (20, 20, 21)
Click on Image to View Larger

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g12p1 : 20W207g1p6: 5W + g1p7: 3W + g2p1: 4W + g7p1: 3W + g9p1: 2W + g10p1: 2W + g11p1: 1W❽
2
g12p2 : 21W216g1p1: 4W + g1p6: 5W + g1p7: 3W + g2p1: 4W + g7p1: 3W + g9p1: 2W
