KH0350/UR114 - Colored Pendant Sums
Drawings:

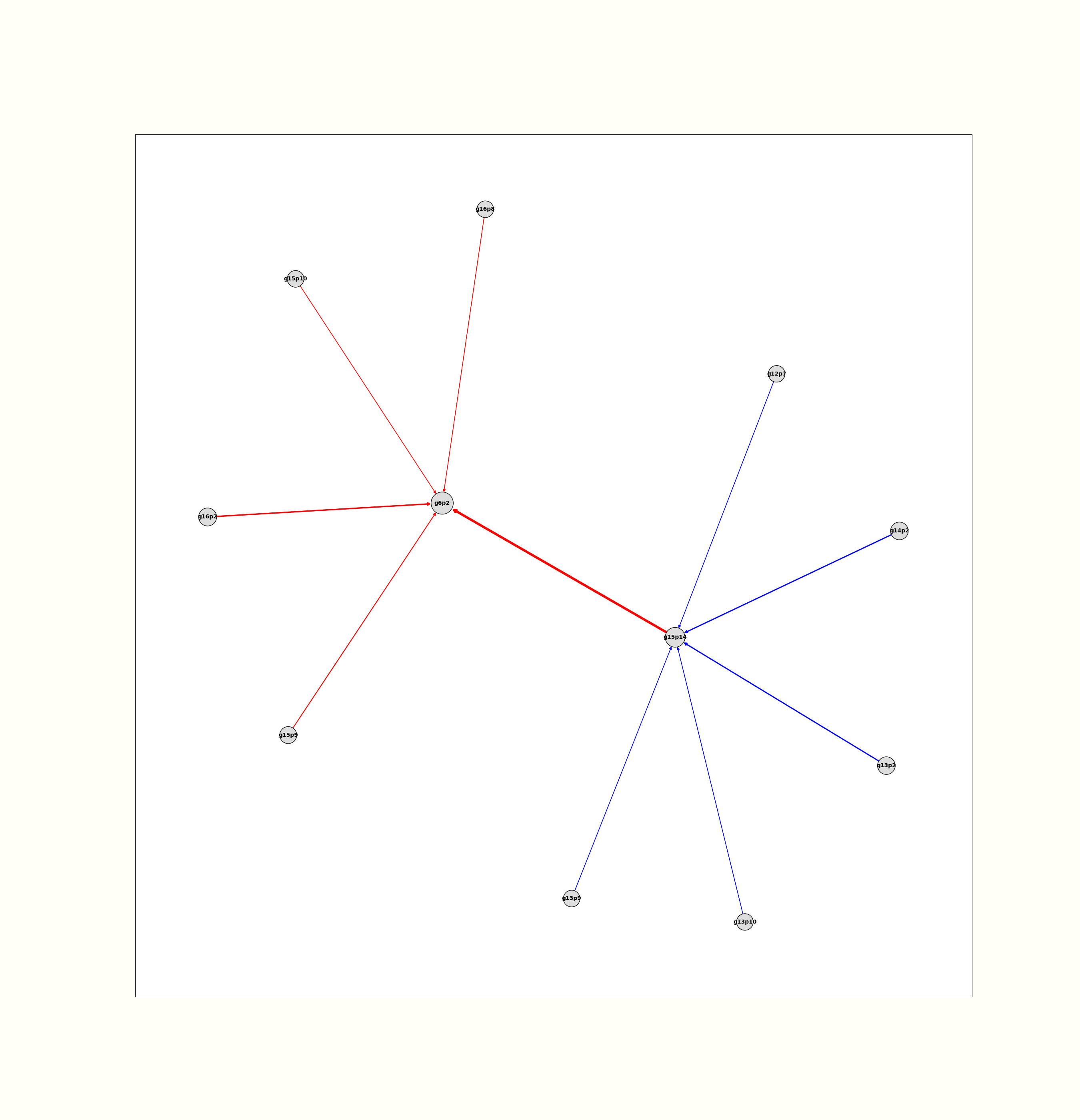

Sum NetGraph - Click on image to view larger
 |

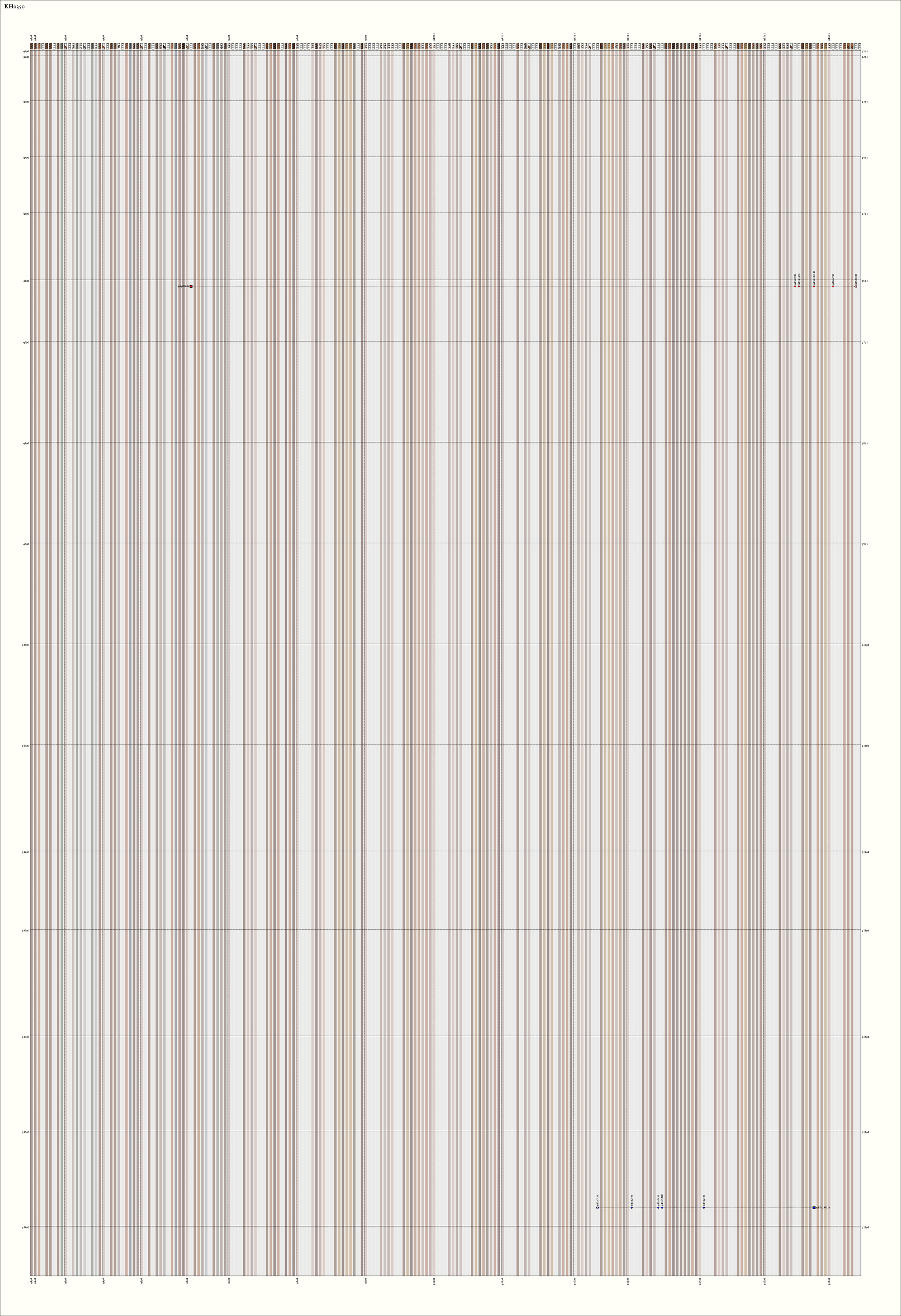

Sum Map - Click on image to view larger
 |

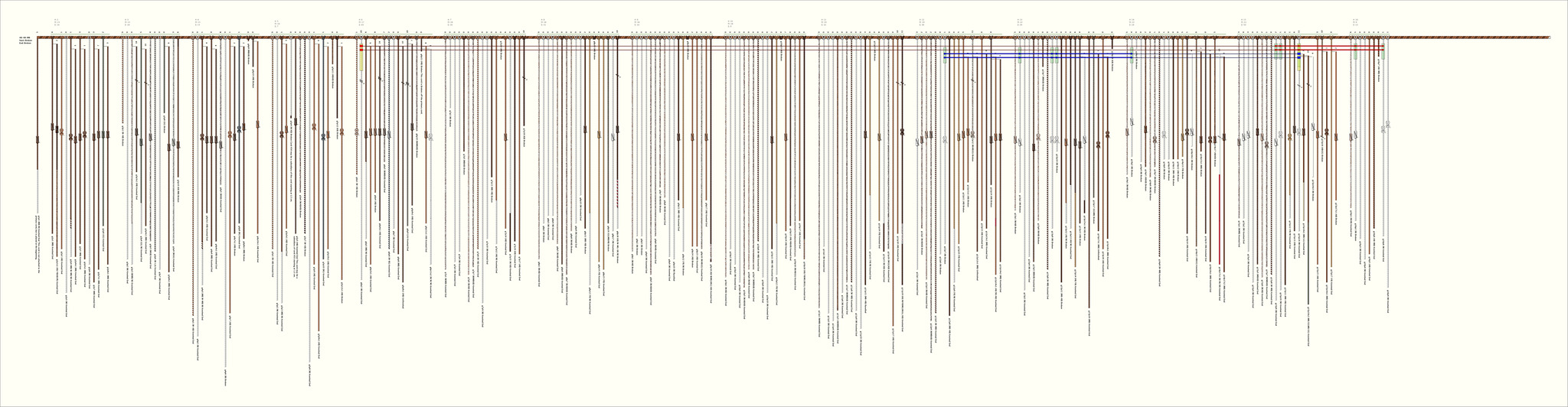

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

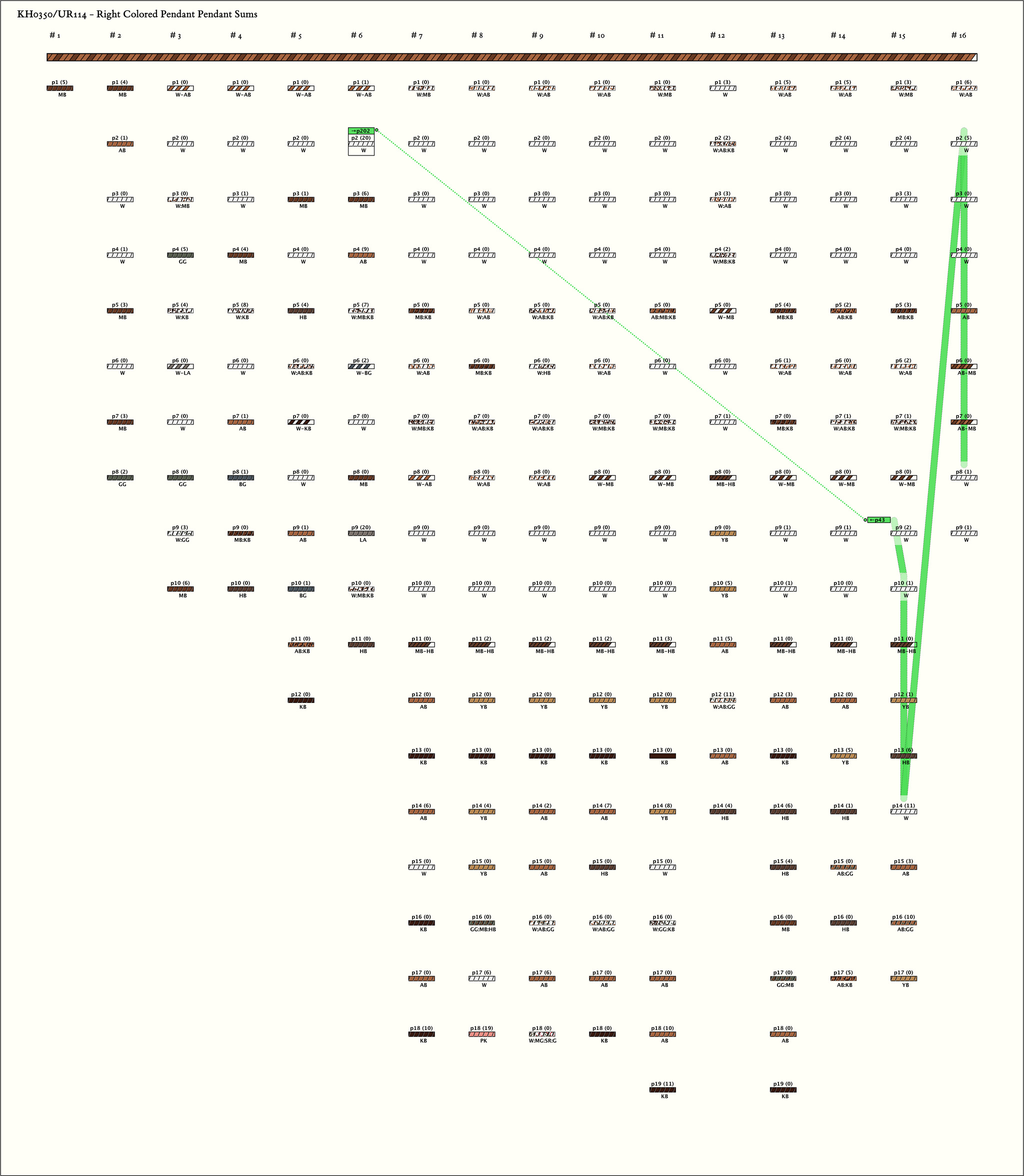

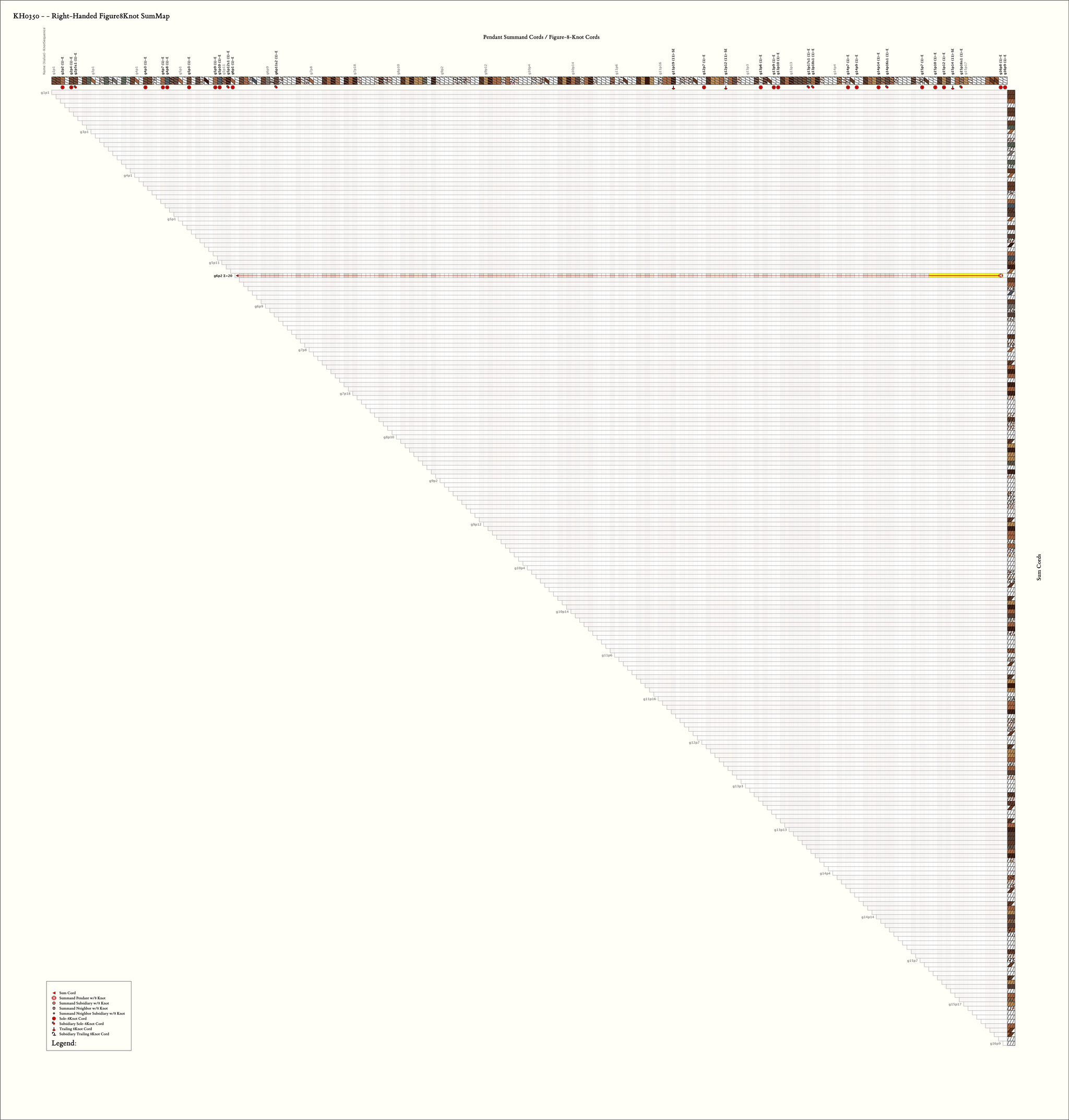

Right Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 5, (Min, Mean, Max) Sum Values = (20, 20, 20)
Click on Image to View Larger

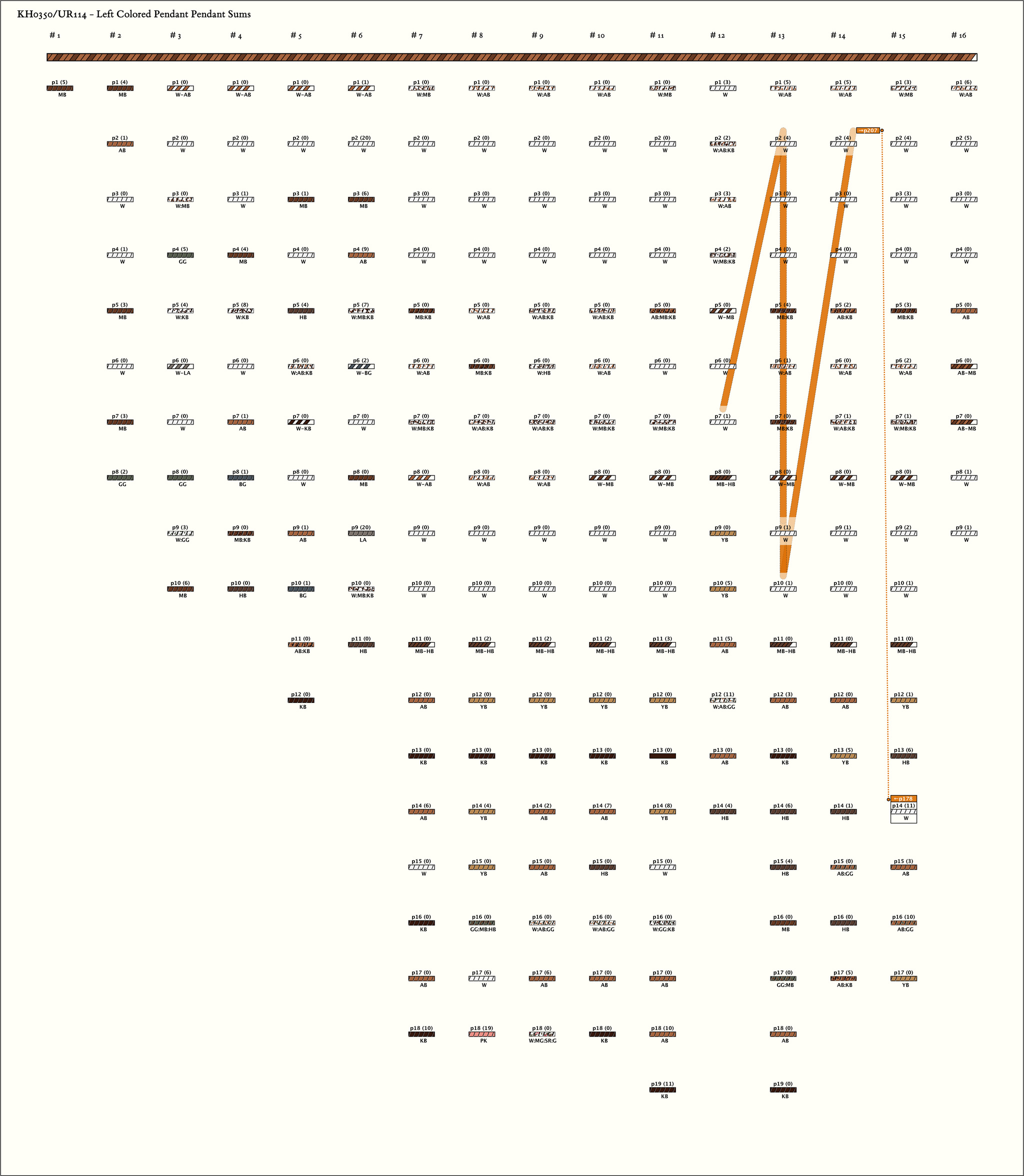

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 5, (Min, Mean, Max) Sum Values = (11, 11, 11)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g6p2 : 20W | 20 | 5 | g15p9: 2W∞ + g15p10: 1W + g15p14: 11W + g16p2: 5W + g16p8: 1W❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g15p14 : 11W | 11 | 5 | ❽g12p7: 1W + g13p2: 4W + g13p9: 1W + g13p10: 1W + g14p2: 4W |
