RA001 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Colored Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

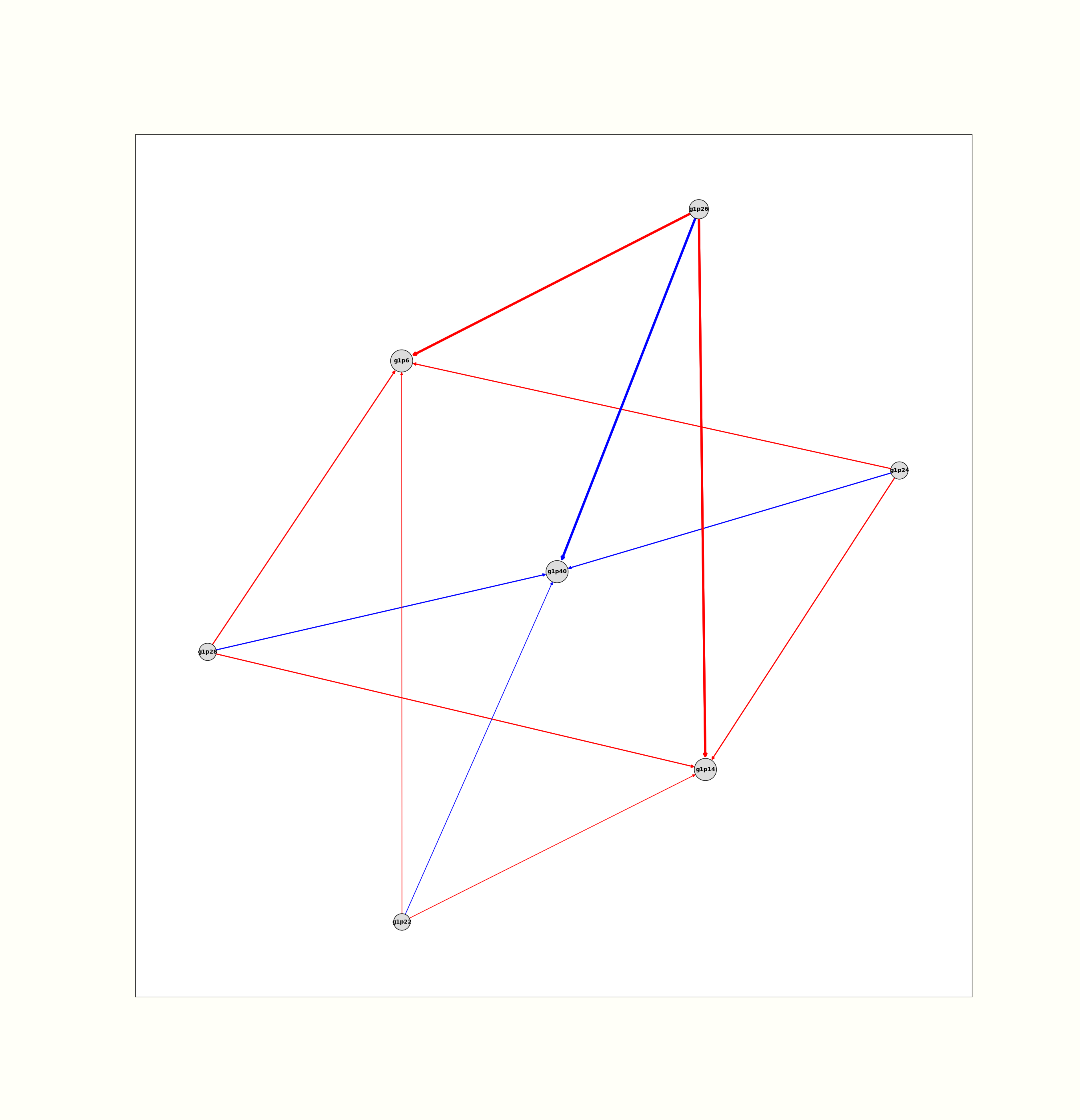

Sum NetGraph - Click on image to view larger
legend

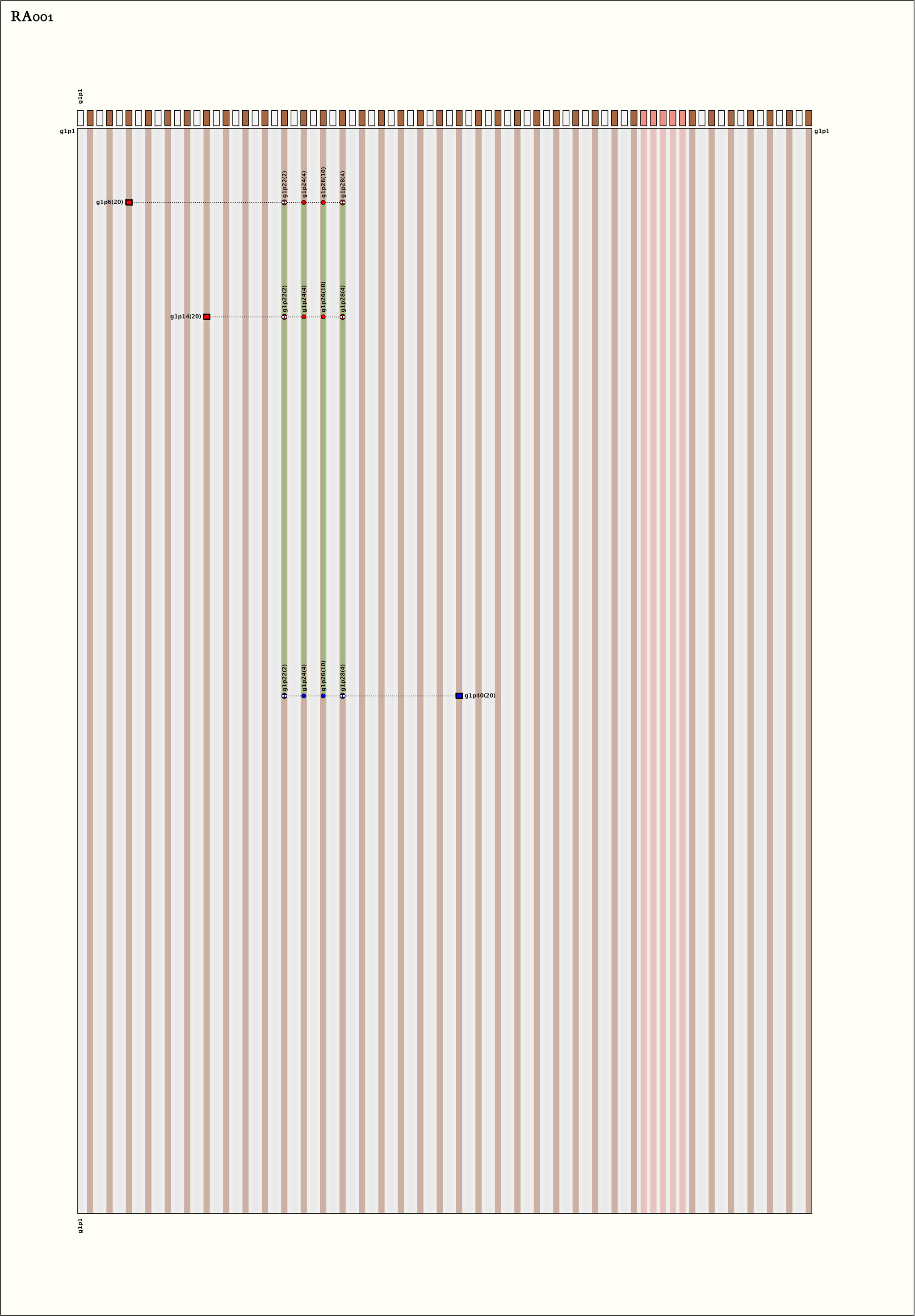

Sum Map - Click on image to view larger
legend

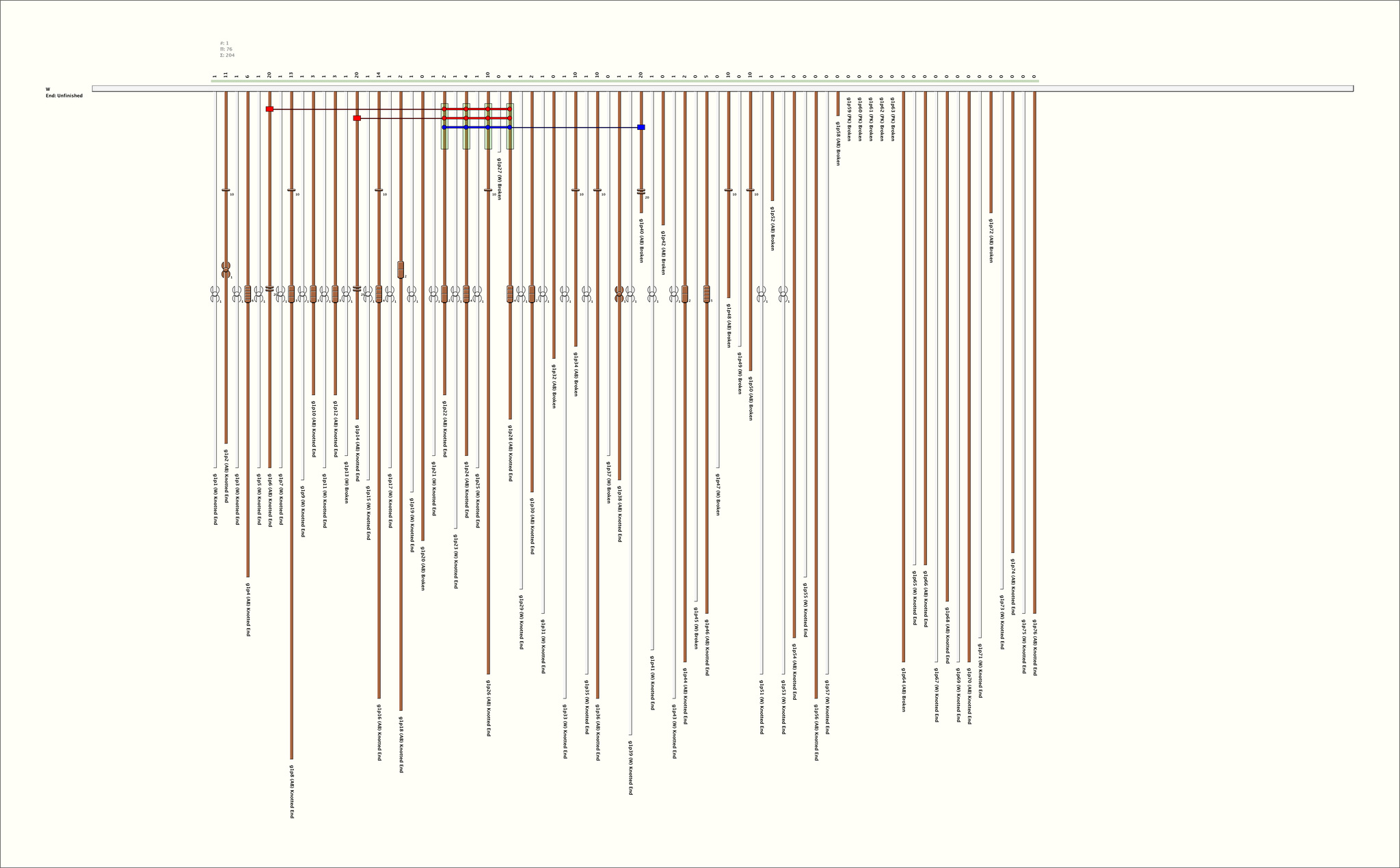

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

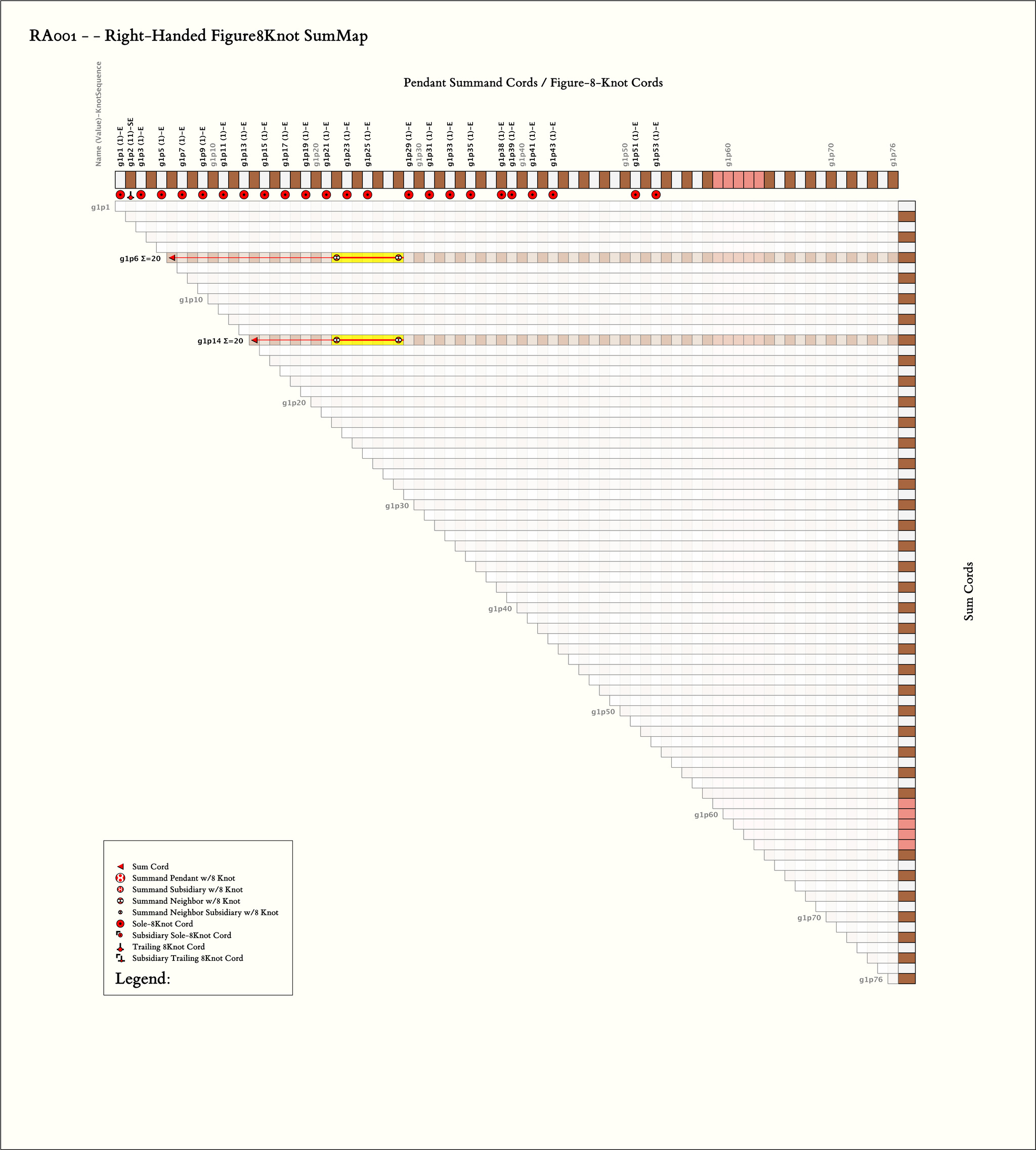

Right Handed Sums with Figure-8-Knots:     # Sums = 2,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (20, 20, 20)
Click on Image to View Larger

Left Handed Sums with Figure-8-Knots:     # Sums = 1,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (20, 20, 20)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands

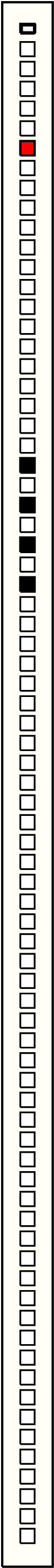

1
g1p6 : 20AB204∞g1p22: 2AB∞ + g1p24: 4AB + g1p26: 10AB + g1p28: 4AB∞

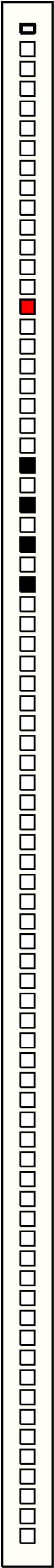

2
g1p14 : 20AB204∞g1p22: 2AB∞ + g1p24: 4AB + g1p26: 10AB + g1p28: 4AB∞

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p40 : 20AB204∞g1p22: 2AB∞ + g1p24: 4AB + g1p26: 10AB + g1p28: 4AB∞
