KH0068/UR1057, AS057 - Indexed Pendant Sums
Drawings:

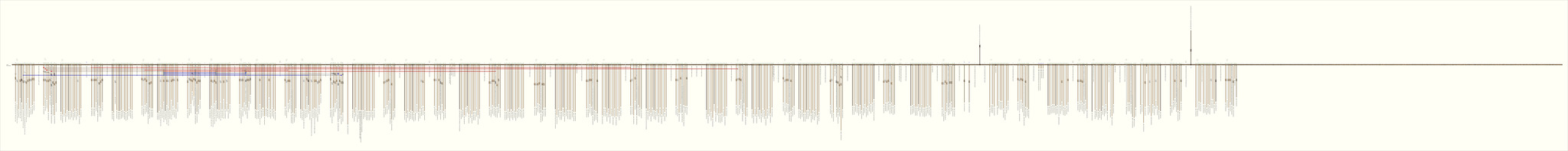

Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p1 : 23YB | 23 | 12 | ❽g6p1: 1YB + g10p1: 1YB + g13p1: 6YB + g17p1: 2YB + g20p1: 1YB + g23p1: 6YB + g27p1: 1YB + g31p1: 1YB + g35p1: 1YB + g38p1: 1YB + g42p1: 1YB + g45p1: 1YB❽ | |
| 2 |  | g3p2 : 39W | 39 | 12 | ❽g15p2: 1YB + g17p2: 5W + g20p2: 1W + g23p2: 24W + g27p2: 1W + g31p2: 1W + g35p2: 1W + g38p2: 1W + g42p2: 1W + g45p2: 1W + g48p2: 1W + g54p2: 1W❽ | |
| 3 |  | g3p3 : 13YB | 13 | 6 | ❽g10p3: 1YB + g11p3: 1W + g13p3: 2YB + g15p3: 1W + g17p3: 7YB + g20p3: 1YB❽ | |
| 4 |  | g3p5 : 54W:FB | 54 | 8 | ❽g11p5: 1YB + g13p5: 9W:FB + g15p5: 1YB + g17p5: 11W:FB + g21p5: 4YB + g23p5: 22W:FB + g31p5: 2W:FB + g35p5: 4W:FB❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g17p5 : 11W:FB | 11 | 3 | ❽g11p5: 1YB + g13p5: 9W:FB + g15p5: 1YB❽ | |
| 2 |  | g23p5 : 22W:FB | 22 | 4 | ❽g11p5: 1YB + g13p5: 9W:FB + g15p5: 1YB + g17p5: 11W:FB❽ | |
| 3 |  | g23p6 : 104YB | 104 | 7 | ∞g1p6: 5YB + g3p6: 71YB + g6p6: 2YB + g10p6: 1YB + g13p6: 11YB + g17p6: 13YB + g21p6: 1BB❽ |
