KH0384/UR144 - Indexed Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Indexed Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay

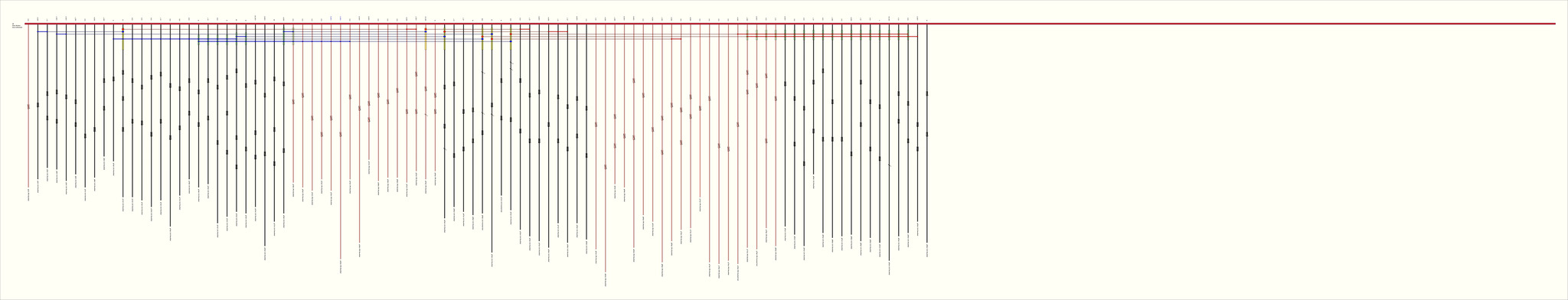

This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

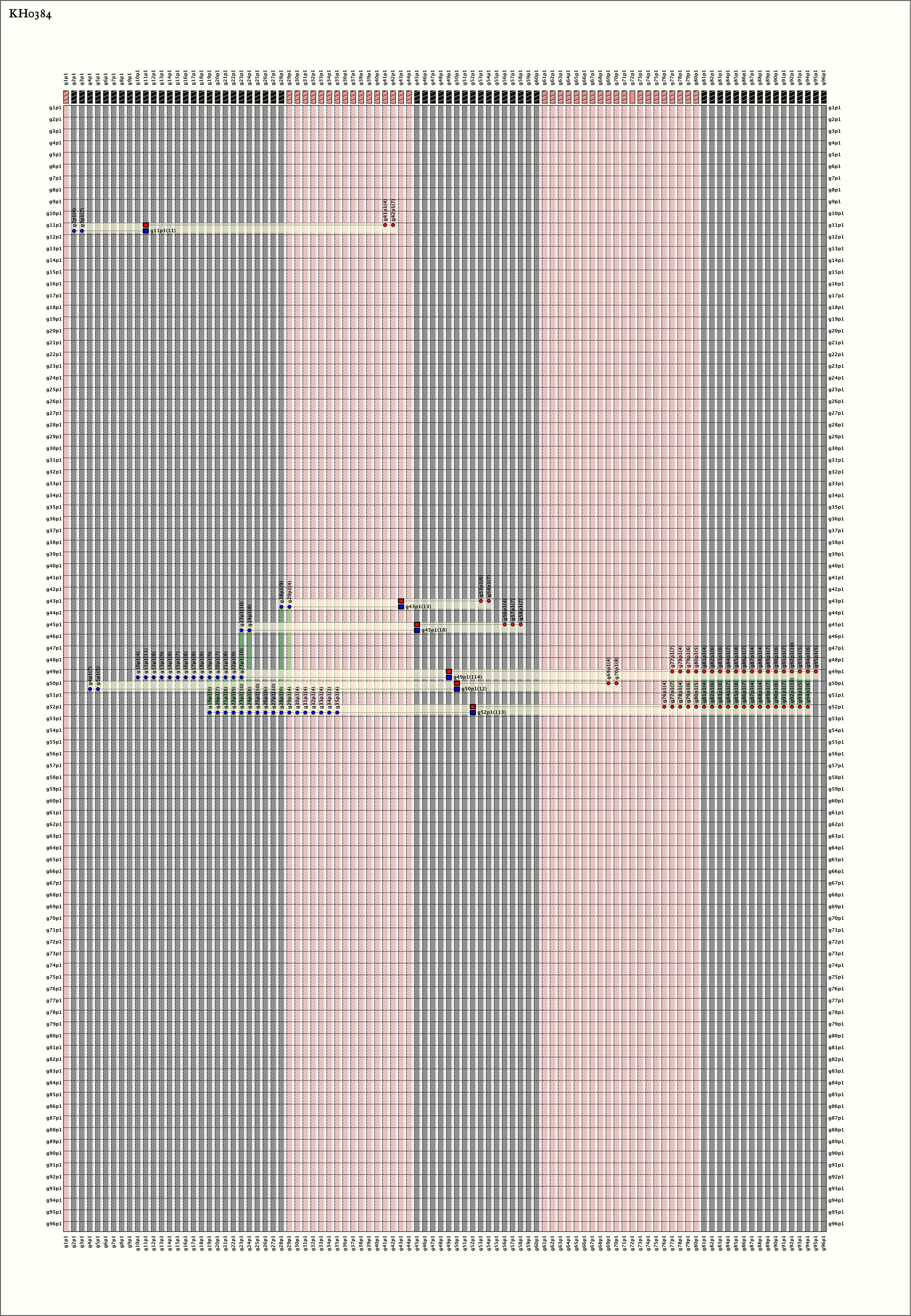

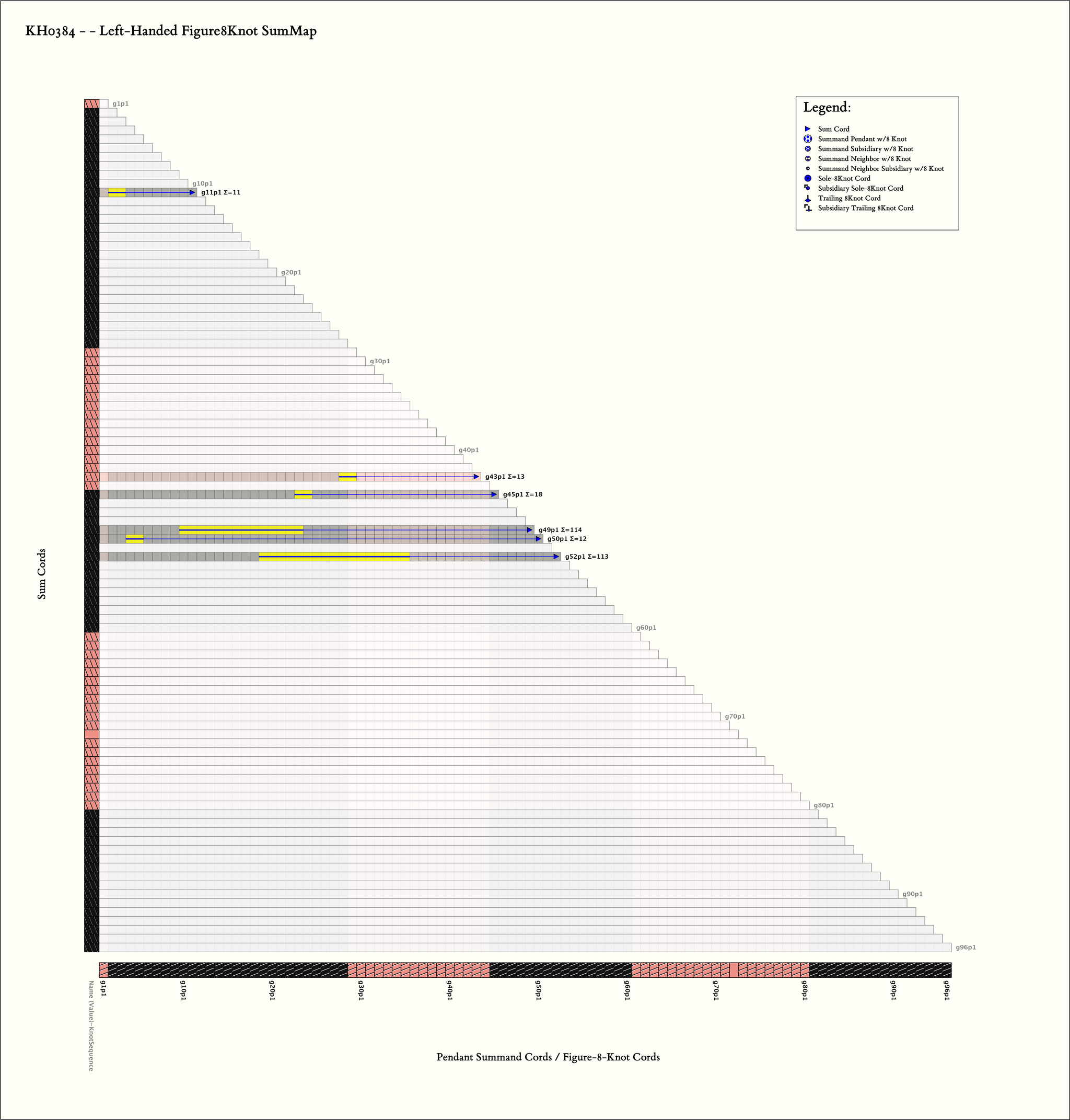

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

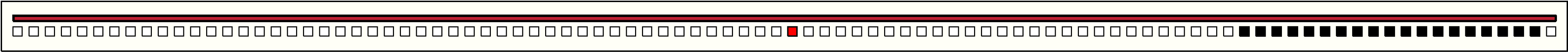

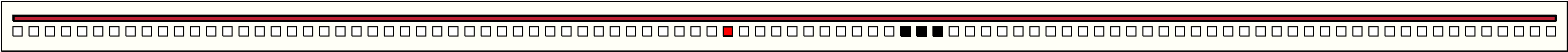

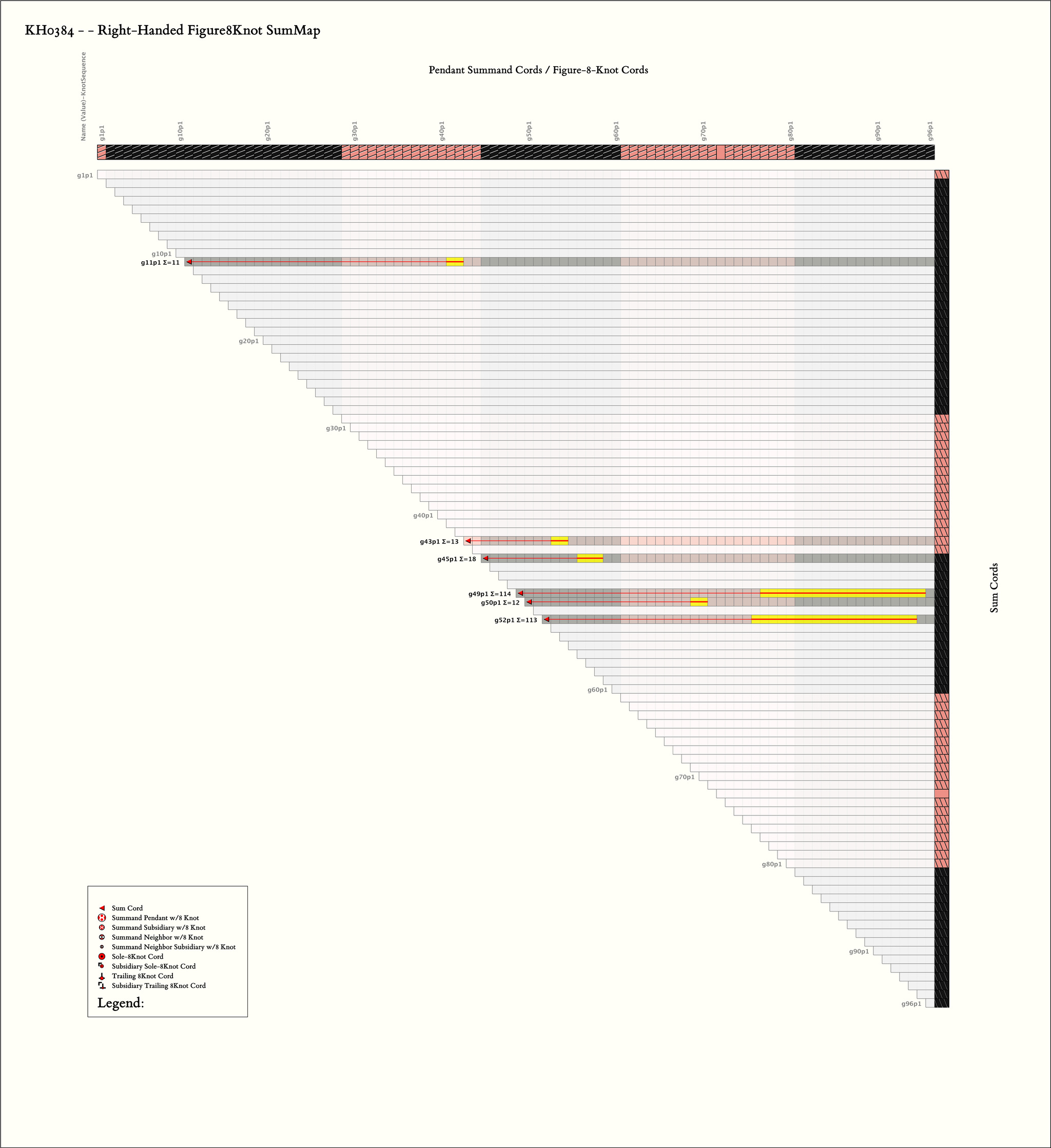

Right Handed Sums with Figure-8-Knots:     # Sums = 6,  Max # Summands = 19,   (Min, Mean, Max) Sum Values = (11, 47, 114)
Click on Image to View Larger

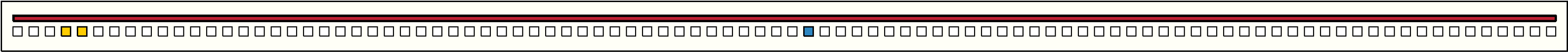

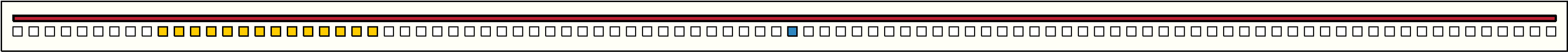

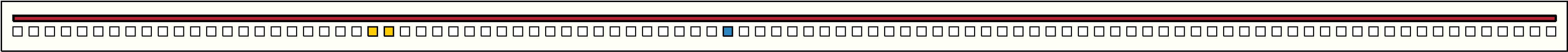

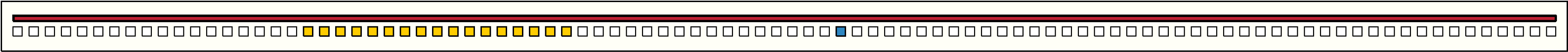

Left Handed Sums with Figure-8-Knots:     # Sums = 6,  Max # Summands = 17,   (Min, Mean, Max) Sum Values = (11, 47, 114)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g11p1 : 11LK112g41p1: 4PK + g42p1: 7PK
2
g43p1 : 13PK132g53p1: 6LK + g54p1: 7LK
3
g45p1 : 18LK183g56p1: 4LK + g57p1: 7LK + g58p1: 7LK
4
g49p1 : 114LK11419g77p1: 7PK + g78p1: 4PK + g79p1: 6PK + g80p1: 5PK + g81p1: 4LK + g82p1: 6LK + g83p1: 6LK + g84p1: 7LK + g85p1: 8LK + g86p1: 7LK + g87p1: 4LK + g88p1: 4LK + g89p1: 7LK + g90p1: 6LK + g91p1: 7LK + g92p1: 10LK + g93p1: 5LK + g94p1: 6LK + g95p1: 5LK
5
g50p1 : 12LK122g69p1: 4PK + g70p1: 8PK
6
g52p1 : 113LK11319g76p1: 4PK + g77p1: 7PK + g78p1: 4PK + g79p1: 6PK + g80p1: 5PK + g81p1: 4LK + g82p1: 6LK + g83p1: 6LK + g84p1: 7LK + g85p1: 8LK + g86p1: 7LK + g87p1: 4LK + g88p1: 4LK + g89p1: 7LK + g90p1: 6LK + g91p1: 7LK + g92p1: 10LK + g93p1: 5LK + g94p1: 6LK

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g11p1 : 11LK112g2p1: 4LK + g3p1: 7LK
2
g43p1 : 13PK132g28p1: 9LK + g29p1: 4PK
3
g45p1 : 18LK182g23p1: 10LK + g24p1: 8LK
4
g49p1 : 114LK11414g10p1: 4LK + g11p1: 11LK + g12p1: 8LK + g13p1: 9LK + g14p1: 8LK + g15p1: 7LK + g16p1: 8LK + g17p1: 8LK + g18p1: 8LK + g19p1: 9LK + g20p1: 7LK + g21p1: 8LK + g22p1: 9LK + g23p1: 10LK
5
g50p1 : 12LK122g4p1: 7LK + g5p1: 5LK
6
g52p1 : 113LK11317g19p1: 9LK + g20p1: 7LK + g21p1: 8LK + g22p1: 9LK + g23p1: 10LK + g24p1: 8LK + g25p1: 10LK + g26p1: 6LK + g27p1: 10LK + g28p1: 9LK + g29p1: 4PK + g30p1: 4PK + g31p1: 4PK + g32p1: 4PK + g33p1: 4PK + g34p1: 3PK + g35p1: 4PK

Khipu Notes:
Ashok Khosla - This khipu was malformed in the KDB and created from a combination of sources.
The Primary Cord's length was 0, so I have defaulted it, and the cord locations.
Cluster/group information is also missing and has been defaulted.
