KH0529/UR291A - Indexed Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Indexed Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

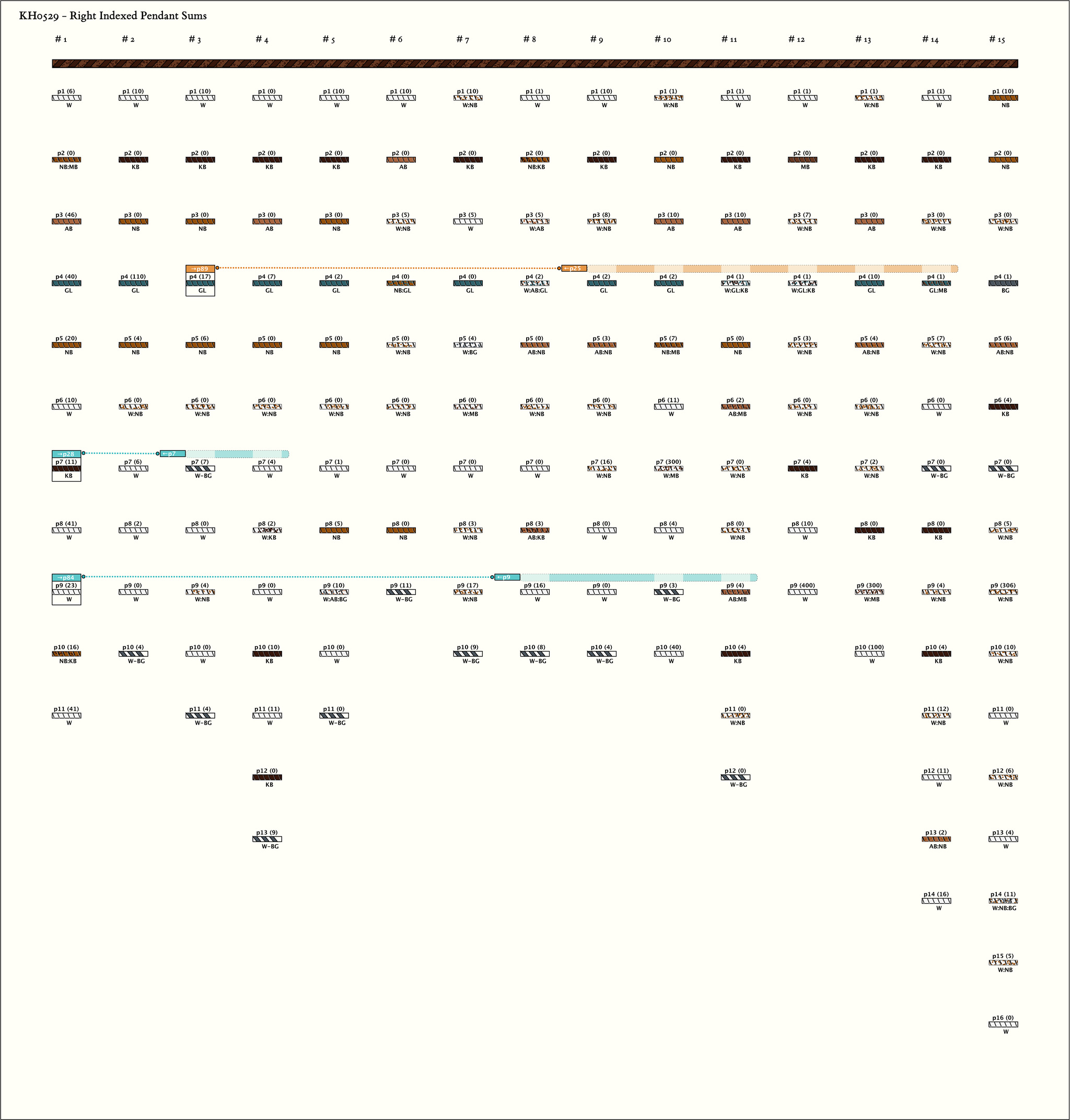

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

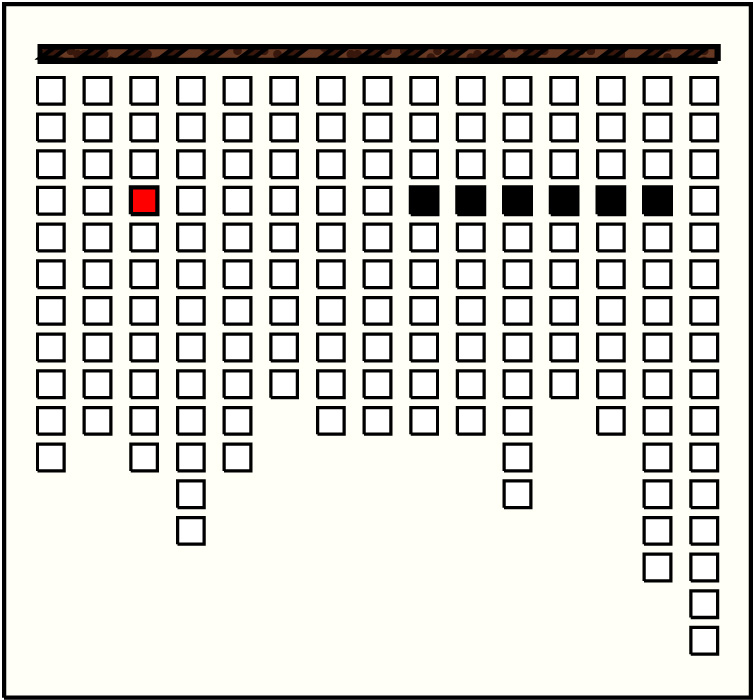

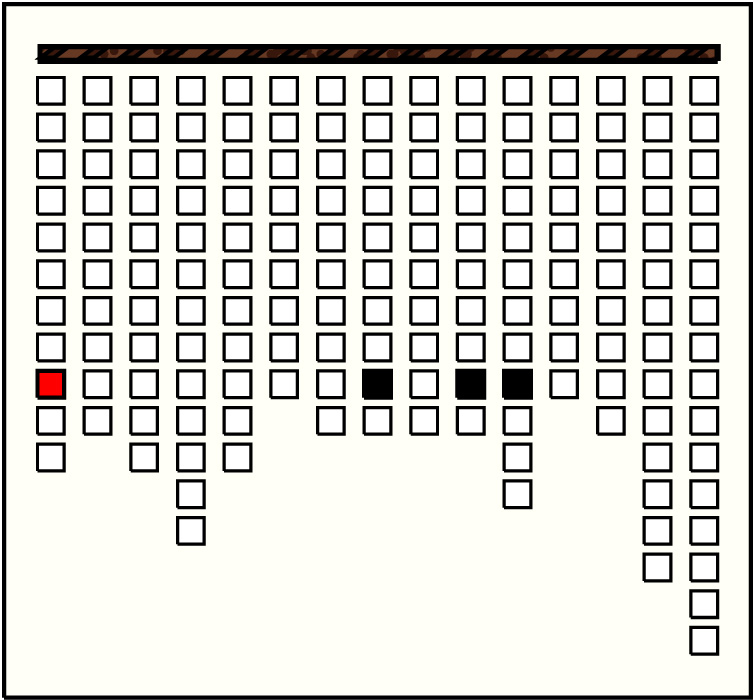

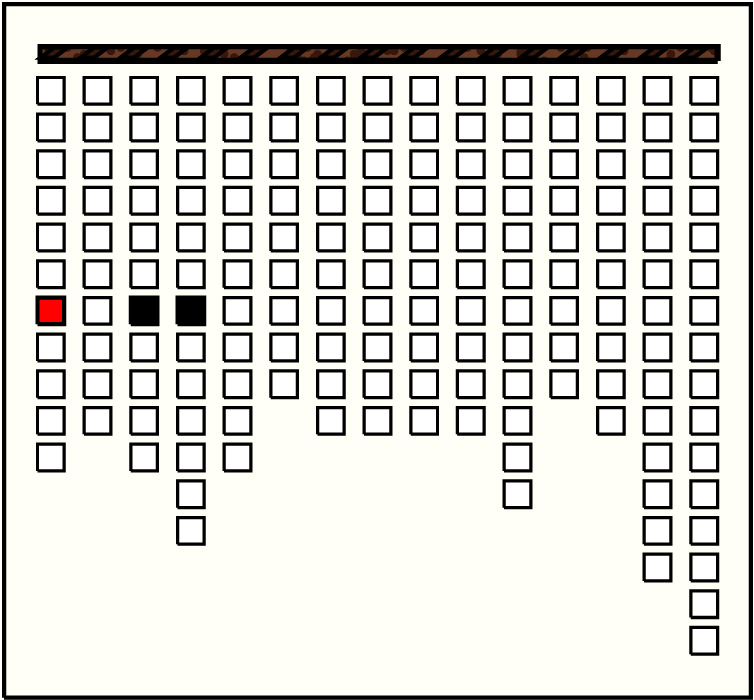

Right Handed Sums with Figure-8-Knots:     # Sums = 3,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (11, 17, 23)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p7 : 11KB112g3p7: 7W-BG + g4p7: 4W
2
g1p9 : 23W233g8p9: 16W + g10p9: 3W-BG + g11p9: 4AB:MB❽
3
g3p4 : 17GL176g9p4: 2GL + g10p4: 2GL + g11p4: 1W:GL:KB + g12p4: 1W:GL:KB + g13p4: 10GL + g14p4: 1GL:MB❽
