KH0674/UR297 - Indexed Pendant Sums
Drawings:

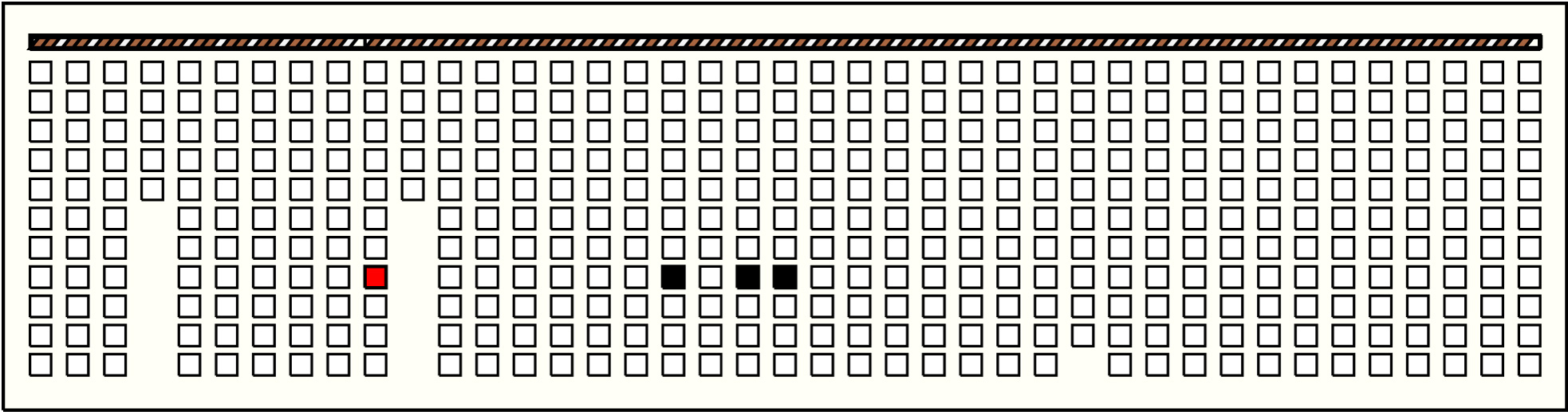

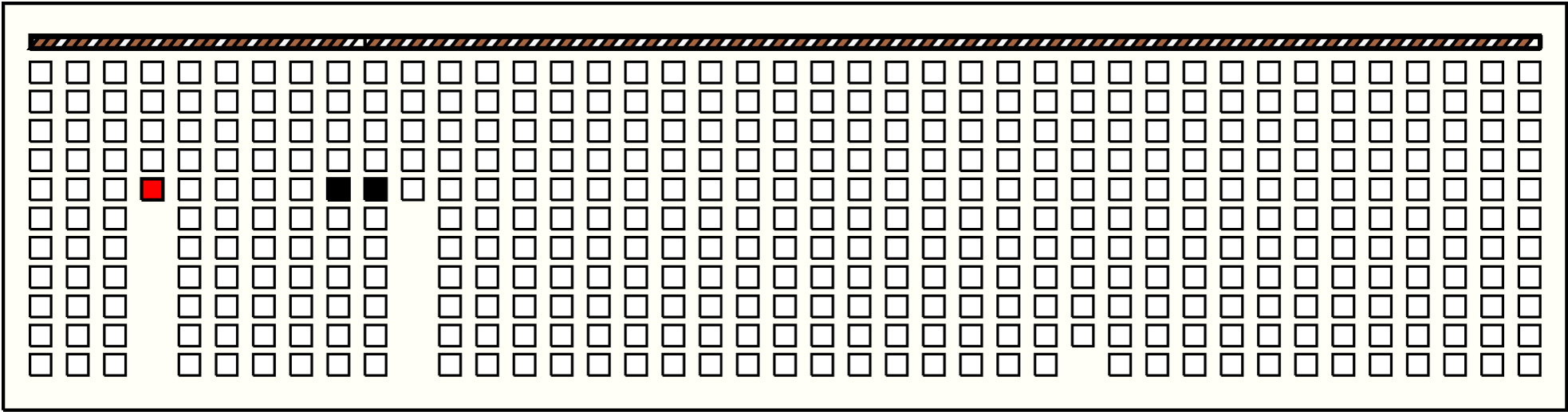

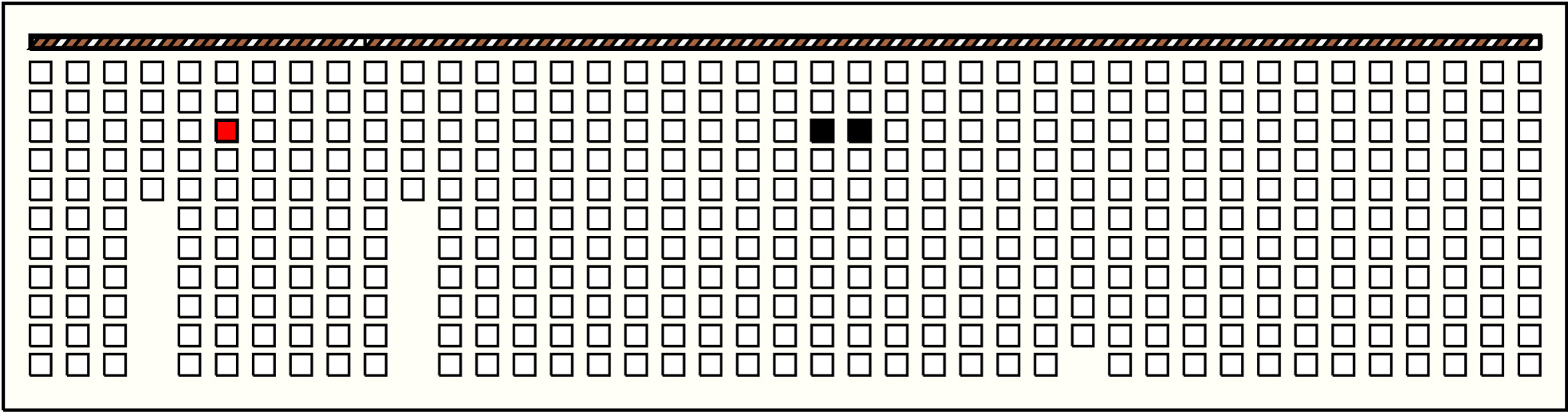

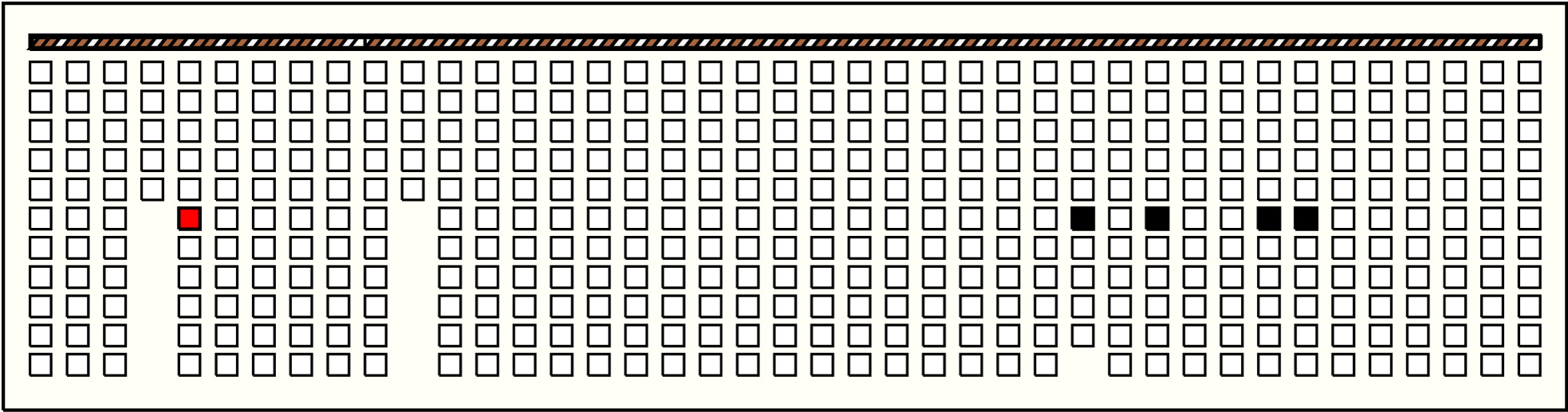

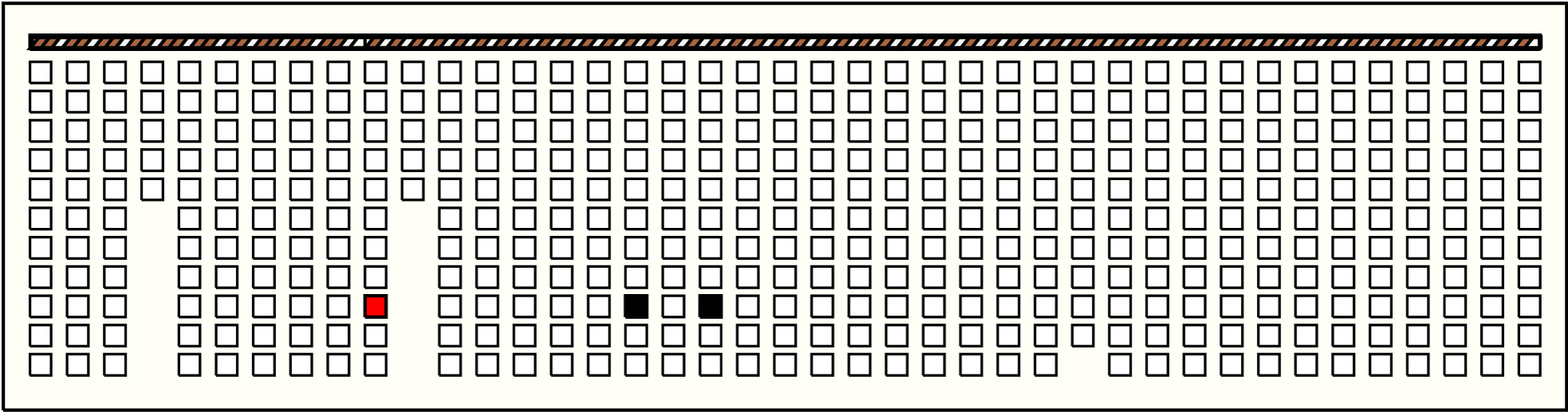

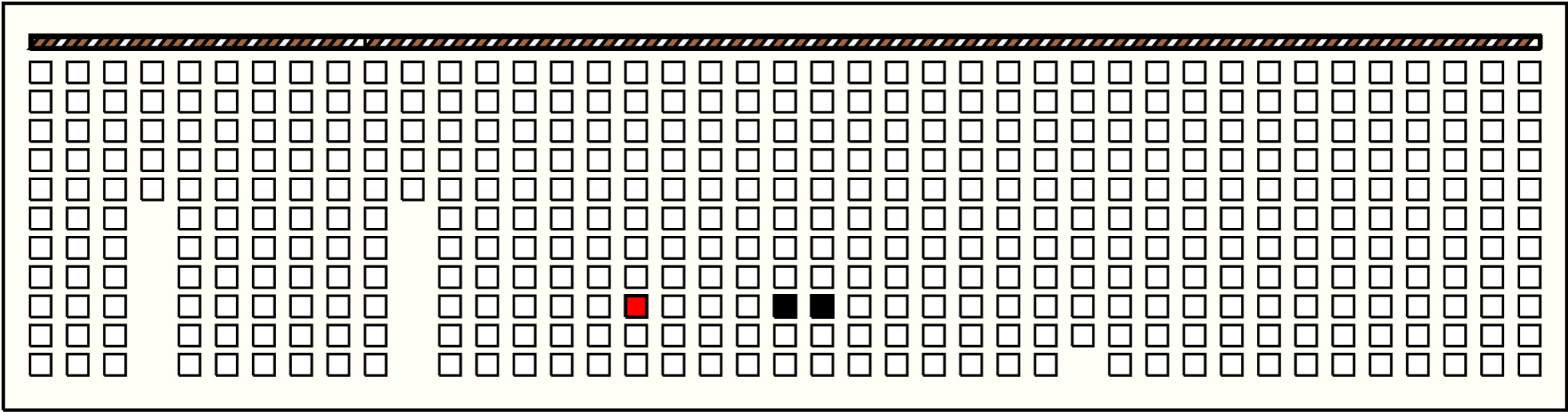

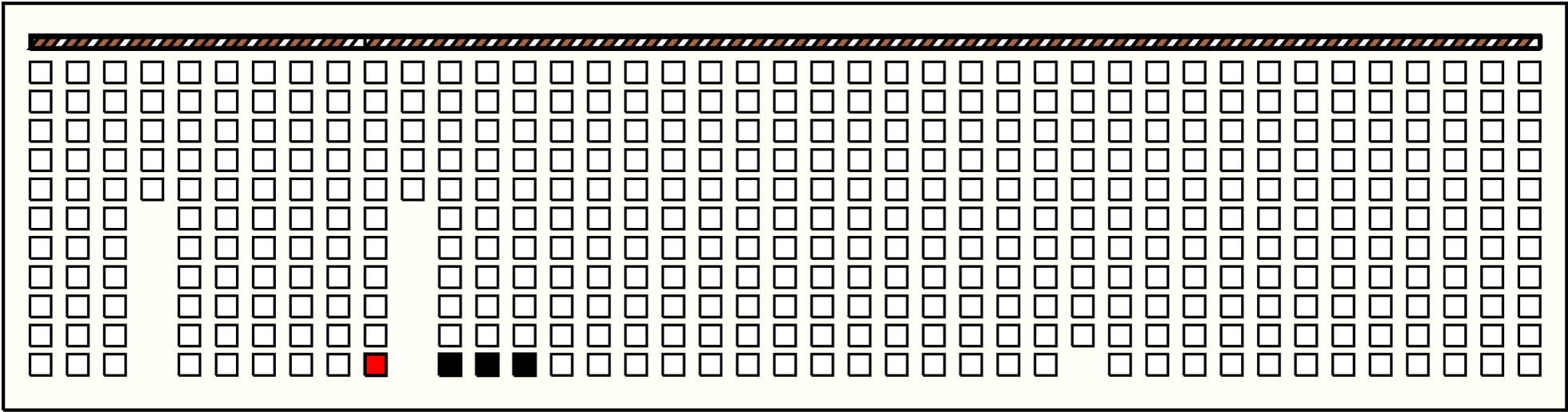

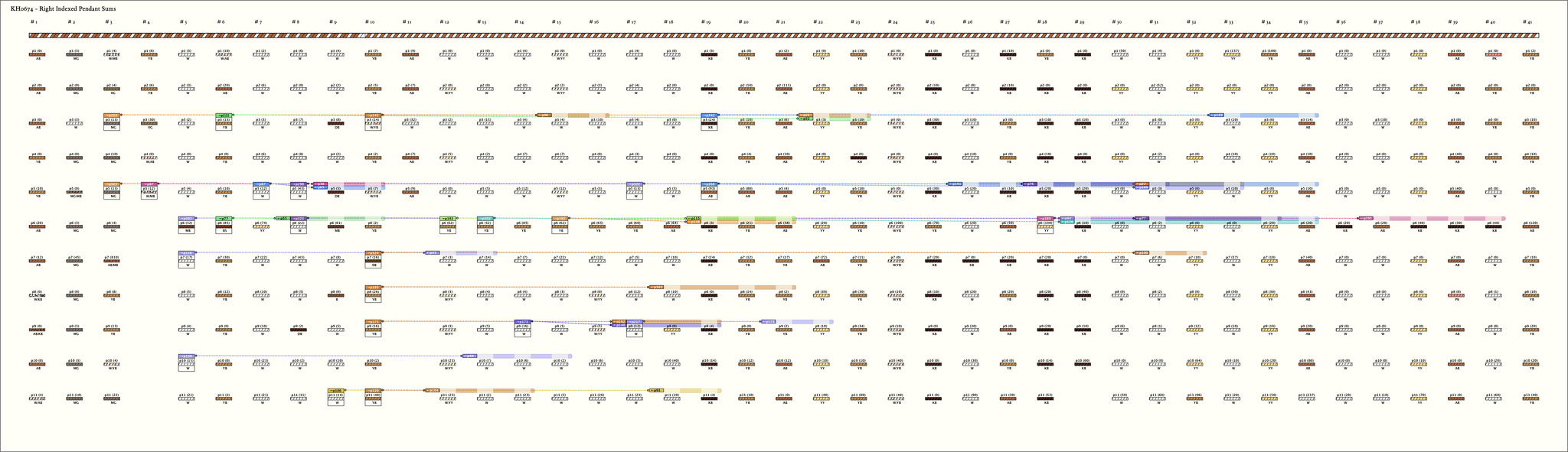

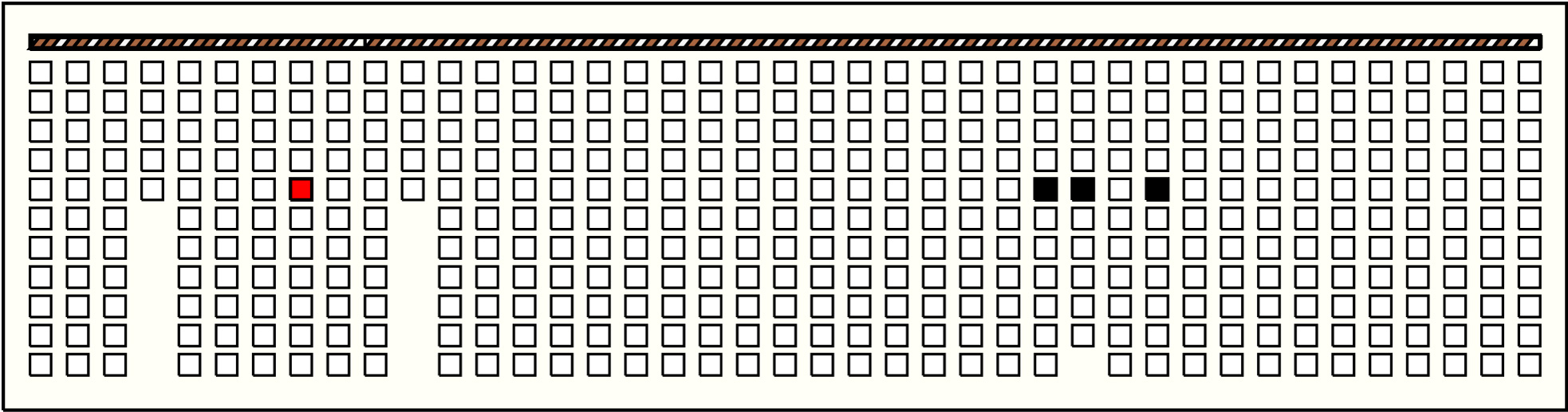

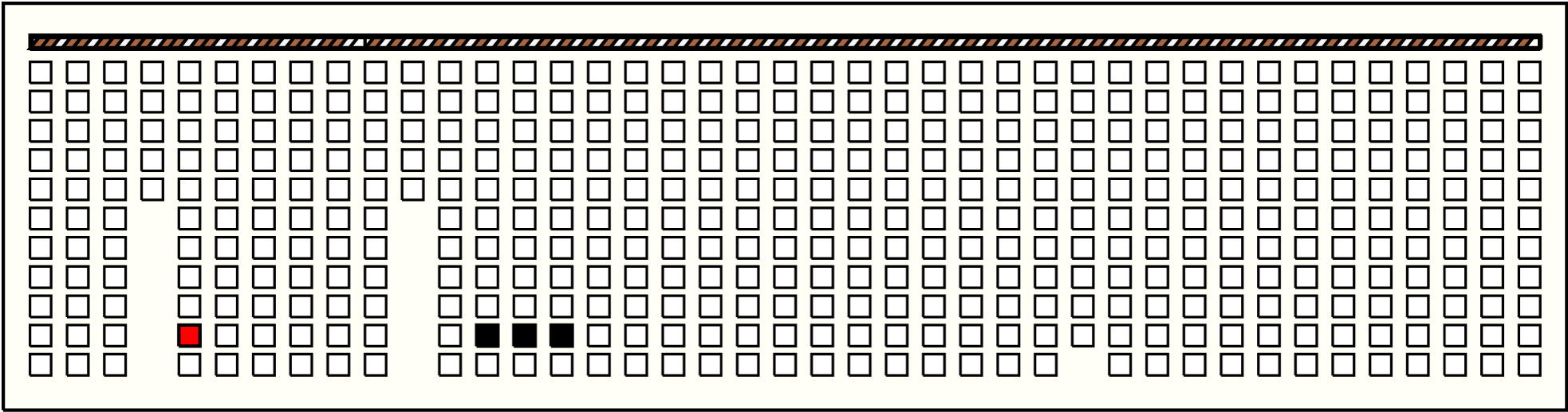

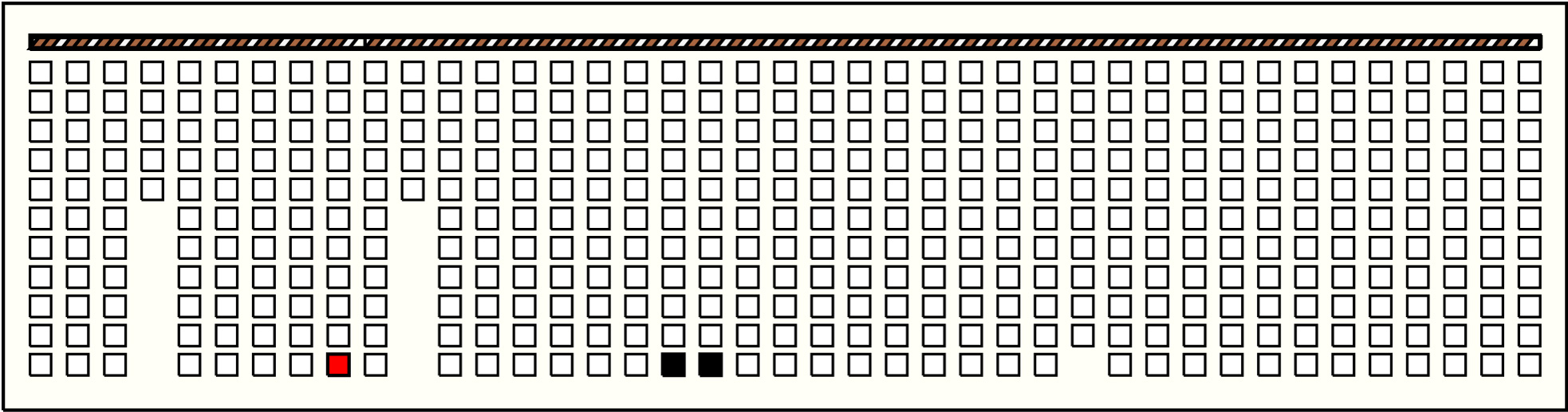

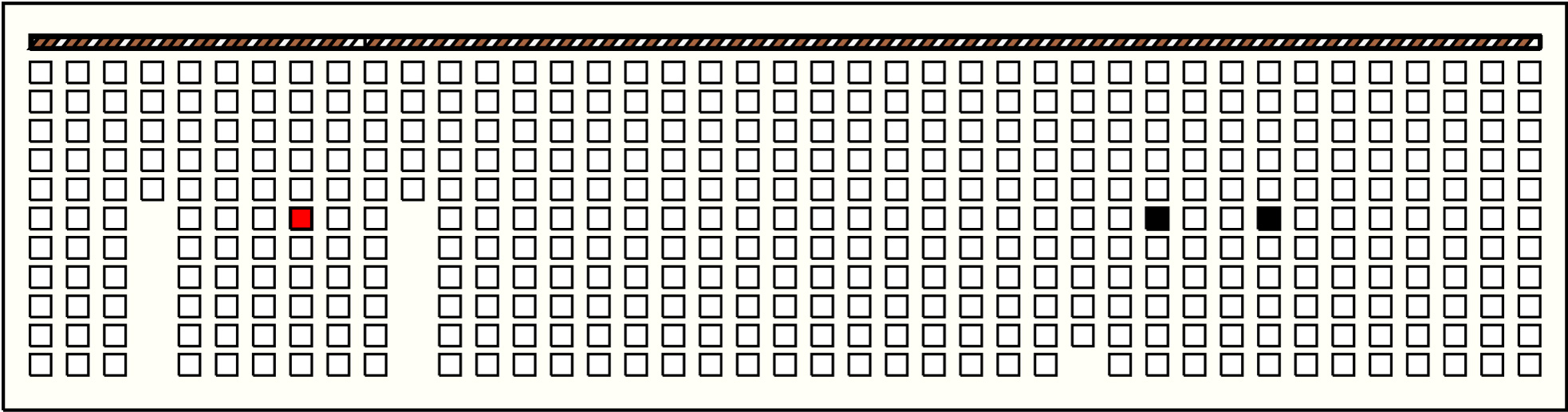

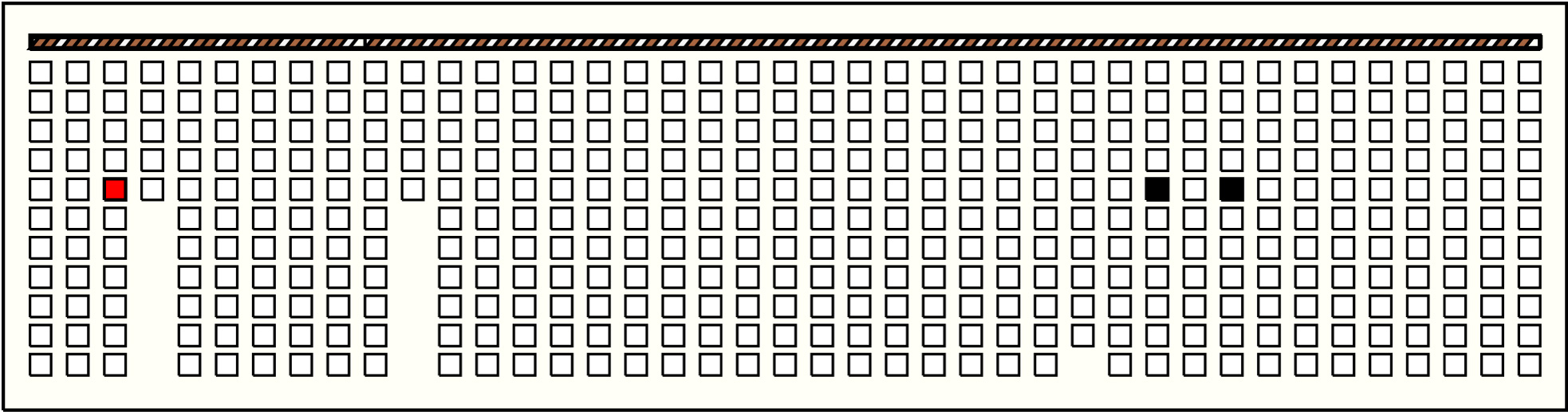

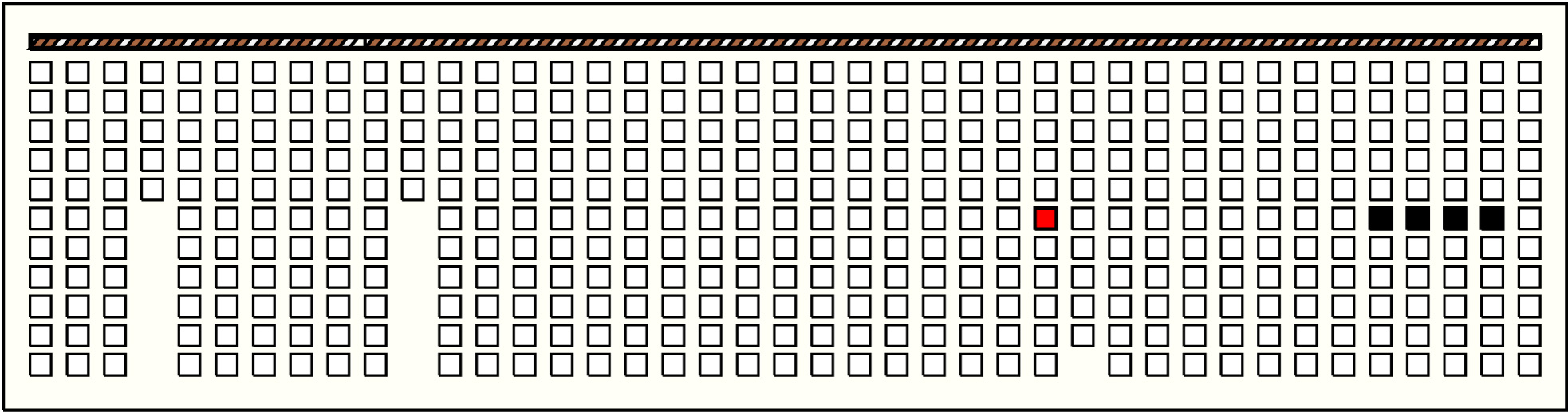

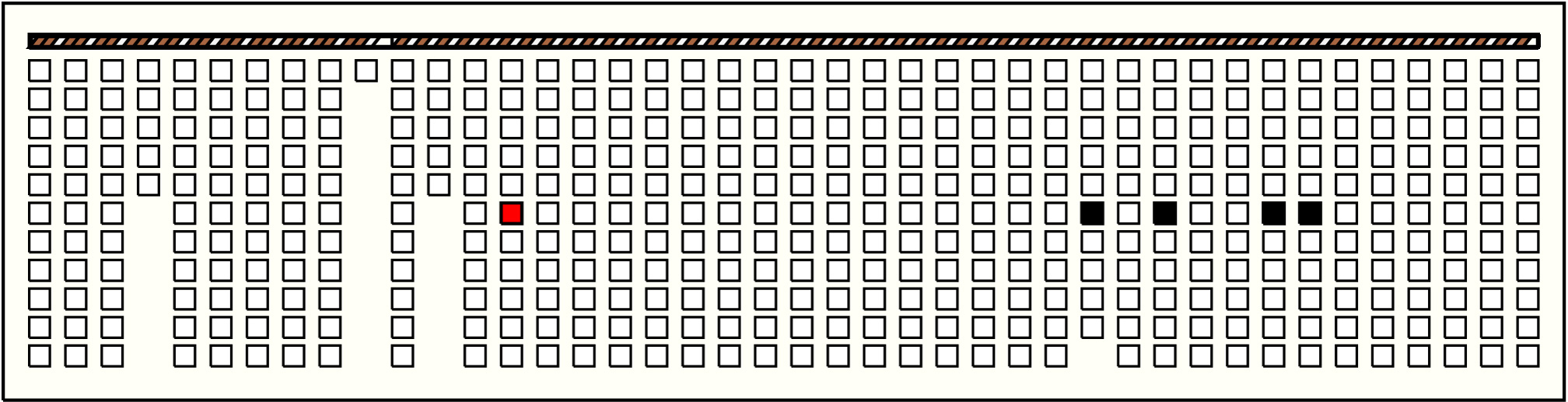

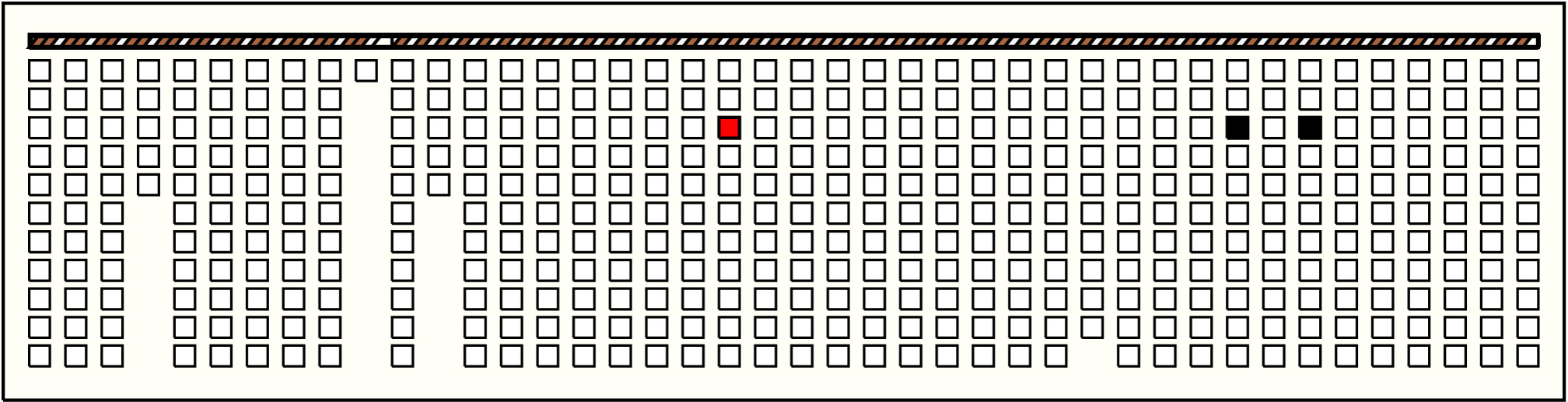

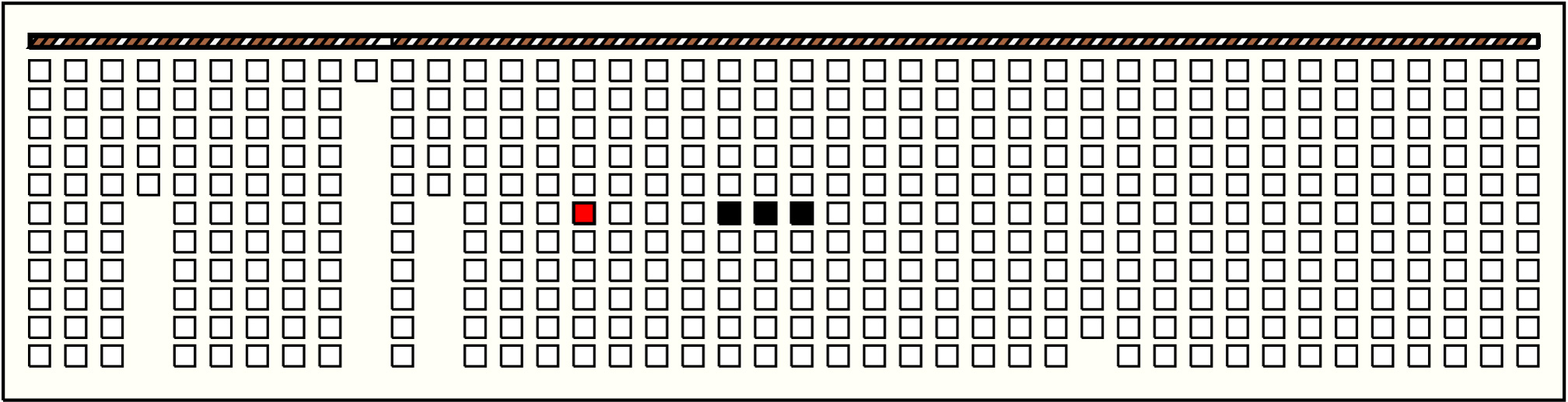

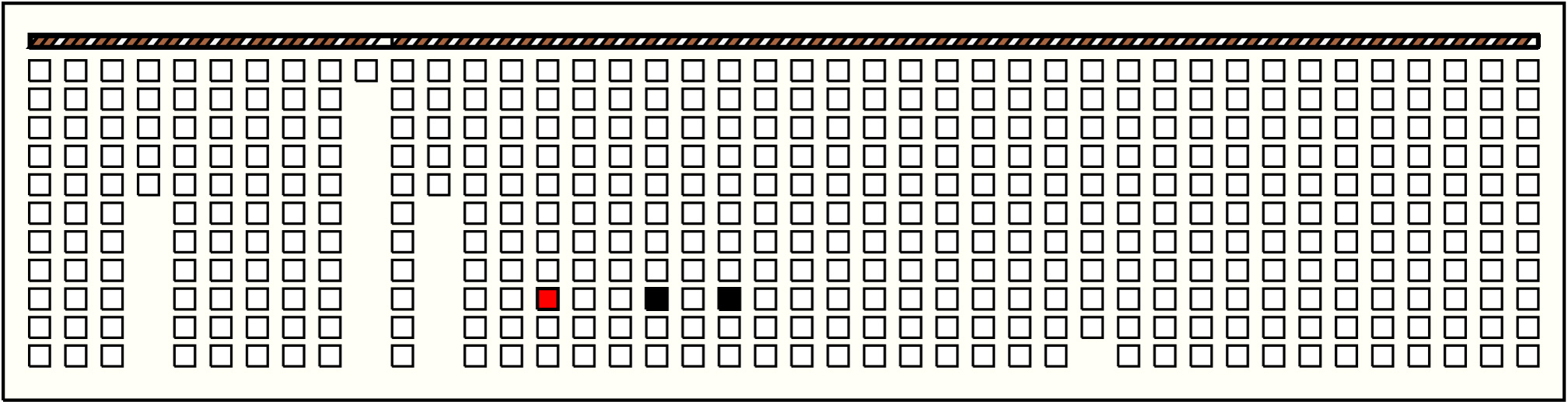

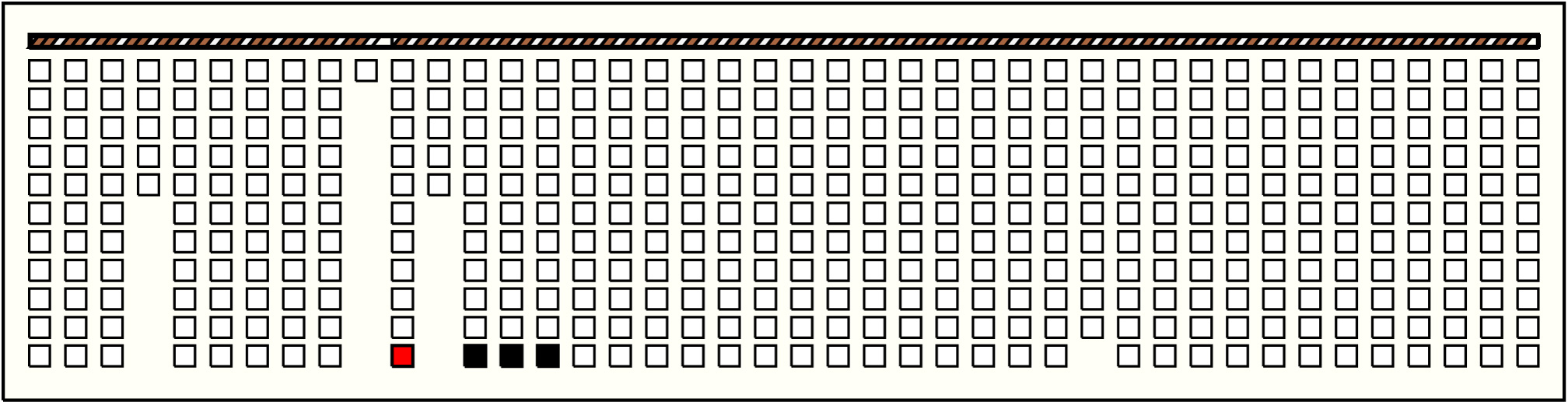

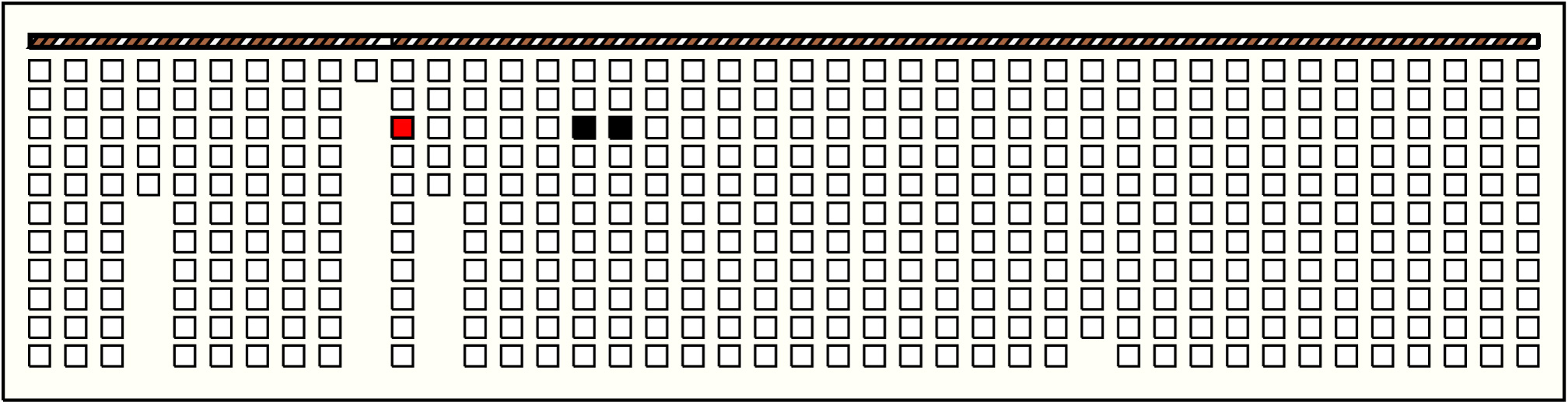

Right Handed Sums: # Sums = 26, Max # Summands = 7, (Min, Mean, Max) Sum Values = (12, 34, 130)
Click on Image to View Larger

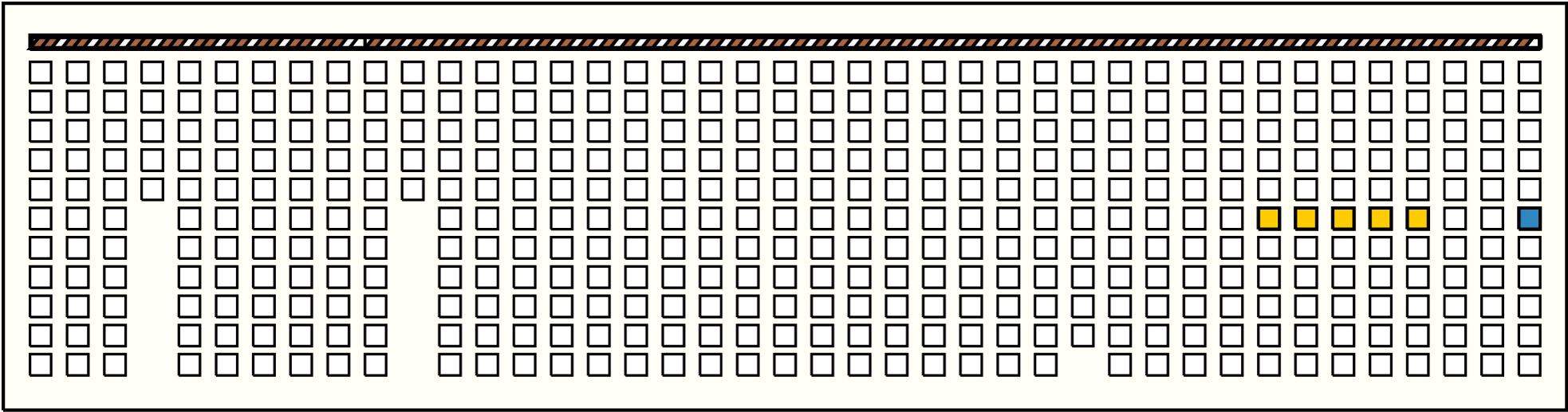

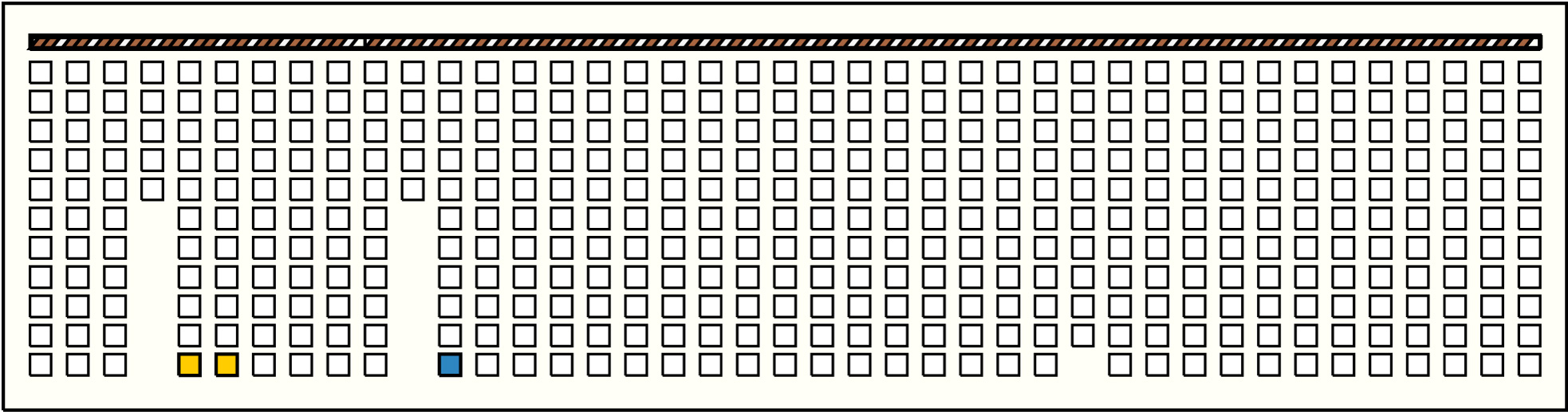

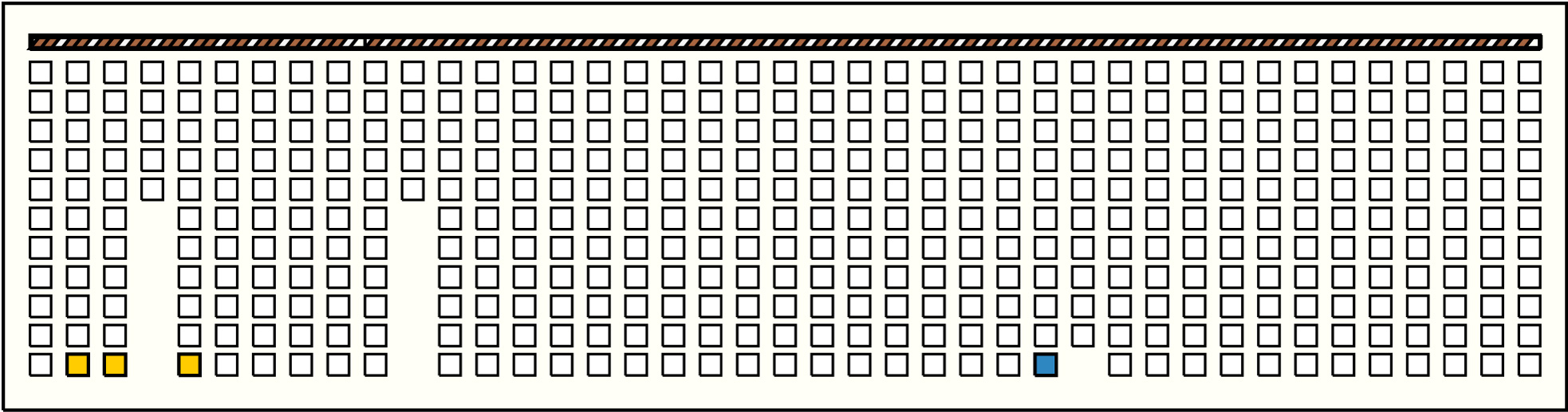

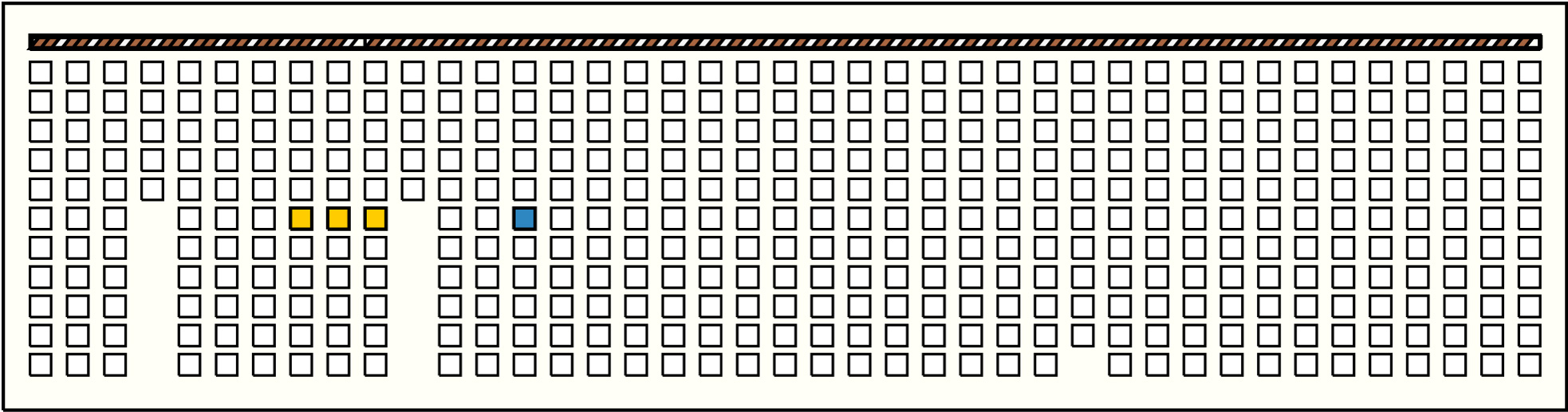

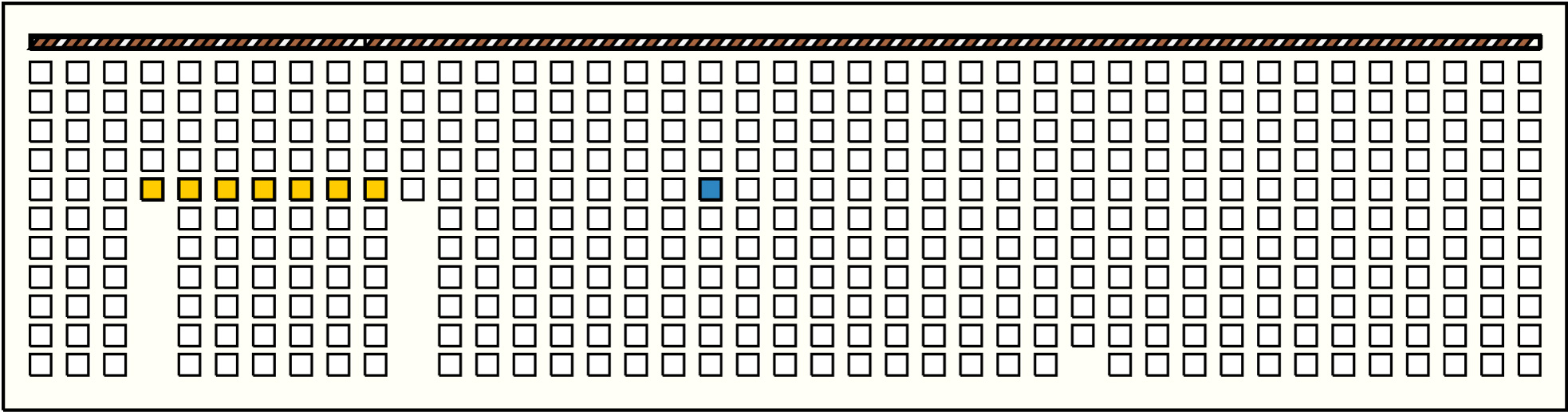

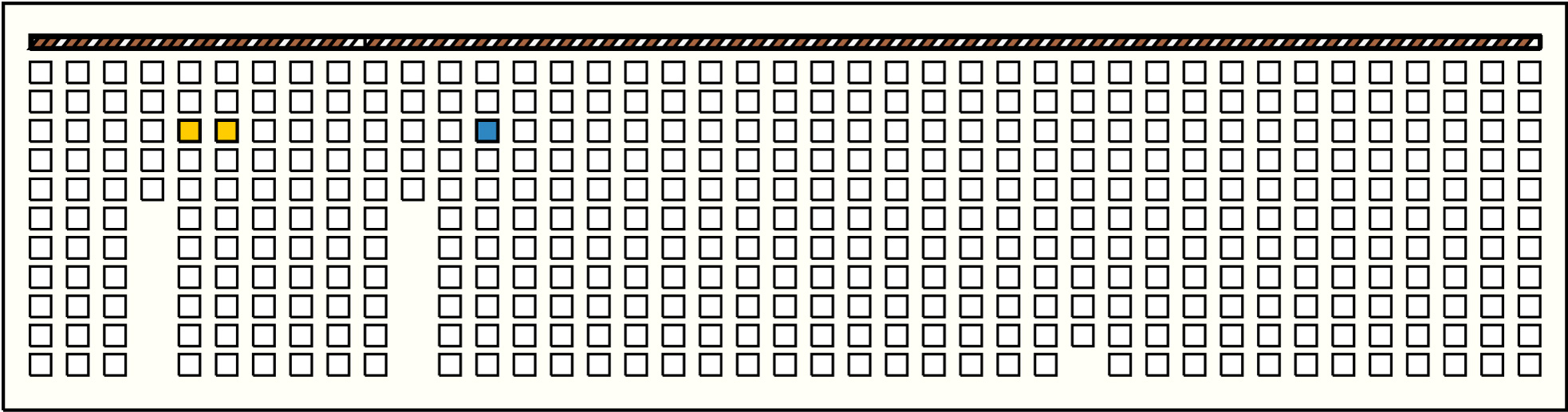

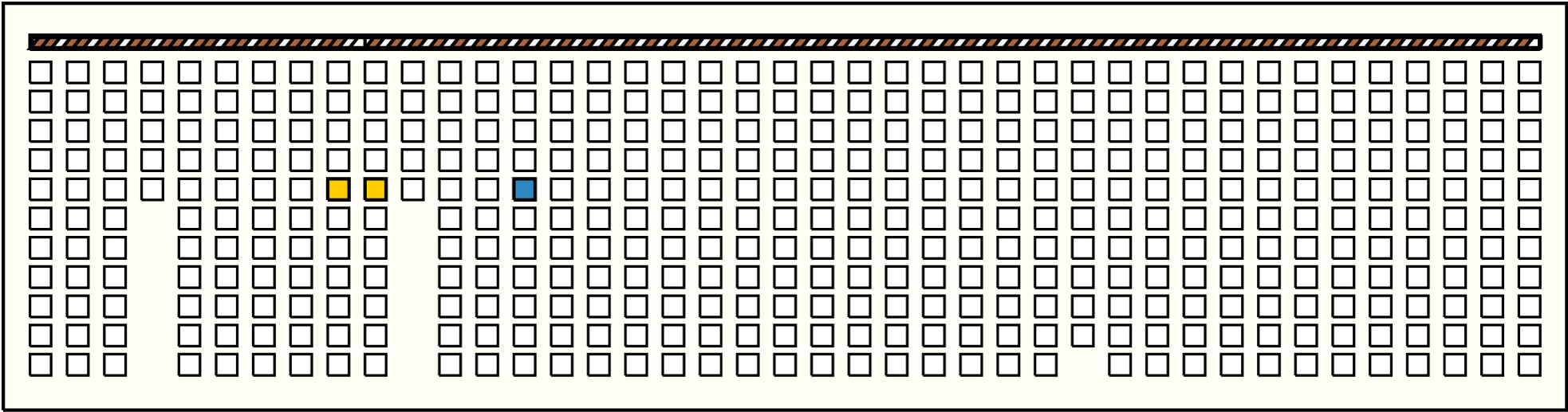

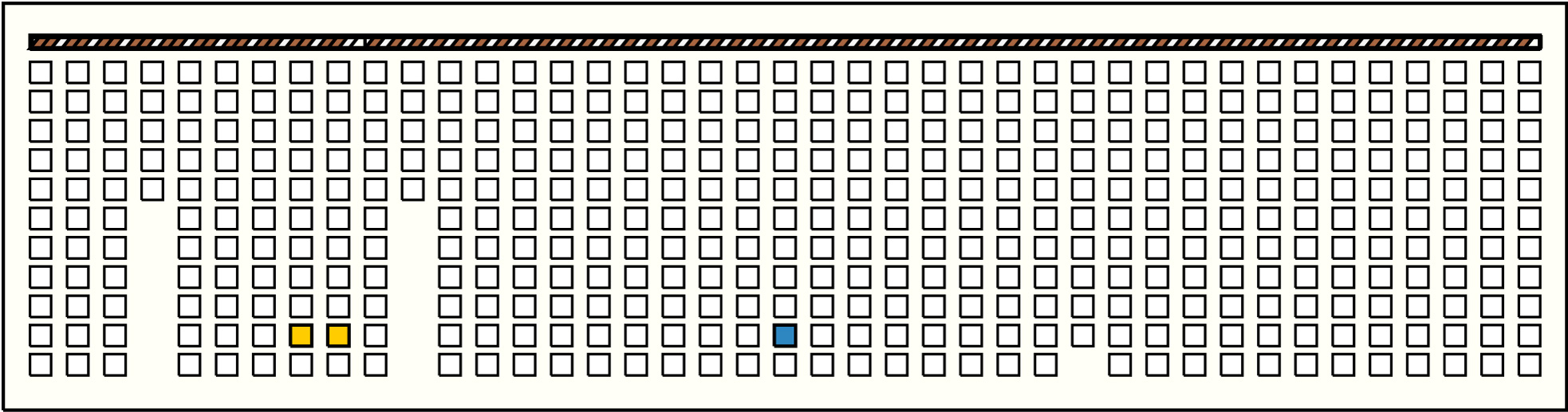

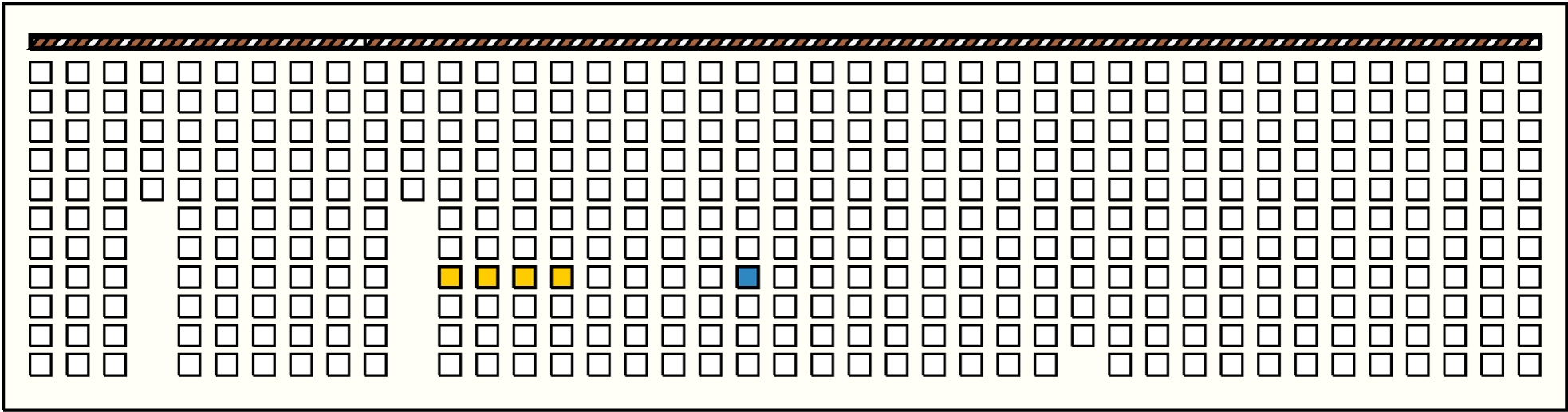

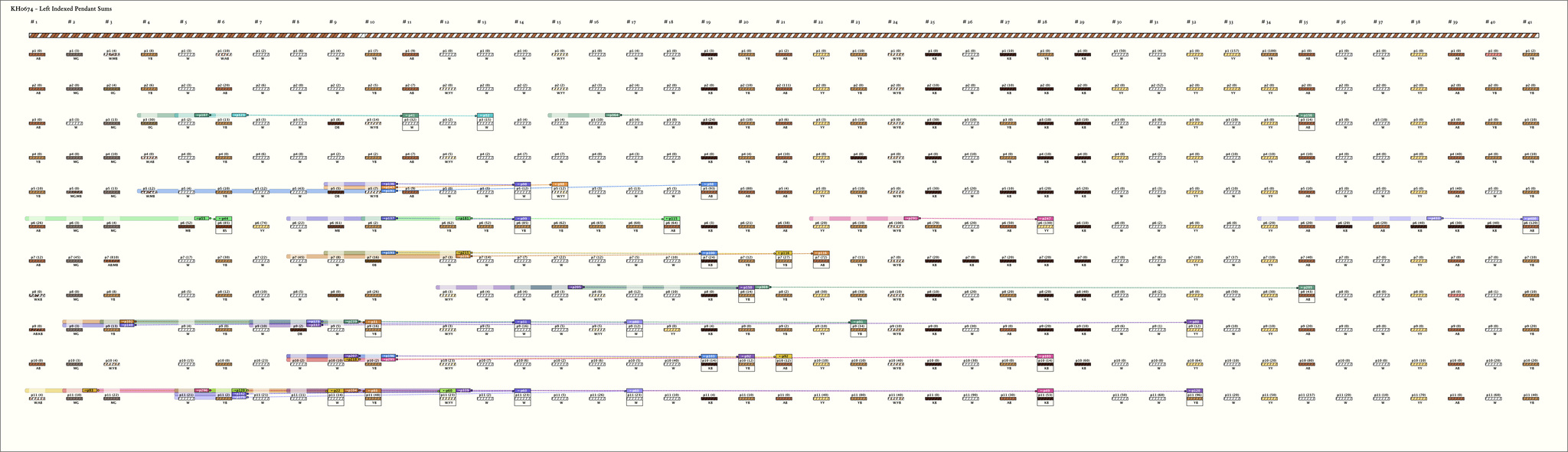

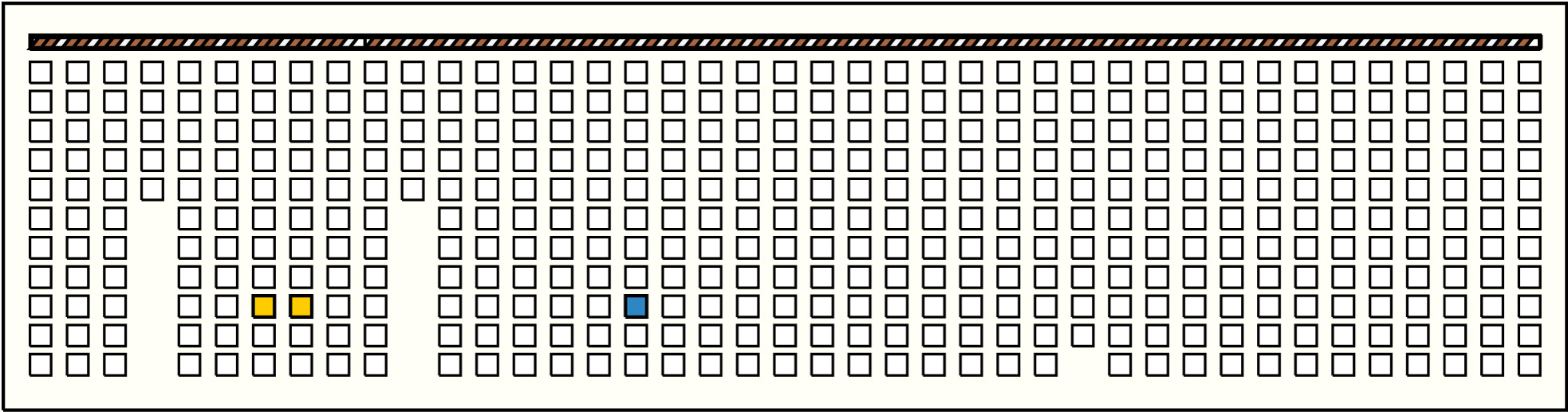

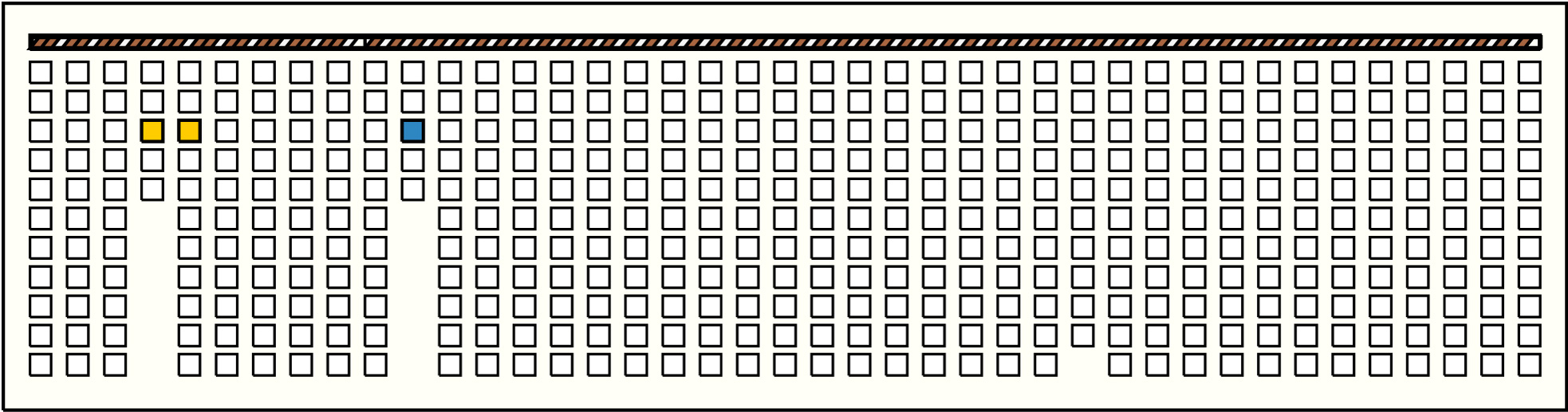

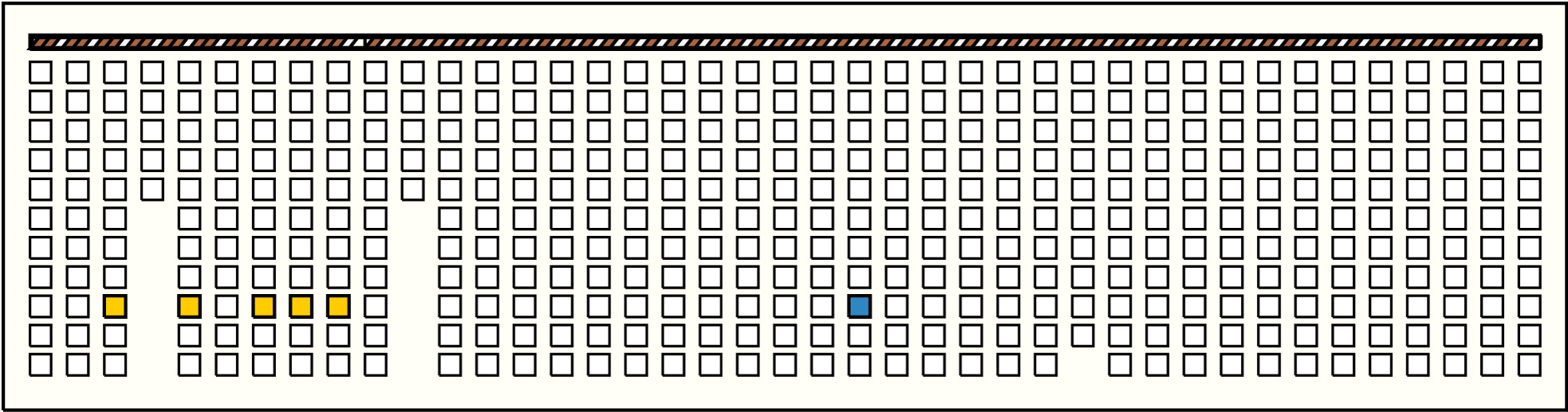

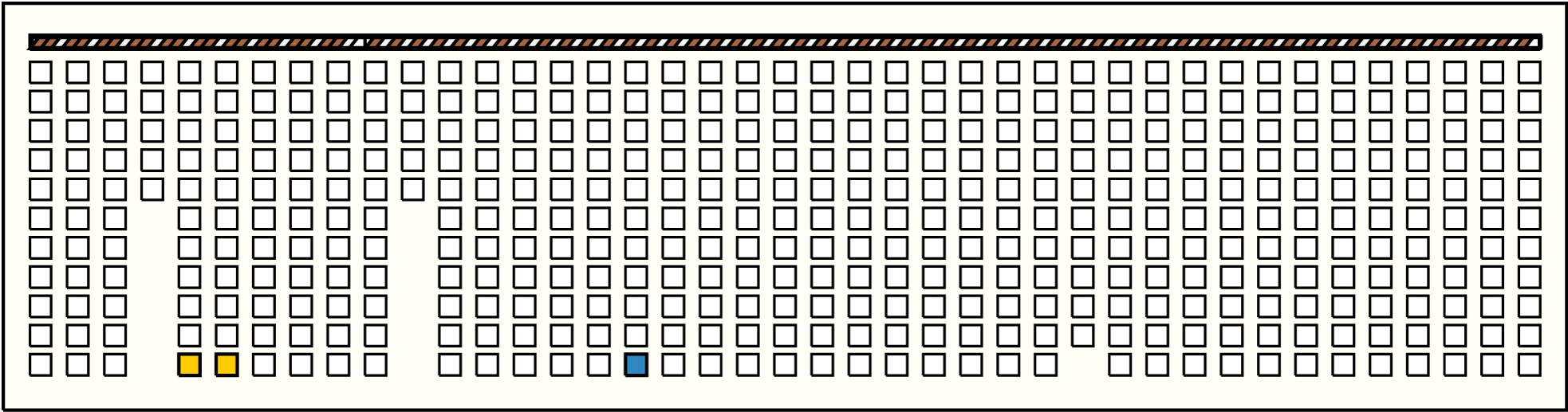

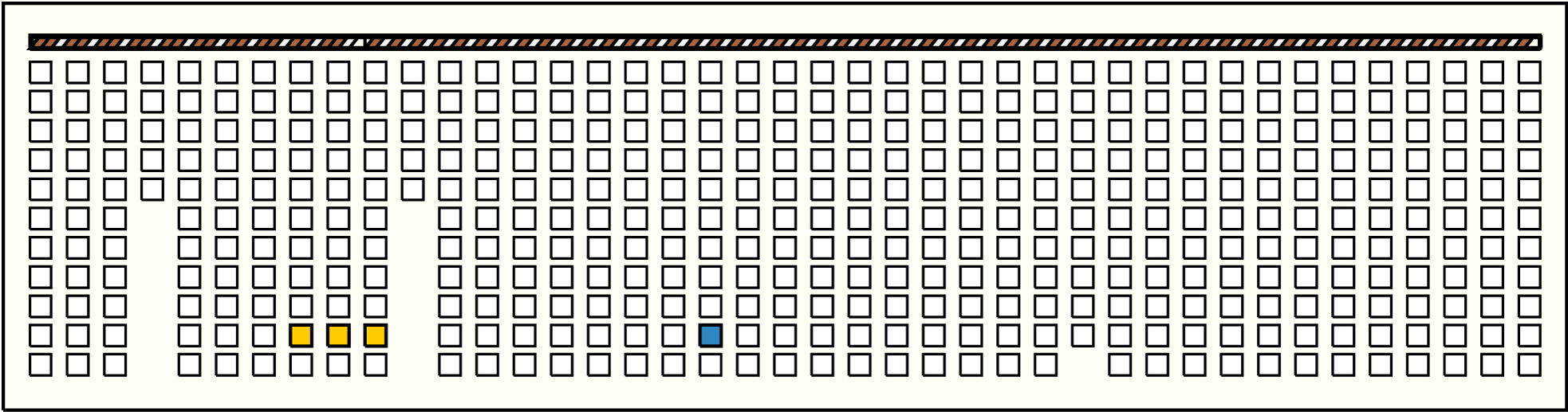

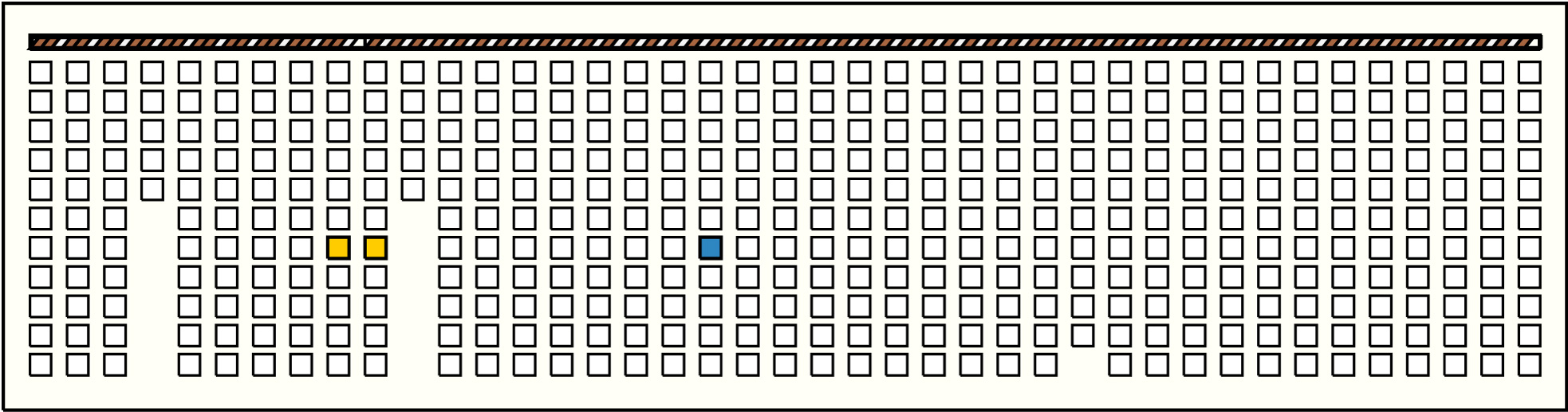

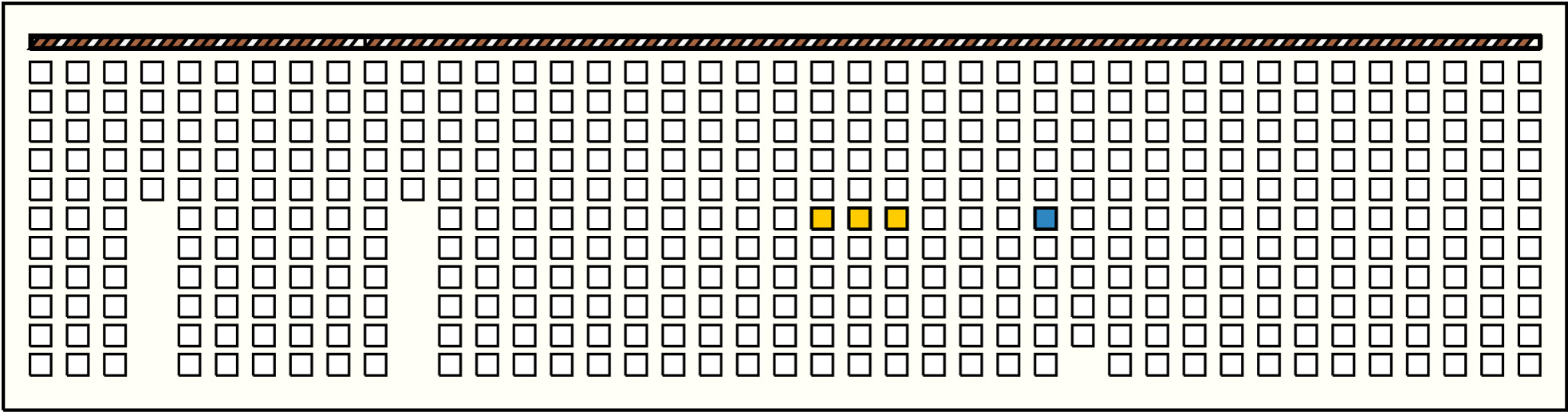

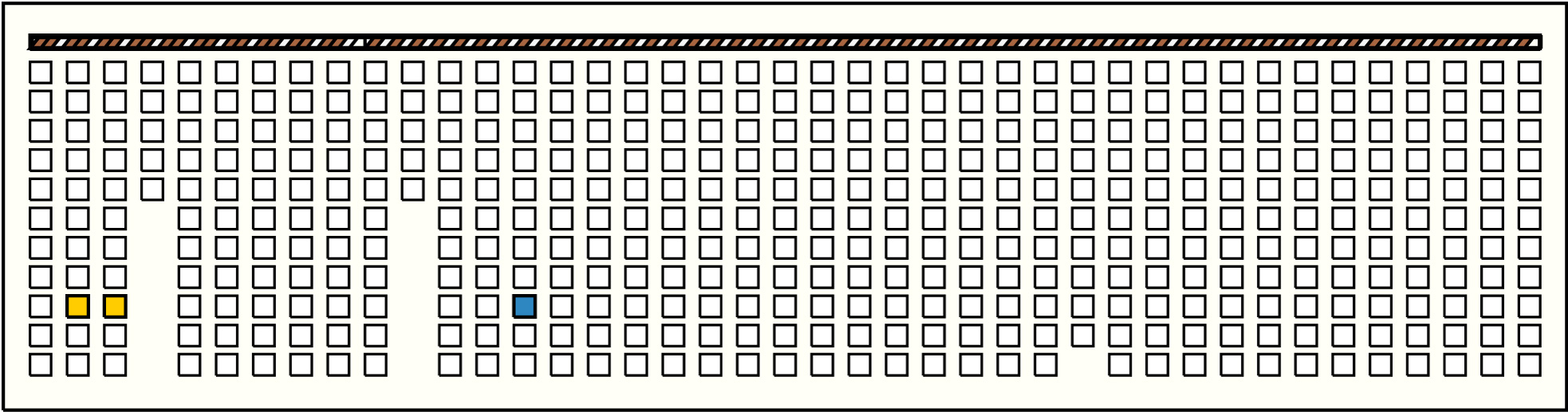

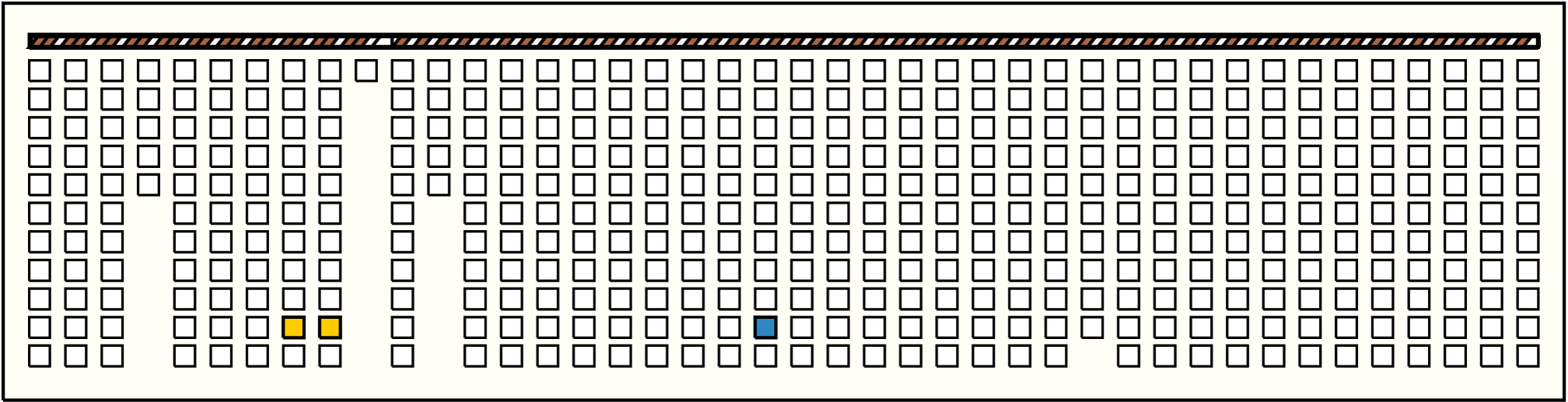

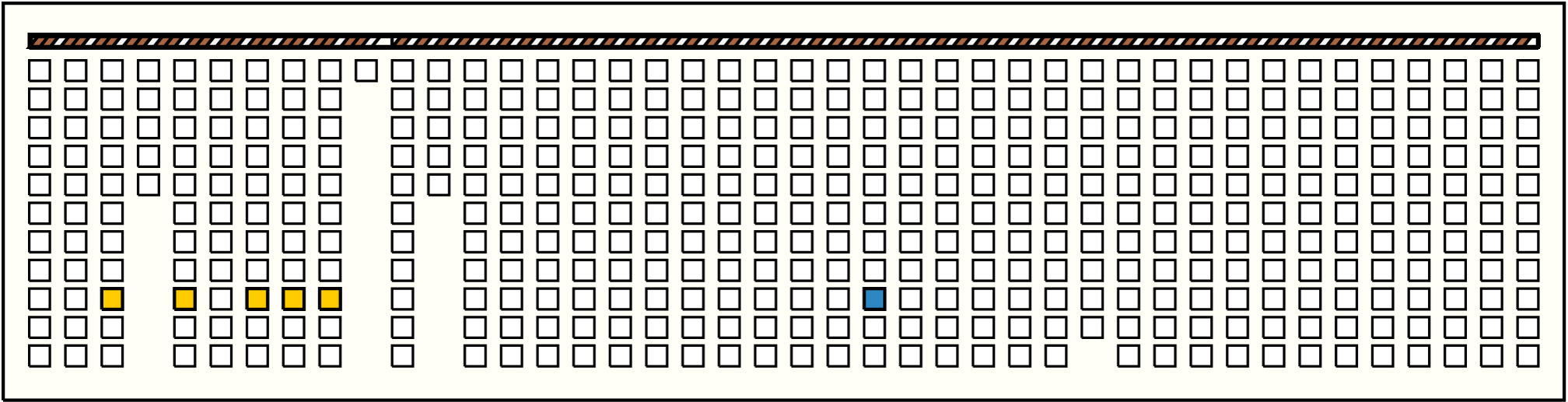

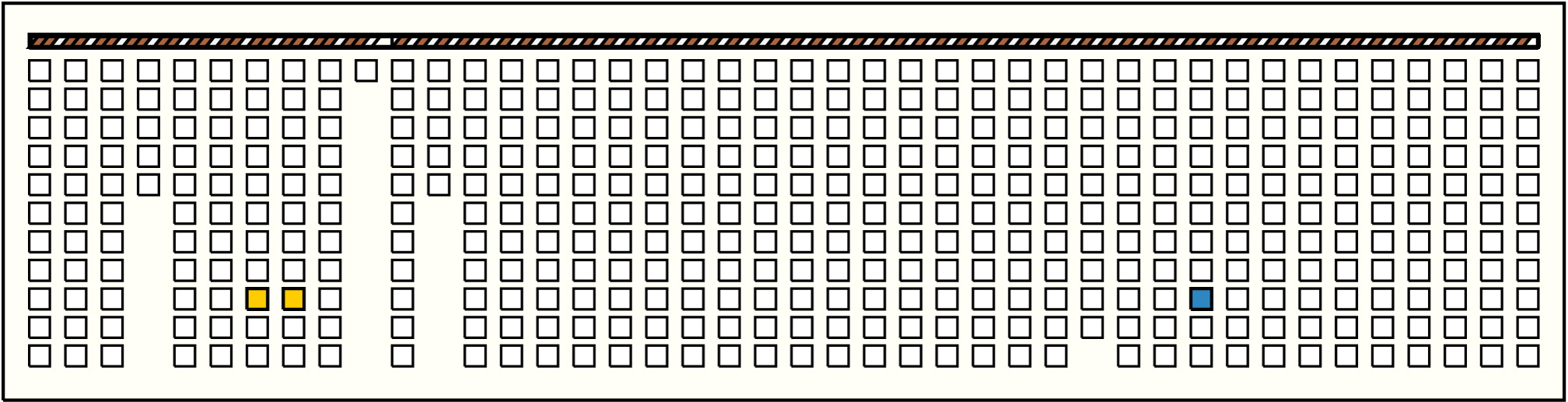

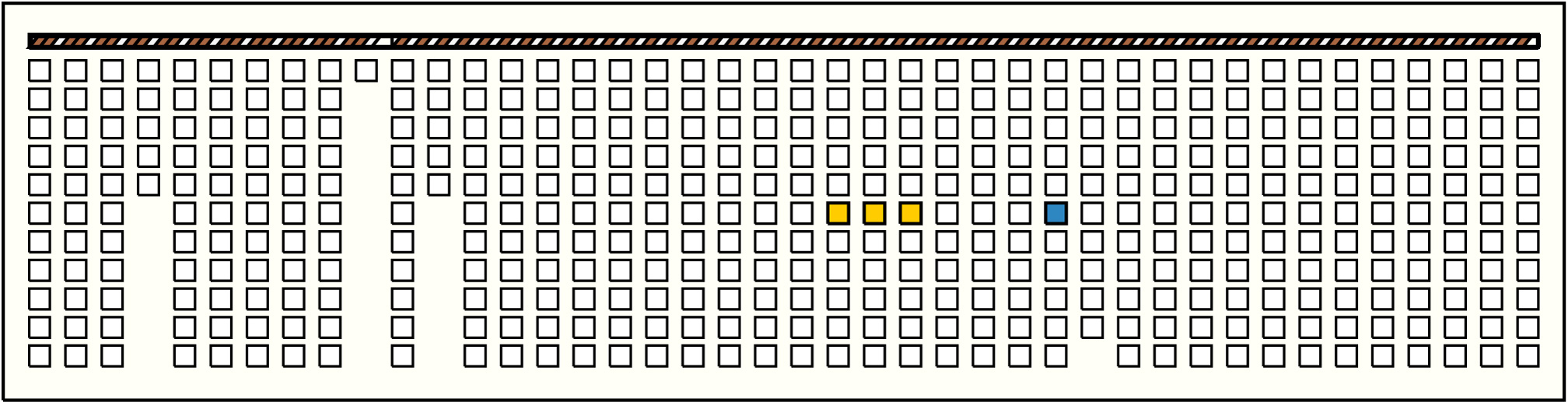

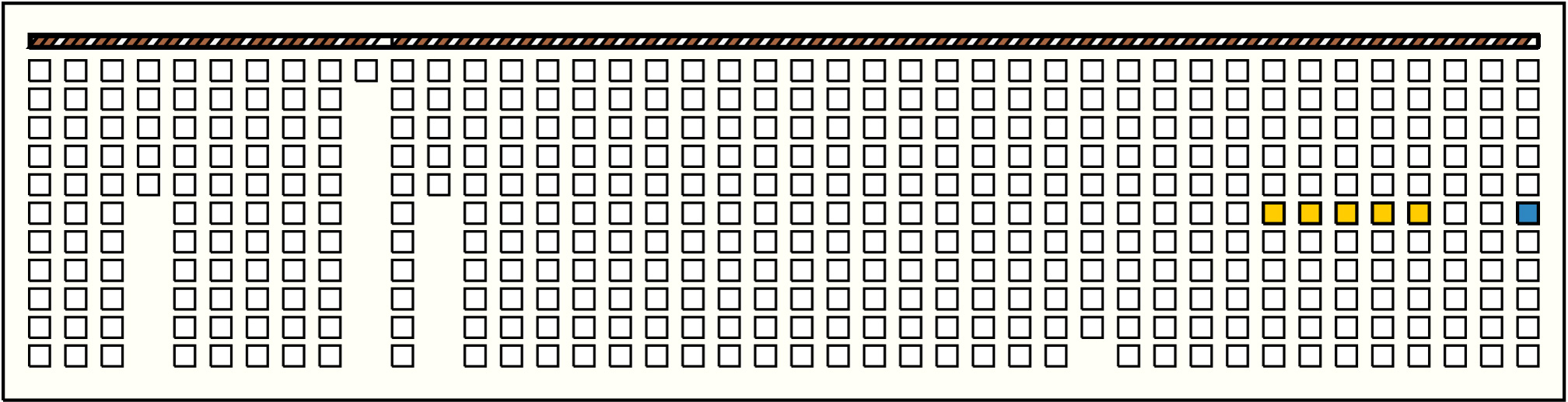

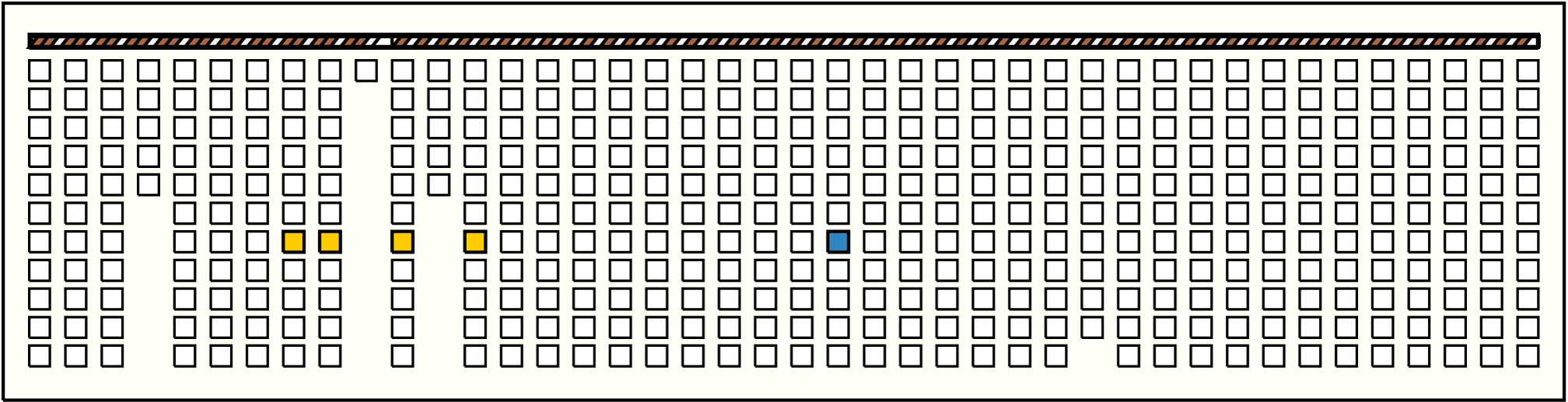

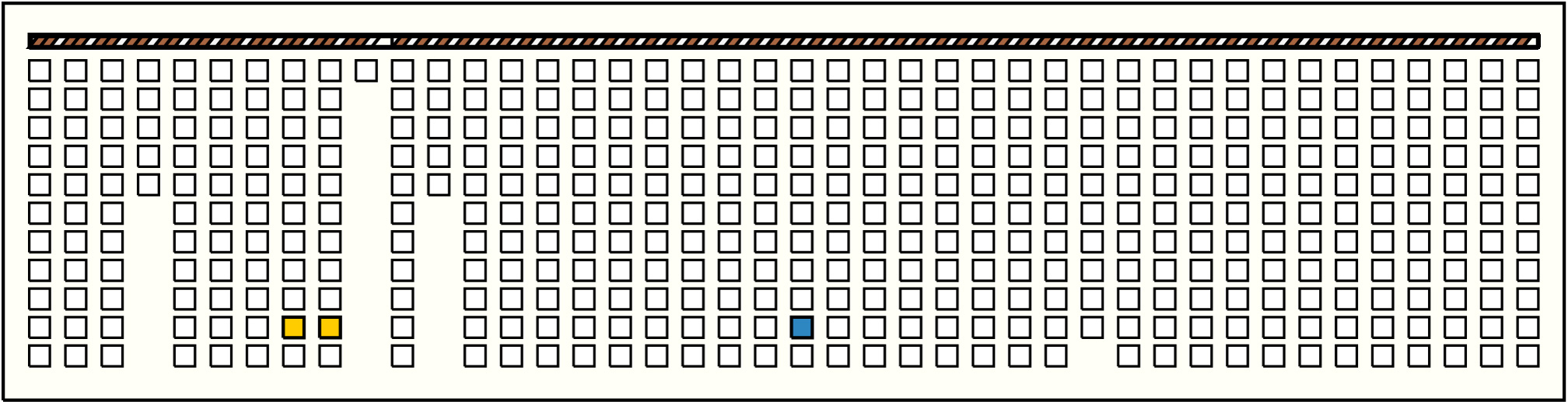

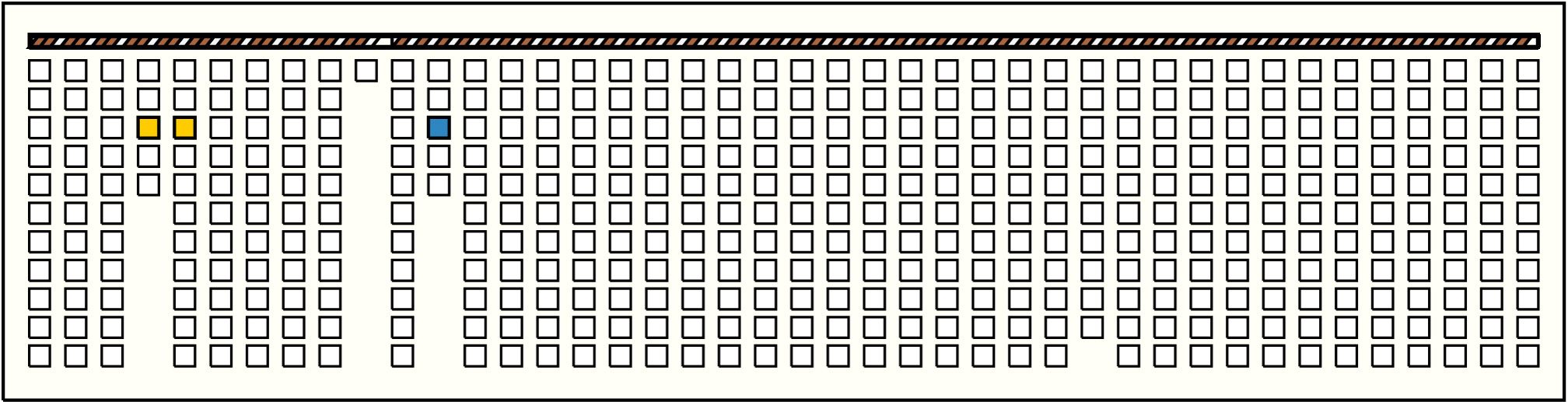

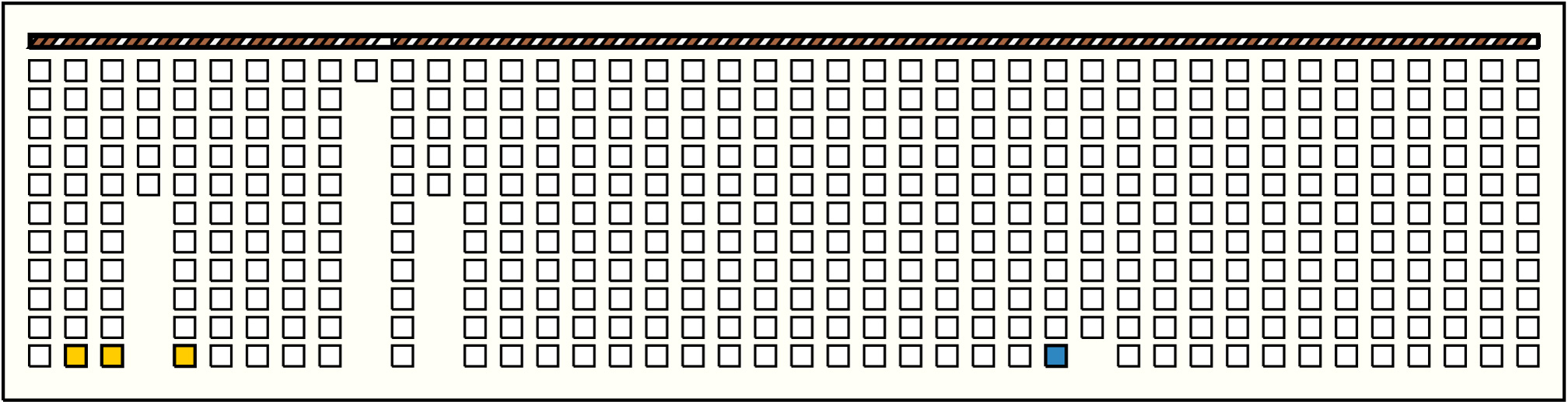

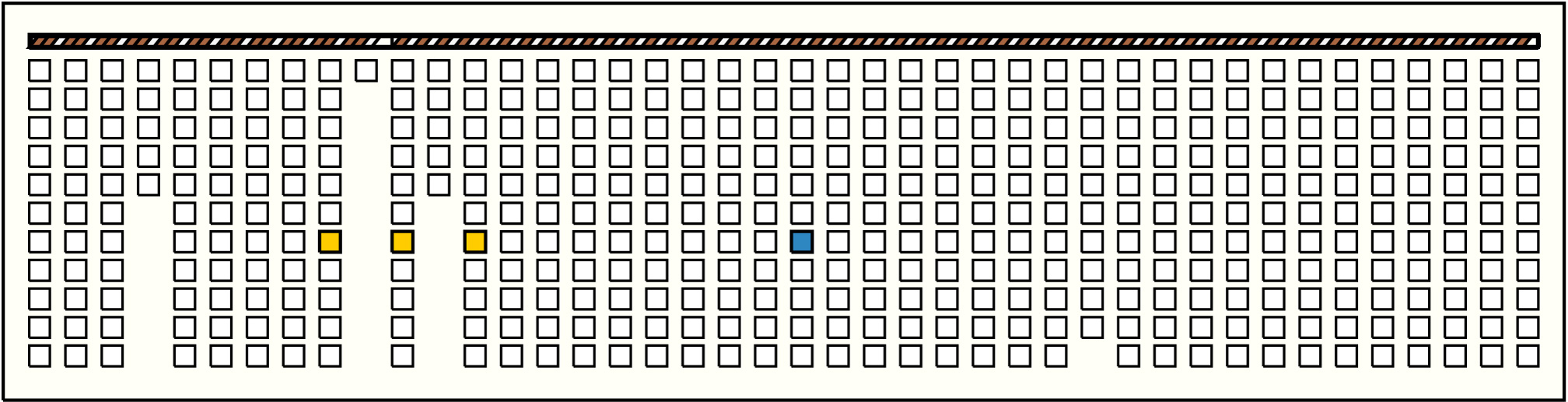

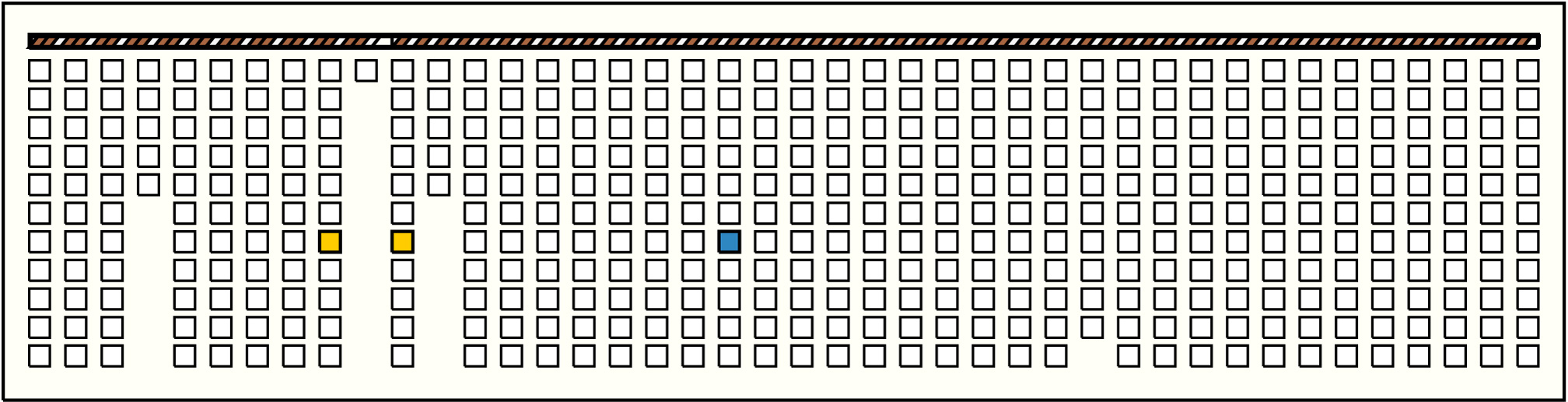

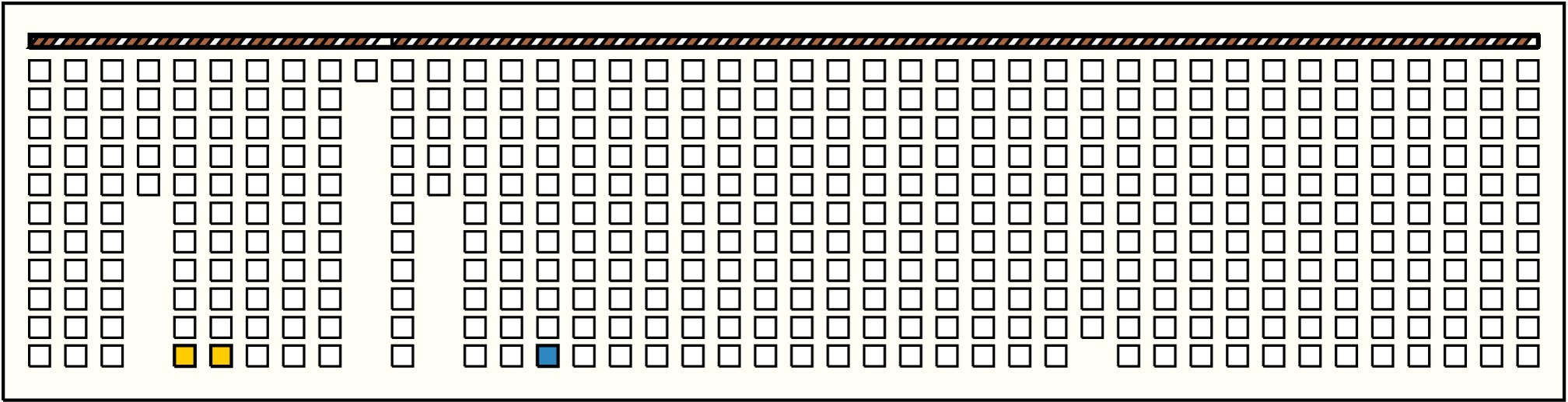

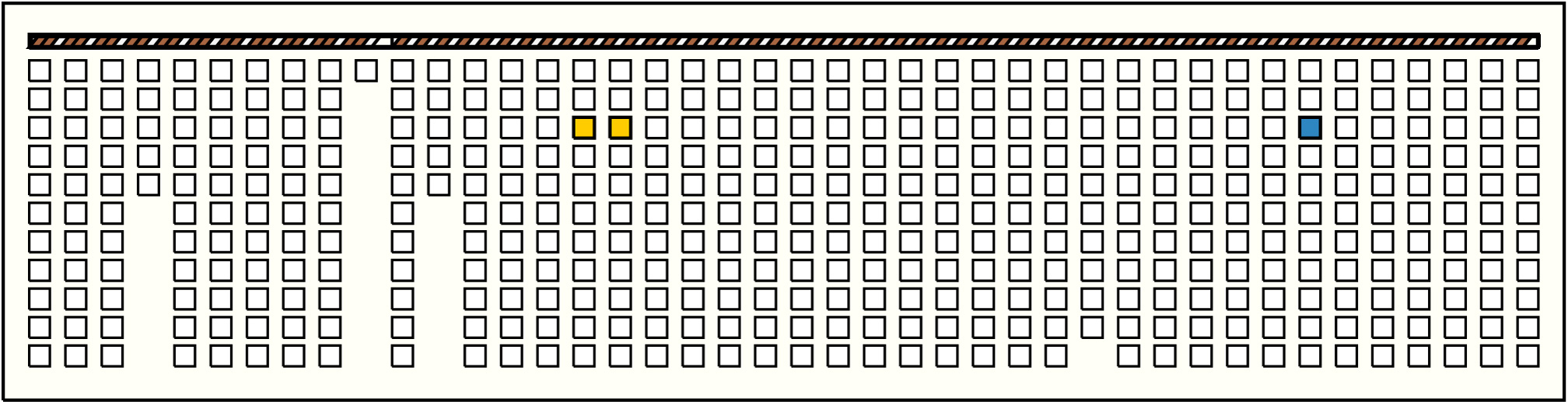

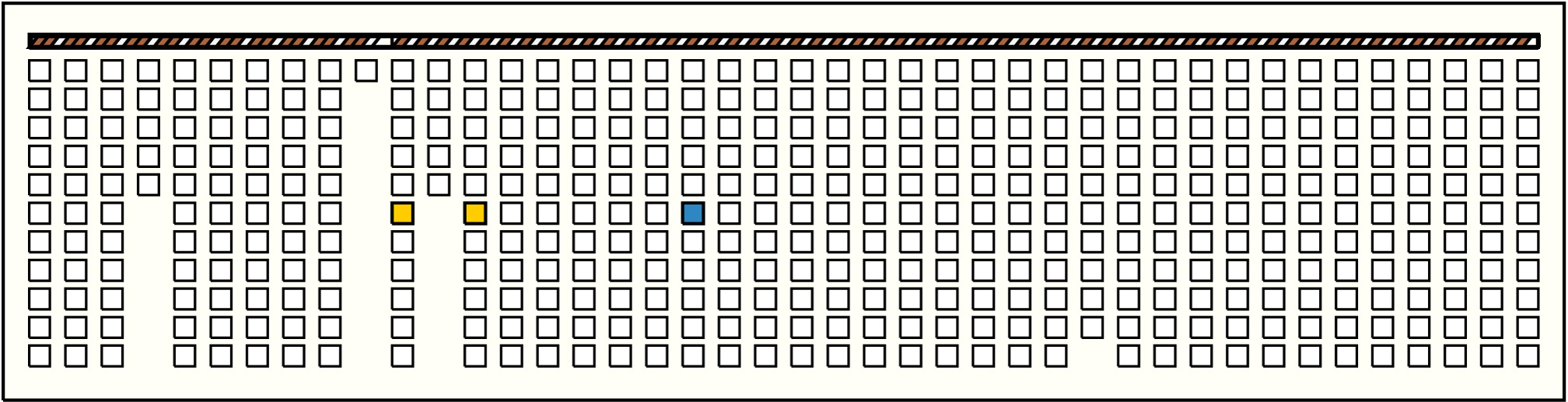

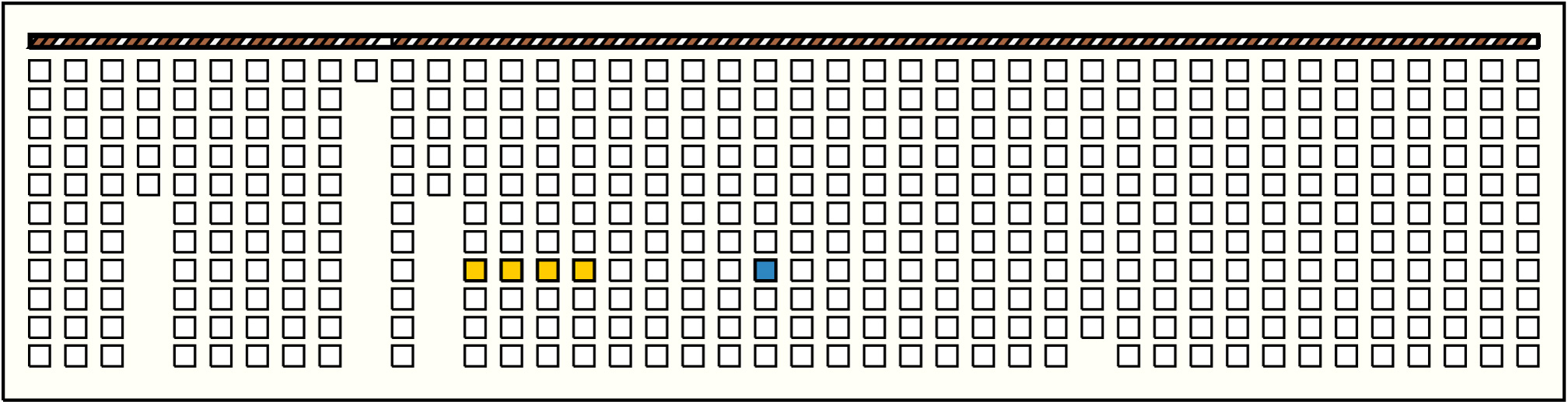

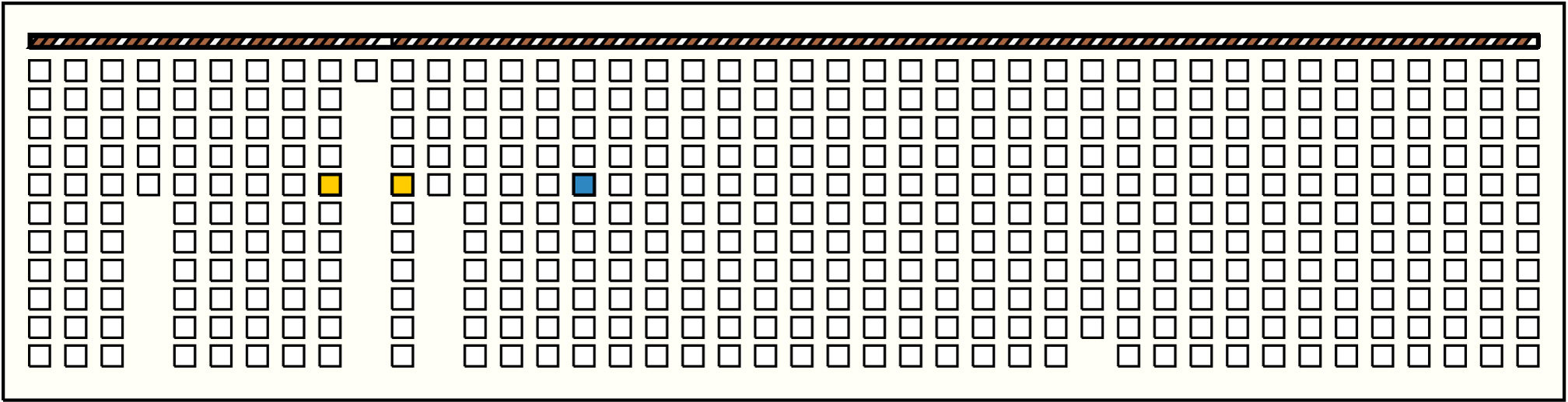

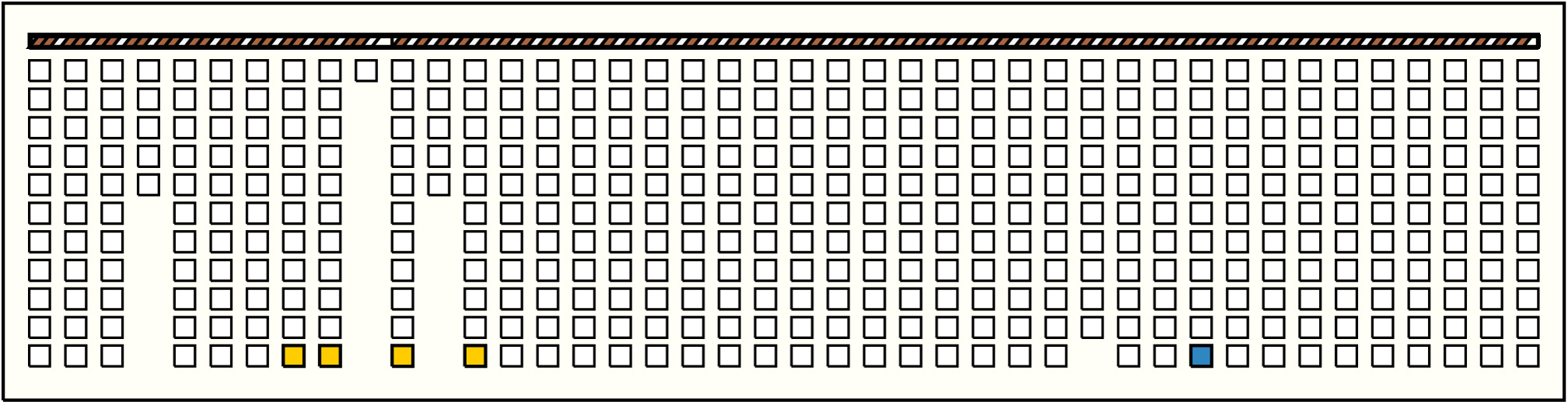

Left Handed Sums: # Sums = 32, Max # Summands = 7, (Min, Mean, Max) Sum Values = (12, 40, 130)
Click on Image to View Larger

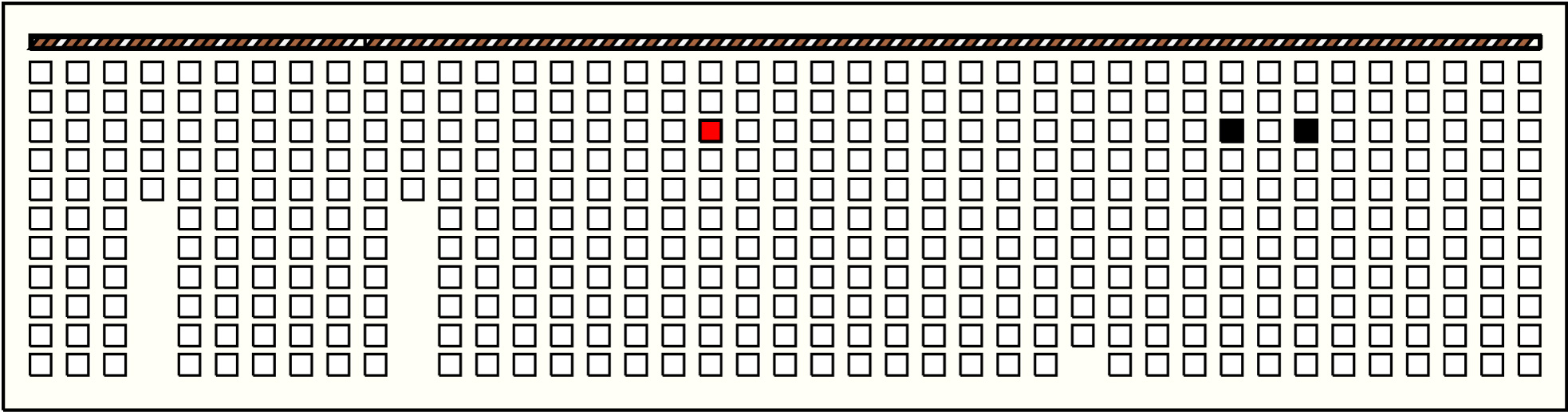

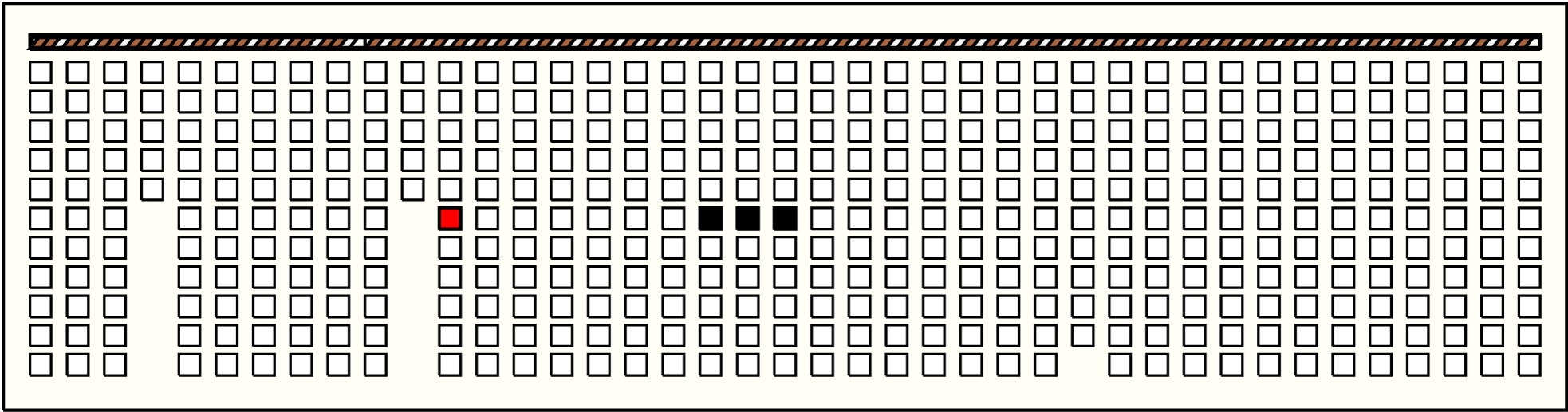

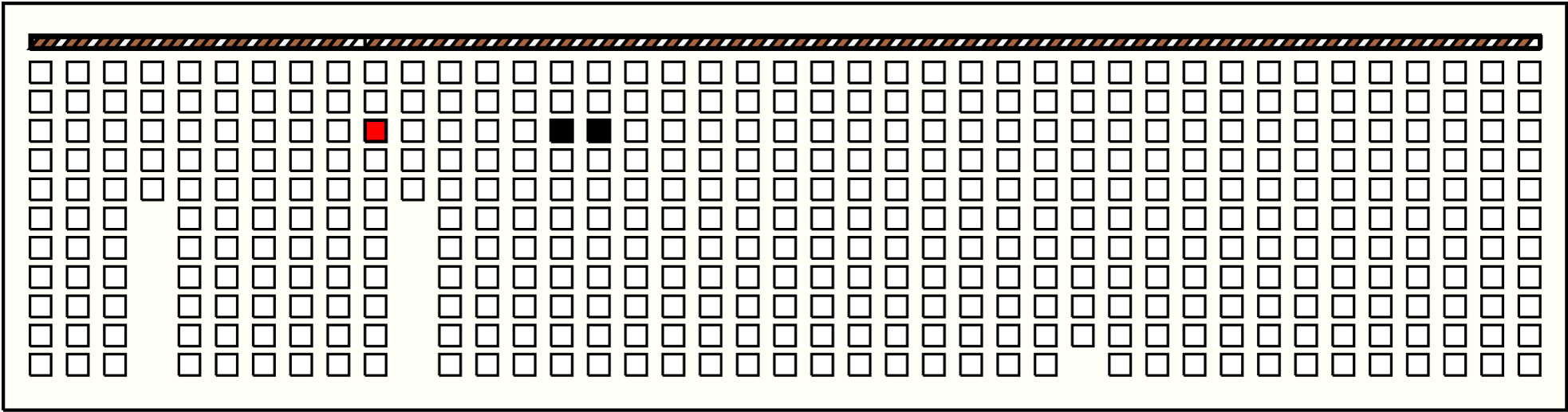

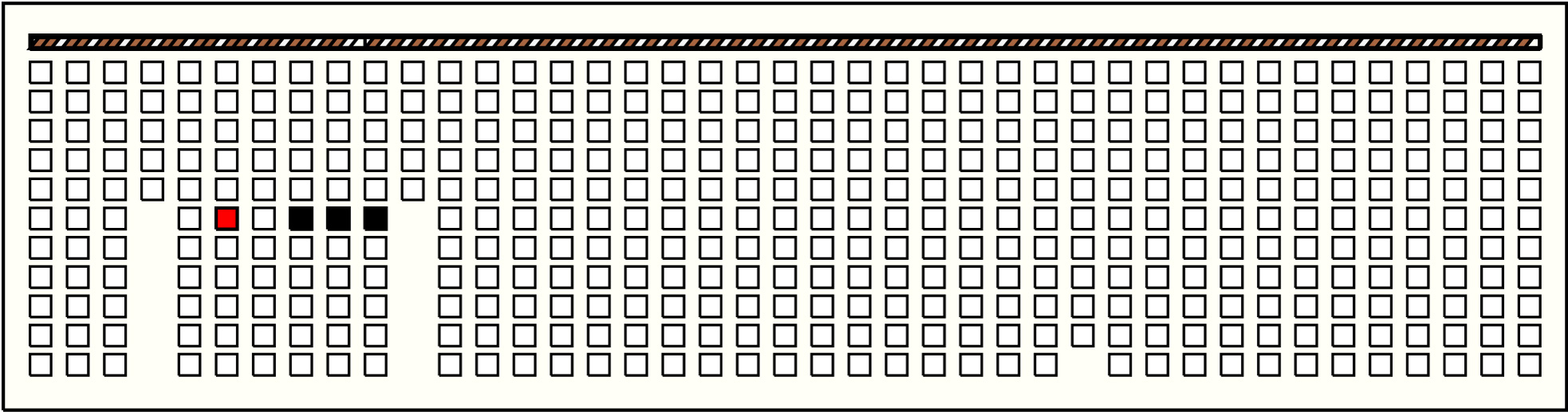

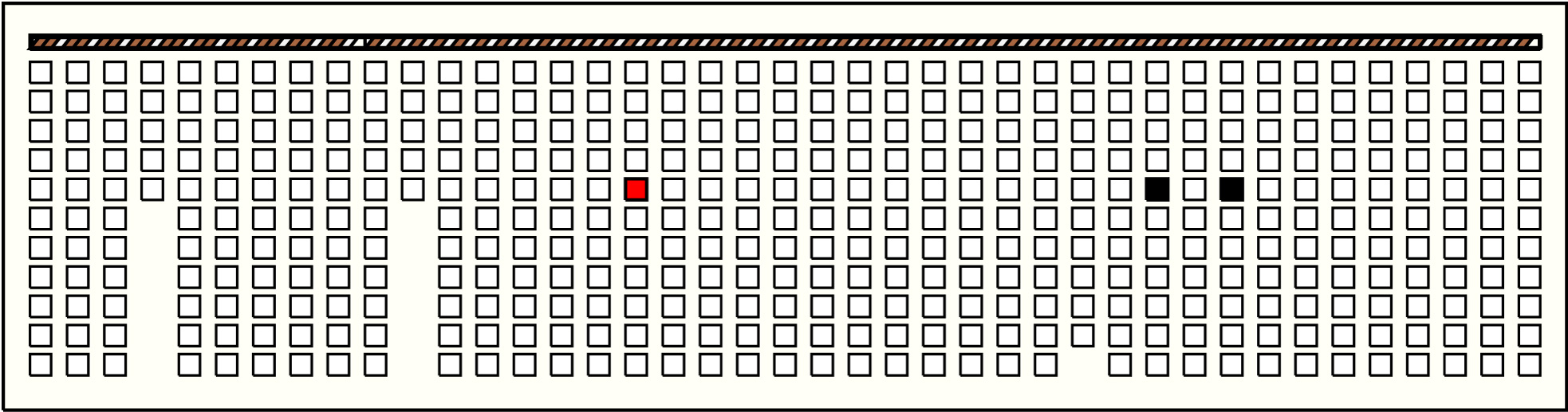

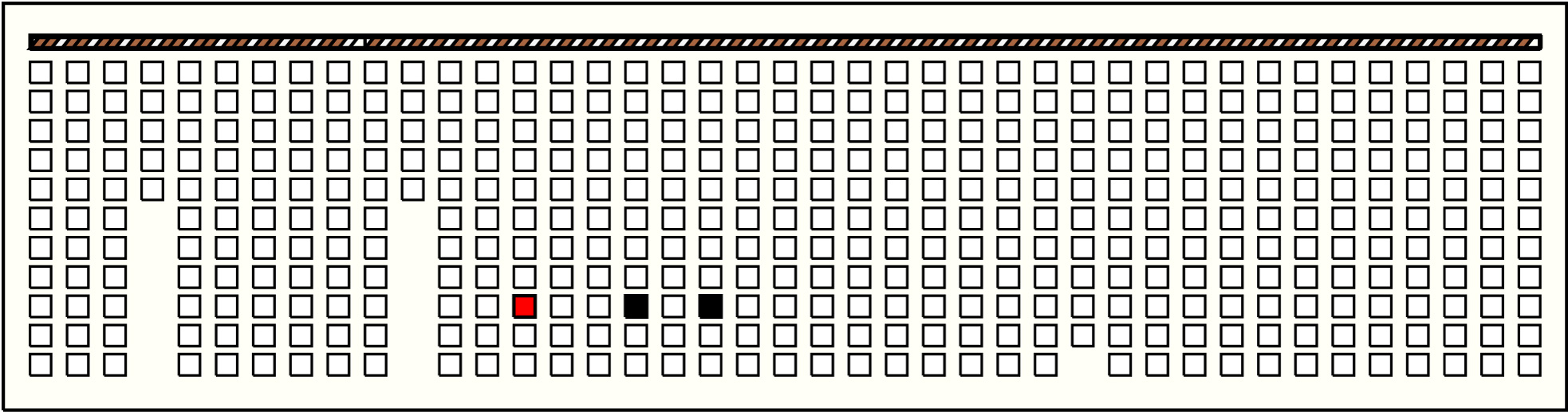

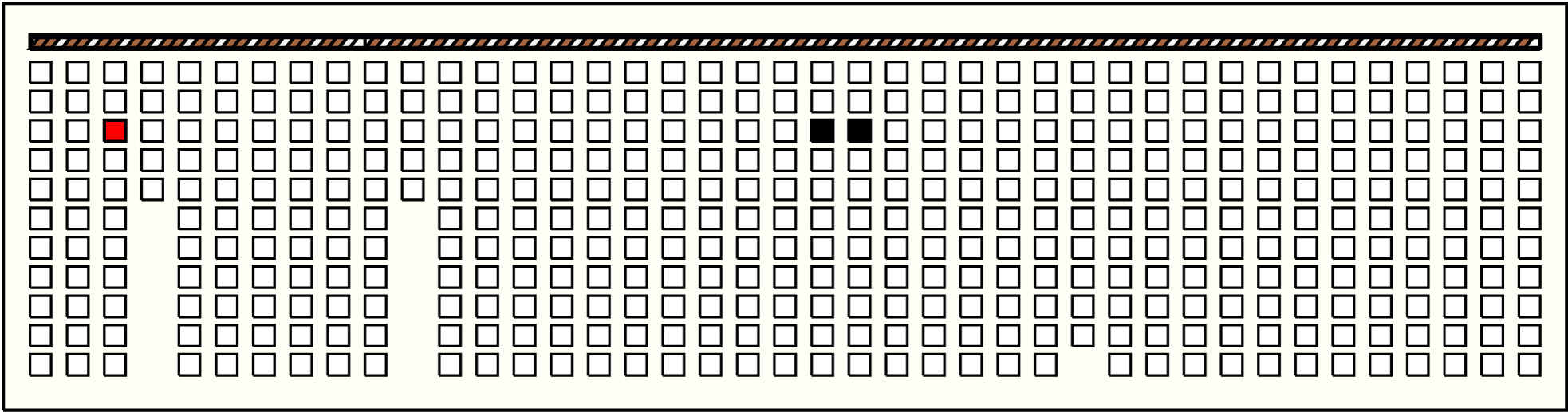

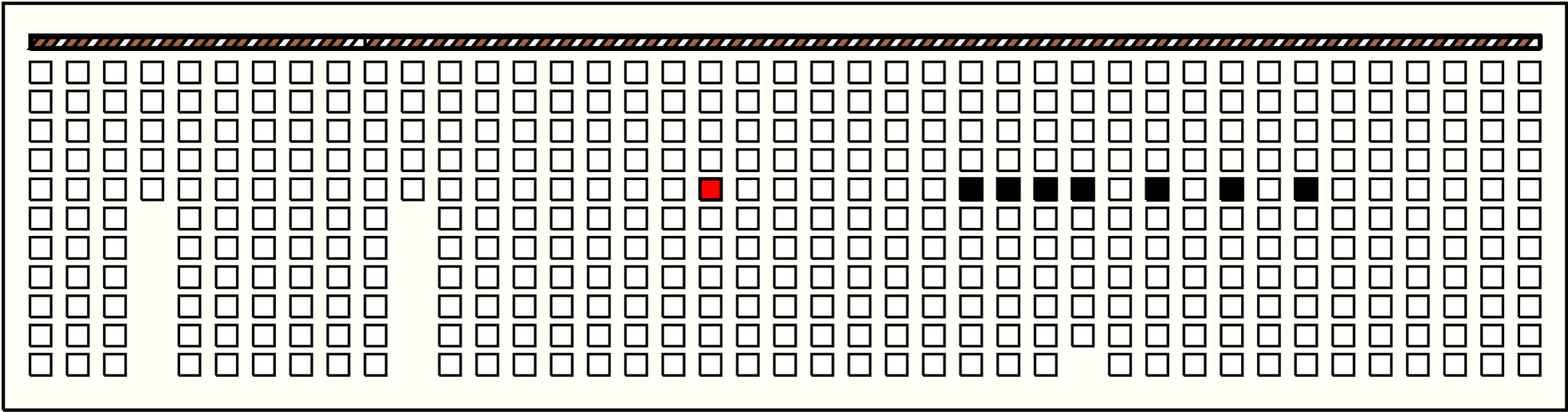

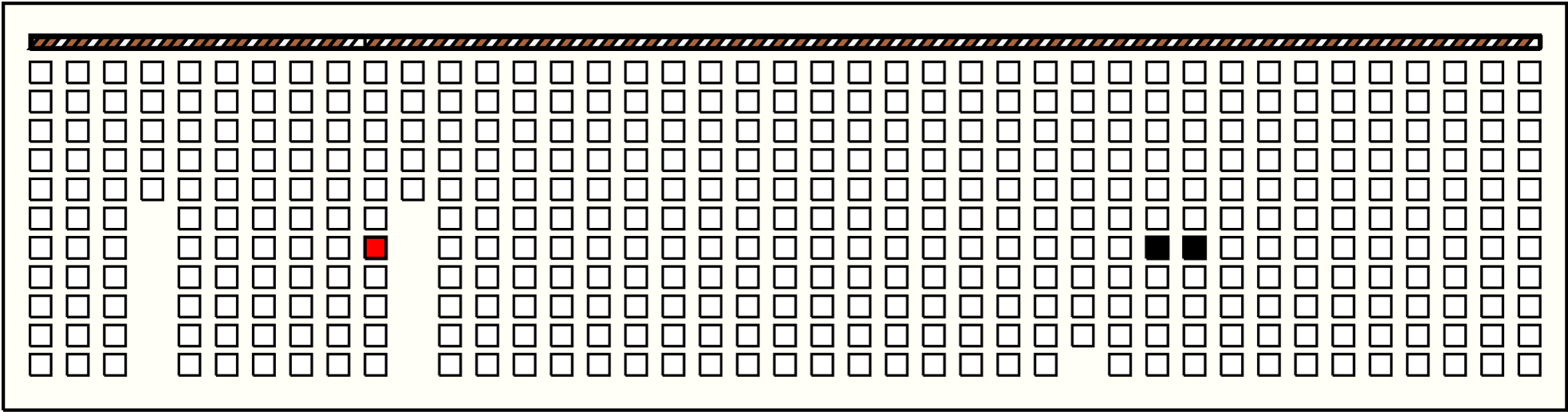

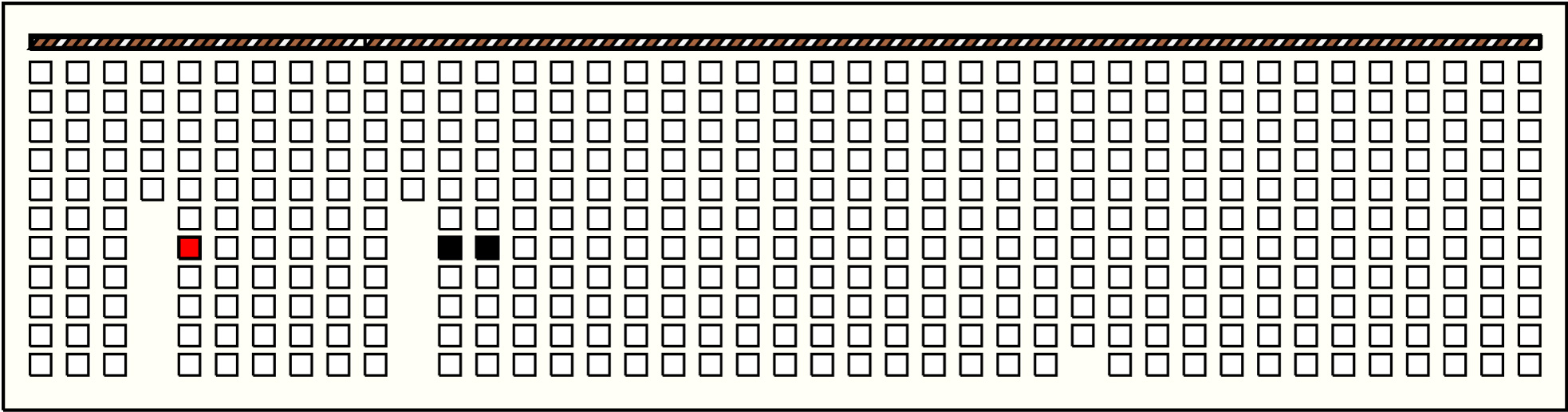

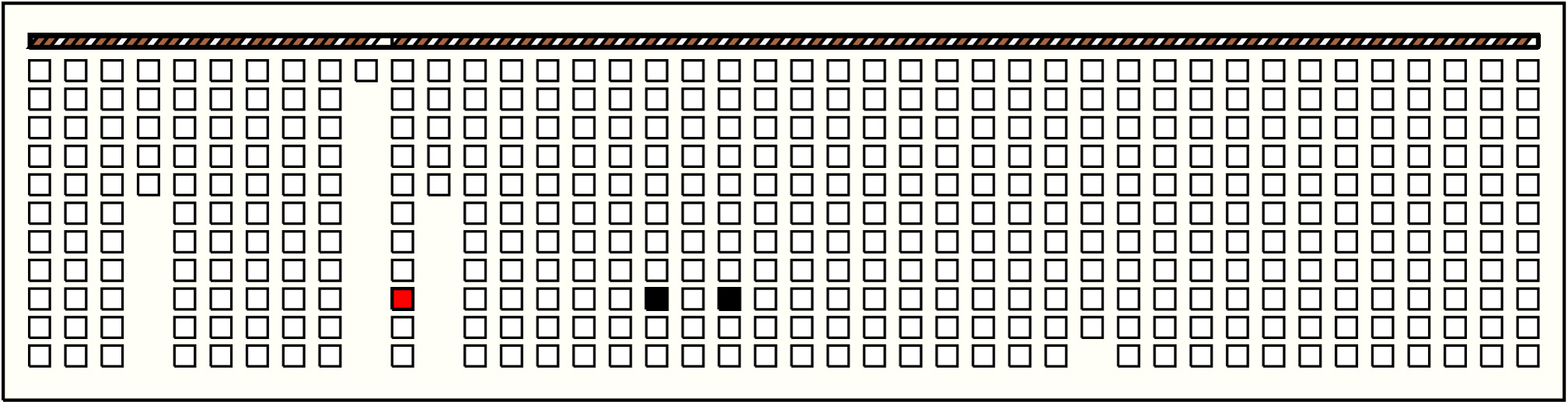

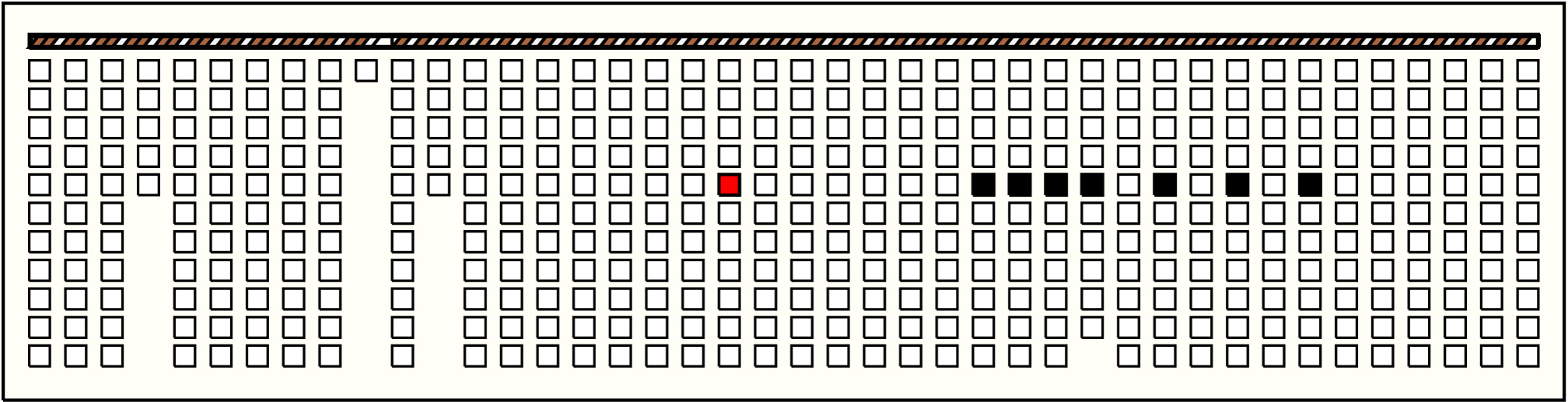

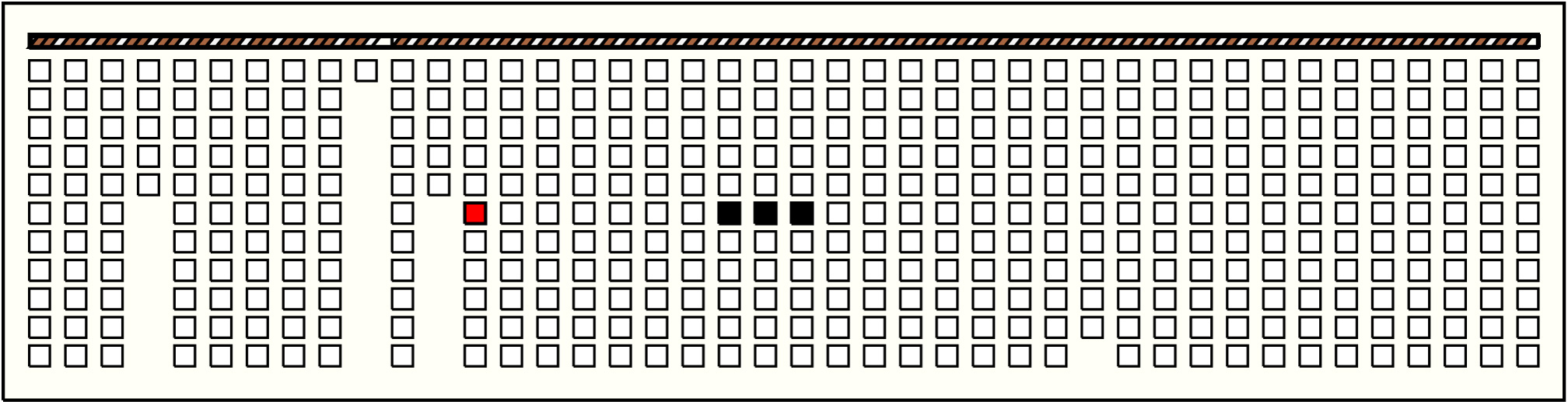

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p3 : 13MG | 13 | 2 | g22p3: 3YY + g23p3: 10YB | |
| 2 |  | g3p5 : 13MG | 13 | 2 | g31p5: 3W + g33p5: 10W | |
| 3 |  | g4p5 : 12W:MB | 12 | 2 | g9p5: 5DB + g10p5: 7W:YB | |
| 4 |  | g5p6 : 52MB | 52 | 4 | g29p6: 10KB + g31p6: 2W + g34p6: 20YY + g35p6: 20AB | |
| 5 |  | g5p7 : 17W | 17 | 2 | g12p7: 3W + g13p7: 14W | |
| 6 |  | g5p10 : 15W | 15 | 3 | g13p10: 7W + g14p10: 6W + g15p10: 2W | |
| 7 |  | g6p3 : 13YB | 13 | 2 | g22p3: 3YY + g23p3: 10YB | |
| 8 |  | g6p6 : 85BS | 85 | 3 | g8p6: 22W + g9p6: 61MB + g10p6: 2YB | |
| 9 |  | g7p5 : 12W | 12 | 2 | g9p5: 5DB + g10p5: 7W:YB | |
| 10 |  | g8p5 : 43W | 43 | 3 | g28p5: 20KB + g29p5: 20KB + g31p5: 3W | |
| 11 |  | g8p6 : 22W | 22 | 2 | g31p6: 2W + g34p6: 20YY | |
| 12 |  | g9p11 : 14W | 14 | 2 | g18p11: 10W + g19p11: 4KB | |
| 13 |  | g10p3 : 14W:YB | 14 | 2 | g15p3: 4W + g16p3: 10W | |
| 14 |  | g10p7 : 160B | 16 | 2 | g31p7: 6W + g32p7: 10YY | |
| 15 |  | g10p8 : 26YB | 26 | 3 | g18p8: 10W + g20p8: 14YB + g21p8: 2YB | |
| 16 |  | g10p9 : 16YB | 16 | 2 | g17p9: 12W + g19p9: 4KB | |
| 17 |  | g10p11 : 48YB | 48 | 3 | g12p11: 23W:YY + g13p11: 2W + g14p11: 23W | |
| 18 |  | g12p6 : 62YB | 62 | 3 | g19p6: 3KB + g20p6: 21YB + g21p6: 38AB | |
| 19 |  | g13p6 : 52YB | 52 | 4 | g29p6: 10KB + g31p6: 2W + g34p6: 20YY + g35p6: 20AB | |
| 20 |  | g14p9 : 16W | 16 | 2 | g17p9: 12W + g19p9: 4KB | |
| 21 |  | g15p6 : 62YB | 62 | 3 | g19p6: 3KB + g20p6: 21YB + g21p6: 38AB | |
| 22 |  | g17p5 : 13W | 13 | 2 | g31p5: 3W + g33p5: 10W | |
| 23 |  | g17p9 : 12W | 12 | 2 | g21p9: 2YB + g22p9: 10YY | |
| 24 |  | g19p3 : 24KB | 24 | 2 | g33p3: 10W + g35p3: 14AB | |
| 25 |  | g19p5 : 93AB | 93 | 7 | g26p5: 20W + g27p5: 10KB + g28p5: 20KB + g29p5: 20KB + g31p5: 3W + g33p5: 10W + g35p5: 10AB | |
| 26 |  | g28p6 : 130YY | 130 | 4 | g37p6: 20AB + g38p6: 40KB + g39p6: 30KB + g40p6: 40KB |

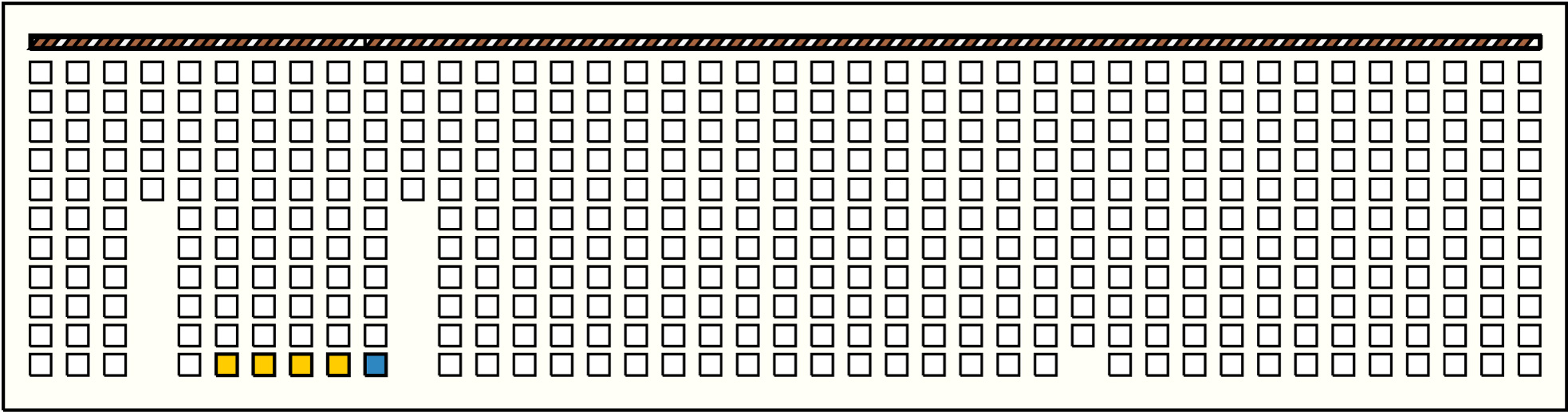

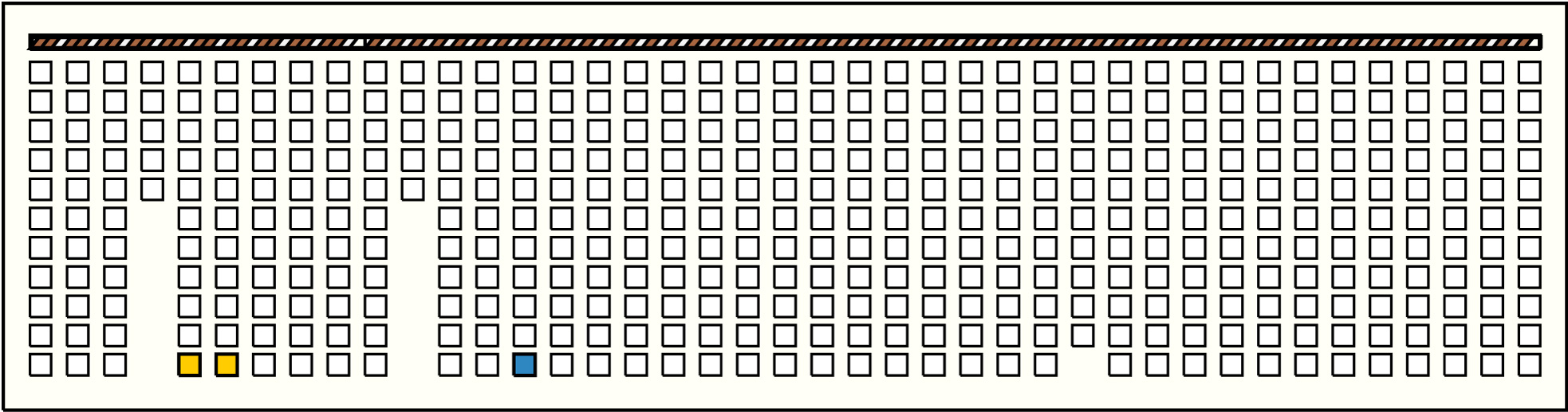

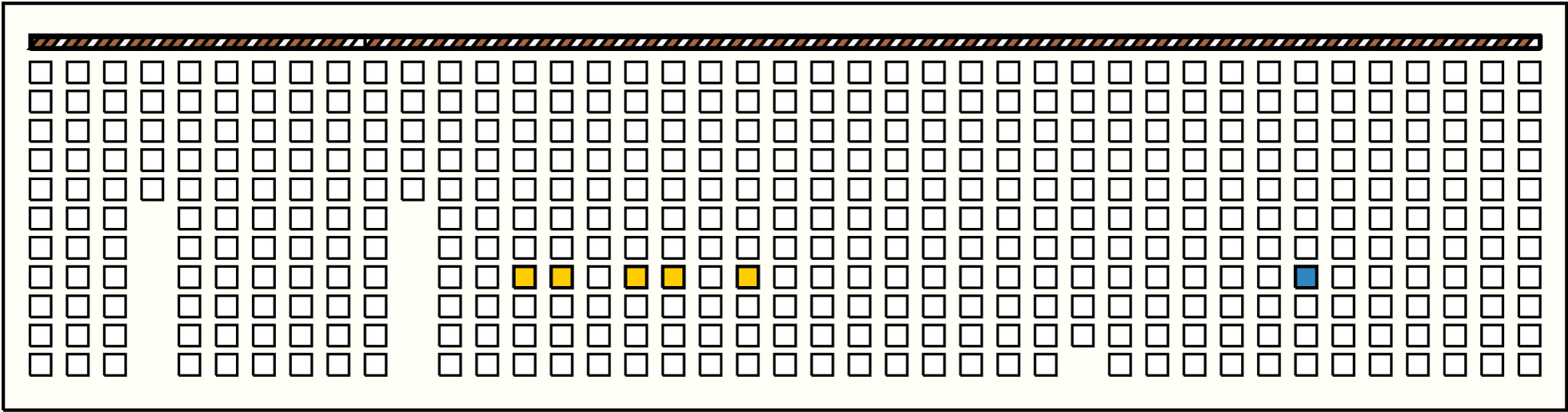

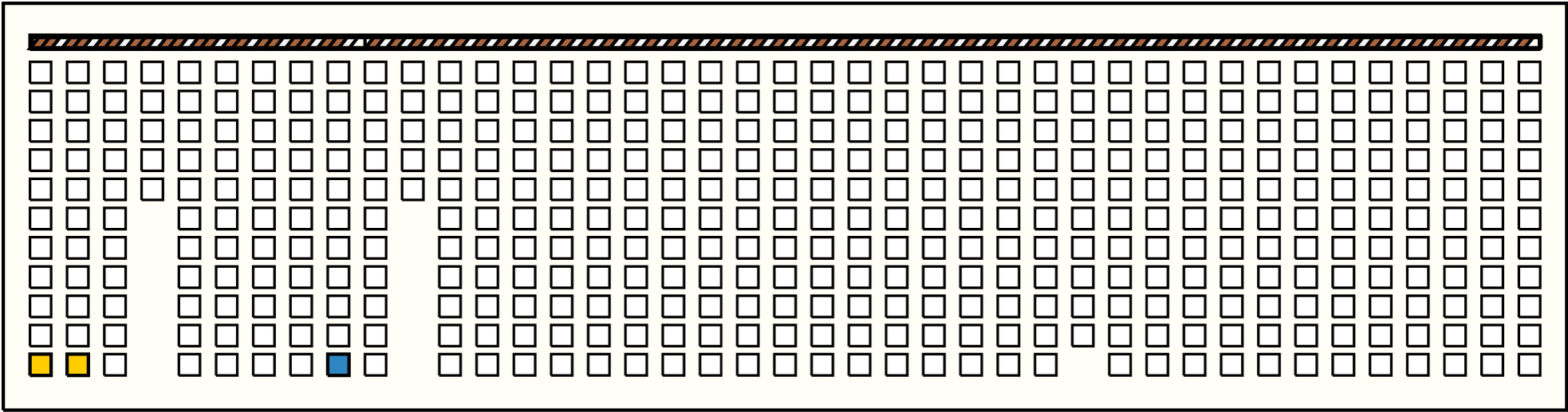

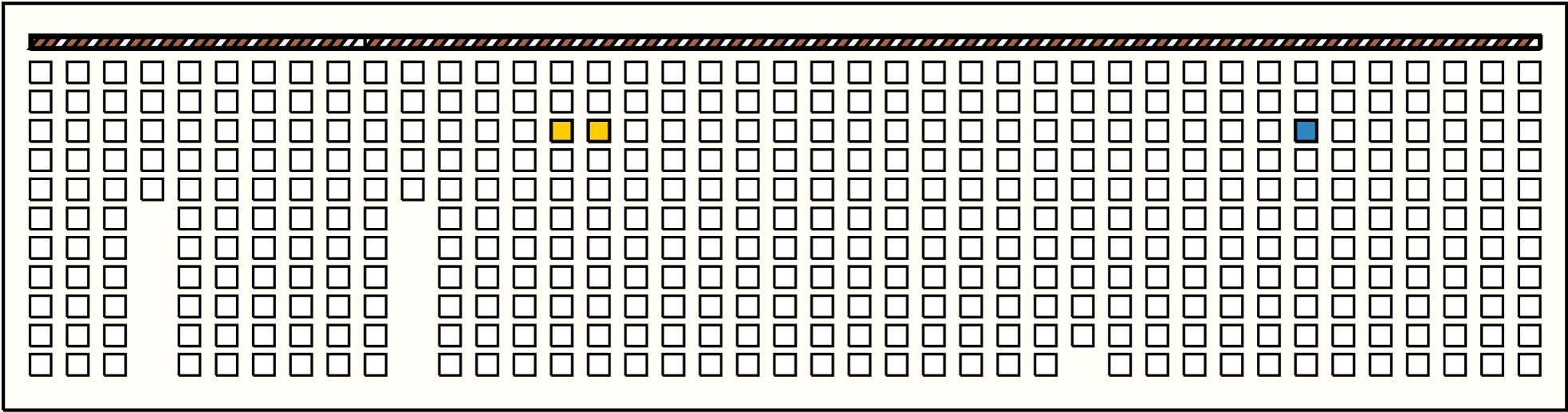

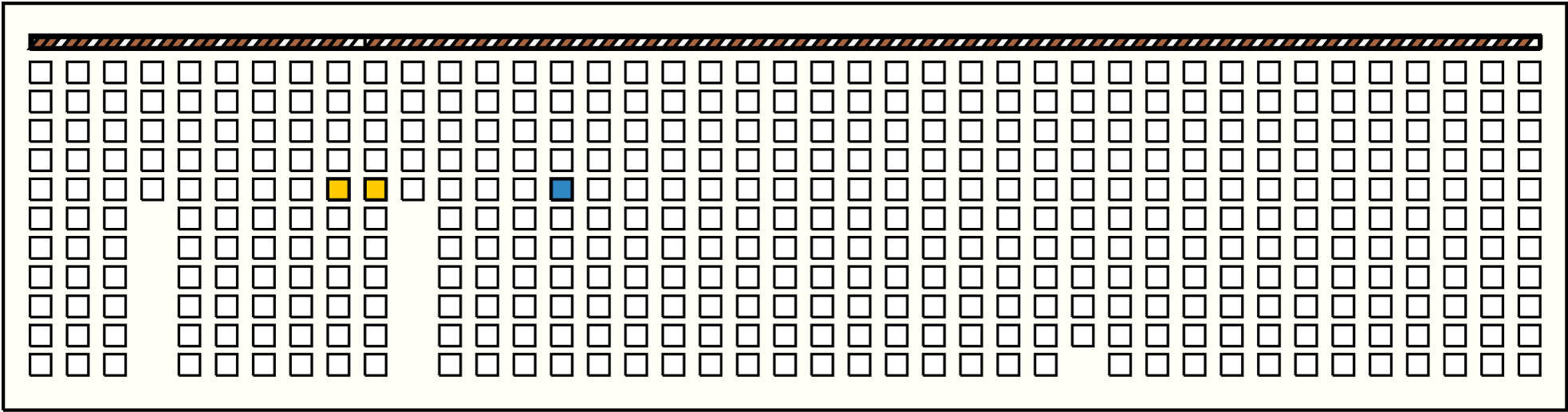

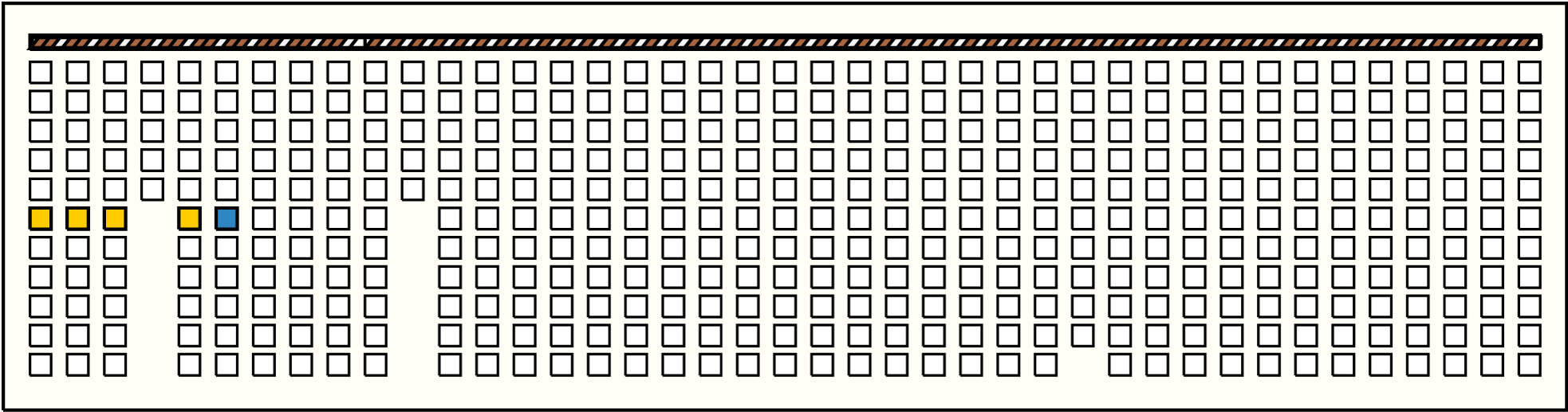

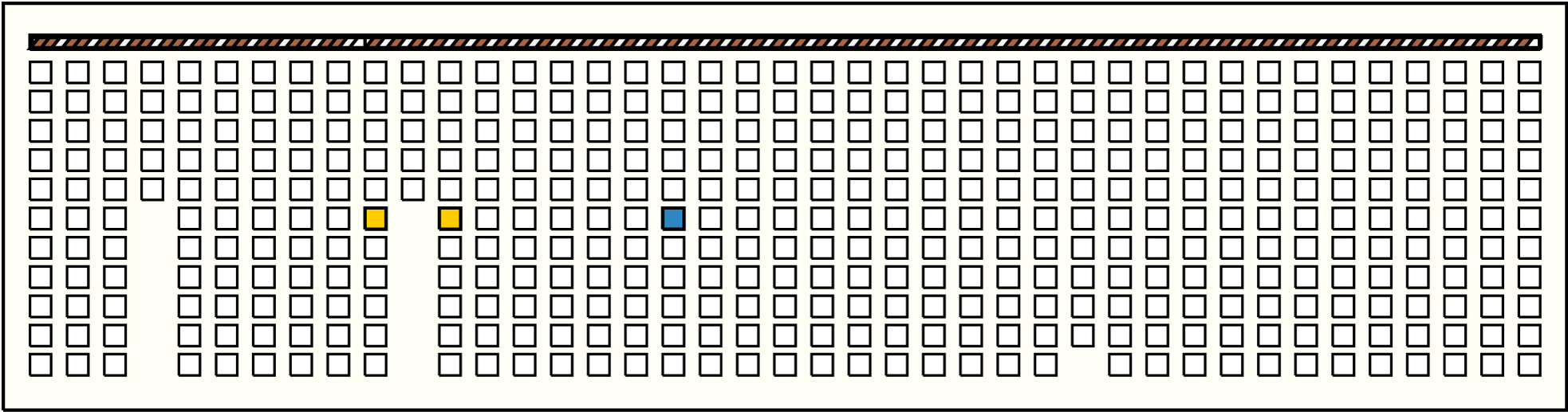

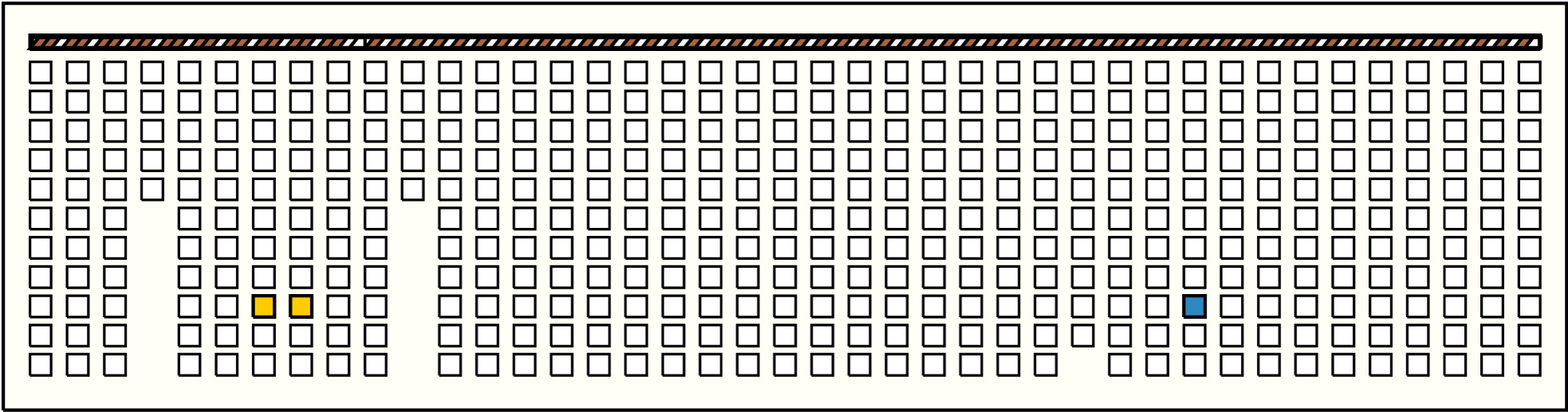

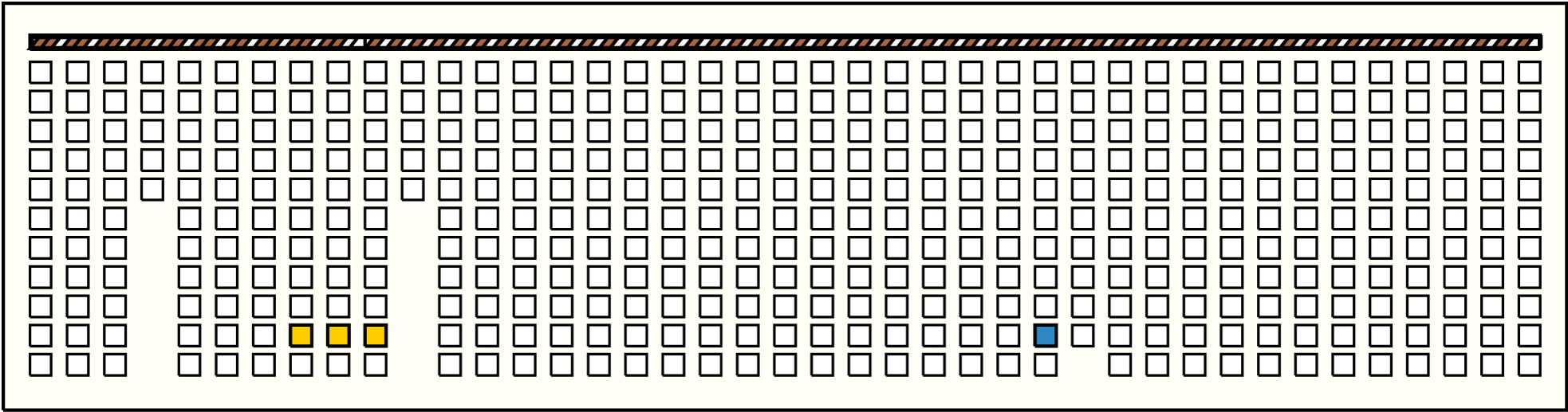

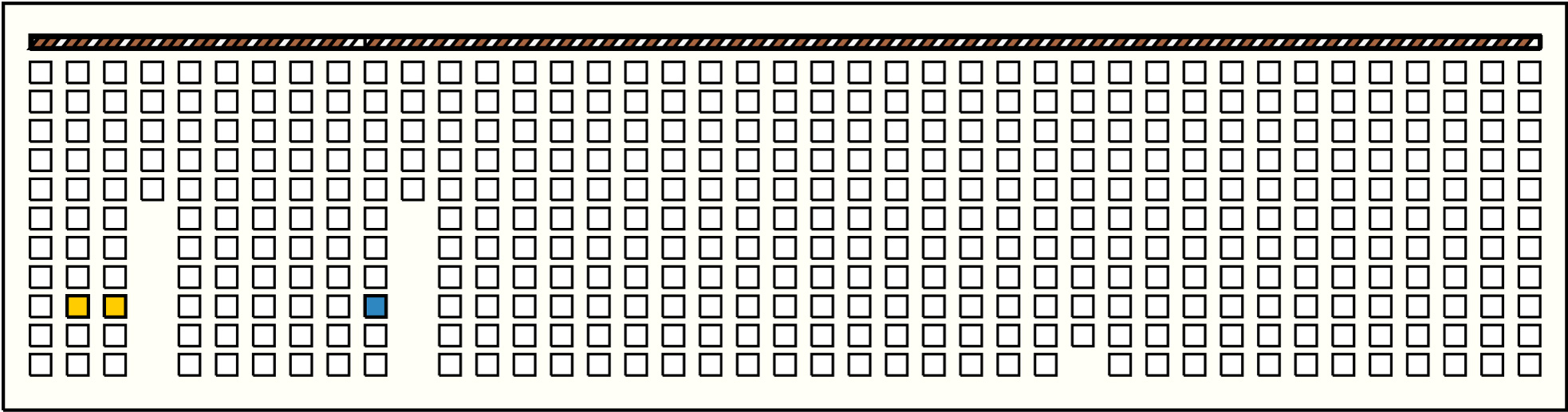

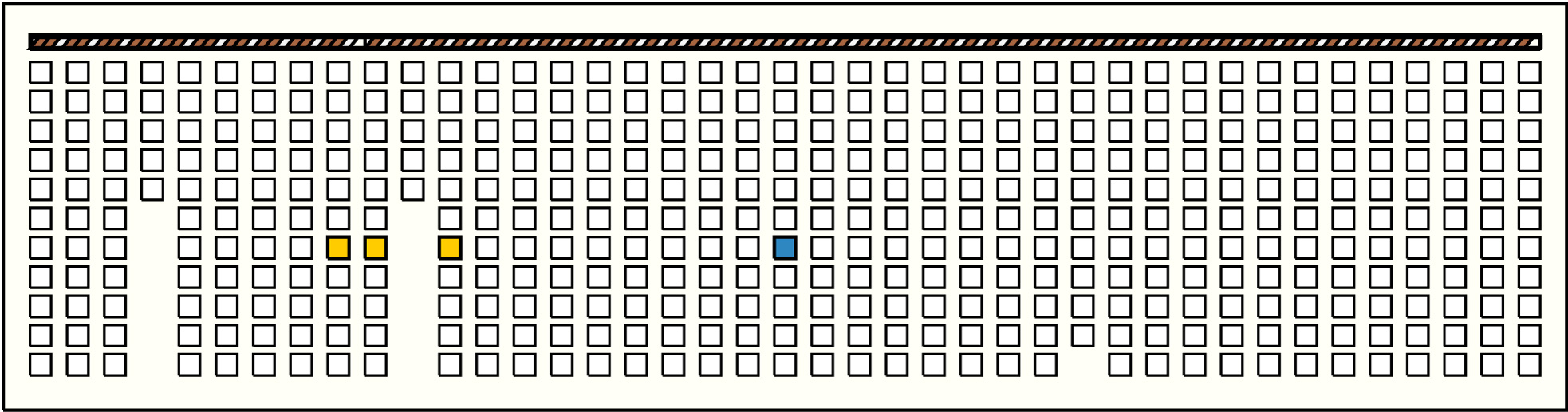

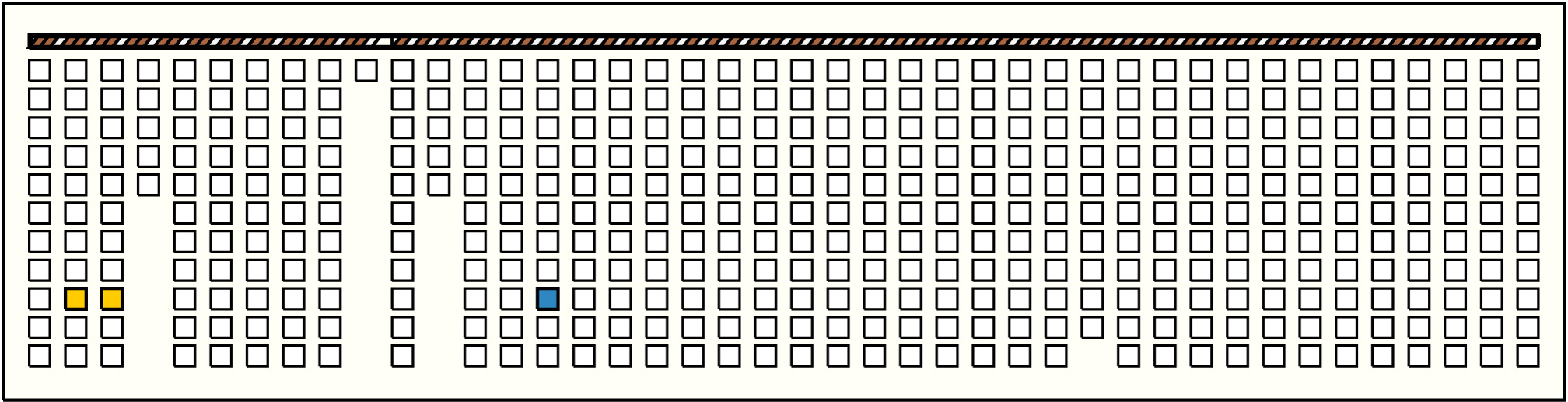

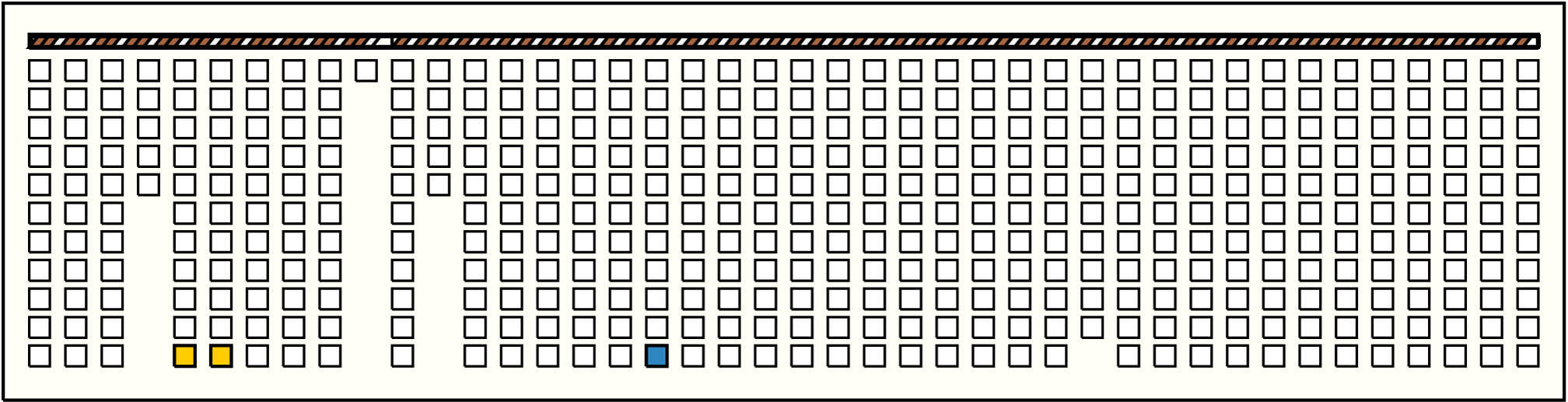

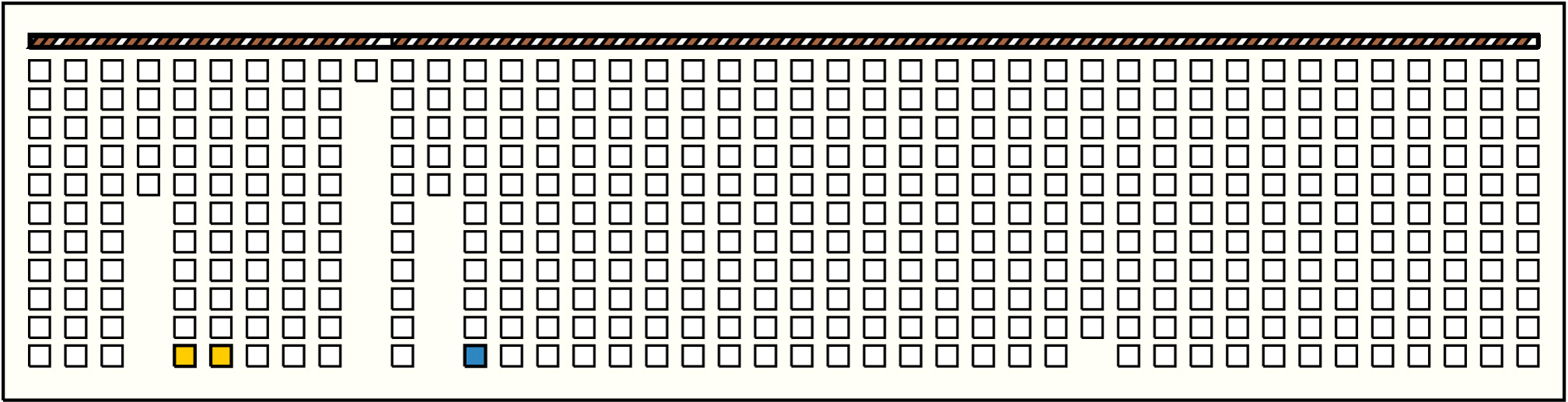

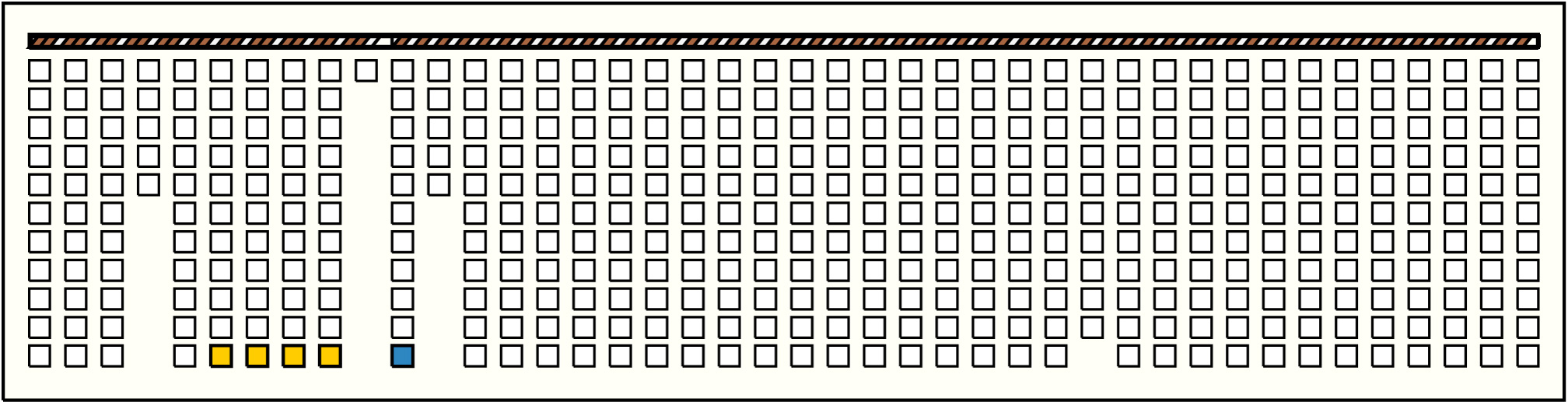

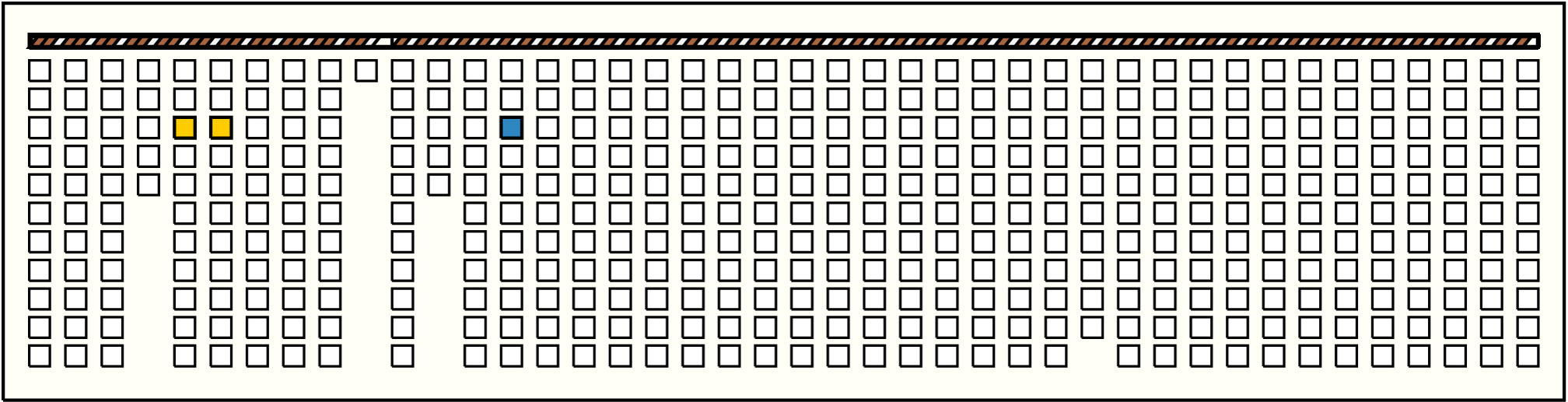

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g6p6 : 85BS | 85 | 4 | g1p6: 26AB + g2p6: 3MG + g3p6: 4MG + g5p6: 52MB | |
| 2 |  | g9p11 : 14W | 14 | 2 | g1p11: 4W:AB + g2p11: 10MG | |
| 3 |  | g10p9 : 16YB | 16 | 2 | g2p9: 3MG + g3p9: 13YB | |
| 4 |  | g10p11 : 48YB | 48 | 4 | g6p11: 2YB + g7p11: 21W + g8p11: 11W + g9p11: 14W | |
| 5 |  | g11p3 : 32W | 32 | 2 | g4p3: 300G + g5p3: 2W | |
| 6 |  | g12p11 : 23W:YY | 23 | 2 | g5p11: 21W + g6p11: 2YB | |
| 7 |  | g13p3 : 15W | 15 | 2 | g5p3: 2W + g6p3: 13YB | |
| 8 |  | g14p5 : 12W | 12 | 2 | g9p5: 5DB + g10p5: 7W:YB | |
| 9 |  | g14p6 : 85YB | 85 | 3 | g8p6: 22W + g9p6: 61MB + g10p6: 2YB | |
| 10 |  | g14p9 : 16W | 16 | 2 | g2p9: 3MG + g3p9: 13YB | |
| 11 |  | g14p11 : 23W | 23 | 2 | g5p11: 21W + g6p11: 2YB | |
| 12 |  | g15p5 : 12W:YY | 12 | 2 | g9p5: 5DB + g10p5: 7W:YB | |
| 13 |  | g17p9 : 12W | 12 | 2 | g7p9: 10W + g8p9: 2DB | |
| 14 |  | g17p11 : 23W | 23 | 2 | g5p11: 21W + g6p11: 2YB | |
| 15 |  | g18p6 : 64AB | 64 | 2 | g10p6: 2YB + g12p6: 62YB | |
| 16 |  | g19p5 : 93AB | 93 | 7 | g4p5: 12W:MB + g5p5: 4W + g6p5: 10YB + g7p5: 12W + g8p5: 43W + g9p5: 5DB + g10p5: 7W:YB | |
| 17 |  | g19p7 : 24KB | 24 | 2 | g9p7: 8W + g10p7: 160B | |
| 18 |  | g19p10 : 14KB | 14 | 3 | g8p10: 2W + g9p10: 10W + g10p10: 2YB | |
| 19 |  | g20p8 : 14YB | 14 | 4 | g12p8: 3W:YY + g13p8: 4W + g14p8: 4W + g15p8: 3W | |
| 20 |  | g20p10 : 12YB | 12 | 2 | g8p10: 2W + g9p10: 10W | |
| 21 |  | g21p7 : 27YB | 27 | 3 | g9p7: 8W + g10p7: 160B + g12p7: 3W | |
| 22 |  | g21p10 : 12AB | 12 | 2 | g8p10: 2W + g9p10: 10W | |
| 23 |  | g22p7 : 72AB | 72 | 4 | g8p7: 45W + g9p7: 8W + g10p7: 160B + g12p7: 3W | |
| 24 |  | g23p9 : 34YB | 34 | 5 | g3p9: 13YB + g5p9: 4W + g7p9: 10W + g8p9: 2DB + g9p9: 5W | |
| 25 |  | g28p6 : 130YY | 130 | 3 | g22p6: 20YY + g23p6: 10YB + g24p6: 100W:YB | |
| 26 |  | g28p10 : 14KB | 14 | 3 | g8p10: 2W + g9p10: 10W + g10p10: 2YB | |
| 27 |  | g28p11 : 53KB | 53 | 3 | g2p11: 10MG + g3p11: 22MG + g5p11: 21W | |
| 28 |  | g32p9 : 12YY | 12 | 2 | g7p9: 10W + g8p9: 2DB | |
| 29 |  | g32p11 : 96YB | 96 | 4 | g8p11: 11W + g9p11: 14W + g10p11: 48YB + g12p11: 23W:YY | |
| 30 |  | g35p3 : 14AB | 14 | 2 | g15p3: 4W + g16p3: 10W | |
| 31 |  | g35p8 : 43AB | 43 | 5 | g14p8: 4W + g15p8: 3W + g17p8: 12W + g18p8: 10W + g20p8: 14YB | |
| 32 |  | g41p6 : 120AB | 120 | 5 | g34p6: 20YY + g35p6: 20AB + g36p6: 20KB + g37p6: 20AB + g38p6: 40KB |
Khipu Notes:
Author's Notes
This khipu was transcribed by Ashok Khosla, from copies of notes left by Gary Urton at Dumbarton Oaks, and found by Mack FitzPatrick.
Urton notes that these are essentially two khipus. Khipu A, consisting of groups 1-9, and Khipu B with all successive groups.
Many cords were pulled up like top cords by Conklin. These cords have been noted in cord notes as "Conklin Pullup"
Khipu Field Guide Notes:
Primary Cord Section
Two different main cords, spliced at 27.0 cm.
AB-AB-W (Cord A) final S-twist. (~.33 cm thick)
AB-W (Cord B) final S-twist (~ .66 cm thick)
Splice knot at 26.5 cm
This khipu was transcribed by Ashok Khosla, from copies of notes left by Gary Urton at Dumbarton Oaks, and found by Mack FitzPatrick.
Urton notes that these are essentially two khipus. Khipu A, consisting of groups 1-9, and Khipu B with all successive groups.
Many cords were pulled up like top cords by Conklin. These cords have been noted in cord notes as "Conklin Pullup"
