KH0006/AS005 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |

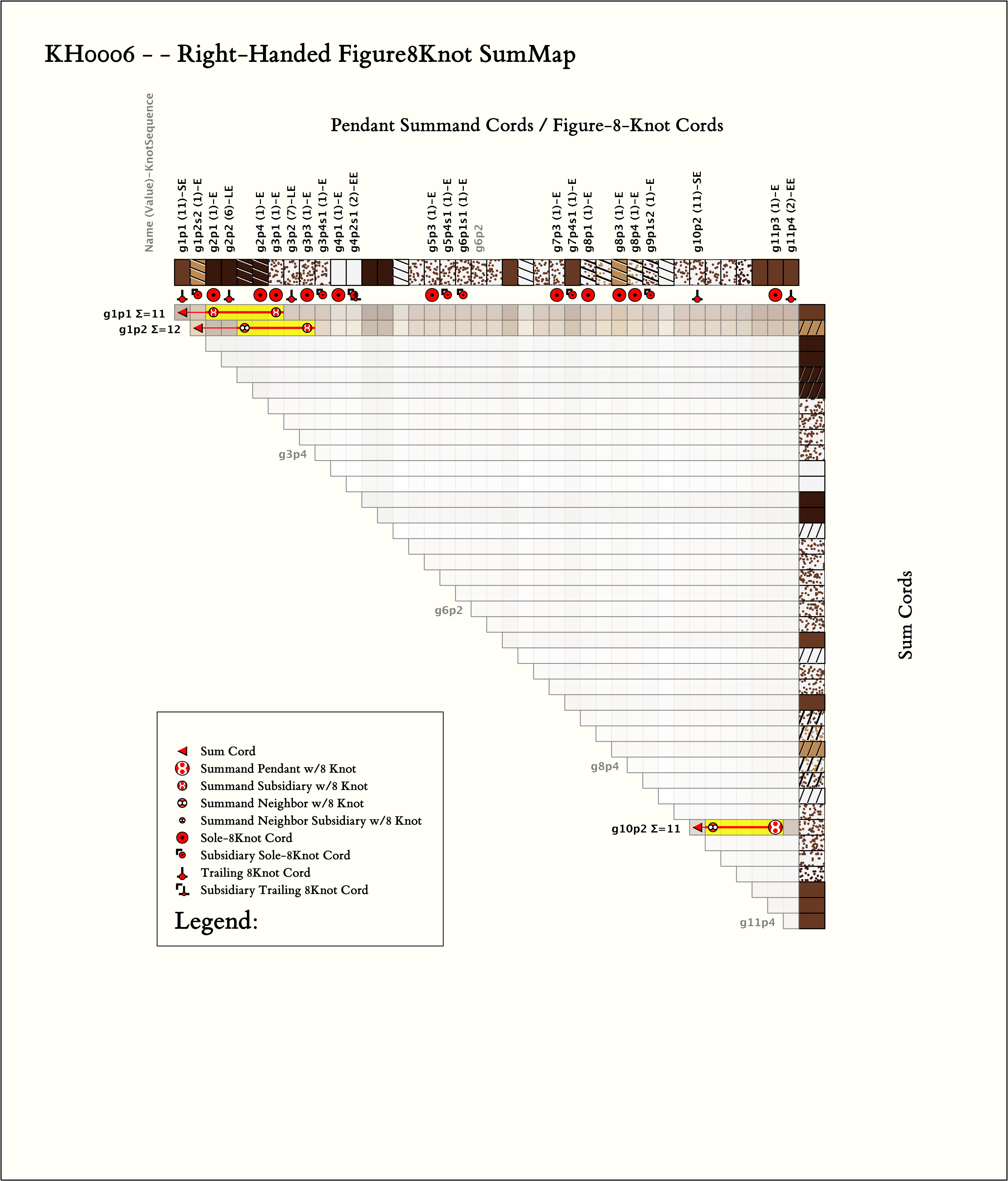

Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

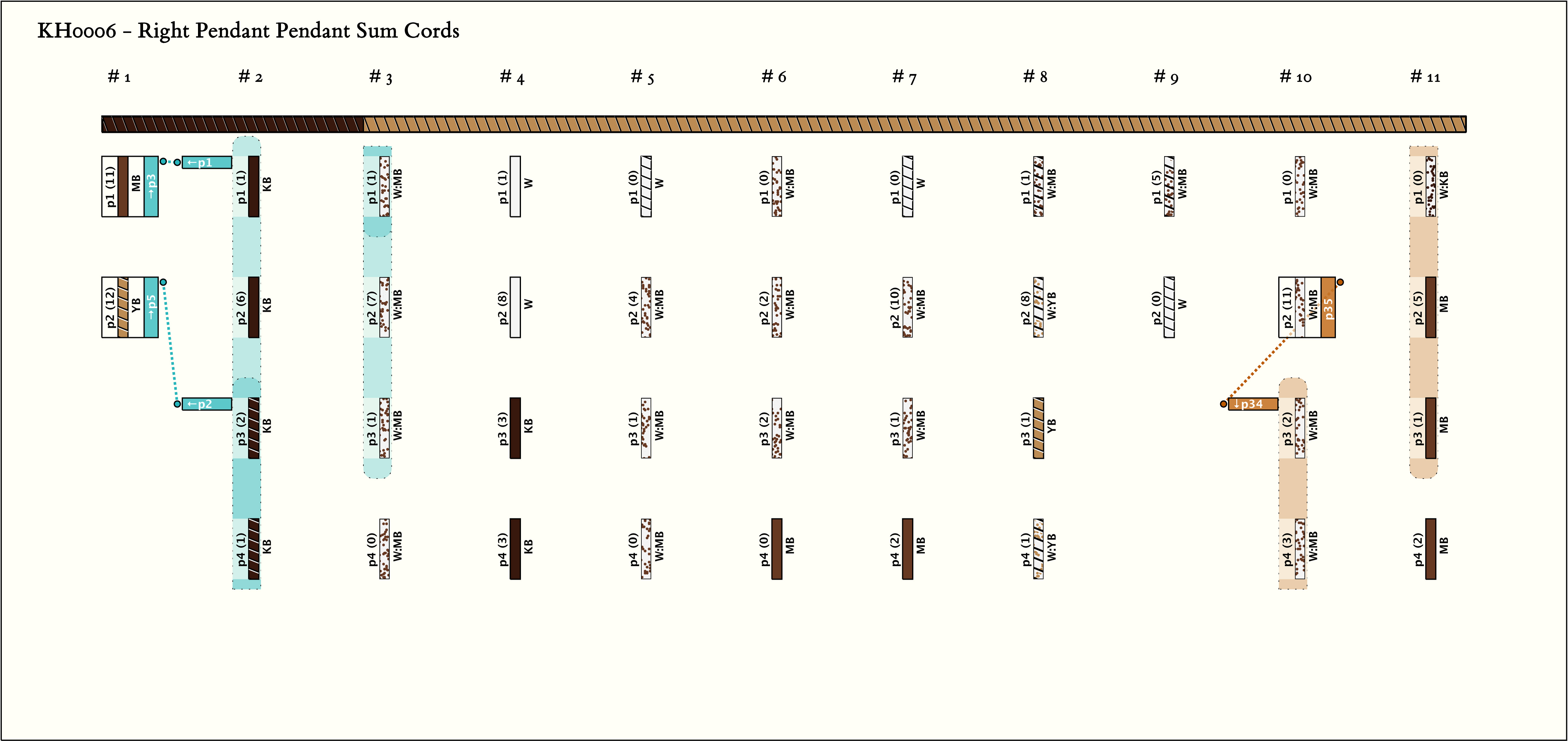

Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 5, (Min, Mean, Max) Sum Values = (11, 11, 12)
Click on Image to View Larger

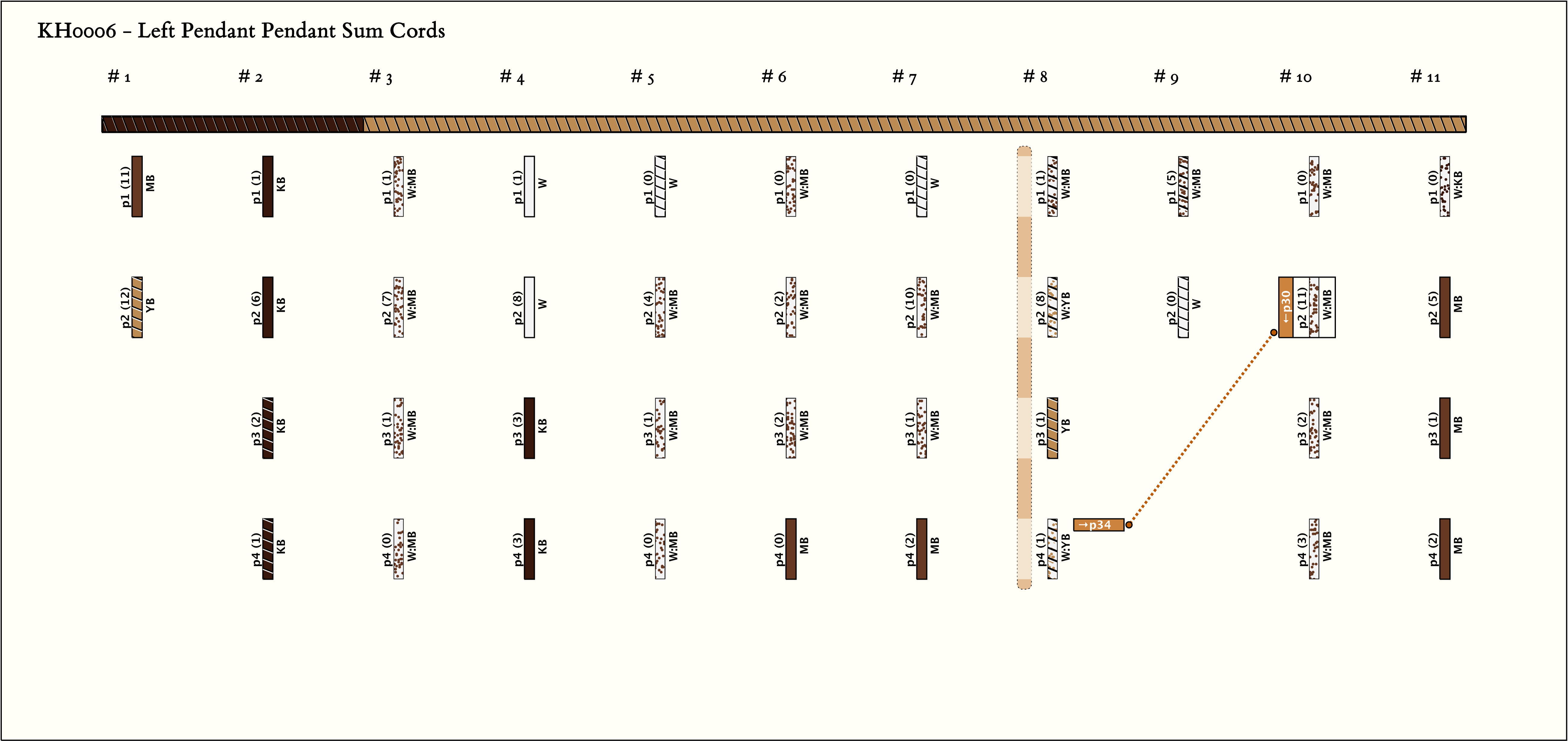

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 4, (Min, Mean, Max) Sum Values = (11, 11, 11)
Click on Image to View Larger

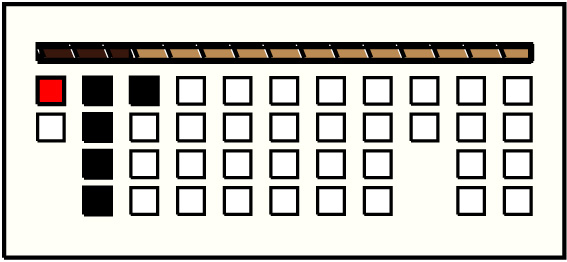

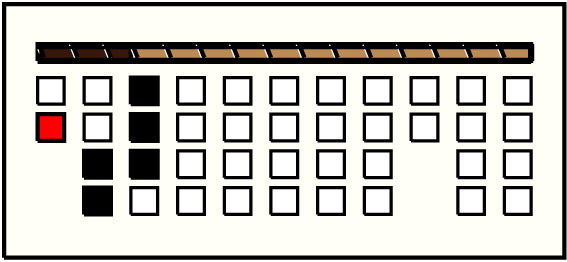

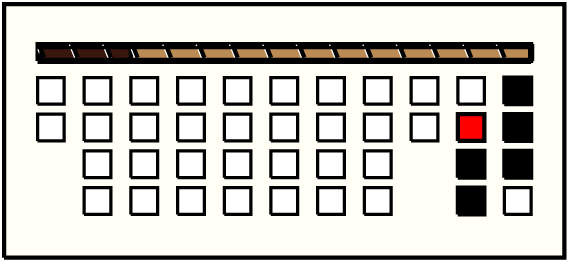

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p1 : 11MB | 11 | 5 | ❽g2p1: 1KB + g2p2: 6KB + g2p3: 2KB + g2p4: 1KB + g3p1: 1W:MB❽ | |
| 2 |  | g1p2 : 12YB | 12 | 5 | ∞g2p3: 2KB∞ + g2p4: 1KB + g3p1: 1W:MB + g3p2: 7W:MB + g3p3: 1W:MB❽ | |
| 3 |  | g10p2 : 11W:MB | 11 | 5 | ∞g10p3: 2W:MB + g10p4: 3W:MB + g11p1: 0W:KB + g11p2: 5MB + g11p3: 1MB❽ |

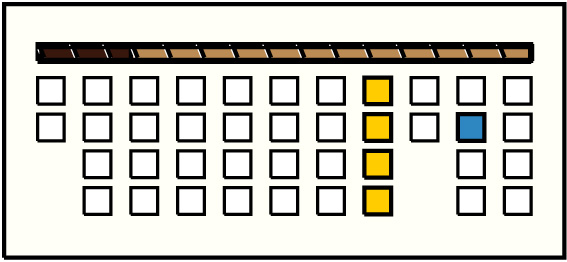

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g10p2 : 11W:MB | 11 | 4 | ❽g8p1: 1W:MB + g8p2: 8W:YB + g8p3: 1YB + g8p4: 1W:YB❽ |
