KH0014/AS013 - Pendant Pendant Sums


Drawings:

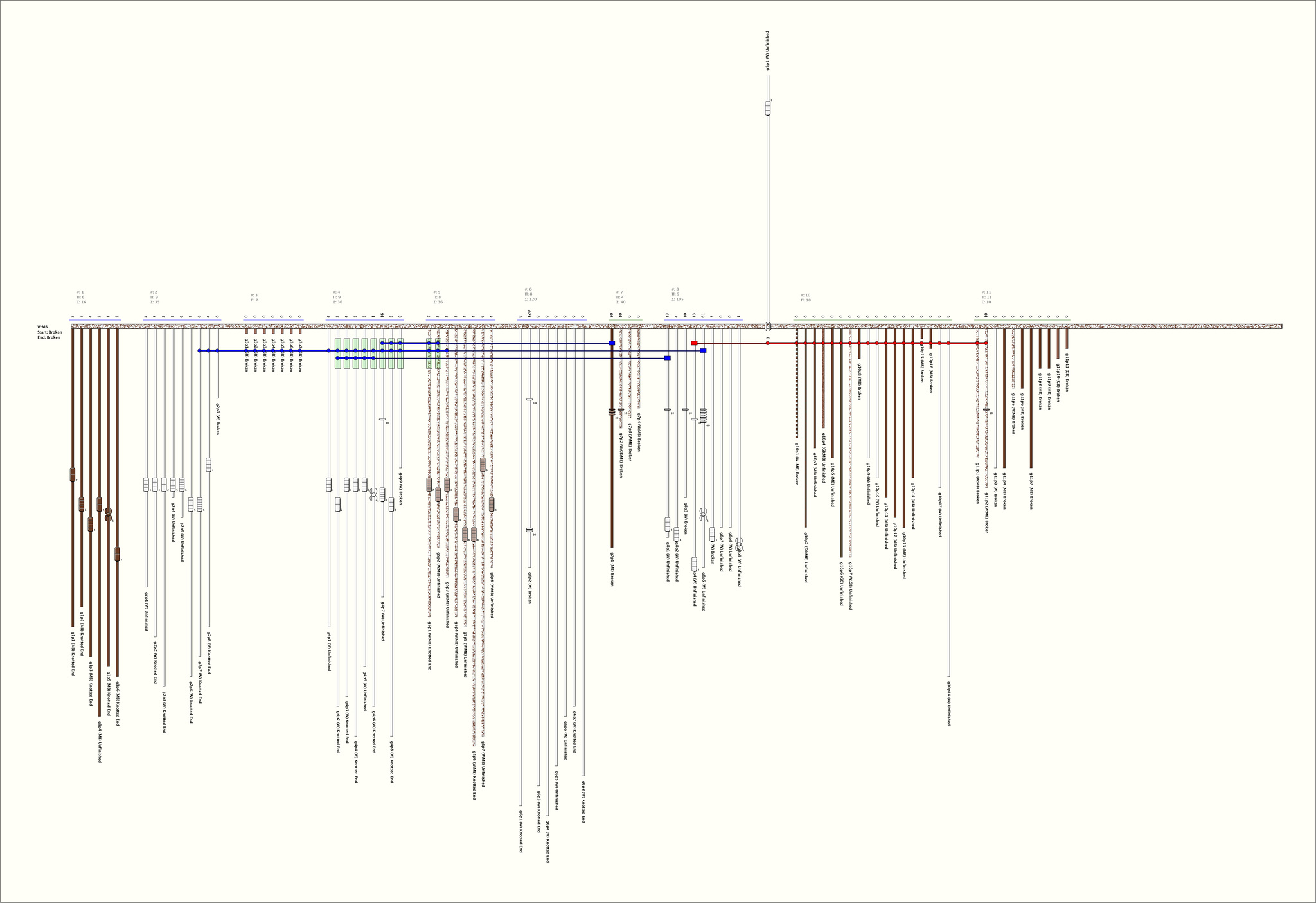

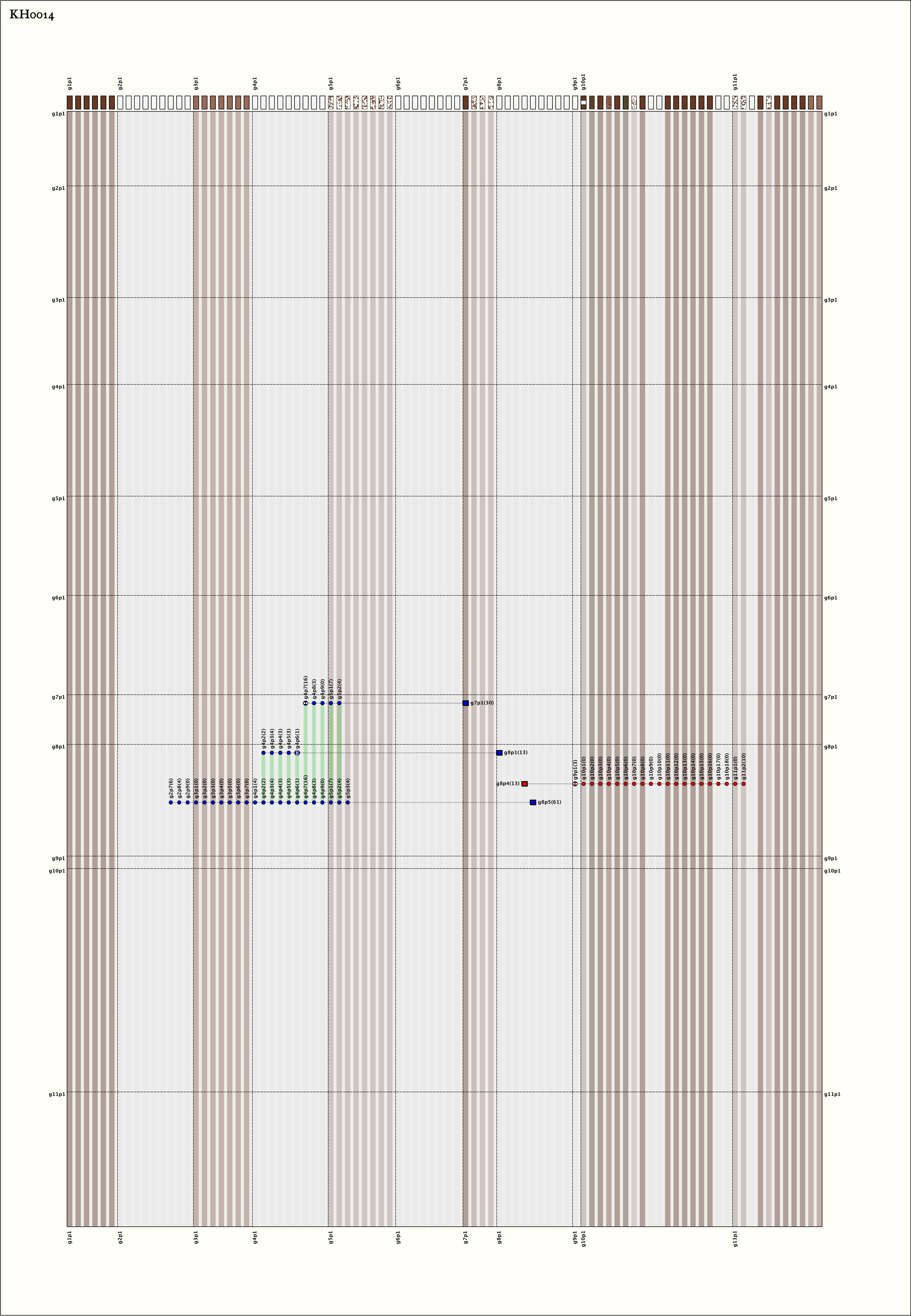

Overview Detail View
All Khipus' Ascher Sum FieldmarksRight-Handed XRay
All Pendant Pendant Sum RelationshipsLeft-Handed XRay
This Khipu's Fieldmark CatalogRight-Handed Sum Detail
This Khipu's DrawingLeft-Handed Sum Detail

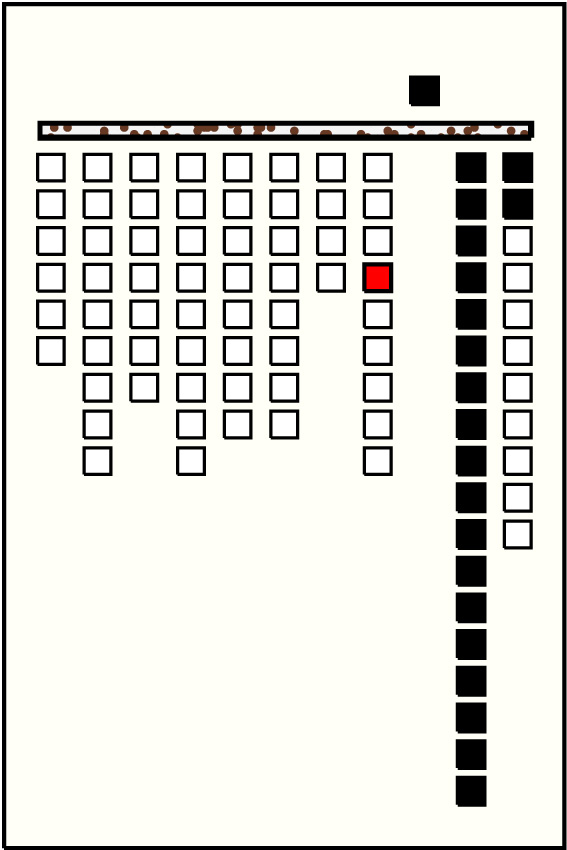

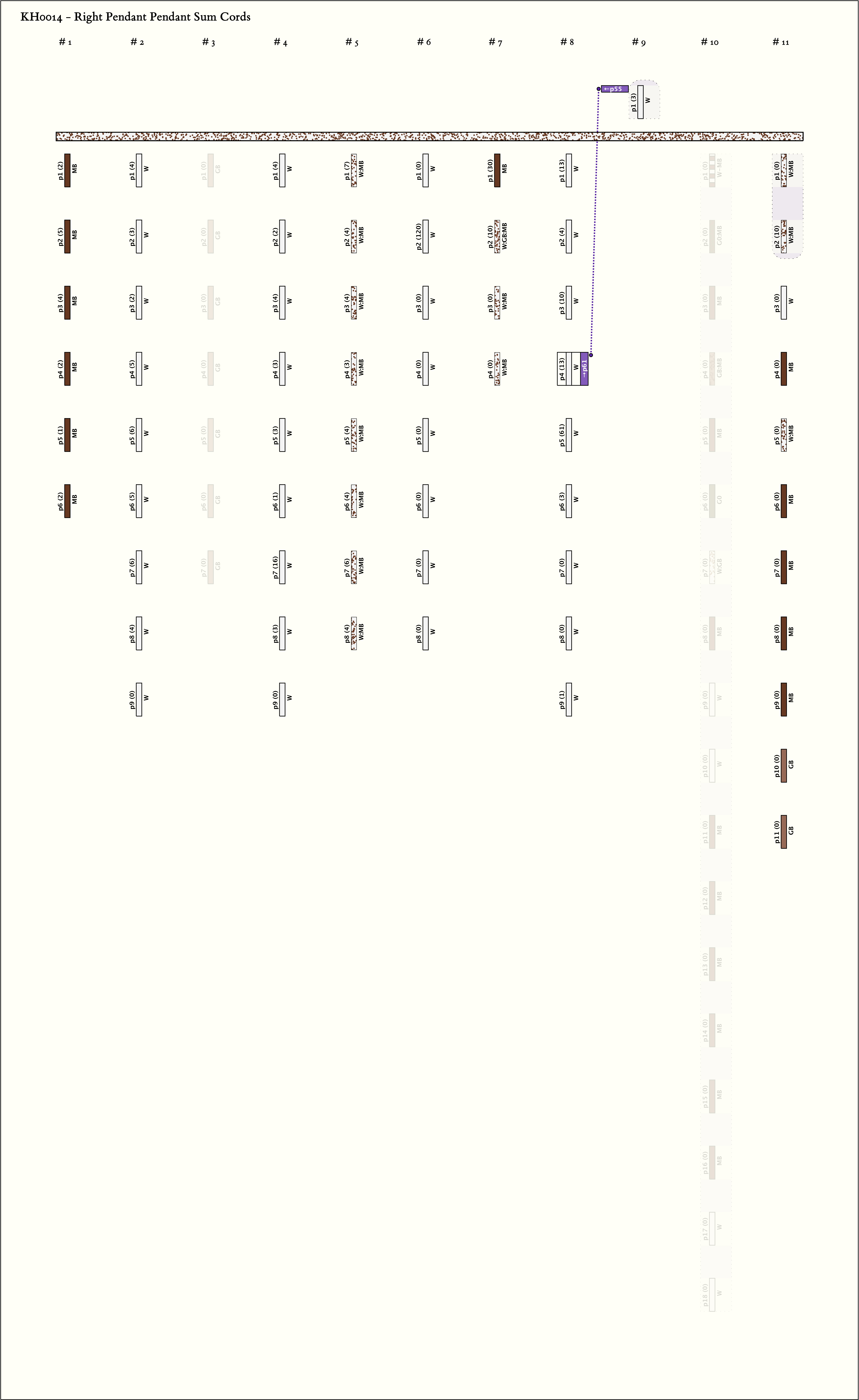

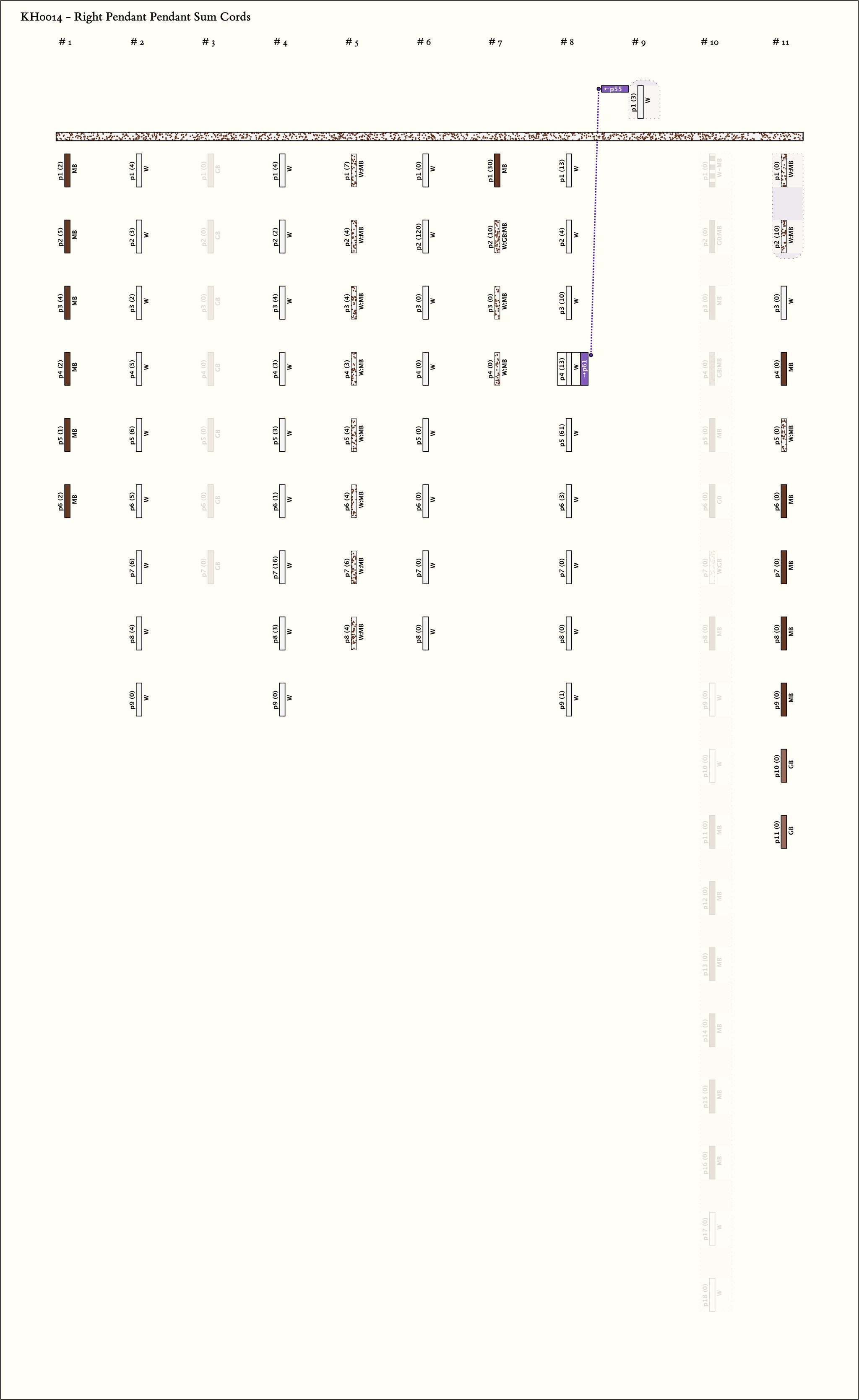

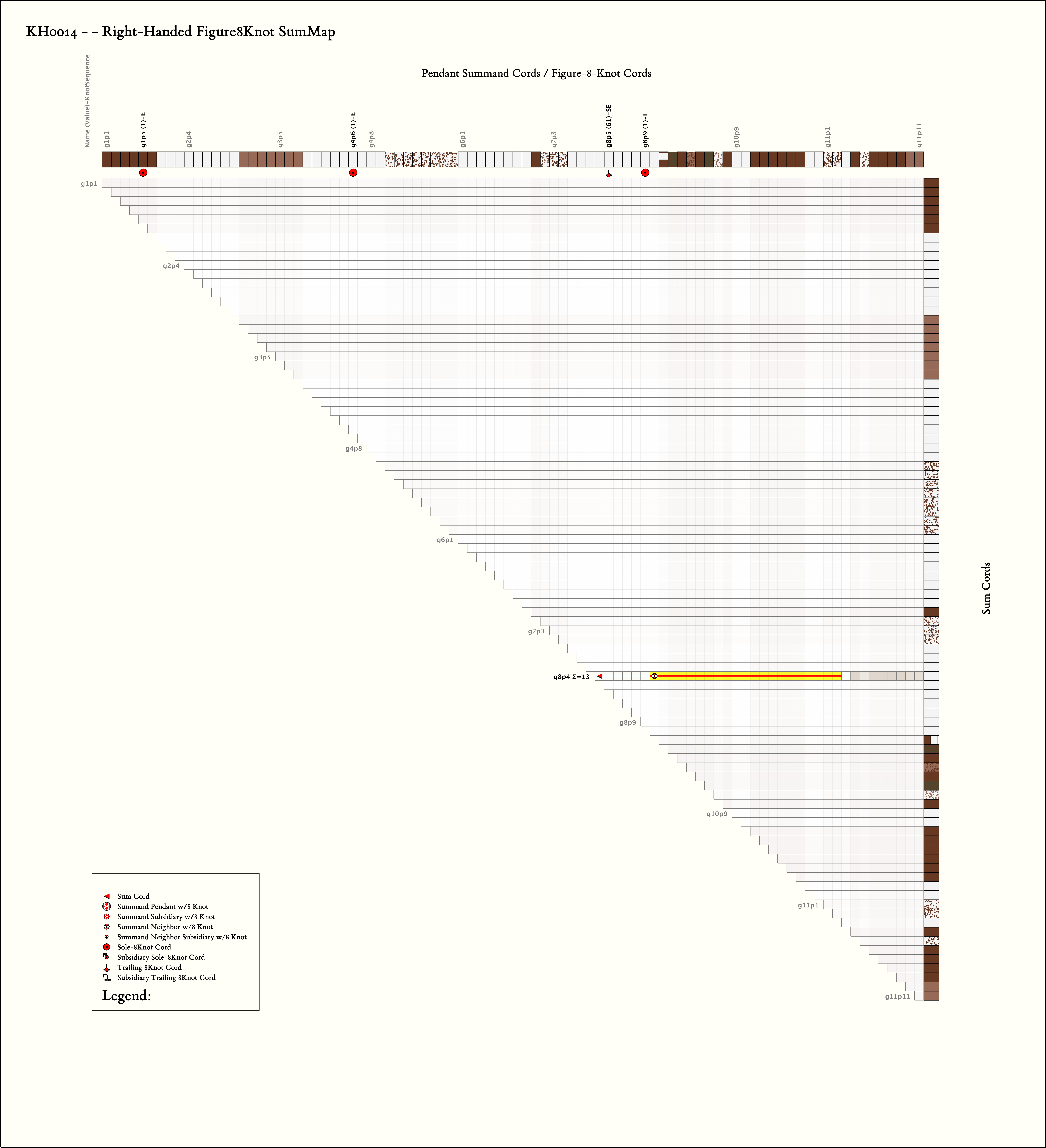

Right Handed Sums:     # Sums = 1,  Max # Summands = 21,   (Min, Mean, Max) Sum Values = (13, 13, 13)
Click on Image to View Larger

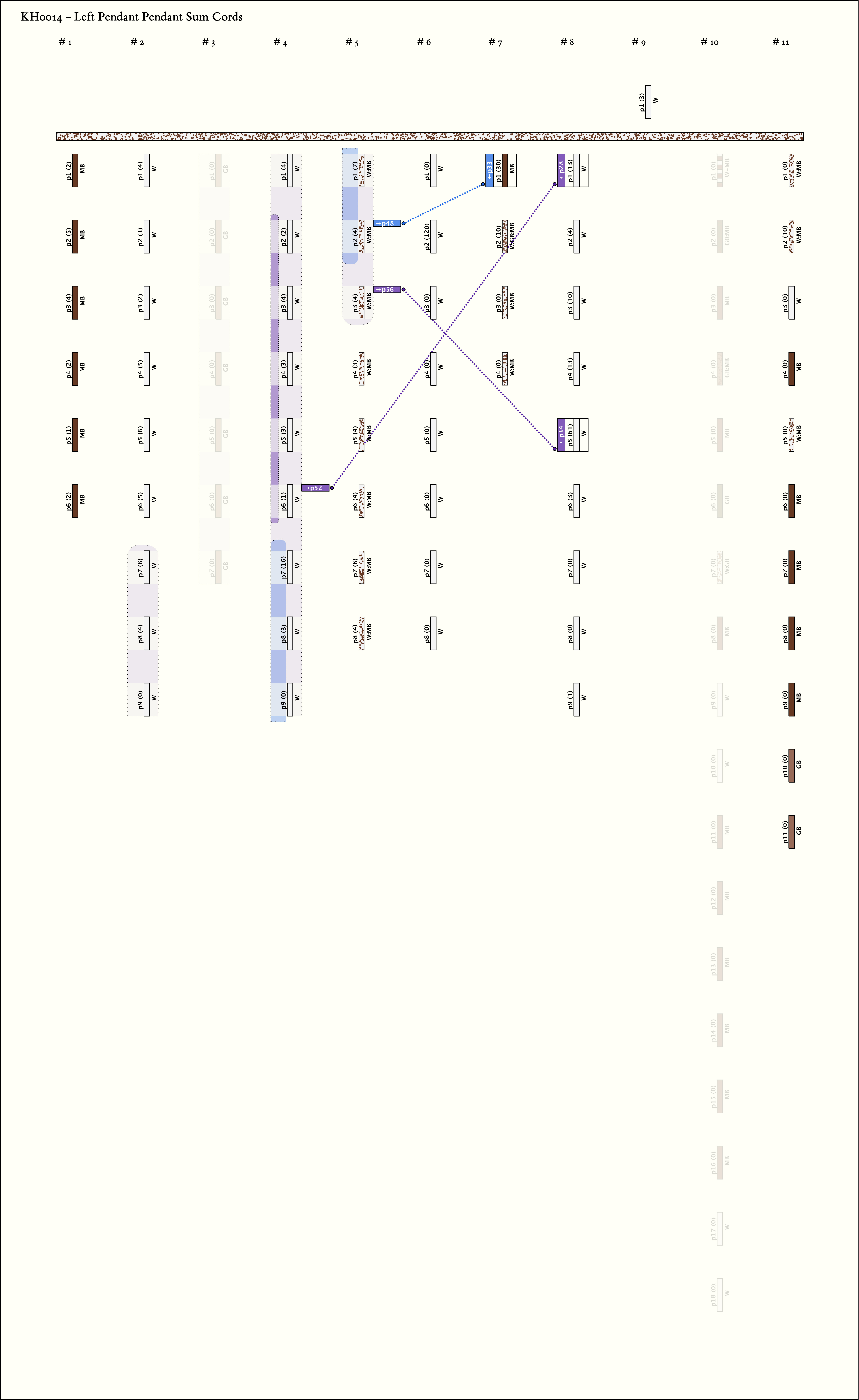

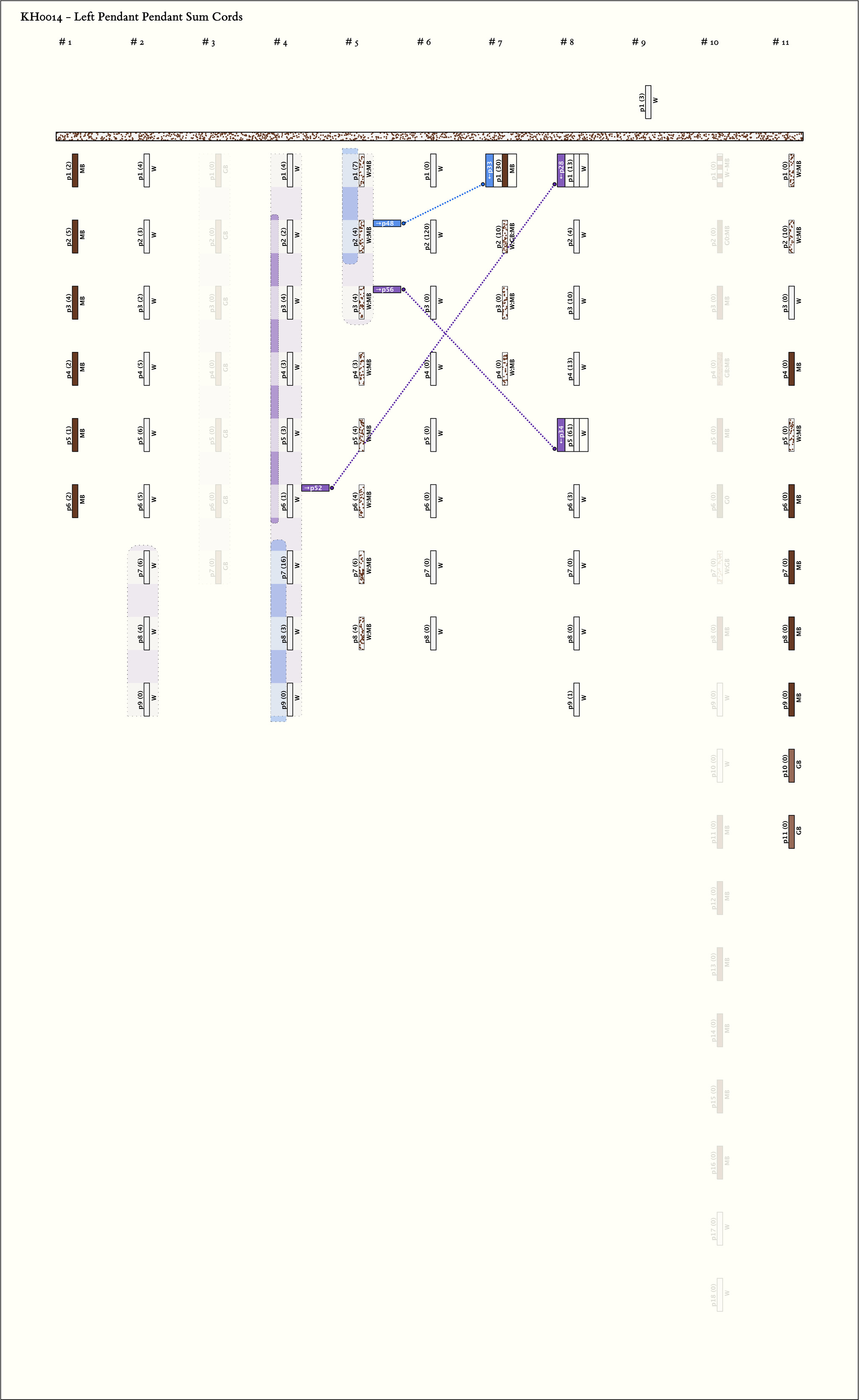

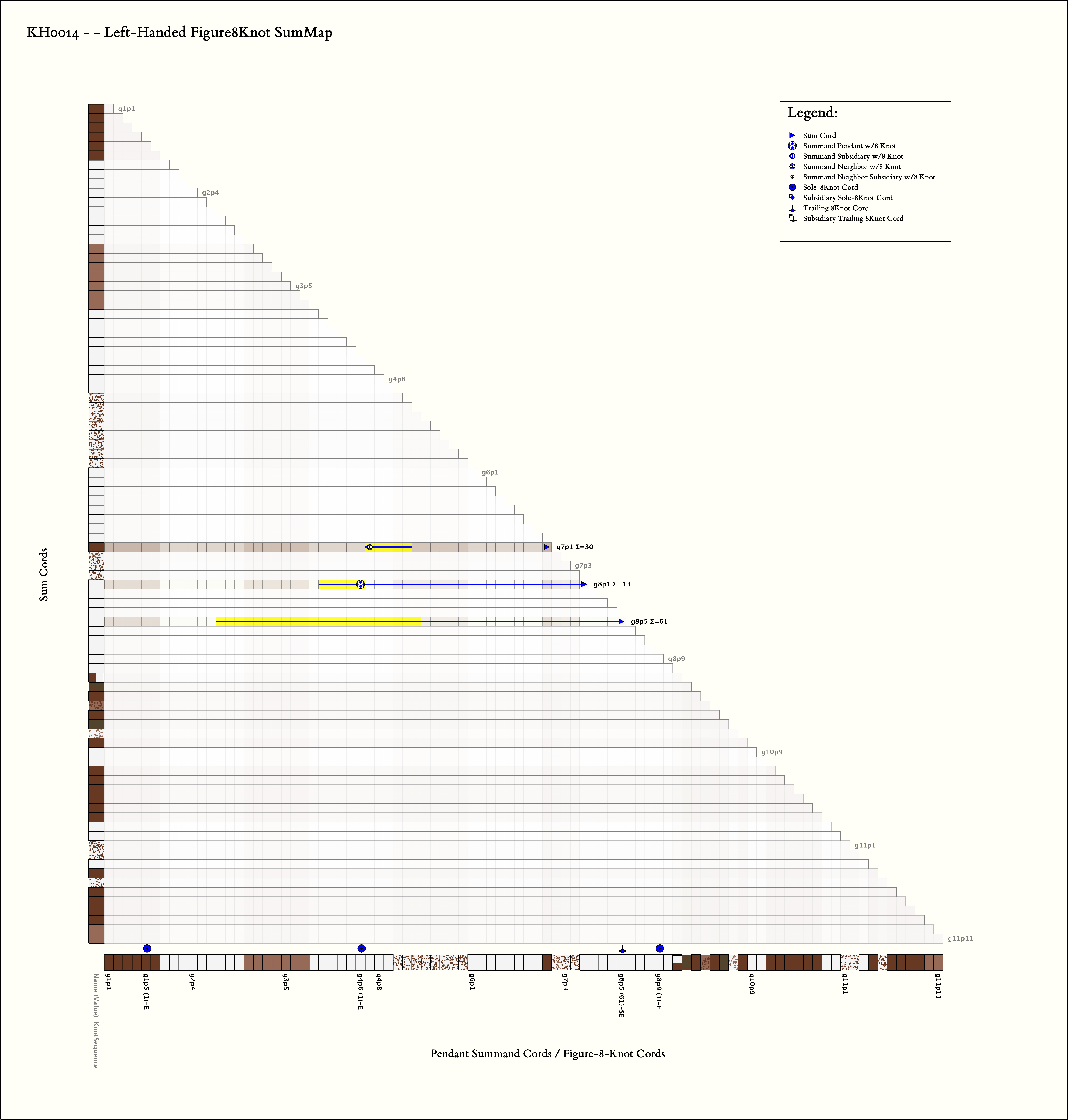

Left Handed Sums:     # Sums = 3,  Max # Summands = 22,   (Min, Mean, Max) Sum Values = (13, 35, 61)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g8p4 : 13W1321g9p1: 3W + g10p1: 0W-MB + g10p2: 0G0:MB + g10p3: 0MB + g10p4: 0GB:MB + g10p5: 0MB + g10p6: 0G0 + g10p7: 0W:GB + g10p8: 0MB + g10p9: 0W + g10p10: 0W + g10p11: 0MB + g10p12: 0MB + g10p13: 0MB + g10p14: 0MB + g10p15: 0MB + g10p16: 0MB + g10p17: 0W + g10p18: 0W + g11p1: 0W:MB + g11p2: 10W:MB

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands

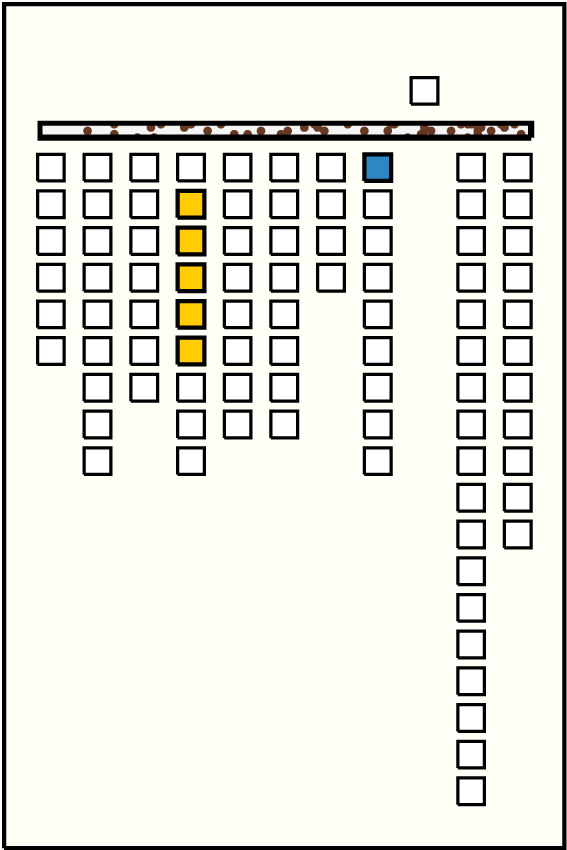

1
g7p1 : 30MB305g4p7: 16W + g4p8: 3W + g4p9: 0W + g5p1: 7W:MB + g5p2: 4W:MB

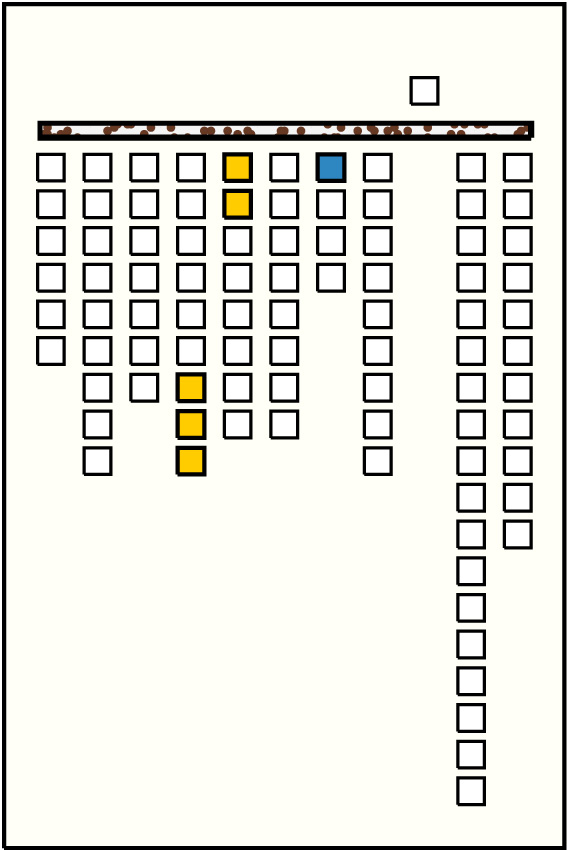

2
g8p1 : 13W135g4p2: 2W + g4p3: 4W + g4p4: 3W + g4p5: 3W + g4p6: 1W

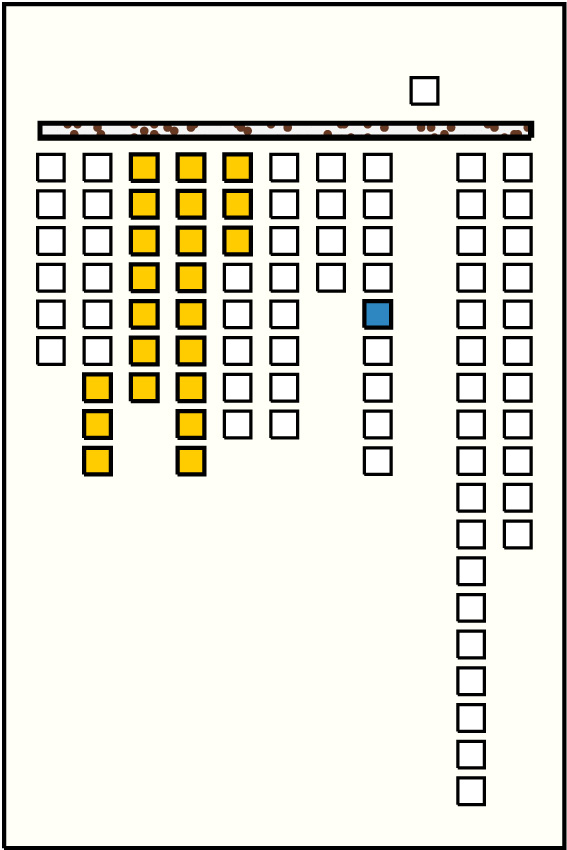

3
g8p5 : 61W6122g2p7: 6W + g2p8: 4W + g2p9: 0W + g3p1: 0GB + g3p2: 0GB + g3p3: 0GB + g3p4: 0GB + g3p5: 0GB + g3p6: 0GB + g3p7: 0GB + g4p1: 4W + g4p2: 2W + g4p3: 4W + g4p4: 3W + g4p5: 3W + g4p6: 1W + g4p7: 16W + g4p8: 3W + g4p9: 0W + g5p1: 7W:MB + g5p2: 4W:MB + g5p3: 4W:MB

Khipu Notes:
Ascher Databook Notes:
  1. Most values are below 10; the maximum value is 61.
  2. Groups of W alternate with groups of different colors until the top cord occurs.
  3. Using 4 individual colors, 10 different colors are constructed.
