KH0046/AS035D - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

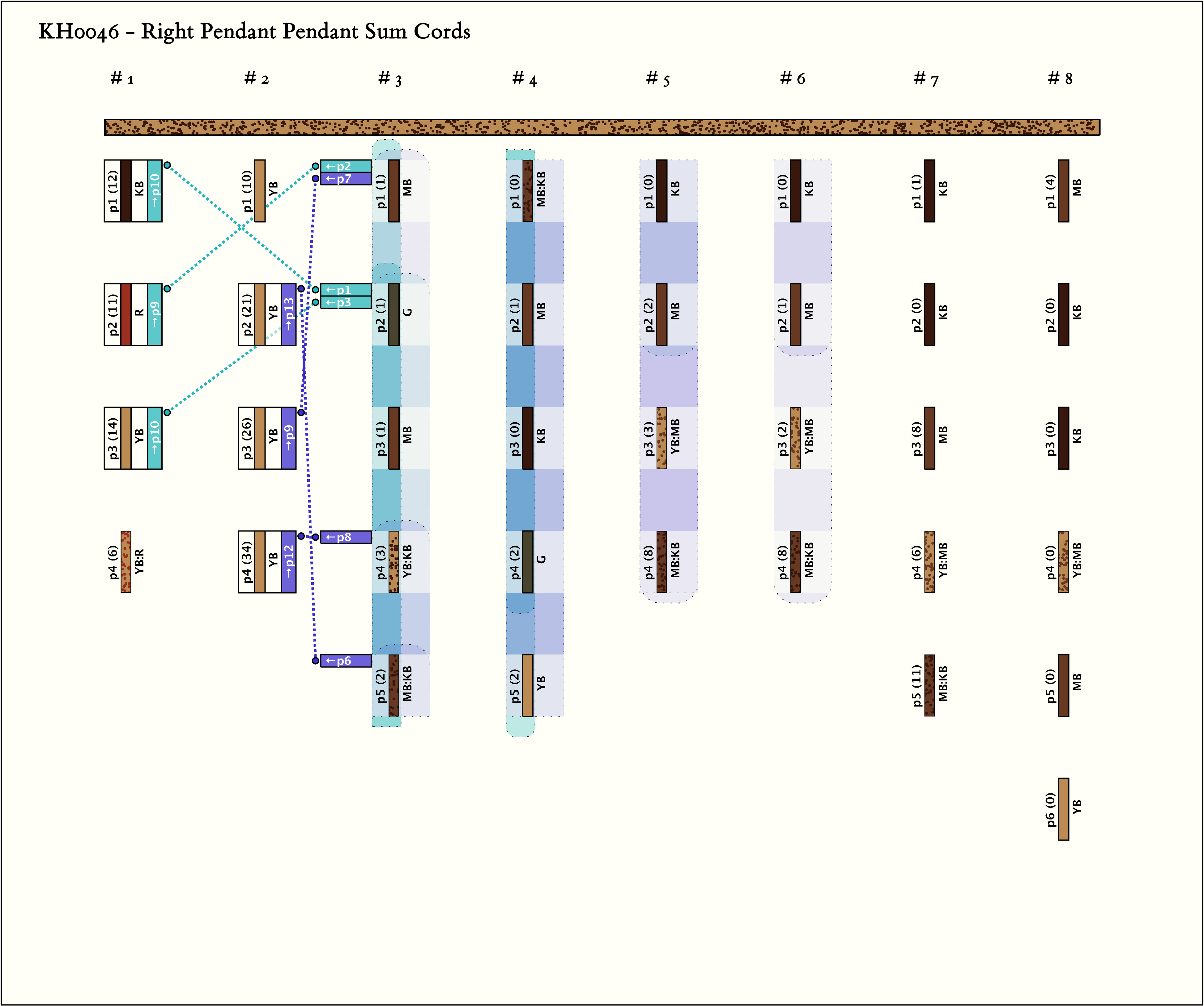

Right Handed Sums with Figure-8-Knots:     # Sums = 6,  Max # Summands = 15,   (Min, Mean, Max) Sum Values = (11, 20, 34)
Click on Image to View Larger

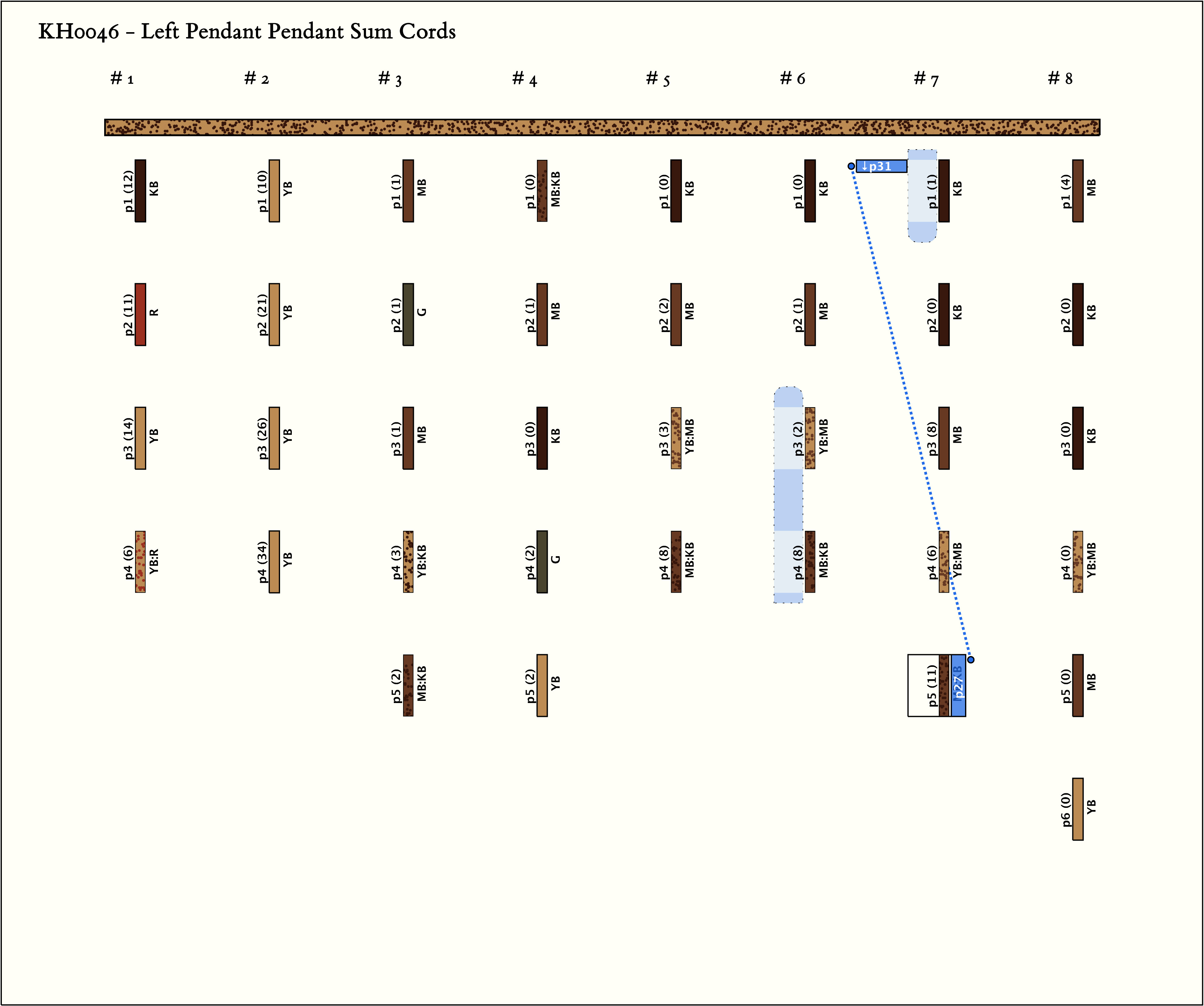

Left Handed Sums with Figure-8-Knots:     # Sums = 1,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (11, 11, 11)
Click on Image to View Larger

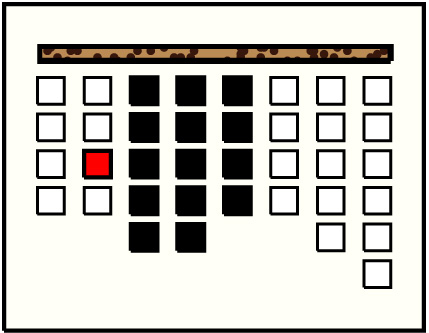

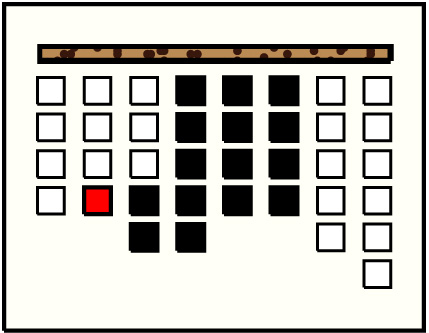

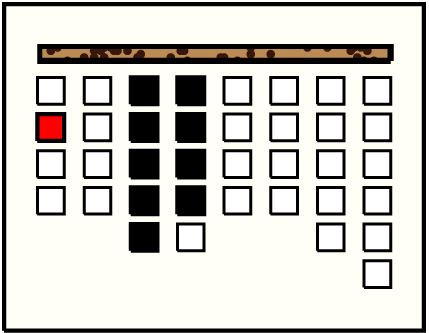

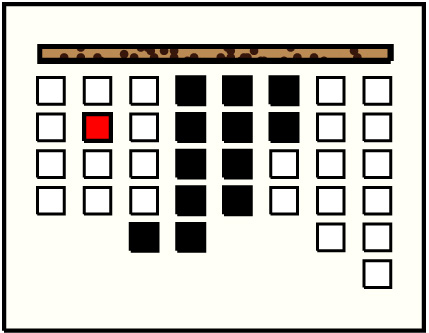

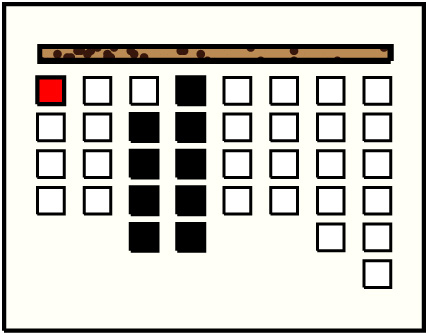

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p1 : 12KB129❽g3p2: 1G + g3p3: 1MB + g3p4: 3YB:KB + g3p5: 2MB:KB + g4p1: 0MB:KB + g4p2: 1MB + g4p3: 0KB + g4p4: 2G + g4p5: 2YB
2
g1p2 : 11R119❽g3p1: 1MB + g3p2: 1G + g3p3: 1MB + g3p4: 3YB:KB + g3p5: 2MB:KB + g4p1: 0MB:KB + g4p2: 1MB + g4p3: 0KB + g4p4: 2G
3
g1p3 : 14YB1411❽g3p2: 1G + g3p3: 1MB + g3p4: 3YB:KB + g3p5: 2MB:KB + g4p1: 0MB:KB + g4p2: 1MB + g4p3: 0KB + g4p4: 2G + g4p5: 2YB + g5p1: 0KB + g5p2: 2MB
4
g2p2 : 21YB2112g3p5: 2MB:KB + g4p1: 0MB:KB + g4p2: 1MB + g4p3: 0KB + g4p4: 2G + g4p5: 2YB + g5p1: 0KB + g5p2: 2MB + g5p3: 3YB:MB + g5p4: 8MB:KB + g6p1: 0KB + g6p2: 1MB❽
5
g2p3 : 26YB2614❽g3p1: 1MB + g3p2: 1G + g3p3: 1MB + g3p4: 3YB:KB + g3p5: 2MB:KB + g4p1: 0MB:KB + g4p2: 1MB + g4p3: 0KB + g4p4: 2G + g4p5: 2YB + g5p1: 0KB + g5p2: 2MB + g5p3: 3YB:MB + g5p4: 8MB:KB
6
g2p4 : 34YB3415∞g3p4: 3YB:KB + g3p5: 2MB:KB + g4p1: 0MB:KB + g4p2: 1MB + g4p3: 0KB + g4p4: 2G + g4p5: 2YB + g5p1: 0KB + g5p2: 2MB + g5p3: 3YB:MB + g5p4: 8MB:KB + g6p1: 0KB + g6p2: 1MB + g6p3: 2YB:MB + g6p4: 8MB:KB∞

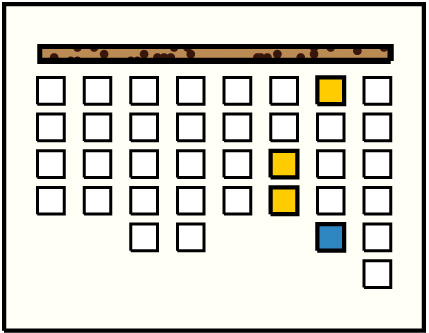

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g7p5 : 11MB:KB113∞g6p3: 2YB:MB + g6p4: 8MB:KB + g7p1: 1KB❽

Khipu Notes:
Ascher Databook Notes:
  1. Construction note : pendants 21 and 22 are tied together at 1.0 cm . below the main cord by a YB colored cord.
  2. This khipu contains 5 broken pendants of color KB. Two fragments of KB pendants were loose within the khipu collection . One had a cluster of 2L knots, and the other a cluster of 4L knots.
  3. KH0043-KH0046 is a collection of 4 khipus that are tied together.
  4. By spacing, there are 8 groups of 4, 4, 5, 5, 4, 4, 5, 6 pendants. With the exception of 1 additional pendant in group 7, groups 5, 6, 7 show the same colr pattern (KB, MB/YB, MB:YB, MB:KB).
  5. Group 1 repeats the values on KH0043, and group 2 repeats the color and values on KH0044.
