KH0075/AS063B - Pendant Pendant Sums
Drawings:

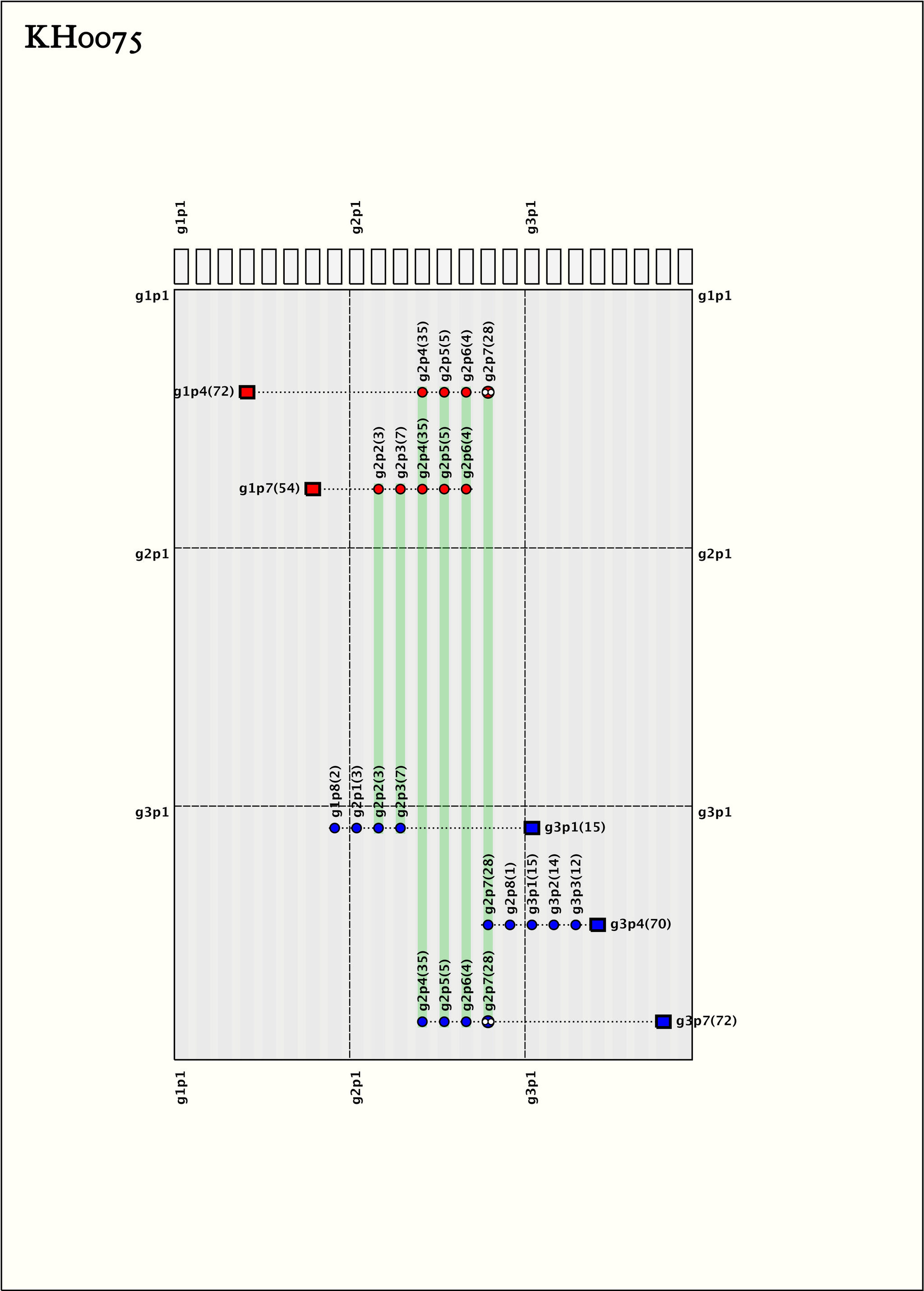

Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

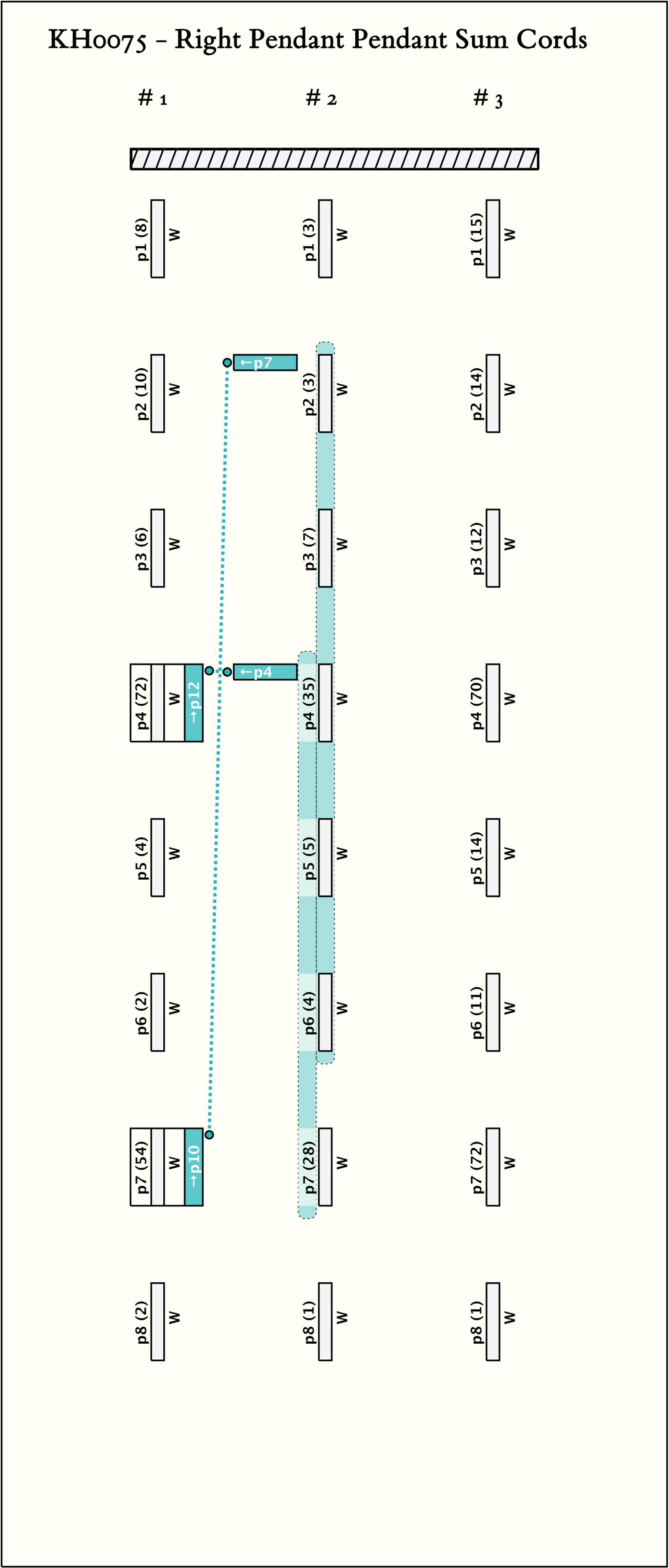

Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 5, (Min, Mean, Max) Sum Values = (54, 63, 72)
Click on Image to View Larger

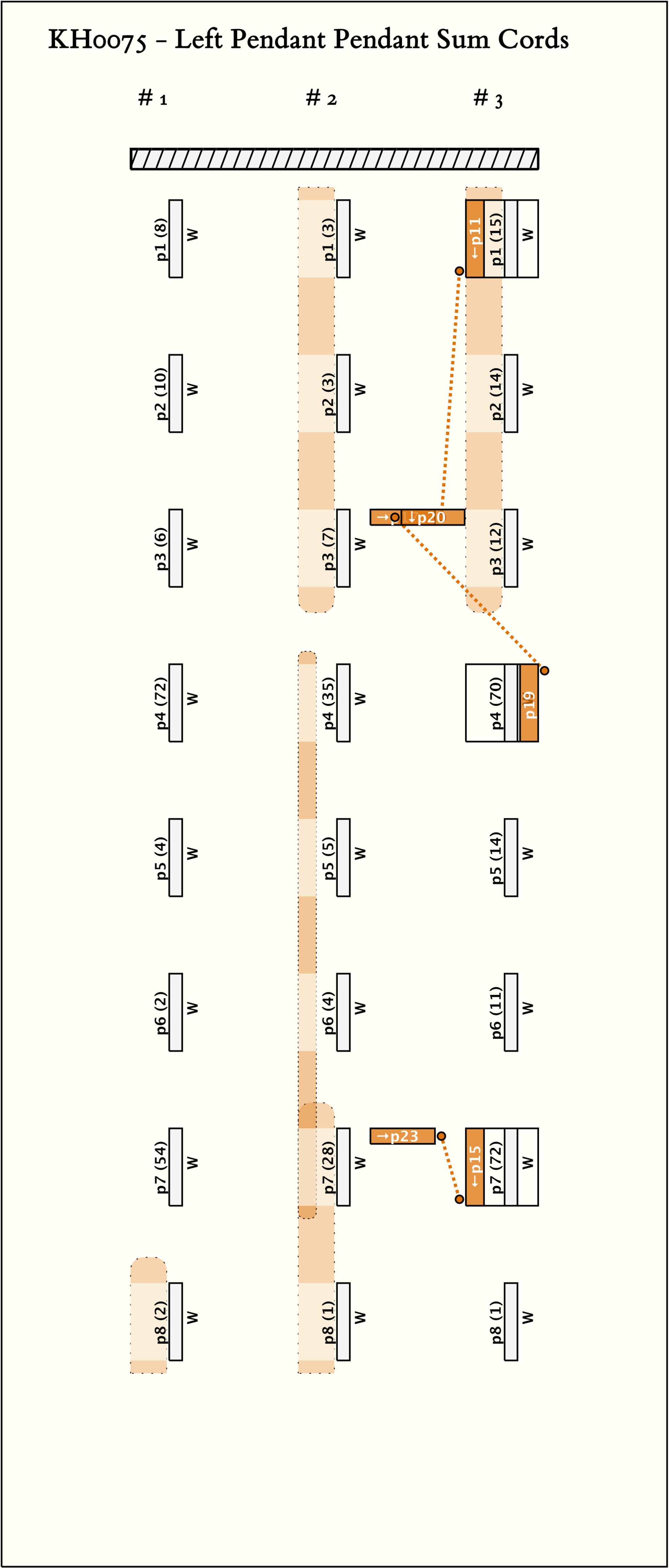

Left Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 5, (Min, Mean, Max) Sum Values = (15, 52, 72)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p4 : 72W | 72 | 4 | g2p4: 35W + g2p5: 5W + g2p6: 4W + g2p7: 28W∞ | |
| 2 |  | g1p7 : 54W | 54 | 5 | g2p2: 3W + g2p3: 7W + g2p4: 35W + g2p5: 5W + g2p6: 4W |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p1 : 15W | 15 | 4 | g1p8: 2W + g2p1: 3W + g2p2: 3W + g2p3: 7W | |
| 2 |  | g3p4 : 70W | 70 | 5 | g2p7: 28W∞ + g2p8: 1W + g3p1: 15W + g3p2: 14W + g3p3: 12W | |
| 3 |  | g3p7 : 72W | 72 | 4 | g2p4: 35W + g2p5: 5W + g2p6: 4W + g2p7: 28W∞ |
Khipu Notes:
1. See notes for KH0074.
