KH0122/UR1108, AS108 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |

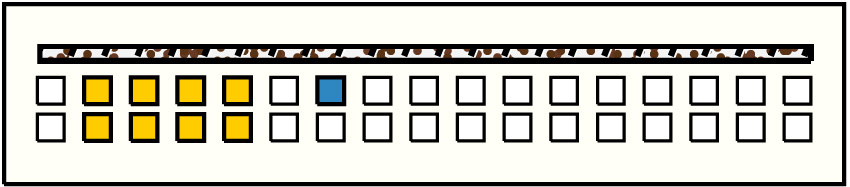

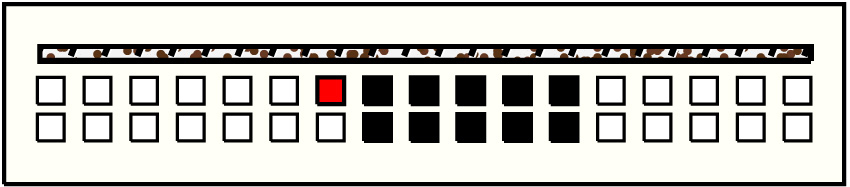

Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

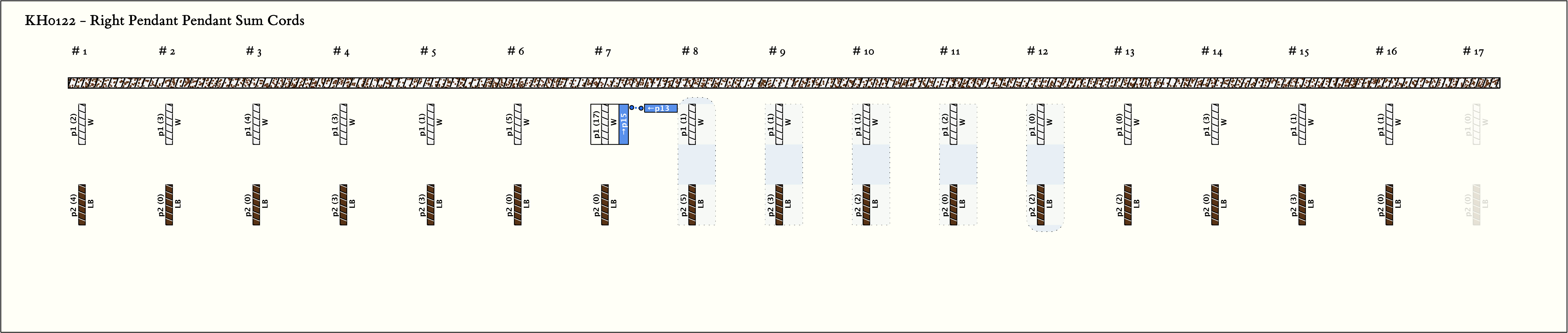

Right Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 10, (Min, Mean, Max) Sum Values = (17, 17, 17)
Click on Image to View Larger

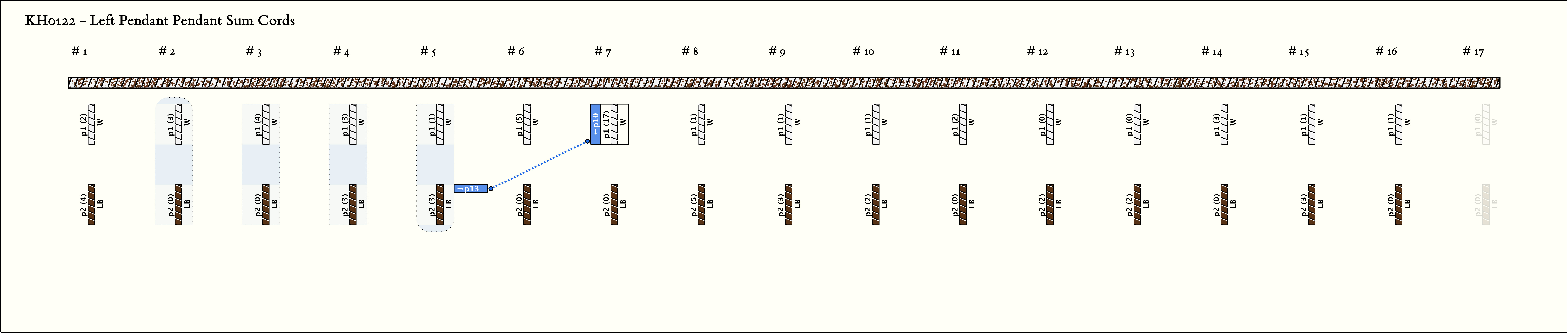

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 8, (Min, Mean, Max) Sum Values = (17, 17, 17)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g7p1 : 17W | 17 | 10 | ❽g8p1: 1W + g8p2: 5LB + g9p1: 1W + g9p2: 3LB + g10p1: 1W + g10p2: 2LB + g11p1: 2W + g11p2: 0LB + g12p1: 0W + g12p2: 2LB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g7p1 : 17W | 17 | 8 | ❽g2p1: 3W + g2p2: 0LB + g3p1: 4W + g3p2: 0LB + g4p1: 3W + g4p2: 3LB + g5p1: 1W + ∞g5p2: 3LB∞ |
Khipu Notes:
Ascher Databook Notes:
- This khipu is one of several acquired by the Museum in 1904 with provenance between Ica and Pisco. For a discussion of them, see KH0111.
- By spacing, there are 17 pairs of pendants. In each pair, the first is W and the second LB.
- The values on the pendants and subsidiaries are all 0-5 with 1 exception. The exception is a value of 17.
- The number 17 is prominent on this khipu. There are 17 pairs of pendants; the value 17 is the exception to the range of values; prior to the value 17 (on pendant 13), there are a total of 17 pendant and subsidiary cords; and after the value 17 (on pendant 13), the sum of the values on the second pendant in each pair is 17.
