KH0152/UR1136, AS136 - Pendant Pendant Sums


Drawings:

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

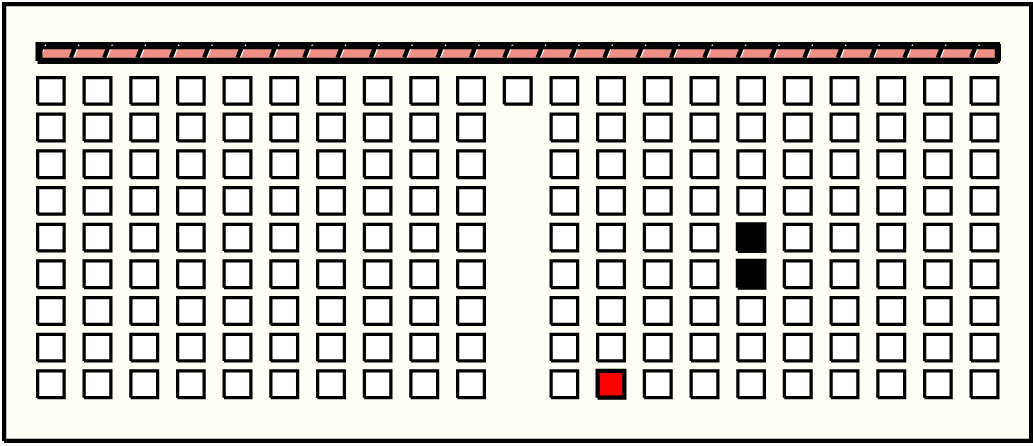

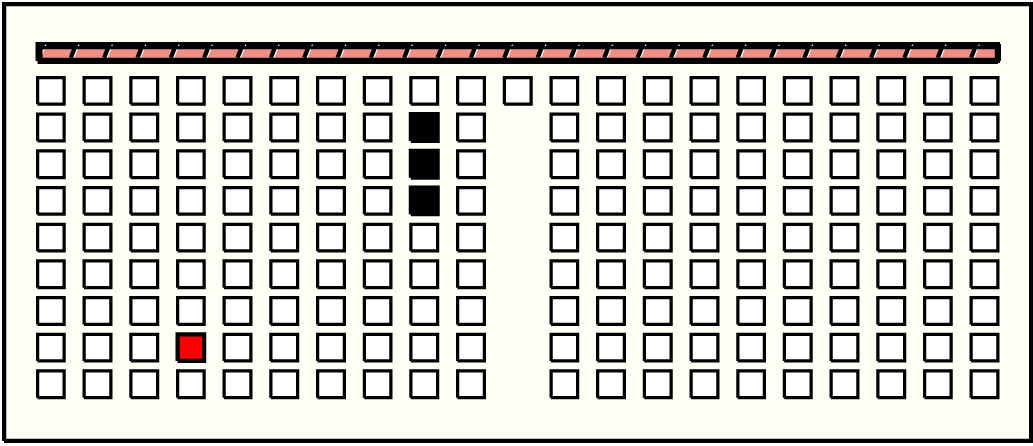

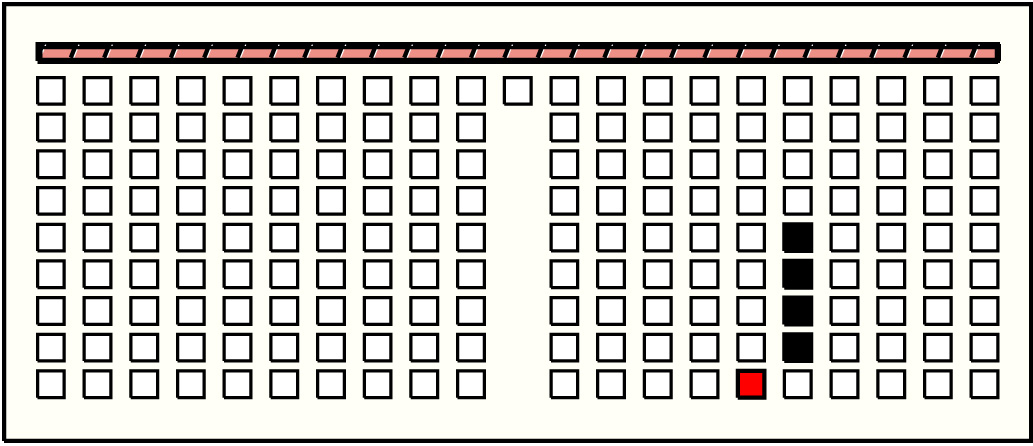

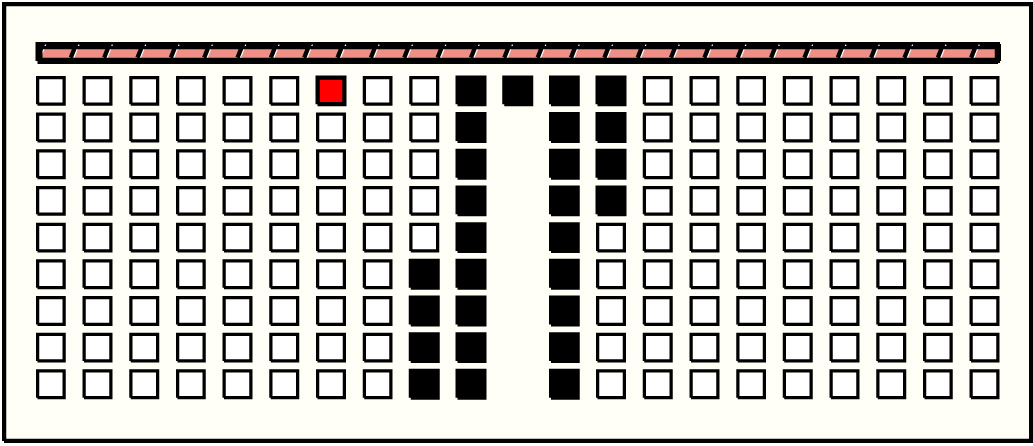

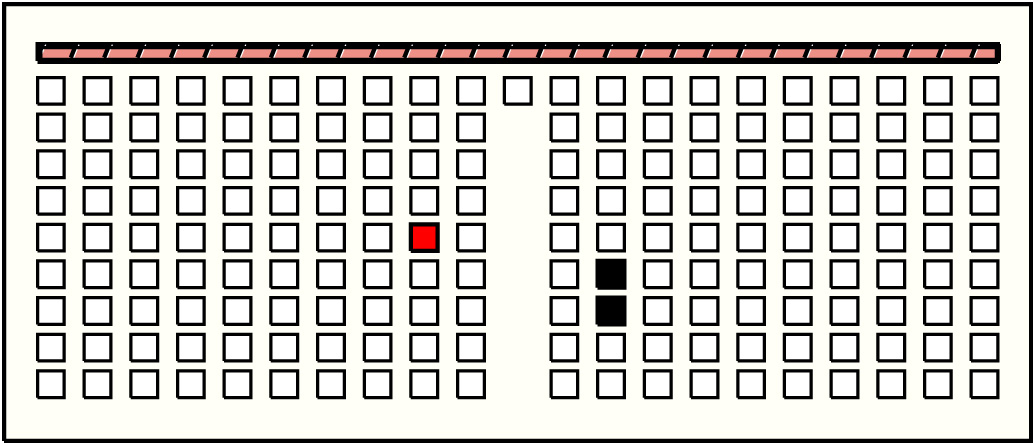

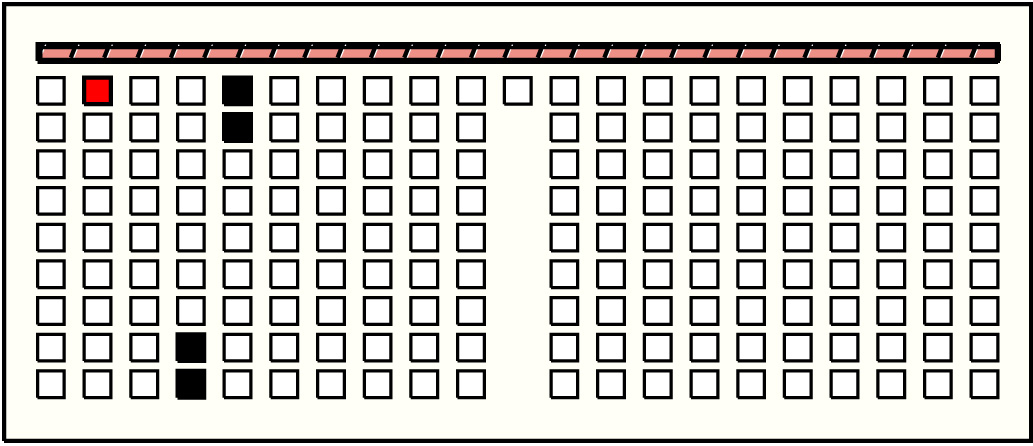

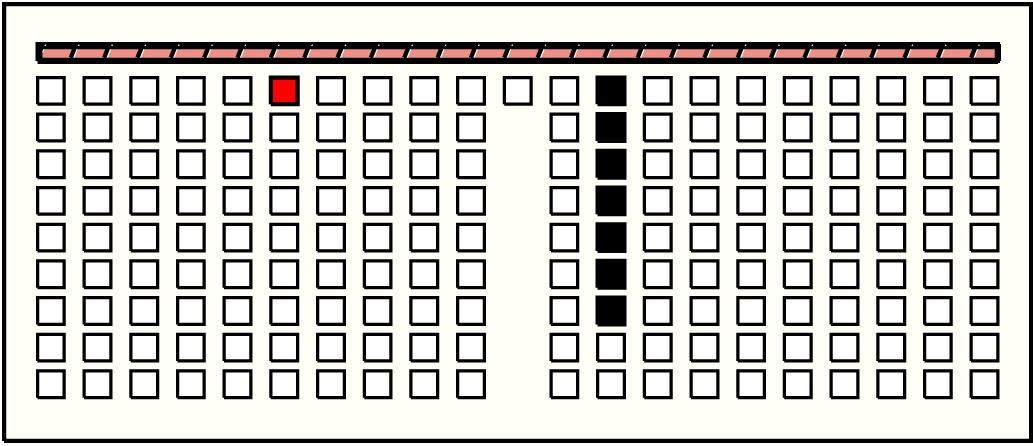

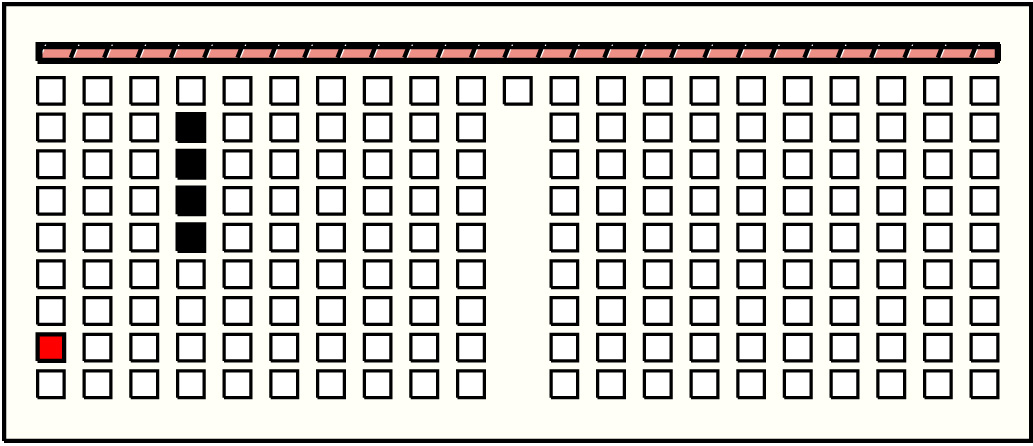

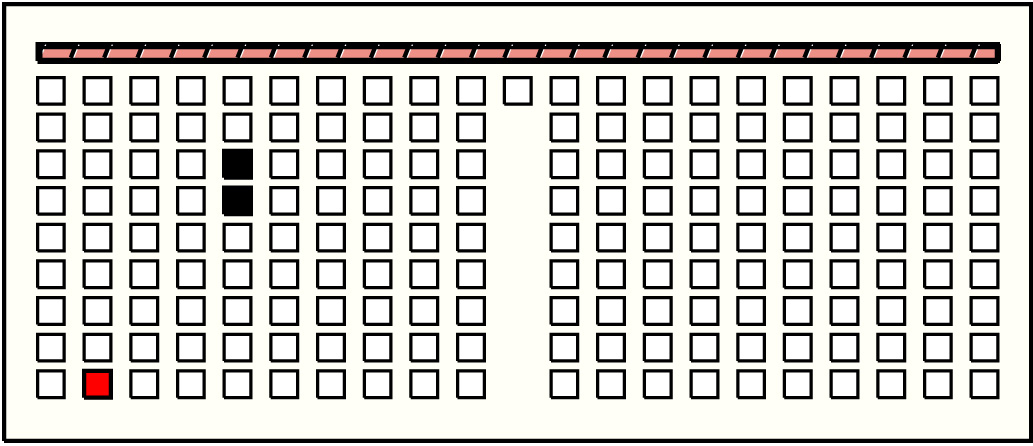

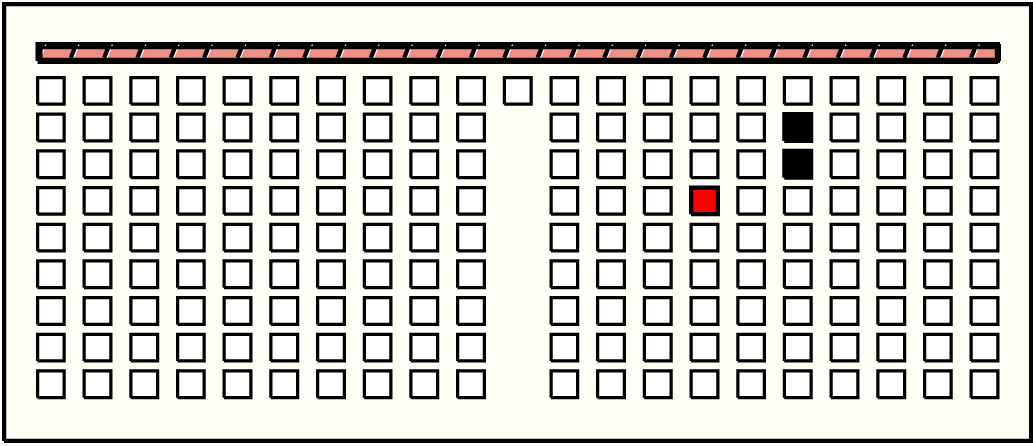

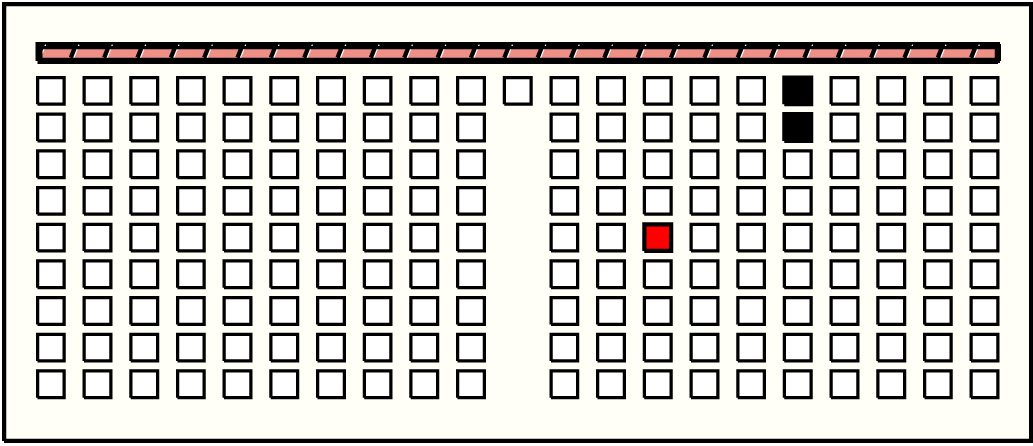

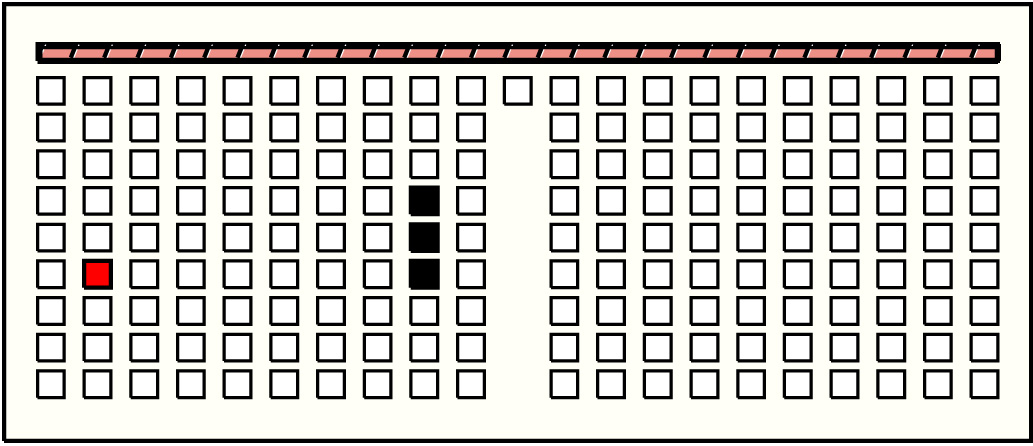

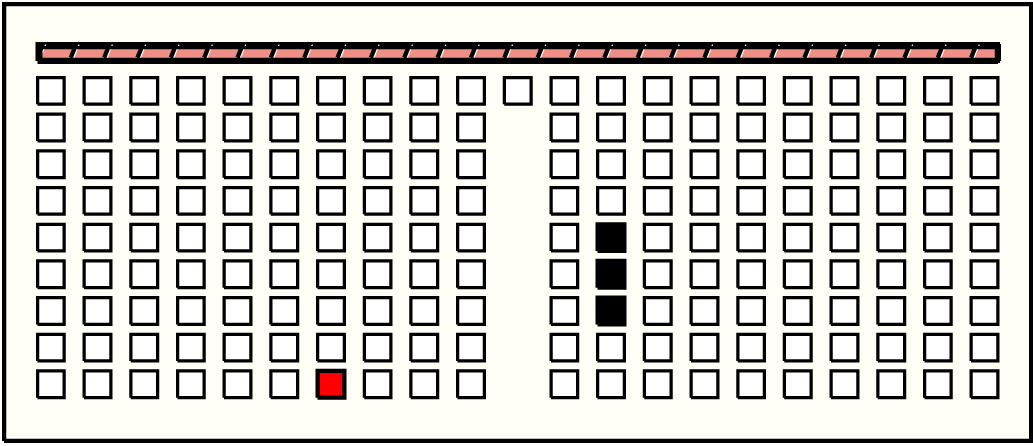

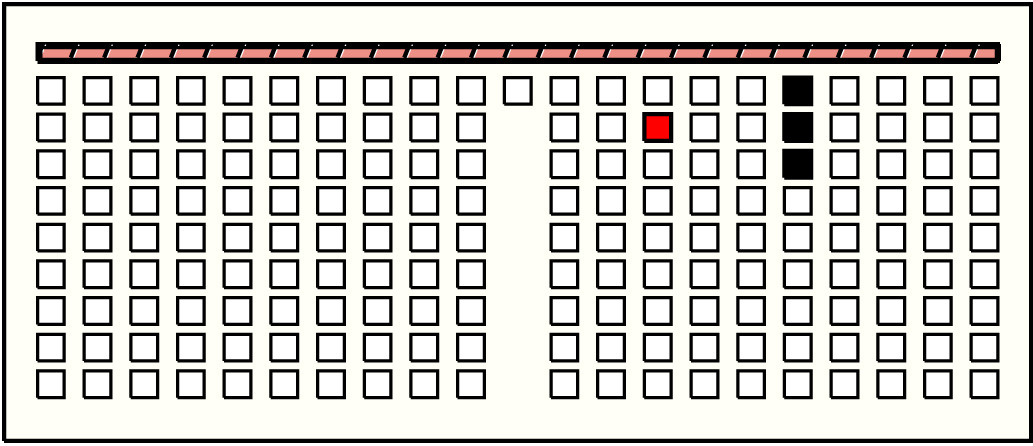

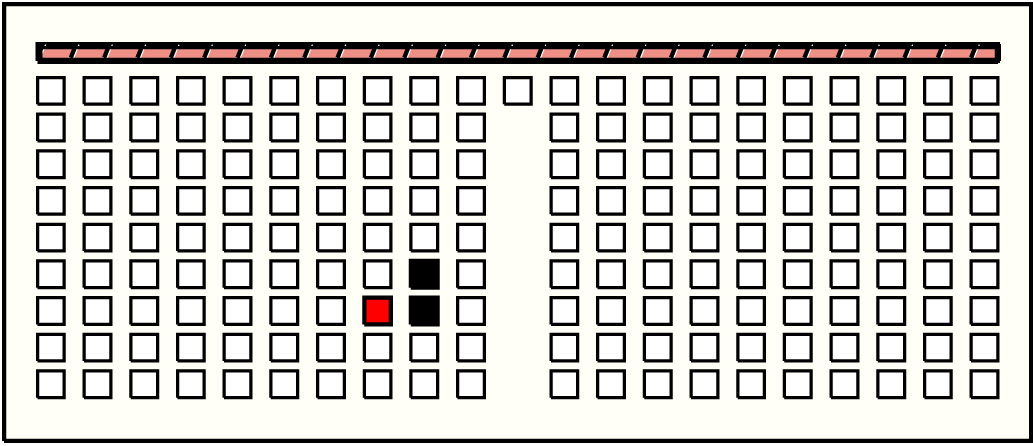

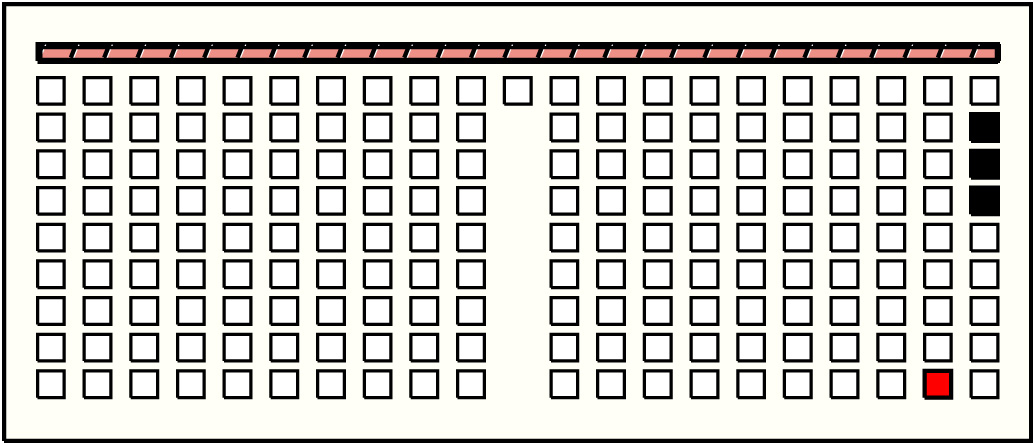

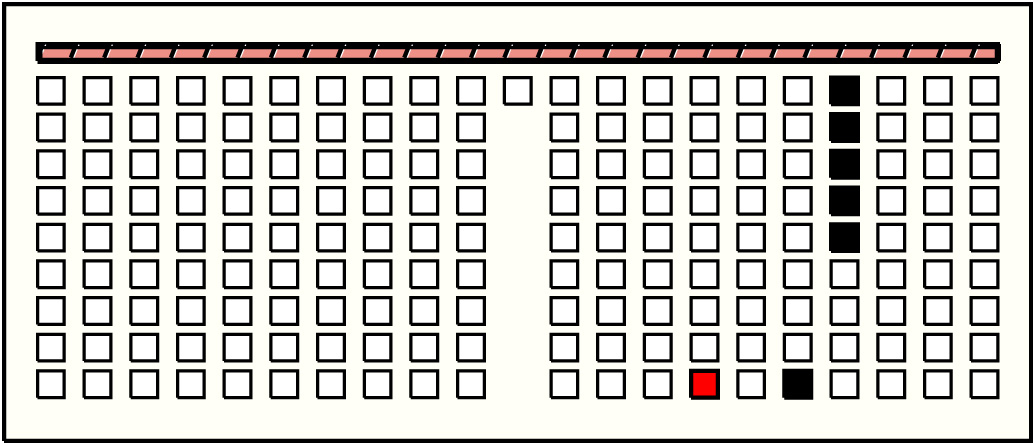

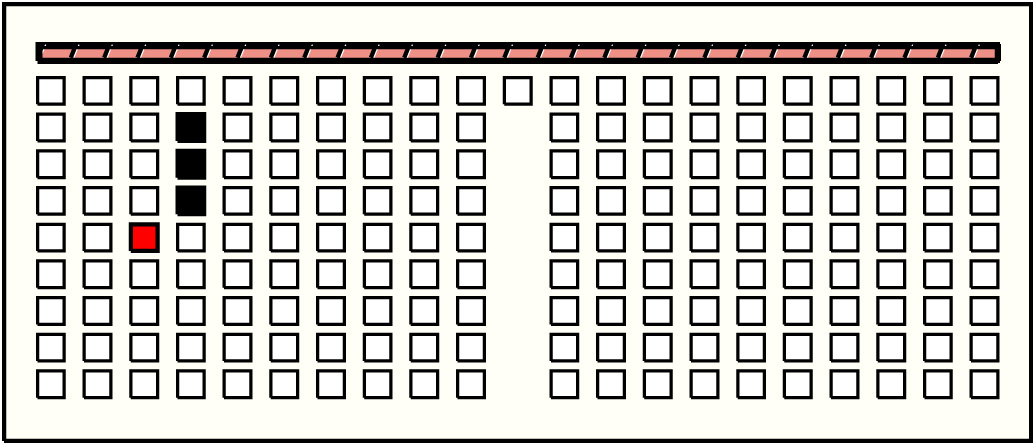

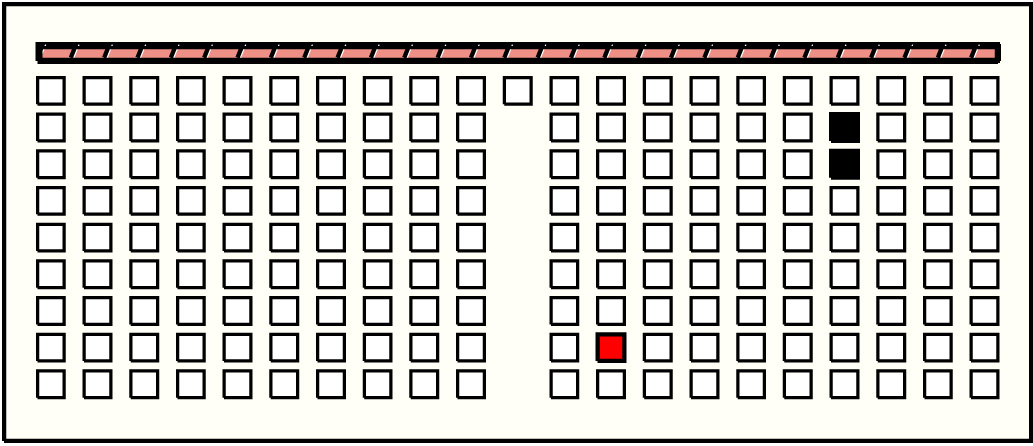

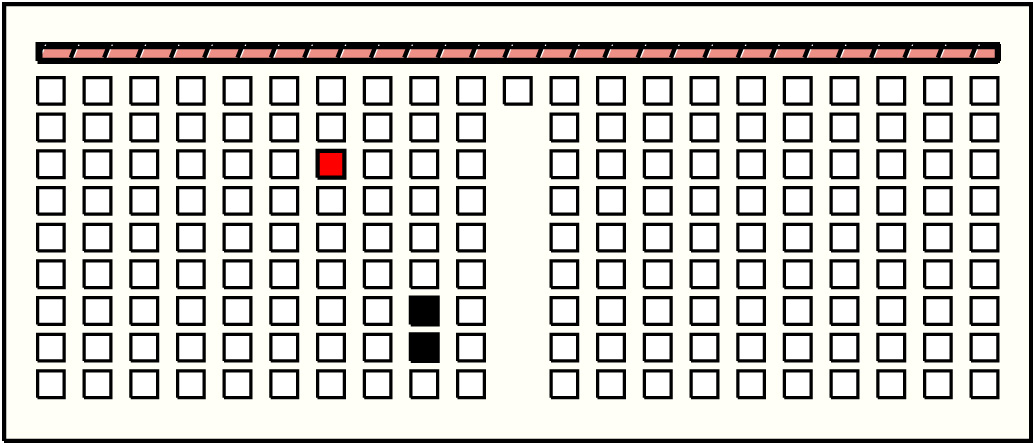

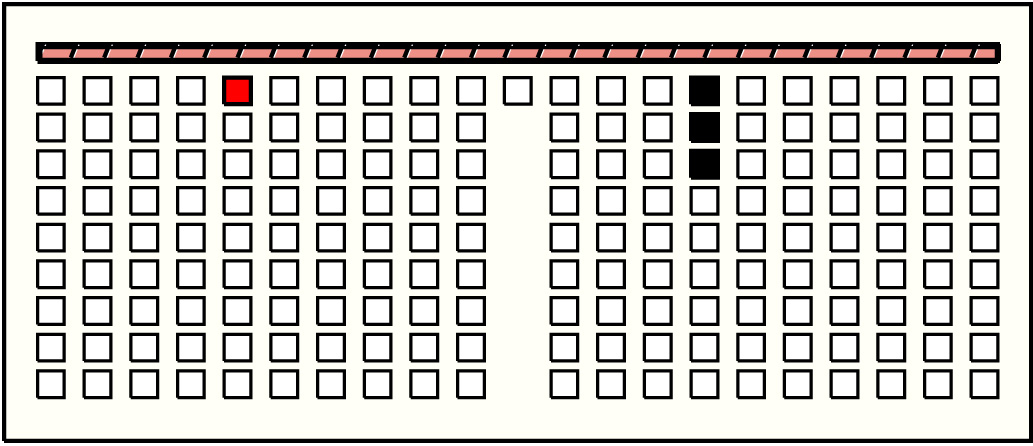

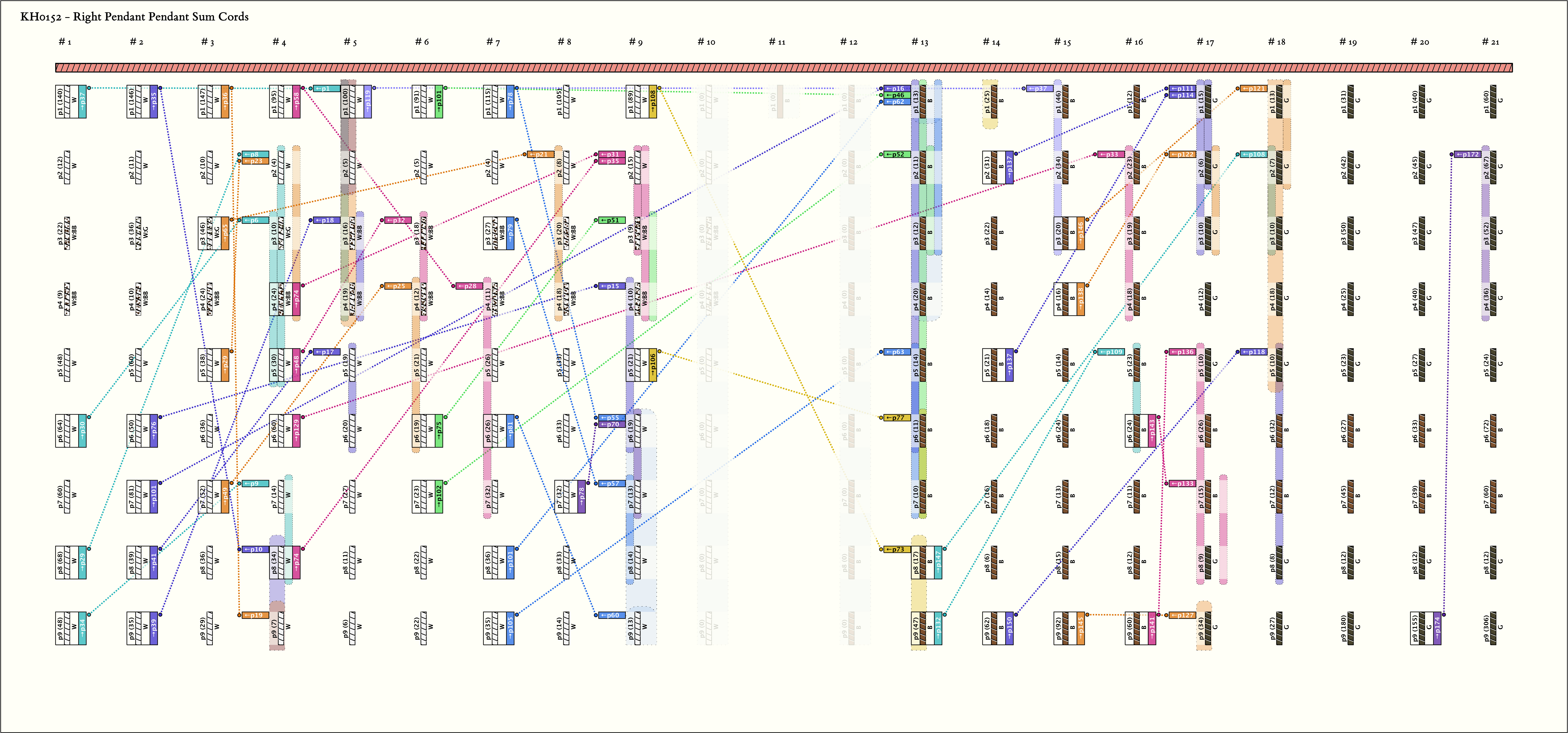

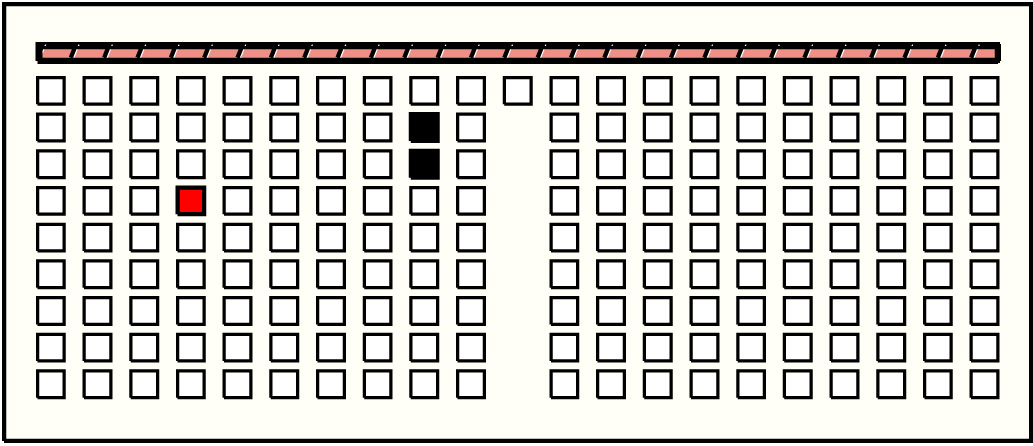

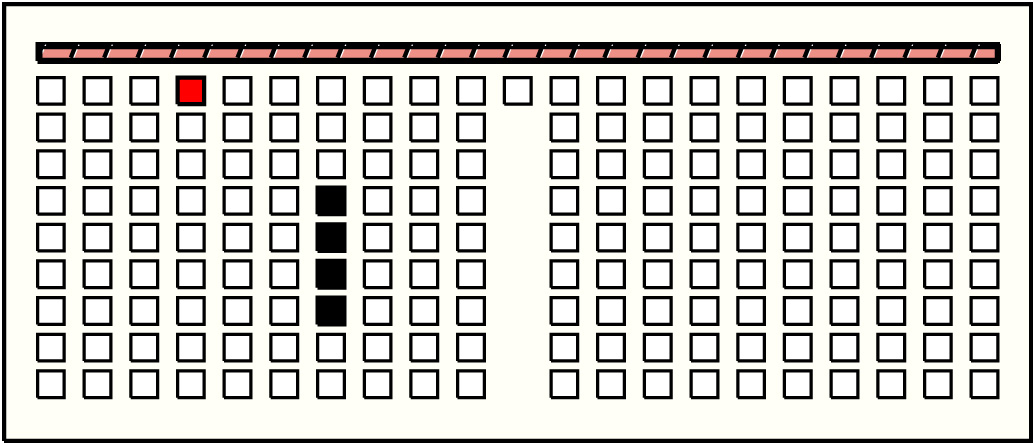

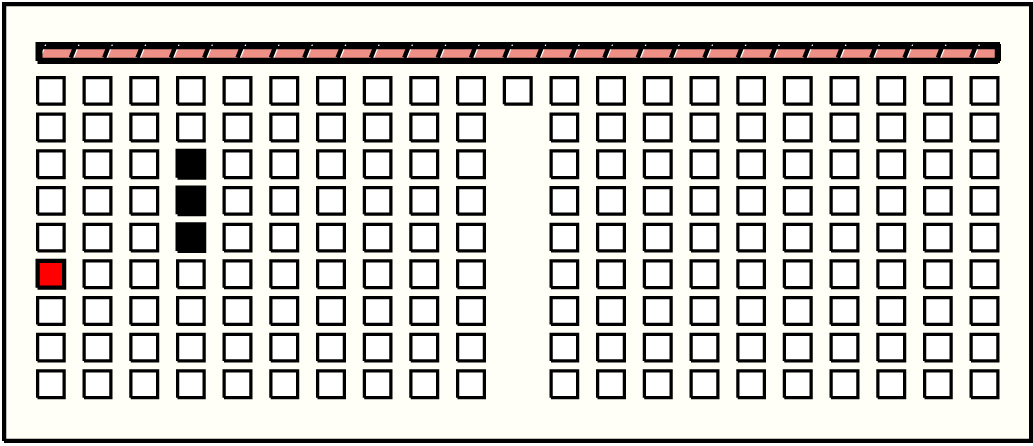

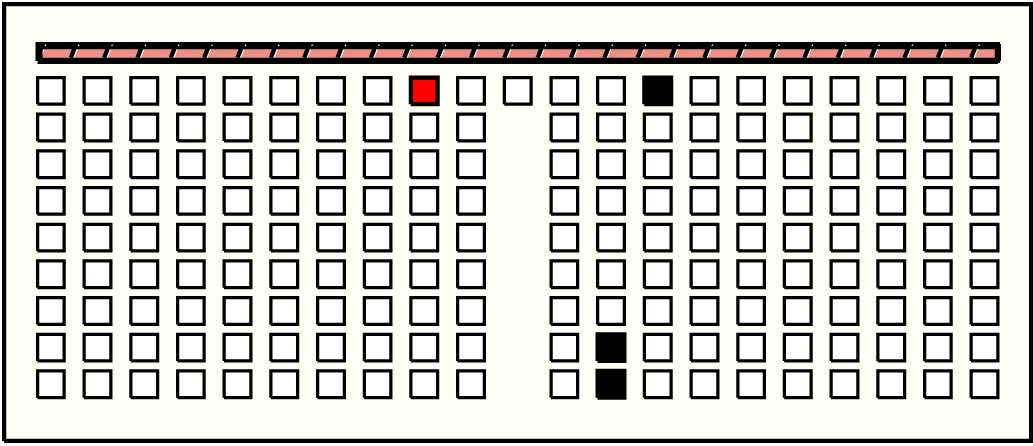

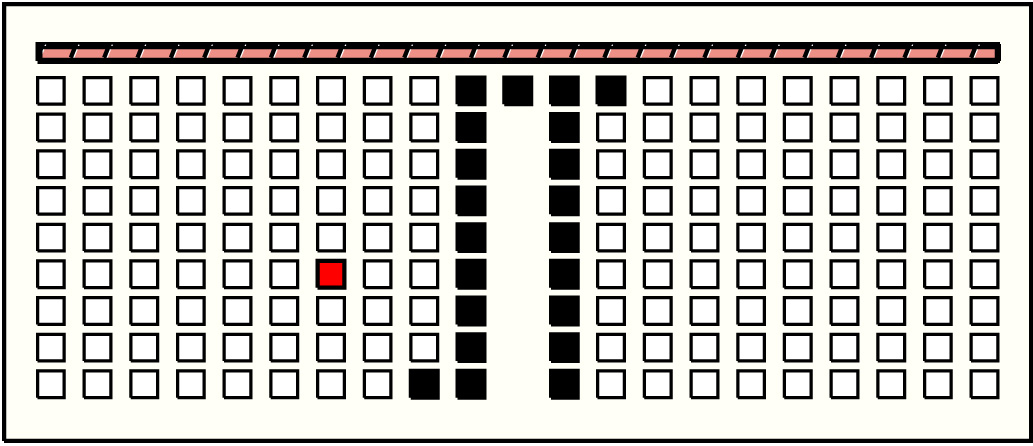

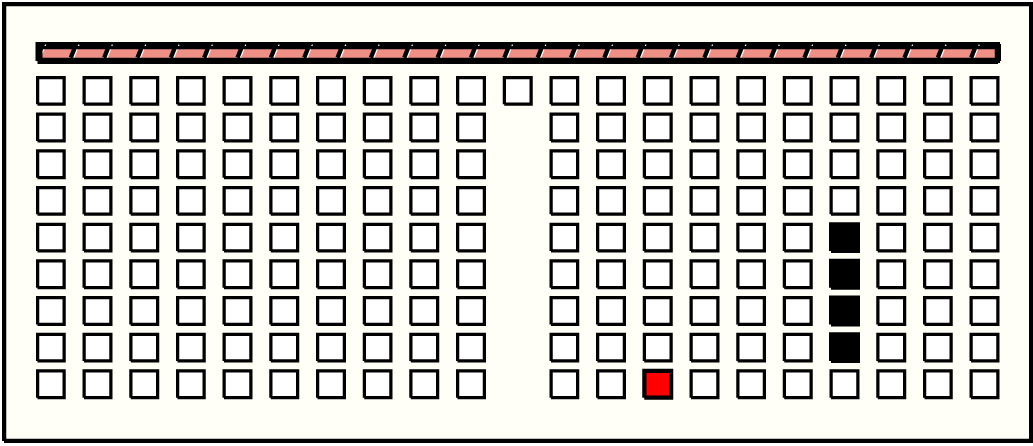

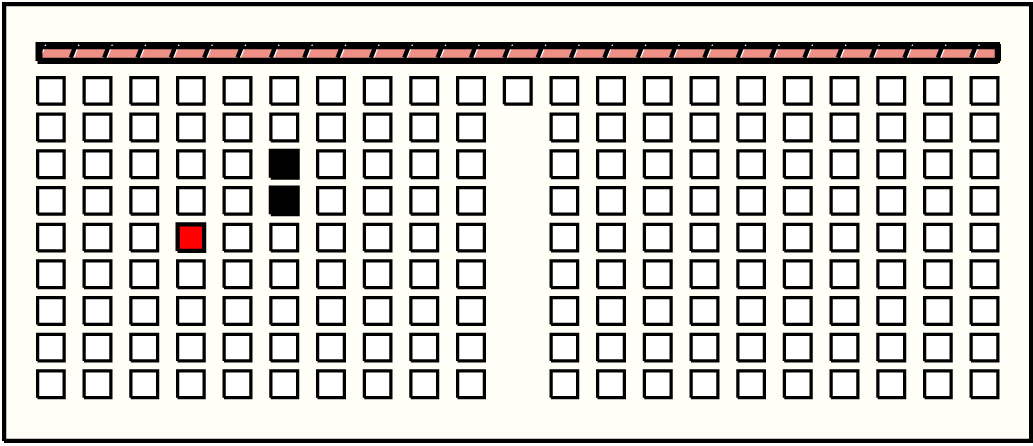

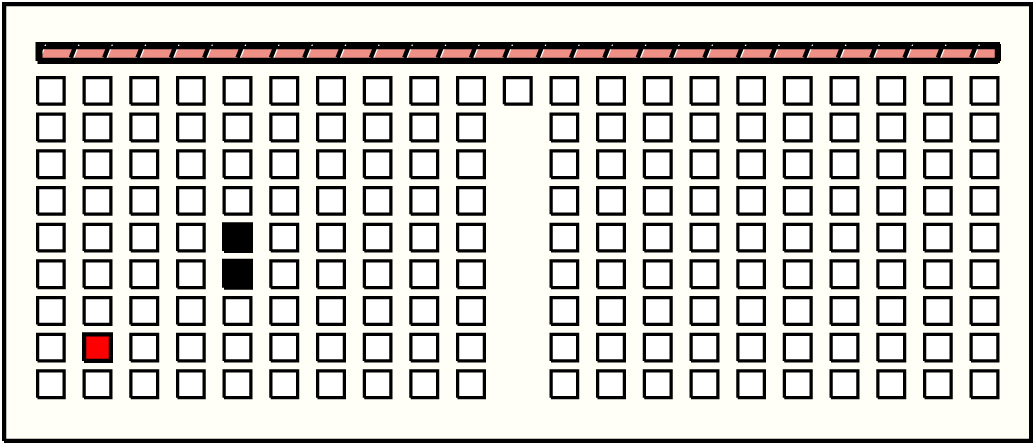

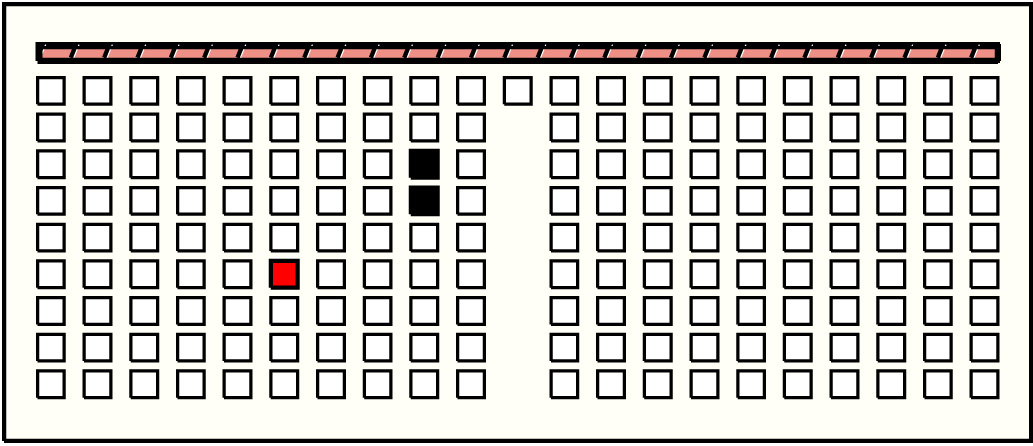

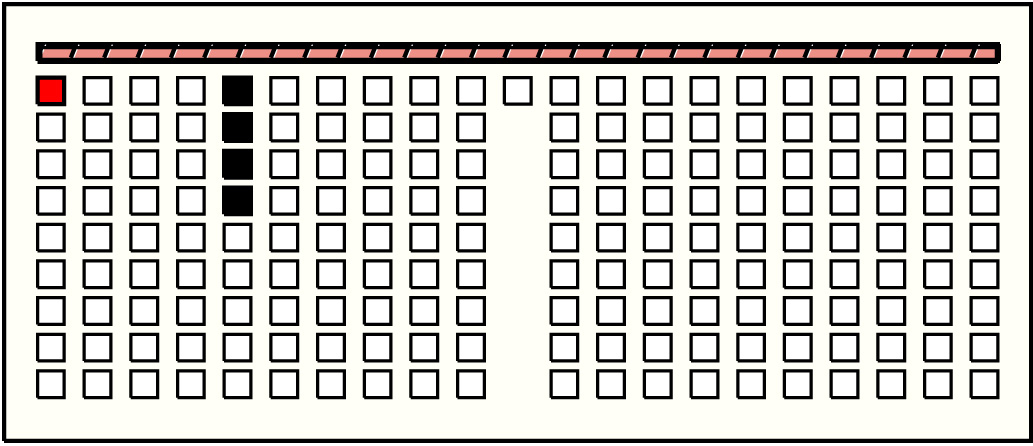

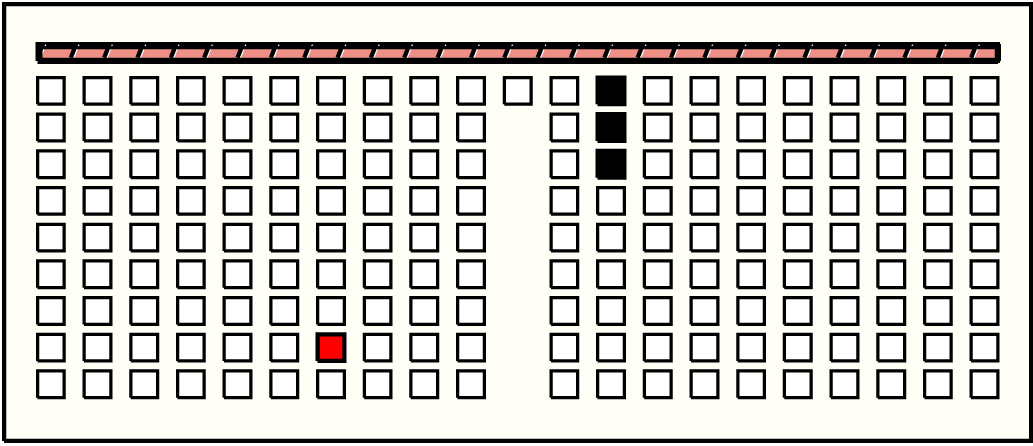

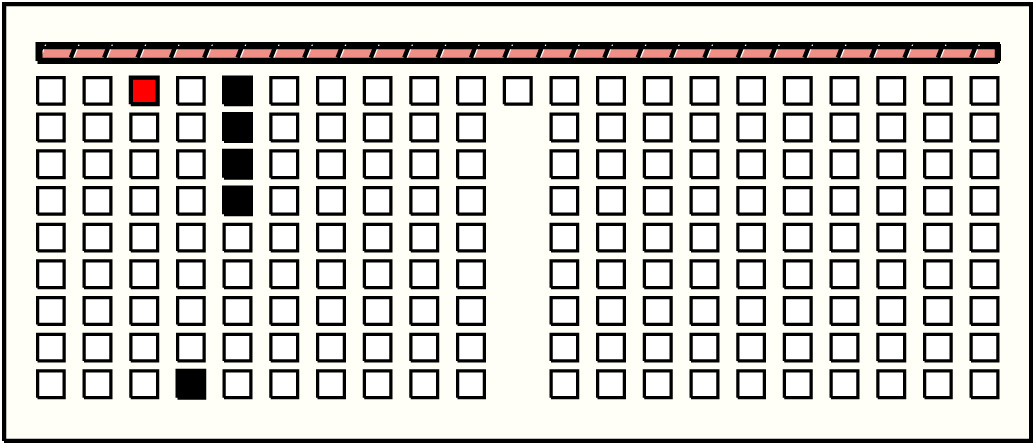

Right Handed Sums with Figure-8-Knots:     # Sums = 41,  Max # Summands = 27,   (Min, Mean, Max) Sum Values = (16, 57, 155)
Click on Image to View Larger

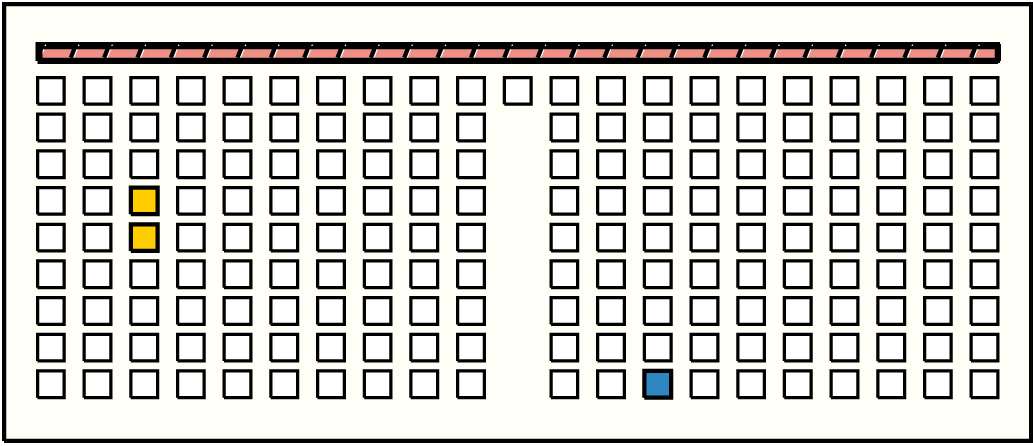

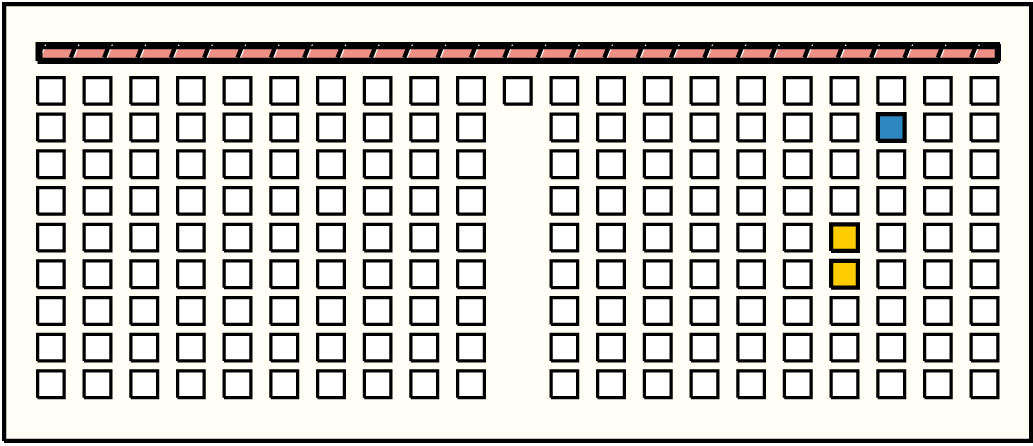

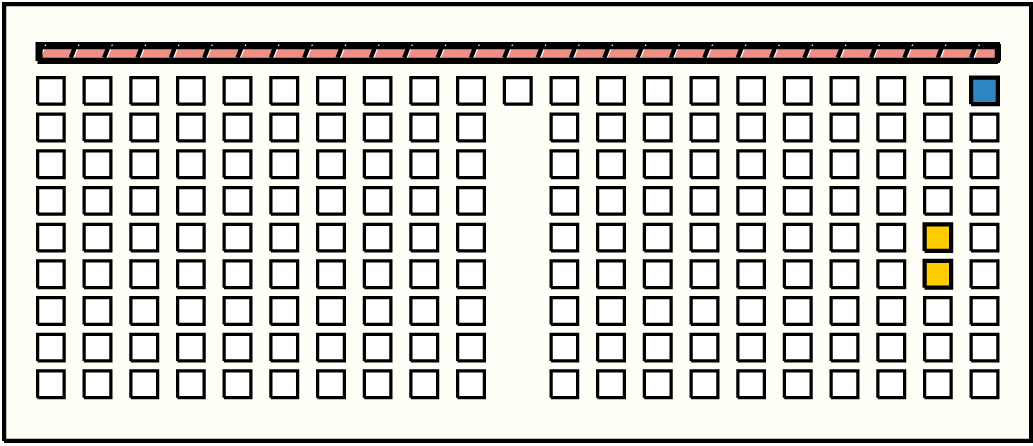

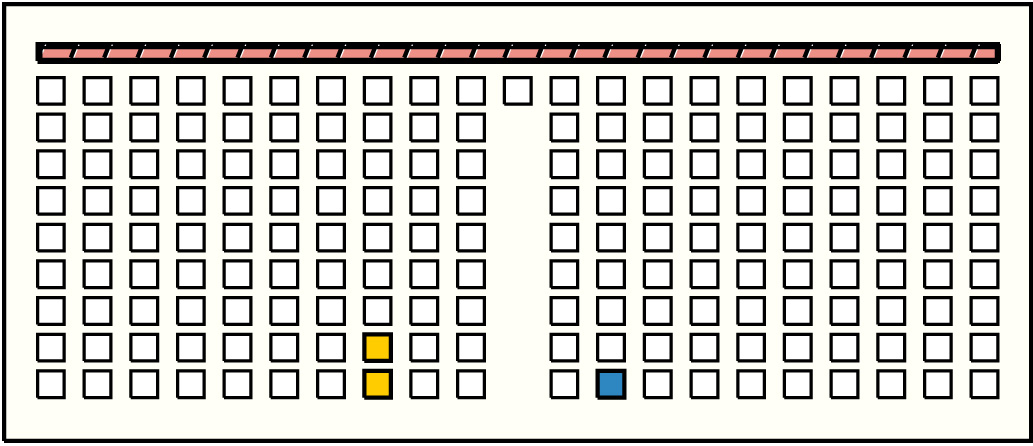

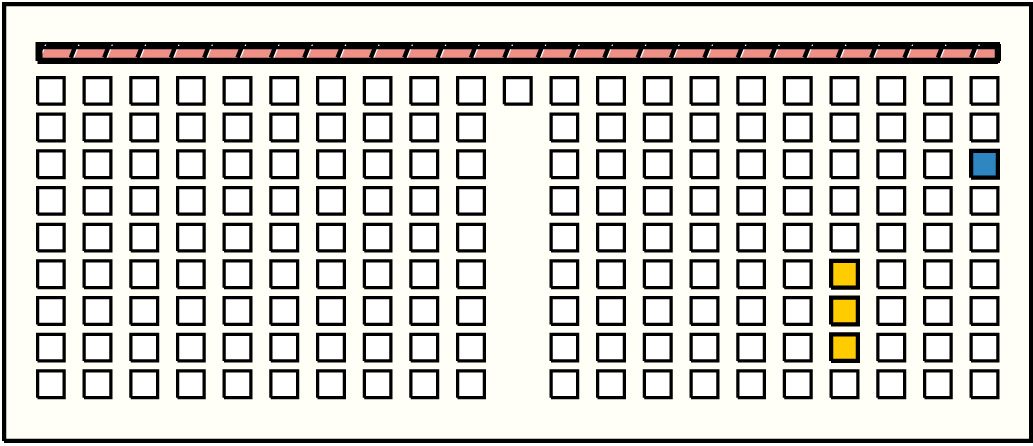

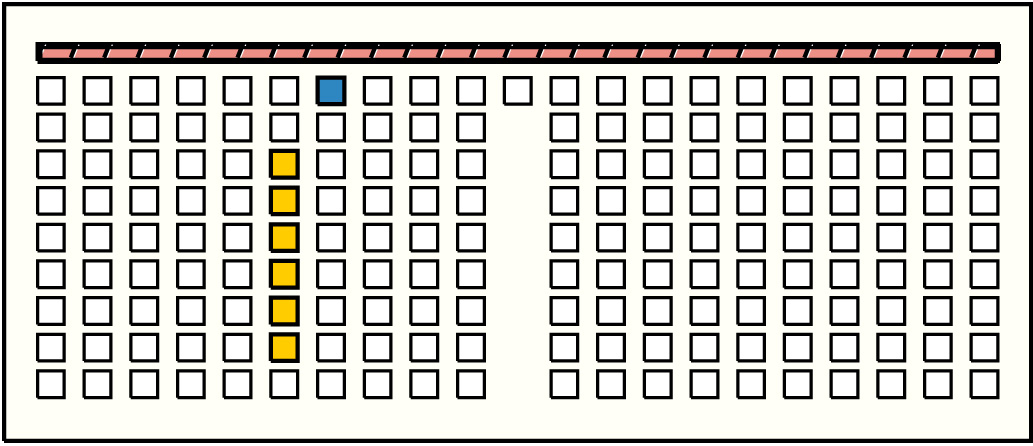

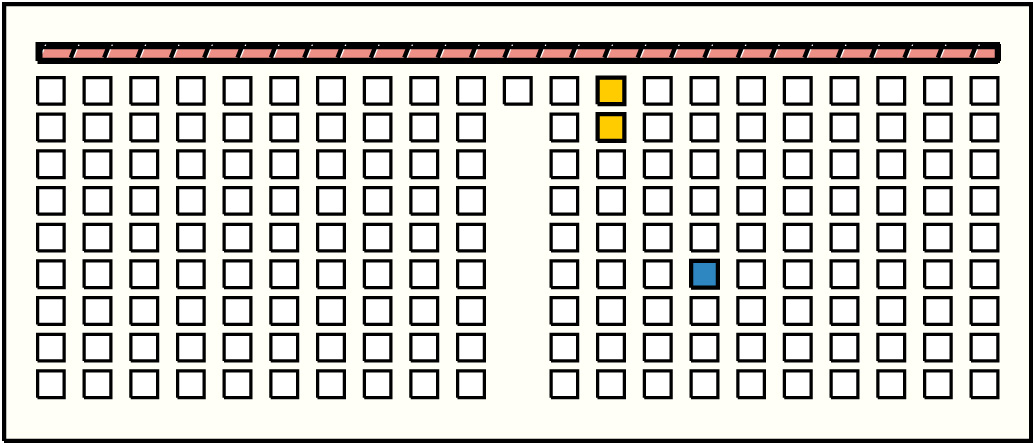

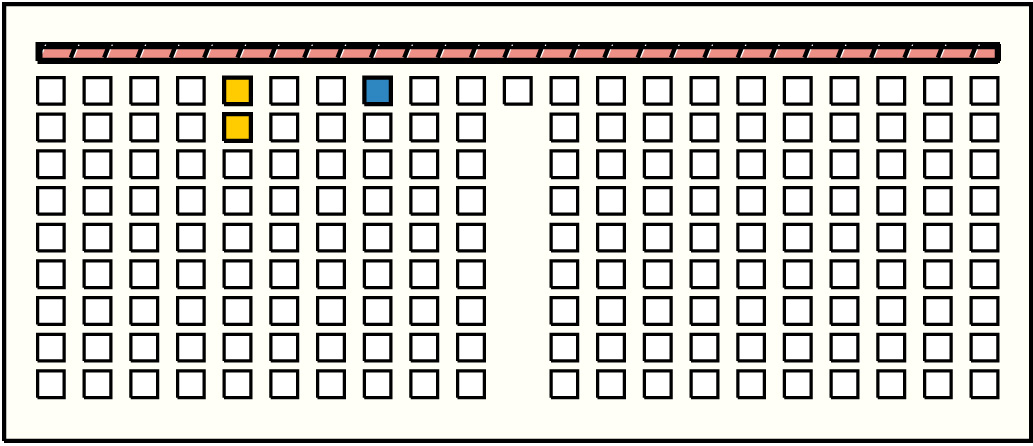

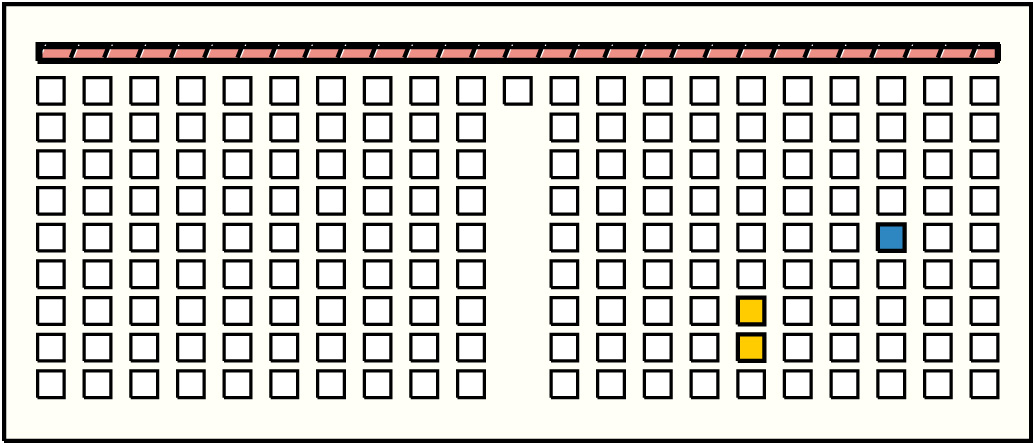

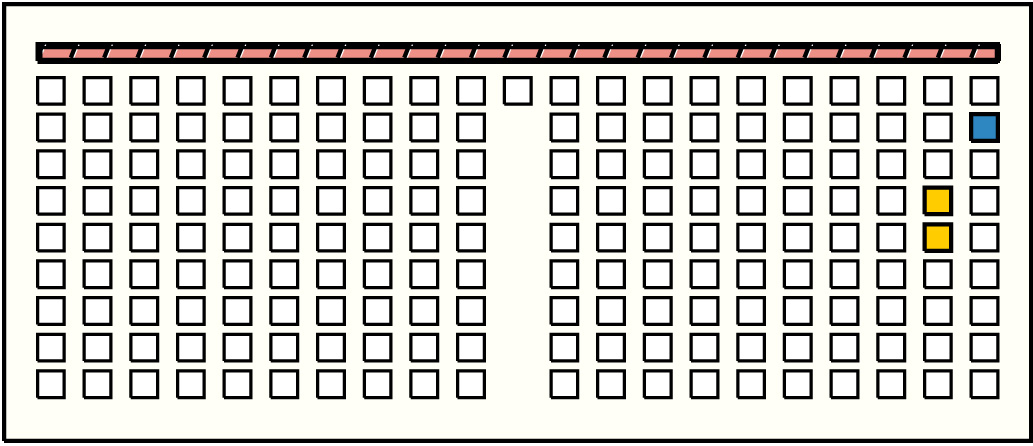

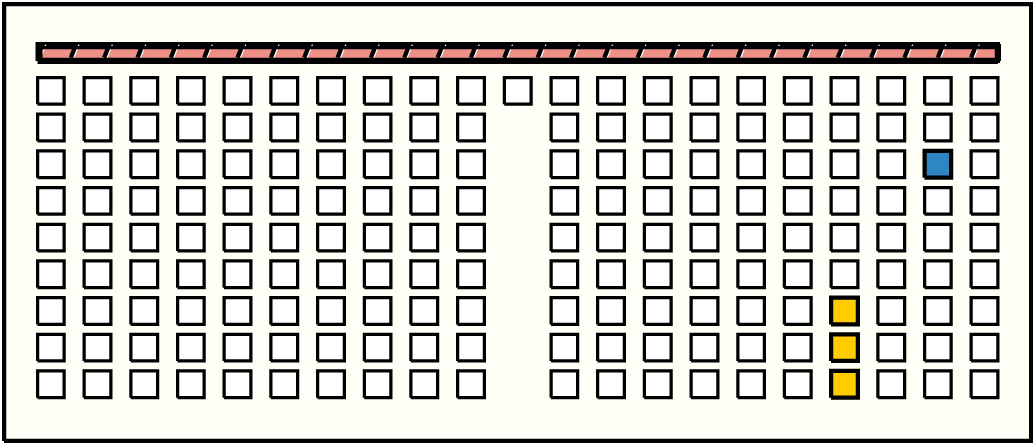

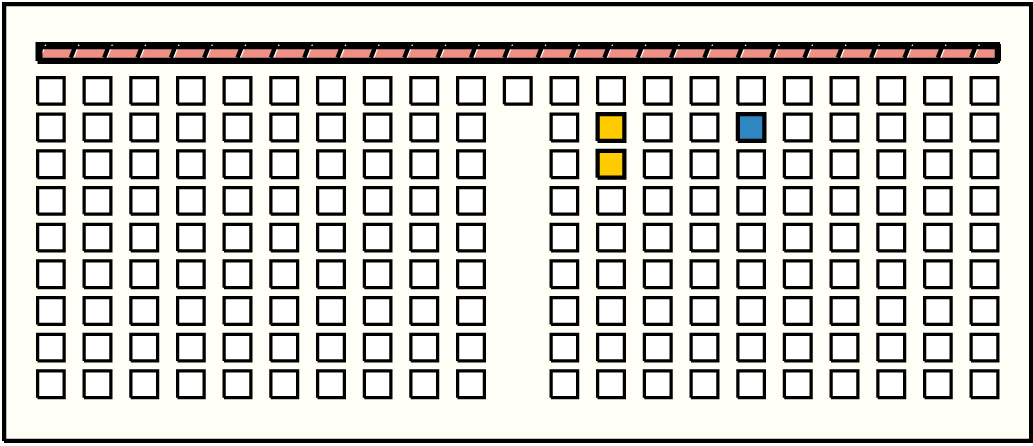

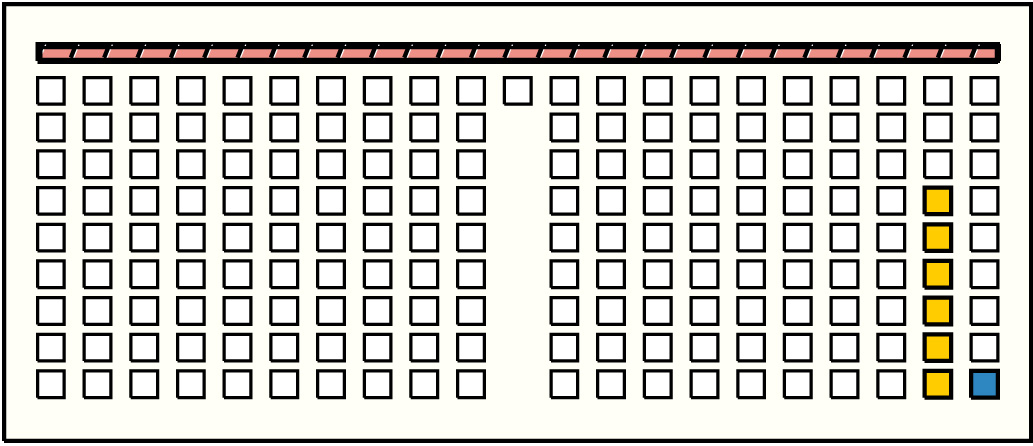

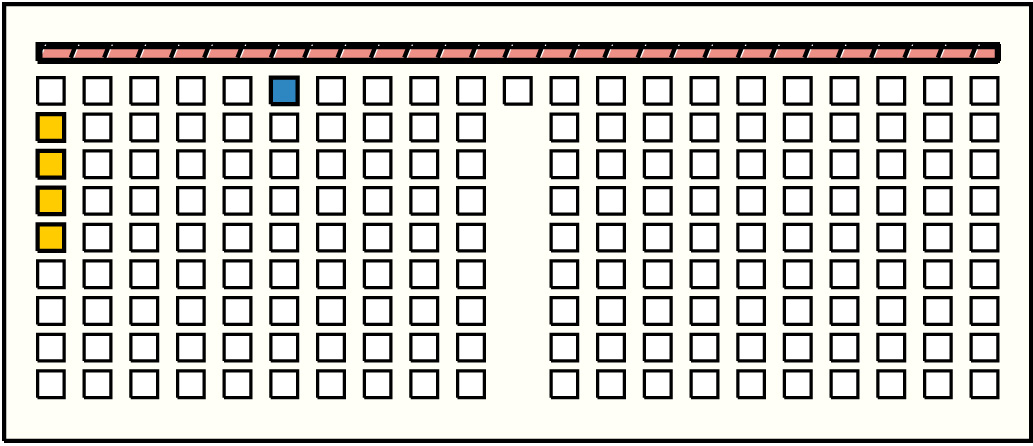

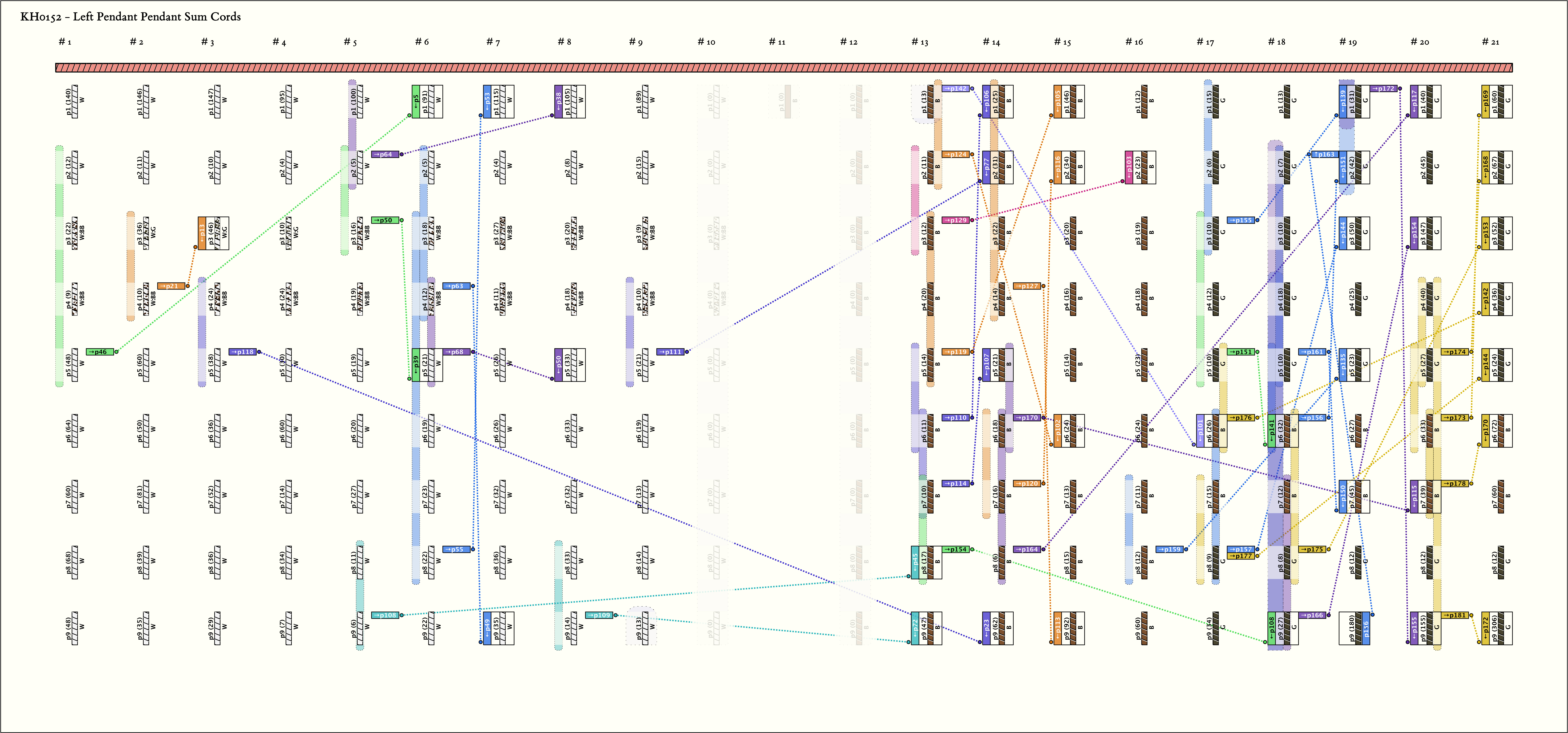

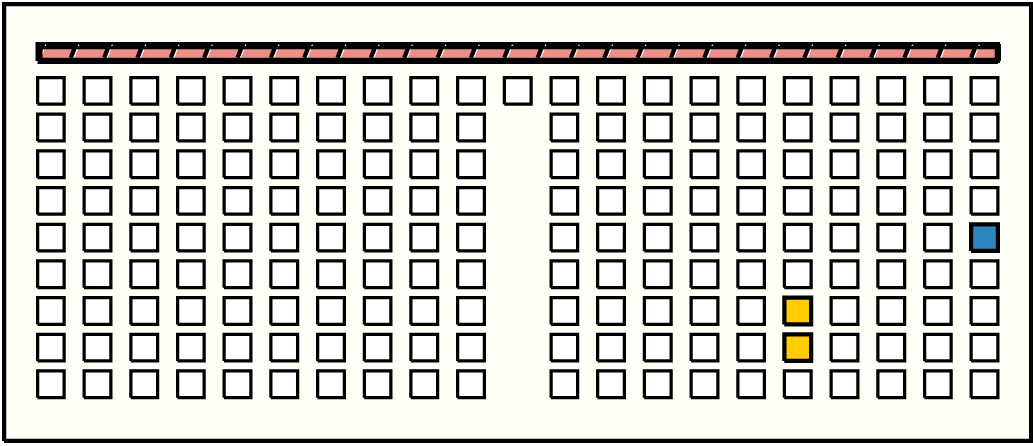

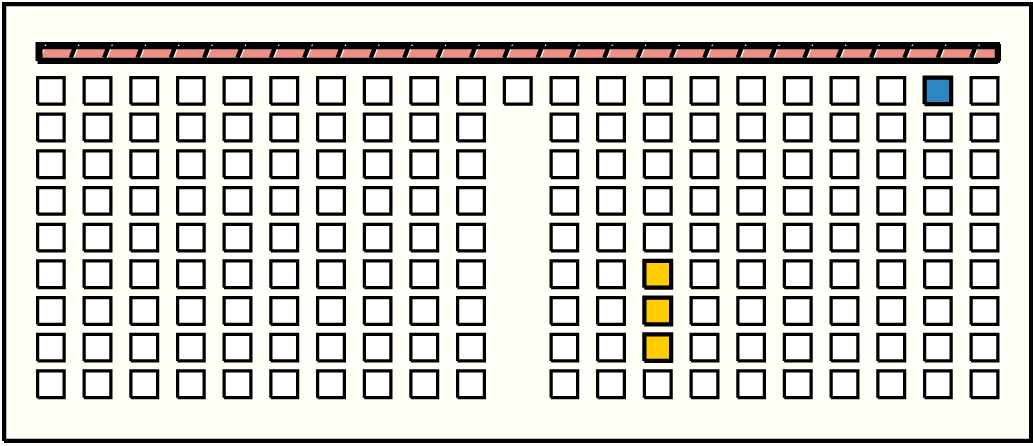

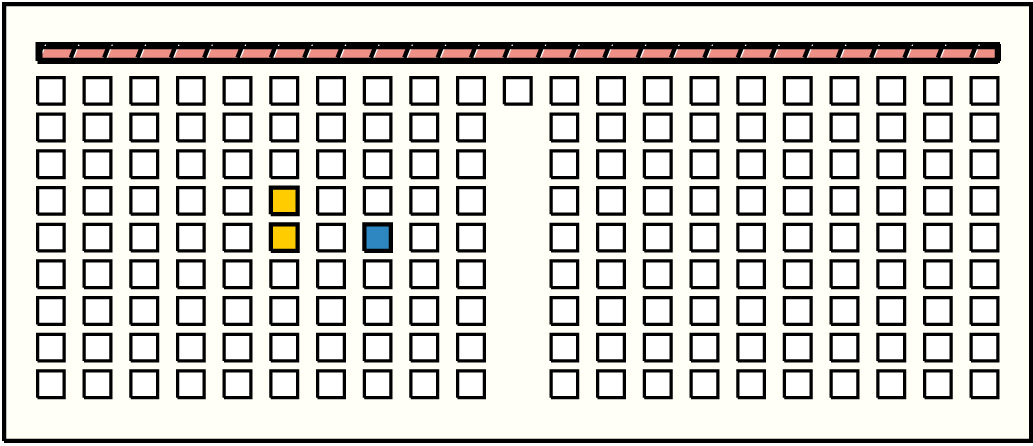

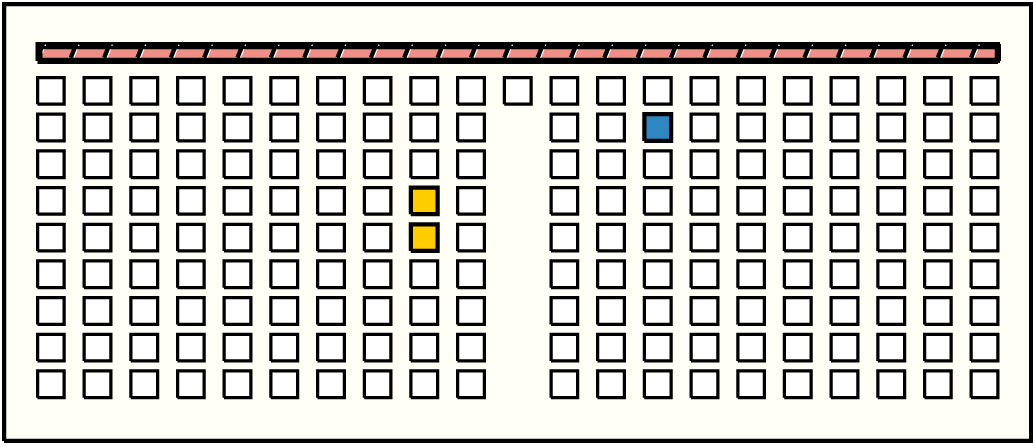

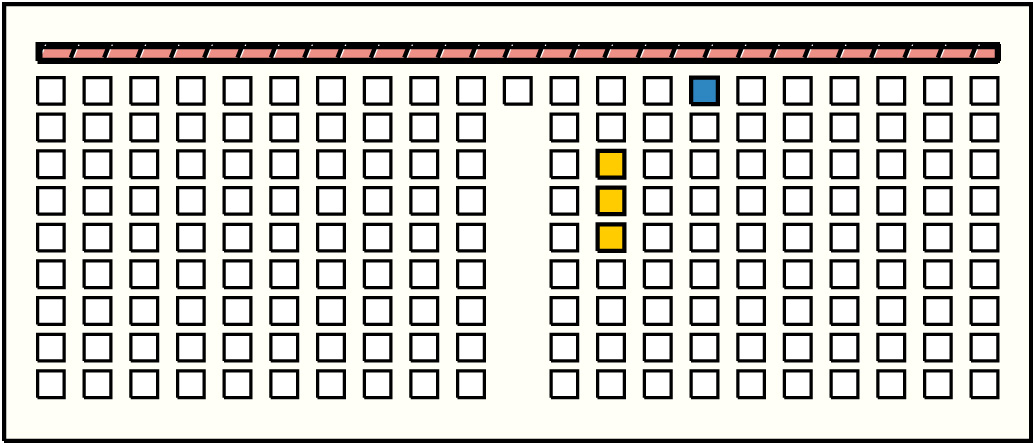

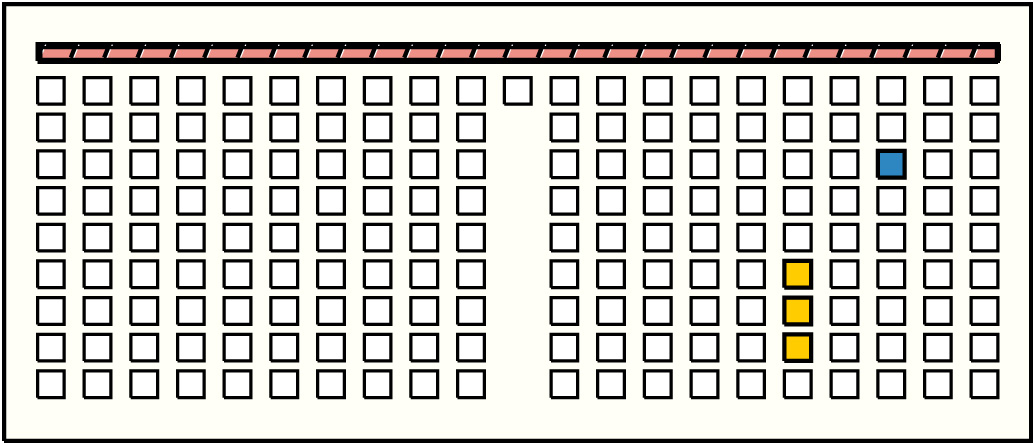

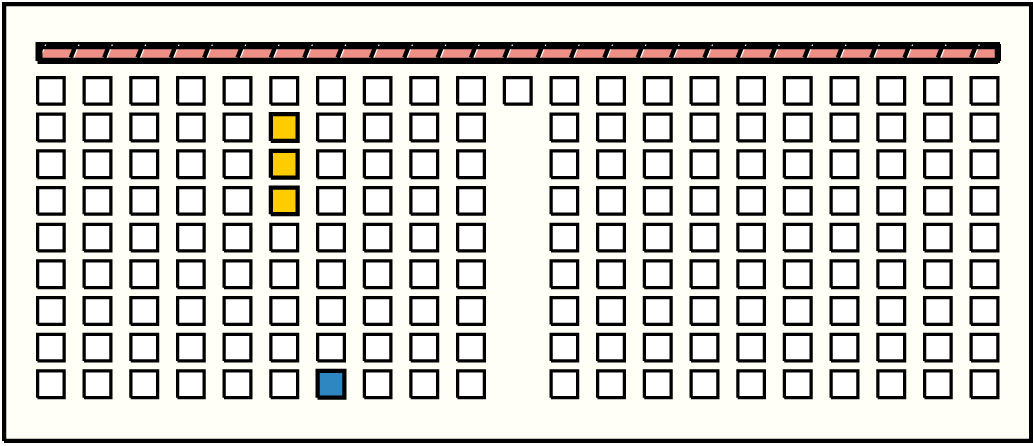

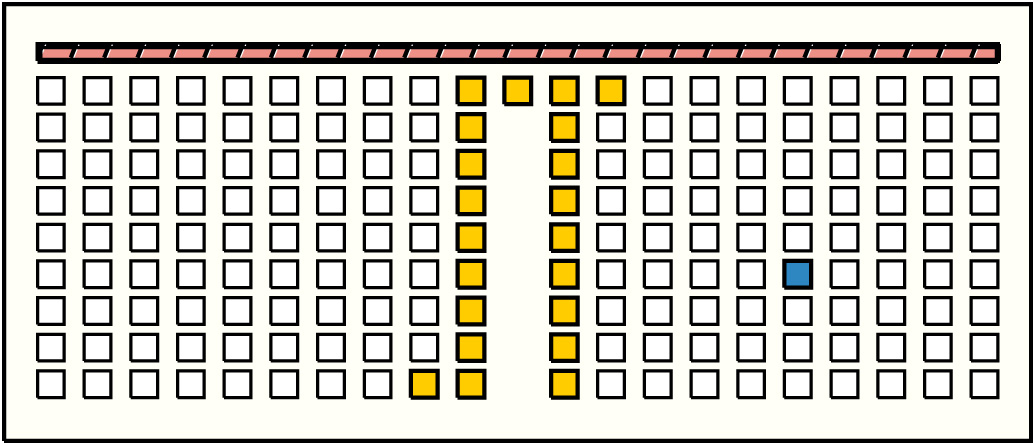

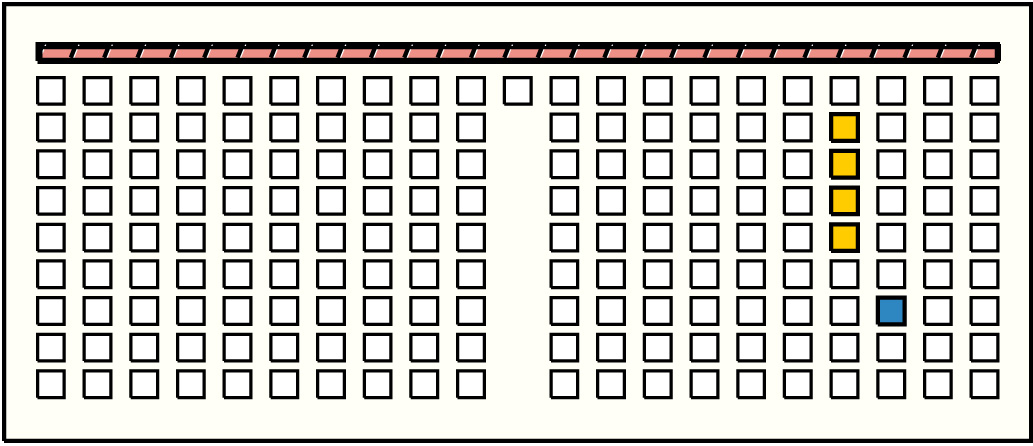

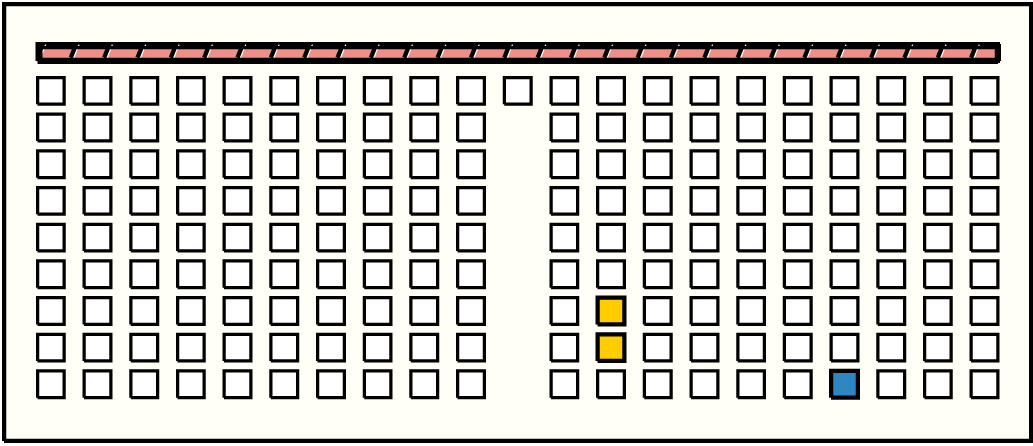

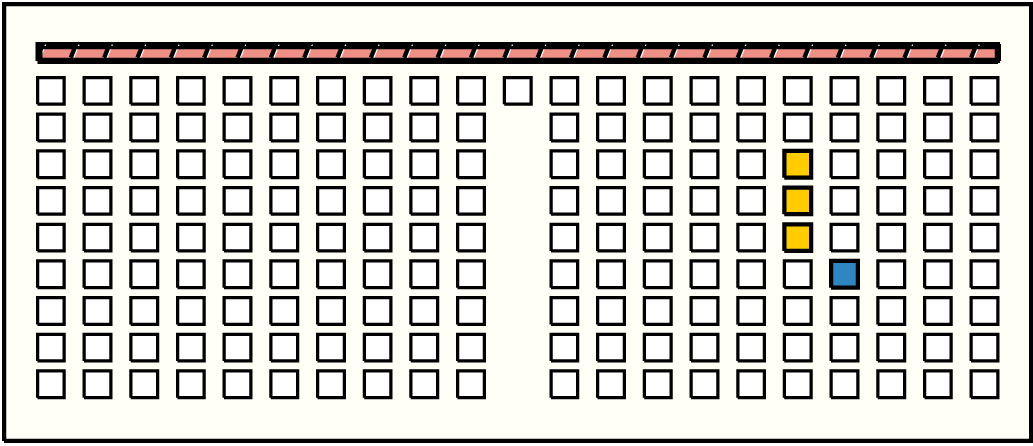

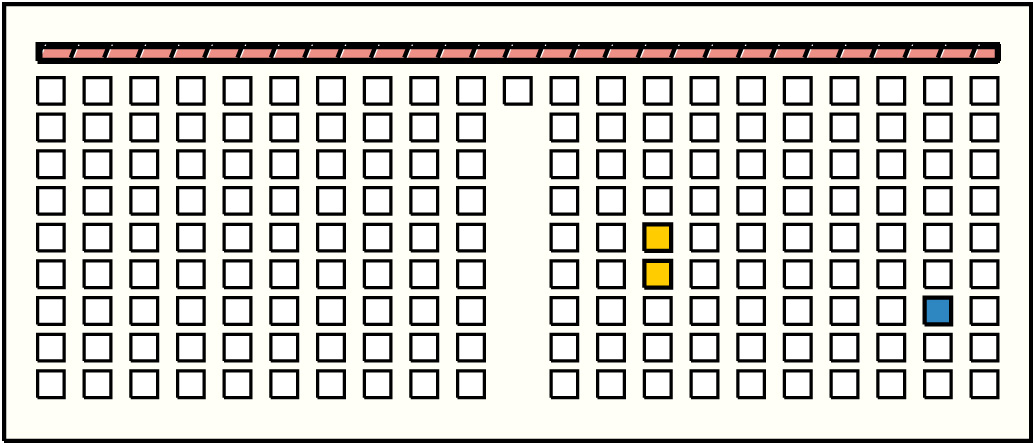

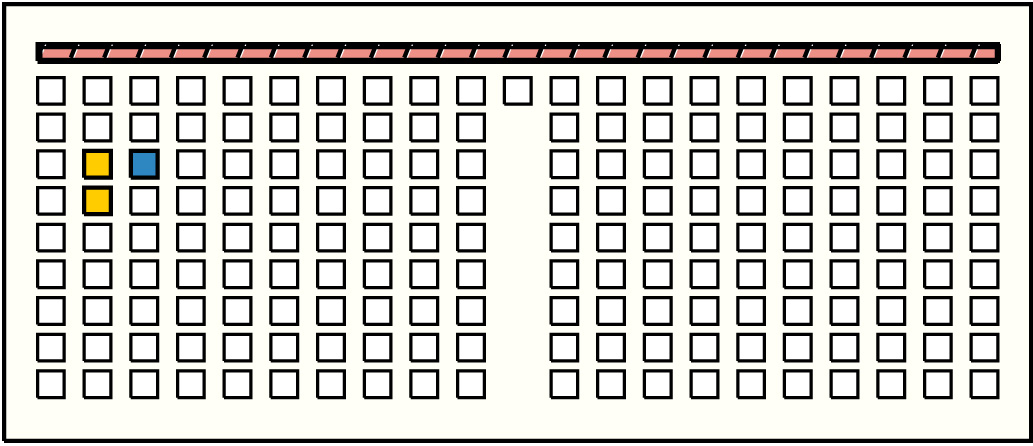

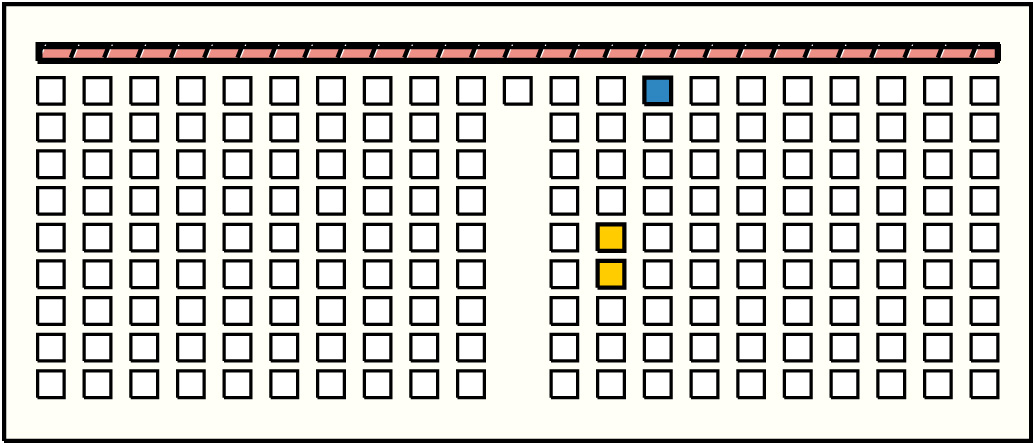

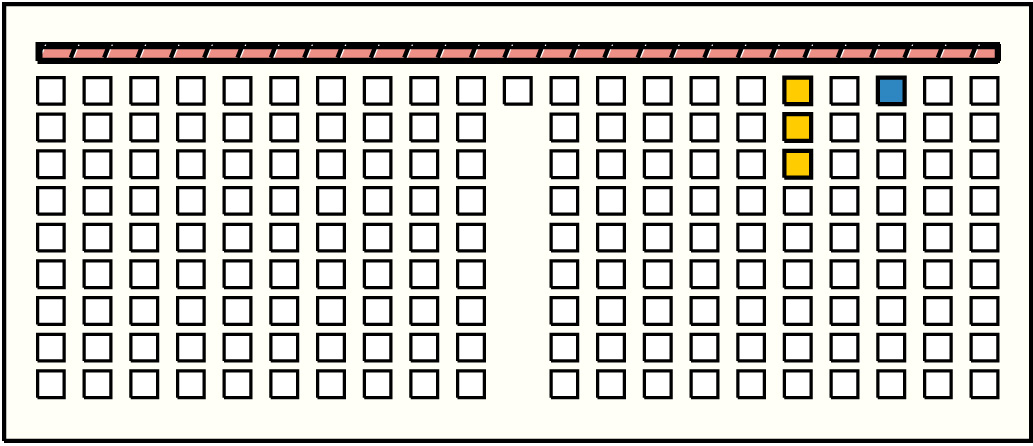

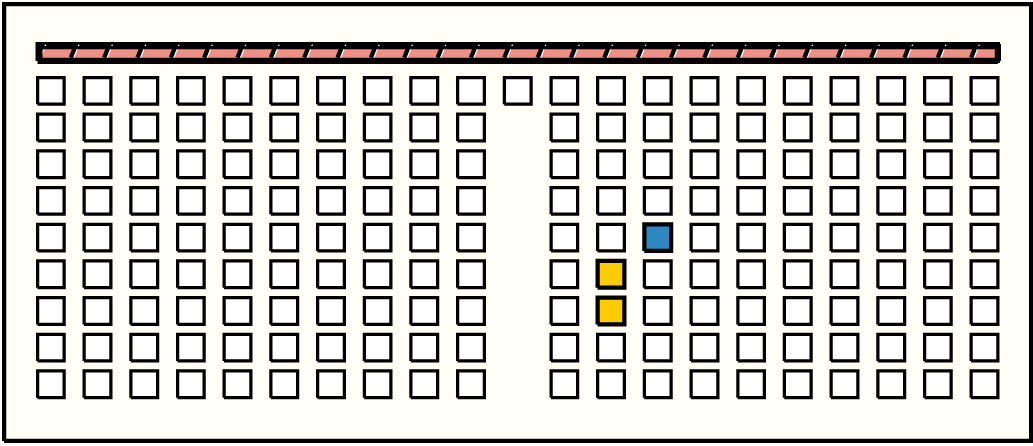

Left Handed Sums with Figure-8-Knots:     # Sums = 38,  Max # Summands = 21,   (Min, Mean, Max) Sum Values = (17, 58, 306)
Click on Image to View Larger

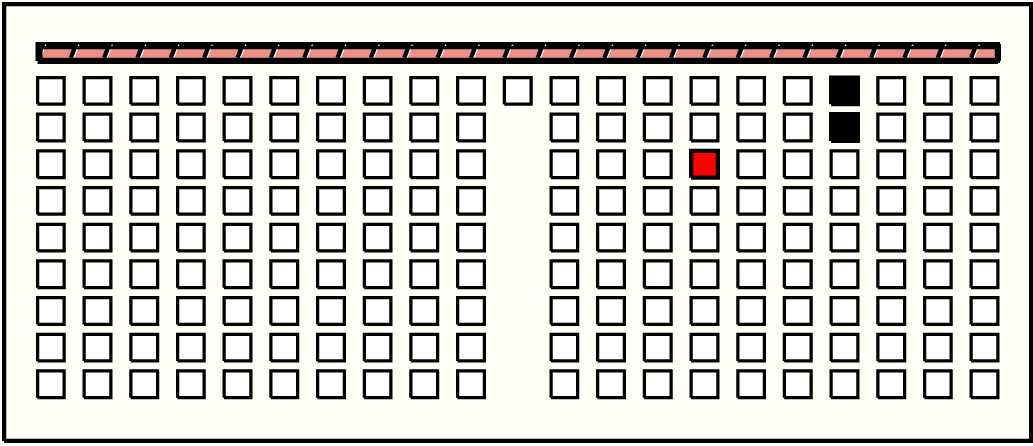

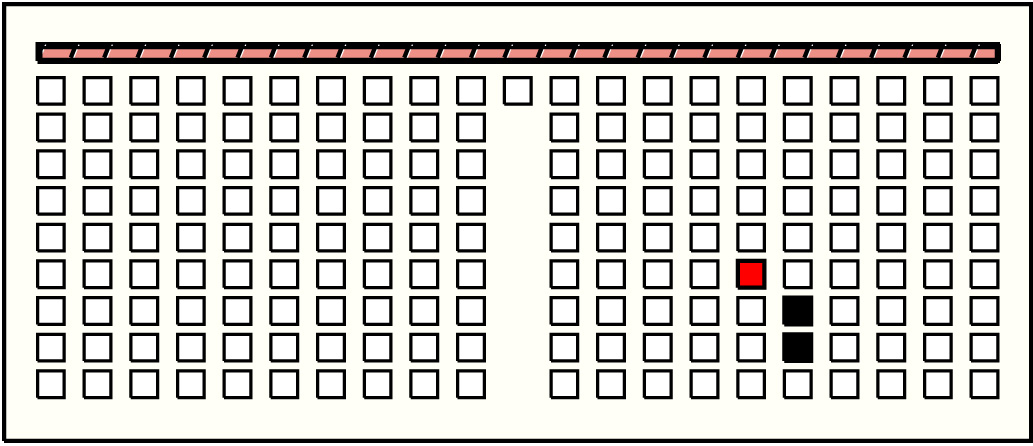

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g1p1 : 140W1404g5p1: 100W + g5p2: 5W + g5p3: 16W:BB + g5p4: 19W:BB
2
g1p6 : 64W643g4p3: 10W:G + g4p4: 24W:BB + g4p5: 30W
3
g1p8 : 68W684∞g4p2: 4W + g4p3: 10W:G + g4p4: 24W:BB + g4p5: 30W
4
g1p9 : 48W482g4p7: 14W + g4p8: 34W
5
g2p1 : 146W1464g4p8: 34W + g4p9: 7W + g5p1: 100W + g5p2: 5W
6
g2p6 : 50W503g9p4: 10W:BB∞ + g9p5: 21W + ∞g9p6: 19W
7
g2p7 : 81W816g13p1: 13B∞ + g13p2: 11B + g13p3: 12B + g13p4: 20B + g13p5: 14B + g13p6: 11B❽
8
g2p8 : 39W392g5p5: 19W + g5p6: 20W
9
g2p9 : 35W352g5p3: 16W:BB + g5p4: 19W:BB
10
g3p1 : 147W1475g4p9: 7W + g5p1: 100W + g5p2: 5W + g5p3: 16W:BB + g5p4: 19W:BB
11
g3p3 : 46W:G463∞g8p2: 8W∞ + g8p3: 20W:BB + ∞g8p4: 18W:BB
12
g3p5 : 38W383∞g4p2: 4W + g4p3: 10W:G + g4p4: 24W:BB
13
g3p7 : 52W523∞g6p4: 12W:BB∞ + g6p5: 21W + ∞g6p6: 19W
14
g4p1 : 95W954❽g7p4: 11W:BB + g7p5: 26W + g7p6: 26W + g7p7: 32W
15
g4p4 : 24W:BB242∞g9p2: 15W + g9p3: 9W:BB
16
g4p5 : 30W302❽g6p3: 18W:BB + ∞g6p4: 12W:BB∞
17
g4p6 : 60W603g16p2: 23B∞ + g16p3: 19B + ∞g16p4: 18B
18
g4p8 : 34W343∞g9p2: 15W + g9p3: 9W:BB + g9p4: 10W:BB∞
19
g5p1 : 100W1003g15p1: 46B + g15p2: 34B + g15p3: 20B
20
g6p1 : 91W917g13p1: 13B∞ + g13p2: 11B + g13p3: 12B + g13p4: 20B + g13p5: 14B + g13p6: 11B + ∞g13p7: 10B∞
21
g6p6 : 19W192g9p3: 9W:BB + g9p4: 10W:BB∞
22
g6p7 : 23W232❽g13p2: 11B + ∞g13p3: 12B
23
g7p1 : 115W11527∞g9p6: 19W + g9p7: 13W + g9p8: 14W + g9p9: 13W + g10p1: 0W + g10p2: 0W + g10p3: 0W:BB + g10p4: 0W:BB + g10p5: 0W + g10p6: 0W + g10p7: 0W + g10p8: 0W + g10p9: 0W + g11p1: 0B + g12p1: 0B + g12p2: 0B + g12p3: 0B + g12p4: 0B + g12p5: 0B + g12p6: 0B + g12p7: 0B + g12p8: 0B + g12p9: 0B + g13p1: 13B + g13p2: 11B + g13p3: 12B + g13p4: 20B
24
g7p3 : 27W:BB272g9p7: 13W + g9p8: 14W
25
g7p6 : 26W2621g9p9: 13W + g10p1: 0W + g10p2: 0W + g10p3: 0W:BB + g10p4: 0W:BB + g10p5: 0W + g10p6: 0W + g10p7: 0W + g10p8: 0W + g10p9: 0W + g11p1: 0B + g12p1: 0B + g12p2: 0B + g12p3: 0B + g12p4: 0B + g12p5: 0B + g12p6: 0B + g12p7: 0B + g12p8: 0B + g12p9: 0B + g13p1: 13B∞
26
g7p8 : 36W363g13p1: 13B∞ + g13p2: 11B + ∞g13p3: 12B
27
g7p9 : 35W353g13p5: 14B∞ + g13p6: 11B + ∞g13p7: 10B∞
28
g8p7 : 32W322∞g9p6: 19W + g9p7: 13W
29
g9p1 : 89W893❽g13p8: 17B + g13p9: 47B + g14p1: 25B∞
30
g9p5 : 21W212❽g13p6: 11B + ∞g13p7: 10B∞
31
g13p8 : 17B172g18p2: 7G + g18p3: 10G∞
32
g13p9 : 47B472g16p5: 23B + g16p6: 24B∞
33
g14p2 : 31B313g17p1: 15G + g17p2: 6G + g17p3: 10G❽
34
g14p5 : 21B212g17p1: 15G + g17p2: 6G∞
35
g14p9 : 62B624∞g18p5: 10G + g18p6: 32B + g18p7: 12B + g18p8: 8G
36
g15p3 : 20B202g18p1: 13G + g18p2: 7G
37
g15p4 : 16B162g17p2: 6G∞ + g17p3: 10G❽
38
g15p9 : 92B926g17p9: 34G + g18p1: 13G + g18p2: 7G + g18p3: 10G + g18p4: 18G + ∞g18p5: 10G
39
g16p6 : 24B242g17p7: 15B + g17p8: 9G
40
g16p9 : 60B604∞g17p5: 10G + g17p6: 26B + g17p7: 15B + g17p8: 9G
41
g20p9 : 155G1553g21p2: 67G + g21p3: 52G + g21p4: 36G❽

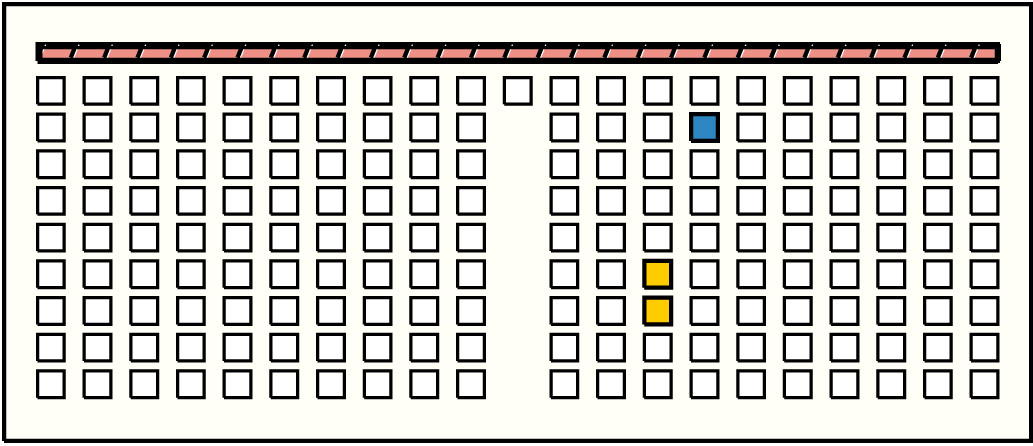

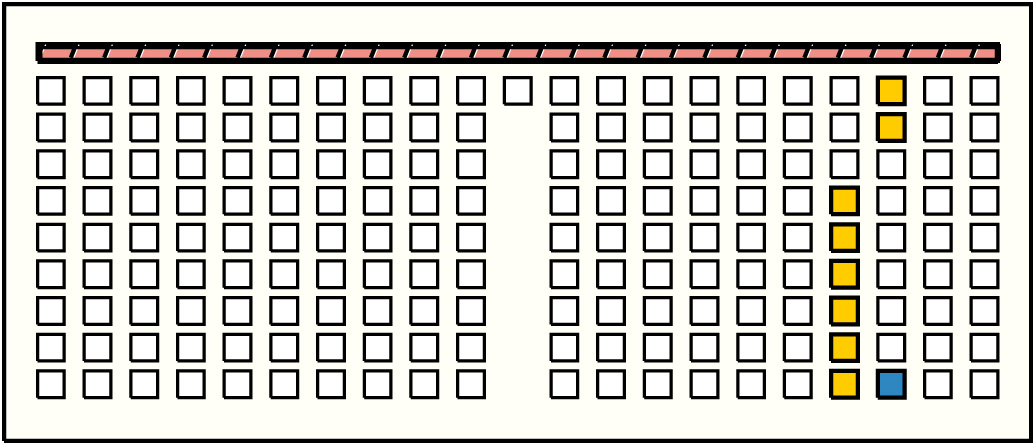

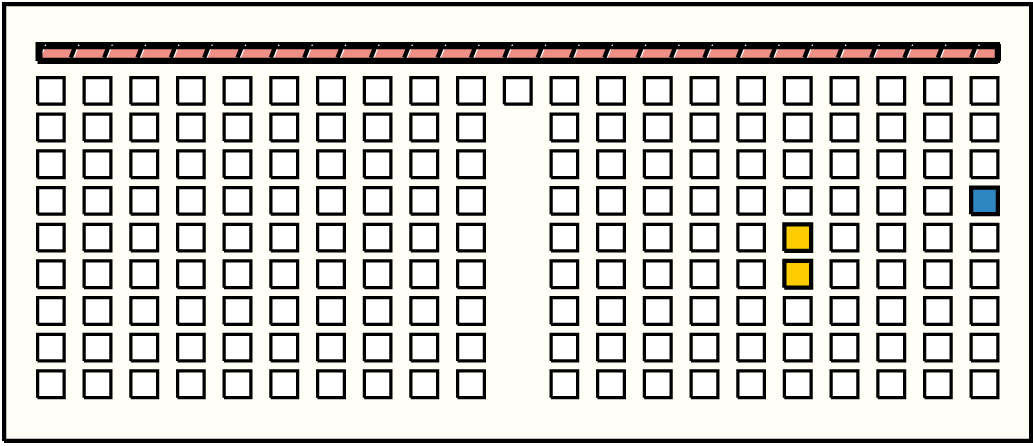

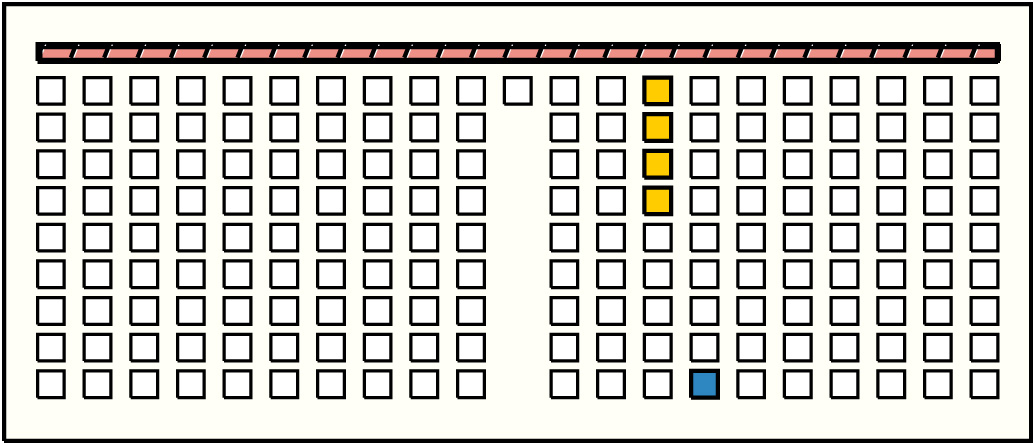

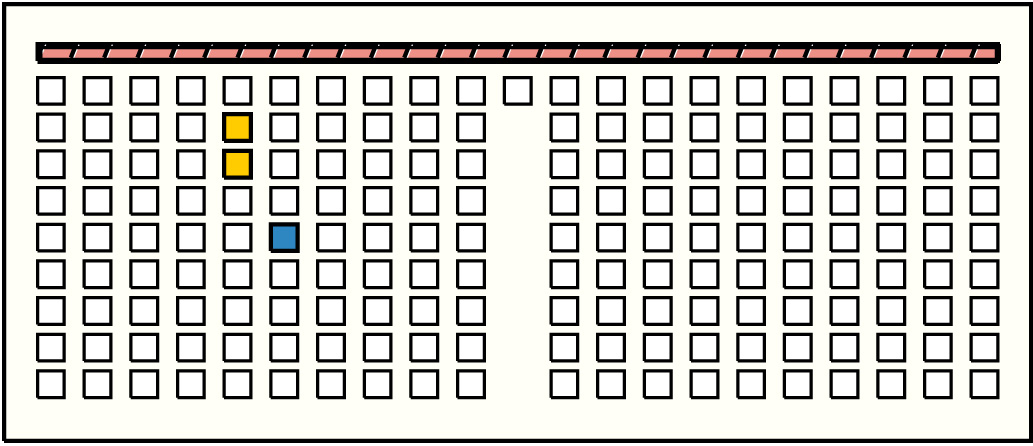

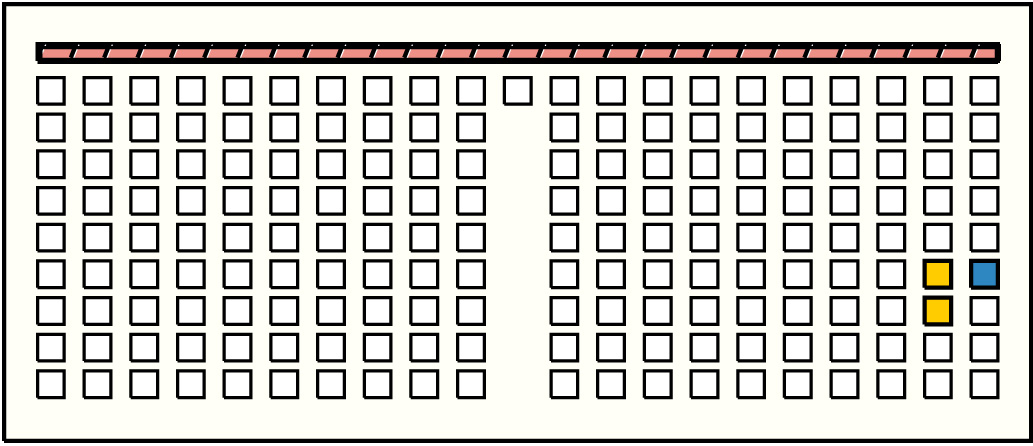

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g3p3 : 46W:G462∞g2p3: 36W:G∞ + g2p4: 10W:BB❽
2
g6p1 : 91W914g1p2: 12W∞ + g1p3: 22W:BB + g1p4: 9W:BB + g1p5: 48W
3
g6p5 : 21W212g5p2: 5W + g5p3: 16W:BB
4
g7p1 : 115W1156❽g6p3: 18W:BB + g6p4: 12W:BB + g6p5: 21W + g6p6: 19W + g6p7: 23W + g6p8: 22W
5
g7p9 : 35W353g6p2: 5W∞ + g6p3: 18W:BB + ∞g6p4: 12W:BB∞
6
g8p1 : 105W1052g5p1: 100W + g5p2: 5W
7
g8p5 : 33W332∞g6p4: 12W:BB∞ + g6p5: 21W❽
8
g13p8 : 17B172❽g5p8: 11W + g5p9: 6W❽
9
g13p9 : 47B472g8p8: 33W + g8p9: 14W∞
10
g14p1 : 25B252g13p5: 14B∞ + g13p6: 11B❽
11
g14p2 : 31B312g9p4: 10W:BB∞ + g9p5: 21W❽
12
g14p5 : 21B212❽g13p6: 11B + ∞g13p7: 10B∞
13
g14p9 : 62B622g3p4: 24W:BB∞ + g3p5: 38W❽
14
g15p1 : 46B463∞g13p3: 12B + g13p4: 20B + g13p5: 14B∞
15
g15p2 : 34B342∞g14p6: 18B∞ + g14p7: 16B❽
16
g15p6 : 24B242g13p1: 13B∞ + g13p2: 11B❽
17
g15p9 : 92B924g14p1: 25B∞ + g14p2: 31B + g14p3: 22B + g14p4: 14B❽
18
g16p2 : 23B232❽g13p2: 11B + ∞g13p3: 12B
19
g17p6 : 26B2621g9p9: 13W + g10p1: 0W + g10p2: 0W + g10p3: 0W:BB + g10p4: 0W:BB + g10p5: 0W + g10p6: 0W + g10p7: 0W + g10p8: 0W + g10p9: 0W + g11p1: 0B + g12p1: 0B + g12p2: 0B + g12p3: 0B + g12p4: 0B + g12p5: 0B + g12p6: 0B + g12p7: 0B + g12p8: 0B + g12p9: 0B + g13p1: 13B∞
20
g18p6 : 32B323❽g17p3: 10G + g17p4: 12G + ∞g17p5: 10G
21
g18p9 : 27G272∞g13p7: 10B∞ + g13p8: 17B❽
22
g19p1 : 31G313g17p1: 15G + g17p2: 6G + g17p3: 10G❽
23
g19p2 : 42G422∞g18p5: 10G + g18p6: 32B
24
g19p3 : 50G503g17p6: 26B + g17p7: 15B + g17p8: 9G
25
g19p5 : 23G232❽g16p7: 11B + ∞g16p8: 12B
26
g19p7 : 45B454g18p2: 7G + g18p3: 10G + g18p4: 18G + ∞g18p5: 10G
27
g19p9 : 180G1808❽g18p4: 18G + g18p5: 10G + g18p6: 32B + g18p7: 12B + g18p8: 8G + g18p9: 27G + g19p1: 31G + ∞g19p2: 42G
28
g20p1 : 40G403∞g14p6: 18B∞ + g14p7: 16B + ∞g14p8: 6B
29
g20p3 : 47G473g18p7: 12B + g18p8: 8G + g18p9: 27G∞
30
g20p7 : 39B392❽g14p5: 21B + ∞g14p6: 18B∞
31
g20p9 : 155G1559g18p2: 7G + g18p3: 10G + g18p4: 18G + g18p5: 10G + g18p6: 32B + g18p7: 12B + g18p8: 8G + g18p9: 27G + g19p1: 31G❽
32
g21p1 : 60G602g20p5: 27G + g20p6: 33B∞
33
g21p2 : 67G672g20p4: 40G + g20p5: 27G
34
g21p3 : 52G523g18p6: 32B + g18p7: 12B + g18p8: 8G
35
g21p4 : 36G362∞g17p5: 10G + g17p6: 26B
36
g21p5 : 24G242g17p7: 15B + g17p8: 9G
37
g21p6 : 72B722g20p6: 33B∞ + g20p7: 39B❽
38
g21p9 : 306G3066g20p4: 40G + g20p5: 27G + g20p6: 33B + g20p7: 39B + g20p8: 12G + g20p9: 155G

Khipu Notes:
Ascher Databook Notes:
  1. The khipu is attached to a carved wooden bar./li>
  2. Marker M1 is a cord of length 49.0 cm. tied around the main cord.
  3. Subsidiary 180s1s1 is tied around pendant 180 as well as around subsidiary 180s1.
  4. KH00146 and AS140 were acquired by the Museum in 1904. The provenance is given as Nasca. For a comparison of them, see #10 below.
  5. Photographs of KH00146 are in Ascher (1975) and Schmidt, Max, 1929, Kunst und Kultur von Peru, ImpropylΓ€en-Verlagzu, Berlin.
  6. The marker and the way in which the bar is threaded, separate the khipu into 2 parts each containing 10 groups of 9 pendants each.

    Note: The pendant order on the listing proceeds from one end of the bar to the other, goes around the end, and continues on the other side. However, similar color and number patterns are found in both parts if the pendants are read instead from one end of the bar to the other, and then beginning at the original end on the other side of the bar. We will, therefore, refer to the pendants and groups on side 2 as if following the second scenario. Part 1 is pendants 1--->90 and references to the jth pendant in the ith group correspond to pendant 9 (i-1) +j. Part 2 is pendants 180--->91 and references to the jth pendant in the ith group correspond to pendant 190-9i-j.

    Each of the groups in part 1 has the same color pattern: W, W, BB:W or G:W, BB: W, W, W, W, W, W. The first 5 groups in part 2 have a similar pattern involving different colors. Each group is G, G, B, B, G, G, G, G, G. The last 5 groups in part 2 consist of all B colored pendants.

  7. Subsidiaries are attached to pendants in 2 distinctly different positions. One position is about 1.0 cm. down from the main cord and the other position is at about 13.0 cm. Part 1 has only subsidiaries in the lower position and, where there is only 1, it is always color B. (Where there are 2 subsidiaries, the second is G.) Part 2 has subsidiaries in both positions. As in part 1, the lower position always is B. The upper is BB with one exception. The exception is the subsidiary described in #3 which itself has a subsidiary of BB.
  8. Parts 1 and 2 have several numerical similarities.
    1. In each part, all pendant values in the 10th group are 0.
    2. In all non-zero groups, the first pendant in the group has the maximum value.
    3. In each part, the sum of the values in the 4th and 5th positions of the 10 groups is the same. That is:
      \[ \sum\limits_{i=1}^{10} (P_{i4}+P_{i5}) = 433 \]
    4. With a discrepancy of 1 in part 1, in each part, the sum of the values in the 4th group equals the sum of the values in the 5th group. That is:
      \[ \sum\limits_{j=1}^{9} P_{4j} = \sum\limits_{j=1}^{9} P_{5j} \]
      Also, in the second part only, this sum equals half the sum of the values in the 7th group. Thus:
      \[ \sum\limits_{j=1}^{9} P_{4j} = \sum\limits_{j=1}^{9} P_{5j} = \frac{1}{2} \sum\limits_{j=1}^{9} P_{7j}\]
      so that
      \[ \sum\limits_{j=1}^{9} (P_{4j} + P_{5j}) = \sum\limits_{j=1}^{9} P_{7j}\]
    5. Excluding the first pendant in each group, the sum of the values in the 6th group is the same for each part.
      \[ \sum\limits_{j=2}^{9} P_{6j} = 142 \]
  9. By color, part 2 is separated into 2 subparts of 5 groups each. There are a couple of regularities within the subparts.
    1. In the second subpart (groups 6-10), the sum of the values in the 2nd position of the groups equals the sum of the values in the 3rd positions. That is:
      \[ \sum\limits_{i=6}^{10} P_{i2} = \sum\limits_{i=6}^{10} P_{i3} \]
    2. The sum of the values in group 2, added to the sum of the values in the corresponding group in the next subpart (hence, group 7), equals the sum of the values in group 3 and its corresponding group. Namely:
      \[ \sum\limits_{j=1}^{9} (P_{2j}+P_{7j}) = \sum\limits_{j=1}^{9} (P_{3j}+P_{8j}) \]
  10. Comparison of KH00146 and AS140:
    1. Each khipu is attached to a carved wooden bar. Each is 180 pendants. The manner of attachment to the bar separates each into 2 parts of 10 groups of 9 pendants.
    2. Both khipus are made of cords of the same basic colors: B, BB, and G.
    3. The khipus can be oriented so that they have a common color pattern. The pattern separates the 9 pendants in a group into 2, 2, and 5 pendants with the first 2 and last 5 being the same color. In 5 of the groups of KH00146, the remaining 2 pendants are also the same color. But, in most of the other groups, those 2 pendants are the same color as each other but different from the rest of the group.
    4. When oriented so that they show the same color pattern, in all groups on both khipus, the value on the first pendant is the maximum value in the group.
