KH0160/UR1144, AS144 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksRight-Handed XRay
All Pendant Pendant Sum RelationshipsLeft-Handed XRay
This Khipu's Fieldmark CatalogRight-Handed Sum Detail
This Khipu's DrawingLeft-Handed Sum Detail

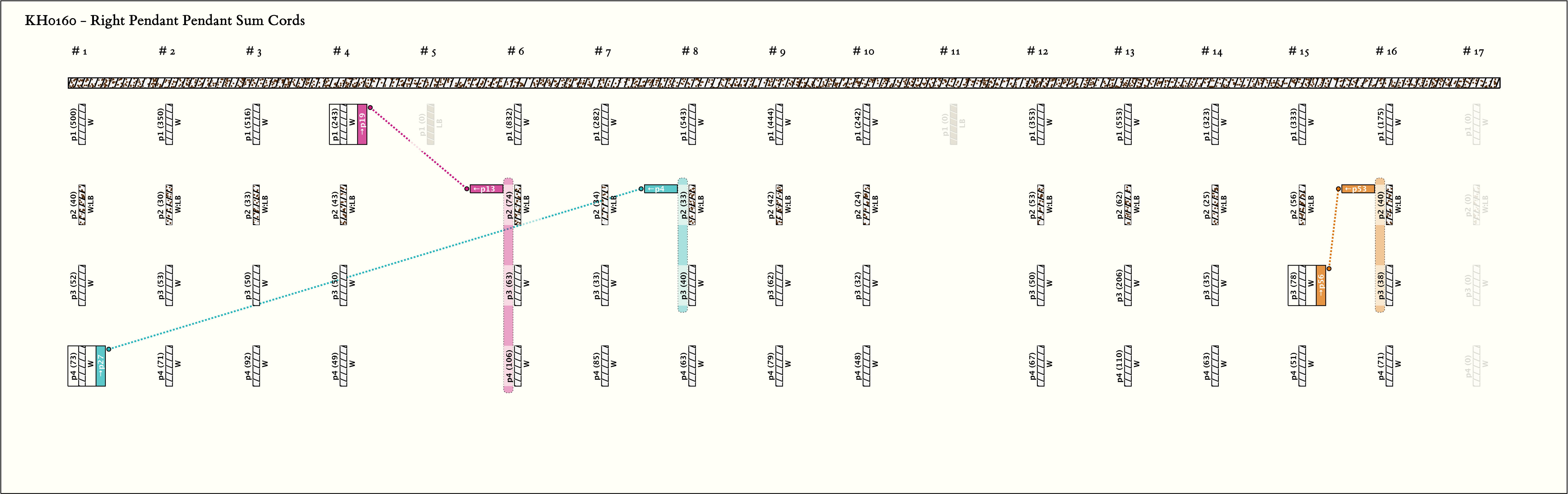

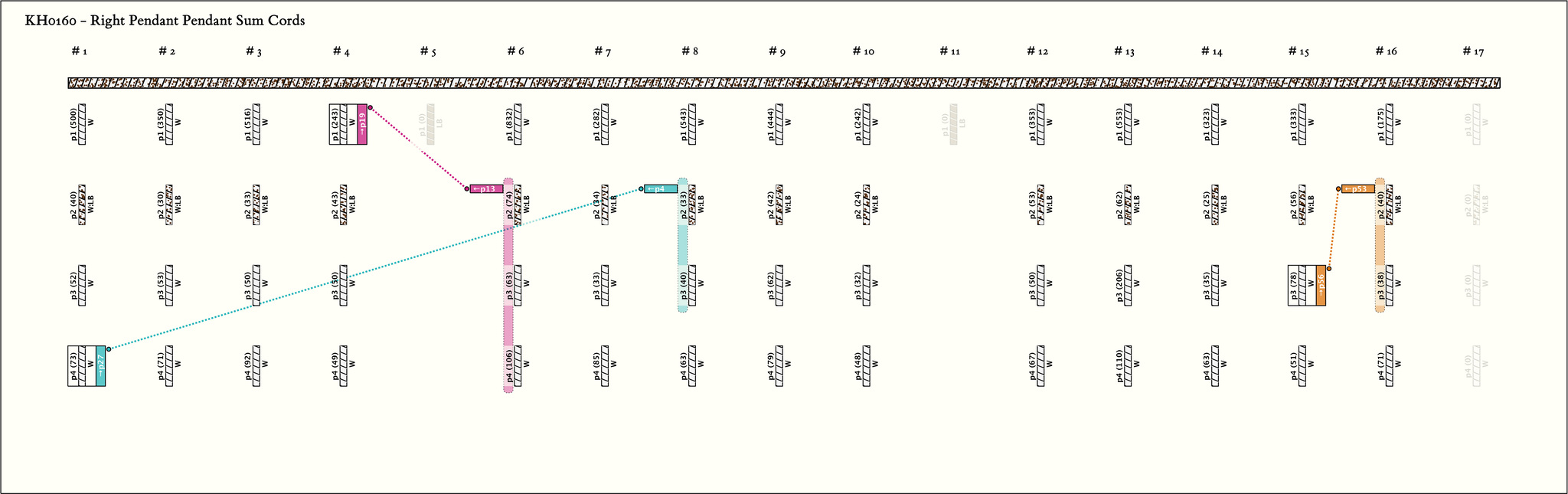

Right Handed Sums:     # Sums = 3,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (73, 131, 243)
Click on Image to View Larger

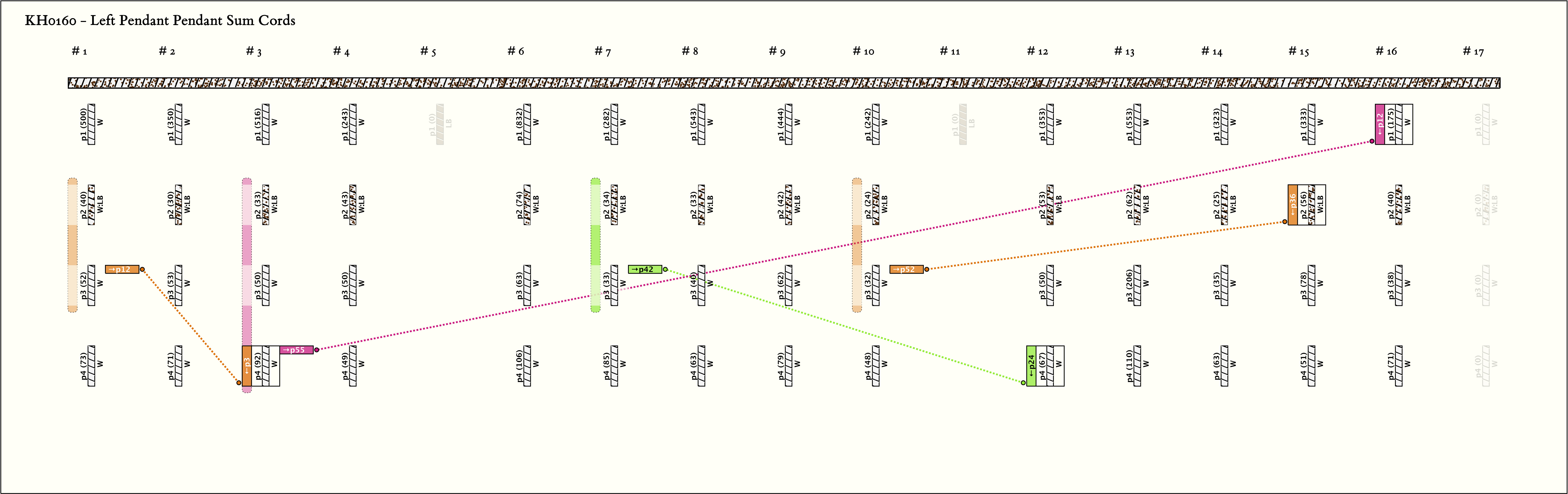

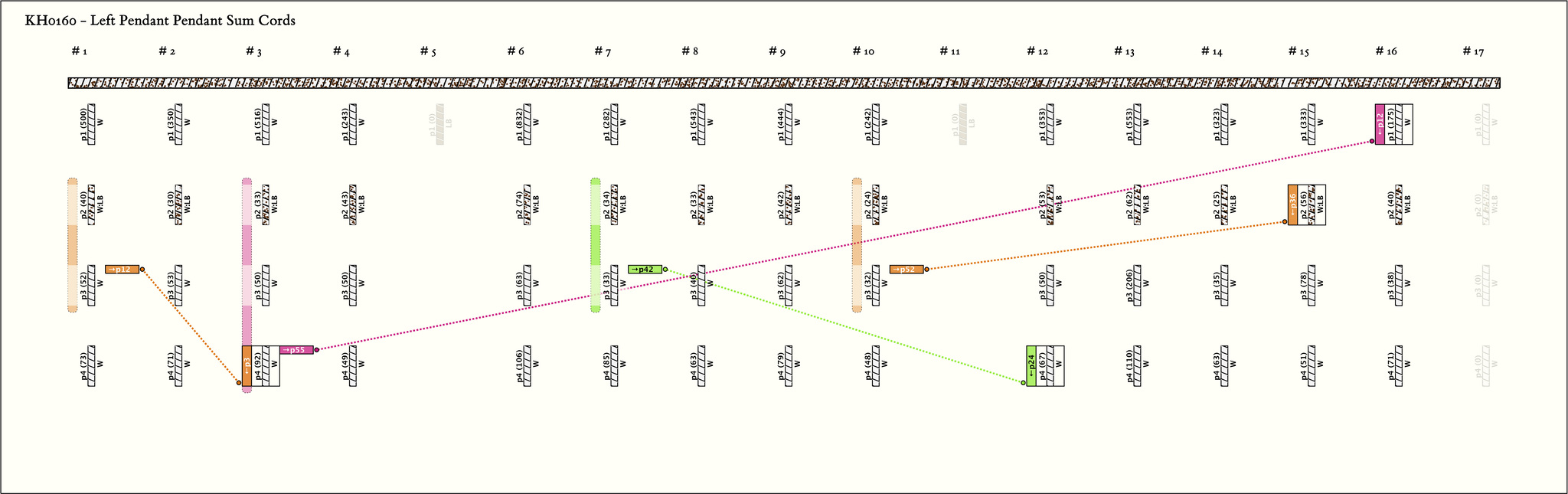

Left Handed Sums:     # Sums = 4,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (56, 98, 175)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

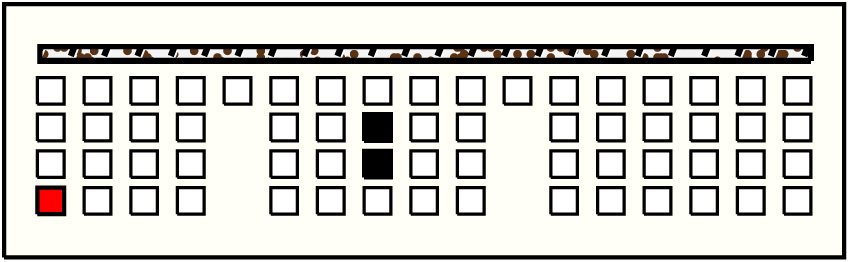

g1p4 : 73W732g8p2: 33W:LB + g8p3: 40W
2

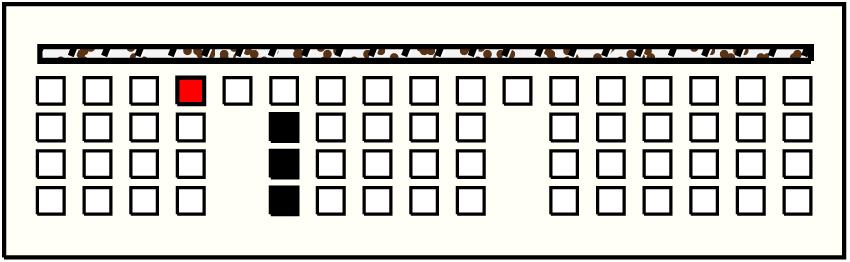

g4p1 : 243W2433g6p2: 74W:LB + g6p3: 63W + g6p4: 106W
3

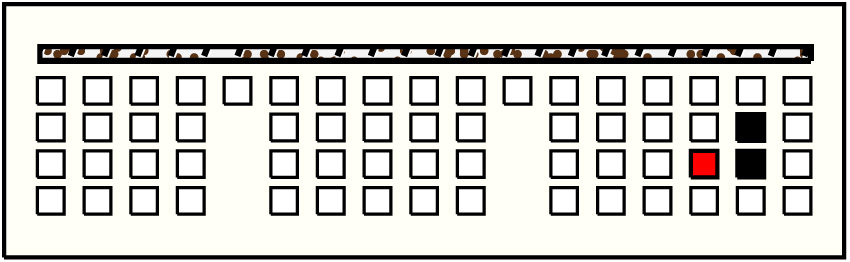

g15p3 : 78W782g16p2: 40W:LB + g16p3: 38W

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

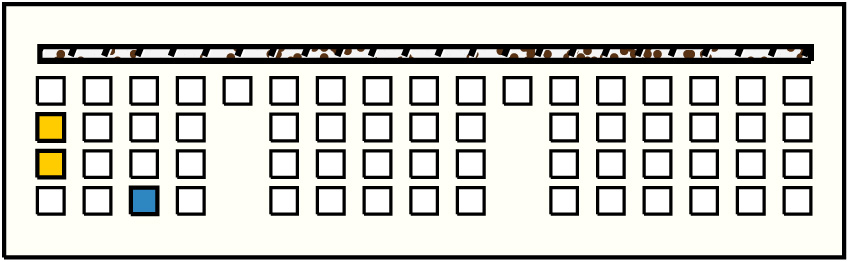

g3p4 : 92W922g1p2: 40W:LB + g1p3: 52W
2
g12p4 : 67W672g7p2: 34W:LB + g7p3: 33W
3

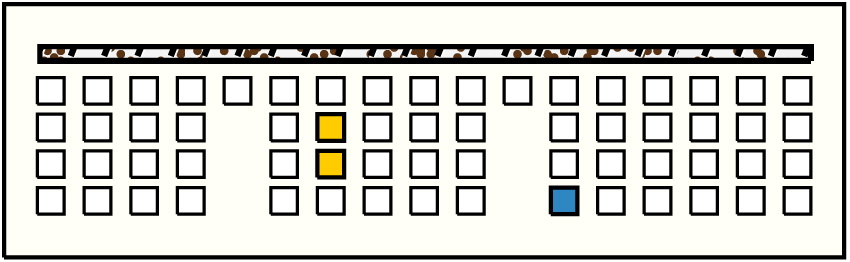

g15p2 : 56W:LB562g10p2: 24W:LB + g10p3: 32W
4

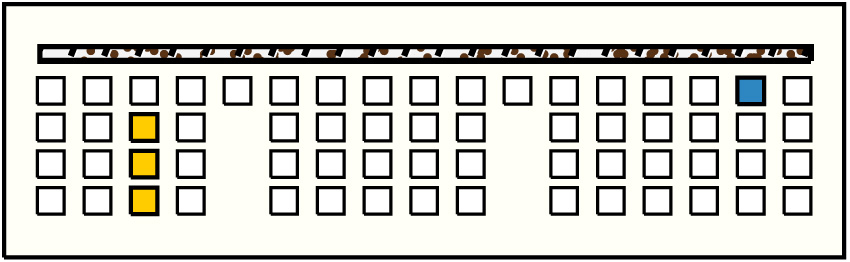

g16p1 : 175W1753g3p2: 33W:LB + g3p3: 50W + g3p4: 92W

Khipu Notes:
Ascher Databook Notes:
  1. This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of them, see KH0110.
  2. By spacing and markers, the khipu is separated into 4 parts. The first part is 4 groups, the second and third parts are 5 groups each, and the last part is 1 group. All groups have 4 pendants with the same color pattern: W, LB:W, W, W.
  3. All pendants in the group in the last part are zero-valued (or blank). None of the other pendants are zero-valued.
  4. In the first 3 parts , in every group, the pendant in the first position has the maximum value. The value exceeds the sum of the other 3 values in the group.
