KH0161/UR1145, AS145 - Pendant Pendant Sums

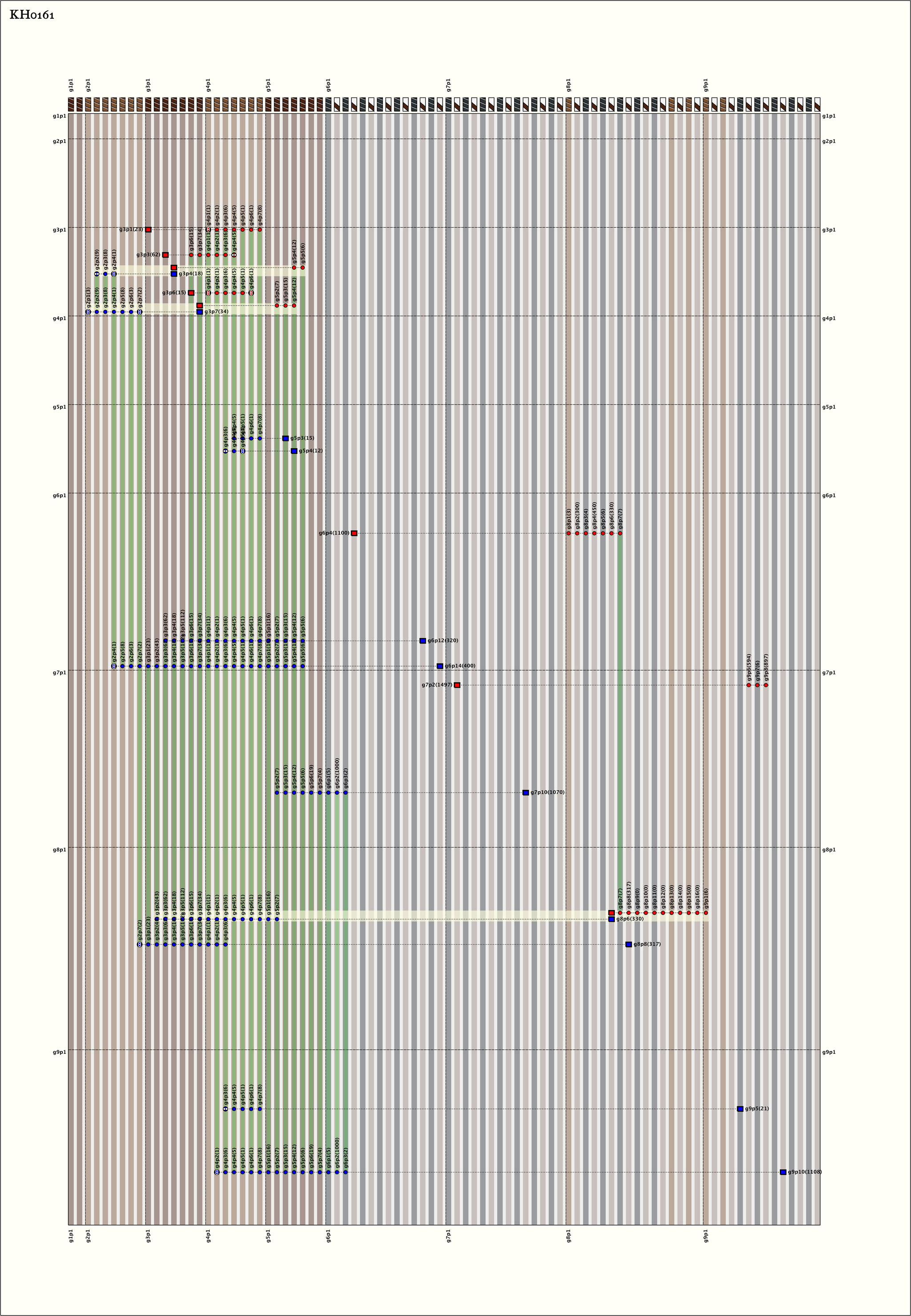

Drawings:

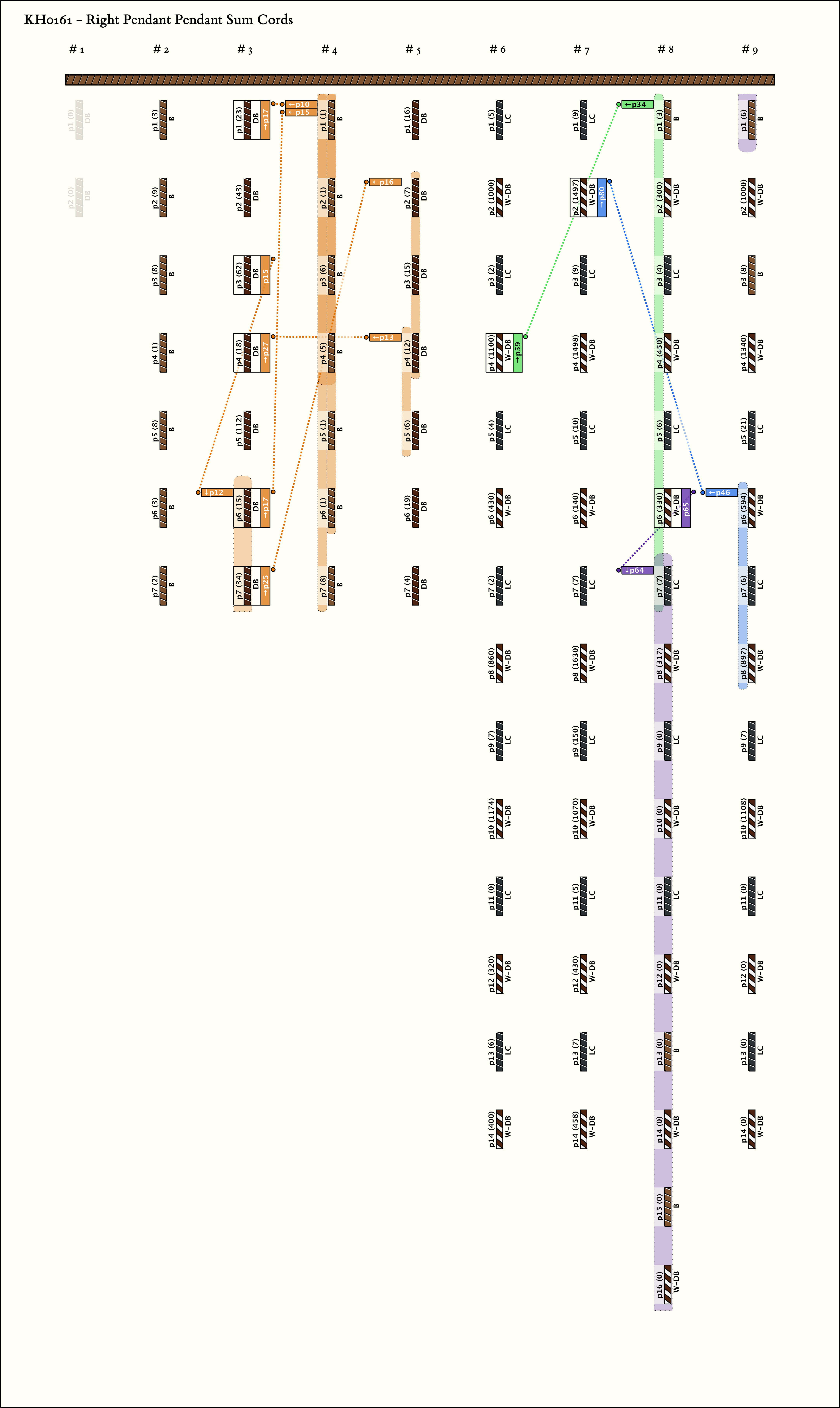

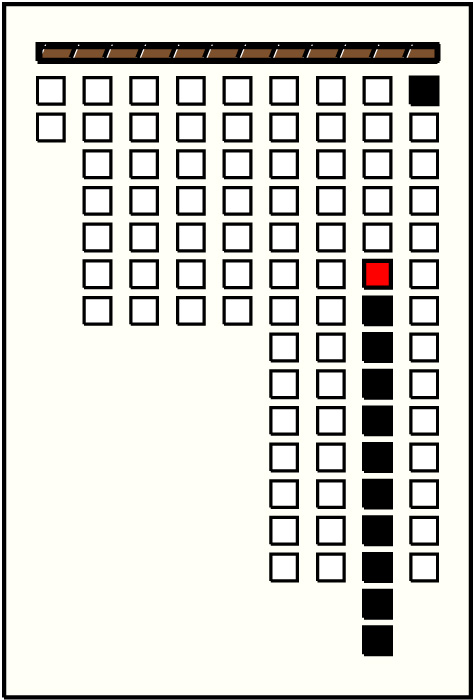

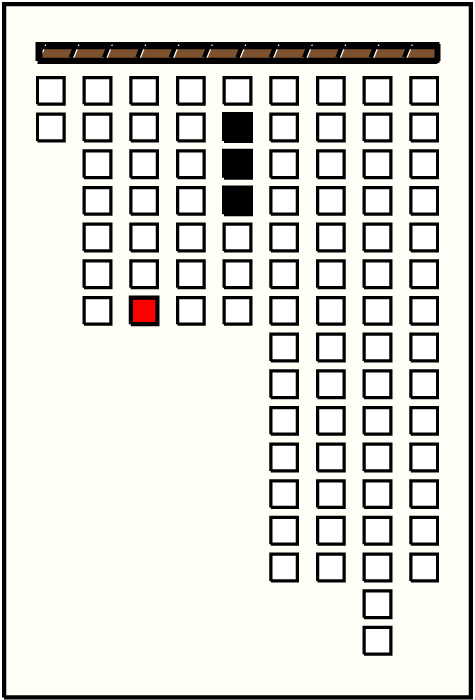

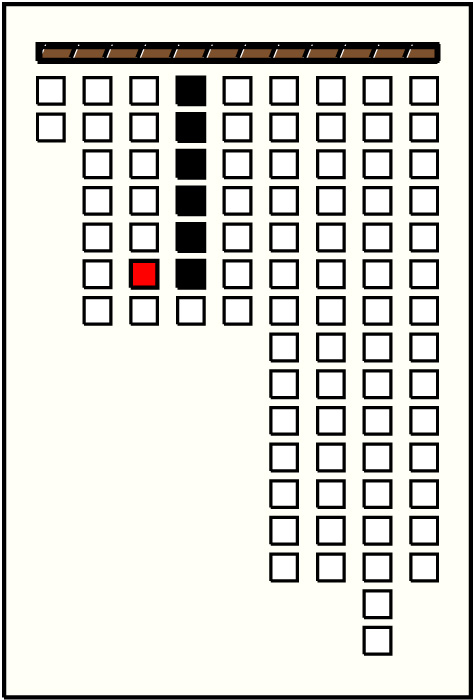

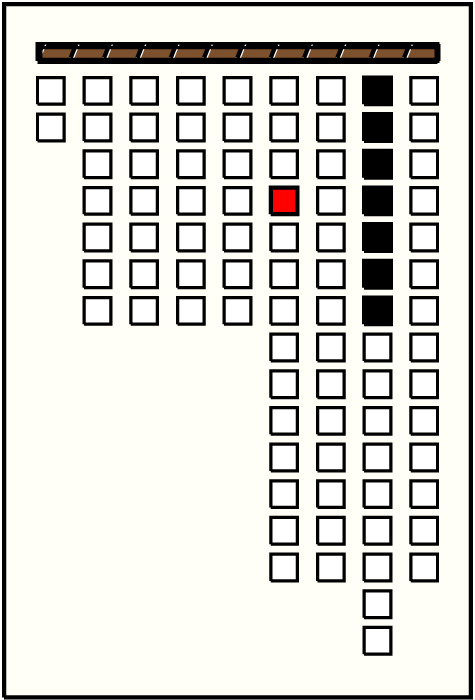

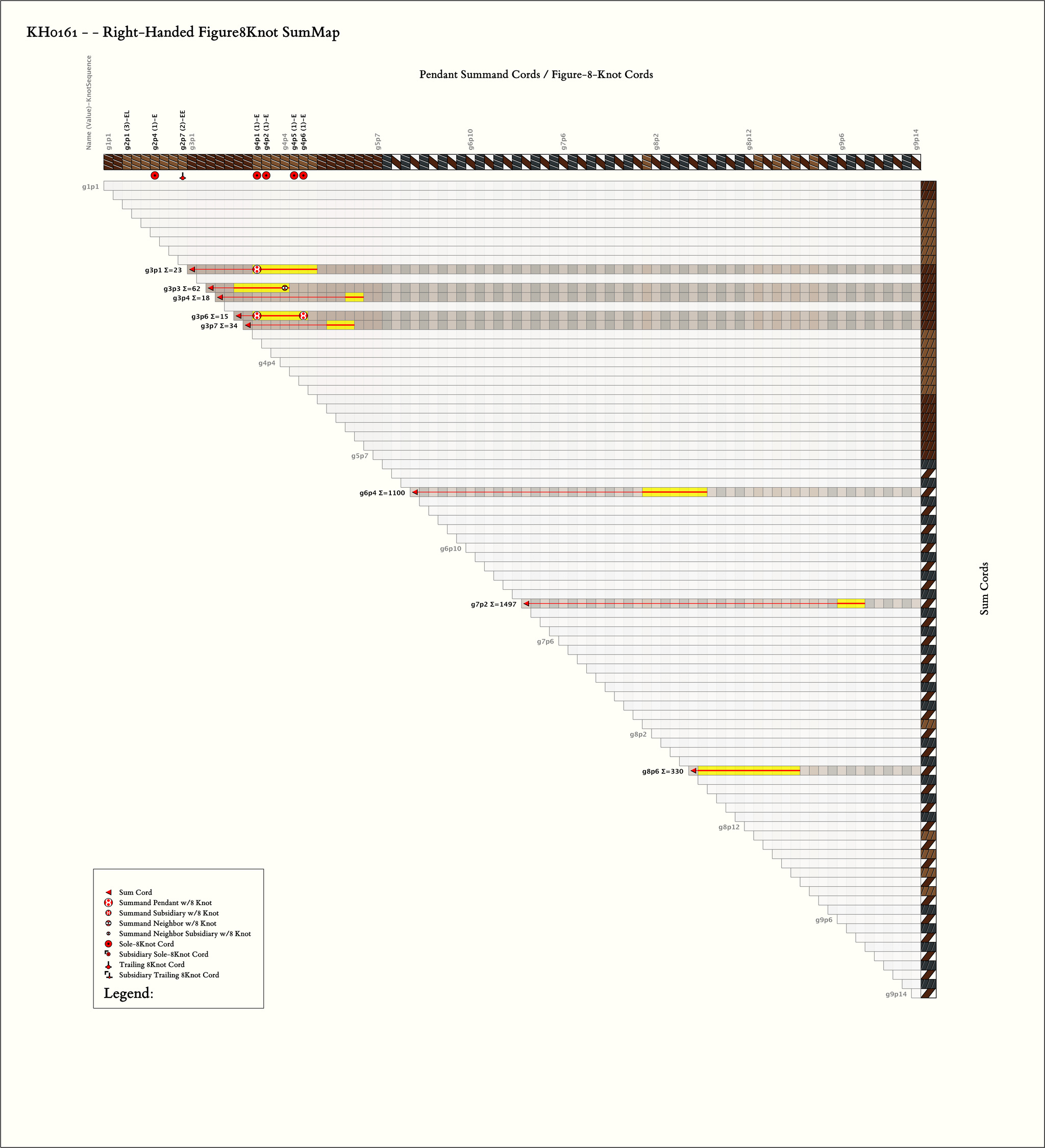

Right Handed Sums: # Sums = 8, Max # Summands = 11, (Min, Mean, Max) Sum Values = (15, 385, 1497)
Click on Image to View Larger

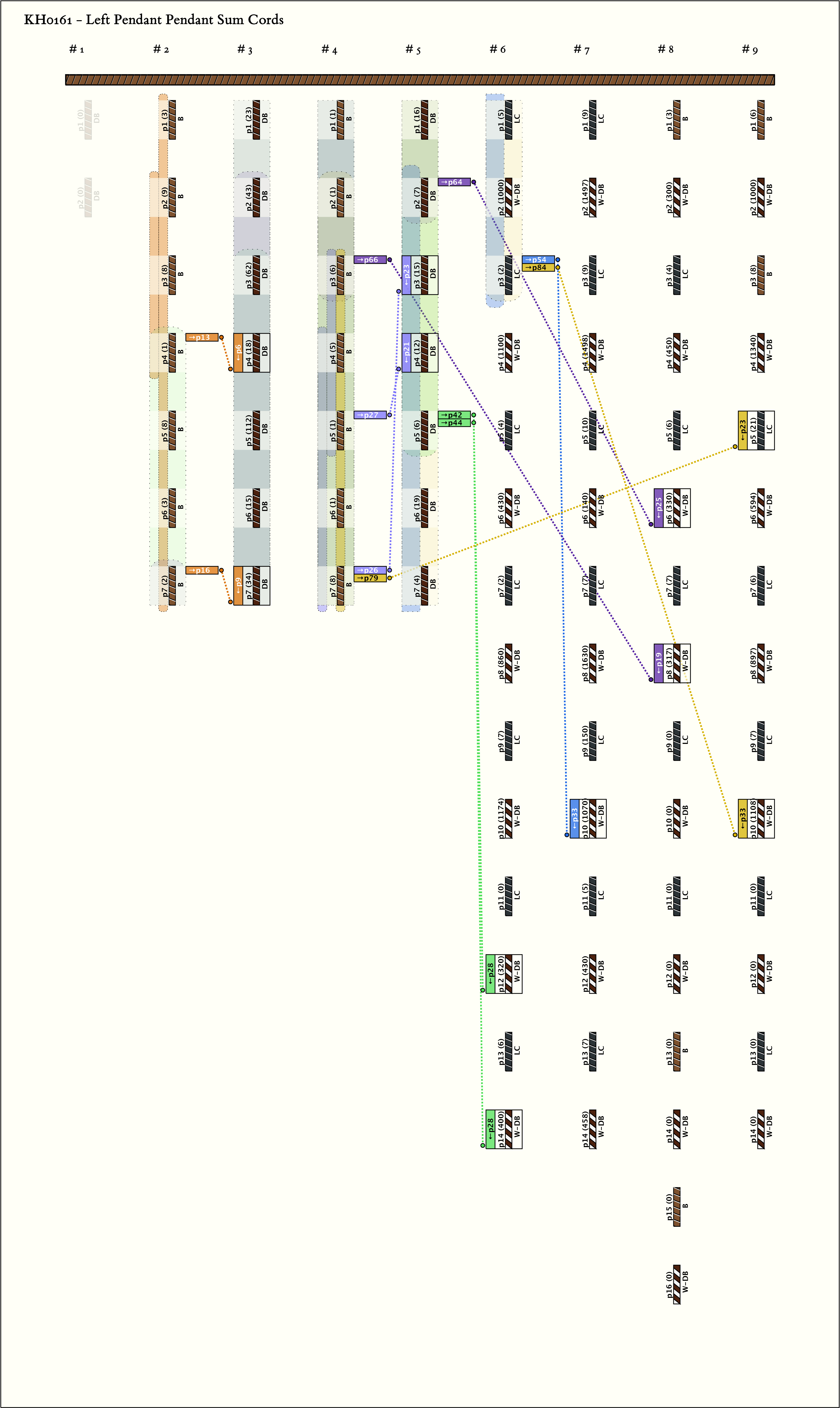

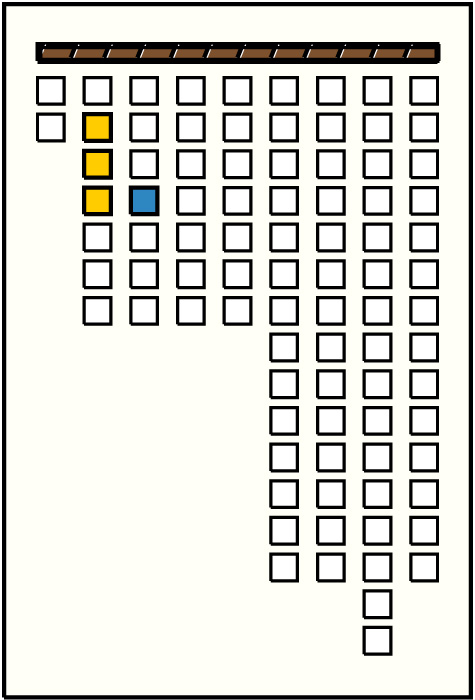

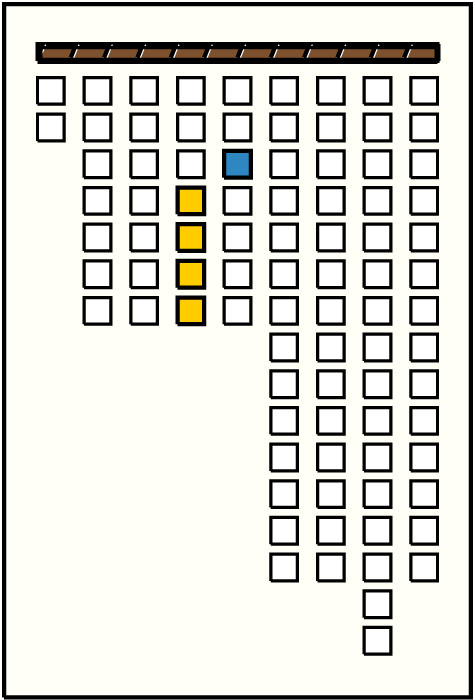

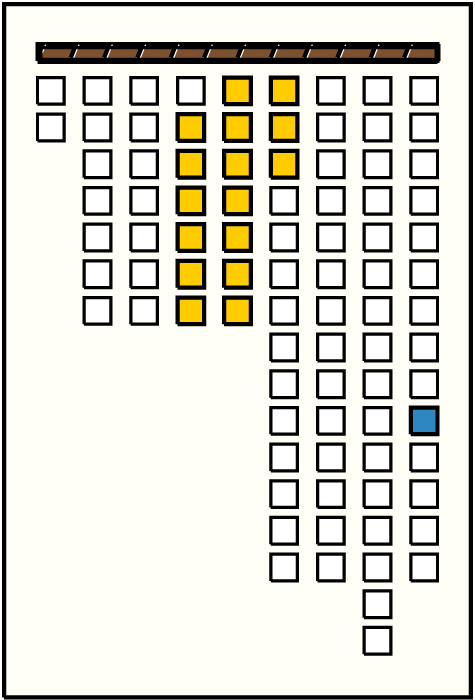

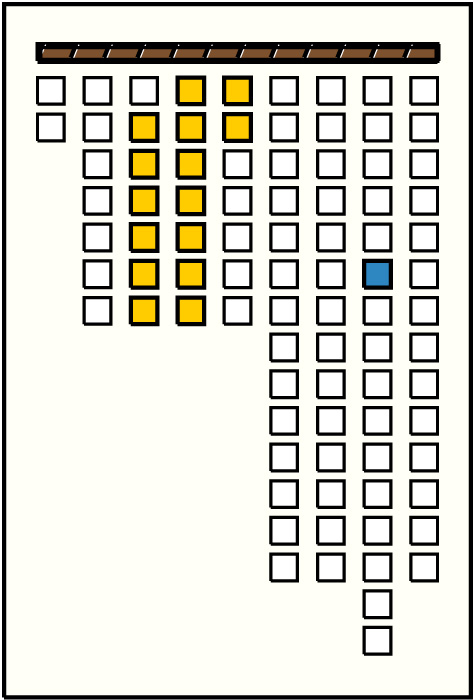

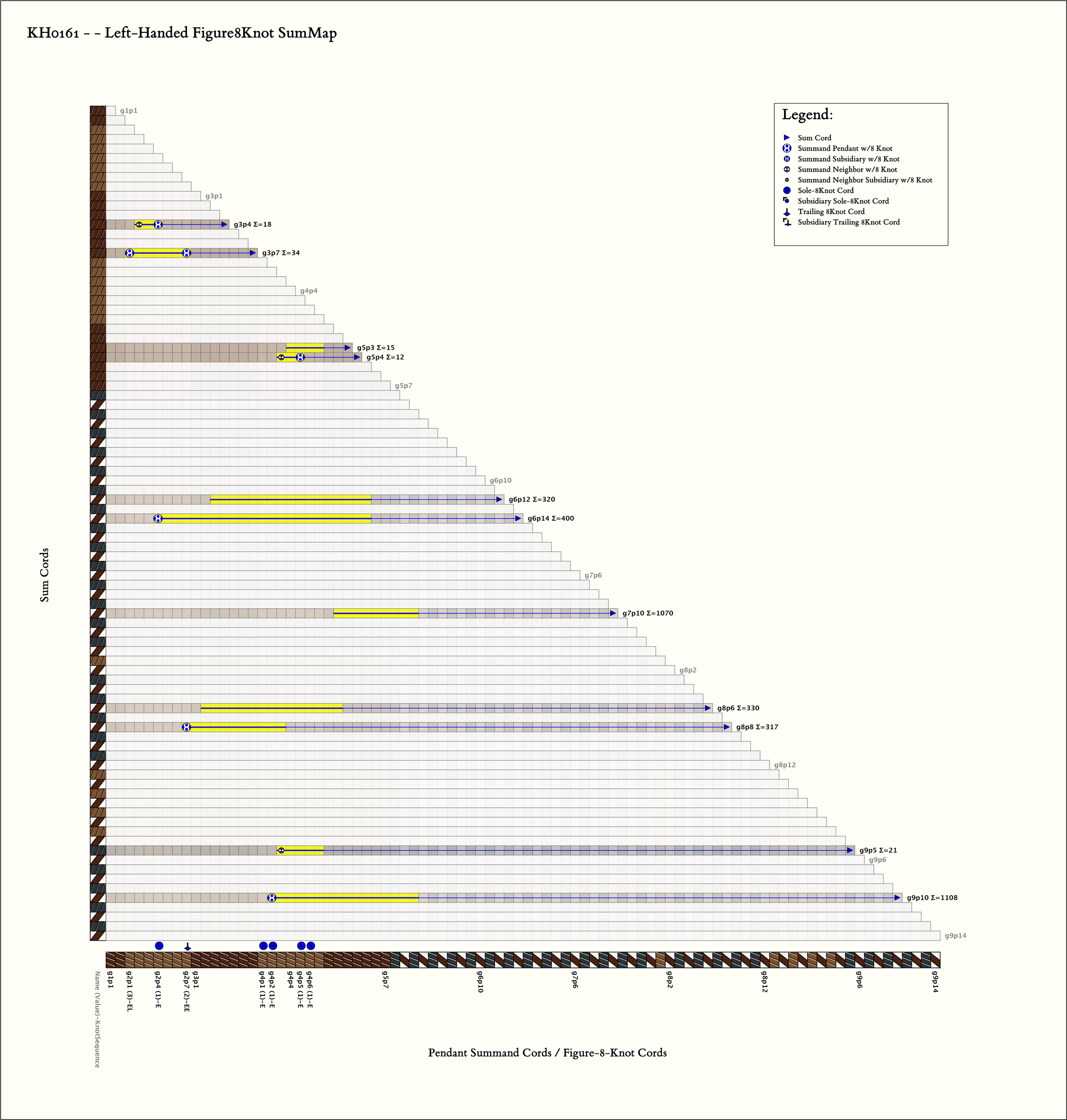

Left Handed Sums: # Sums = 11, Max # Summands = 23, (Min, Mean, Max) Sum Values = (12, 331, 1108)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p1 : 23DB | 23 | 7 | g4p1: 1B + g4p2: 1B + g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B | |

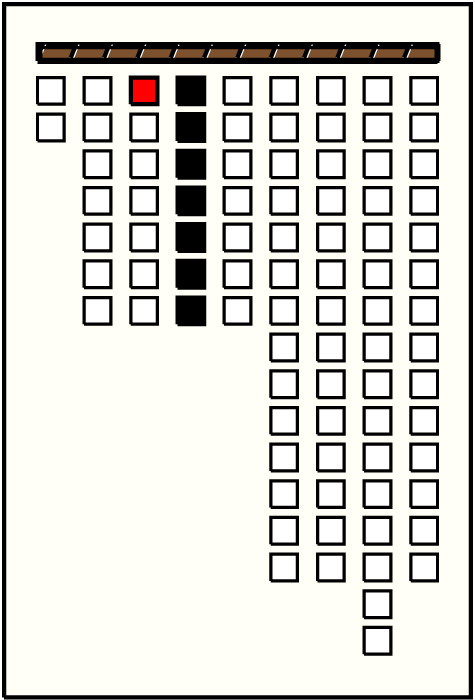

| 2 |  | g3p3 : 62DB | 62 | 6 | g3p6: 15DB + g3p7: 34DB + g4p1: 1B + g4p2: 1B + g4p3: 6B + g4p4: 5B | |
| 3 |  | g3p4 : 18DB | 18 | 2 | g5p4: 12DB + g5p5: 6DB | |
| 4 |  | g3p6 : 15DB | 15 | 6 | g4p1: 1B + g4p2: 1B + g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B | |
| 5 |  | g3p7 : 34DB | 34 | 3 | g5p2: 7DB + g5p3: 15DB + g5p4: 12DB | |
| 6 |  | g6p4 : 1100W-DB | 1100 | 7 | g8p1: 3B + g8p2: 300W-DB + g8p3: 4LC + g8p4: 450W-DB + g8p5: 6LC + g8p6: 330W-DB + g8p7: 7LC | |

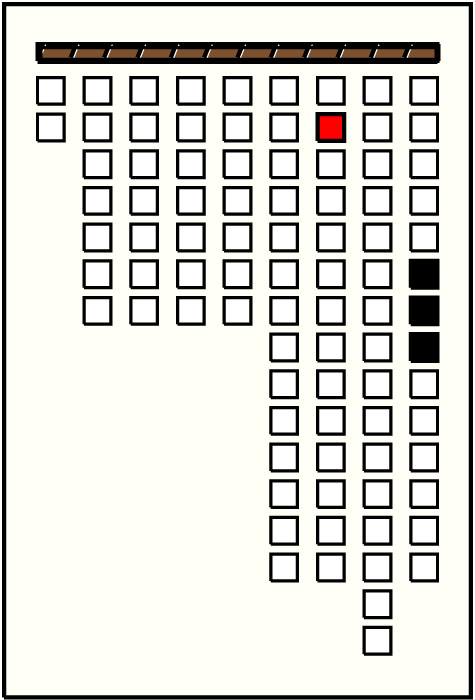

| 7 |  | g7p2 : 1497W-DB | 1497 | 3 | g9p6: 594W-DB + g9p7: 6LC + g9p8: 897W-DB | |
| 8 |  | g8p6 : 330W-DB | 330 | 11 | g8p7: 7LC + g8p8: 317W-DB + g8p9: 0LC + g8p10: 0W-DB + g8p11: 0LC + g8p12: 0W-DB + g8p13: 0B + g8p14: 0W-DB + g8p15: 0B + g8p16: 0W-DB + g9p1: 6B |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p4 : 18DB | 18 | 3 | g2p2: 9B + g2p3: 8B + g2p4: 1B | |
| 2 |  | g3p7 : 34DB | 34 | 7 | g2p1: 3B + g2p2: 9B + g2p3: 8B + g2p4: 1B + g2p5: 8B + g2p6: 3B + g2p7: 2B | |
| 3 |  | g5p3 : 15DB | 15 | 4 | g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B | |

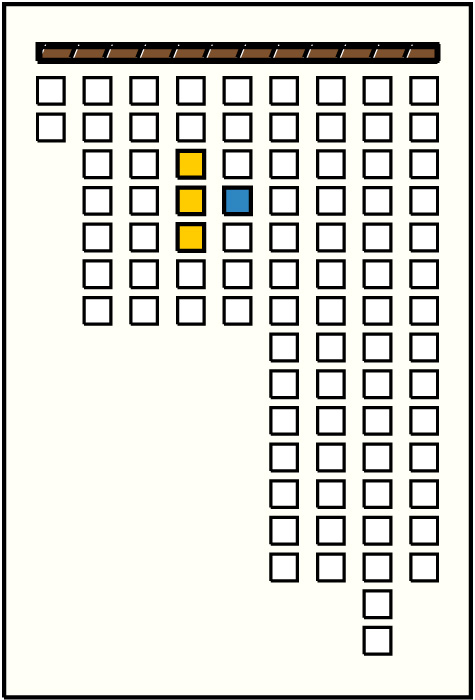

| 4 |  | g5p4 : 12DB | 12 | 3 | g4p3: 6B + g4p4: 5B + g4p5: 1B | |

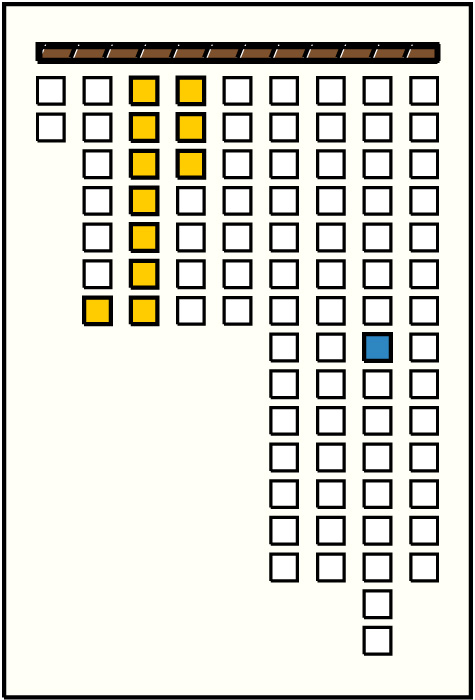

| 5 |  | g6p12 : 320W-DB | 320 | 17 | g3p3: 62DB + g3p4: 18DB + g3p5: 112DB + g3p6: 15DB + g3p7: 34DB + g4p1: 1B + g4p2: 1B + g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B + g5p1: 16DB + g5p2: 7DB + g5p3: 15DB + g5p4: 12DB + g5p5: 6DB | |

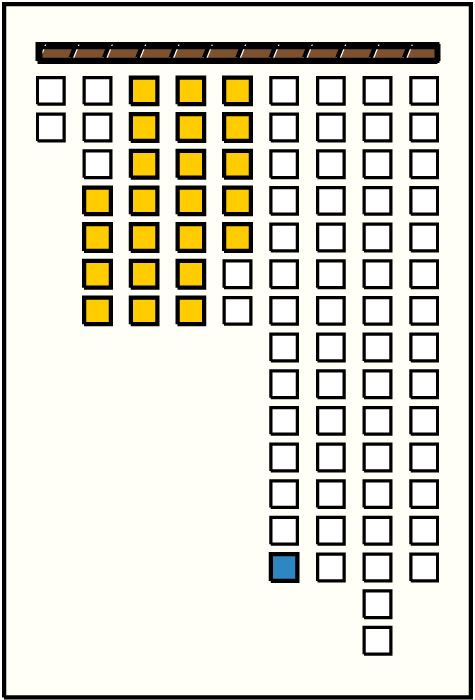

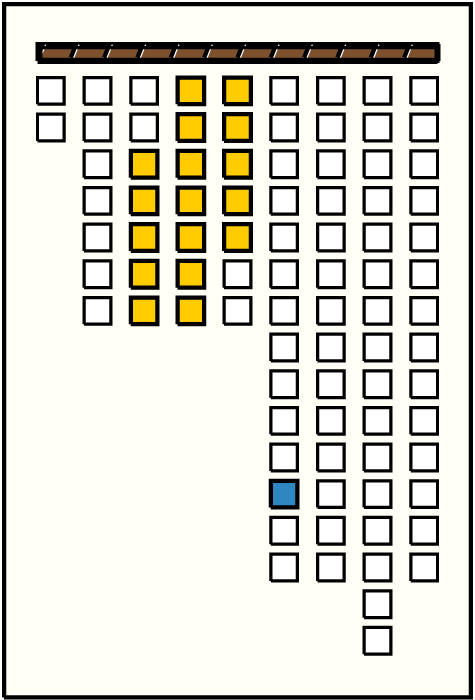

| 6 |  | g6p14 : 400W-DB | 400 | 23 | g2p4: 1B + g2p5: 8B + g2p6: 3B + g2p7: 2B + g3p1: 23DB + g3p2: 43DB + g3p3: 62DB + g3p4: 18DB + g3p5: 112DB + g3p6: 15DB + g3p7: 34DB + g4p1: 1B + g4p2: 1B + g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B + g5p1: 16DB + g5p2: 7DB + g5p3: 15DB + g5p4: 12DB + g5p5: 6DB | |
| 7 |  | g7p10 : 1070W-DB | 1070 | 9 | g5p2: 7DB + g5p3: 15DB + g5p4: 12DB + g5p5: 6DB + g5p6: 19DB + g5p7: 4DB + g6p1: 5LC + g6p2: 1000W-DB + g6p3: 2LC | |
| 8 |  | g8p6 : 330W-DB | 330 | 15 | g3p2: 43DB + g3p3: 62DB + g3p4: 18DB + g3p5: 112DB + g3p6: 15DB + g3p7: 34DB + g4p1: 1B + g4p2: 1B + g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B + g5p1: 16DB + g5p2: 7DB | |
| 9 |  | g8p8 : 317W-DB | 317 | 11 | g2p7: 2B + g3p1: 23DB + g3p2: 43DB + g3p3: 62DB + g3p4: 18DB + g3p5: 112DB + g3p6: 15DB + g3p7: 34DB + g4p1: 1B + g4p2: 1B + g4p3: 6B | |
| 10 |  | g9p5 : 21LC | 21 | 5 | g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B | |
| 11 |  | g9p10 : 1108W-DB | 1108 | 16 | g4p2: 1B + g4p3: 6B + g4p4: 5B + g4p5: 1B + g4p6: 1B + g4p7: 8B + g5p1: 16DB + g5p2: 7DB + g5p3: 15DB + g5p4: 12DB + g5p5: 6DB + g5p6: 19DB + g5p7: 4DB + g6p1: 5LC + g6p2: 1000W-DB + g6p3: 2LC |
Khipu Notes:
Ascher Databook Notes:
- A pendant fragment stored with the khipu was assumed to be part of pendant 37. Pendant 37 is broken at 16.0 cm.
- A pendant fragment stored with the khipu was assumed to be part of subsidiary 84s1 The subsidiary is broken at 10.5 cm.
- This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of them, see KH0110.
- By spacing and color patterning, the khipu is separated in to 3 parts. The first part is one pair of pendants; the second is 4 groups of 7 pendants each; and the last part is 4 groups of 14 or 16 pendants each.
- The khipu has 2 different knot cluster arrangements. One is the standard arrangement involving single knot clusters and long knot clusters. The other arrangement is only long knot clusters in one or more of 3 distinct positions on a cord. For convenience, call the former S and the latter N. The S and N arrangements are alternated on the khipu. In part 2, pendants in groups 1 and 3 are all N while in groups 2 and 4, they are all S. In part 3, within each group, the pendants alternate N, S, N, S, etc. The color patterning reinforces the alternation: in part 2, in groups 1 and 3, all pendants are B and in groups 2 and 4, they are DB; in part 3, in the first 2 groups, the colors alternate LC, DB-W, and in the next 2 groups, they alternate LC or B, DB-W. Thus, the knot arrangements and colors alternate together so that the N arrangement is associated with B or LC and the S arrangement with DB or DB-W.
- Some of the values on the pendants in groups 1 and 3 of part 2 sum to each other. Two relationships are repeated for pendants 3 positions apart. Namely:
P3i + P3,i+1 = P1i for i=(1,4)
P3i + P1i = 2 P3,i-1 for i=(4,7)
