KH0176/AS160 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksRight-Handed XRay
All Pendant Pendant Sum RelationshipsLeft-Handed XRay
This Khipu's Fieldmark CatalogRight-Handed Sum Detail
This Khipu's DrawingLeft-Handed Sum Detail

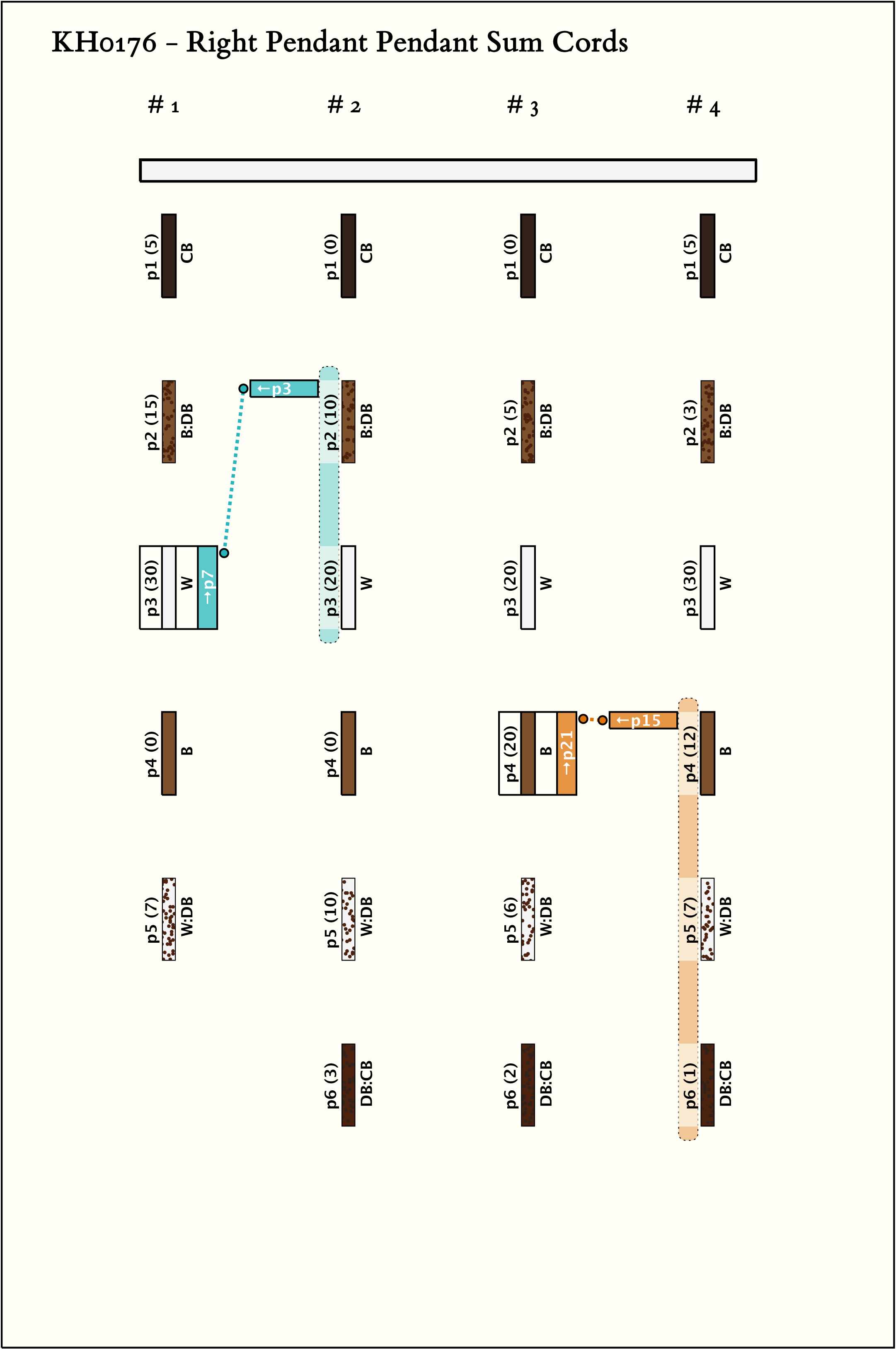

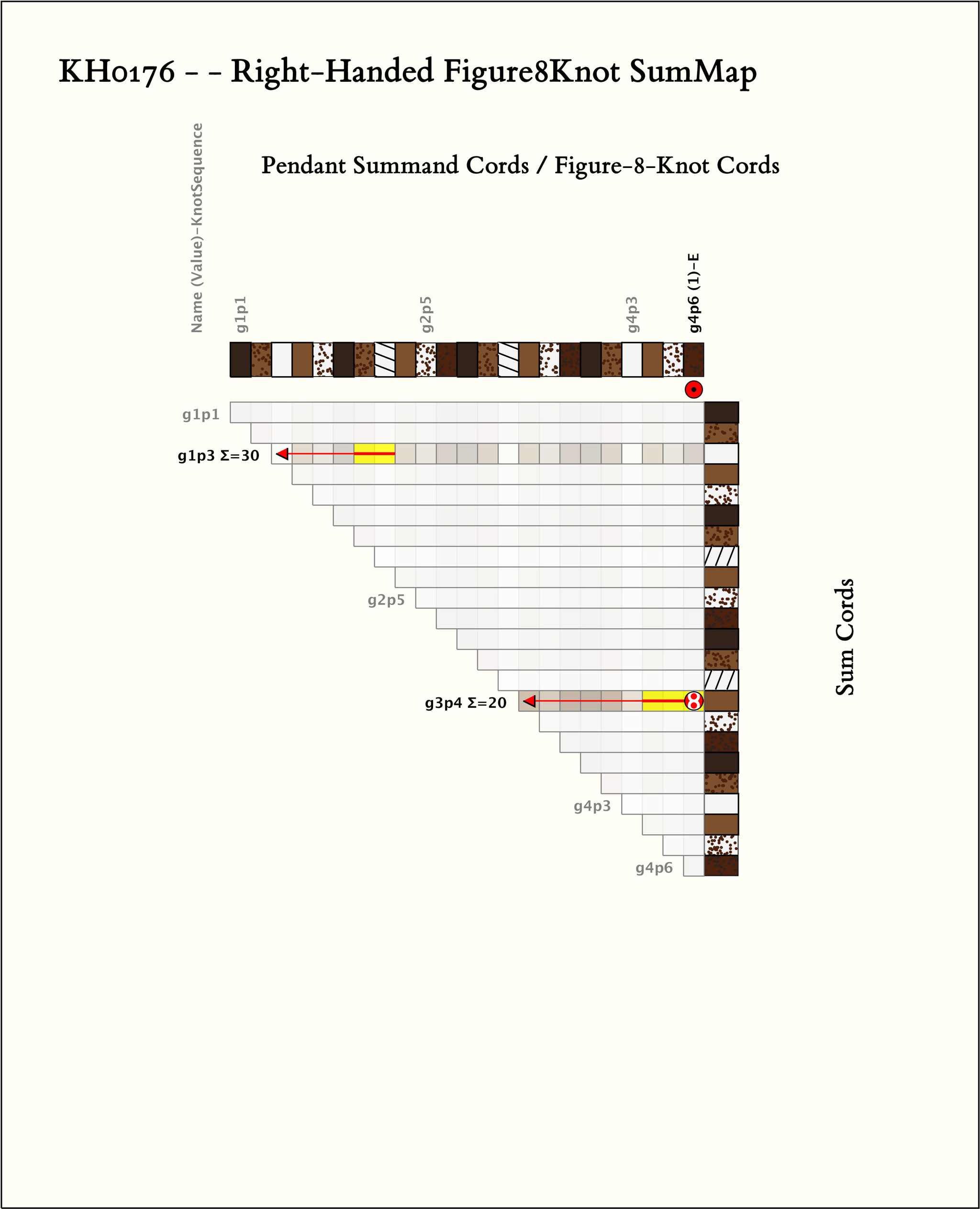

Right Handed Sums:     # Sums = 2,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (20, 25, 30)
Click on Image to View Larger

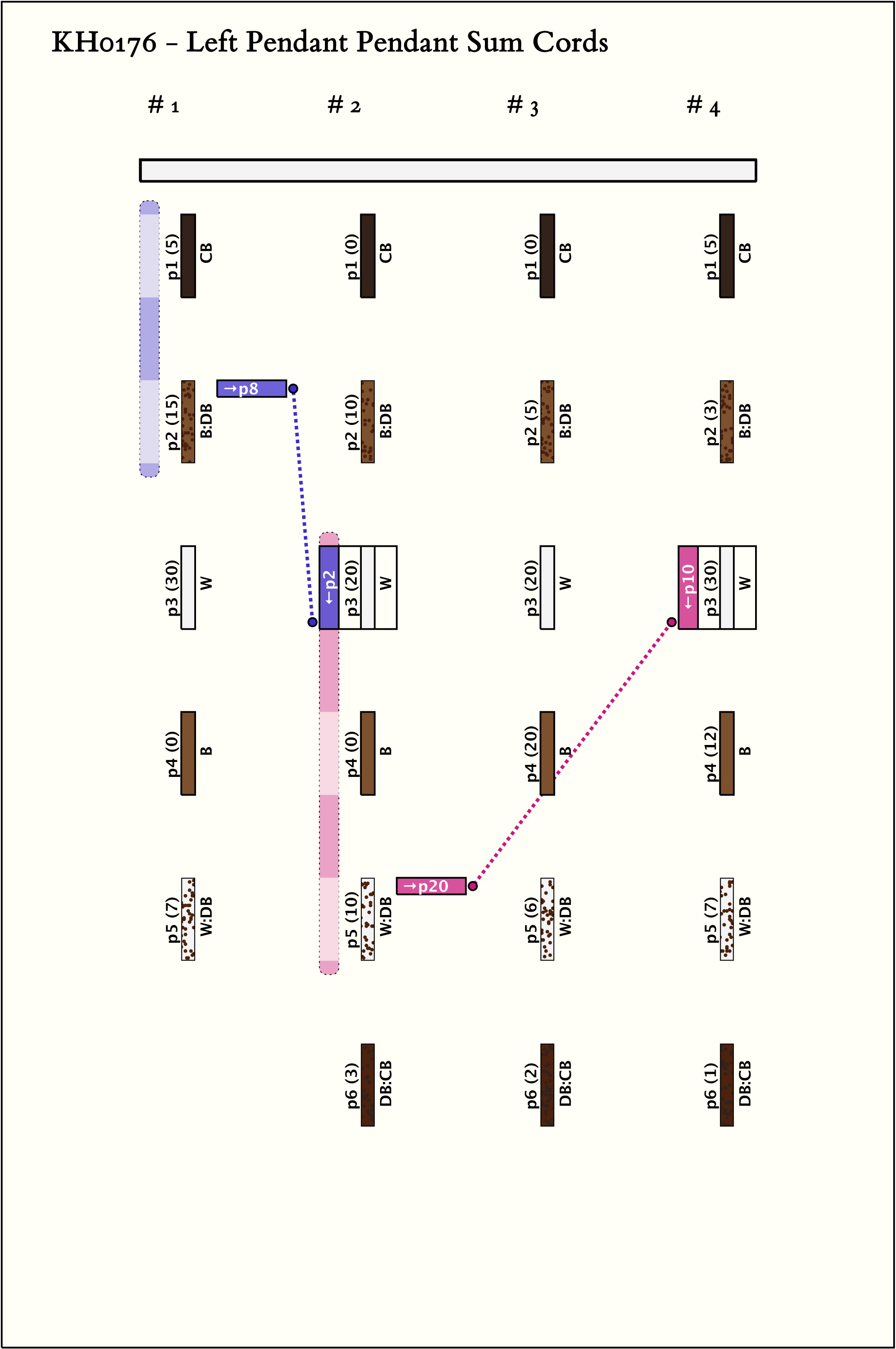

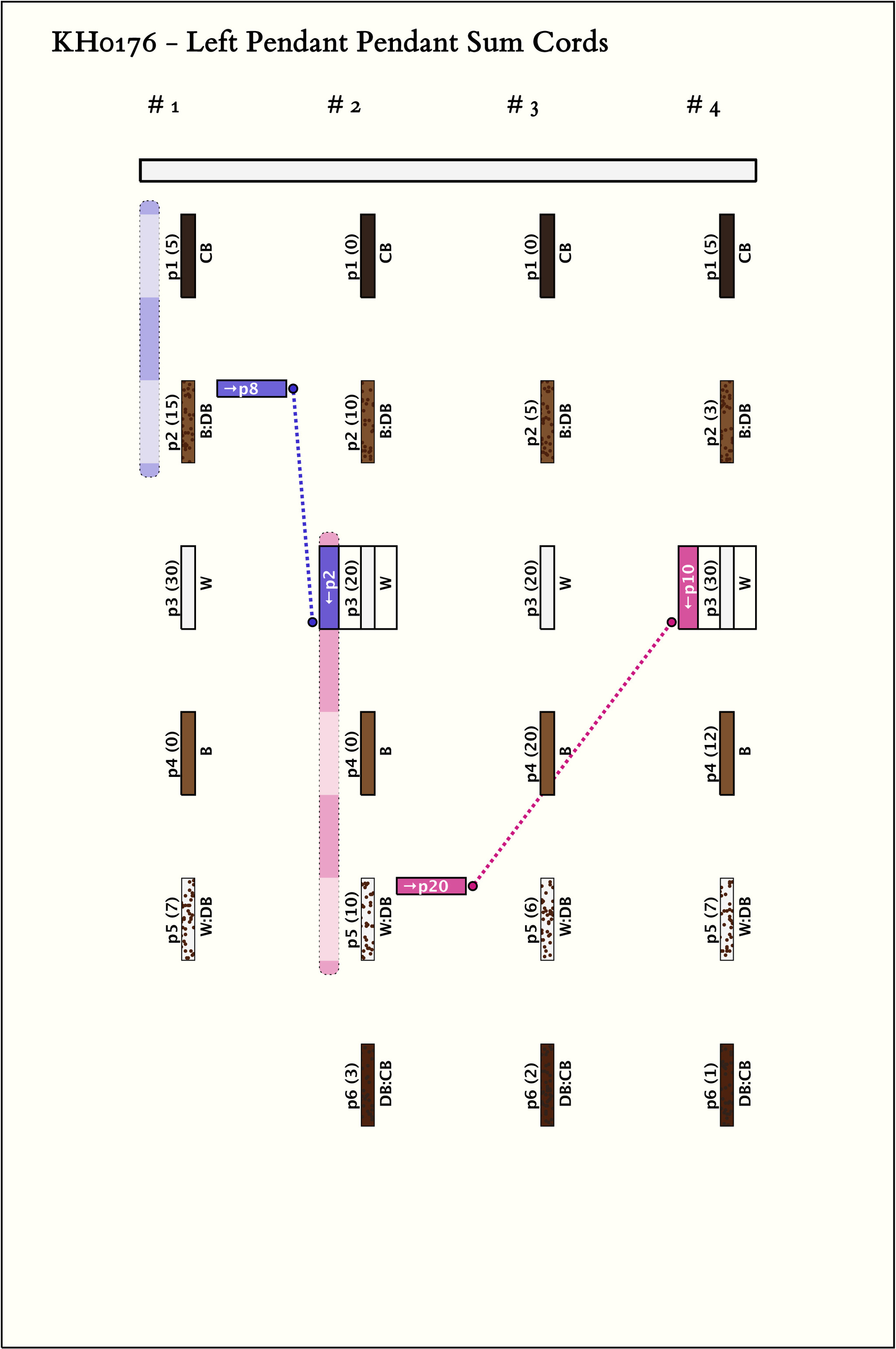

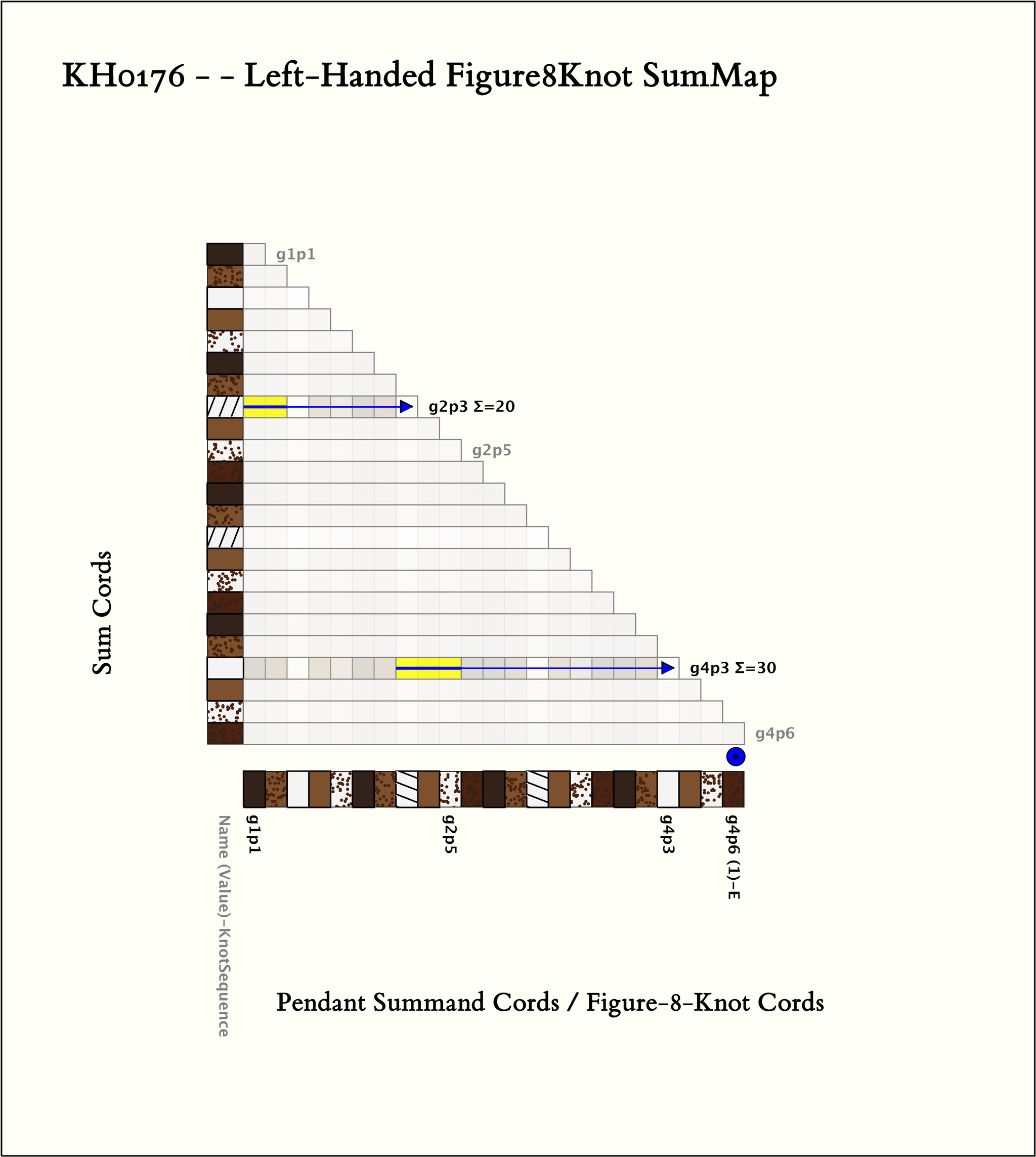

Left Handed Sums:     # Sums = 2,  Max # Summands = 3,   (Min, Mean, Max) Sum Values = (20, 25, 30)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

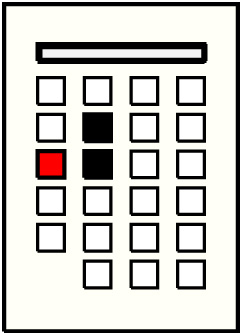

g1p3 : 30W302g2p2: 10B:DB + g2p3: 20W
2

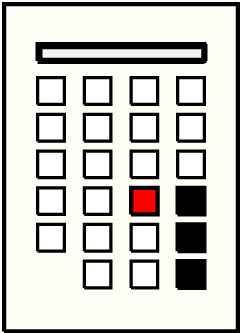

g3p4 : 20B203g4p4: 12B + g4p5: 7W:DB + g4p6: 1DB:CB

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

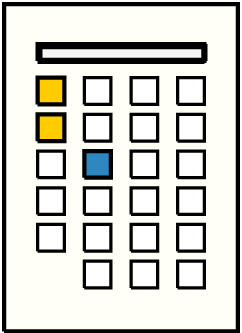

g2p3 : 20W202g1p1: 5CB + g1p2: 15B:DB
2

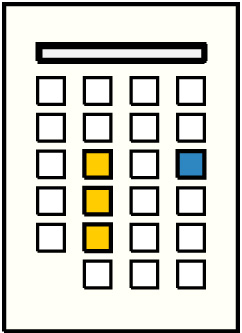

g4p3 : 30W303g2p3: 20W + g2p4: 0B + g2p5: 10W:DB

Khipu Notes:
Ascher Databook Notes:
  1. Another pendant, just after pendant 5, was probably present as indicated by the discoloration on the main cord.
  2. This was one of several khipus acquired by the Museum in 1904 with provenance between Ica and Pisco. For a discussion of them, see KH0111.
  3. By spacing, the khipu consists of 4 groups of 6 pendants each. Each group has the same color pattern.
  4. In each group, the value in position 3 is a multiple of the value in position 2. The value of position 3 is also a multiple of 10.
  5. Seventeen of the 21 values on the khipu are multiples of 3 or 5. The different multiples present are:

    3 times i where i=0 to 5 but i≠3
    5 times i where i=1 to 6 but i≠5
