KH0249/UR013 - Pendant Pendant Sums
Drawings:

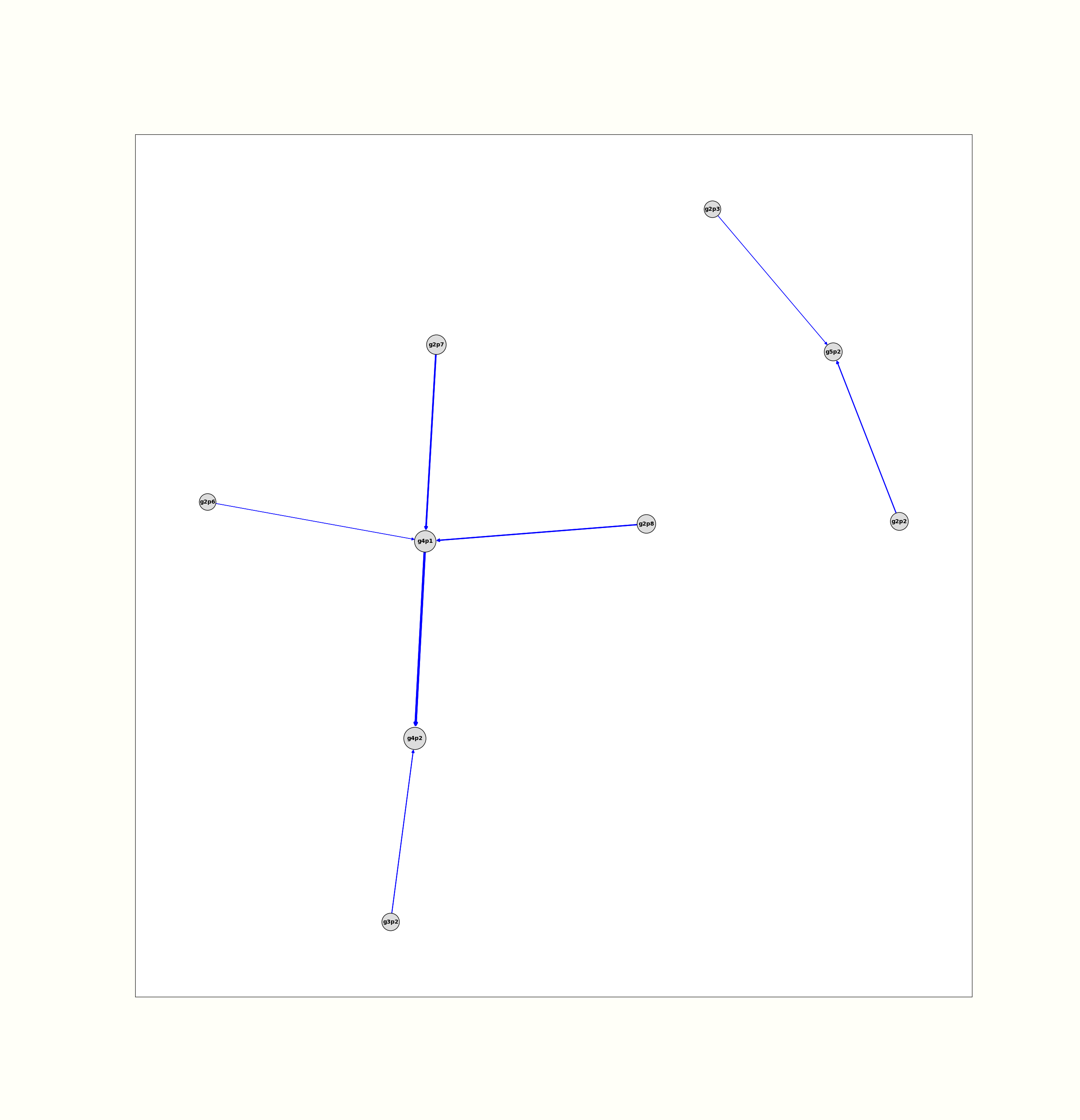

Sum NetGraph - Click on image to view larger
 |

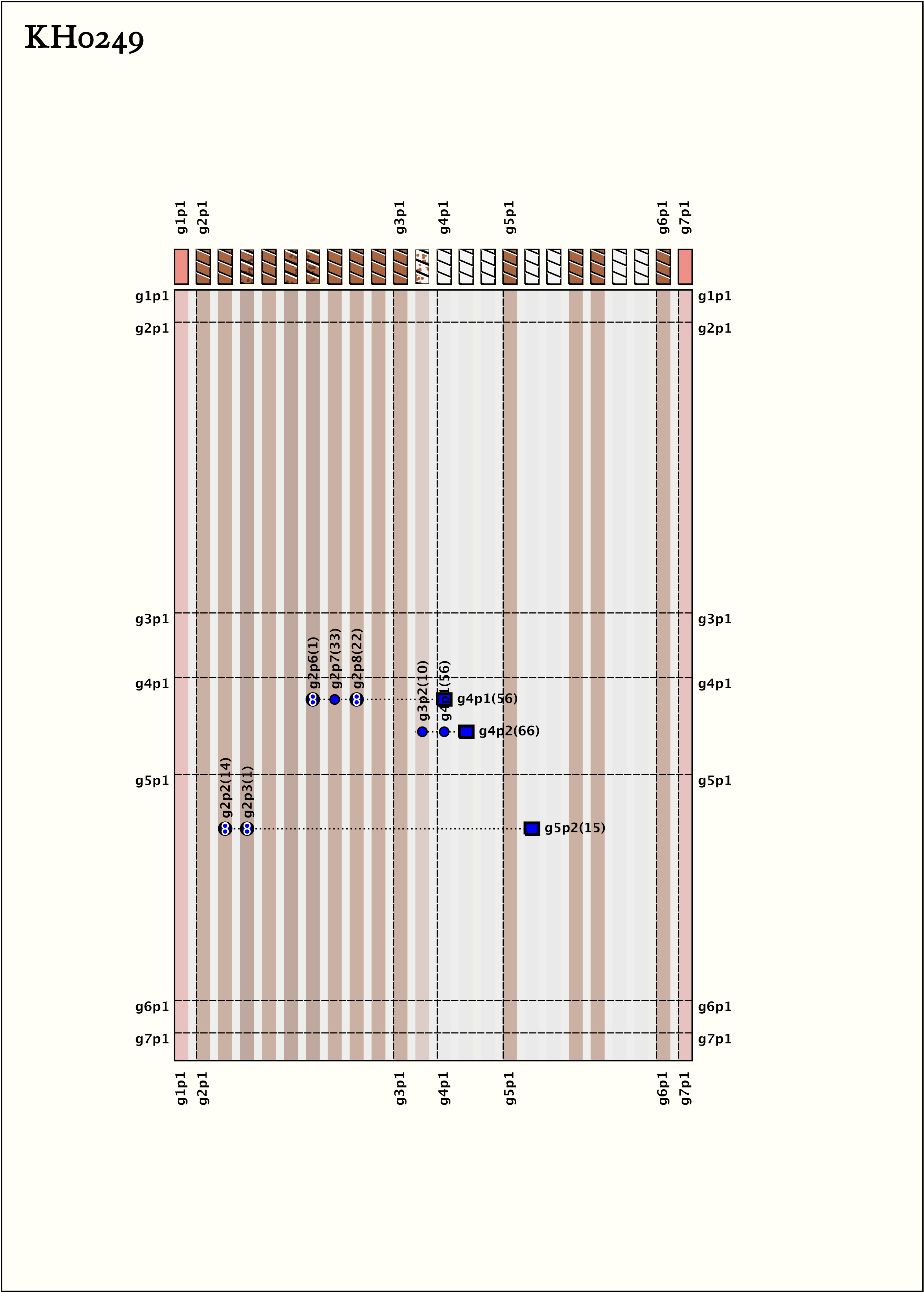

Sum Map - Click on image to view larger
 |

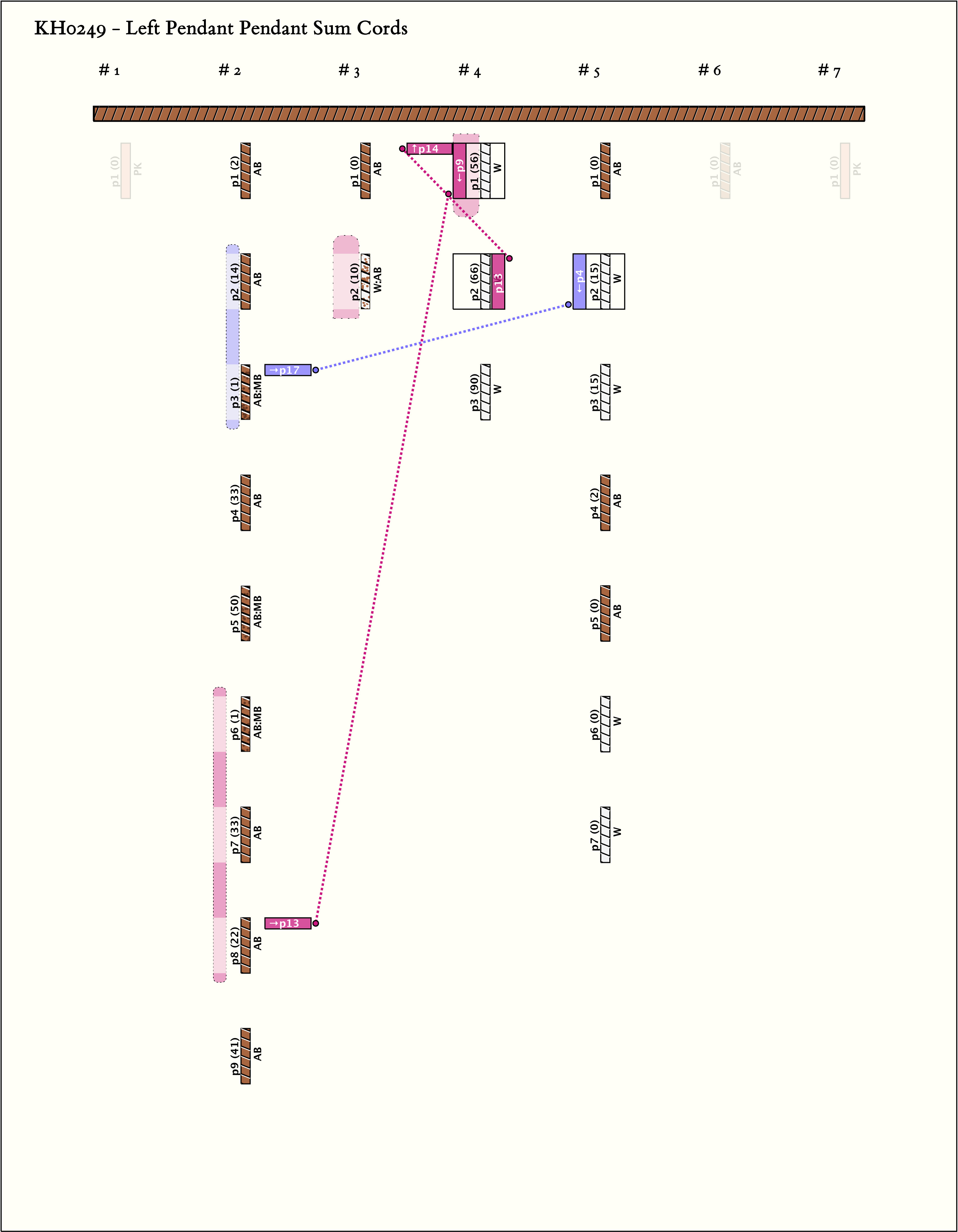

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

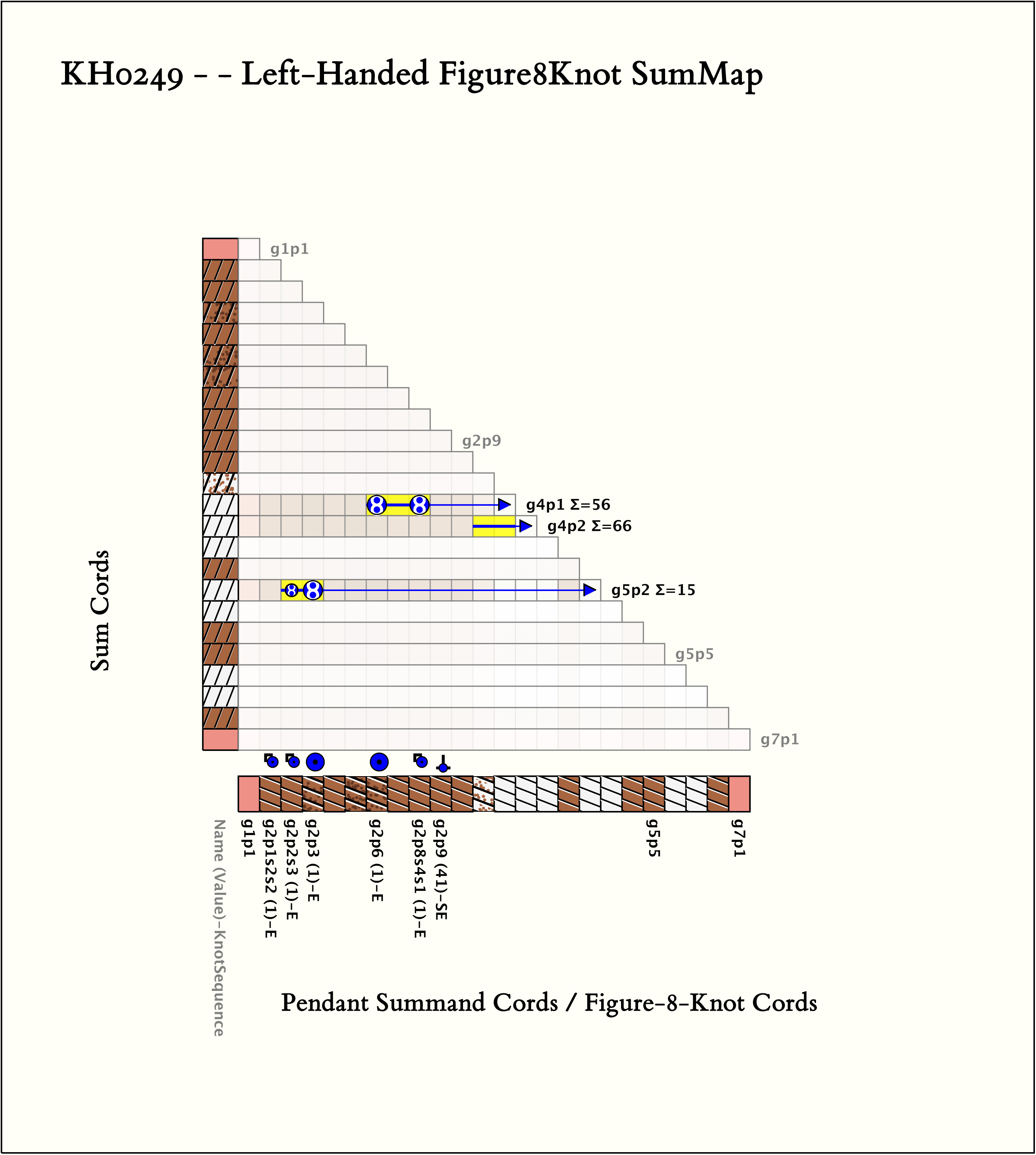

Left Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 3, (Min, Mean, Max) Sum Values = (15, 46, 66)
Click on Image to View Larger
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p1 : 56W | 56 | 3 | ❽g2p6: 1AB:MB + g2p7: 33AB + g2p8: 22AB❽ | |
| 2 |  | g4p2 : 66W | 66 | 2 | g3p2: 10W:AB + g4p1: 56W | |
| 3 |  | g5p2 : 15W | 15 | 2 | ❽g2p2: 14AB + g2p3: 1AB:MB❽ |
Khipu Notes:
The beginning of the primary cord has a knot which unites khipu 257D/UR13 with 257C/UR12 and 257F/UR15. (Original investigator's note: nudo con hilo que une khipu 257D con 257C y F)
