KH0306/UR069 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

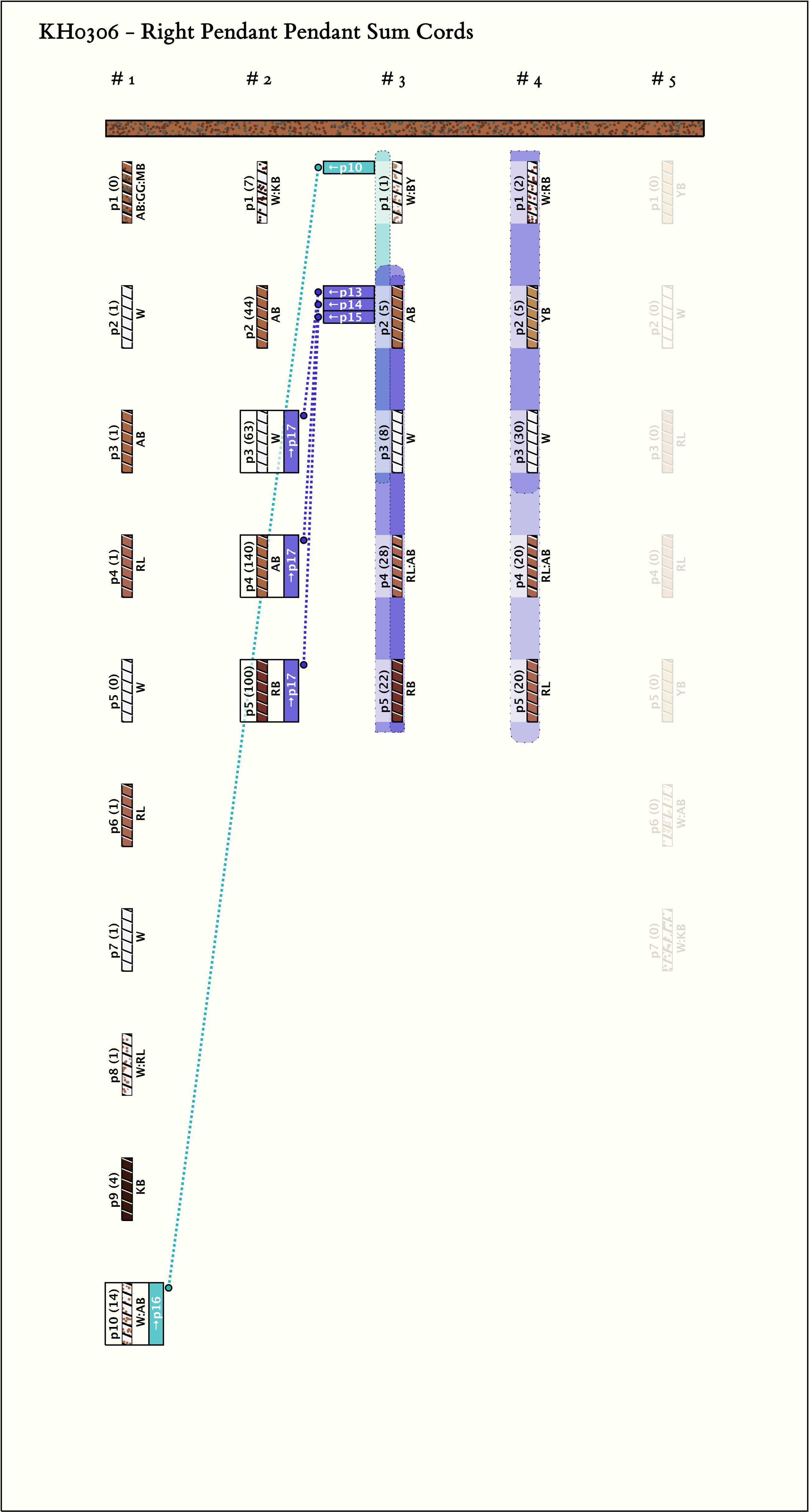

Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 9, (Min, Mean, Max) Sum Values = (14, 79, 140)
Click on Image to View Larger

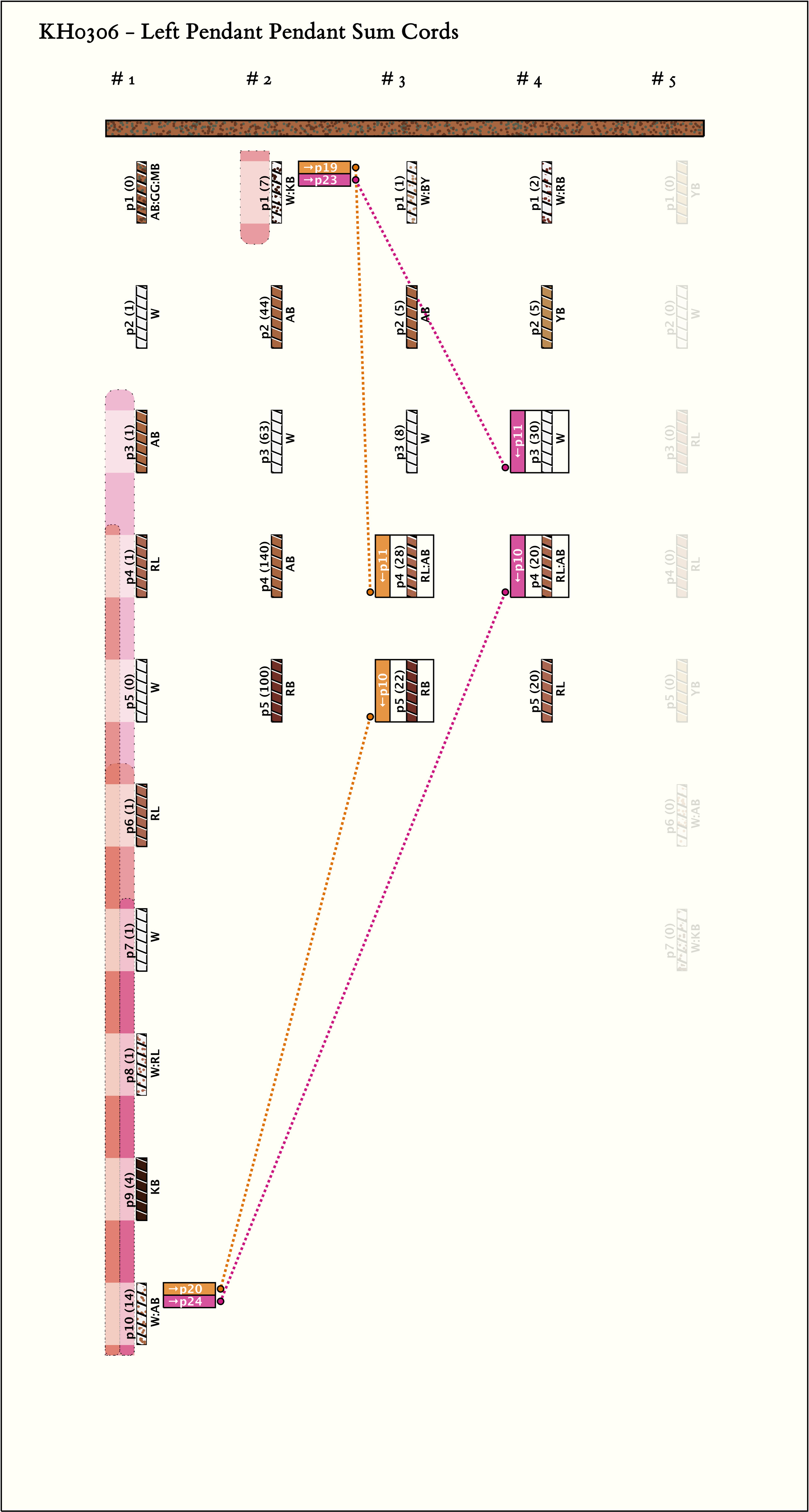

Left Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 9, (Min, Mean, Max) Sum Values = (20, 25, 30)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

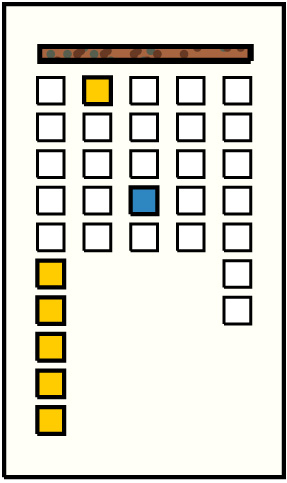

| 1 |  | g1p10 : 14W:AB | 14 | 3 | ❽g3p1: 1W:BY + g3p2: 5AB + g3p3: 8W | |

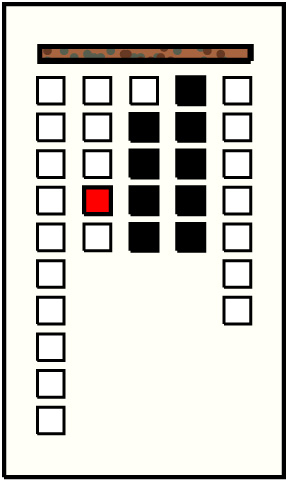

| 2 |  | g2p3 : 63W | 63 | 4 | ∞g3p2: 5AB + g3p3: 8W + g3p4: 28RL:AB + g3p5: 22RB | |
| 3 |  | g2p4 : 140AB | 140 | 9 | ∞g3p2: 5AB + g3p3: 8W + g3p4: 28RL:AB + g3p5: 22RB + g4p1: 2W:RB + g4p2: 5YB + g4p3: 30W + g4p4: 20RL:AB + g4p5: 20RL | |

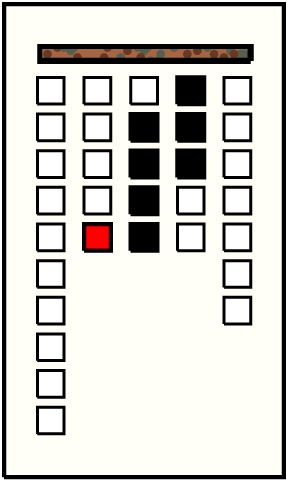

| 4 |  | g2p5 : 100RB | 100 | 7 | ∞g3p2: 5AB + g3p3: 8W + g3p4: 28RL:AB + g3p5: 22RB + g4p1: 2W:RB + g4p2: 5YB + g4p3: 30W |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p4 : 28RL:AB | 28 | 6 | ❽g1p6: 1RL + g1p7: 1W + g1p8: 1W:RL + g1p9: 4KB + g1p10: 14W:AB + g2p1: 7W:KB | |

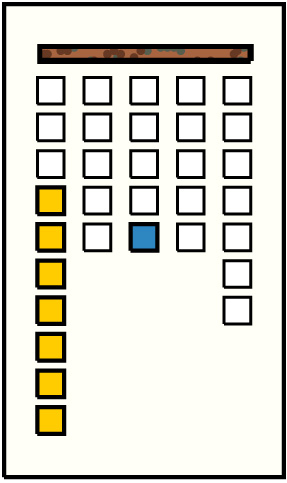

| 2 |  | g3p5 : 22RB | 22 | 7 | ❽g1p4: 1RL + g1p5: 0W + g1p6: 1RL + g1p7: 1W + g1p8: 1W:RL + g1p9: 4KB + g1p10: 14W:AB | |

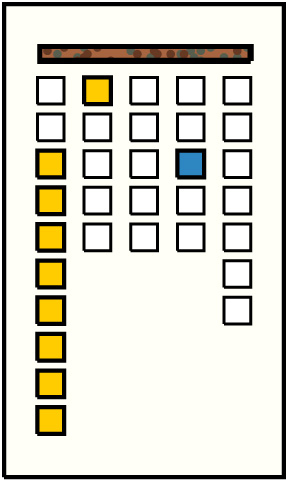

| 3 |  | g4p3 : 30W | 30 | 9 | ❽g1p3: 1AB + g1p4: 1RL + g1p5: 0W + g1p6: 1RL + g1p7: 1W + g1p8: 1W:RL + g1p9: 4KB + g1p10: 14W:AB + g2p1: 7W:KB | |

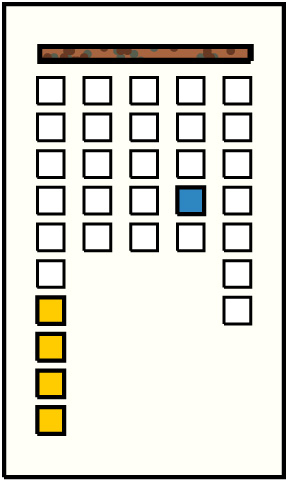

| 4 |  | g4p4 : 20RL:AB | 20 | 4 | ❽g1p7: 1W + g1p8: 1W:RL + g1p9: 4KB + g1p10: 14W:AB |
Khipu Notes:
With doubled end on the left and pendants facing away from viewer, khipu was rolled up left to right, making an S spiral bundle.
Cord construction is clear at the ends of some raveled cords. Eg, 2 ply cords of blue, lt brown, and white make up one cord component, which is doubled and plied into final cord.
Cord construction is clear at the ends of some raveled cords. Eg, 2 ply cords of blue, lt brown, and white make up one cord component, which is doubled and plied into final cord.
