KH0370/UR131A - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |

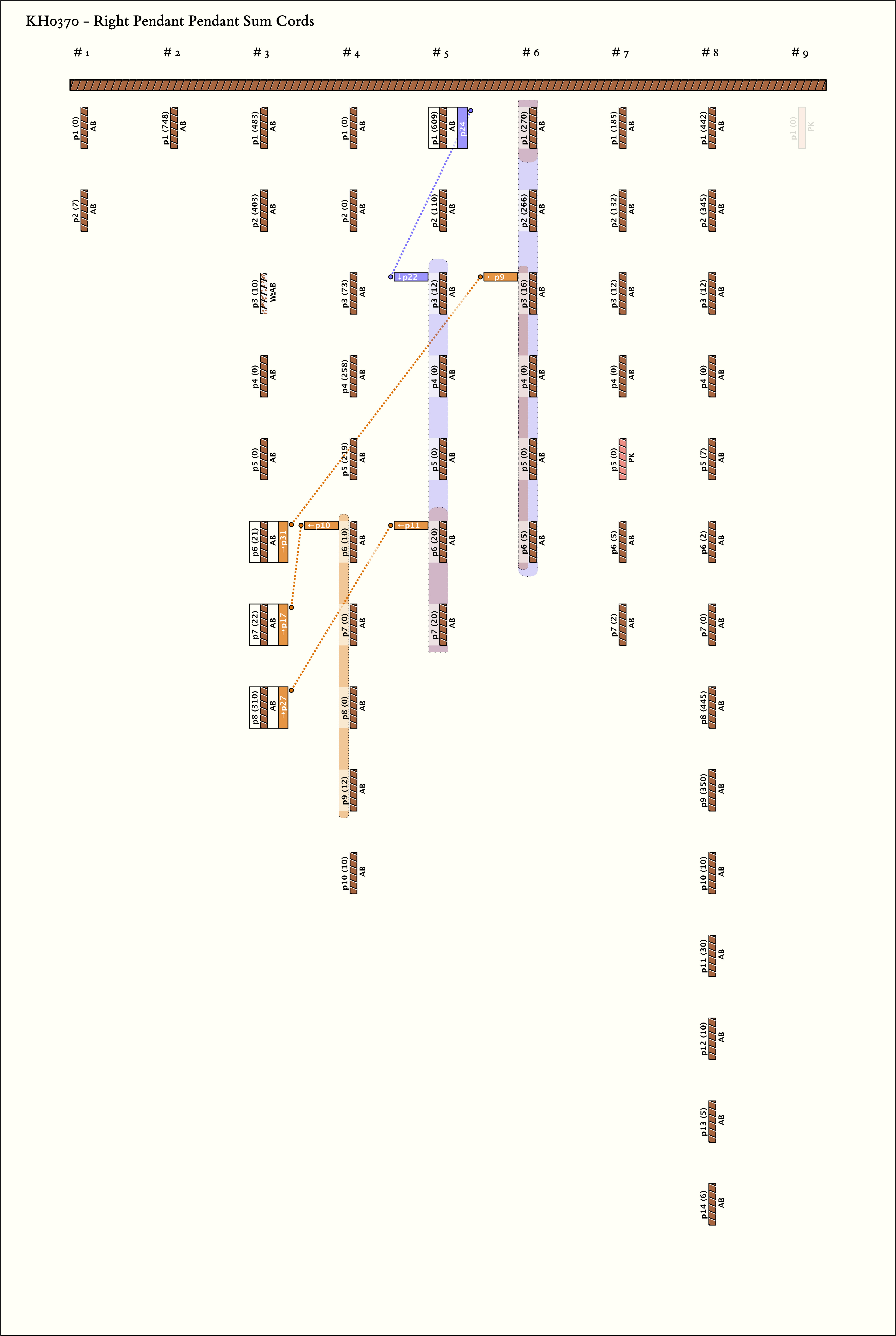

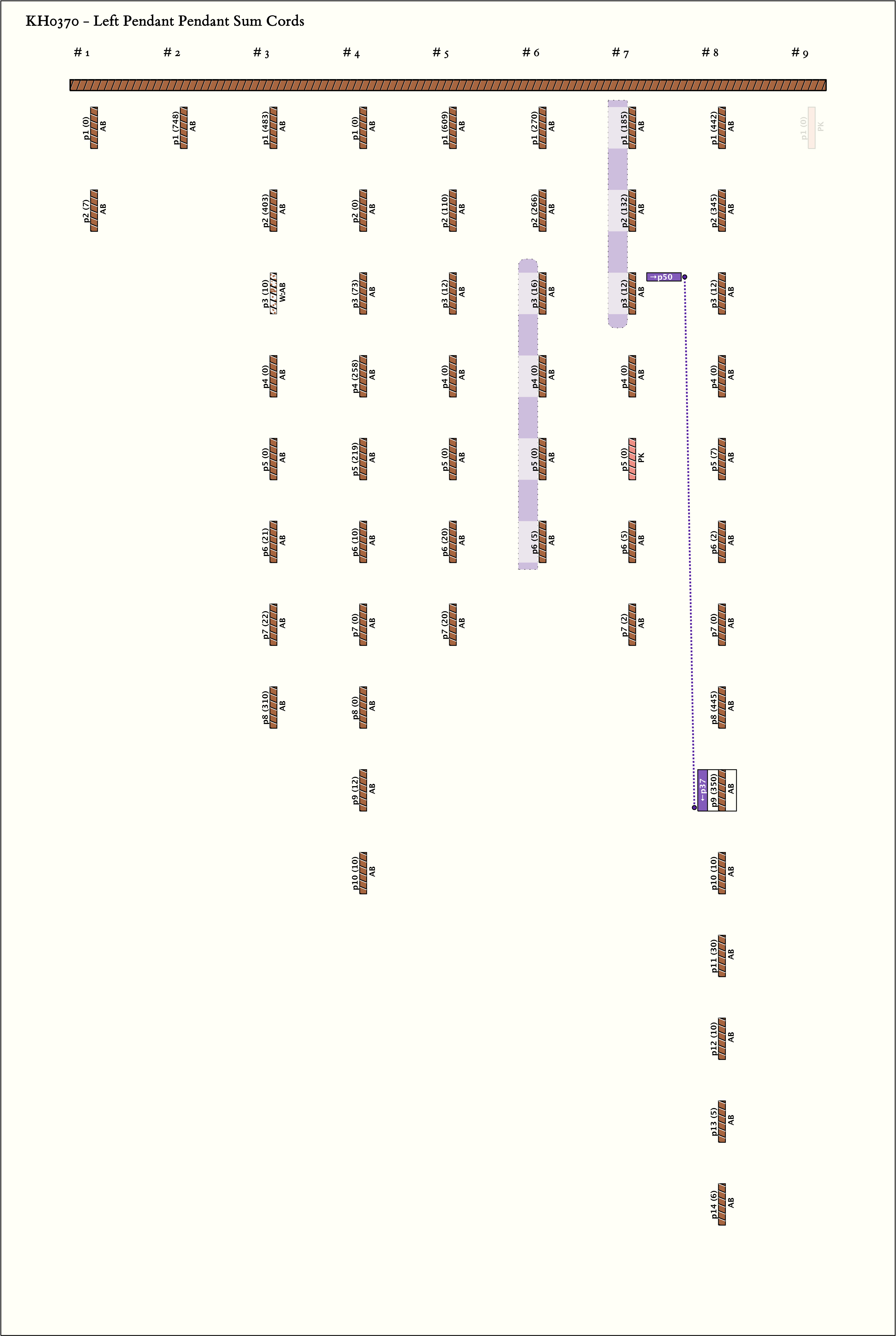

Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 11, (Min, Mean, Max) Sum Values = (21, 240, 609)
Click on Image to View Larger
Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 7, (Min, Mean, Max) Sum Values = (350, 350, 350)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g3p6 : 21AB | 21 | 4 | ∞g6p3: 16AB + g6p4: 0AB + g6p5: 0AB + g6p6: 5AB∞ | |
| 2 |  | g3p7 : 22AB | 22 | 4 | g4p6: 10AB + g4p7: 0AB + g4p8: 0AB + g4p9: 12AB | |
| 3 |  | g3p8 : 310AB | 310 | 3 | g5p6: 20AB + g5p7: 20AB + g6p1: 270AB∞ | |
| 4 |  | g5p1 : 609AB | 609 | 11 | g5p3: 12AB + g5p4: 0AB + g5p5: 0AB + g5p6: 20AB + g5p7: 20AB + g6p1: 270AB + g6p2: 266AB + g6p3: 16AB + g6p4: 0AB + g6p5: 0AB + g6p6: 5AB∞ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p9 : 350AB | 350 | 7 | ∞g6p3: 16AB + g6p4: 0AB + g6p5: 0AB + g6p6: 5AB + g7p1: 185AB + g7p2: 132AB + g7p3: 12AB |
