KH0522/UR284 - Pendant Pendant Sums
Drawings:

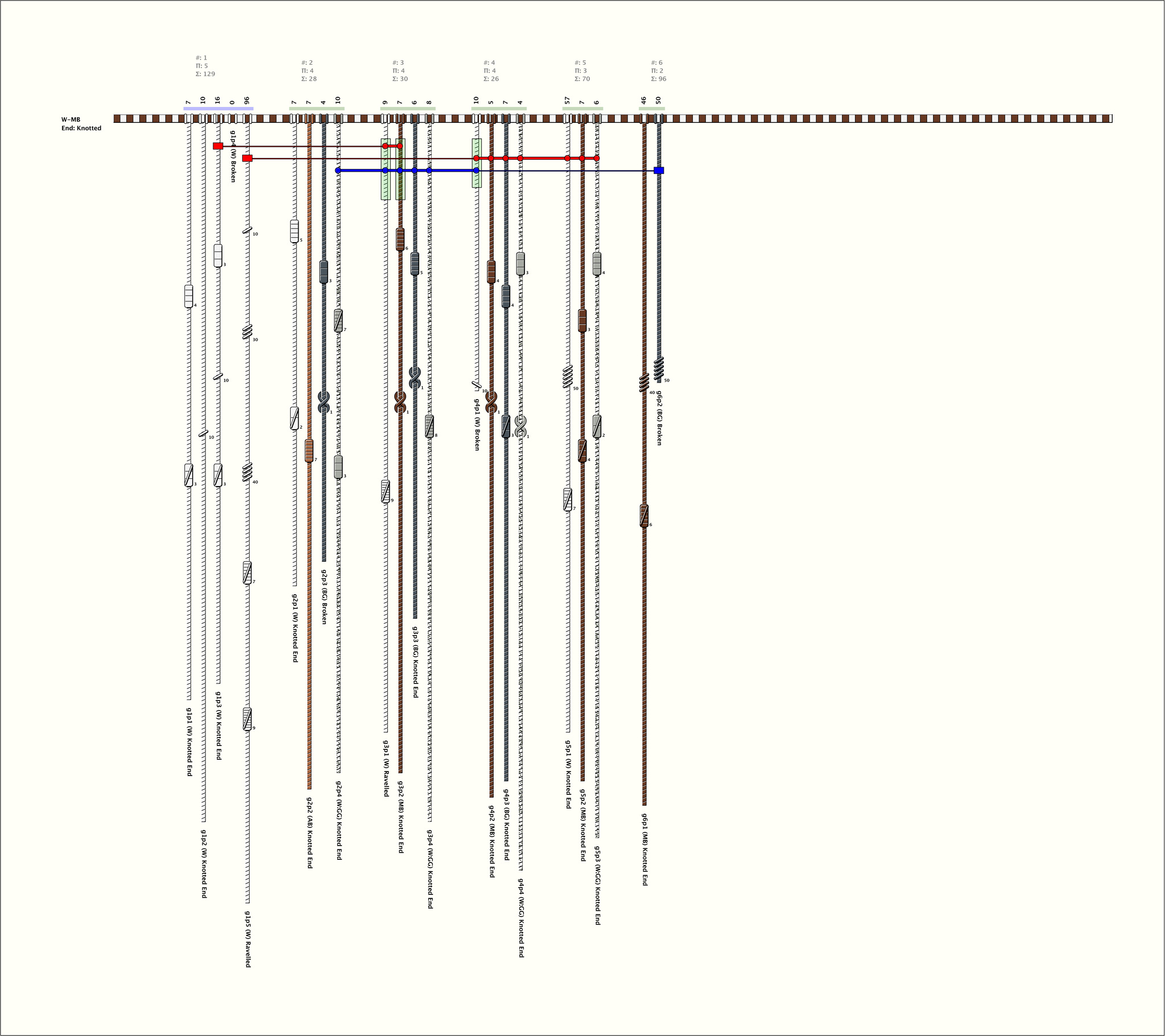

Sum NetGraph - Click on image to view larger
 |

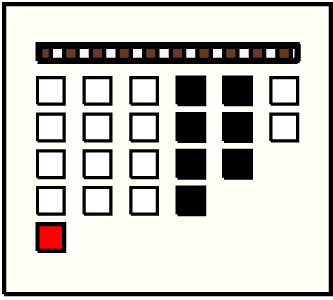

Sum Map - Click on image to view larger
 |

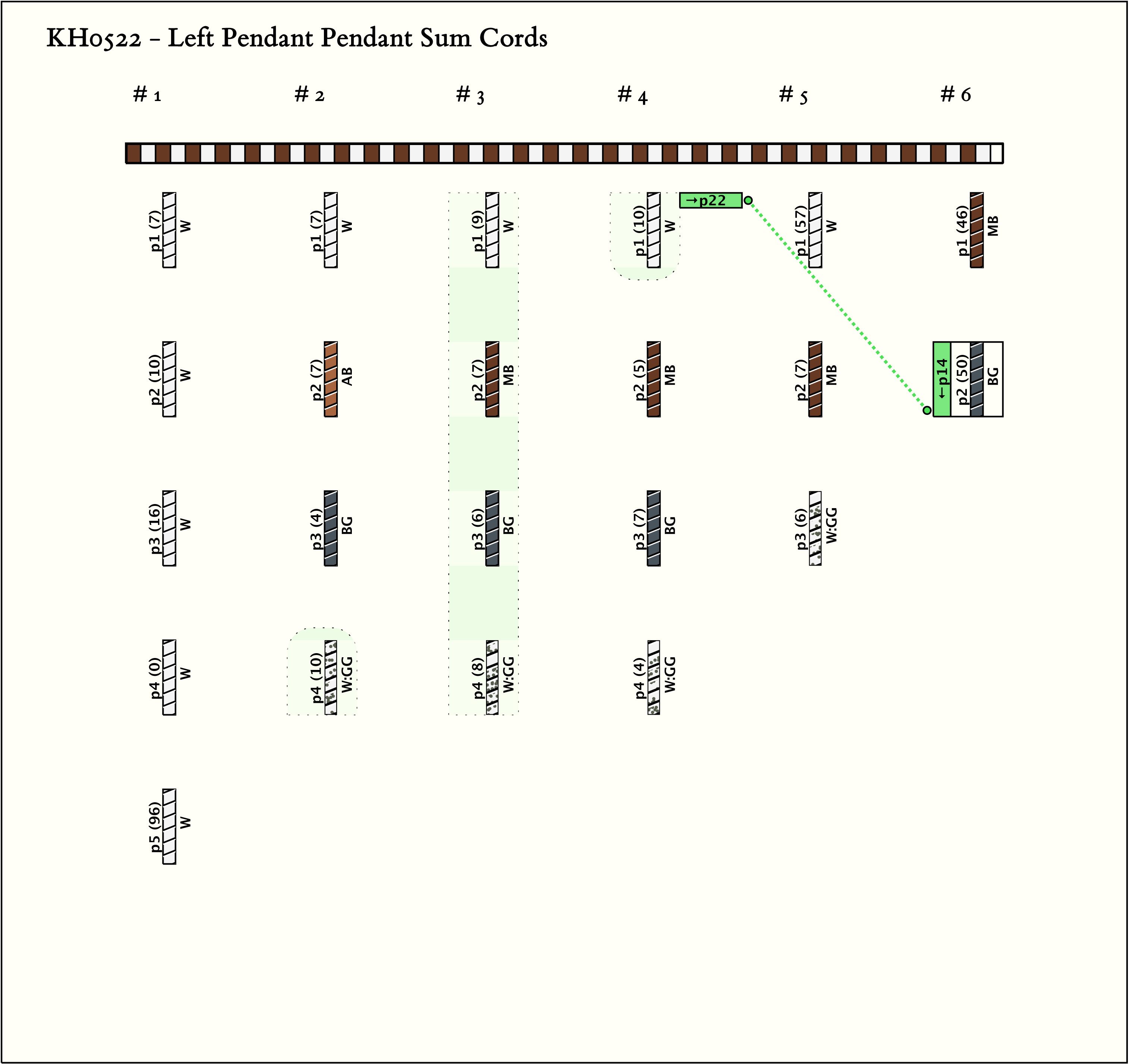

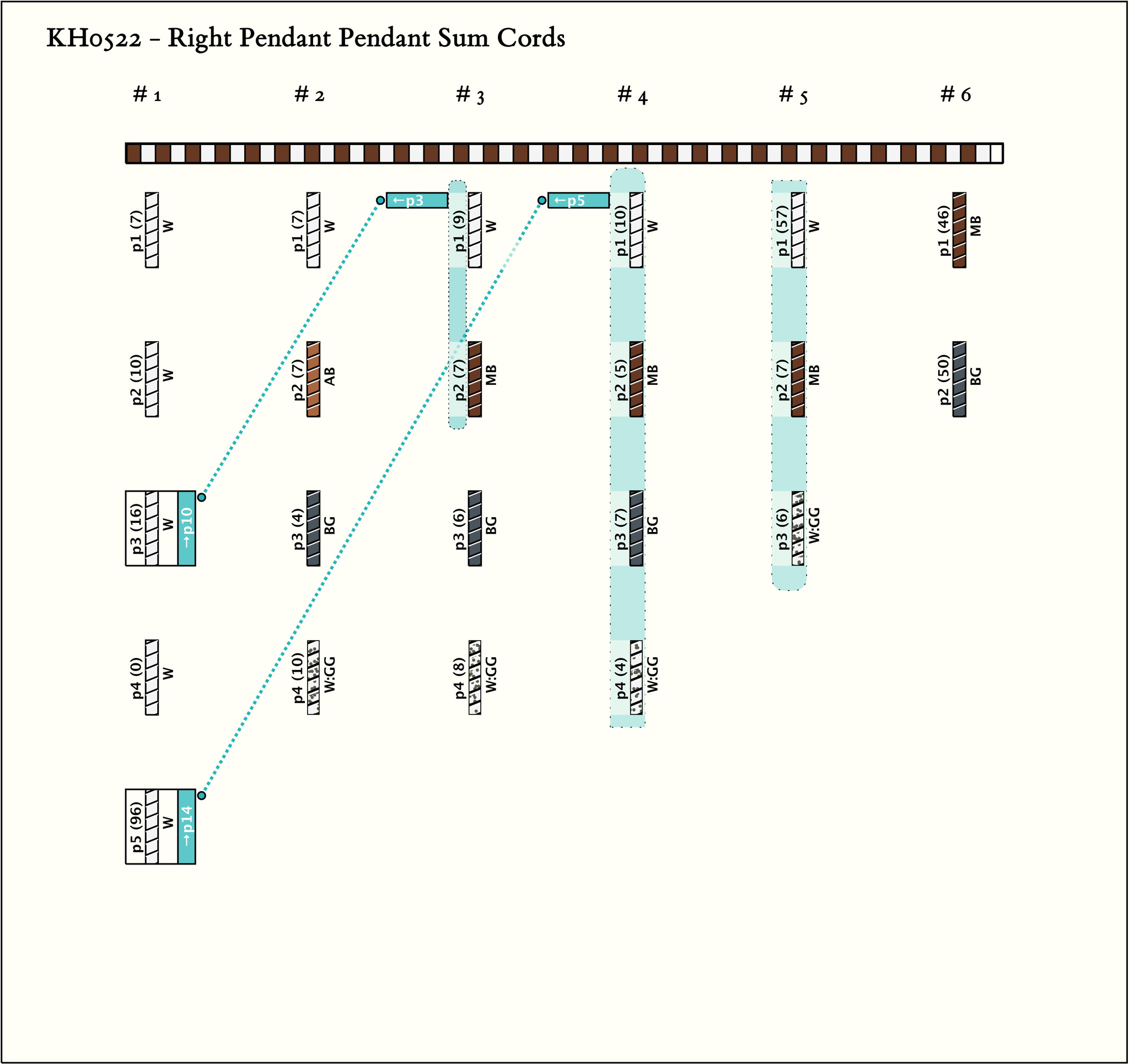

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

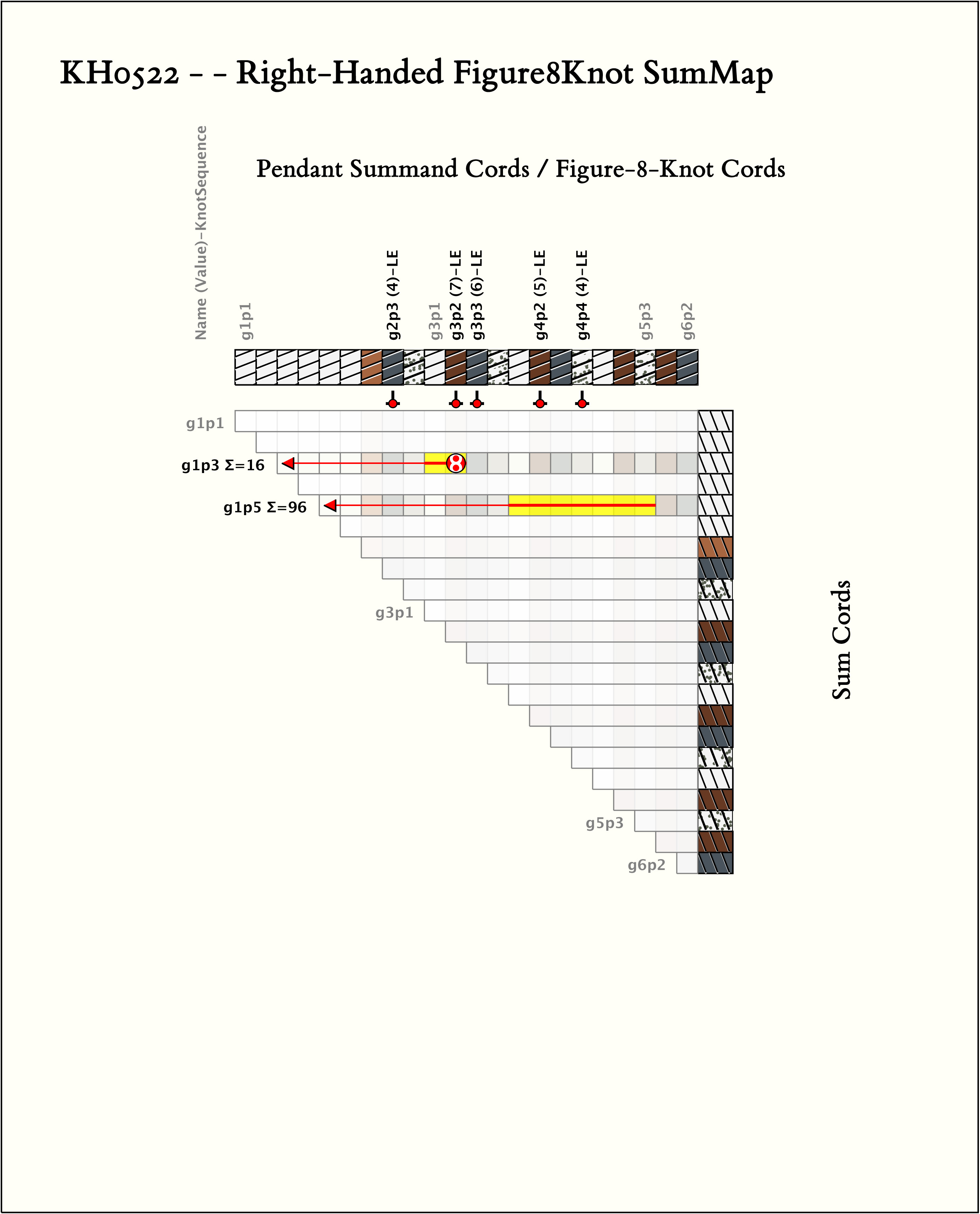

Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 7, (Min, Mean, Max) Sum Values = (16, 56, 96)
Click on Image to View Larger

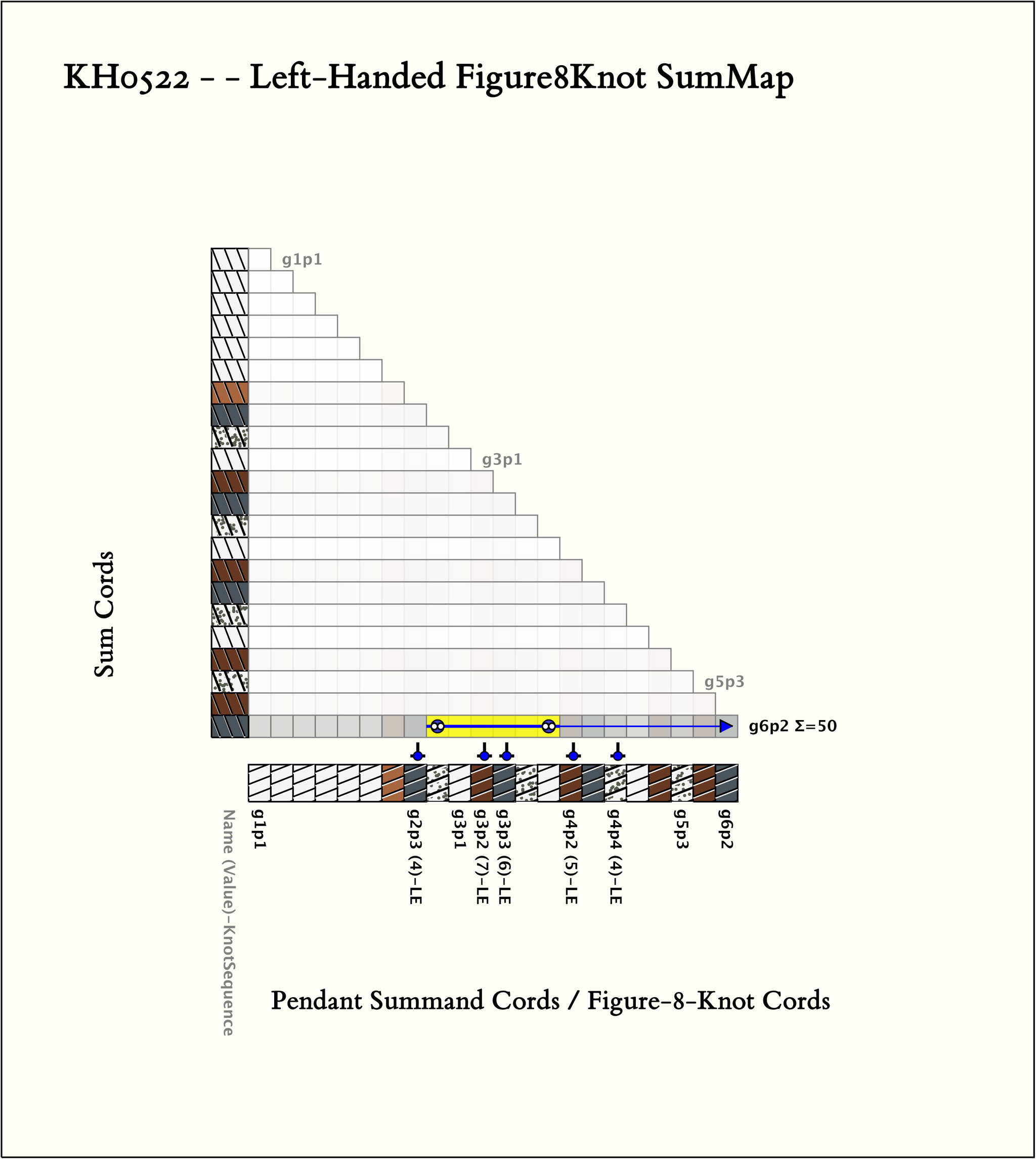

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 6, (Min, Mean, Max) Sum Values = (50, 50, 50)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p3 : 16W | 16 | 2 | g3p1: 9W∞ + g3p2: 7MB❽ | |
| 2 |  | g1p5 : 96W | 96 | 7 | g4p1: 10W∞ + g4p2: 5MB + g4p3: 7BG + g4p4: 4W:GG + g5p1: 57W + g5p2: 7MB + g5p3: 6W:GG |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g6p2 : 50BG | 50 | 6 | ∞g2p4: 10W:GG + g3p1: 9W + g3p2: 7MB + g3p3: 6BG + g3p4: 8W:GG + g4p1: 10W∞ |
