KH0561/HP029 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

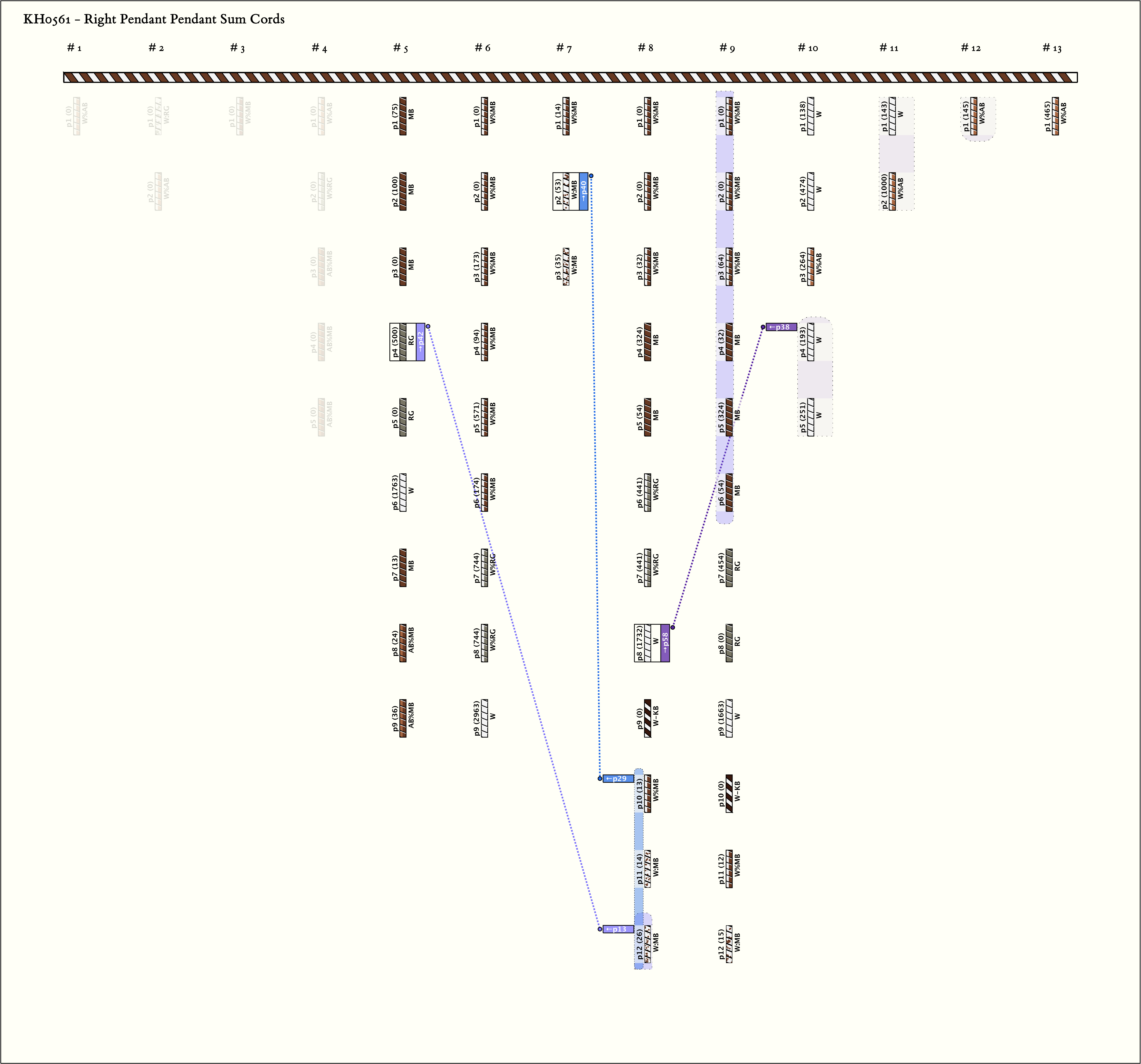

Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 7, (Min, Mean, Max) Sum Values = (53, 762, 1732)
Click on Image to View Larger

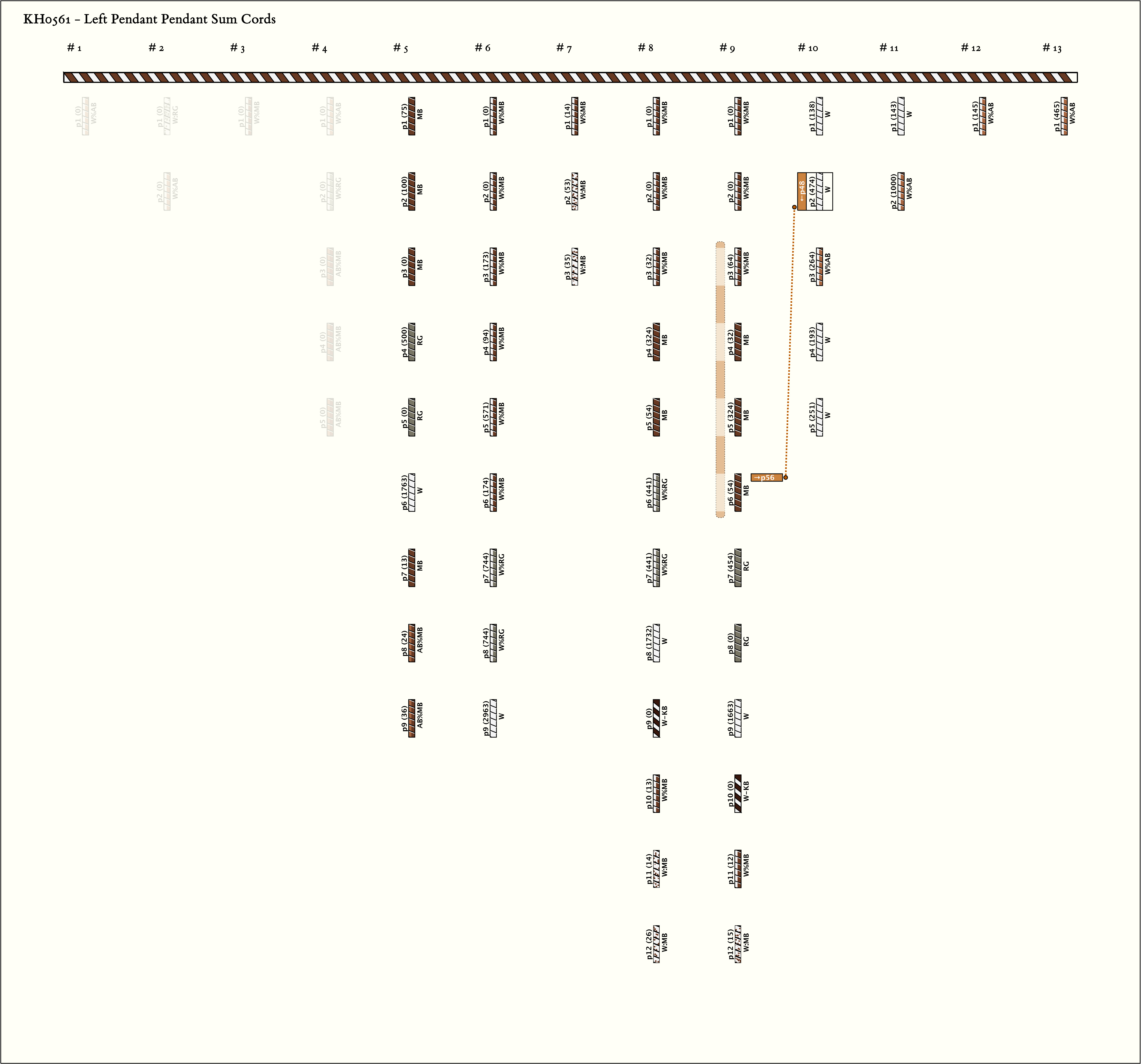

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 4, (Min, Mean, Max) Sum Values = (474, 474, 474)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

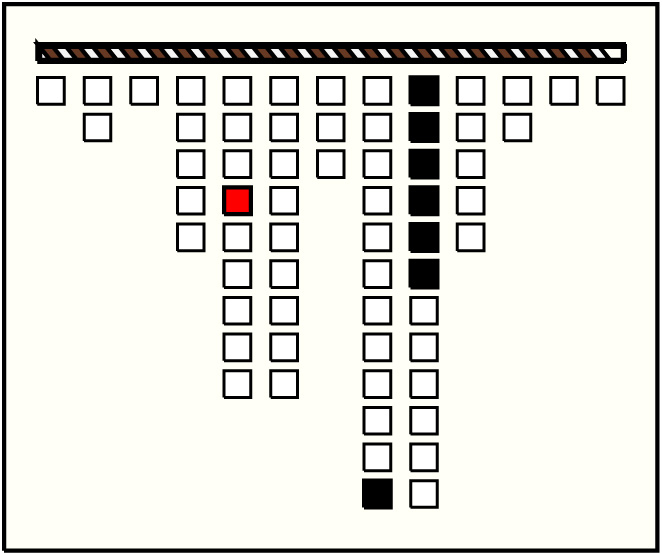

| 1 |  | g5p4 : 500RG | 500 | 7 | g8p12: 26W:MB + g9p1: 0W%MB + g9p2: 0W%MB + g9p3: 64W%MB + g9p4: 32MB + g9p5: 324MB + g9p6: 54MB | |

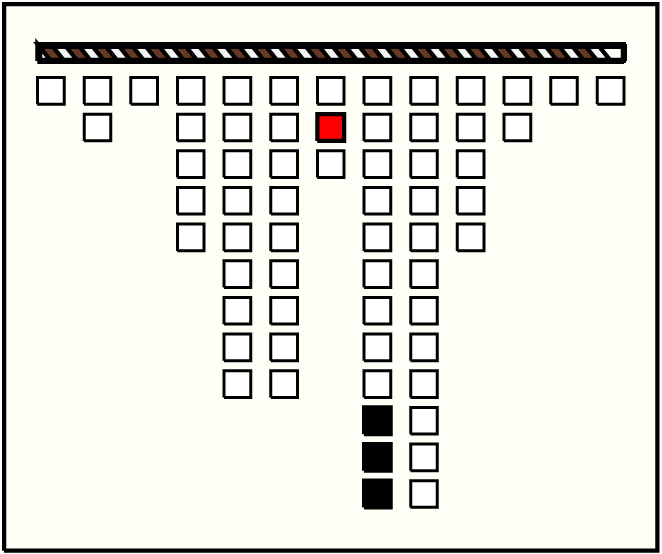

| 2 |  | g7p2 : 53W:MB | 53 | 3 | g8p10: 13W%MB + g8p11: 14W:MB + g8p12: 26W:MB | |

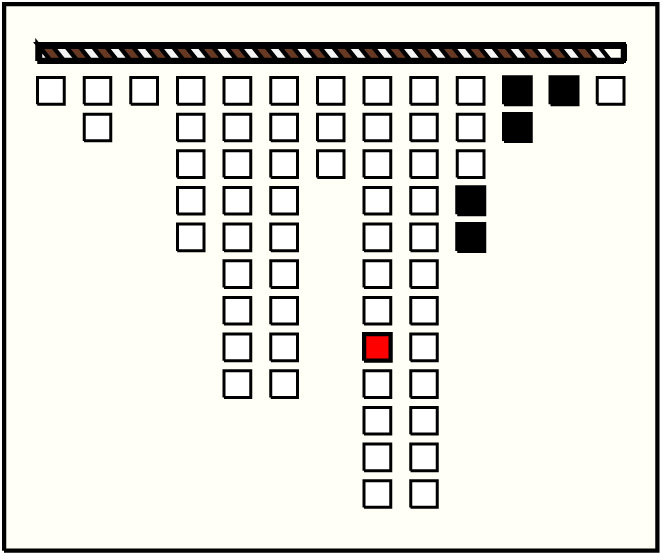

| 3 |  | g8p8 : 1732W | 1732 | 5 | g10p4: 193W∞ + g10p5: 251W + g11p1: 143W + g11p2: 1000W%AB + g12p1: 145W%AB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g10p2 : 474W | 474 | 4 | g9p3: 64W%MB + g9p4: 32MB + g9p5: 324MB + g9p6: 54MB |
