KH0565/HP033 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

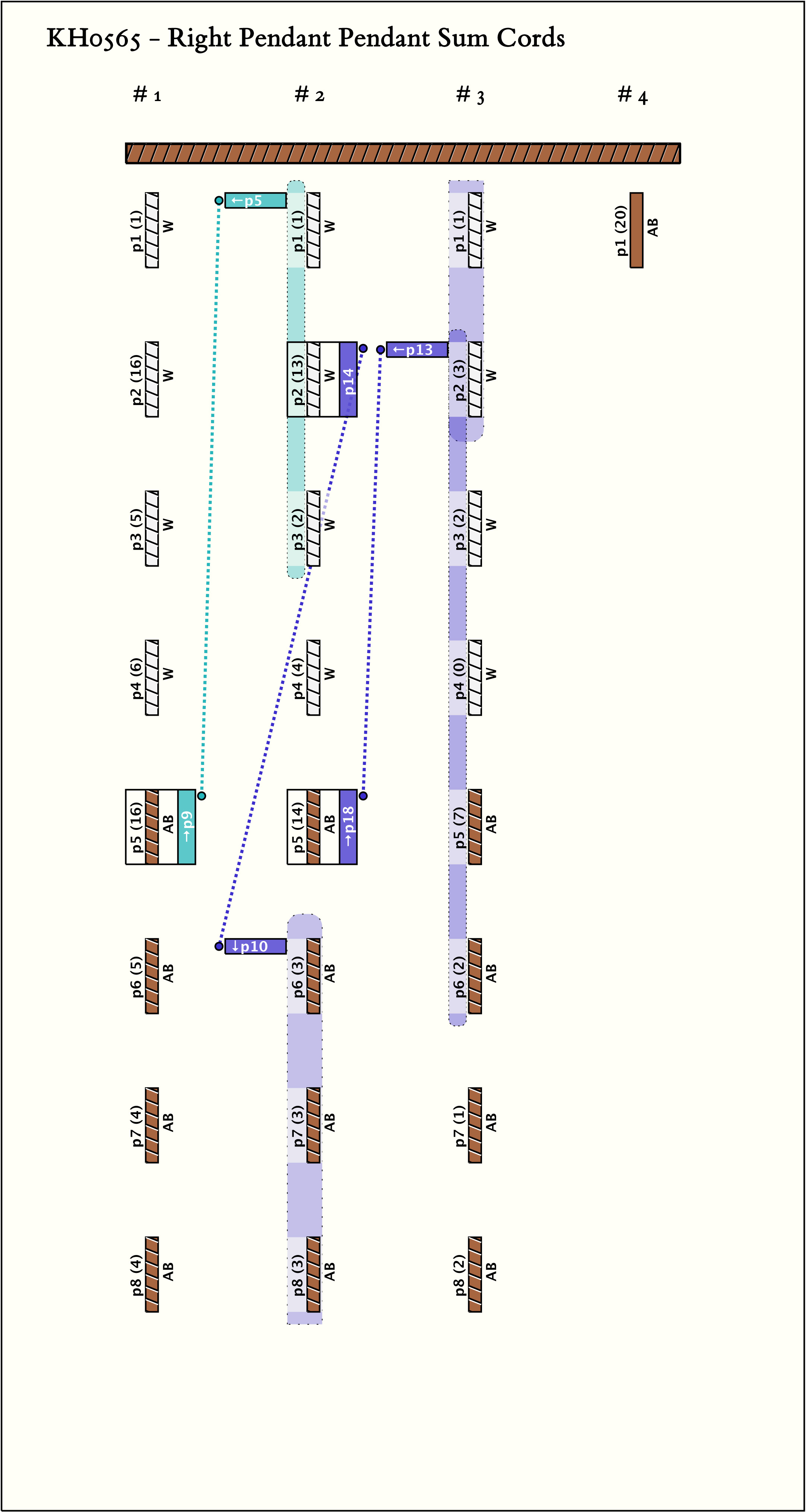

Right Handed Sums with Figure-8-Knots: # Sums = 3, Max # Summands = 5, (Min, Mean, Max) Sum Values = (13, 14, 16)
Click on Image to View Larger

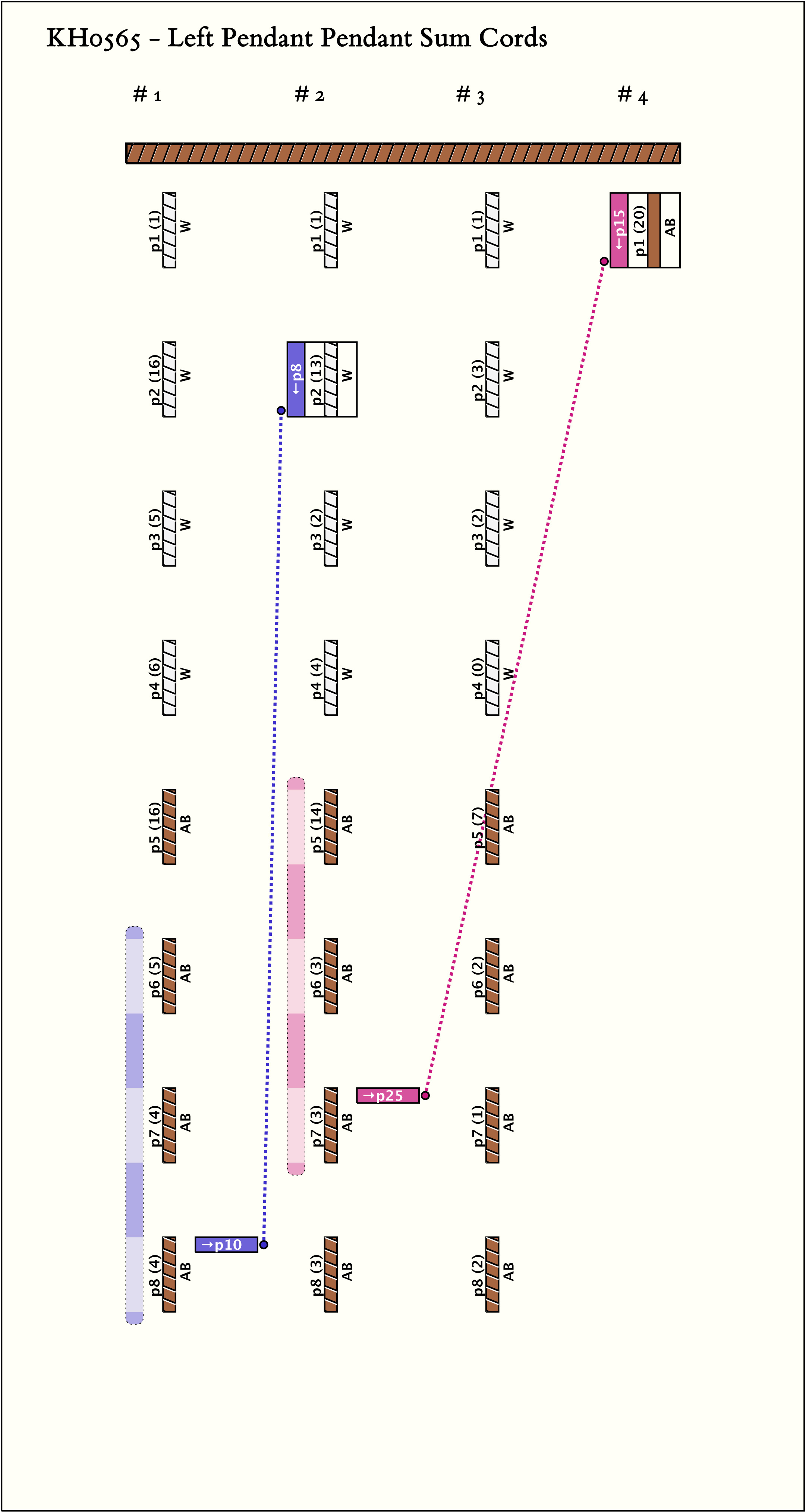

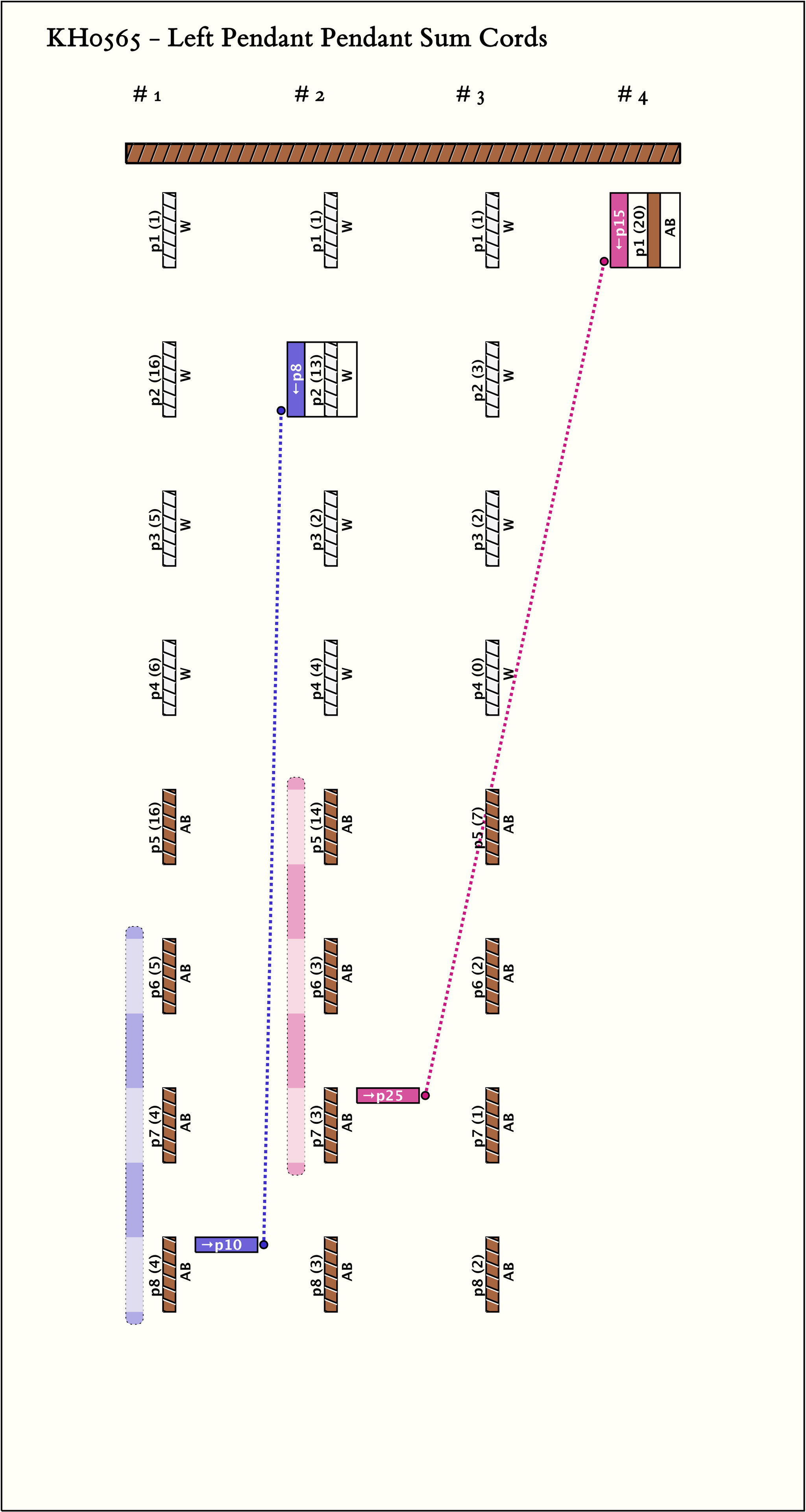

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (13, 16, 20)
Click on Image to View Larger

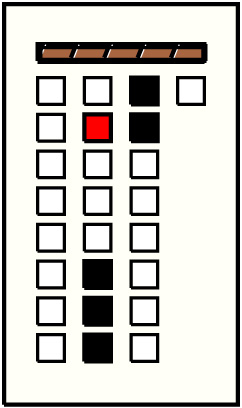

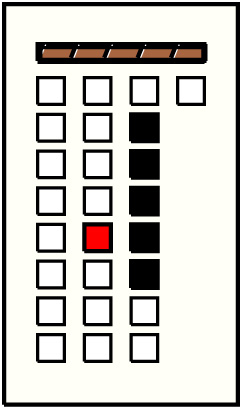

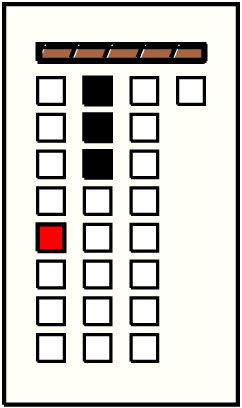

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p5 : 16AB | 16 | 3 | ❽g2p1: 1W + g2p2: 13W + g2p3: 2W | |
| 2 |  | g2p2 : 13W | 13 | 5 | g2p6: 3AB + g2p7: 3AB + g2p8: 3AB + g3p1: 1W + ∞g3p2: 3W | |
| 3 |  | g2p5 : 14AB | 14 | 5 | ∞g3p2: 3W + g3p3: 2W + g3p4: 0W + g3p5: 7AB + ∞g3p6: 2AB∞ |

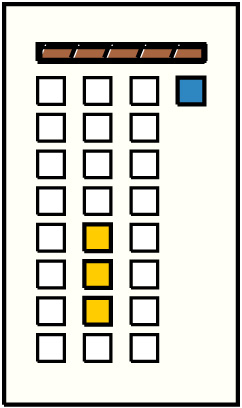

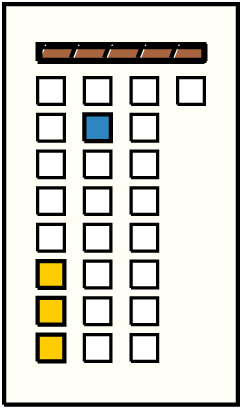

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g2p2 : 13W | 13 | 3 | g1p6: 5AB + g1p7: 4AB + g1p8: 4AB∞ | |
| 2 |  | g4p1 : 20AB | 20 | 3 | g2p5: 14AB + g2p6: 3AB + g2p7: 3AB |
