KH0599/QU011, QU11 - Pendant Pendant Sums


Drawings:

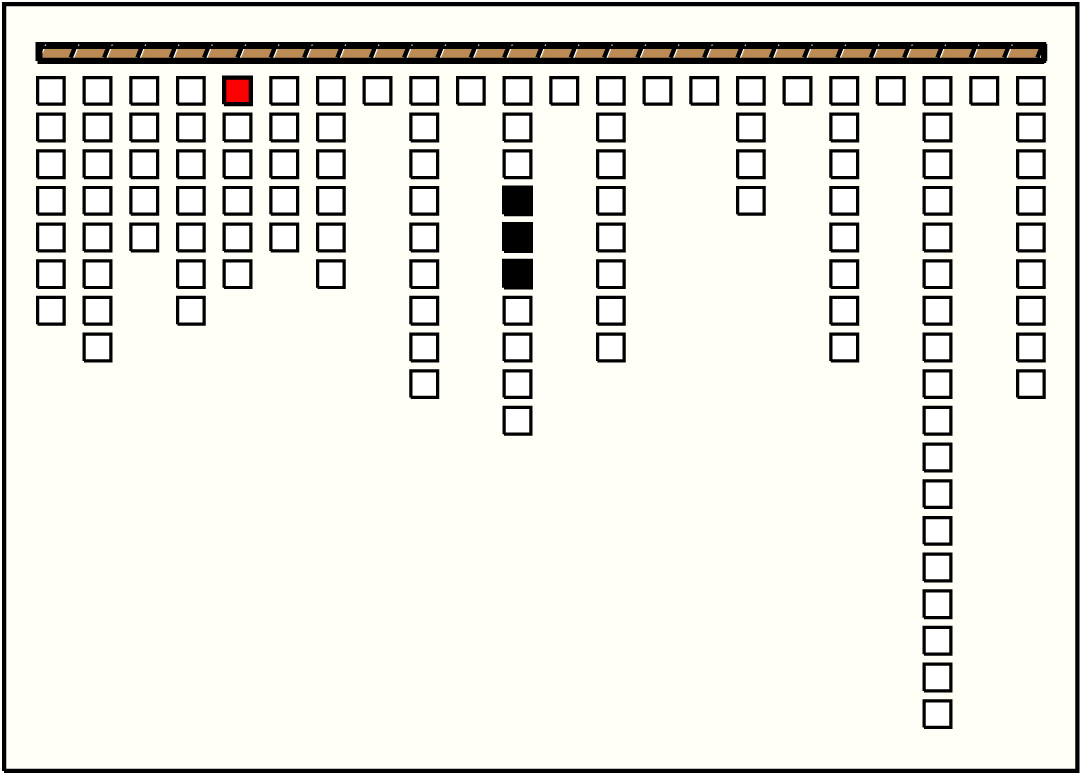

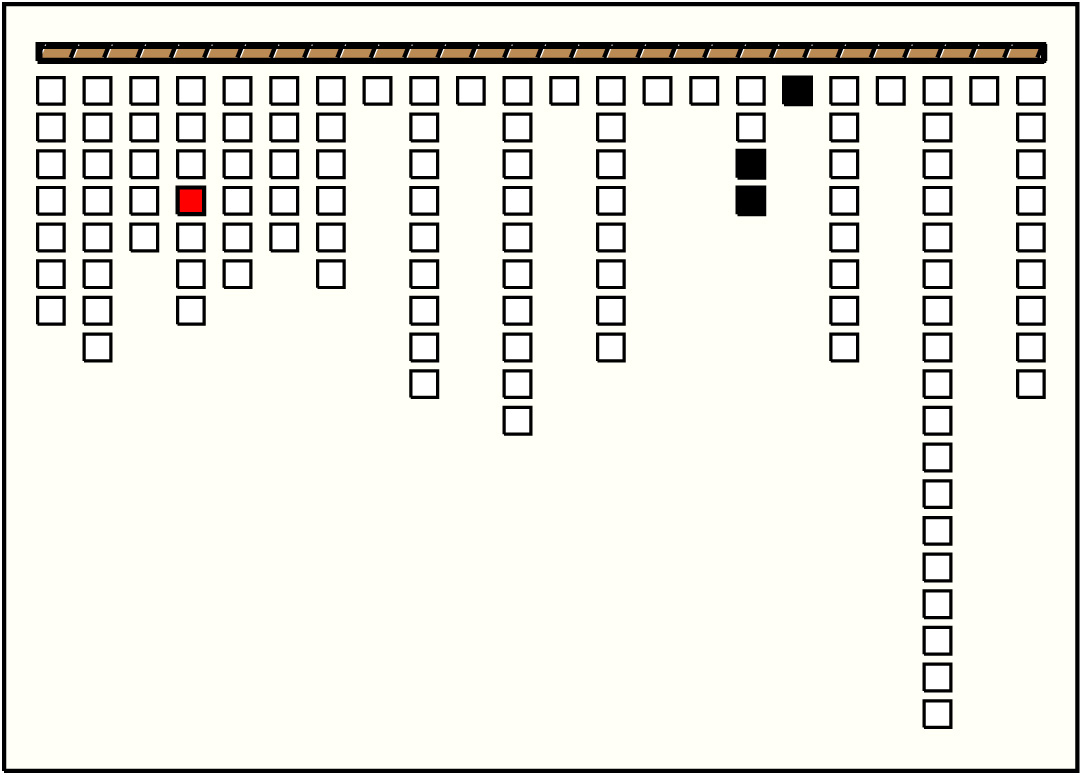

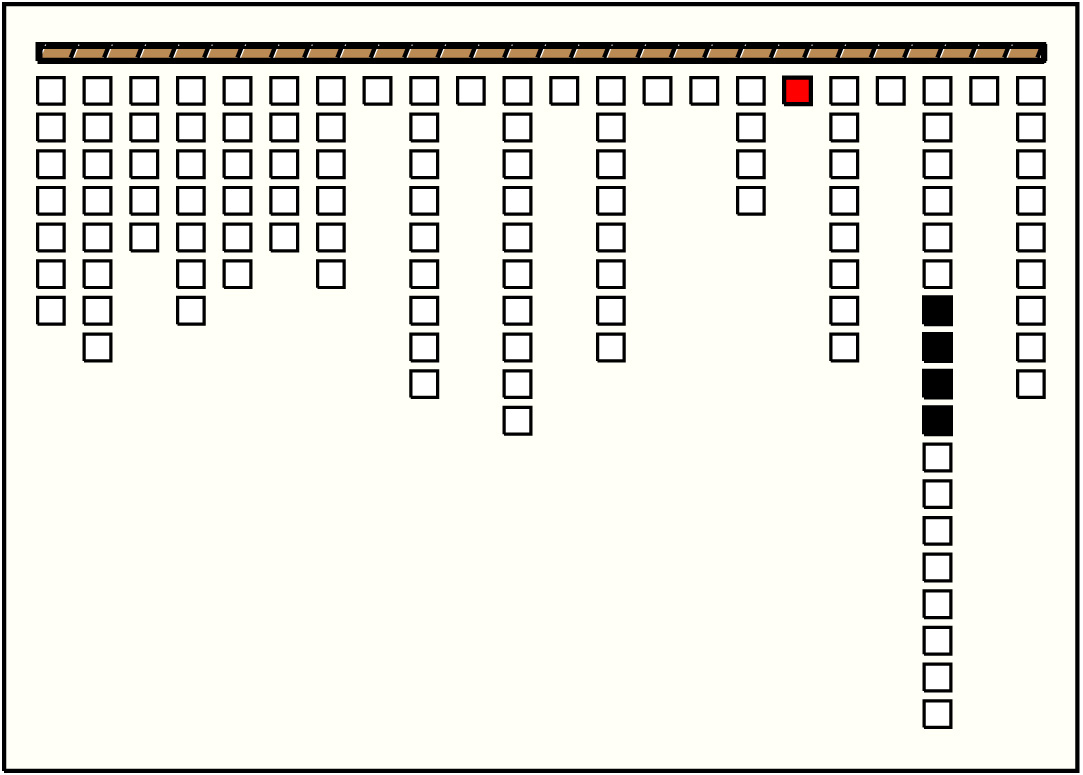

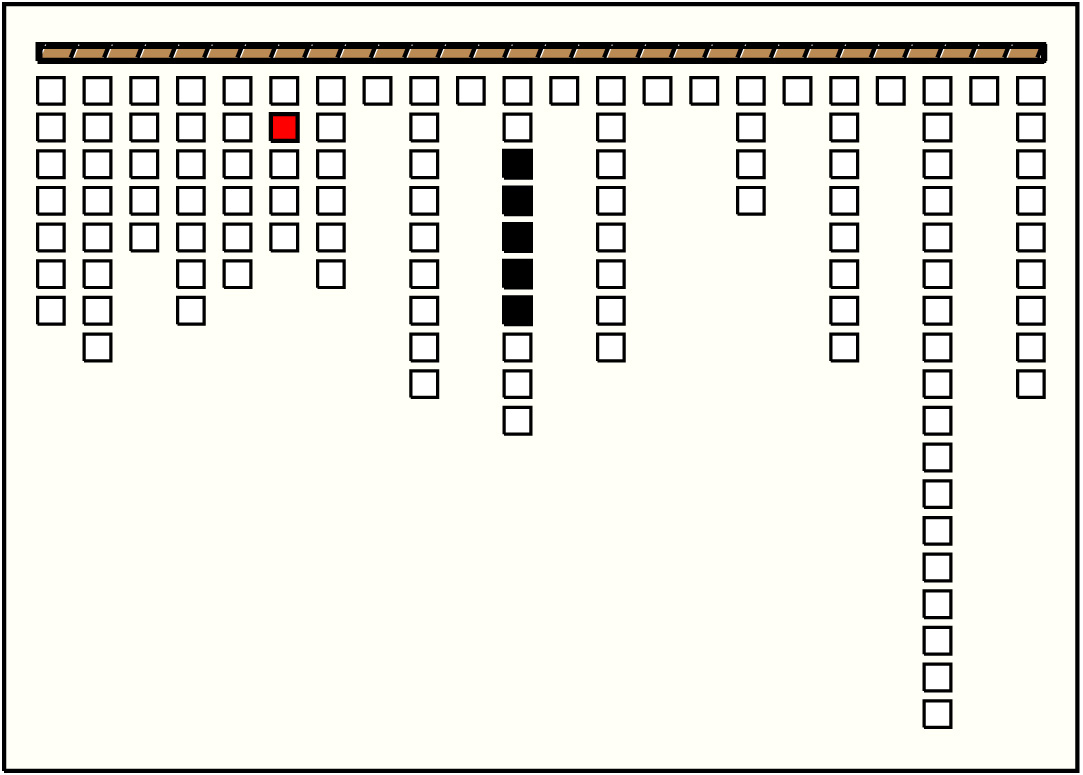

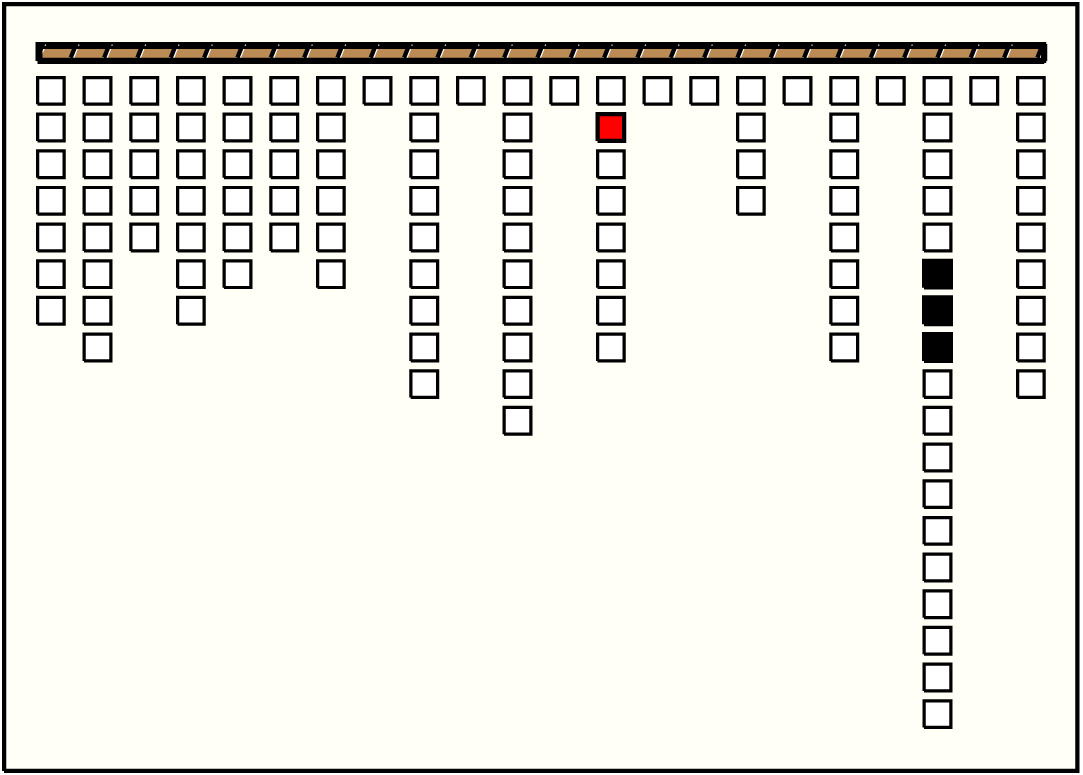

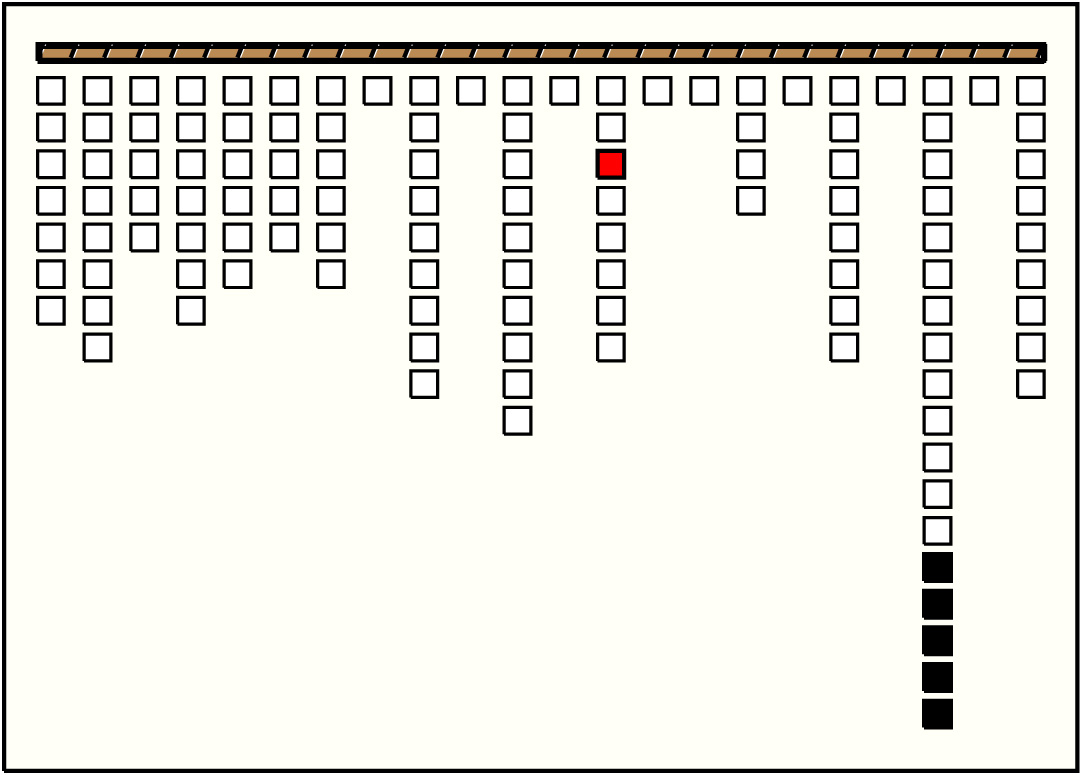

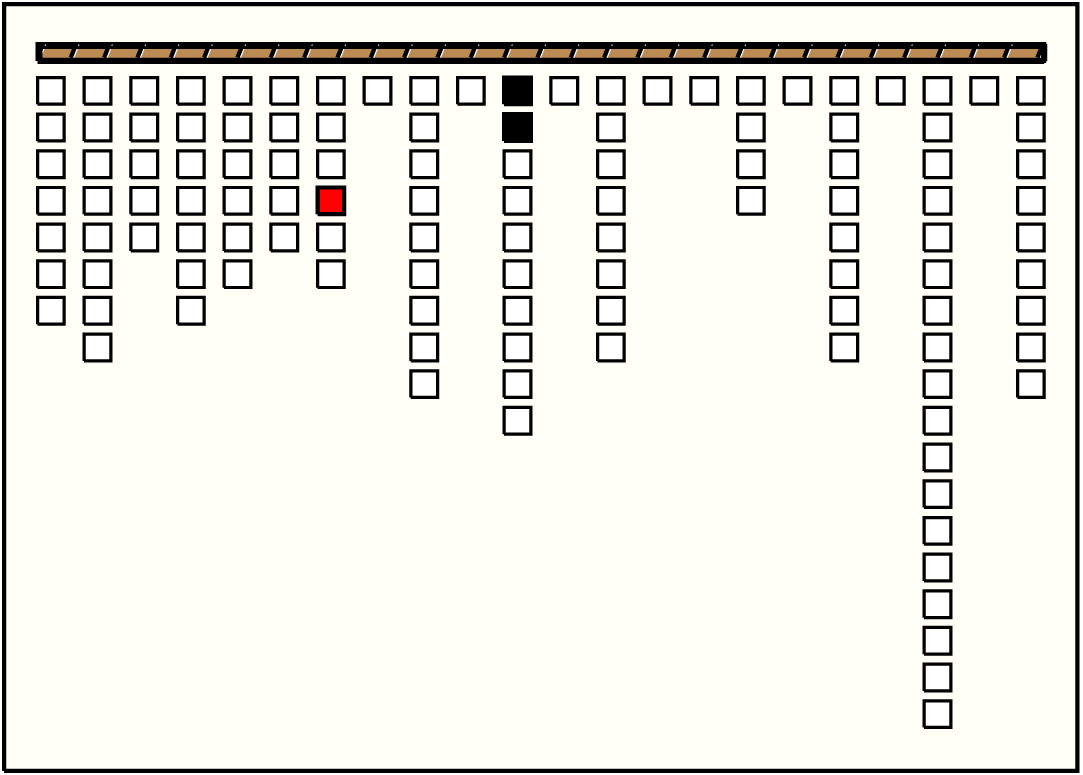

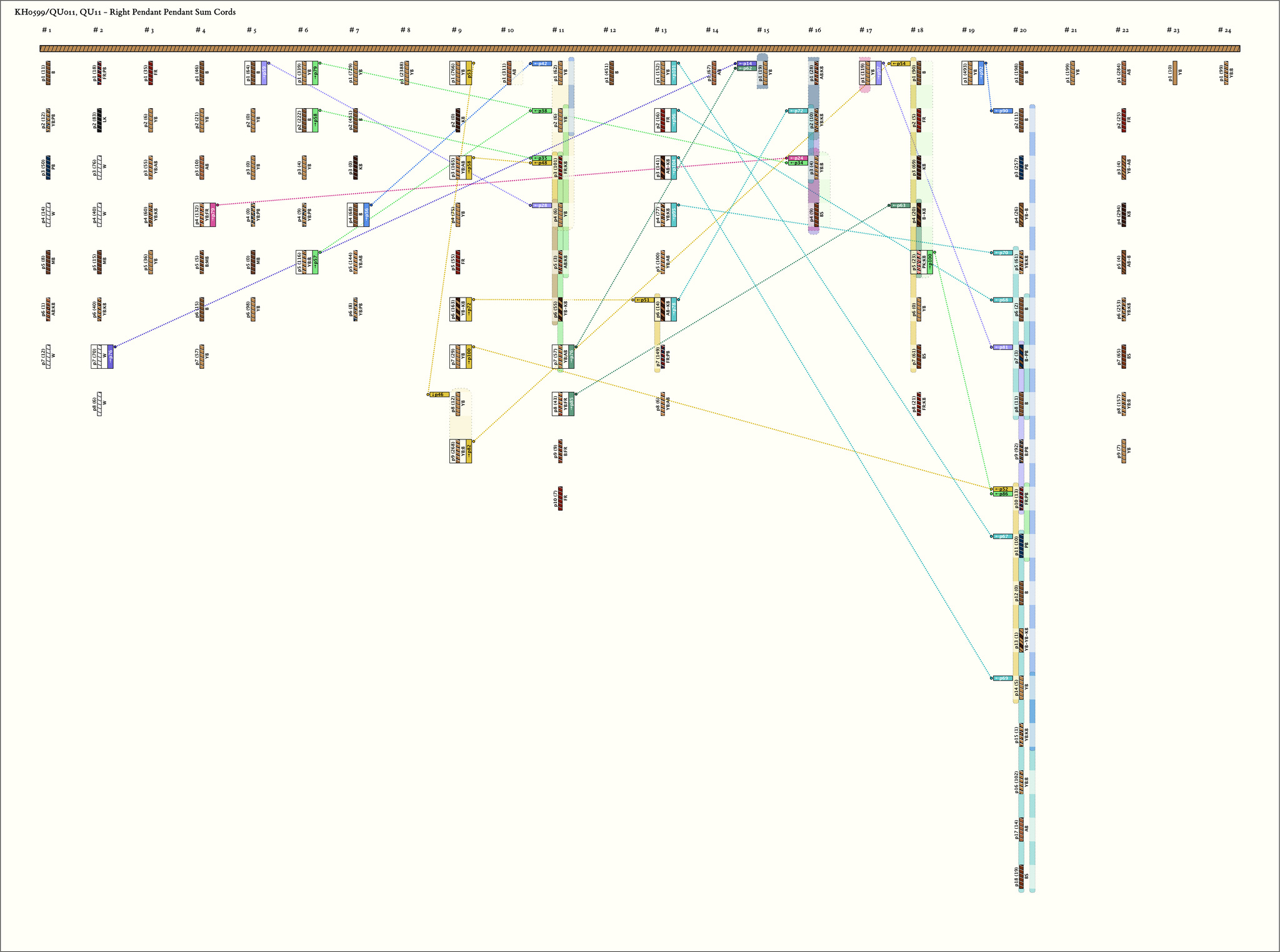

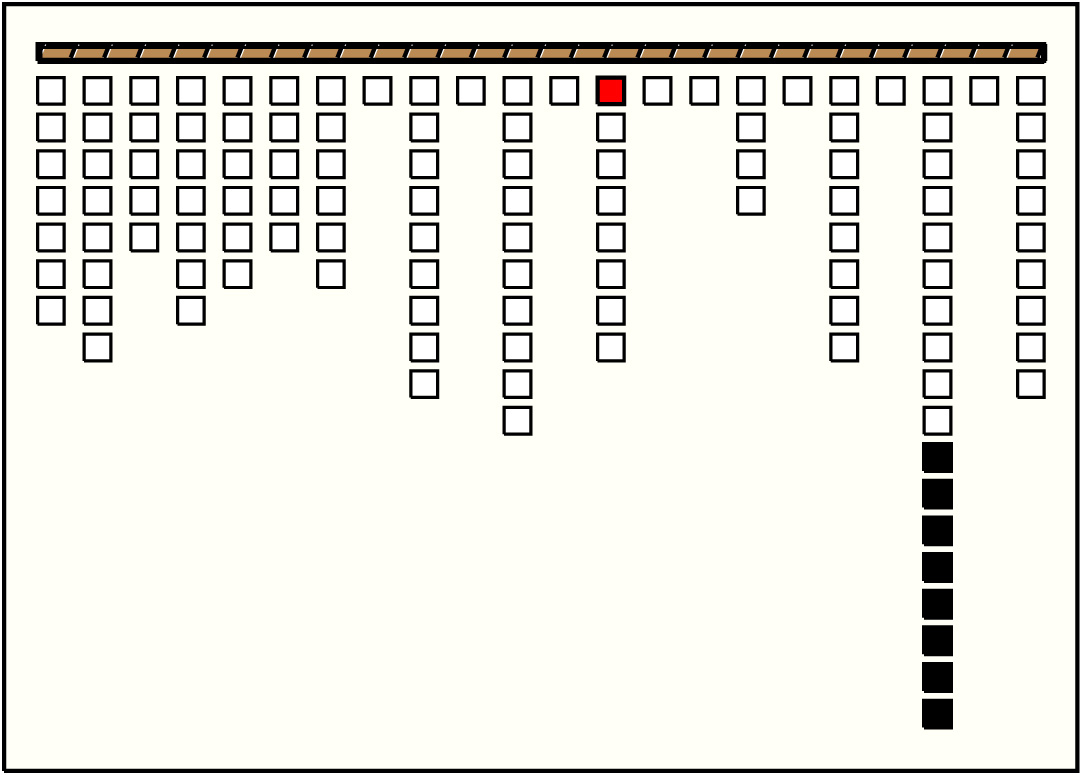

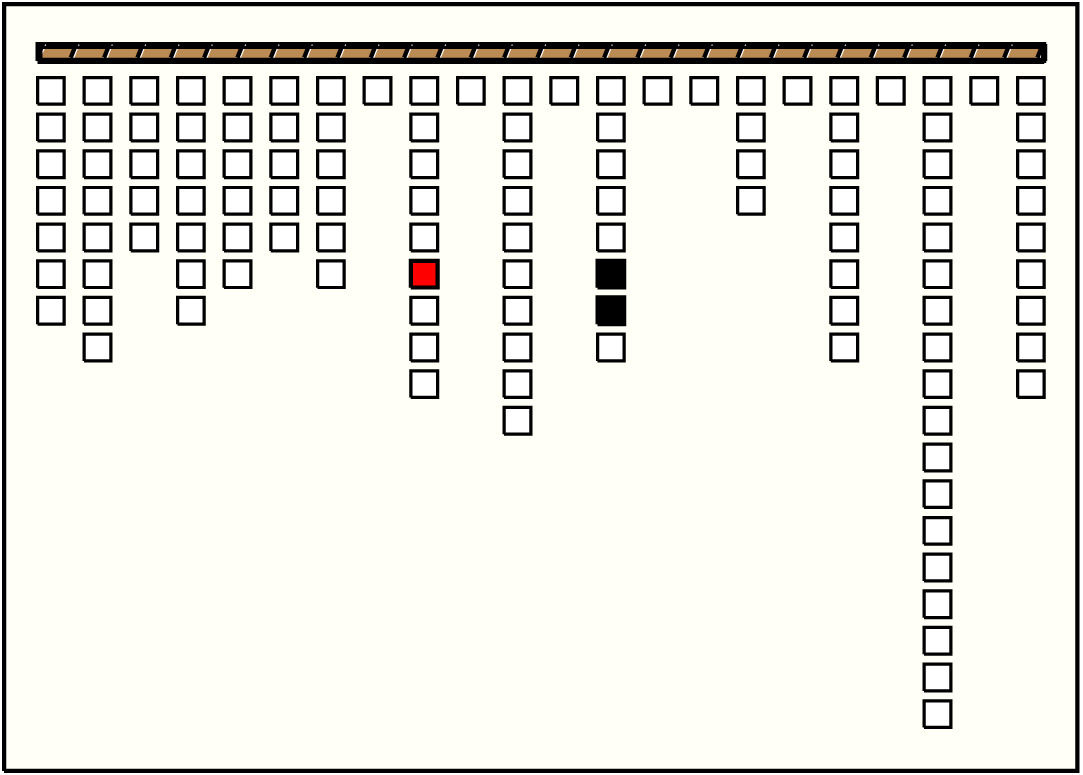

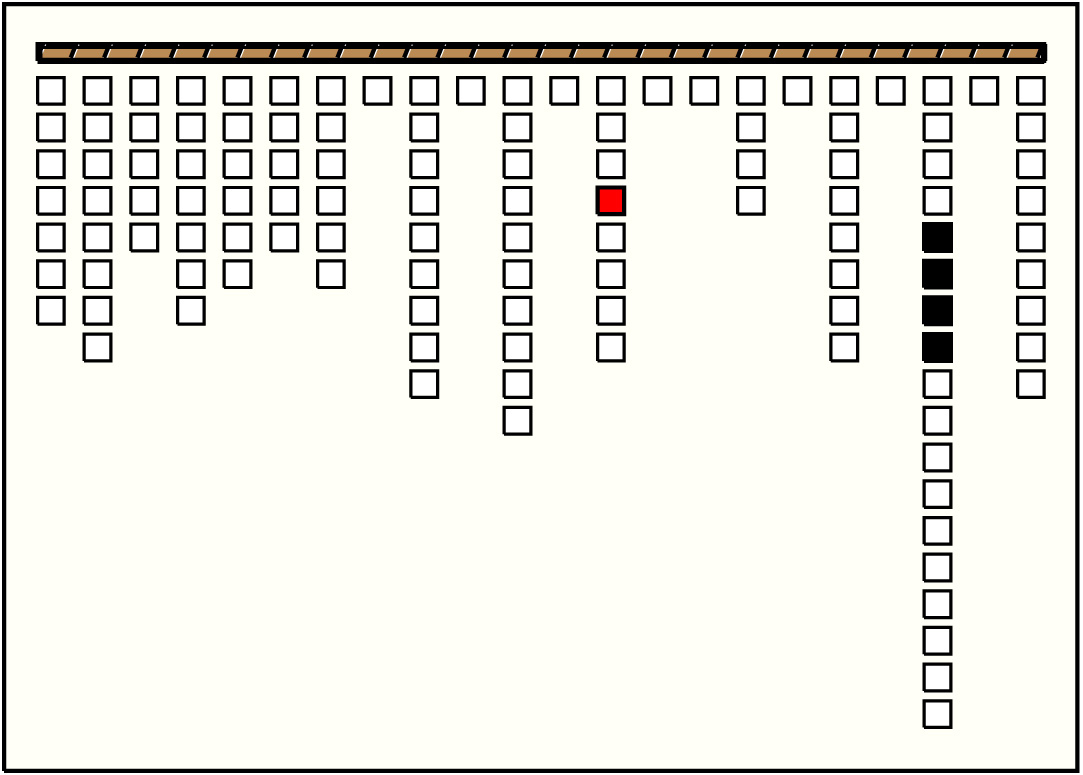

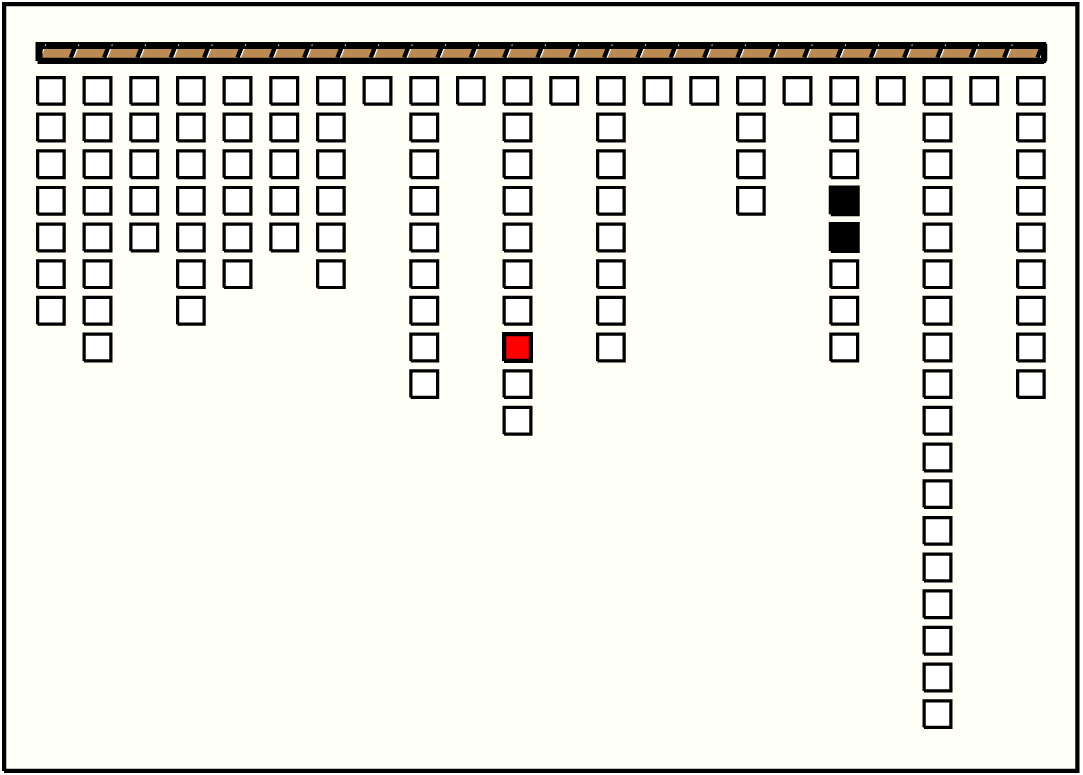

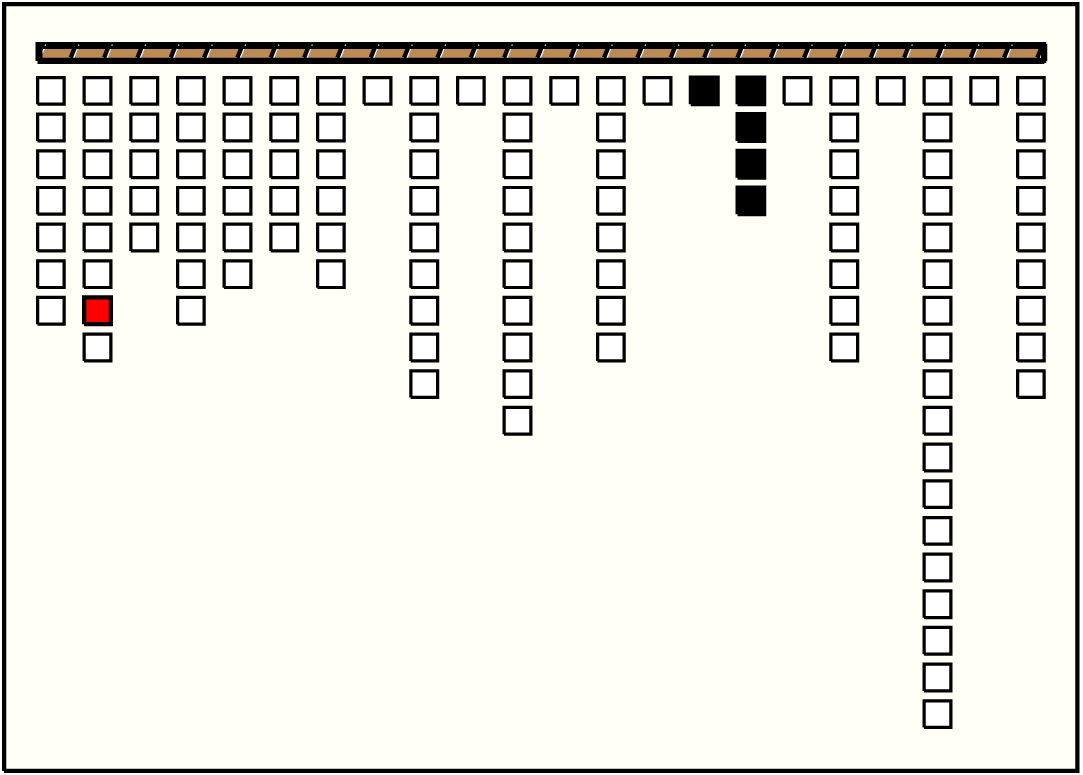

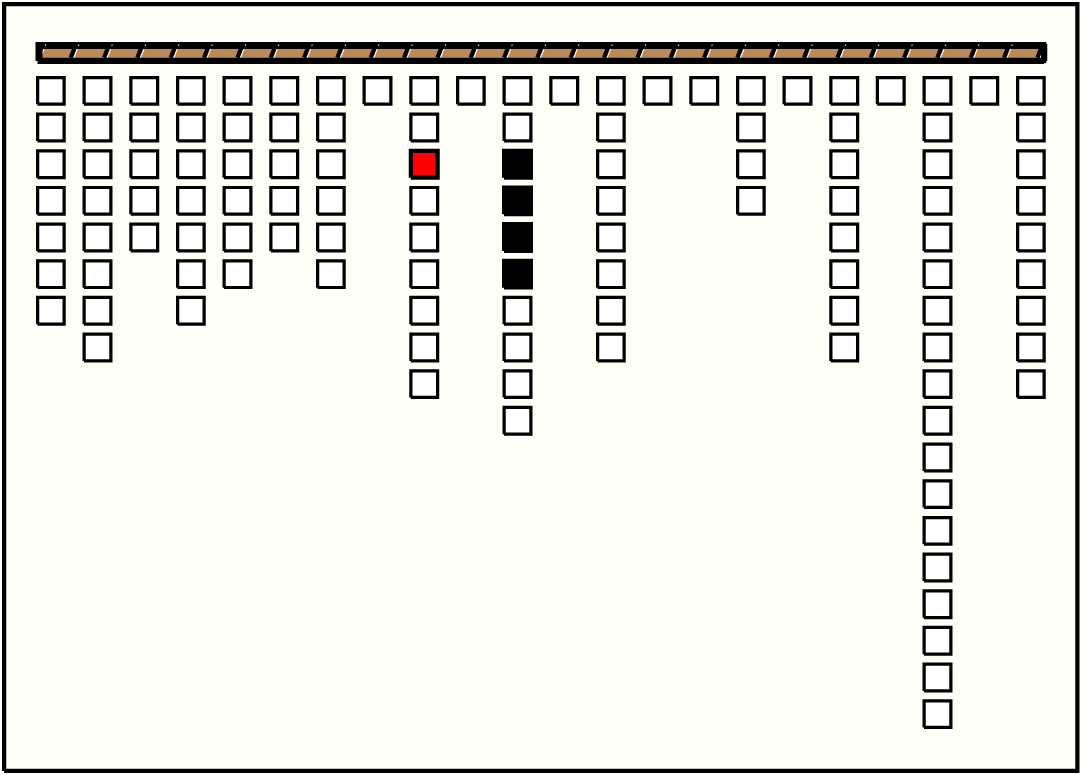

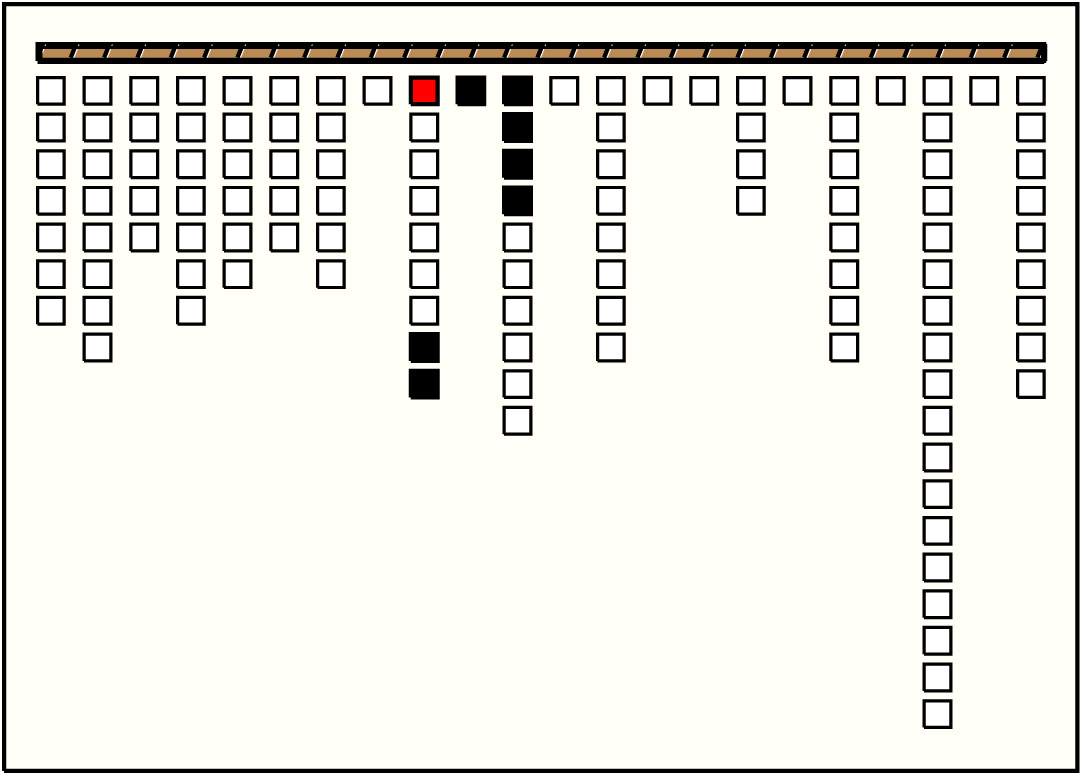

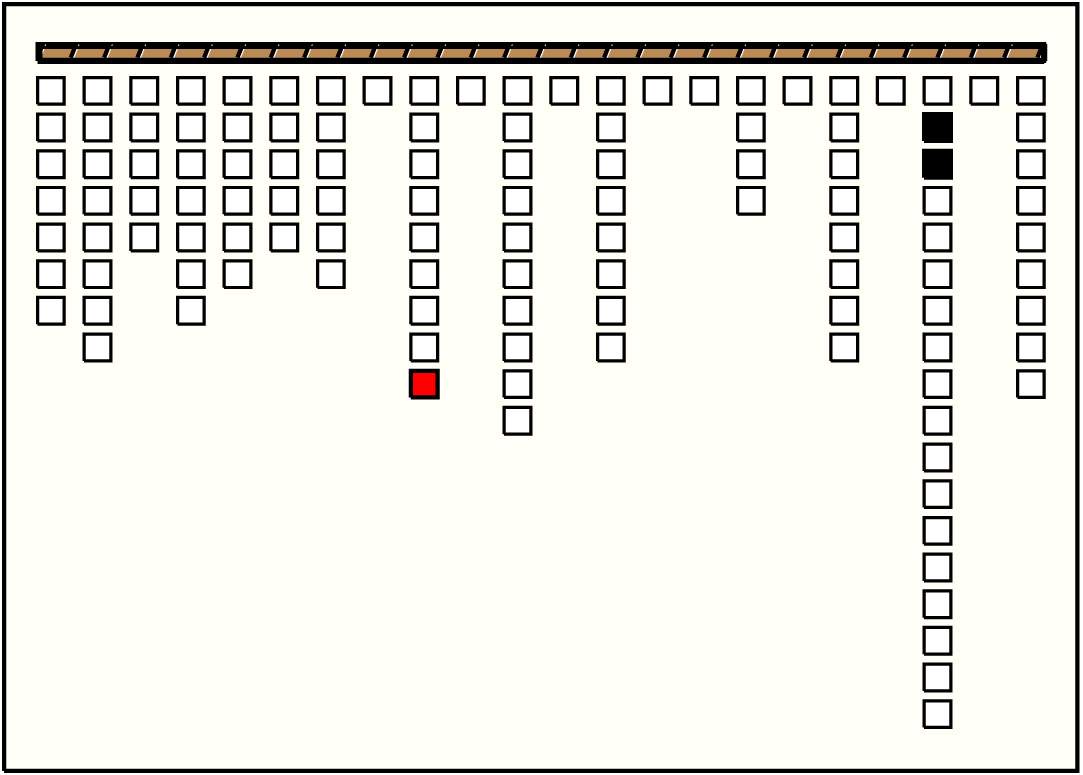

Right Handed Sums:     # Sums = 22,  Max # Summands = 14,   (Min, Mean, Max) Sum Values = (14, 161, 766)
Click on Image to View Larger

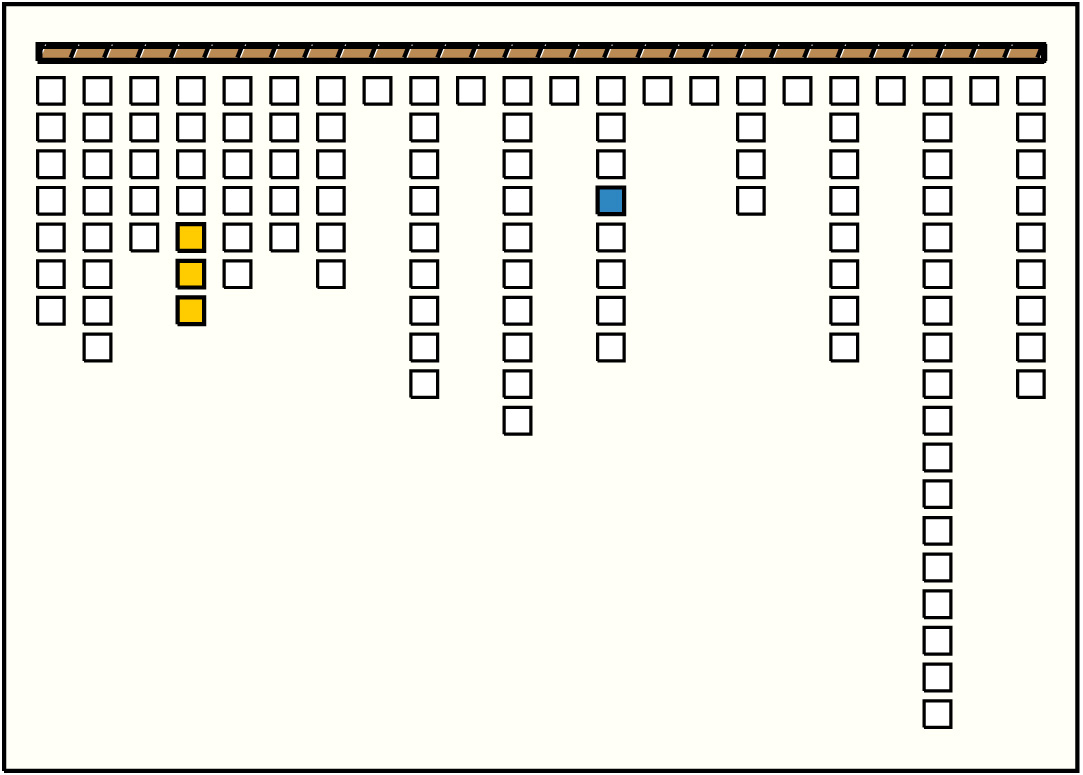

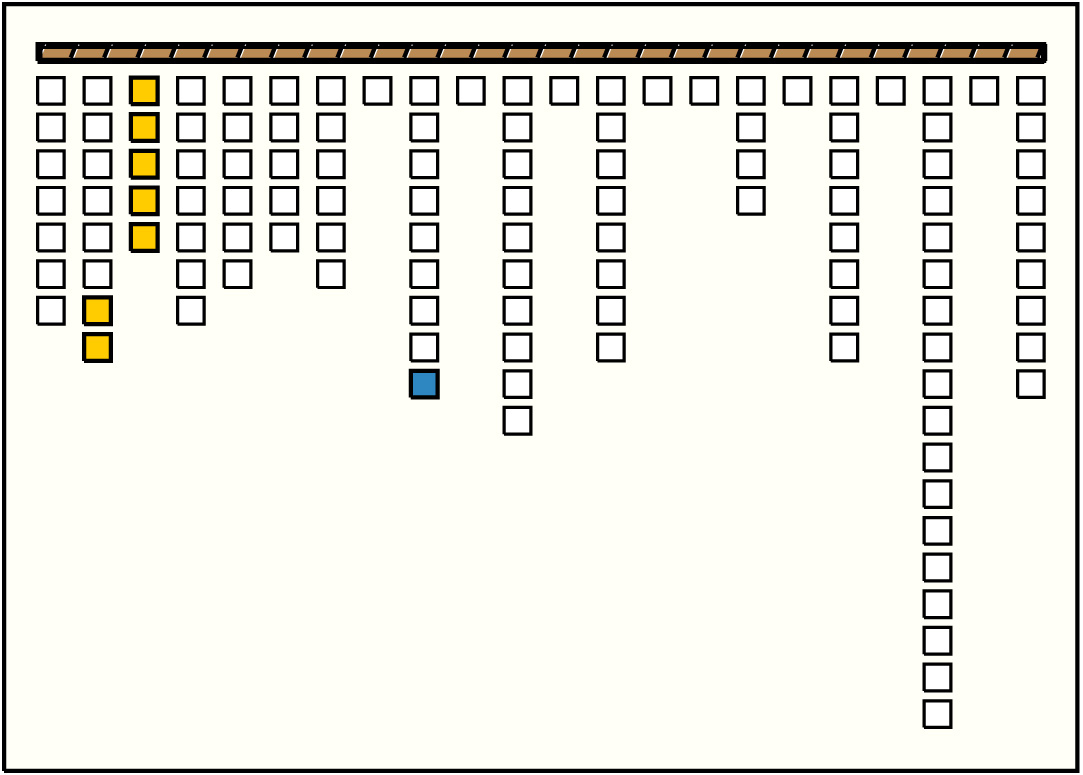

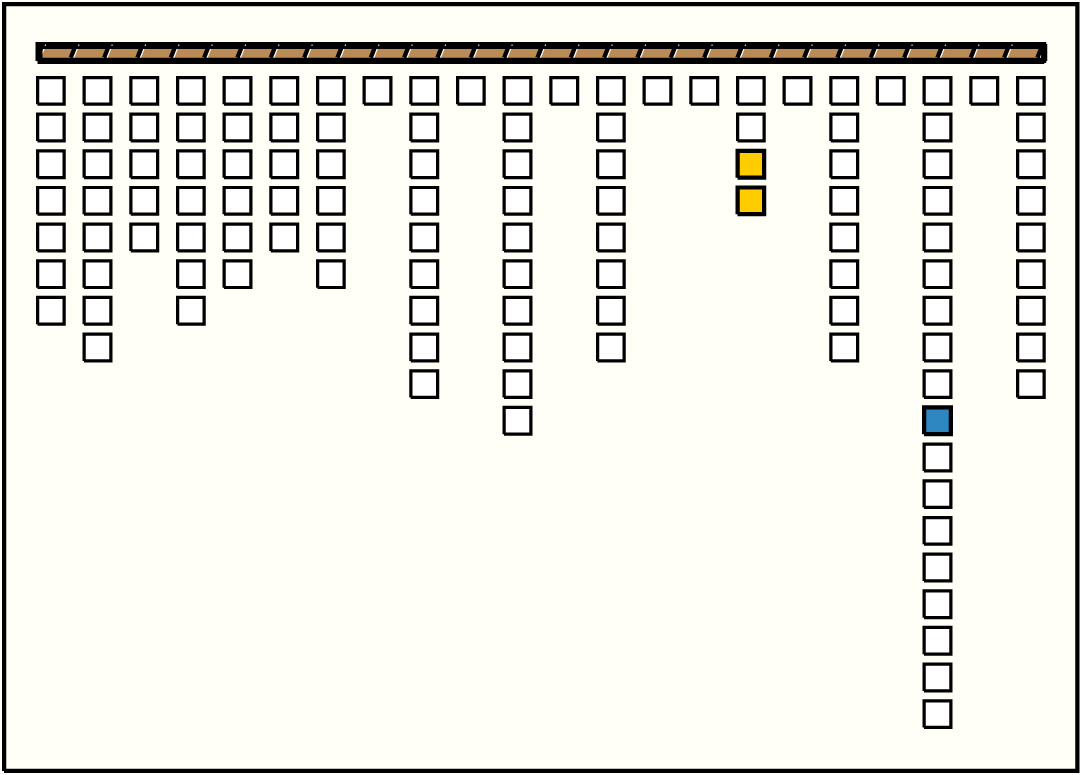

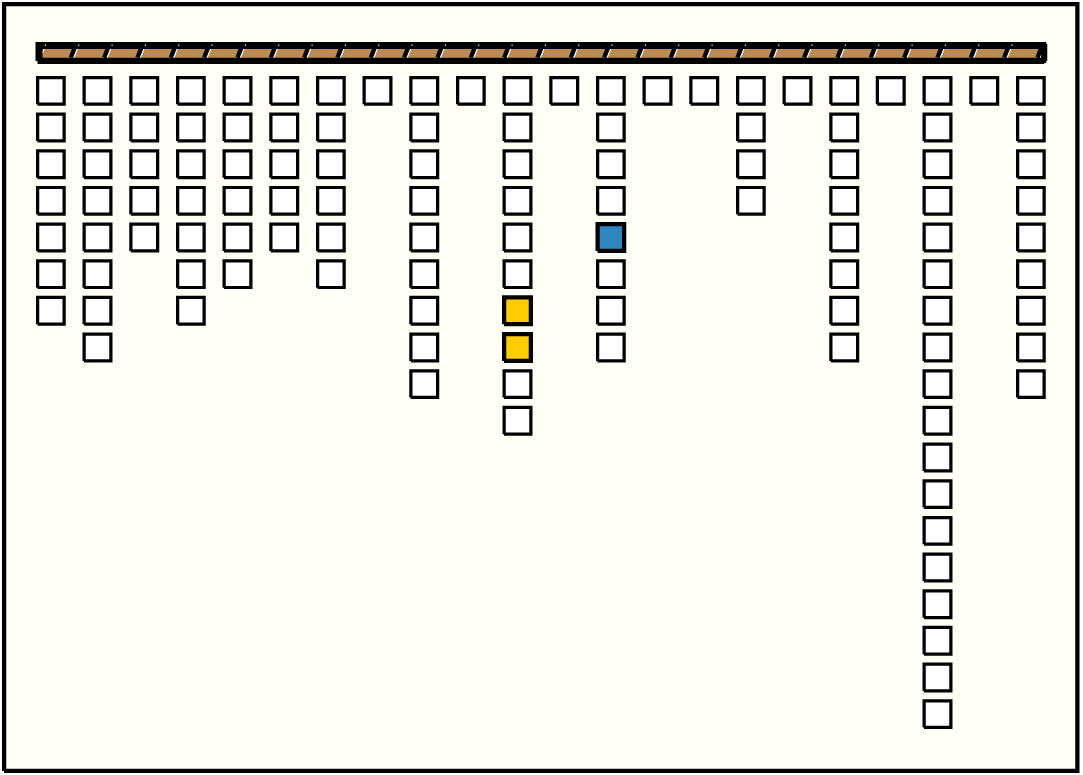

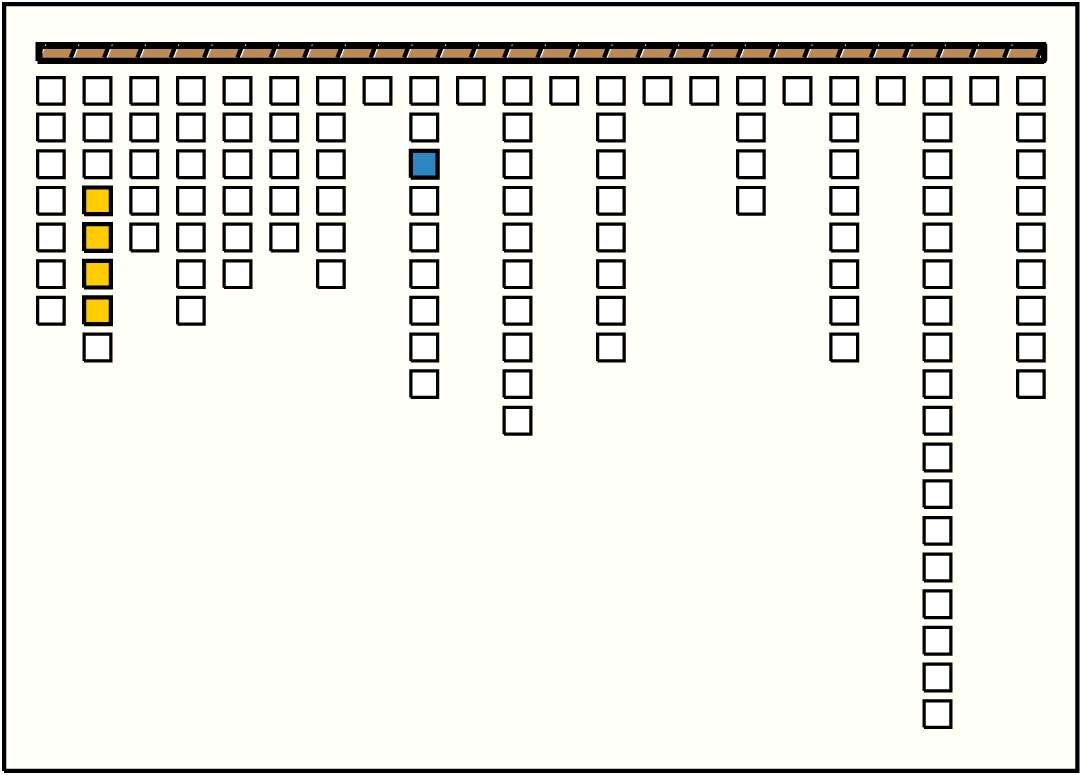

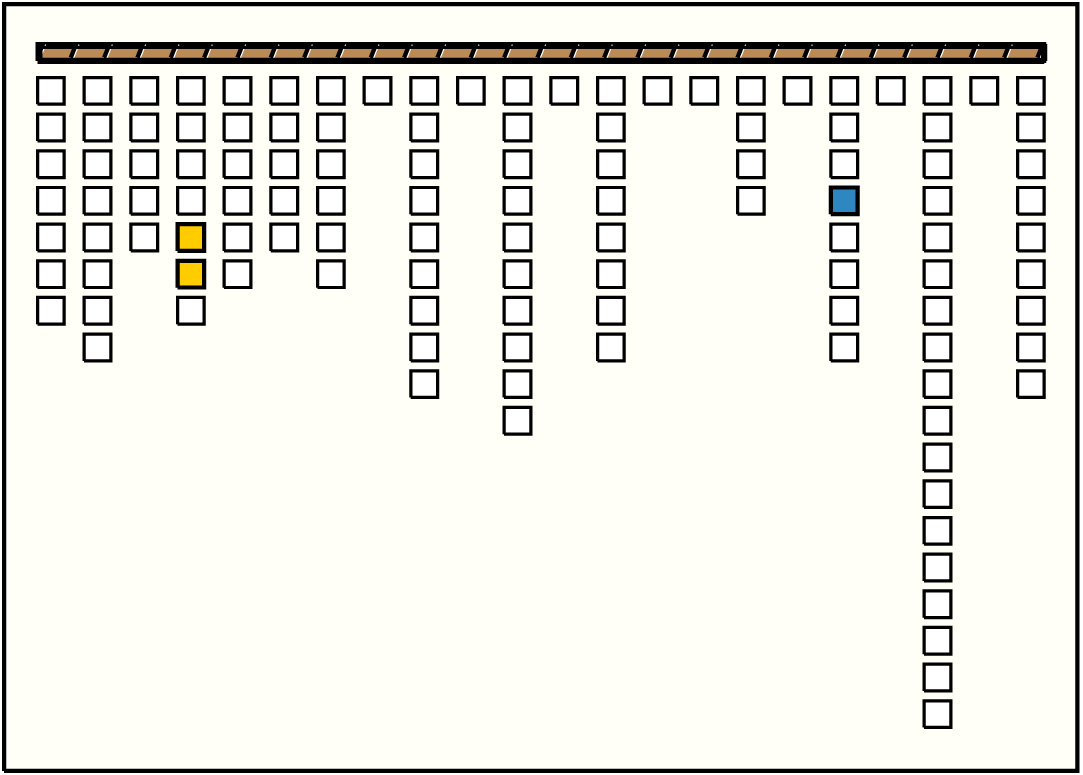

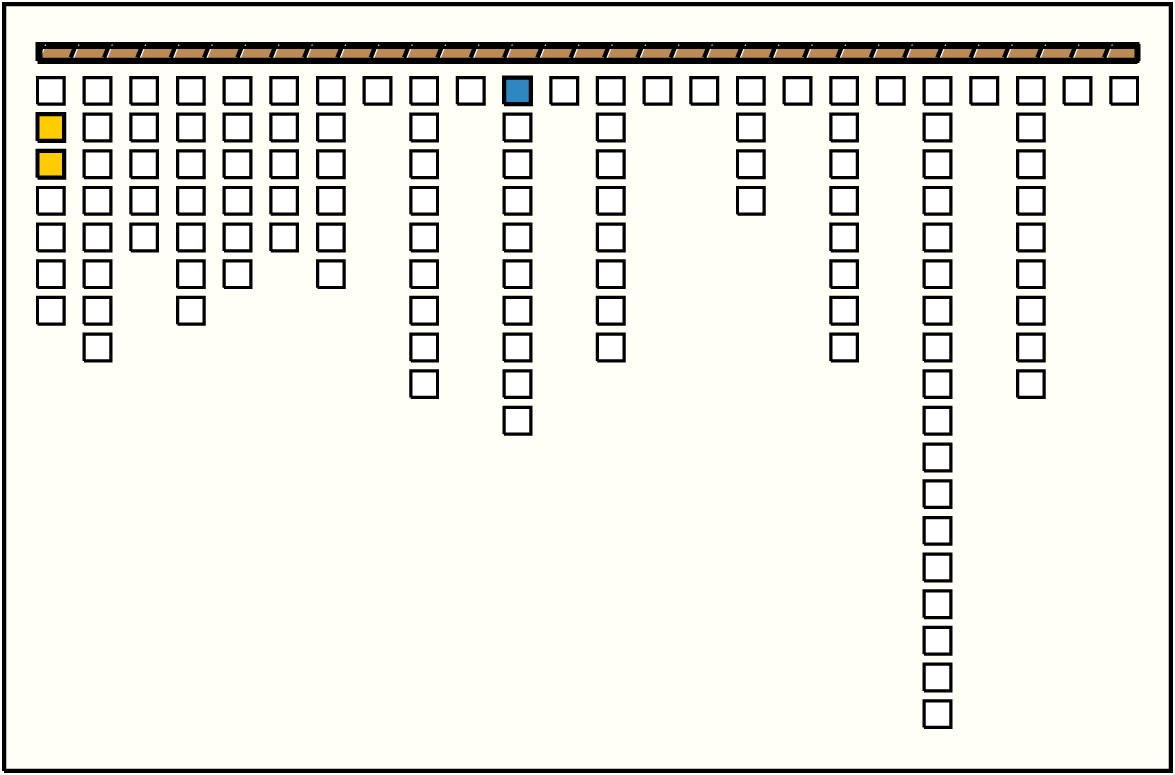

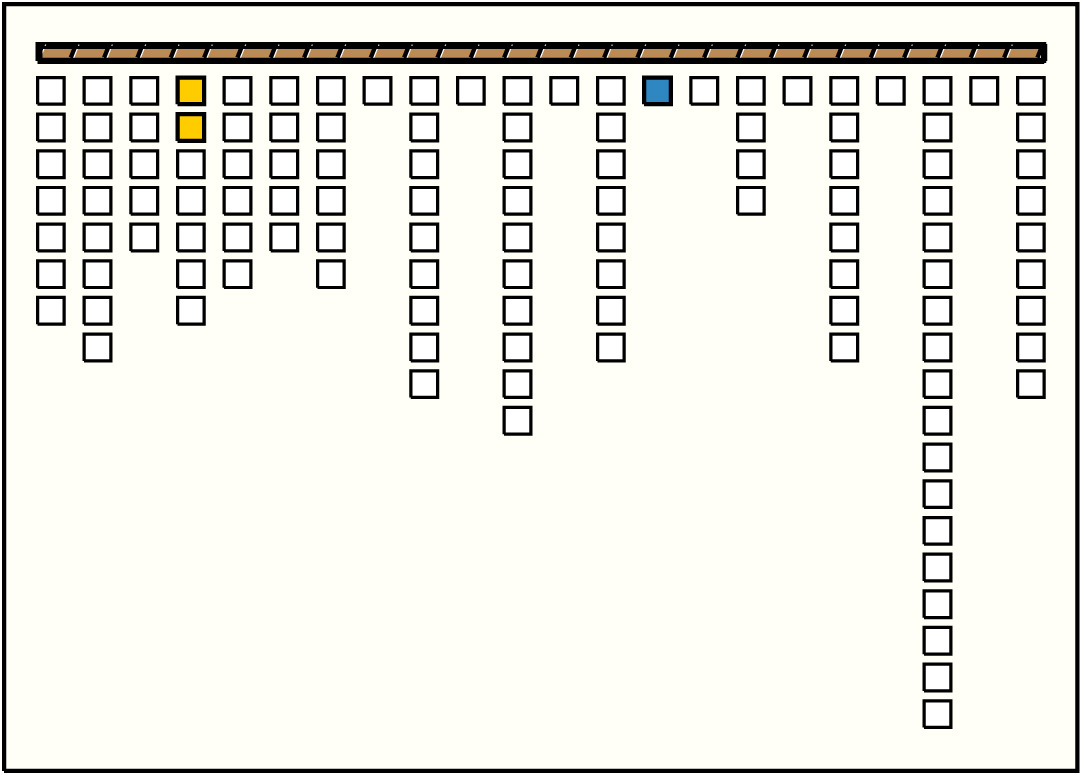

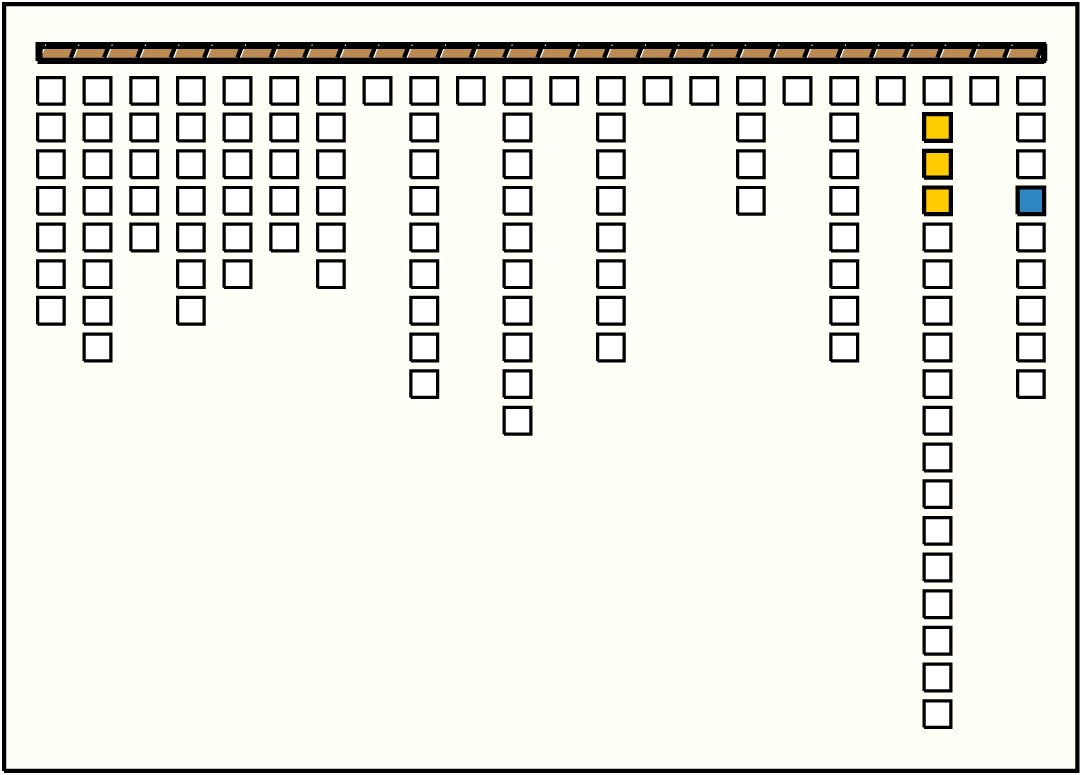

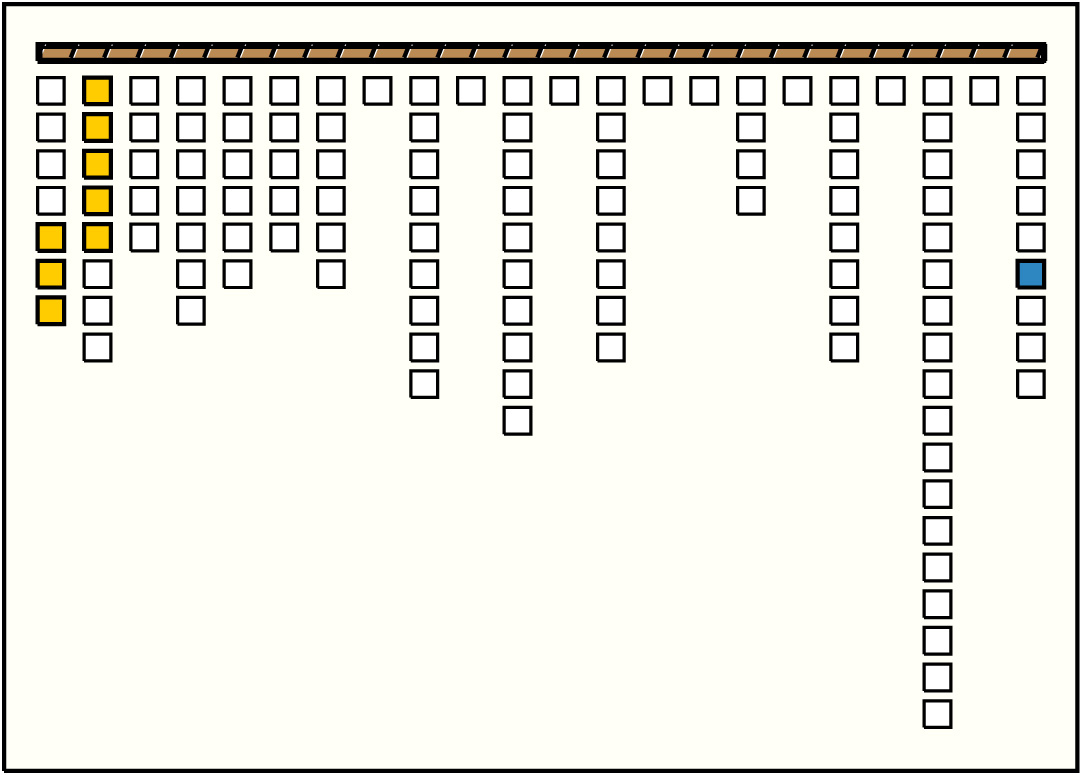

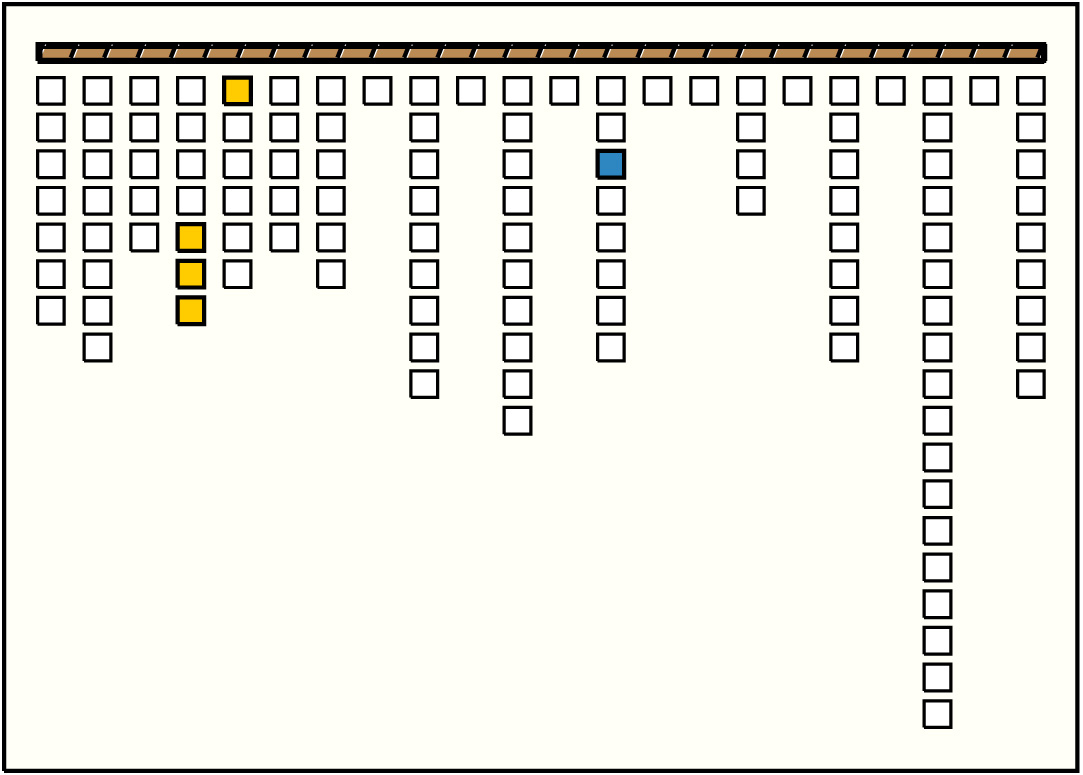

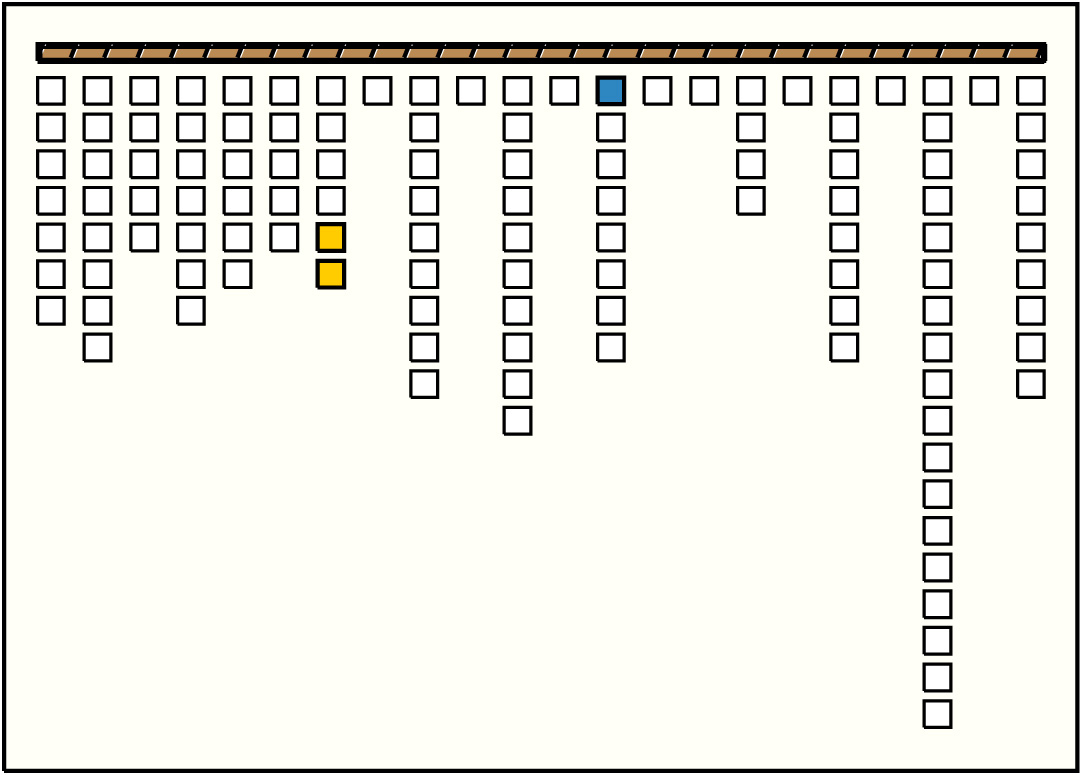

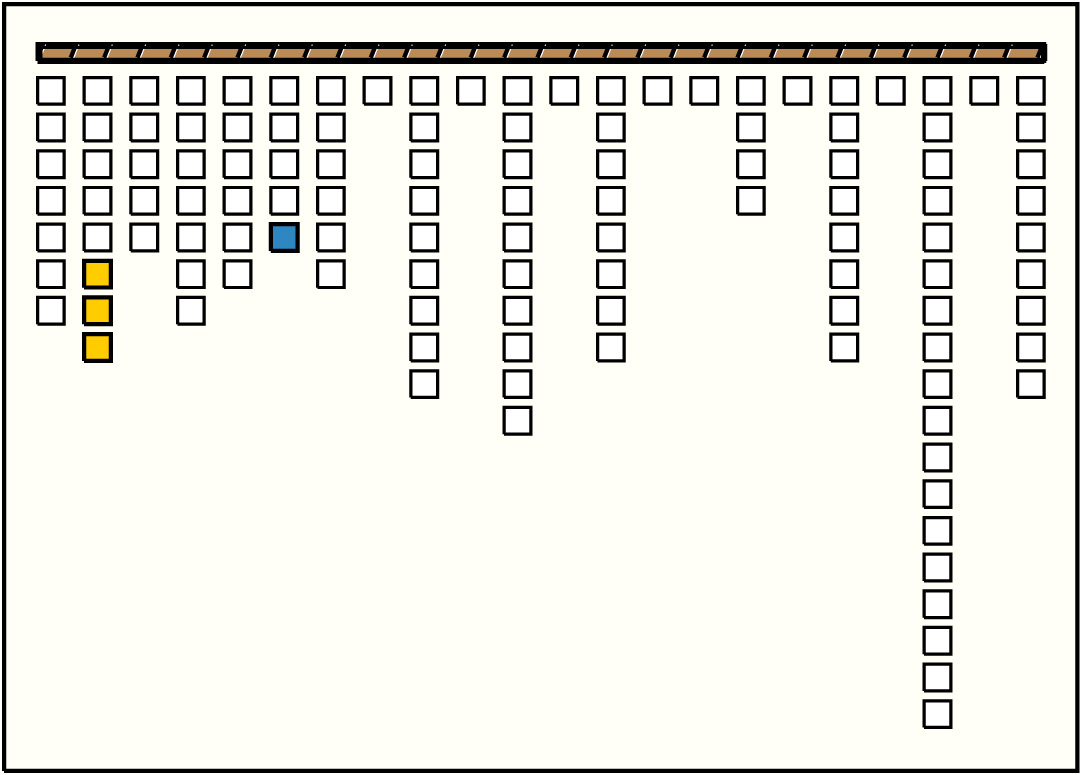

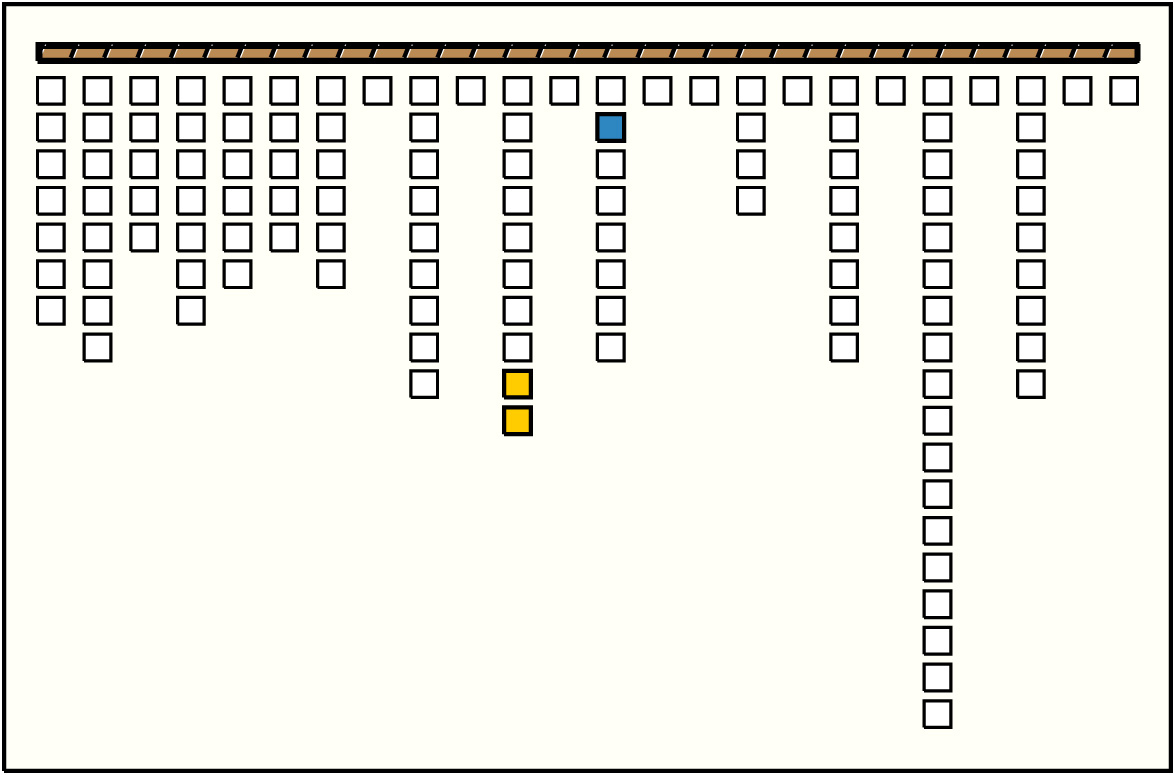

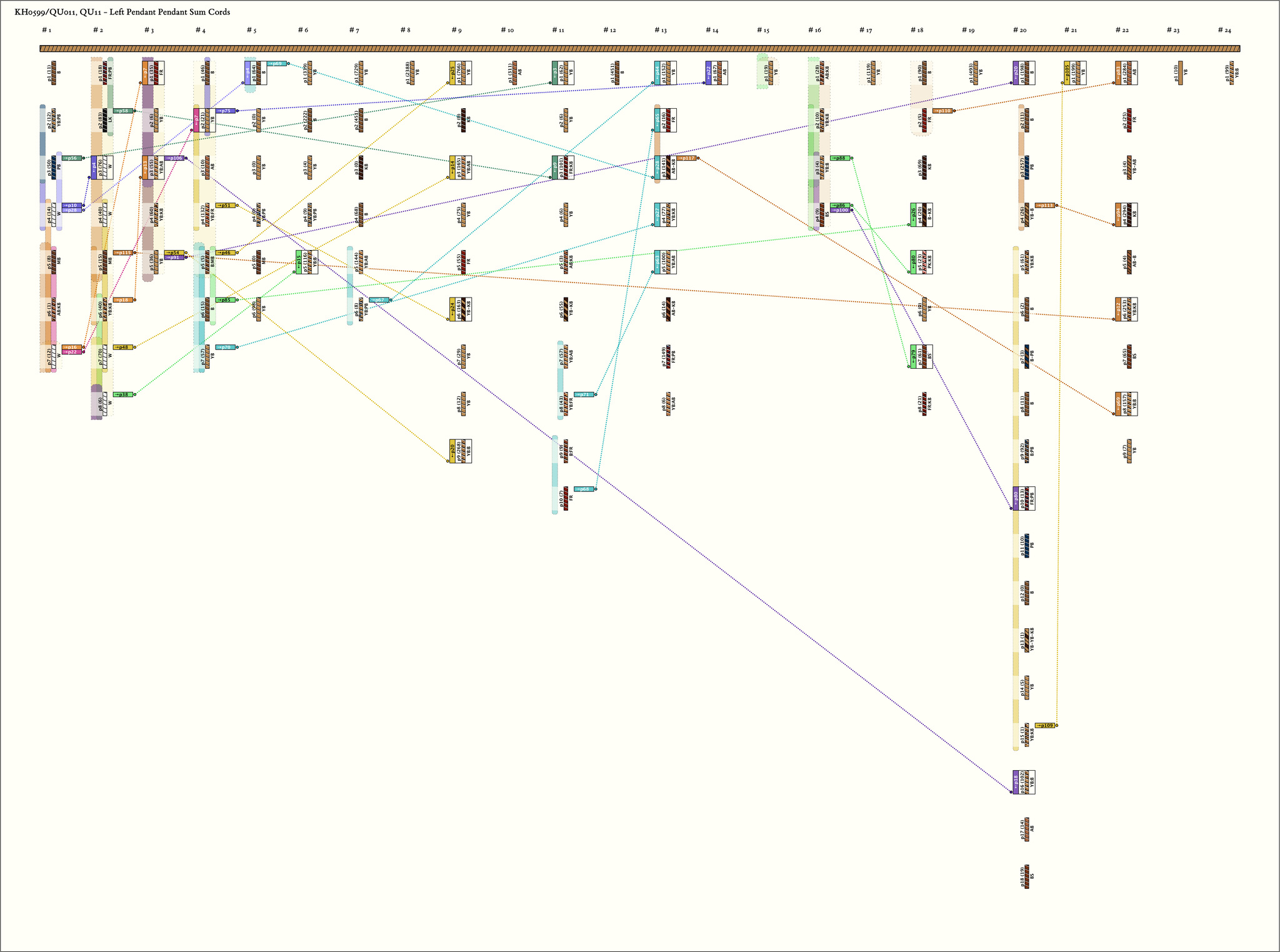

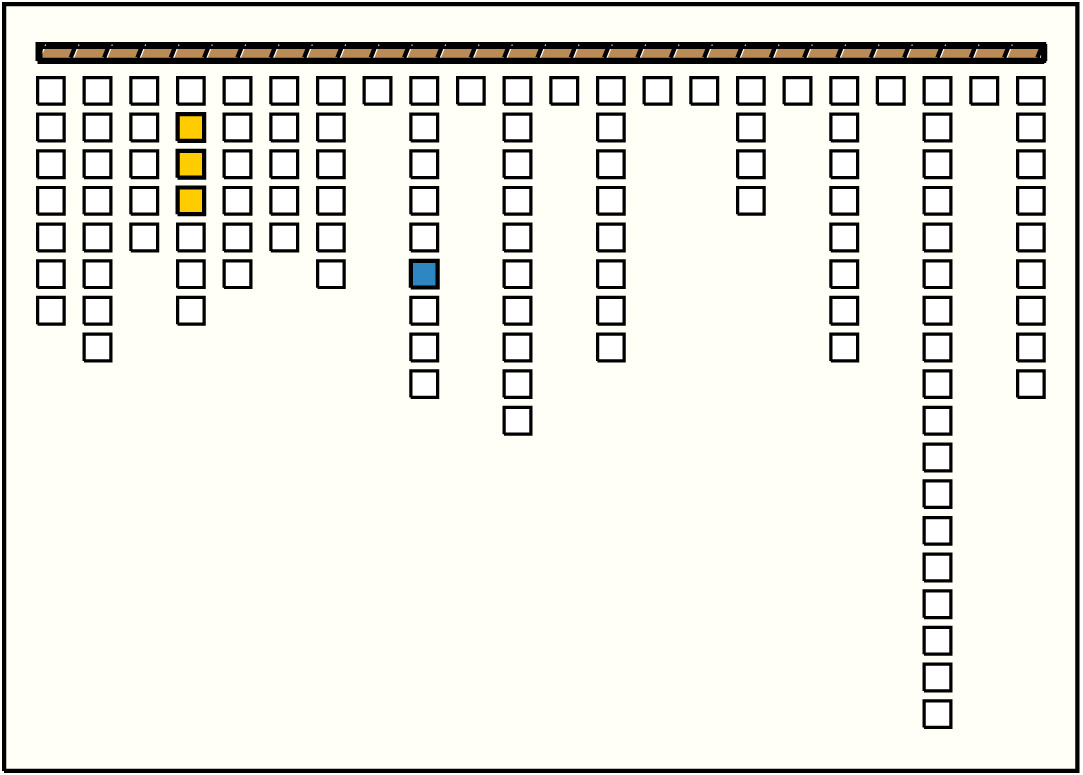

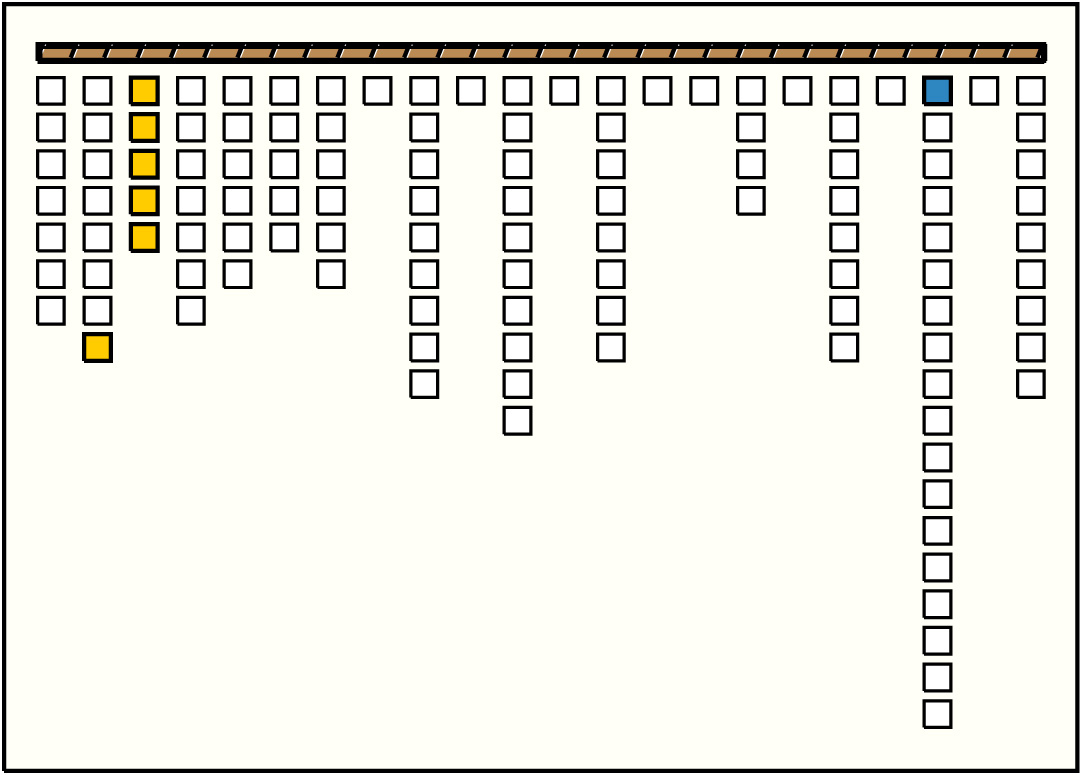

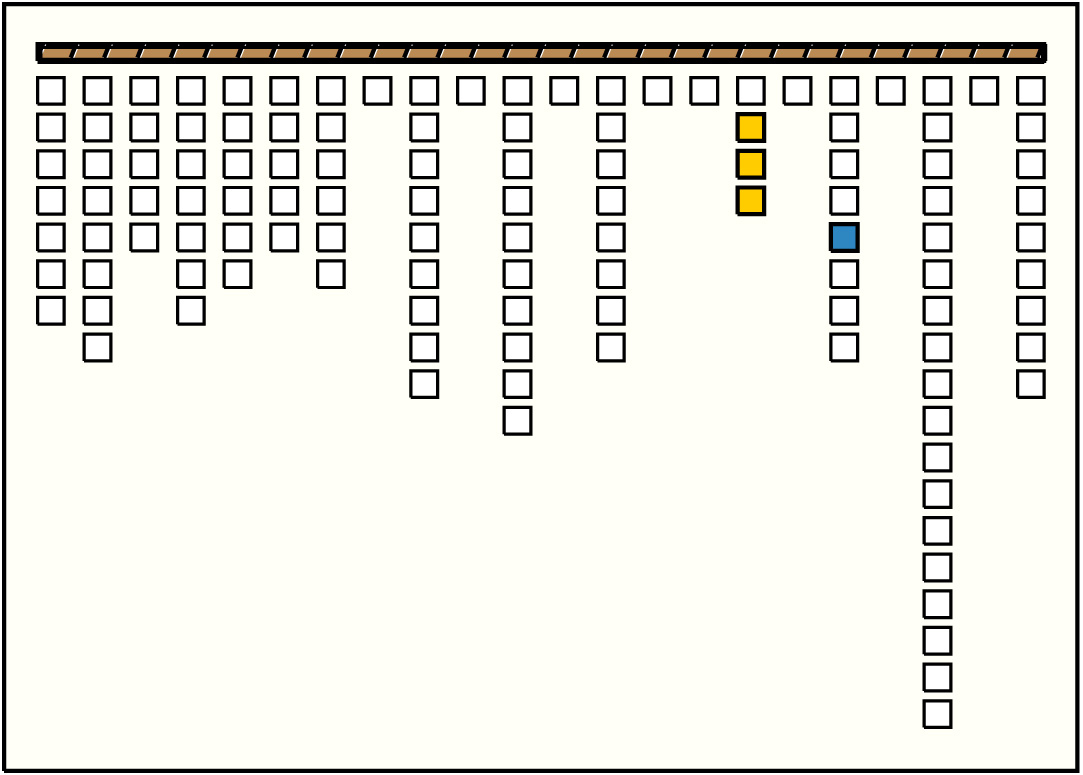

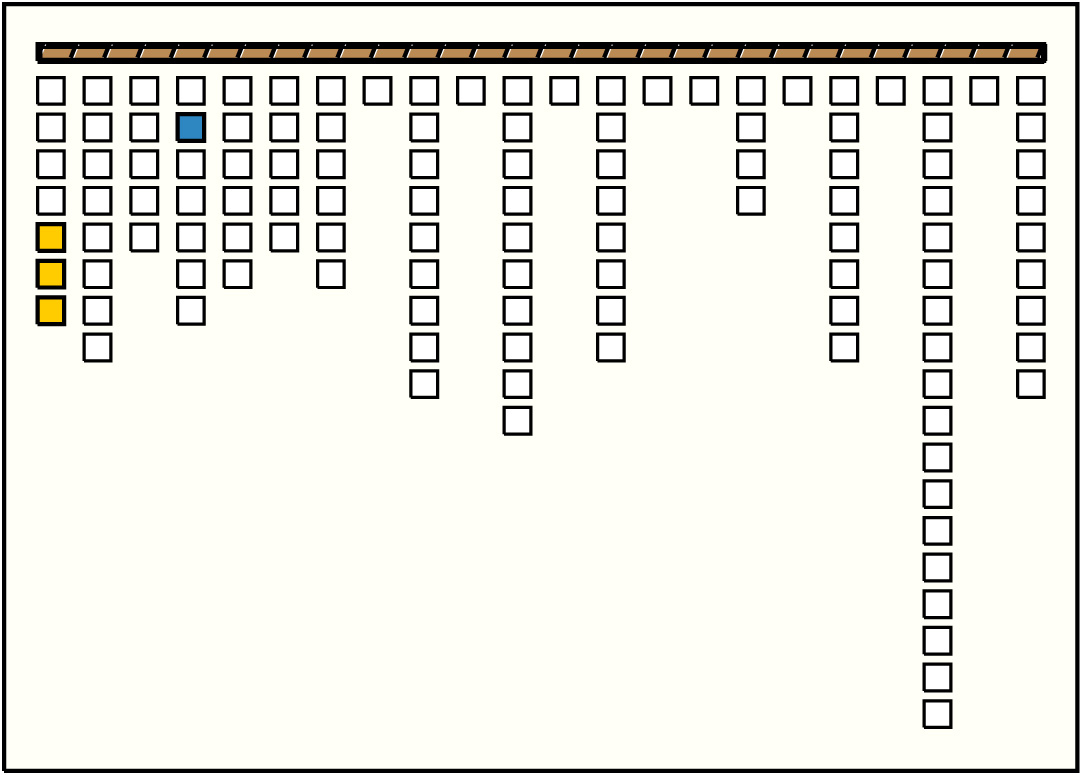

Left Handed Sums:     # Sums = 29,  Max # Summands = 19,   (Min, Mean, Max) Sum Values = (13, 140, 766)
Click on Image to View Larger

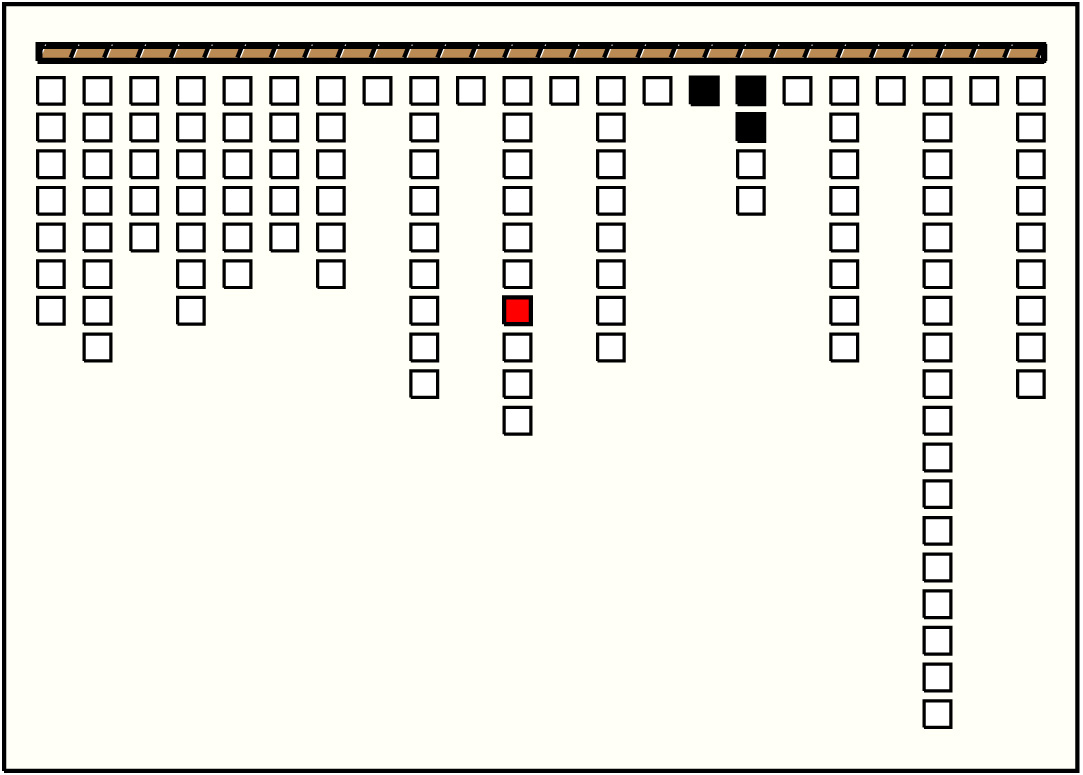

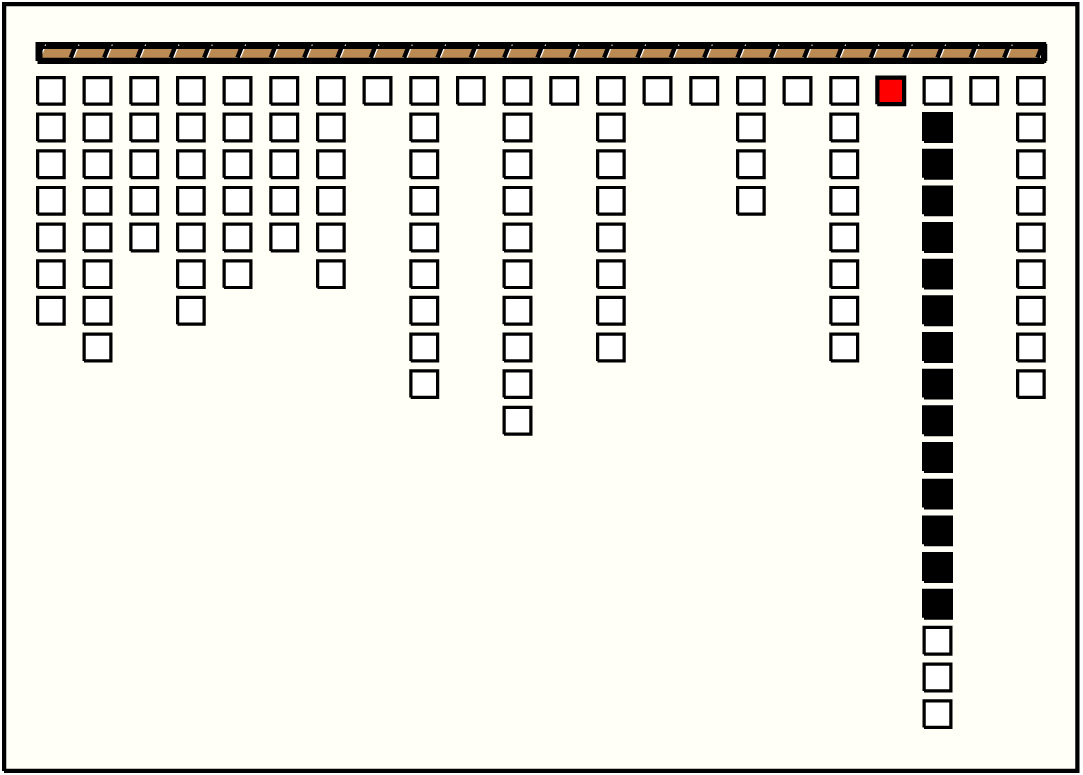

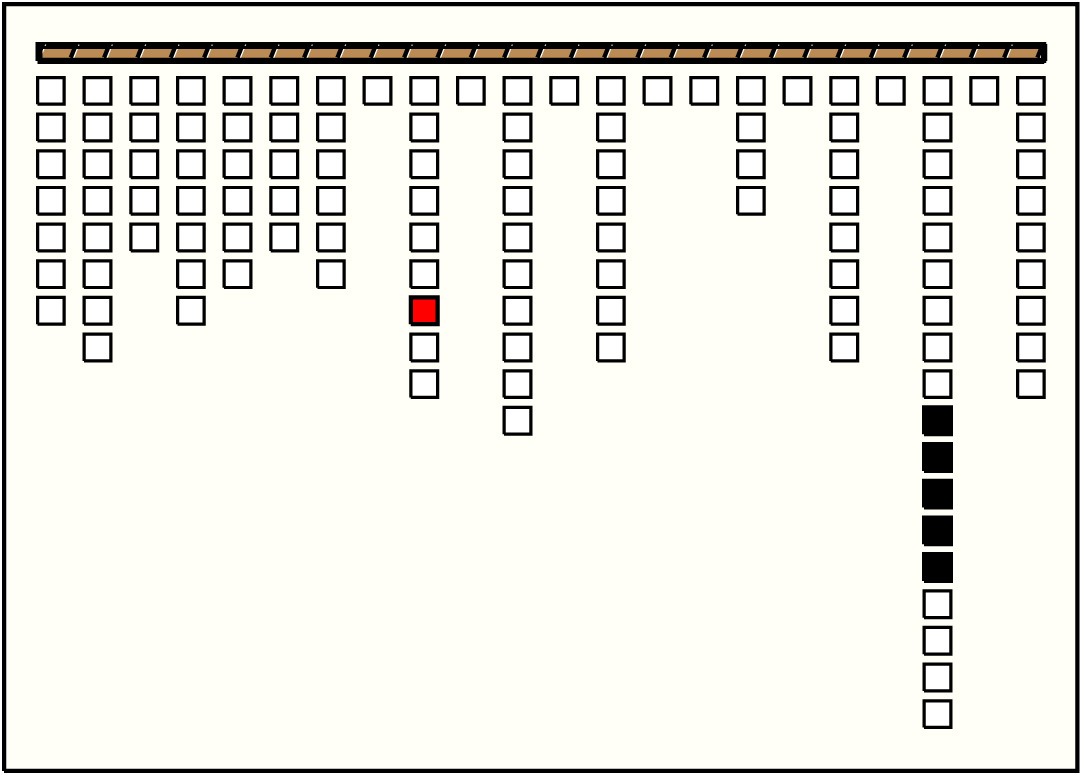

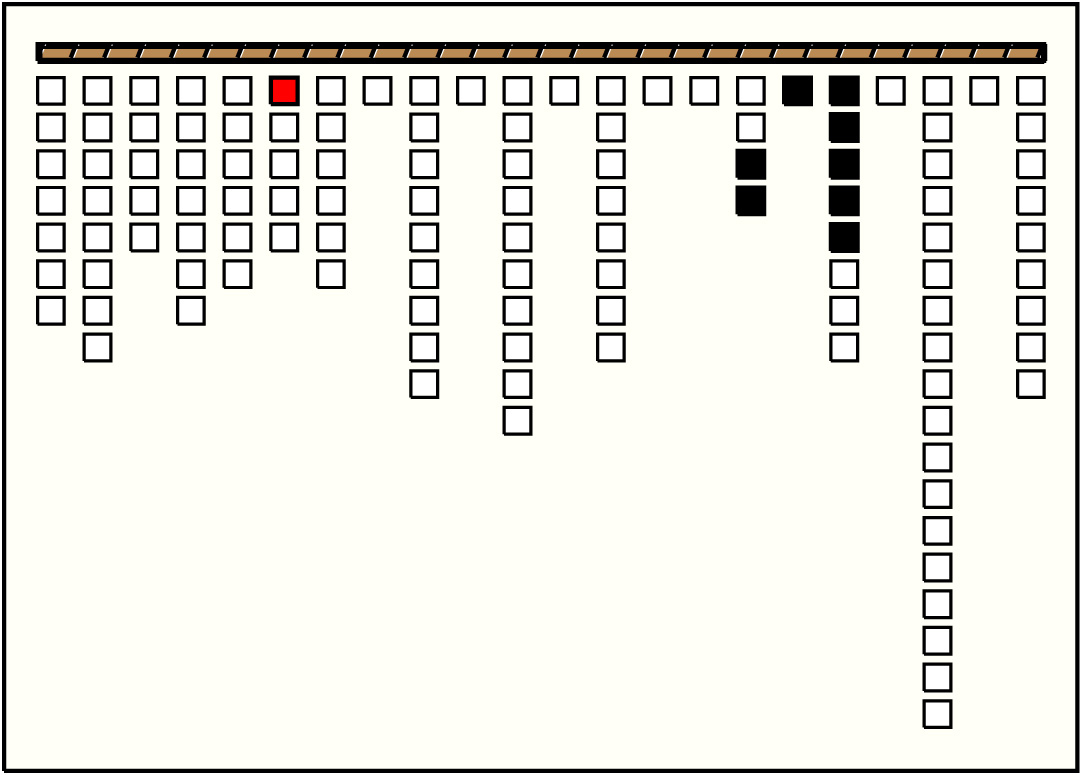

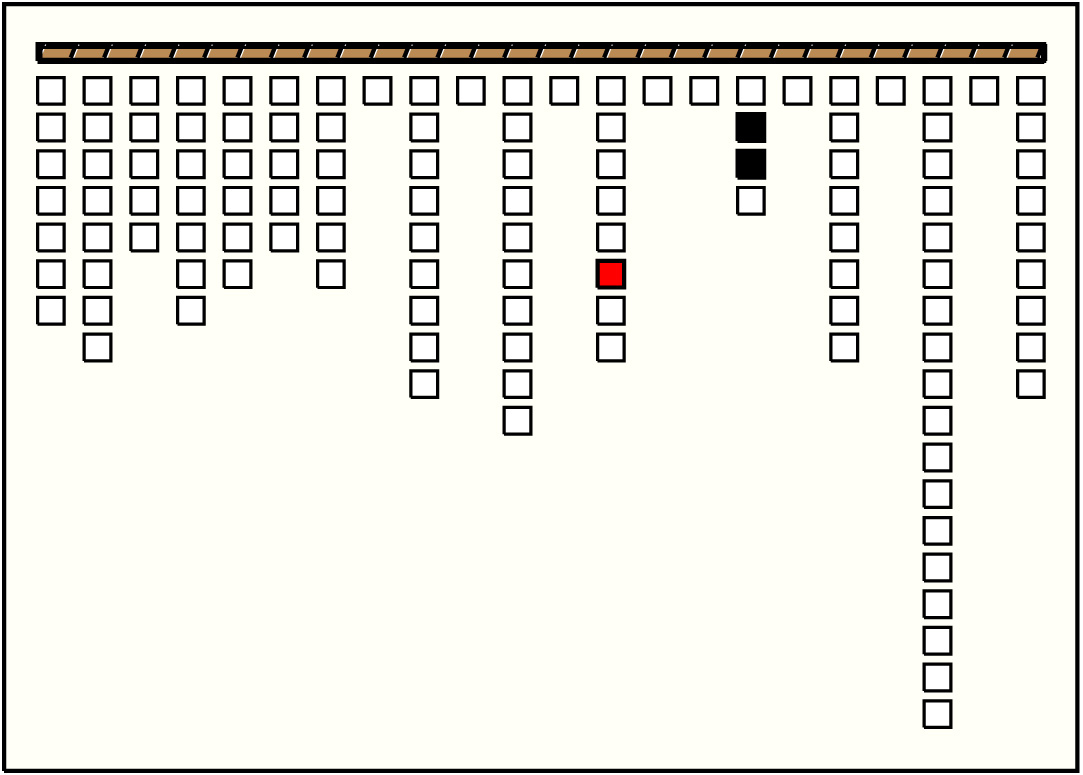

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g2p7 : 70W705g15p1: 19YB + g16p1: 28AB:KB + g16p2: 10YB:KB + g16p3: 4YB:B + g16p4: 9BS
2
g4p4 : 132YB:FR1323g16p3: 4YB:B + g16p4: 9BS + g17p1: 119YB
3
g5p1 : 64B643g11p4: 6YB + g11p5: 3AB:KB + g11p6: 55YB-KB
4
g6p1 : 339YB3398g16p3: 4YB:B + g16p4: 9BS + g17p1: 119YB + g18p1: 90B + g18p2: 5FR + g18p3: 69KB + g18p4: 20B-KB + g18p5: 23PK:KB
5
g6p2 : 222B2225g11p3: 101FR:KB + g11p4: 6YB + g11p5: 3AB:KB + g11p6: 55YB-KB + g11p7: 57YB:AB
6
g6p5 : 116YB:B1164g11p2: 6YB + g11p3: 101FR:KB + g11p4: 6YB + g11p5: 3AB:KB
7
g7p4 : 68B682g11p1: 62YB + g11p2: 6YB
8
g9p1 : 766YB7667g9p8: 12YB + g9p9: 268YB:B + g10p1: 311AB + g11p1: 62YB + g11p2: 6YB + g11p3: 101FR:KB + g11p4: 6YB
9
g9p3 : 165YB:AB1654g11p3: 101FR:KB + g11p4: 6YB + g11p5: 3AB:KB + g11p6: 55YB-KB
10
g9p6 : 163YB-KB1632g13p6: 14AB-KB + g13p7: 149FR:PB
11
g9p7 : 29YB295g20p10: 13FR:PB + g20p11: 10PB + g20p12: 0B + g20p13: 1YB-YB-KB + g20p14: 5YB
12
g9p9 : 268YB:B2687g18p1: 90B + g18p2: 5FR + g18p3: 69KB + g18p4: 20B-KB + g18p5: 23PK:KB + g18p6: 0YB + g18p7: 61BS
13
g11p7 : 57YB:AB573g15p1: 19YB + g16p1: 28AB:KB + g16p2: 10YB:KB
14
g11p8 : 43YB:FR432g18p4: 20B-KB + g18p5: 23PK:KB
15
g13p1 : 152YB1528g20p11: 10PB + g20p12: 0B + g20p13: 1YB-YB-KB + g20p14: 5YB + g20p15: 1YB:KB + g20p16: 102YB:B + g20p17: 14AB + g20p18: 19BS
16
g13p2 : 16FR163g20p6: 2B + g20p7: 3B-PB + g20p8: 11B
17
g13p3 : 141AB-KB1415g20p14: 5YB + g20p15: 1YB:KB + g20p16: 102YB:B + g20p17: 14AB + g20p18: 19BS
18
g13p4 : 77YB:KB774g20p5: 61YB:KB + g20p6: 2B + g20p7: 3B-PB + g20p8: 11B
19
g13p6 : 14AB-KB142g16p2: 10YB:KB + g16p3: 4YB:B
20
g17p1 : 119YB1194g20p7: 3B-PB + g20p8: 11B + g20p9: 92B:PB + g20p10: 13FR:PB
21
g18p5 : 23PK:KB232g20p10: 13FR:PB + g20p11: 10PB
22
g19p1 : 493YB49314g20p2: 11B + g20p3: 257PB + g20p4: 26YB-B + g20p5: 61YB:KB + g20p6: 2B + g20p7: 3B-PB + g20p8: 11B + g20p9: 92B:PB + g20p10: 13FR:PB + g20p11: 10PB + g20p12: 0B + g20p13: 1YB-YB-KB + g20p14: 5YB + g20p15: 1YB:KB

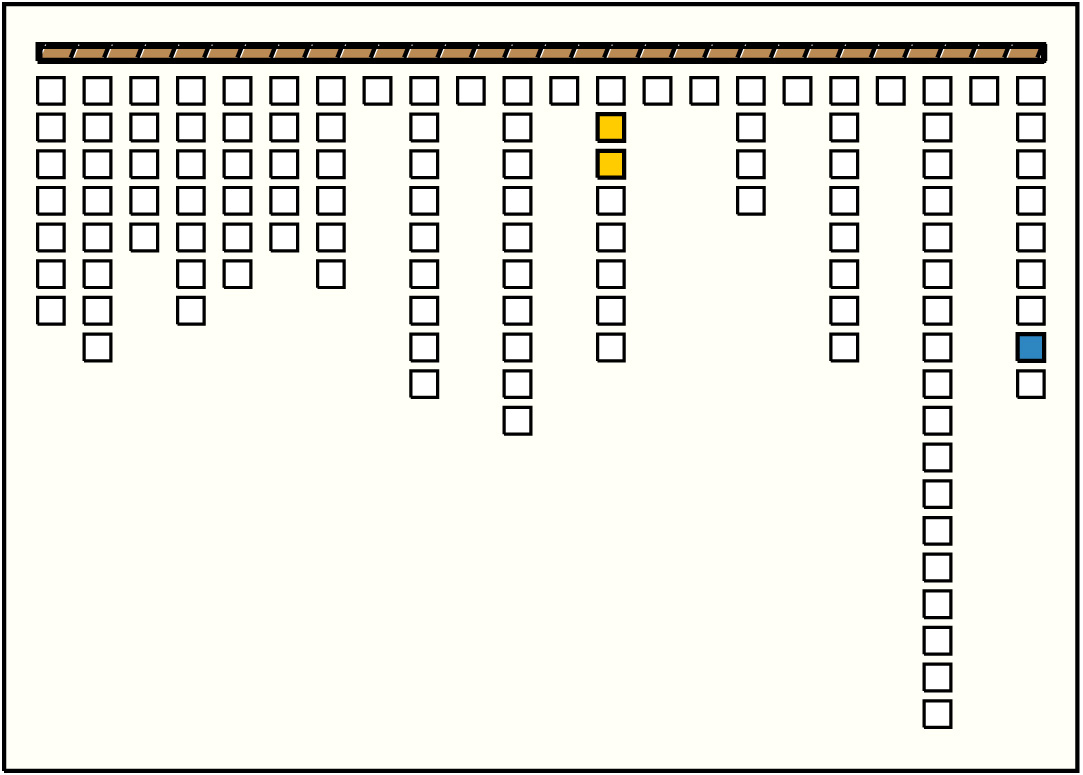

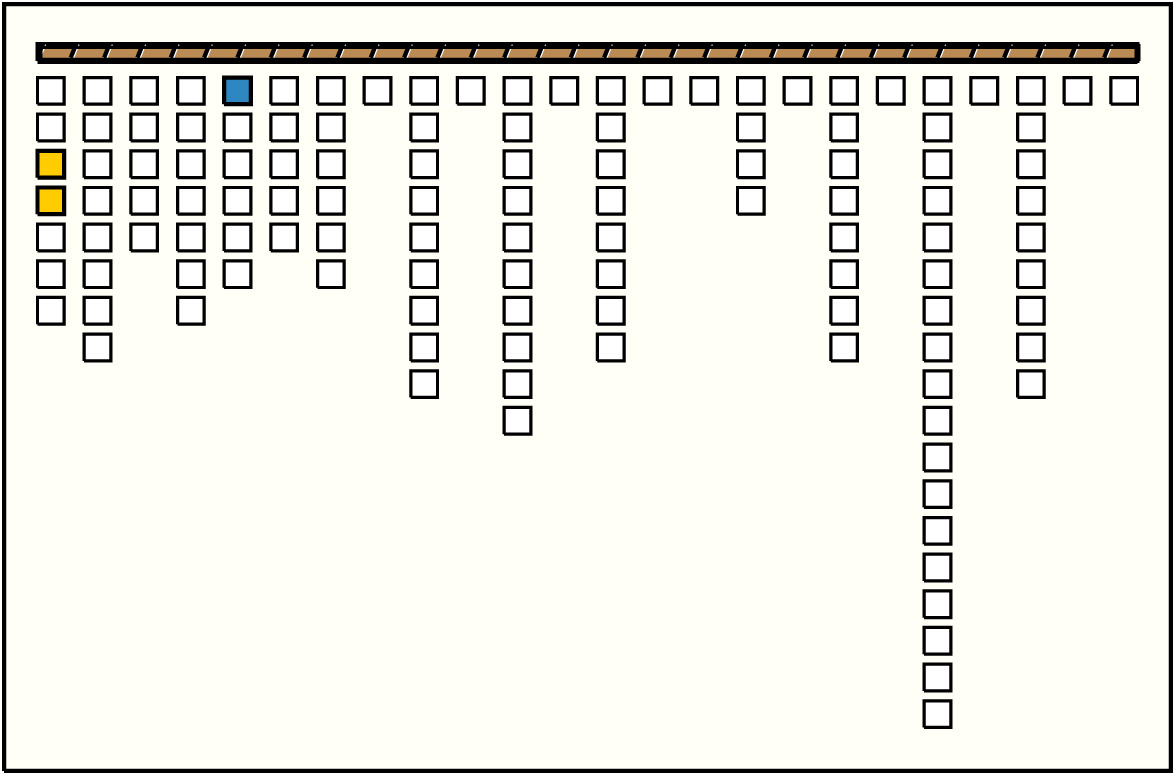

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g2p3 : 76W763g1p2: 12YB:PB + g1p3: 50PB + g1p4: 14W
2
g3p1 : 35FR354g1p4: 14W + g1p5: 8MB + g1p6: 1AB:KB + g1p7: 12W
3
g3p3 : 55YB:AB552g2p5: 15MB + g2p6: 40YB:KB
4
g4p2 : 21YB213g1p5: 8MB + g1p6: 1AB:KB + g1p7: 12W
5
g5p1 : 64B642g1p3: 50PB + g1p4: 14W
6
g6p5 : 116YB:B1163g2p6: 40YB:KB + g2p7: 70W + g2p8: 6W
7
g9p1 : 766YB76619g1p7: 12W + g2p1: 18FR:PB + g2p2: 83LK + g2p3: 76W + g2p4: 40W + g2p5: 15MB + g2p6: 40YB:KB + g2p7: 70W + g2p8: 6W + g3p1: 35FR + g3p2: 6YB + g3p3: 55YB:AB + g3p4: 60YB:KB + g3p5: 36YB + g4p1: 46B + g4p2: 21YB + g4p3: 10AB + g4p4: 132YB:FR + g4p5: 5B:MB
8
g9p3 : 165YB:AB1654g2p4: 40W + g2p5: 15MB + g2p6: 40YB:KB + g2p7: 70W
9
g9p6 : 163YB-KB1633g4p2: 21YB + g4p3: 10AB + g4p4: 132YB:FR
10
g9p9 : 268YB:B2687g2p7: 70W + g2p8: 6W + g3p1: 35FR + g3p2: 6YB + g3p3: 55YB:AB + g3p4: 60YB:KB + g3p5: 36YB
11
g11p1 : 62YB622g1p2: 12YB:PB + g1p3: 50PB
12
g11p3 : 101FR:KB1012g2p1: 18FR:PB + g2p2: 83LK
13
g13p1 : 152YB1522g7p5: 144YB:AB + g7p6: 8YB:PB
14
g13p2 : 16FR162g11p9: 9B:FR + g11p10: 7FR
15
g13p3 : 141AB-KB1414g4p5: 5B:MB + g4p6: 15B + g4p7: 57YB + g5p1: 64B
16
g13p4 : 77YB:KB773g4p5: 5B:MB + g4p6: 15B + g4p7: 57YB
17
g13p5 : 100YB:AB1002g11p7: 57YB:AB + g11p8: 43YB:FR
18
g14p1 : 67AB672g4p1: 46B + g4p2: 21YB
19
g18p4 : 20B-KB202g4p5: 5B:MB + g4p6: 15B
20
g18p5 : 23PK:KB233g16p2: 10YB:KB + g16p3: 4YB:B + g16p4: 9BS
21
g18p7 : 61BS614g15p1: 19YB + g16p1: 28AB:KB + g16p2: 10YB:KB + g16p3: 4YB:B
22
g20p1 : 198B1986g2p8: 6W + g3p1: 35FR + g3p2: 6YB + g3p3: 55YB:AB + g3p4: 60YB:KB + g3p5: 36YB
23
g20p10 : 13FR:PB132g16p3: 4YB:B + g16p4: 9BS
24
g20p16 : 102YB:B1024g2p8: 6W + g3p1: 35FR + g3p2: 6YB + g3p3: 55YB:AB
25
g21p1 : 199YB19911g20p5: 61YB:KB + g20p6: 2B + g20p7: 3B-PB + g20p8: 11B + g20p9: 92B:PB + g20p10: 13FR:PB + g20p11: 10PB + g20p12: 0B + g20p13: 1YB-YB-KB + g20p14: 5YB + g20p15: 1YB:KB
26
g22p1 : 284AB2848g15p1: 19YB + g16p1: 28AB:KB + g16p2: 10YB:KB + g16p3: 4YB:B + g16p4: 9BS + g17p1: 119YB + g18p1: 90B + g18p2: 5FR
27
g22p4 : 294KB2943g20p2: 11B + g20p3: 257PB + g20p4: 26YB-B
28
g22p6 : 253YB:KB2538g1p5: 8MB + g1p6: 1AB:KB + g1p7: 12W + g2p1: 18FR:PB + g2p2: 83LK + g2p3: 76W + g2p4: 40W + g2p5: 15MB
29
g22p8 : 157YB:B1572g13p2: 16FR + g13p3: 141AB-KB

Khipu Notes:
Whole khipu with subsidiary main cord
Includes 3 scrap packages
A = 1 fragment; B = 1 fragment; C = 8 fragments
All strings Z-spun/S-plied. All knots in Z-direction until String 38, then all are S except figure-8s.
Non-cotton fiber identifications were not confirmed with microscope or burn test
After 24cm, main cord makes a single knot around another cord, which uses its long knot and they interlock. 13cm of the main cord comes out of this knot and has an end knot. The 2nd cord (maybe a top cord) is mot dk tn/lt tn with (going from the plied end) one S-single, one S3L (which uses its outer cord to interlock with main cord), 6 S-singles, and then another S-long knot with 8 turns. Interlocked thru the 1st single of the "top cord" there is a "subsidiary top"
There seem to be at least 8 colors employed (lt/md/dk/ru -br, lt/dk tn, bl, and wh), but there are nuances that cannot be accounted for here and the blues (indigo) vary but very little and probably were originally the same hue.
Main cord is 2 light brown strings S -twisted. 42.5in/108cm long to its end "knot."
Decimal hierarchy and registers of knots are not followed, therefore knots listed by 1st, 2nd, 3rd on a single string and cord value totals not calculated (when a group seems to follow a register, those knots are kept in the same column as others in their register).
"Values" are only suggested.
This piece breaks from a lot of expected patterns: registers, decimals, color changes, using a stripe within a striped cord, the anomaly of the main cord/top cord, etc.
Some loose cords from package B380 were found to be associated with this khipu and have been added to the data above (Groups 1 and 2).
Material identifications are difficult at this time -- need to use a microscope to test samples.
Big, uneven group spaces -- this is not an easily read, binary khipu.
The indigo dye is greenish-blue in some places, like those found at Laguna de los Condores.
How are the groups related? They are not consistent with each other.
Camelid fiber is only used in the "introductory groups" (the groups that all follow same decimal system and have similar characteristics - their subsidiaries also follow a loose pattern).
What is the purpose of the pendants found by themselves? They seem to match with a nearby group, but how do they relate?
Beginning with Pendant 38, all knots turn from Z direction to S, except for the figure-8s (Es).
Recto attachments of pendants also switch to verso with Pendant 76 (which is one of the solo pendants not directly linked with grp).
No subsidiaries in Groups 13, 18, or 20.
Some tertiary cords appear.
Maybe in some places there are 2 knot types ( or 2 long knots) in one register because the information changed and something needed to be added?
Medium brown color is a chocolatey-brown.
There are actually 15 Groups if we do not count each of the individual cords as their own grouping. 118 pendants.
Subsidiary cord 115A is much shorter than others. Did they run out of indigo-dyed cotton?
2 places with inverted long knots ("Tupicocha knot" in Salomon 2004).
