KH0612/JC005 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

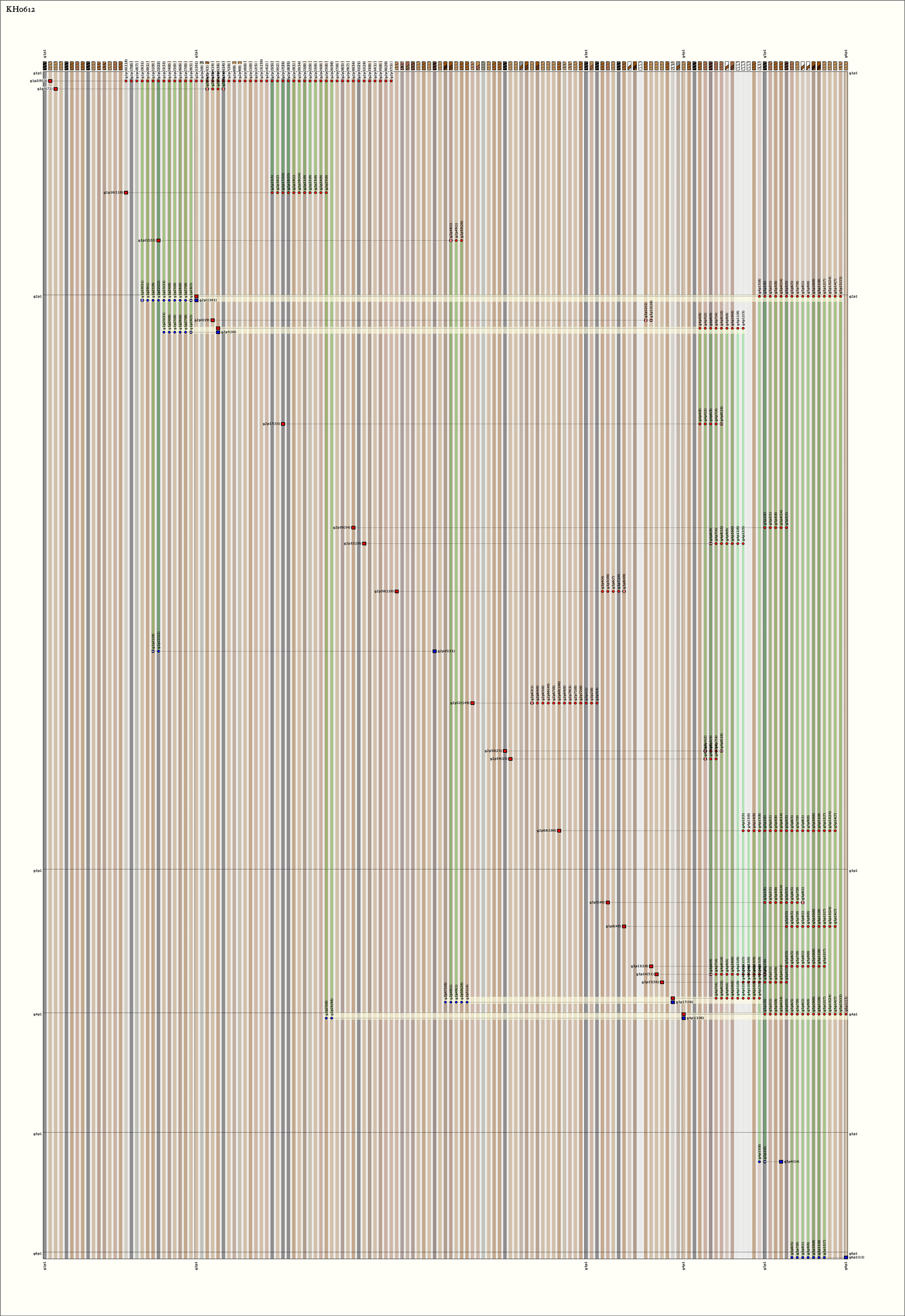

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

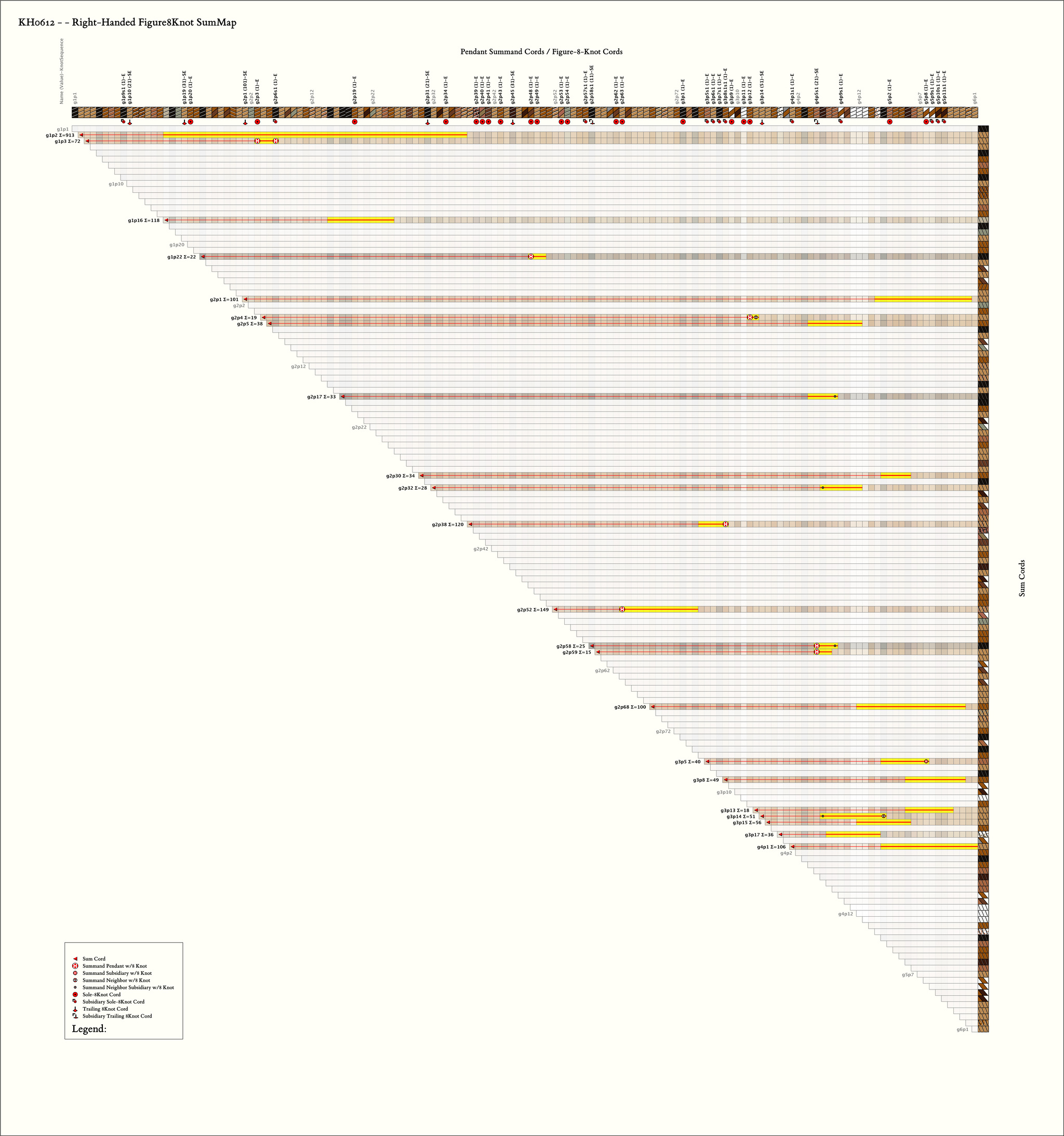

Right Handed Sums with Figure-8-Knots: # Sums = 22, Max # Summands = 50, (Min, Mean, Max) Sum Values = (15, 97, 913)
Click on Image to View Larger

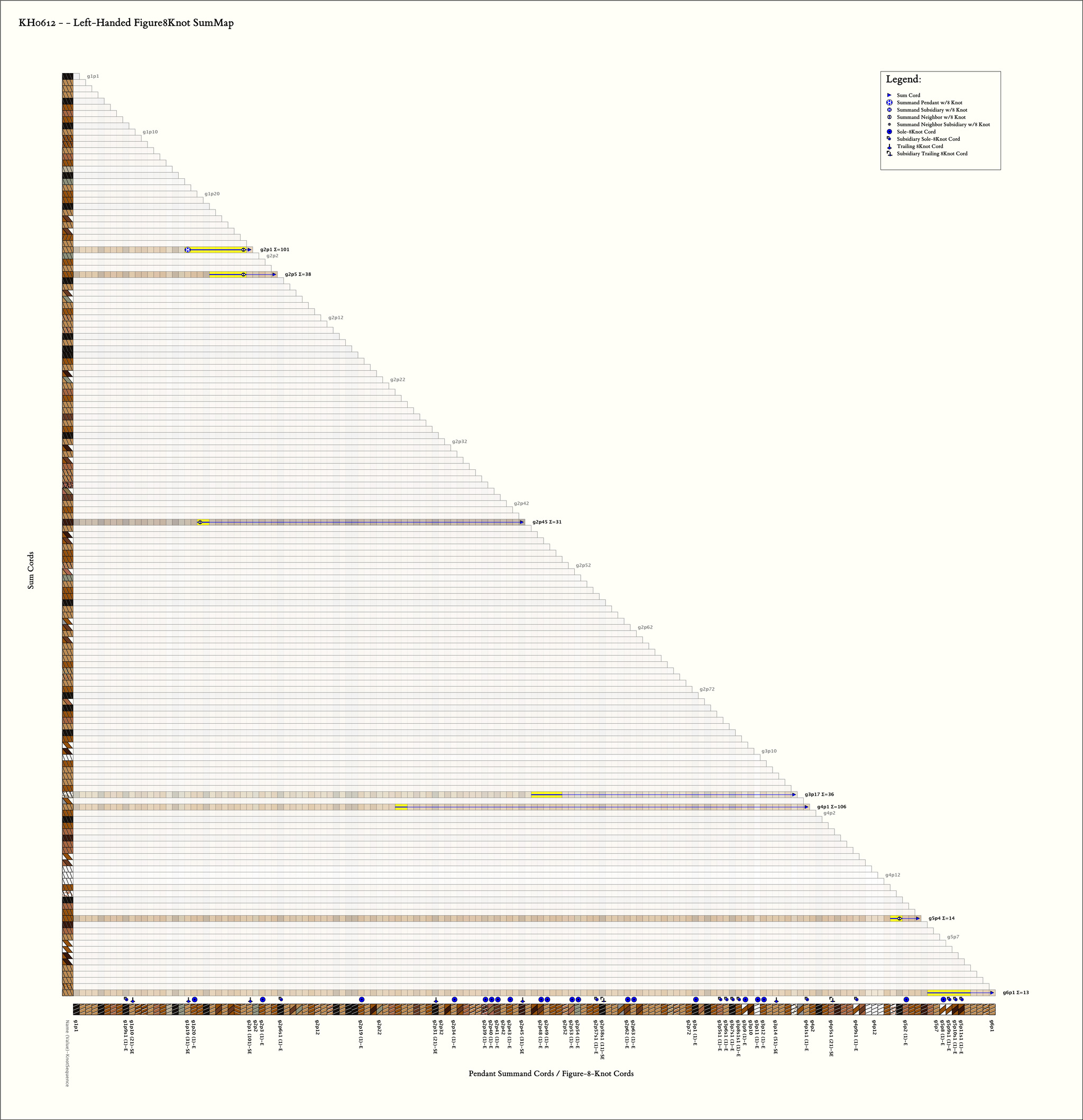

Left Handed Sums with Figure-8-Knots: # Sums = 7, Max # Summands = 10, (Min, Mean, Max) Sum Values = (13, 48, 106)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2 : 913YB | 913 | 50 | g1p16: 118LG + g1p17: 0FB + g1p18: 7PG + g1p19: 31YB + g1p20: 1NB + g1p21: 9NB + g1p22: 22FB + g1p23: 33YB + g1p24: 0NB-MB + g1p25: 0YB + g1p26: 0NB-MB + g1p27: 0NB + g1p28: 5YB + g2p1: 101YB + g2p2: 0PG + g2p3: 1NB + g2p4: 19YB + g2p5: 38NB + g2p6: 14FB + g2p7: 20YB + g2p8: 0YB-MB + g2p9: 0YB-PG + g2p10: 0YB + g2p11: 0NB + g2p12: 5YB:AB + g2p13: 150YB + g2p14: 2YB:RL + g2p15: 5FB + g2p16: 2YB + g2p17: 33FB + g2p18: 35FB + g2p19: 1NB + g2p20: 34YB + g2p21: 0NB-KB + g2p22: 0YB-PG + g2p23: 0YB + g2p24: 0AB + g2p25: 8NB + g2p26: 98YB + g2p27: 0YB + g2p28: 5MB + g2p29: 7YB + g2p30: 34NB + g2p31: 21FB + g2p32: 28YB + g2p33: 0NB-KB + g2p34: 1YB + g2p35: 0NB-MB + g2p36: 20AB + g2p37: 5YB:AB | |
| 2 |  | g1p3 : 72YB | 72 | 4 | ❽g2p3: 1NB + g2p4: 19YB + g2p5: 38NB + g2p6: 14FB❽ | |
| 3 |  | g1p16 : 118LG | 118 | 11 | g2p15: 5FB + g2p16: 2YB + g2p17: 33FB + g2p18: 35FB + g2p19: 1NB + g2p20: 34YB + g2p21: 0NB-KB + g2p22: 0YB-PG + g2p23: 0YB + g2p24: 0AB + g2p25: 8NB | |
| 4 |  | g1p22 : 22FB | 22 | 3 | ❽g2p48: 1NB-MB + g2p49: 1YB + ∞g2p50: 20NB | |
| 5 |  | g2p1 : 101YB | 101 | 16 | g4p15: 8W:AB + g5p1: 6FB + g5p2: 1AB + g5p3: 8NB + g5p4: 14NB + g5p5: 5KB + g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB + g5p9: 0W-NB + g5p10: 0NB-KB + g5p11: 0NB-KB + g5p12: 7YB + g5p13: 24YB + g5p14: 7YB + g5p15: 15YB:NB | |
| 6 |  | g2p4 : 19YB | 19 | 2 | ❽g3p12: 1NB + ∞g3p13: 18YB∞ | |
| 7 |  | g2p5 : 38NB | 38 | 9 | g4p4: 8NB∞ + g4p5: 2AB + g4p6: 9KB + g4p7: 4AB + g4p8: 10AB + g4p9: 0W-NB + g4p10: 0AB-MB + g4p11: 0W + g4p12: 5W | |
| 8 |  | g2p17 : 33FB | 33 | 5 | g4p4: 8NB∞ + g4p5: 2AB + g4p6: 9KB + g4p7: 4AB + g4p8: 10AB∞ | |
| 9 |  | g2p30 : 34NB | 34 | 5 | g5p1: 6FB∞ + g5p2: 1AB + g5p3: 8NB + g5p4: 14NB + g5p5: 5KB | |
| 10 |  | g2p32 : 28YB | 28 | 7 | ∞g4p6: 9KB + g4p7: 4AB + g4p8: 10AB + g4p9: 0W-NB + g4p10: 0AB-MB + g4p11: 0W + g4p12: 5W | |
| 11 |  | g2p38 : 120YB:AB | 120 | 5 | g3p4: 4NB∞ + g3p5: 40AB + g3p6: 7YB + g3p7: 20FB + g3p8: 49NB❽ | |
| 12 |  | g2p52 : 149YB:RL | 149 | 13 | ❽g2p63: 1YB + g2p64: 0NB-MB + g2p65: 0YB + g2p66: 40YB + g2p67: 0YB + g2p68: 100NB + g2p69: 0YB:PG + g2p70: 3YB:AB + g2p71: 0YB + g2p72: 0NB + g3p1: 1FB + g3p2: 0YB-AB + g3p3: 4FB | |
| 13 |  | g2p58 : 25FB | 25 | 4 | ❽g4p5: 2AB + g4p6: 9KB + g4p7: 4AB + g4p8: 10AB∞ | |
| 14 |  | g2p59 : 15YB | 15 | 3 | ❽g4p5: 2AB + g4p6: 9KB + g4p7: 4AB | |
| 15 |  | g2p68 : 100NB | 100 | 18 | g4p12: 5W + g4p13: 0W + g4p14: 9NB + g4p15: 8W:AB + g5p1: 6FB + g5p2: 1AB + g5p3: 8NB + g5p4: 14NB + g5p5: 5KB + g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB + g5p9: 0W-NB + g5p10: 0NB-KB + g5p11: 0NB-KB + g5p12: 7YB + g5p13: 24YB + g5p14: 7YB | |
| 16 |  | g3p5 : 40AB | 40 | 8 | g5p1: 6FB∞ + g5p2: 1AB + g5p3: 8NB + g5p4: 14NB + g5p5: 5KB + g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB❽ | |
| 17 |  | g3p8 : 49NB | 49 | 10 | g5p5: 5KB + g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB + g5p9: 0W-NB + g5p10: 0NB-KB + g5p11: 0NB-KB + g5p12: 7YB + g5p13: 24YB + g5p14: 7YB | |
| 18 |  | g3p13 : 18YB | 18 | 8 | g5p5: 5KB + g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB + g5p9: 0W-NB + g5p10: 0NB-KB + g5p11: 0NB-KB + ∞g5p12: 7YB | |
| 19 |  | g3p14 : 51YB | 51 | 11 | ∞g4p6: 9KB + g4p7: 4AB + g4p8: 10AB + g4p9: 0W-NB + g4p10: 0AB-MB + g4p11: 0W + g4p12: 5W + g4p13: 0W + g4p14: 9NB + g4p15: 8W:AB + g5p1: 6FB∞ | |
| 20 |  | g3p15 : 56YB | 56 | 9 | g4p12: 5W + g4p13: 0W + g4p14: 9NB + g4p15: 8W:AB + g5p1: 6FB + g5p2: 1AB + g5p3: 8NB + g5p4: 14NB + g5p5: 5KB | |
| 21 |  | g3p17 : 36W:0G | 36 | 9 | g4p7: 4AB + g4p8: 10AB + g4p9: 0W-NB + g4p10: 0AB-MB + g4p11: 0W + g4p12: 5W + g4p13: 0W + g4p14: 9NB + g4p15: 8W:AB | |
| 22 |  | g4p1 : 106YB | 106 | 16 | g5p1: 6FB∞ + g5p2: 1AB + g5p3: 8NB + g5p4: 14NB + g5p5: 5KB + g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB + g5p9: 0W-NB + g5p10: 0NB-KB + g5p11: 0NB-KB + g5p12: 7YB + g5p13: 24YB + g5p14: 7YB + g5p15: 15YB:NB + g6p1: 13YB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g2p1 : 101YB | 101 | 10 | ❽g1p19: 31YB + g1p20: 1NB + g1p21: 9NB + g1p22: 22FB + g1p23: 33YB + g1p24: 0NB-MB + g1p25: 0YB + g1p26: 0NB-MB + g1p27: 0NB + g1p28: 5YB∞ | |
| 2 |  | g2p5 : 38NB | 38 | 6 | g1p23: 33YB + g1p24: 0NB-MB + g1p25: 0YB + g1p26: 0NB-MB + g1p27: 0NB + g1p28: 5YB∞ | |
| 3 |  | g2p45 : 31KB | 31 | 2 | ∞g1p21: 9NB + g1p22: 22FB | |
| 4 |  | g3p17 : 36W:0G | 36 | 5 | g2p47: 10NB-KB∞ + g2p48: 1NB-MB + g2p49: 1YB + g2p50: 20NB + g2p51: 4NB | |
| 5 |  | g4p1 : 106YB | 106 | 2 | g2p25: 8NB + g2p26: 98YB | |
| 6 |  | g5p4 : 14NB | 14 | 2 | g4p15: 8W:AB + g5p1: 6FB∞ | |
| 7 |  | g6p1 : 13YB | 13 | 7 | g5p6: 5AB + g5p7: 0YB + g5p8: 1W-NB + g5p9: 0W-NB + g5p10: 0NB-KB + g5p11: 0NB-KB + ∞g5p12: 7YB |
