KH0633 - Pendant Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksSum NetGraph
All Pendant Pendant Sum RelationshipsSum Map
This Khipu's Fieldmark CatalogSum Overlay
This Khipu's DrawingRight-Handed Sums with Figure-8-Knots
Left-Handed Sums with Figure-8-Knots
Right-Handed Sum Detail
Left-Handed Sum Detail

Sum NetGraph - Click on image to view larger
legend

Sum Map - Click on image to view larger
legend

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

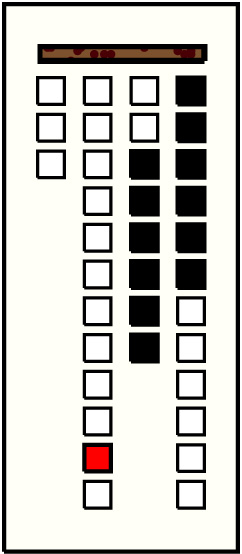

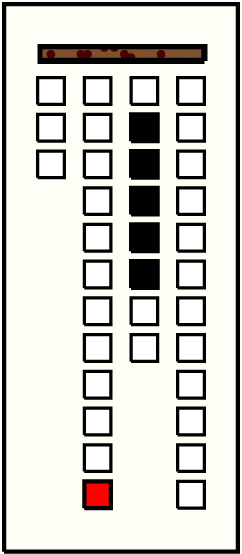

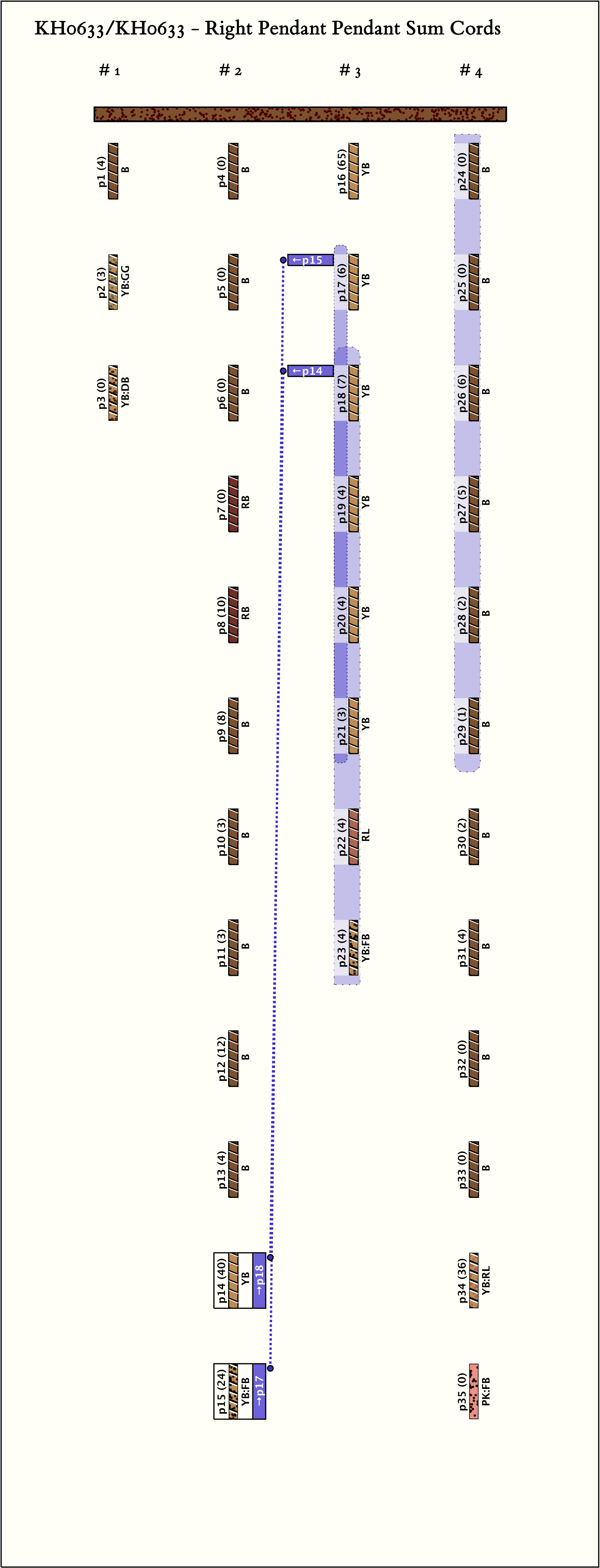

Right Handed Sums with Figure-8-Knots:     # Sums = 2,  Max # Summands = 12,   (Min, Mean, Max) Sum Values = (24, 32, 40)
Click on Image to View Larger

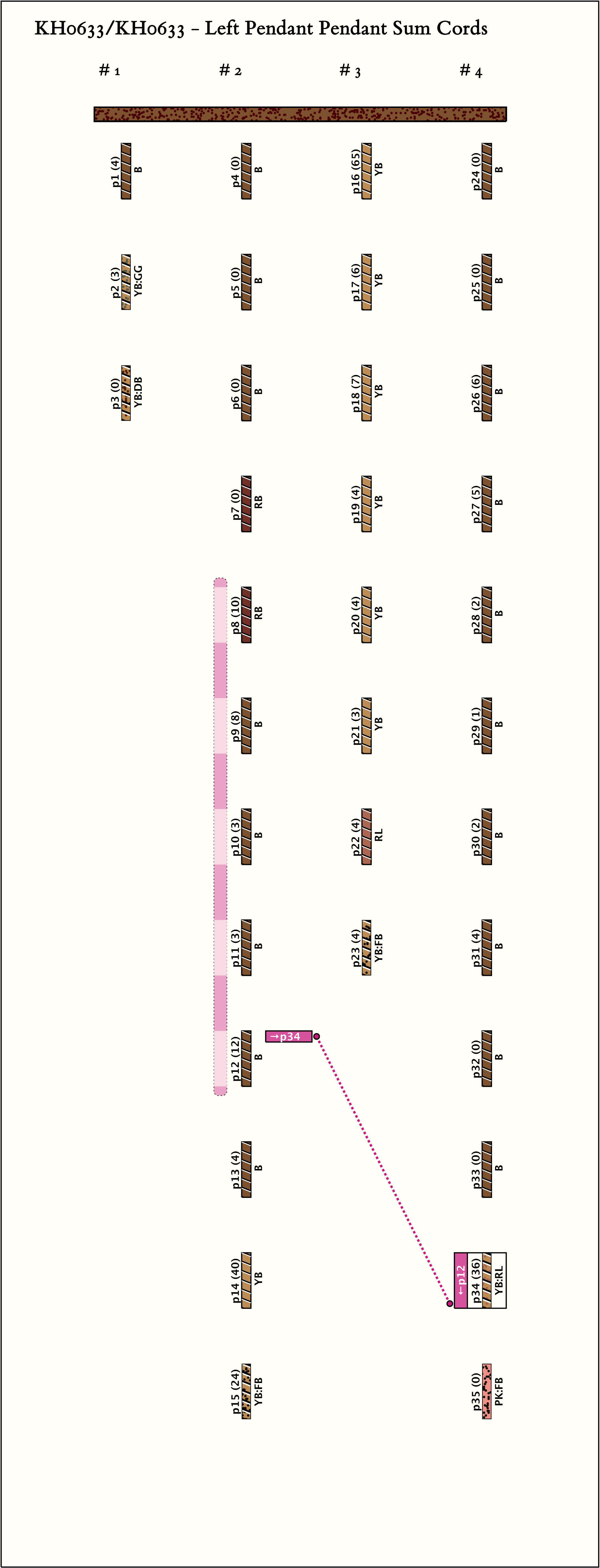

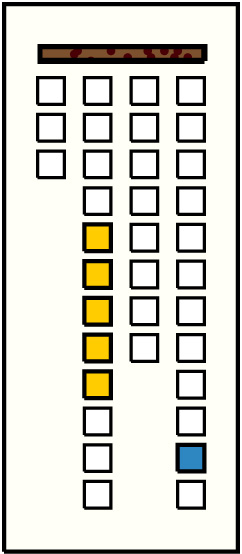

Left Handed Sums with Figure-8-Knots:     # Sums = 1,  Max # Summands = 5,   (Min, Mean, Max) Sum Values = (36, 36, 36)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g2p11 : 40YB4012g3p3: 7YB + g3p4: 4YB + g3p5: 4YB + g3p6: 3YB + g3p7: 4RL + g3p8: 4YB:FB + g4p1: 0B + g4p2: 0B + g4p3: 6B + g4p4: 5B + g4p5: 2B + g4p6: 1B❽
2
g2p12 : 24YB:FB245g3p2: 6YB + g3p3: 7YB + g3p4: 4YB + g3p5: 4YB + g3p6: 3YB❽

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1
g4p11 : 36YB:RL365∞g2p5: 10RB + g2p6: 8B + g2p7: 3B + g2p8: 3B + g2p9: 12B

Khipu Notes:
Fieldguide Notes:

Khipu 2 of 3 (three khipus tied together).

The mottled cords are the style and thickness of pendant cords and, based on their colour codes YB:DB and PR:FB, were most likely cords 24 and 25 in the third group; their colours match the penultimate and ultimate colour of both group one and two, which are missing from group 3.

All cords appear to be made of cotton

These khipus are discussed in the following videos:
Inca Khipu: The record and writing system made entirely of knots | Curator's Corner S6 Ep9
Migrating ancient Inca data to an opensource database | Khipu to Excel | Curator's Corner S6 Ep10
